HLZDME330NFCCESmart HandHeld

1 Specifications Performance • Qualcomm MSM 7227A, 1 GHz • System memory: • 512 MB of RAM • 1 GB of ROM • Android operating system Display • 3.7" WVGA TFT, capacitive touch panel • 800 x 480 resolution Multimedia Formats supported: USB connector • Micro USB connector •USB client •DC power-in (5 V, 1 A) Connectivity •Bluetooth 3.0 • IEEE Wi-Fi 802.11b/g/n WLAN • GSM 900 / 1800 / 1900 Typ eFormats Audio playbackMP3, AMR, WMA RingtoneMP3, MIDI, iMelody, WAVE, WMA Video recording 3GP, MPEG-4, H.263, H.264 Video playback3GP, MPEG-4, H.263, H.264, WMV 2 • UMTS 900 / 2100 • HSDPA / GPRS / EDGE •GPS •aGPS •NFC Camera • 5-megapixel •LED flash Expansion • microSD memory card slot (up to 32 GB) Battery • Rechargeable high density 1300 mAh Lithium-ion battery (replaceable) Note: Length of battery operation will depend on power consumption which is based on system resource use. For example, constantly using the backlight or using power-demanding applications will shorten battery life between charges. Dimensions Height117 mm Width58.5 mm Thickness11.5 mm Weight125 g (with battery) 3 Safety Battery information This product uses a Lithium-ion battery. Do not use it in a humid, wet and/or corrosive environment. Do not put, store or leave your product in or near a heat source, in a high temperature location, in strong direct sunlight, in a microwave oven or in a pressurized container, and do not expose it to temperatures over 60 °C (140 °F). Failure to follow these guidelines may cause the battery to leak acid, become hot, explode or ignite and cause injury and/or damage. Do not pierce, open or disassemble the battery. If the battery leaks and you come into contact with the leaked fluids, rinse thoroughly with water and seek medical attention immediately. For safety reasons, and to prolong the lifetime of the battery, charging will not occur at low (below 0 °C/32 °F) or high (over 40 °C/ 104 °F) temperatures. The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the talk and standby times are noticeably shorter than normal, buy a new battery. Use only manufacturer approved batteries, and recharge your battery only with manufacturer approved chargers designated for this device. 4 Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to the AC charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time. If the battery is completely discharged, it may take a few minutes before the charging indicator appears on the display or before any calls can be made. Use the battery only for its intended purpose. Never use any charger or battery that is damaged. Do not short-circuit the battery. Accidental short- circuiting can occur when a metallic object such as a coin, clip, or pen causes direct connection of the positive (+) and negative (-) terminals of the battery. These look like metal strips on the battery. This might happen, for example, when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object. Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15 °C and 25 °C (59 °F and 77 °F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing. Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. 5 Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste. Replacing the battery Your smartphone uses a Lithium-ion battery. Replace the battery with the same type as that which came bundled with your product. Use of another battery may present a risk of fire or explosion. Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children. Follow local regulations when disposing of used batteries. Disposal and recycling information Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit www.acer-group.com/public/ Sustainability/sustainability01.htm EEE yönetmeligine uygundur. It is compliant with EEE regulation. 6 Regulatory information Compliant with Russian regulatory certification RoHS compliance This product is in compliance with Directive 2002/95/ EC of the European Parliament and of the Council of 27 January 2003, on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments. Prevention of hearing loss Caution: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. This device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable EN 50332-1 and/or EN 50332-2 standards. A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille de l’utilisateur. 7 Note: For France, mobile headphones or earphones for this device have been tested to comply with the Sound Pressure requirement laid down in the applicable NF EN 50332-1:2000 and/or NF EN 50332- 2:2003 standards as required by French Article L. 5232- 1. Wireless operation channels for different domains France: Products with a 2.4 GHz WLAN device For products with 2.4 GHz Wireless LAN device operation, certain restrictions apply: • The maximum authorized power indoors is 100 mW for 2400-2483.5 MHz. • The …

Text truncated - open the document above for the full version.

AasdfasdUser’s Manual Acer Liquid Glow E330 User Guide © 2012 All Rights Reserved Acer Liquid Glow Smartphone User’s Manual Model: E330 First issue: 5/2012 Acer Liquid Glow Smartphone Model number: __________________________________ Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ Table of contents Setting up ....................................................................................................................5 Unpacking your smartphone ..................................................................................5 Getting to know your smartphone ..........................................................................5 Installing or removing the battery ...........................................................................7 Installing a SIM or microSD Card ...........................................................................8 Using your smartphone ............................................................................................9 Turning on for the first time ....................................................................................9 Locking your smartphone.......................................................................................9 Using the touchscreen..........................................................................................10 The Home screen .................................................................................................12 Managing contacts...................................................................................................17 Managing your contacts .......................................................................................17 Making calls ..............................................................................................................19 Before making a call .............................................................................................19 Making a call.........................................................................................................19 The voice call screen ............................................................................................20 Internet calling ..........................................................................................................22 Adding an Internet calling account .......................................................................22 Editing or removing an Internet calling account ...................................................22 Using Internet calling ............................................................................................22 Receiving Internet calls.........................................................................................22 Calling a contact’s Internet calling address .........................................................22 Calling a phone number using Internet calling .....................................................22 Messaging.................................................................................................................24 Creating a new message ......................................................................................24 Replying to a message .........................................................................................25 MMS messages ....................................................................................................25 Going online ..............................................................................................................27 Browsing the Internet ...........................................................................................27 Setting up your Google email ...............................................................................27 Composing an email.............................................................................................28 Setting up Email ...................................................................................................28 Maps, Navigation, Places and Latitude ................................................................29 Using the camera .....................................................................................................30 Camera icons and indicators................................................................................30 Taking a photo......................................................................................................31 Shooting a video...................................................................................................31 Supported formats ...............................................................................................31 Viewing and sharing photos and videos...............................................................31 Advanced settings....................................................................................................32 Putting your smartphone in Airplane mode ..........................................................32 Adjusting settings .................................................................................................32 Connecting to a PC ..............................................................................................36 FM radio ...............................................................................................................37 Multimedia playback.............................................................................................37 Restoring to factory settings ................................................................................39 Accessories and tips................................................................................................40 Using the headset.................................................................................................40 Using a Bluetooth headset ..............................................…

Text truncated - open the document above for the full version.

Rev. 1/1/03 Date: May 4, 2012 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: HLZDME330NFCCE Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: E330_Schem.pdf) Block Diagram (file: E330_BlkDia.pdf) Parts List (file: E330_PartsLst.pdf) Operation Description (file: E330_OpDes.pdf) Tune up Procedure (file: E330_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Harriot Lee

1/1 Date: May 4, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : HLZDME330NFCCE To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: E330_ExtPho.pdf)  Internal Photos (file: E330_IntPho.pdf)  Test Setup Photos (file: E330_Tsup.pdf)  User Manual (file: E330_UserMan.pdf) The application contains technical information, which deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Harriot Lee

Date: May 4, 2012 Power of Attorney To whom it may concern, Please be notified that I, Harriot Lee, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: HLZDME330NFCCE If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Harriot Lee Company: Acer Incorporated TEL: +886-2-8691-3289 FAX: +886-2-8691-3000 E-mail: [email protected]

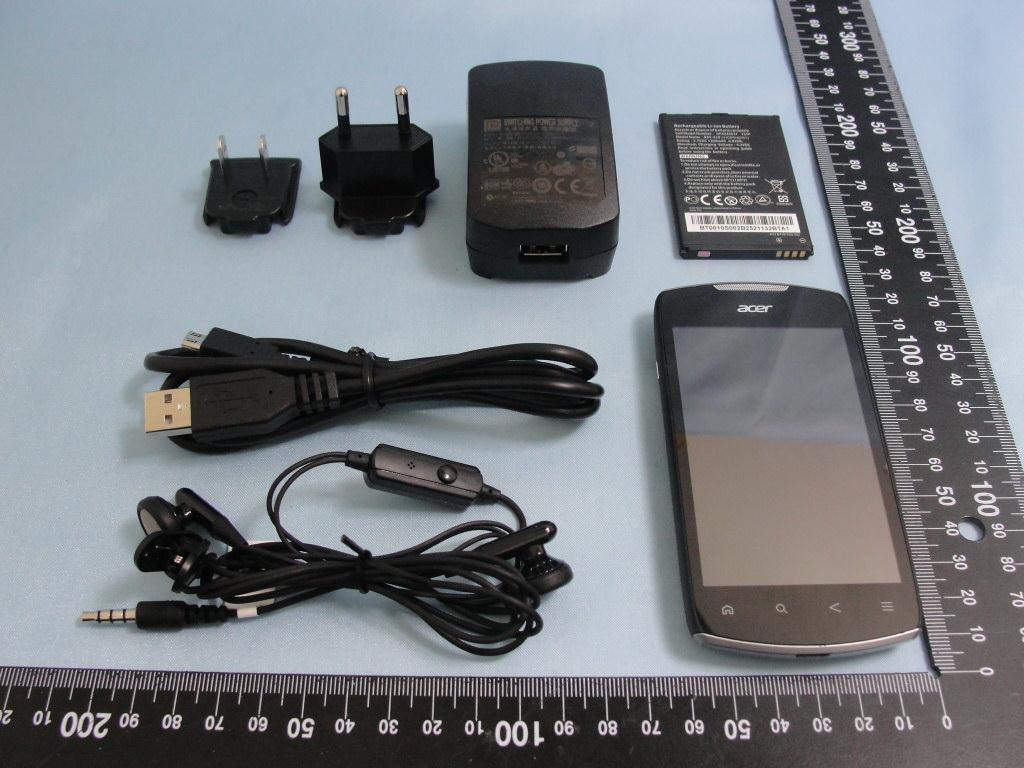

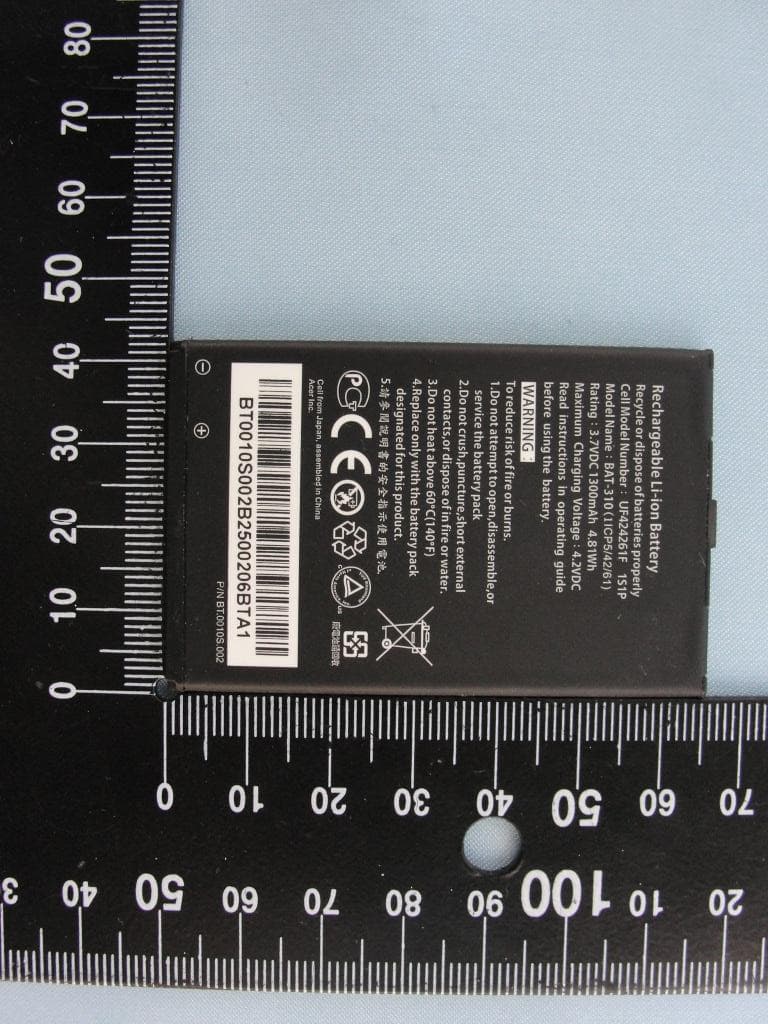

Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 1 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 2 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 3 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE List of Accessory: Specification of Accessory AC Adapter Brand Name Phihong Model Name PSAI05R-050Q Battery Brand Name Acer Model Name BAT-310 (1ICP5/42/61) Earphone Brand Name Acer Model Name KJAH4028AENCB-D1 USB Cable Brand Name Foxconn Model Name CU04C04U05-K66-EF LCD Panel Brand Name CMI Model Name PD037IA-01B Camera Brand Name CHICONY Model Name CBAB519 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 4 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE 720510 Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 5 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 6 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE

FCC ID: HLLZDME3330NFCCCE EUT Bac Battery C Label Loc ck Compartm cation ment

Date: May 4, 2012 Statement We, Acer Incorporated, states that our device, FCC ID: HLZDME330NFCCE, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Harriot Lee

Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 7 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 8 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 9 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 10 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 11 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 12 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE GPS Antenna <Rx> Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 13 of 13 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE NFC Antenna <Tx / Rx>

Photographs of EUT Report No.: EP242016 Brand Name: Acer / Model Name: E330 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE Antenna location Length Width WWAN Antenna <TX / RX> 5.0 cm 1.0 cm GPS Antenna <RX> 3.0 cm 0.5 cm WLAN&BT Antenna <TX / RX> 1.4 cm 0.8 cm NFC Antenna <TX / RX> 5.6 cm 3.2 cm 0.4 cm 0.4 cm 0.4 cm 0.5 cm 0.4 cm 8.2 cm 4.6 cm 3.3 cm 2.6 cm 1.3 cm 1.3 cm 1.3 cm WWAN Antenna <TX / RX> WLAN & Bluetooth Antenna <TX / RX> GPS Antenna <RX> NFC Antenna <TX / RX> 1.4 cm 1.2 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 25 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE FCC Test Report Report No. : FC242016 FCC Test Report APPLICANT : Acer Incorporated EQUIPMENT : Smart HandHeld BRAND NAME : Acer MODEL NAME : E330 FCC ID : HLZDME330NFCCE STANDARD : FCC 47 CFR FCC Part 15 Subpart B CLASSIFICATION : Certification The product was received on Apr. 20, 2012 and completely tested on May 03, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 25 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE FCC Test Report Report No. : FC242016 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1. GENERAL DESCRIPTION .......................................................................................................................... 5 1.1. Applicant ............................................................................................................................................ 5 1.2. Manufacturer ..................................................................................................................................... 5 1.3. Feature of Equipment Under Test ..................................................................................................... 6 1.4. Test Site ............................................................................................................................................ 7 1.5. Applied Standards ............................................................................................................................. 7 1.6. Ancillary Equipment List .................................................................................................................... 7 2. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1. Test Mode ......................................................................................................................................... 8 2.2. Connection Diagram of Test System .............................................................................................. 10 2.3. Test Software .................................................................................................................................. 11 3. TEST RESULT ........................................................................................................................................... 12 3.1. Test of AC Conducted Emission Measurement .............................................................................. 12 3.2. Test of Radiated Emission Measurement ....................................................................................... 16 4. LIST OF MEASURING EQUIPMENT ........................................................................................................ 23 5. UNCERTAINTY OF EVALUATION ........................................................................................................... 24 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 25 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE FCC Test Report Report No. : FC242016 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FC242016 Rev. 01 Initial issue of report May 10, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 25 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE FCC Test Report Report No. : FC242016 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.107 7.2.4 AC Conducted Emission < 15.107 limits < RSS-Gen table 2 limits PASS Under limit 13.10 dB at 0.198 MHz 3.2 15.109 7.2.3.2 Radiated Emission < 15.109 limits or < RSS-Gen table 1 limits (Section 6) PASS Under limit 8.70 dB at 54.030 MHz SPORTON INTERNATIONAL INC. Page Number : 5 of 25 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE FCC Test Report Report No. : FC242016 1. General Description 1.1. Applicant Acer Incorporated 8F., No. 88, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22181, Taiwan (R.O.C) 1.2. Manufacturer Qisda (Suzhou) Co., Ltd. No. 169, Zhujiang Road, New District, Suzhou, China SPORTON INTERNATIONAL INC. Page Number : 6 of 25 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE FCC Test Report Report No. : FC242016 1.3. Feature of Equipment Under Test Product Feature & Specification Equipment Smart HandHeld Brand Name Acer Model Name E330 FCC ID HLZDME330NFCCE Tx Frequency Range GSM1900 : 1850 MHz ~ 1910 MHz Bluetooth : 2400 MHz ~ 2483.5 MHz WLAN : 2400 MHz ~ 2483.5 MHz NFC : 13.56 MHz Rx Frequency Range GSM1900 : 1930 MHz ~ 1990 MHz Bluetooth : 2400 MHz ~ 2483.5 MHz WLAN : 2400 MHz ~ 2483.5 MHz GPS : 1.57542 GHz NFC : 13.56 MHz Antenna Type WWAN : PIFA Antenna WLAN : PIFA …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B3 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE FCC Test Report Report No. : FC242016 Appendix B. Setup Photographs <Conducted Emission> Mode 4 SPORTON INTERNATIONAL INC. Page Number : B2 of B3 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE FCC Test Report Report No. : FC242016 <Radiated Emission> Mode 3 LF HF SPORTON INTERNATIONAL INC. Page Number : B3 of B3 TEL : 886-3-327-3456 Report Issued Date : May 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDME330NFCCE FCC Test Report Report No. : FC242016 Mode 4 LF HF
