HLZDMZ150Smart HandHeld

1 English Product information For detailed product information, please go to www.acer.com. For service and support information, or to download the User Guide, drivers and applications, please follow the instructions below: 1. Go to www.acer.com and click Support > DRIVERS AND MANUALS. 2. Select appropriate items from Select Product Family > Select Product Line > Select Product Model. 3. Select the operating system from the drop-down menu. © 2013 All Rights Reserved Acer Liquid Z5 Quick Guide Model: Z150 This revision: 11/2013 Acer Liquid Z5 Smartphone Model number:____________________________________ Serial number: ____________________________________ Date of purchase: _________________________________ Place of purchase: ________________________________ Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions. 2 English Setting up for the first time Inserting the SIM cards and microSD Card microSD Card 1. Insert your fingernail and flip the microSD Card cover open and insert the microSD Card as illustrated. 2. Ensure that the microSD Card is inserted all the way into the card slot and secure the microSD Card cover. 3 English 3. Insert your fingernail and flip the dual SIM cover up. Insert the SIM card and micro SIM card into the appropriate slots as illustrated. 4. Ensure that the SIM card and micro SIM card are both inserted all the way and secure the dual SIM cover. micro SIM card SIM card (optional) 4 English Charging your phone Prior to intitial use, you will need to charge your smartphone for eight hours. After that you can recharge the battery as needed. Connect the AC adapter cord to the micro USB connector on your smartphone. Plug the AC adapter into any AC outlet and charge the device. Note: It is normal for the phone to heat up when charging or during long periods of use. Note: All phones are factory tested before they are released. Download and install the latest USB driver on your computer before connecting your smartphone to the computer. Visit www.acer.com/worldwide/support/ download.htm for the latest driver. Resetting and restarting the phone Open Settings from the Applications menu, then tap Backup & reset. Tap Factory data reset and then tap Reset phone. Tap Erase everything to format your phone. If your phone is no longer responding, press and hold the power button and the volume up button simultaneously for 10 seconds to restart the phone.

Safety Replacing the battery Replace the battery with the same type as that which came bundled with your product. Use of another battery may present a risk of fire or explosion. Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children. Follow local regulations when disposing of used batteries. Disposal and recycling information Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit www.acer-group.com/public/Sustainability It is compliant with EEE regulation. Regulatory information Compliant with Russian regulatory certification RoHS compliance This product is in compliance with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011, on the restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment and its amendments. FCC regulations This mobile phone c omplies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digit al device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reaso nable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If th is equipment does cause harmful interference to radio or television reception, which can be dete rmined by turning the equipment off and on, the user is encouraged to t ry to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approv ed by the party responsible for compliance could void the user's authority to operate the equipment. RF exposure warning The eq uipment complies with FCC RF exposure limits set forth for an uncontrolled environm ent. The antenna(s) used for this transmitter must n ot be co-located or operating in conjunction with any other antenna or transmitter. RF exposure information (SAR) This mobile phone meets the government's requirements for exposure to ra dio waves. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) ener gy set by the Federal Com munications Com mission of the U.S . Government. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone wh ile operating can be well below the maximum value. This is because the pho ne is designed to opera te at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The highest SAR va lue for US mo del phones as reported to the FCC when tested for use at the ear is 0.32 W/kg and when worn on the body, as described in this user guide, is 0.70 W/kg. Important: Body-worn measurements differ among phone models, depending upo n available enhancements and FCC requirements. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirements. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in co mpliance with the FCC RF exposure guidelines. SAR information on th is model p hone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on  FCC ID: HLZDMZ150 (for US models). For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with accessories that contain no metal and that position the handset a minimum of 1 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. If you do not use a bo dy-worn accessory and are not holding the pho ne at t he ear, position the han dset a minimum of 1 cm from you r body when the phone is switched on.

Date: November 28, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: HLZDMZ150 To Whom It May Concern: We, Acer Incorporated, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Harriot Lee [email protected]

Rev. 1/1/03 Date: November 28, 2013 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: HLZDMZ150 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description  Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Harriot Lee [email protected]

1/1 Date: November 28, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : HLZDMZ150 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Harriot Lee [email protected]

Date: November 28, 2013 Power of Attorney To whom it may concern, Please be notified that I, Harriot Lee, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: HLZDMZ150 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Harriot Lee [email protected]

Back of the Devicce Label Location

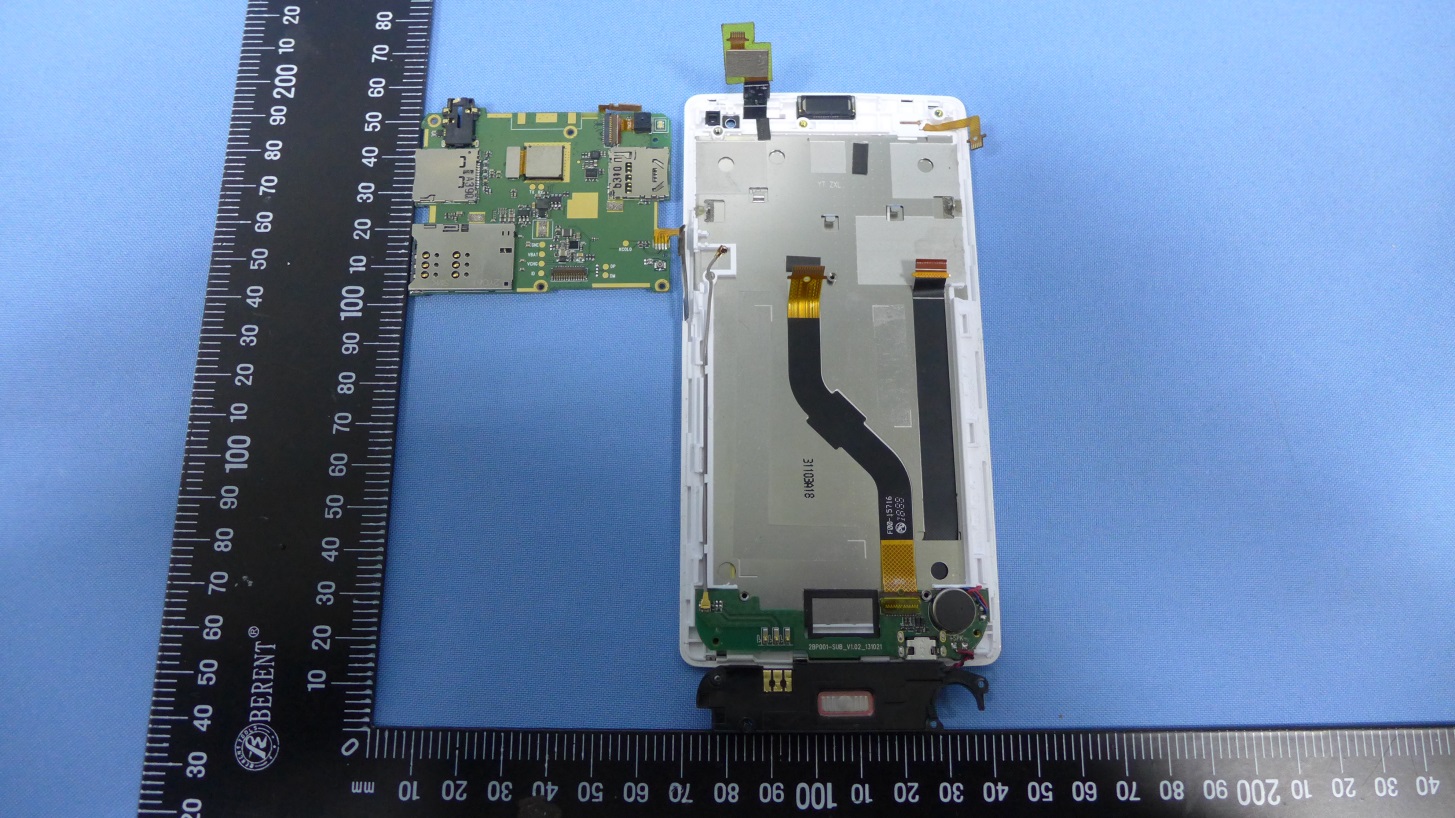

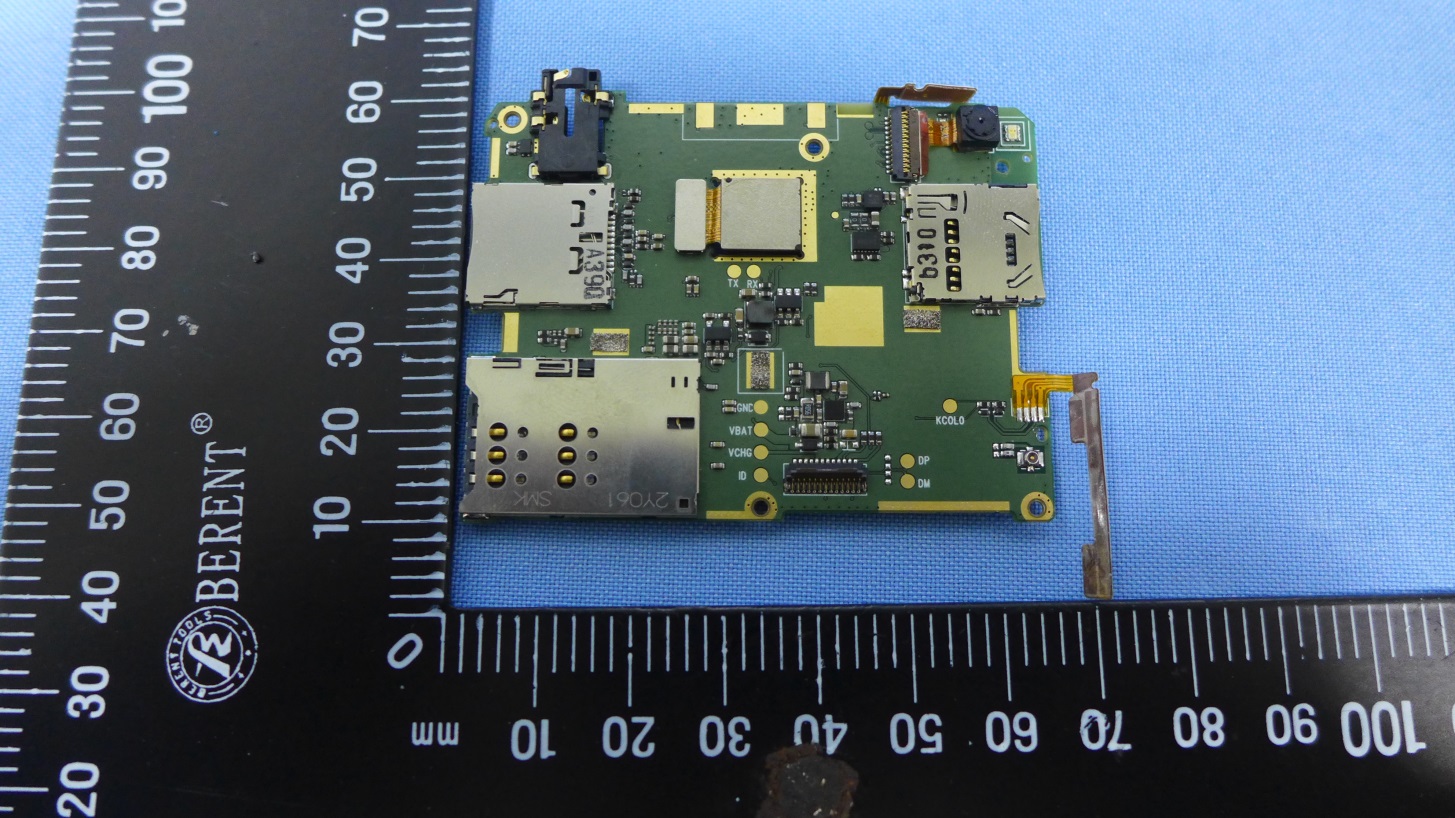

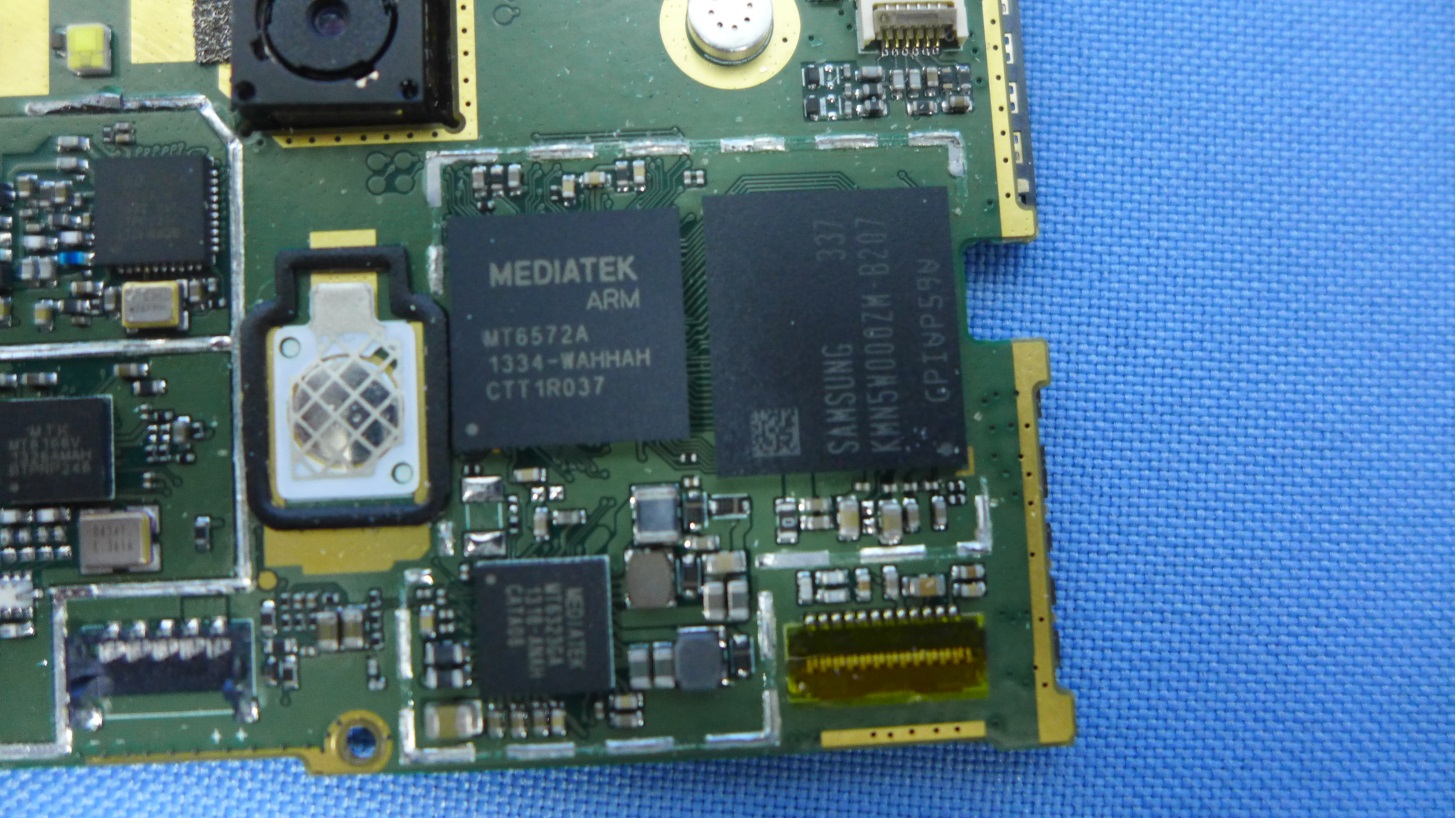

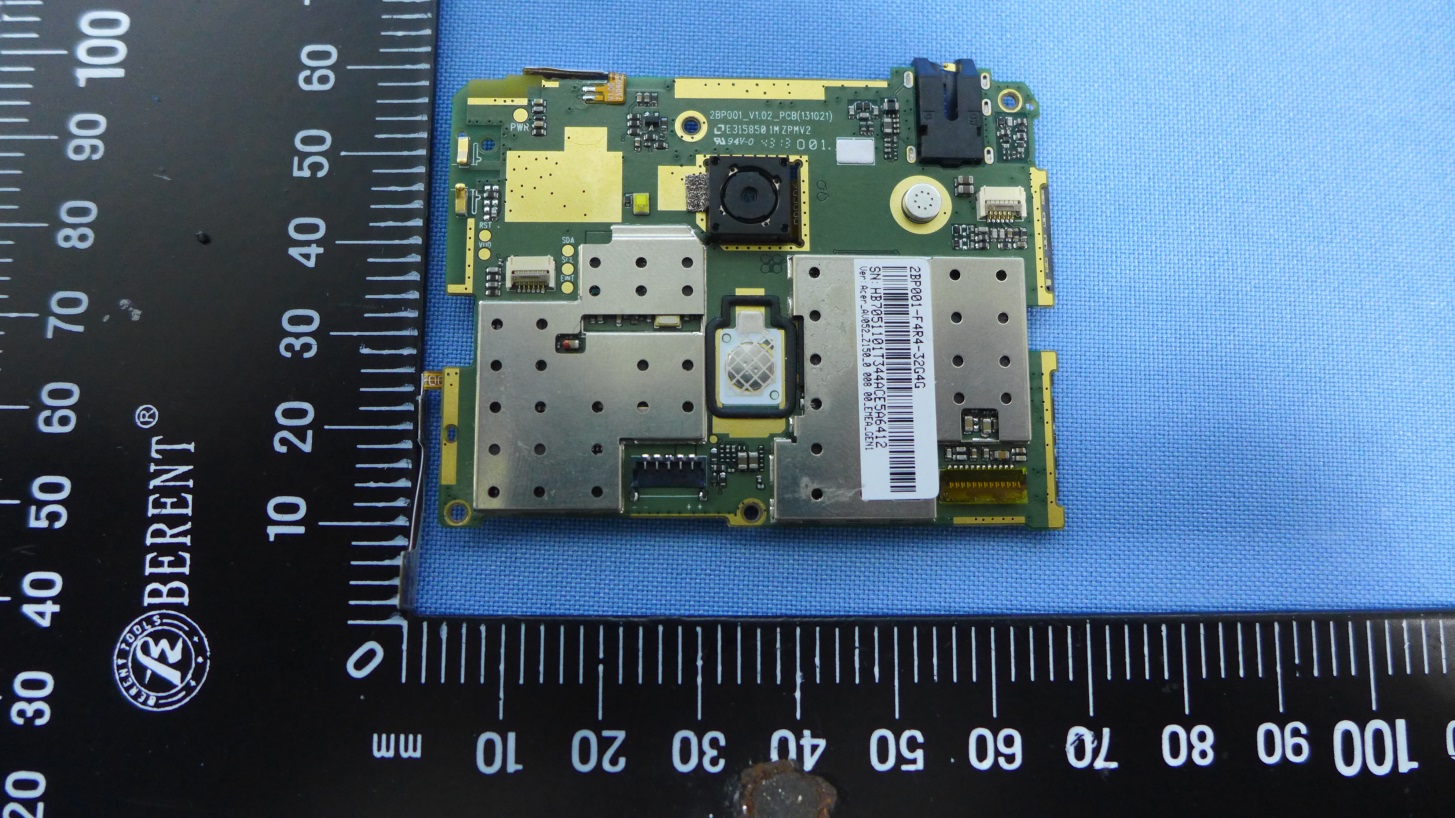

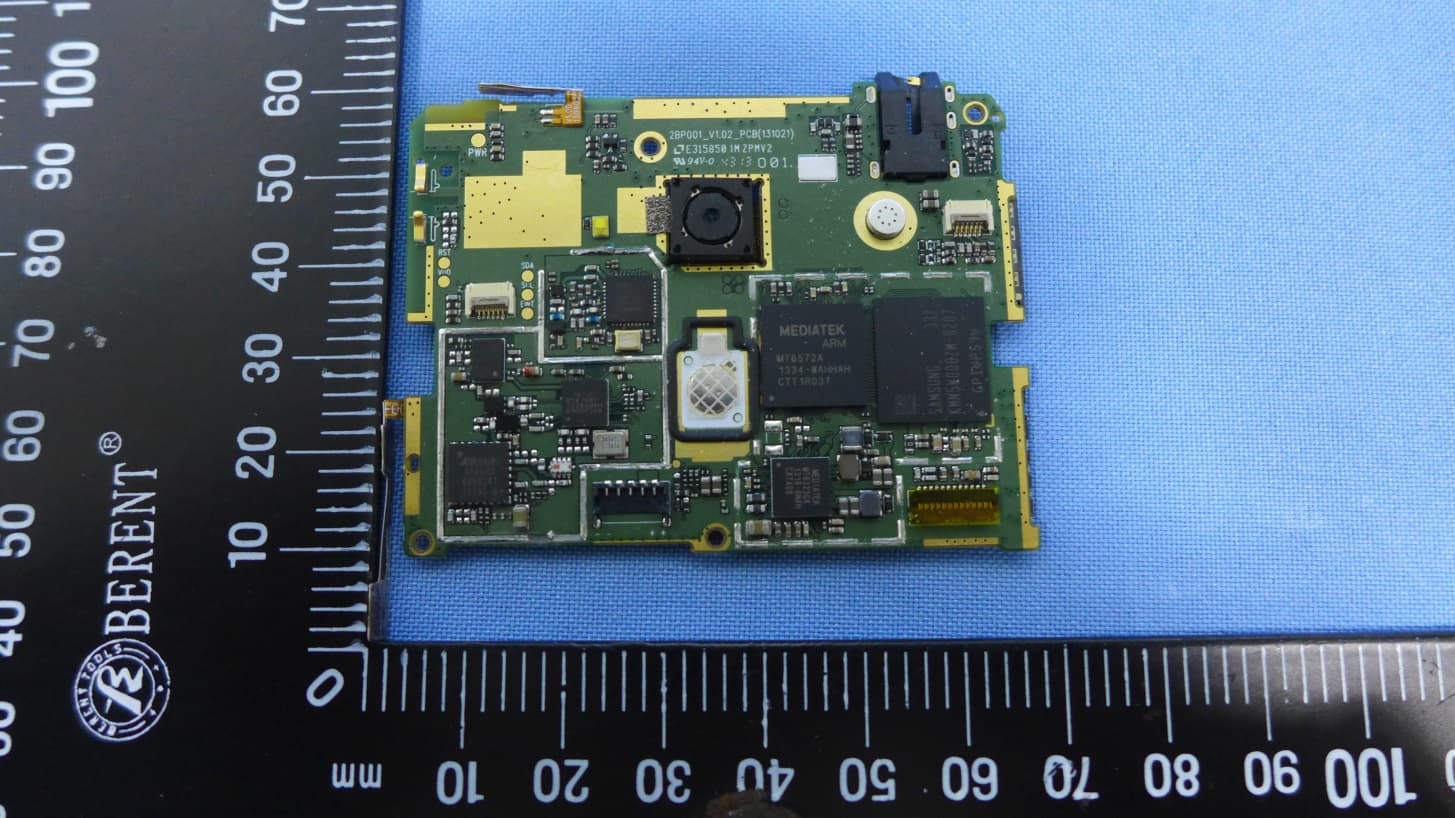

Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 3. Internal Photograph of EUT Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx> WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP3N1490 Brand Name: Acer; Model Name: Z150; Marketing Name: Liquid Z5 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 22 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx>

SPORTON INTERNATIONAL INC. Page Number : B1 of B1 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDMZ150 FCC SAR Test Report Report No. : FA3N1490 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.11.22 System Check_Head_835MHz_131122 DUT: D835V2 - SN:4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_131122 Medium parameters used: f = 835 MHz; σ = 0.905 mho/m; ε r = 42.233; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(9.35, 9.35, 9.35); Calibrated: 2013.06.20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2013.06.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.074 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.783 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.628 W/kg SAR(1 g) = 2.42 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 3.077 mW/g 0 dB = 3.080mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.11.21 System Check_Head_1900MHz_131121 DUT: D1900V2 - SN:5d118 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_131121 Medium parameters used: f = 1900 MHz; σ = 1.425 mho/m; ε r = 38.89; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(8.04, 8.04, 8.04); Calibrated: 2013.06.20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2013.06.19 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.306 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.749 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 18.040 W/kg SAR(1 g) = 9.91 mW/g; SAR(10 g) = 5.2 mW/g Maximum value of SAR (measured) = 14.260 mW/g 0 dB = 14.260mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.11.22 System Check_Head_2450MHz_131122 DUT: D2450V2 - SN:840 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_131122 Medium parameters used: f = 2450 MHz; σ = 1.817 mho/m; ε r = 39.195; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(7.05, 7.05, 7.05); Calibrated: 2013.06.20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2013.06.19 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (71x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 20.984 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.907 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 27.988 W/kg SAR(1 g) = 13.1 mW/g; SAR(10 g) = 5.9 mW/g Maximum value of SAR (measured) = 20.394 mW/g 0 dB = 20.390mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.11.22 System Check_Body_835MHz_131122 DUT: D835V2 - SN:4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_131122 Medium parameters used: f = 835 MHz; σ = 0.983 mho/m; ε r = 54.851; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(9.48, 9.48, 9.48); Calibrated: 2013.06.20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2013.06.19 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.877 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.780 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.359 W/kg SAR(1 g) = 2.25 mW/g; SAR(10 g) = 1.48 mW/g Maximum value of SAR (measured) = 2.860 mW/g 0 dB = 2.860mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.11.21 System Check_Body_1900MHz_131121 DUT: D1900V2 - SN:5d118 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_131121 Medium parameters used: f = 1900 MHz; σ = 1.555 mho/m; ε r = 53.533; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(7.52, 7.52, 7.52); Calibrated: 2013.06.20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2013.06.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.658 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.566 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 17.973 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.4 mW/g Maximum value of SAR (measured) = 14.613 mW/g 0 dB = 14.610mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.11.21 System Check_Body_2450MHz_131121 DUT: D2450V2 - SN:840 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_131121 Medium parameters used: f = 2450 MHz; σ = 1.94 mho/m; ε r = 51.413; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.7 …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : C1 of C1 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDMZ150 FCC SAR Test Report Report No. : FA3N1490 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows.

SPORTON INTERNATIONAL INC. Page Number : 1 of 51 TEL : 886-3-327-3456 Report Issued Date : Dec. 12, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDMZ150 FCC SAR Test Report Report No. : FA3N1490 FCC SAR Test Report APPLICANT : Acer Incorporated EQUIPMENT : Smart HandHeld BRAND NAME : Acer MODEL NAME : Z150 MARKETING NAME : Liquid Z5 FCC ID : HLZDMZ150 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was completely tested on Nov. 22, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 51 TEL : 886-3-327-3456 Report Issued Date : Dec. 12, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZDMZ150 FCC SAR Test Report Report No. : FA3N1490 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Maximum RF output power among production units ...............................................................................................7 3.3 Applied Standard .....................................................................................................................................................8 3.4 Device Category and SAR Limits ............................................................................................................................8 3.5 Test Conditions ........................................................................................................................................................8 4. Specific Absorption Rate (SAR) ....................................................................................................................................9 4.1 Introduction .............................................................................................................................................................9 4.2 SAR Definition .........................................................................................................................................................9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder .......................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. System Verification Procedures .................................................................................................................................18 7.1 Purpose of System Performance check ................................................................................................................18 7.2 System Setup ......................................................................................................…

Text truncated - open the document above for the full version.

SPORTON INT TEL : 86-0512- FAX : 86-0512 FCC ID : HLZ D The p SPOR has b applic The te appro repro Re v Ap TERNATIONAL -5790-0158 -5790-0958 DMZ150 FCC RF APPLIC EQUIPM BRAND MODEL MARKE FCC ID STANDA CLASSI product was RTON INTER been evaluat cable techn est results i oval of SPO oduced exce viewed by: J pproved by: SP No. 3- L (KUNSHAN) I F Test Rep FCC CANT MENT D NAME L NAME ETING NAM ARD IFICATION received on RNATIONAL ted in accor ical standar n this repor ORTON INT ept in full. Joseph Lin / : Jones Tsai PORTON -2, PingXia NC. port C RF :A :S :A :Z1 ME : Li :H :FC N :(D n Nov. 14, 20 L (KUNSHAN rdance with rds. rt apply excl TERNATIONA / Supervisor i / Manager N INTERN ang Road, Tes Acer Incorp mart Hand Acer 150 iquid Z5 LZDMZ15 CC Part 1 DTS) Digit 013 and tes N) INC., wou the proced lusively to t AL (KUNSH r NATIONA , Kunshan t Re porated dHeld 50 5 Subpart tal Transm ting was co uld like to d ures and sh he tested m HAN) INC., AL (KUNS n, Jiangsu Page Numb Report Issu Report Vers R port t C §15.247 mission Sy mpleted on declare that hown to be c odel / samp the test re SHAN) IN u Province ber : 1 o ued Date : De sion : Re Report No. : 7 ystem Nov. 25, 20 the tested compliant w ple. Without eport shall NC. e, P.R.C. of 43 ec. 12, 2013 ev. 01 FR3N1490B 13. We, sample with the written not be B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 43 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 12, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ150 FCC RF Test Report Report No. : FR3N1490B TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ................................................................................ 5 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Site ........................................................................................................................................ 6 1.7 Applied Standards ............................................................................................................................. 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Descriptions of Test Mode ................................................................................................................. 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ...............…

Text truncated - open the document above for the full version.
