HLZDMZ160Smark Handheld

Z4 Quick guide Kurzanleitung Guía rápida Guide rapide Guida rapida Snelgids Guia rápido 1 English Product information For detailed product information, please go to www.acer.com. For service and support information, or to download the User Guide, drivers and applications, please follow the instructions below: 1. Go to www.acer.com and click Support > DRIVERS AND MANUALS. 2. Select appropriate items from Select Product Family > Select Product Line > Select Product Model. 3. Select the operating system from the drop-down menu. © 2014 All Rights Reserved Acer Liquid Z4 Quick Guide Model: Z160 This revision: 02/2014 Acer Liquid Z4 Smartphone Model number:____________________________________ Serial number: ____________________________________ Date of purchase: _________________________________ Place of purchase: ________________________________ Androidis atrademark ofGoogleInc.Useofthis trademark is subjecttoGooglePermissions. 2 English Setting up for the first time Inserting the SIM cards and microSD card 1. Insert your fingernail under the cover to open it and remove the battery. Insert the micro SIMs and microSD card as illustrated. 2. Ensure that the micro SIMs and microSD card are inserted all the way into their slots. ❙ ✁✂✄☎❞✆✝ ❙ ✁✂✄☎❞ ✞ ✁▼✂☎♦❙✟✂✄☎❞ *Optional depending on SKU 3 English 3. Align the gold-colored connectors on the battery with the connectors at the top of the battery compartment. Replace the battery. 4. Replace the cover and push down until it clicks in place. Charging your phone Prior to initial use, you will need to charge your smartphone for eight hours. After that you can recharge the battery as needed. 4 English Connect the AC adapter cord to the micro USB connector on your smartphone. Plug the AC adapter into any AC outlet and charge the device. Note:Itis normalfor thephonetoheatupwhen chargingor duringlongperiods ofuse. Note:Allphones arefactory testedbeforetheyare released. Download and install the latest USB driver on your computer before connecting your smartphone to the computer. Visit www.acer.com/worldwide/support/ download.htm for the latest driver. Resetting and restarting the phone Open Settings from the Applications menu, then tap Backup & reset. Tap Factory data reset and then tap Reset phone. Tap Erase everything to format your phone. If your phone is no longer responding, press and hold the power button and the volume up button simultaneously for 10 seconds to restart the phone. 1 English Produktinformationen Detaillierte Produktinformationen finden Sie auf www.acer.de. Wenn Sie Hilfe und Informationen benötigen oder das Benutzerhandbuch, Treiber und Anwendungen herunterladen möchten, gehen Sie bitte folgendermaßen vor. 1. Besuchen Sie www.acer.de und klicken Sie auf Support > TREIBER UND HANDBÜCHER. 2. Wählen Sie die gewünschten Elemente unter Produktreihe auswählen > Produkttyp auswählen > Produktmodell auswählen aus. 3. Wählen Sie im Dropdown-Menü das Betriebssystem aus. © 2014 Alle Rechte vorbehalten Acer Liquid Z4 Smartphone Kurzanleitung Modell: Z160 Ausgabe: 02/2014 Acer Liquid Z4 Smartphone Modellnummer: _________________________________ Seriennummer: _________________________________ Kaufdatum: ____________________________________ Kaufort: _______________________________________ Android ist eine Handelsmarke von Google Inc. Diese Handelsmarke darf nur mit Genehmigung von Google verwendet werden. 2 Deutsch Erstmalige Einrichtung Einsetzen der SIM-Karten und der microSD-Karte 1. Drücken Sie mit Ihrem Fingernagel unter der Abdeckung, um sie zu öffnen und den Akku zu entfernen. Setzen Sie die micro SIM-Karten und die microSD-Karte wie abgebildet ein. 2. Schieben Sie die micro SIM-Karten und die microSD-Karte vollständig in die Einschübe ein. ❙ ✁✂✄☎❞✆✝ ❙ ✁✂✄☎❞ ✞ ✁▼✂☎♦❙✟✂✄☎❞ *Optional je nach SKU 3 Deutsch 3. Richten Sie die goldenen Kontakte am Akku an den Kontakten an der Oberseite des Akkufachs aus. Legen Sie den Akku wieder ein. 4. Bringen Sie die Abdeckung wieder an und drücken Sie sie nach unten, bis sie einrastet. Laden des Telefons Vor der ersten Verwendung muss das Smartphone acht Stunden lang geladen werden. Anschließend können Sie den Akku falls nötig wieder laden. 4 Deutsch Schließen Sie das AC-Adapterkabel an den micro- USB-Anschluss des Smartphones an. Schließen Sie das Netzteil an eine Netzsteckdose an und laden Sie das Gerät auf. Hinweis: Es ist normal, dass sich das Telefon während des Ladevorgangs und während längerer Bedienung erhitzt. Hinweis: Alle Telefone werden vor der Herausgabe werkseitig getestet. Laden Sie den neuesten USB-Treiber herunter und installieren Sie ihn auf dem Computer, bevor Sie das Smartphone mit diesem verbinden. Den neuesten Treiber finden Sie unter www.acer.com/worldwide/ support/download.htm. Das Telefon zurücksetzen und neu starten Öffnen Sie Einstellungen im Anwendungen-Menü und tippen Sie auf Sichern & Zurücksetzen. Tippen Sie auf Auf Werkszustand zurück und anschließend auf Telefon zurücksetzen. Tippen Sie auf Alles löschen, um das Telefon zu formatieren. Wenn das Telefon nicht mehr reagiert, halten Sie die Ein/Aus-Taste und die Lauter-Taste gleichzeitig 10 Sekunden lang gedrückt, um das Telefon neu zu starten. 1 English Información del producto Para obtener información detallada sobre el producto, vaya a www.acer.com. Para obtener información sobre servicio y asistencia o para descargar la guía del usuario, controladores y aplicaciones, siga estas instrucciones: 1. Vaya a www.acer.com y haga clic en Soporte > CONTROLADORES Y MANUALES. 2. Seleccione los elementos adecuados en Escoja Familia Producto > Escoja Línea Producto > Escoja Modelo Producto. 3. Seleccione el sistema operativo en el menú desplegable. © 2014 Todos los derechos reservados Guía rápida de Acer Liquid Z4 Modelo: Z160 Esta revisión: 02/2014 Acer Liquid Z4 Smartphone Número de modelo: ______________________________ Número de serie: ________________________________ Fecha de compra: _______________________________ Lugar de compra: ______…

Text truncated - open the document above for the full version.

Safety Replacing the battery Replace the battery with the same type as that which came bundled with your product. Use of another battery may present a risk of fire or explosion. ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children. Follow local regulations when disposing of used batteries. ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ Disposal and recycling information Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit www.acer- group.com/public/Sustainability It is compliant with WEEE regulation RoHS compliance This product is in compliance with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011, on the restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment and its amendments. FCC regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC regulations This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." CAN ICES-3(B)/NMB-3(B) RF exposure information (SAR) This device meets the FCC/IC requirements on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The unit of measurement for the FCC/IC limit is the "Specific Absorption Rate" (SAR). The SAR limit set by the FCC/IC is 1.6 W/kg, averaged over 1 g of tissue. The FCC and IC have granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC and IC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on the FCC ID for your device, which can be found on the product labeling of your device. For body-worn operation, this device has been tested use with accessories that contain no metal and that position the handset a minimum of 1.0 cm from the body. Use of other accessories may not ensure compliance with RF exposure. If you do not use a body-worn accessory and are not holding the device at the ear, position the handset a minimum of 1.0 cm from your body when the device is switched on. During use, the actual SAR level is usually much lower than the maximum value. In general, the closer you are to a base station, the lower the transmission output of your device. To reduce exposure to RF energy, use a hands-free accessory or other similar option to keep this device away from your head and body.

Date: April 2, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: HLZDMZ160 To Whom It May Concern: We, Acer Incorporated, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Harriot Lee [email protected]

Rev. 1/1/03 Date: April 2, 2014 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: HLZDMZ160 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description  Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Harriot Lee [email protected]

Date: April 2, 2014 Power of Attorney To whom it may concern, Please be notified that I, Harriot Lee, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: HLZDMZ160 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Harriot Lee [email protected]

1/1 Date: April 2, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : HLZDMZ160 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Harriot Lee [email protected]

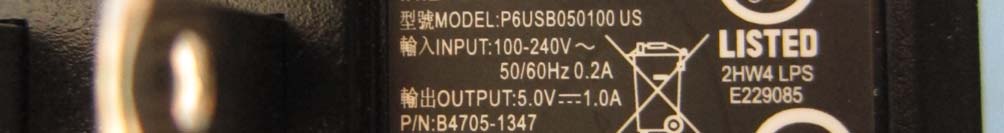

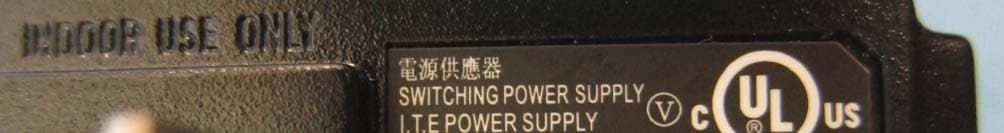

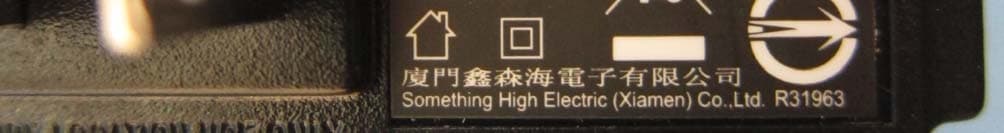

Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 1. External Photograph of EUT Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 List of Accessory: Specification of Accessory AC Adapter Brand Name Something High Electric (Xiamen) Co., Ltd. Model Name P6USB050100 US Battery Brand Name acer Model Name BAT-611 Earphone Brand Name LanF Electronic Technology Co., Ltd. Model Name LF-H0102 Signal Line Type 1.29m, unshielded cable USB Cable Brand Name Suzhou Kelt Technology Development Co., Ltd. Model Name KLC-1834 Signal Line Type 0.8m, shielded cable without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 AC Adapter Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Battery Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160

Back of the EUT Label Location Battery Compartment Label locates in the battery compartment and is visible to the users as they install the SIM card.

15 mm49.15 64.8mm 49.15x64.8 Z6 Packing SPEC-V2_2014-3-3 FCCID:HLZDMZ160 IC:1754F-DMZ160

Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 3. Internal Photograph of EUT Bluetooth & WLAN & GPS Antenna WWAN Antenna Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP421813 Brand Name: Acer; Model Name: Z160 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 04, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 01, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 FCC SAR Test Report Report No. : FA421813 FCC SAR Test Report APPLICANT : Acer Incorporated EQUIPMENT : Smart HandHeld BRAND NAME : Acer MODEL NAME : Z160 MARKETING NAME : Liquid Z4 FCC ID : HLZDMZ160 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was testing completed on Mar. 26, 2014. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 55 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 01, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 FCC SAR Test Report Report No. : FA421813 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Maximum RF output power among production units ...............................................................................................7 3.3 Applied Standard .....................................................................................................................................................8 3.4 Device Category and SAR Limits ............................................................................................................................8 3.5 Test Conditions ........................................................................................................................................................8 4. Specific Absorption Rate (SAR) ....................................................................................................................................9 4.1 Introduction .............................................................................................................................................................9 4.2 SAR Definition .........................................................................................................................................................9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder .......................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. System Verification Procedures .................................................................................................................................19 7.1 Purpose of System Performance check ................................................................................................................19 7.2 System Setup ...............................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 01, 2014 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ160 FCC SAR Test Report Report No. : FA421813 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.03.06 System Check_Head_835MHz_140306 DUT: D835V2 - SN:4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_140306 Medium parameters used: f = 835 MHz; σ = 0.905 mho/m; ε r = 42.26; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(9.35, 9.35, 9.35); Calibrated: 2013.06.20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2013.06.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.138 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.102 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.707 W/kg SAR(1 g) = 2.47 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 3.144 mW/g 0 dB = 3.140mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.03.26 System Check_Head_835MHz_140326 DUT: D835V2 - SN:4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_140326 Medium parameters used: f = 835 MHz; σ = 0.893 mho/m; ε r = 41.404; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：22. °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(9.35, 9.35, 9.35); Calibrated: 2013.06.20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2013.06.19 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.918 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.205 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.521 W/kg SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.987 mW/g 0 dB = 2.990mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.03.26 System Check_Head_1900MHz_140326 DUT: D1900V2 - SN:5d118 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_1403 26 Medium parameters used: f = 1900 MHz; σ = 1.424 mho/m; ε r = 38.971; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(8.04, 8.04, 8.04); Calibrated: 2013.06.20 - Sensor-Surface: 2mm (Mechanical Surface Detection…

Text truncated - open the document above for the full version.
