HLZDMZ220AWSSmart HandHeld

Product information For detailed product information, please go to www.acer.com. For service and support information, or to download the User Guide, drivers and applications, please follow the instructions below: 1. Go to www.acer.com and click Support > DRIVERS AND MANUALS. 2. Select appropriate items from Group > Series > Products. 3. Select the operating system from the drop-down menu. © 2014 All Rights Reserved Acer Liquid Z220, Liquid M220 Quick Guide Model: Z220AWS, M 220AWS This revision: 01/2015 A c er Liquid Z220, Liquid M220 Smartphone Model number:____________________________________ Serial number: ____________________________________ Date of purchase: _________________________________ Place of purchase: ________________________________ Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions. Unpacking your smartphone Your new smartphone comes packed in a protective box. Carefully unpack the box and remove the contents. If any of the following items is missing or damaged, contact your dealer immediately: • Your new Acer smartphone • USB cable • AC adapter • Headset Getting to know your smartphone Views 3 2 6 7 9 1 5 4 8 Note In-box content varies depending on country and region. Charging the battery For initial use, you need to charge your smartphone for eight hours. After that you can recharge the battery as needed. Connect the AC adapter cord to the micro USB connector on your smartphone. No.ItemDescription 13.5 mm headphone jack Connects to stereo headphones. 2Micro USB connectorConnects to a USB cable/charger. 3Smartphone speakerEmits audio from your smartphone; suitable for holding to your ear. 4Front-facing cameraUse for self-portrait images and online video chat. 5Touchscreen4-inch capacitive touchscreen to display data, smartphone content and enter information. 6Volume up/down buttonIncreases or decreases the smartphone volume. 7Power buttonPress to turn the screen on/off or enter sleep mode; press and hold to turn the smartphone on or off. 8CameraA camera for taking high-resolution images. 9FlashLED flash for camera. Specifications Performance • 1.2 GHz dual-core processor • System memory: • ROM 8 GB eMMC + RAM 1 GB • Android operating system Display • 4" TFT LCD, capacitive touchscreen • 480 x 800 resolution Multimedia Formats supported: USB connector • Micro USB connector • USB client • DC power-in (5 V, 0.5 A) Note Specifications may vary depending on region and configuration. TypeFormats ImageJPEG, GIF, PNG, BMP Audio playbackMP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC, MIDI, WAVE RingtoneMP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC, MIDI, WAVE Video recordingH.263, H.264, MPEG4 Video playbackH.263, H.264, MPEG4, VP8 Connectivity • Bluetooth 4.0 • IEEE 802.11b/g/n • GSM 850 / 900 / 1800 / 1900 MHz • HSPA / WCDMA • 850 MHz (B5) / 1700 MHz (B4) • HSPA+ / GPRS / EDGE •GPS *Frequency depends on model. Camera • 5 MP rear camera (Auto focus) • 2 MP front camera (Fixed focus) Expansion • microSD memory card slot (up to 32 GB) Battery • 1300 mAh Lithium-ion battery Note Length of battery operation will depend on power consumption which is based on system resource use. For example, constantly using the backlight or using power-demanding apps will shorten battery life between charges. Dimensions Height125.3 mm Width64 mm Thickness9.57 mm Weight120 g (with battery) Setting up for the first time Inserting the SIM cards and microSD card 1. Turn off the phone by pressing and holding the power button. 2. Insert your fingernail into the notch located at the bottom of the phone and remove the cover as illustrated. 3. Insert the SIM or microSD card as shown. 4.Align the gold-colored connectors on the battery with the connectors at the top of the battery compartment and insert the battery. microSD card SIM 1 Micro SIM 2 5. Replace the cover by aligning the tabs on the cover into the slots on the phone. Gently press the cover until it snaps in place. Charging your phone For initial use, you need to charge your smartphone for eight hours. After that you can recharge the battery as needed. Connect the AC adapter cord to the micro USB connector on your smartphone. Plug the AC adapter into any AC outlet and charge the device. It is normal for the phone to heat up when charging or during long periods of use. All phones are factory tested before release. Resetting and restarting the phone Open Settings from the Applications menu, then tap Backup & reset. Tap Factory data reset and then tap Reset phone. Tap Erase everything to format your phone. If your phone is no longer responding, press and hold the power button and volume up button simultaneously for 8 to 10 seconds to reset the phone. Replacing the battery Replace the battery with the same type as that which came bundled with your product. Use of another battery may present a risk of fire or explosion. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children. Follow local regulations when disposing of used batteries. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Disposal and recycling information Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit www.acer- group.com/public/Sustainability It is compliant with WEEE regulation RoHS compliance This product is in compliance with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011, on the restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment and its amendments. FCC regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This de…

Text truncated - open the document above for the full version.

Date: May 18, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD2046 Subject: Request for Confidentiality FCC ID: HLZDMZ220AWS To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Part List Operational Description Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Harriot Lee [email protected]

Date: May 18, 2015 F ederal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: HLZDMZ220AWS To Whom It May Concern: We hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. For Part 15B report, please refer to report number: FD510940-02 issued by SPORTON International Inc. which is located on No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. (FCC site registration number: TW1022) Sincerely yours, Harriot Lee [email protected]

Letter of Authorization Company: Acer Incorporated A ddress: 8F, 88, Sec 1, Hsin Tai Wu Rd, Hsichih, Taipei Hsien 221, Taiwan Product Name: Smart HandHeld Model Number: Z220AWS, M220AWS W e authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: •Ap proval applications (includes complete product documentation package, including Confidential information) and procedures •Payment of approval fees W e declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. N ame: Harriot Lee Date: May 18, 2015 Title: Manager S ignature of applicant:

Date: May 18, 2015 Power of Attorney To whom it may concern, Please be notified that I, Harriot Lee, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. An y and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. W e further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). T his authorization is limited to the product of as following: FCC ID: HLZDMZ220AWS I f you have any acknowledgement and response, please send it to Sporton International Inc. directly. S hould you have any questions or comments regarding this matter, please have my best attention. Sin cerely yours, Harriot Lee [email protected]

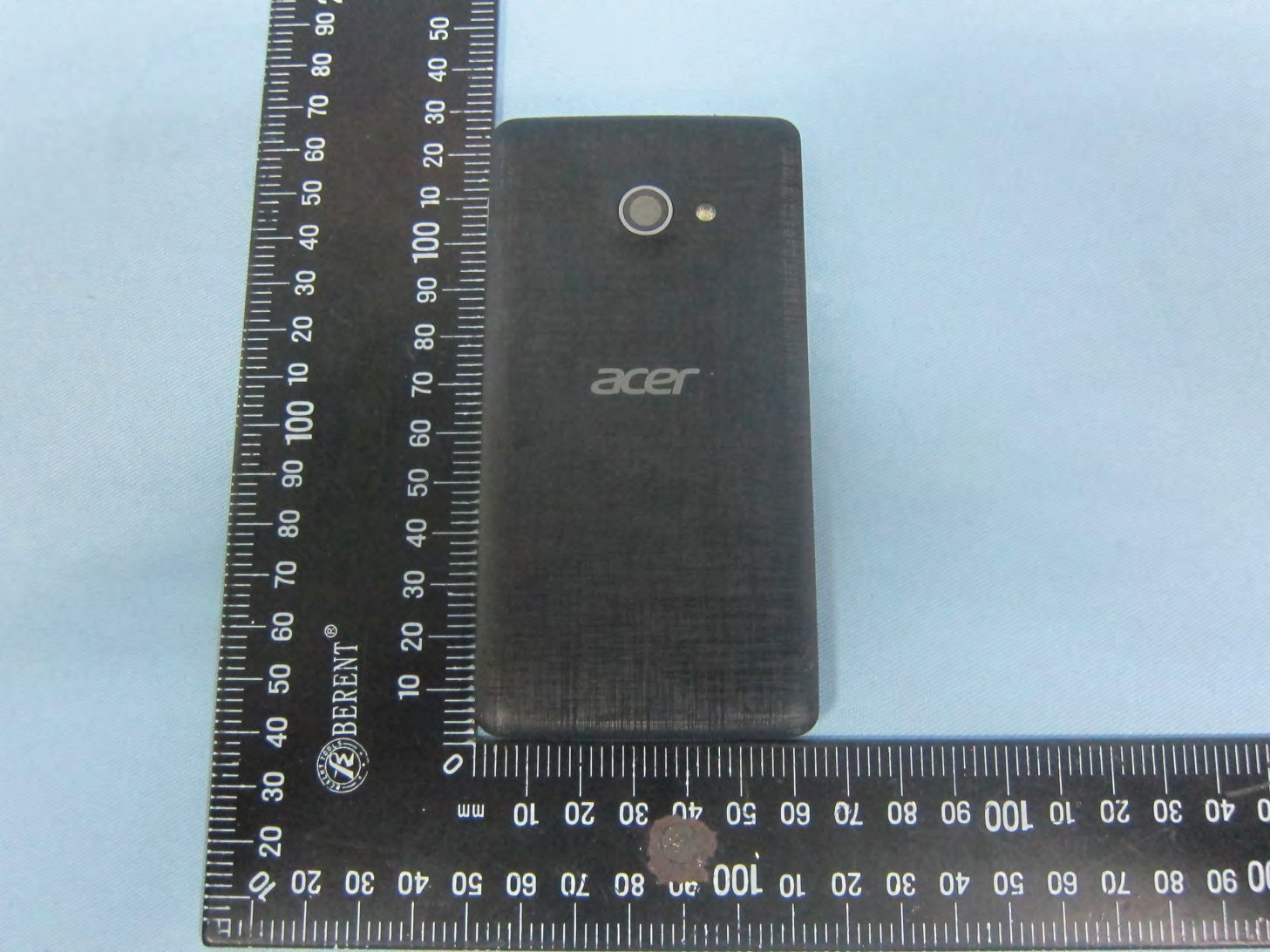

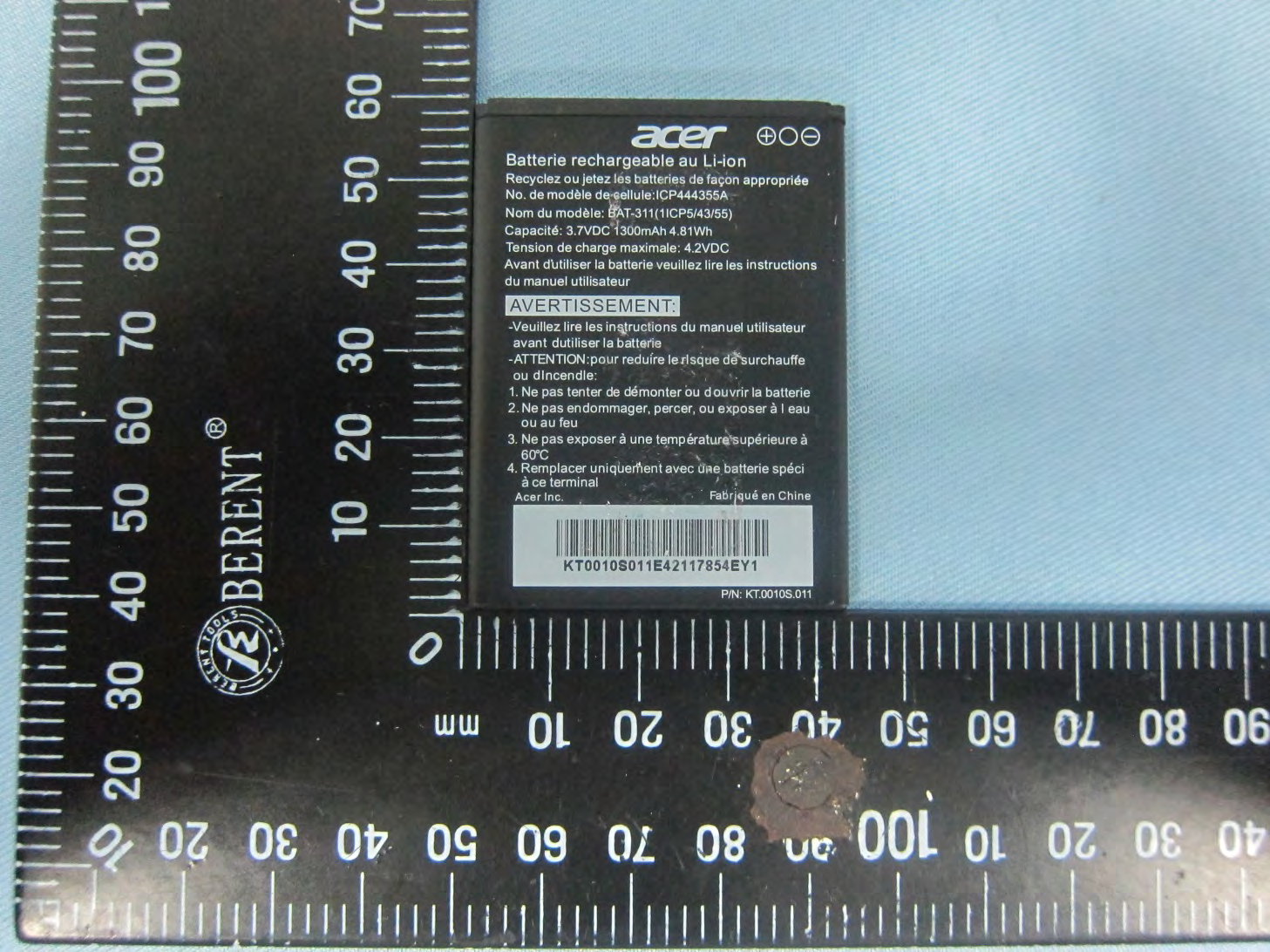

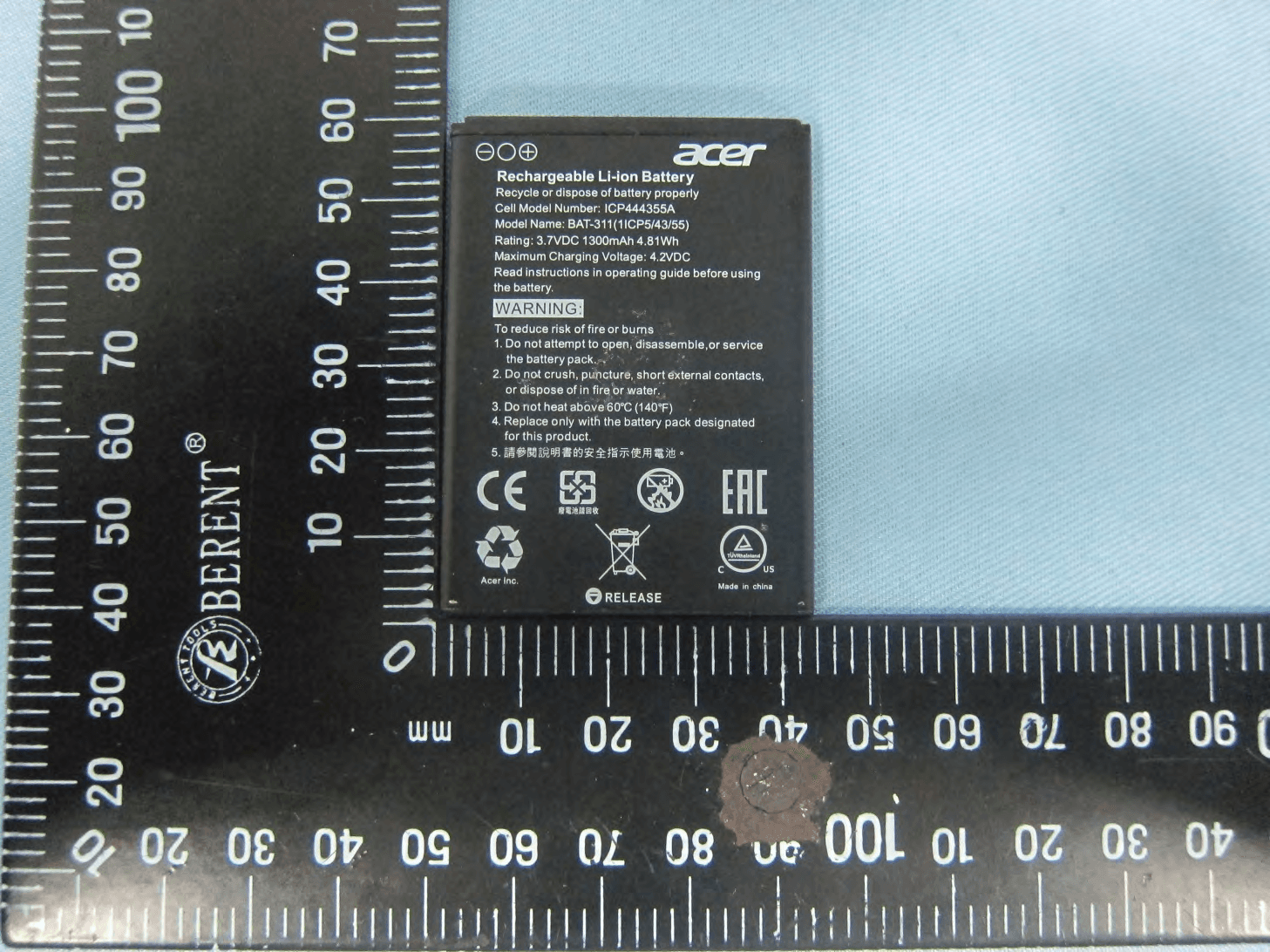

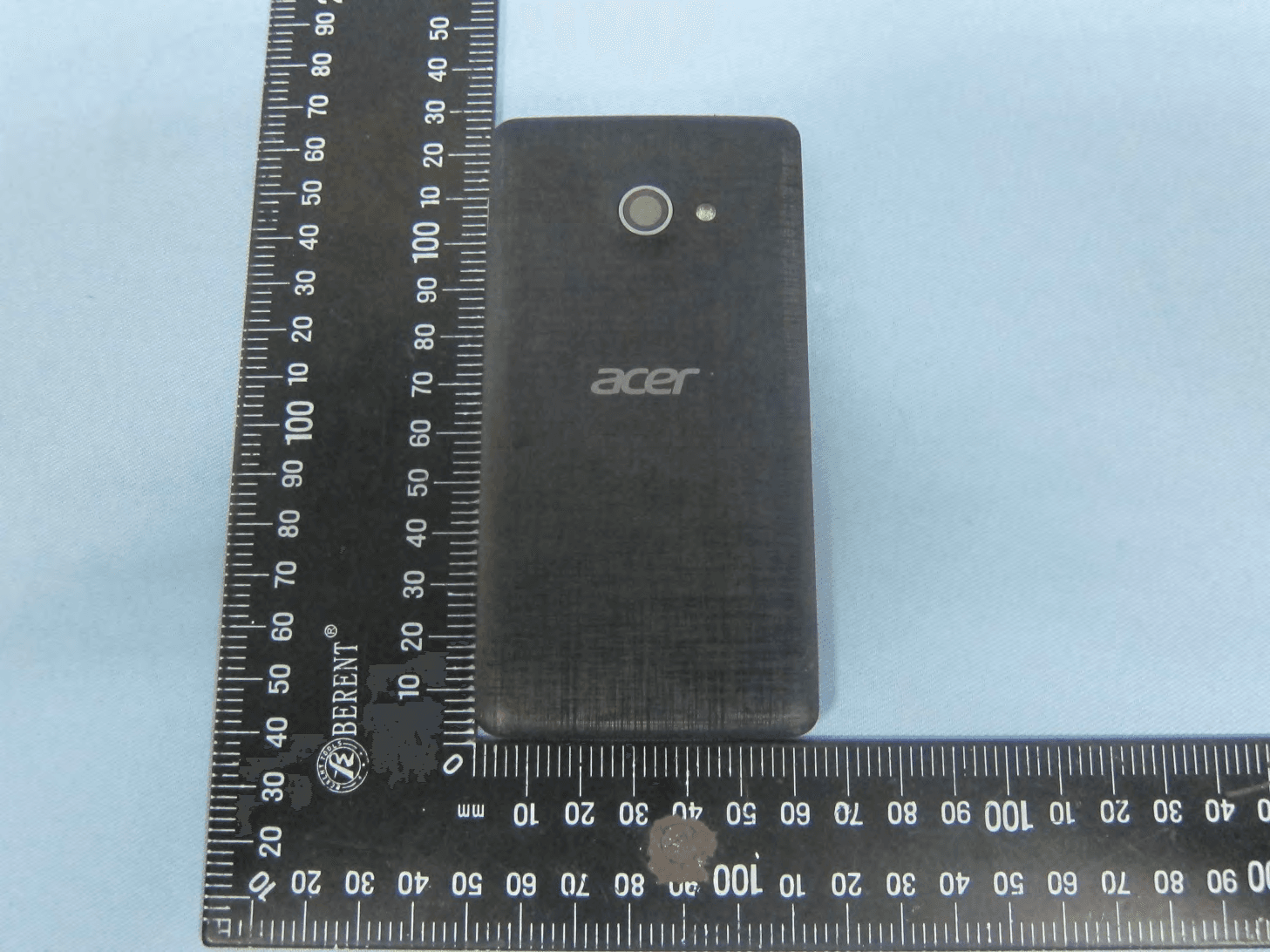

Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS 1. External Photograph of EUT Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Specification of Accessory AC Adapter Brand Name Sunlight Electronic Group Co., LTD Model Name H05Z Battery Brand Name Acer Model Name BAT-311 Earphone Brand Name Shenzhen Suicen Electronic Co., Ltd. Model Name SX-H0289-143 Signal Line Type 1.5m non-shielded without core USB Cable Brand Name Li Qi Model Name LQ025176/G88100 Signal Line Type 0.7m shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS AC Adapter Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Battery Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS

Back of the EUT Label Location Battery Compartment Label locates in the battery compartment and is visible to the users as they install the SIM card.

Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS 3. Internal Photograph of EUT Bluetooth & WLAN Antenna <Tx / Rx> & GPS Antenna <Rx> WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx> Photographs of EUT Report No.: EP510940-02 Brand Name: Acer / Model Name: Z220AWS, M220AWS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 26 TEL: 86-755-8637-9589 Report Issued Date : May 15, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID: HLZDMZ220AWS WWAN Antenna <Tx / Rx>

SPORTON INTERNATIONAL (XI’AN) INC. TEL : +86-029-8860-8767 / FAX : +86-029-8860-8791 Issued Date : May 15, 2015 FCC ID : HLZDMZ220AWS Page 1 of 43 Form version. : 141020 FCC SAR Test Report Report No. : FA510940-02 FCC SAR Test Report APPLICANT : Acer Incorporated EQUIPMENT : Smart HandHeld BRAND NAME : Acer MODEL NAME : Z220AWS, M220AWS MARKETING NAME : Liquid Z220, Liquid M220 FCC ID : HLZDMZ220AWS STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL (XI’AN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (XI’AN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (XI’AN) INC. 1F, Building A3, No. 39 Chuangye Rd., Xi'an Hi-tech Zone, Shanxi Province, P. R. C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (XI’AN) INC. TEL : +86-029-8860-8767 / FAX : +86-029-8860-8791 Issued Date : May 15, 2015 FCC ID : HLZDMZ220AWS Page 2 of 43 Form version. : 141020 FCC SAR Test Report Report No. : FA510940-02 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 3. Guidance Standard ........................................................................................................................................................5 4. Equipment Under Test (EUT) ........................................................................................................................................6 4.1 General Information ................................................................................................................................................6 4.2 Maximum Tune-up Limit ..........................................................................................................................................7 5. RF Exposure Limits .......................................................................................................................................................8 5.1 Uncontrolled Environment .......................................................................................................................................8 5.2 Controlled Environment ...........................................................................................................................................8 6. Specific Absorption Rate (SAR) ....................................................................................................................................9 6.1 Introduction .............................................................................................................................................................9 6.2 SAR Definition .........................................................................................................................................................9 7. System Description and Setup ...................................................................................................................................10 8. Measurement Procedures ...........................................................................................................................................11 8.1 Spatial Peak SAR Evaluation ................................................................................................................................ 11 8.2 Power Reference Measurement............................................................................................................................12 8.3 Area Scan .............................................................................................................................................................12 8.4 Zoom Scan ............................................................................................................................................................13 8.5 Volume Scan Procedures ......................................................................................................................................13 8.6 Power Drift Monitoring ...........................................................................................................................................13 9. Test Equipment List .....................................................................................................................................................14 10. System Verification ....................................................................................................................................................15 10.1 Tissue Verification ...............................................................................................................................................15 10.2 System Performance Check Results ...................................................................................................................16 11. RF Exposure Positions ..............................................................................................................................................17 11.1 Ear and handset reference point .........................................................................................................................17 11.2 Definition of the cheek position ............................................................................................................................18 11.3 Definition of the tilt position..........................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (XI’AN) INC. TEL : +86-029-8860-8767 / FAX : +86-029-8860-8791 Issued Date : May 15, 2015 FCC ID : HLZDMZ220AWS Page A1 of A1 Form version. : 141020 FCC SAR Test Report Report No. : FA510940-02 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/6 System Check_Head_835MHz_150506 DUT: D835V2-SN:4d091 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_150506 Medium parameters used: f = 835 MHz; σ = 0.9 S/m; ε r = 42.153; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(9.62, 9.62, 9.62); Calibrated: 2014/10/2; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn918; Calibrated: 2014/12/29 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1754 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.94 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.66 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.52 W/kg SAR(1 g) = 2.31 W/kg; SAR(10 g) = 1.5 W/kg Maximum value of SAR (measured) = 2.96 W/kg 0 dB = 2.96 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/6 System Check_Head_1750MHz_150506 DUT: D1750V2-SN:1069 Communication System: UID 0, CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_150506 Medium parameters used: f = 1750 MHz; σ = 1.346 S/m; ε r = 40.221; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(8.18, 8.18, 8.18); Calibrated: 2014/10/2; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn918; Calibrated: 2014/12/29 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1753 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.3 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.89 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 16.6 W/kg SAR(1 g) = 9.19 W/kg; SAR(10 g) = 4.85 W/kg Maximum value of SAR (measured) = 12.9 W/kg 0 dB = 12.9 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/6 System Check_Head_1900MHz_150506 DUT: D1900V2-SN:5d118 Communication System: UID 0, CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_150506 Medium parameters used: f = 1900 MHz; σ = 1.456 S/m; ε r = 40.84; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(7.95, 7.95, 7.95); Calibrated: 2014/10/2; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn918; Calibrated: 2014/12/29 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1753 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.3 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.7 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 19.4 W/kg SAR(1 g) = 10.6 W/kg; SAR(10 g) = 5.49 W/kg Maximum value of SAR (measured) = 15.0 W/kg 0 dB = 15.0 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/7 System Check_Head_2450MHz_150507 DUT: D2450V2-SN:840 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_150507 Medium parameters used: f = 2450 MHz; σ = 1.882 S/m; ε r = 37.652; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(7.05, 7.05, 7.05); Calibrated: 2014/10/2; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn918; Calibrated: 2014/12/29 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1754 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 22.2 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.03 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 30.9 W/kg SAR(1 g) = 14.2 W/kg; SAR(10 g) = 6.57 W/kg Maximum value of SAR (measured) = 22.4 W/kg 0 dB = 22.4 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.05.07 System Check_Head_2450MHz_15050 7 DUT: D2450V2-SN:840 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_150507 Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 39.202; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：22. °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(7.48, 7.48, 7.48); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (71x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) …

Text truncated - open the document above for the full version.
