HLZDMZ520Smart Handheld

1 English Product information For detailed product information, please go to www.acer.com. For service and support information, or to download the User Guide, drivers and applications, please follow the instructions below: 1. Go to www.acer.com and click Support > DRIVERS AND MANUALS. 2. Select appropriate items from Group > Series > Products. 3. Select the operating system from the drop-down menu. © 2014 All Rights Reserved Acer Liquid Z520 Quick Guide Model: Z520 This revision: 01/2015 Acer Liquid Z520 Smartphone Model number:____________________________________ Serial number: ____________________________________ Date of purchase: _________________________________ Place of purchase: ________________________________ Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions. Your smartphone 1 2 3 4 5 7 8 9 10 11 6 No.ItemDescription 13.5 mm headphone jack Connects to stereo headphones. 2Micro USB connector Connects to a USB cable/ charger. 3Front camera Front-facing camera suitable for video chats and self-portraits. 4Phone speaker Emits audio from your smartphone; suitable for holding to your ear. 5Touchscreen Touchscreen to display data, phone content and enter information. English 6Handsfree speaker Emits audio from your smartphone; suitable for handsfree use. 7Power button Press to turn the screen on/off or enter sleep mode; press and hold to turn the smartphone on or off. 8Volume up/ down button Increases or decreases the phone volume. 9FlashLED flash for taking photos in low-light environments. 10MicrophoneInternal microphone. 11CameraA camera for taking high- resolution images. No.ItemDescription Note: For more on how your computer can help you to be more productive, please refer to the User’s Manual. The User’s Manual can be downloaded from the Acer support website by going to: http://go.acer.com/?id=17883 Specifications Performance • 1.3 GHz quad-core processor • System memory: • 8 GB of ROM • Android 4.4.4 KitKat operating system Display • 5.0" TFT LCD,480 x 854 resolution Multimedia Formats supported: USB connector • Micro USB connector • USB client • DC power-in (5 V, 1 A) Note Specifications may vary depending on region and configuration. TypeFormats ImageJPEG, GIF, PNG, BMP Audio playbackMP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC, MIDI, WAVE RingtoneMP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC, MIDI, WAVE Video recordingH.263, H.264, MPEG4 Video playbackH.263, H.264, MPEG4, VP8 Connectivity • Bluetooth 4.0 • IEEE 802.11b/g/n • GSM 850 / 900 / 1800 / 1900 MHz • WCDMA 850 / 1900 MHz • HSP A / GPRS / EDGE •GPS Frequencies depend on model. Camera • 8 MP rear camera •Auto-focus •LED flash • 2 MP front camera • Fixed focus Expansion • microSD memory card slot (up to 32 GB) Battery • 2000 mAh Li-Polymer battery (replaceable) Note Length of battery operation will depend on power consumption which is based on system resource use. For example, constantly using the backlight or using power-demanding apps will shorten battery life between charges. Dimensions Height143 mm Width 73 mm Thickness9.9 mm Weight150 g (with battery) 2 English Setting up for the first time Inserting the SIM cards and microSD card 1. Turn off the phone by pressing and holding the power button. 2. Insert your fingernail into the notch located at the bottom of the phone and remove the cover as illustrated. 3 English 3. Insert the SIM or microSD card as shown. 4. Align the gold-colored connectors on the battery with the connectors at the top of the battery compartment and insert the battery. microSD card SIM 1 SIM 2 4 English 5. Replace the cover by aligning the tabs on the cover into the slots on the phone. Gently press the cover until it snaps in place. 5 English Charging your phone For initial use, you need to charge your smartphone for eight hours. After that you can recharge the battery as needed. Connect the AC adapter cord to the micro USB connector on your smartphone. Plug the AC adapter into any AC outlet and charge the device. It is normal for the phone to heat up when charging or during long periods of use. All phones are factory tested before release. Resetting and restarting the phone Open Settings from the Applications menu, then tap Backup & reset. Tap Factory data reset and then tap Reset phone. Tap Erase everything to format your phone. If your phone is no longer responding, press and hold the power button for 10 seconds to restart the phone. Replacing the battery Replace the battery with the same type as that which came bundled with your product. Use of another battery may present a risk of fire or explosion. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children. Follow local regulations when disposing of used batteries. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Disposal and recycling information Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit www.acer- group.com/public/Sustainability It is compliant with WEEE regulation RoHS compliance This product is in compliance with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011, on the restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment and its amendments. FCC regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant…

Text truncated - open the document above for the full version.

Date: February 12, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD2046 Subject: Request for Confidentiality FCC ID: HLZDMZ520 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Harriot Lee [email protected]

Date: February 12, 2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: HLZDMZ520 To Whom It May Concern: We hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. For Part 15B report, please refer to report number: FD510202 issued by SPORTON International Inc. which is located on No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. (FCC site registration number: TW1022) Sincerely yours, Harriot Lee [email protected]

Letter of Authorization Company: Acer Incorporated Address: 8F, 88, Sec 1, Hsin Tai Wu Rd, Hsichih, Taipei Hsien 221, Taiwan Product Name: Smart HandHeld Model Number: Z520 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Harriot Lee Date: February 12, 2015 Title: Manager Signature of applicant:

Date: February 12, 2015 Power of Attorney To whom it may concern, Please be notified that I, Harriot Lee, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: HLZDMZ520 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Harriot Lee [email protected]

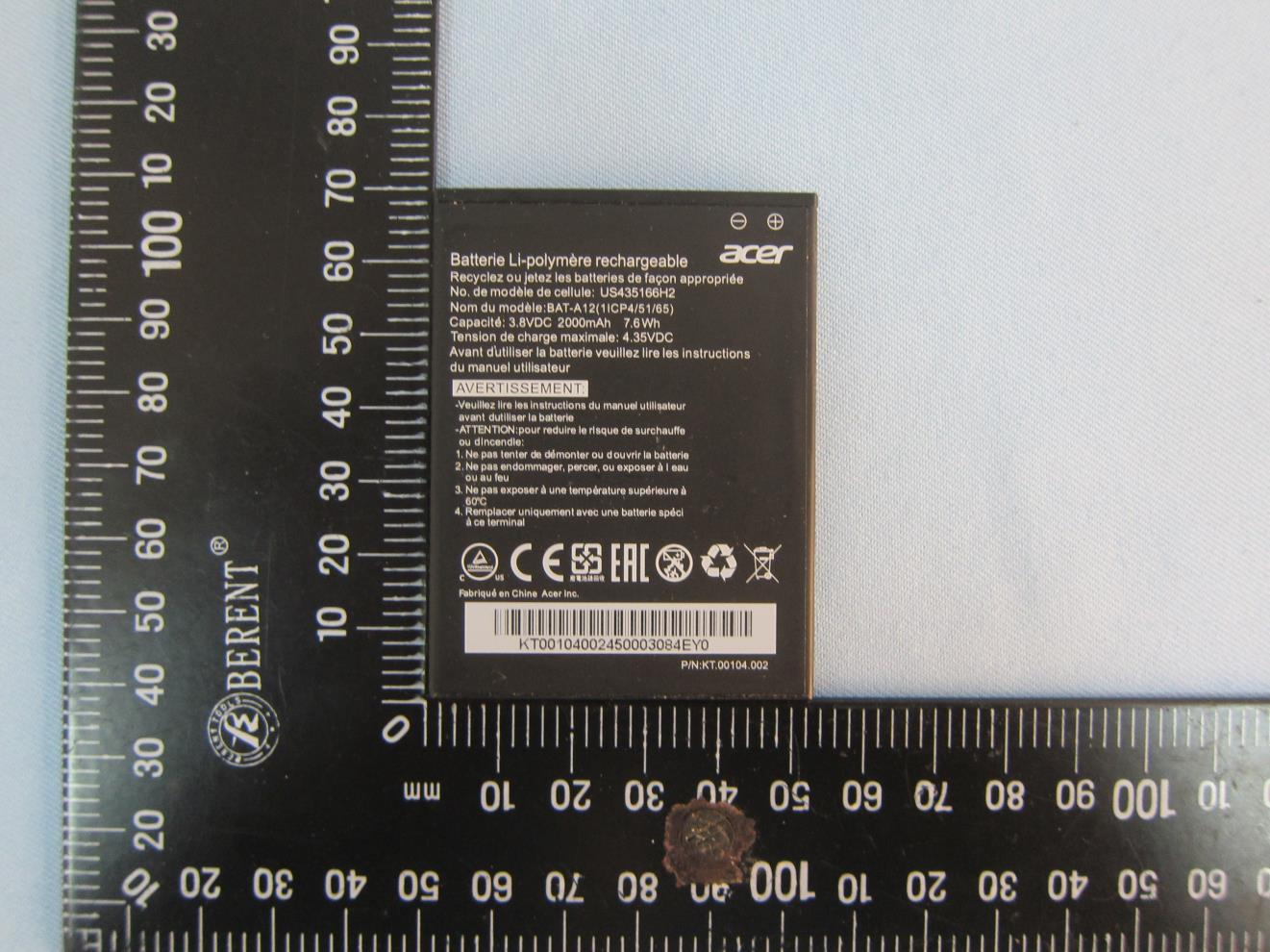

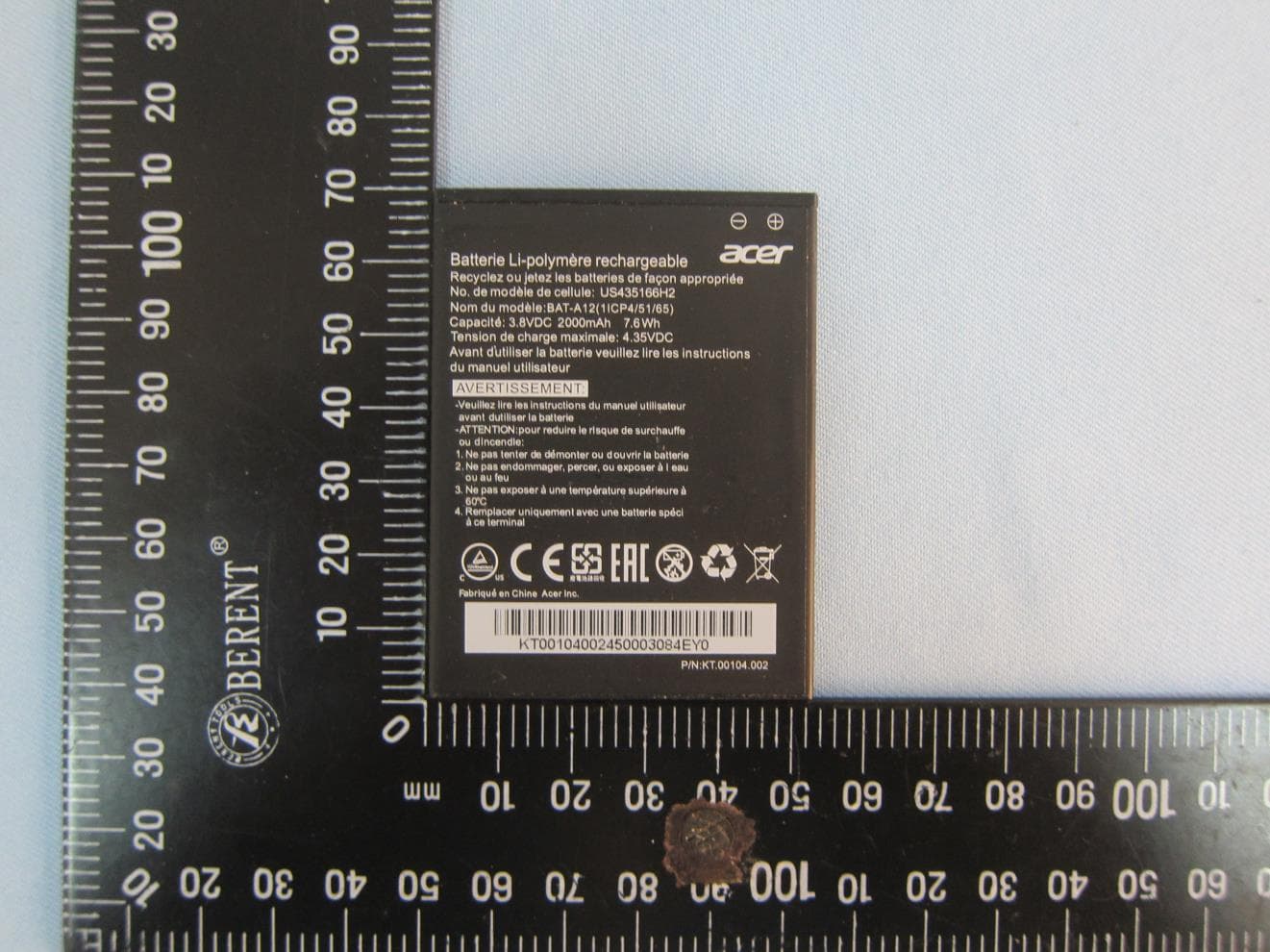

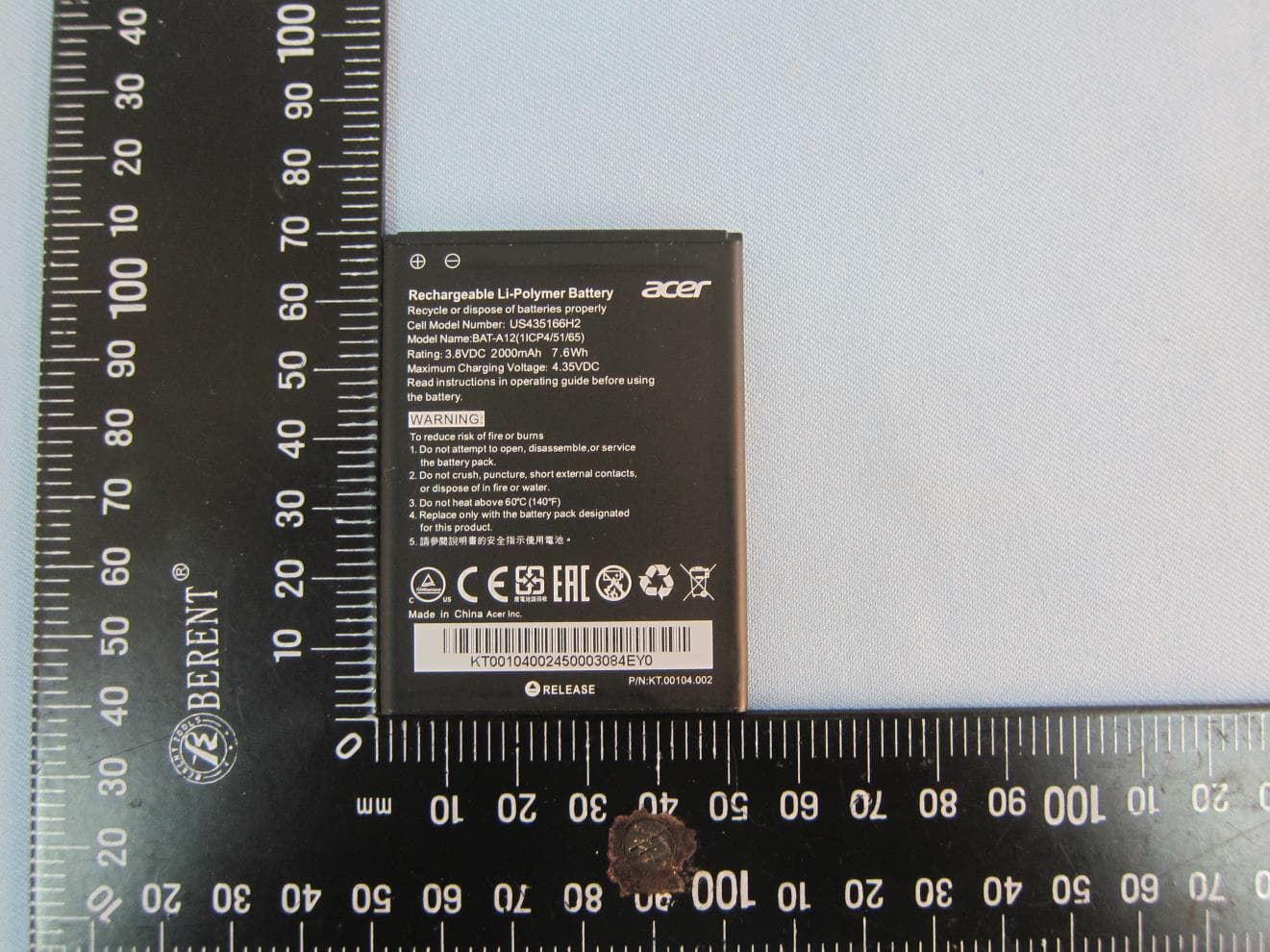

Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 1. External Photograph of EUT Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 List of Accessory: Specification of Accessory AC Adapter Brand Name ShenZhen Sunlight Electronic Technology Co., LTD Model Name RYH60US0500100A Battery Brand Name Acer Model Name BAT-A12 USB Cable Brand Name Xiamen Li Qi Electronics Co., Ltd. Model Name LQ-025180 Signal Line Type 0.7m, shielded cable, without core Earphone Brand Name Shenzhen Suicen Electronic Co., Ltd. Model Name SX-H0289-143 Signal Line Type 1.5m, unshielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 720510 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 AC Adapter Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Battery Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520

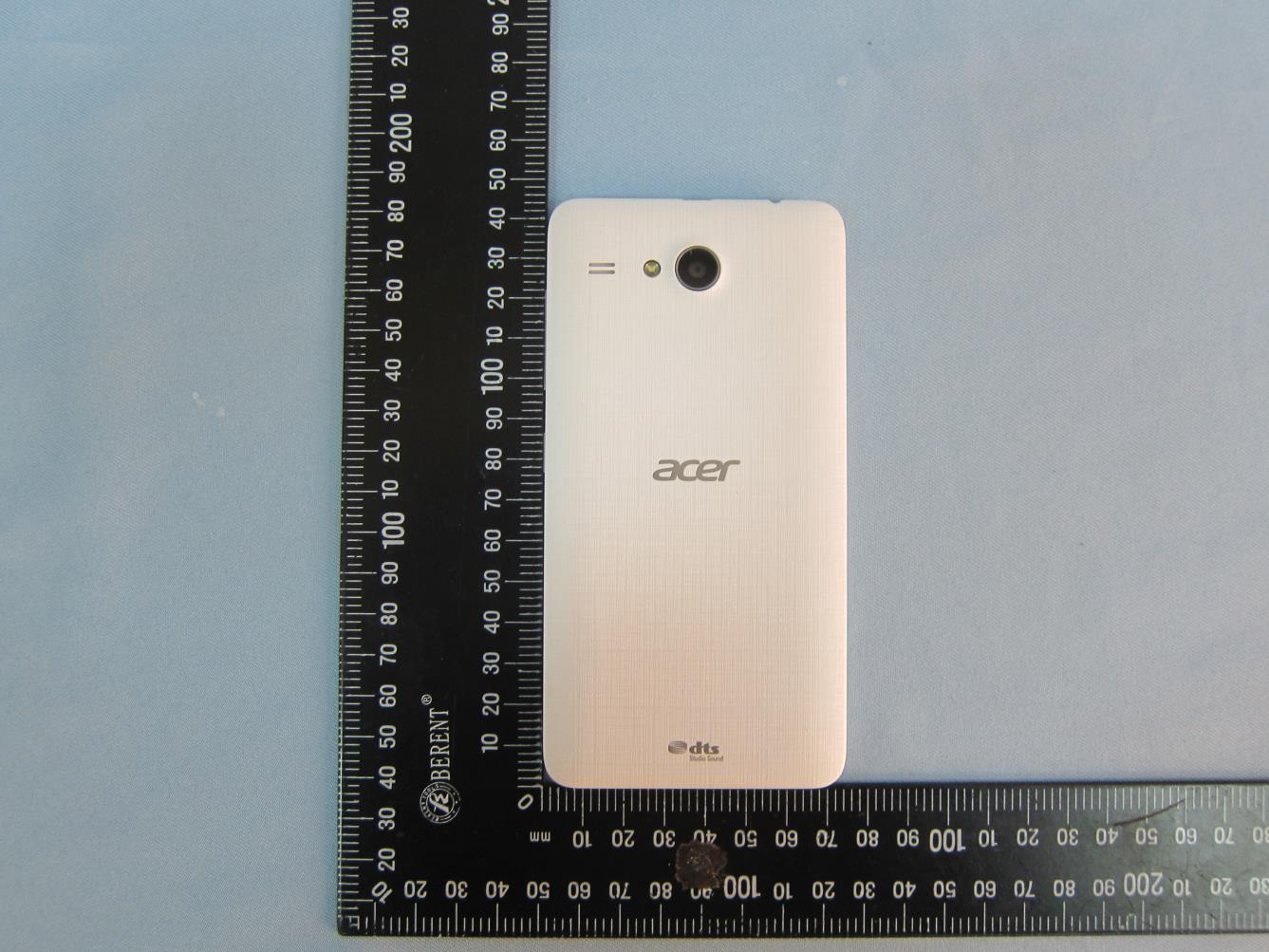

Back of the EUT Label Location Battery Compartment Label locates in the battery compartment and is visible to the users as they install the SIM card.

Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 720510 3. Internal Photograph of EUT Bluetooth & WLAN Antenna<Tx/Rx> GPS Antenna<Rx> WWAN Antenna<Tx/Rx> Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP510202 Brand Name: Acer; Model Name: Z520 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 13, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : HLZDMZ520 Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx>

SPORTON INT TEL : 86-0512- FCC ID : HLZD FC We, S samp with t The t writte be rep A Revie TERNATIONAL -5790-0158 / FA DMZ520 CC SAR Te A E B M M F S SPORTON I ple has been the applicab test results en approval produced ex SP No. 3-2, pproved by ewed by: Eri L (KUNSHAN) I AX : 86-0512-57 est Repor FCC APPLICANT EQUIPMEN BRAND NA MODEL NA MARKETING FCC ID STANDARD NTERNATIO n evaluated i ble technica in this re p of SPORTO xcept in full PORTON PingXian : Jones Tsa ic Huang / D INC. 790-0958 rt C SAR T : T : ME : ME : G NAME : : D : ONAL (KUN in accordan l standards port apply e ON INTERNA . N INTERN g Road, K ai / Manager Deputy Mana Page 1 of 4 R Tes Acer Inco Smart Han Acer Z520 Liquid Z5 2 HLZDMZ5 FCC 47 C ANSI/IEE E IEEE 1528 SHAN) INC nce with the . exclusively ATIONAL (K NATIONA Kunshan, J ager 42 st Re orporated ndHeld 20 520 FR Part 2 ( E C95.1-199 8-2003 ., would lik procedures to the test KUNSHAN) I AL (KUNS Jiangsu P Iss Form eport 2.1093) 92 ke to declar s and had be ed model / NC., the te s SHAN) IN Province, P sued Date : Fe m version. : 14 Report No. t re that the een in comp / sample. W st report sh NC. P. R. C. eb. 13, 2015 1020 : FA510202 tested pliance Without all not 2 SPORTON INTERNATIONAL (KUNSHAN) INC. TEL : 86-0512-5790-0158 / FAX : 86-0512-5790-0958 Issued Date : Feb. 13, 2015 FCC ID : HLZDMZ520 Page 2 of 42 Form version. : 141020 FCC SAR Test Report Report No. : FA510202 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 3. Guidance Standard ........................................................................................................................................................5 4. Equipment Under Test (EUT) ........................................................................................................................................6 4.1 General Information ................................................................................................................................................6 4.2 Maximum Tune-up Limit ..........................................................................................................................................7 5. RF Exposure Limits .......................................................................................................................................................8 5.1 Uncontrolled Environment .......................................................................................................................................8 5.2 Controlled Environment ...........................................................................................................................................8 6. Specific Absorption Rate (SAR) ....................................................................................................................................9 6.1 Introduction .............................................................................................................................................................9 6.2 SAR Definition .........................................................................................................................................................9 7. System Description and Setup ...................................................................................................................................10 8. Measurement Procedures ...........................................................................................................................................11 8.1 Spatial Peak SAR Evaluation ................................................................................................................................ 11 8.2 Power Reference Measurement............................................................................................................................12 8.3 Area Scan .............................................................................................................................................................12 8.4 Zoom Scan ............................................................................................................................................................13 8.5 Volume Scan Procedures ......................................................................................................................................13 8.6 Power Drift Monitoring ...........................................................................................................................................13 9. Test Equipment List .....................................................................................................................................................14 10. System Verification ....................................................................................................................................................15 10.1 Tissue Verification ...............................................................................................................................................15 10.2 System Performance Check Results ...................................................................................................................16 11. RF Exposure Positions ..............................................................................................................................................17 11.1 Ear and handset reference point .........................................................................................................................17 11.2 Definition of the cheek position ............................................................................................................................18 1…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.12 System Check_Head_835MHz_150212 DUT: D835V2 - SN:4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_150212 Medium parameters used: f = 835 MHz; σ = 0.885 mho/m; ε r = 41.09; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：22. °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(9.41, 9.41, 9.41); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.849 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.265 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 3.480 W/kg SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.969 mW/g 0 dB = 2.970mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.12 System Check_Head_1900MHz_150212 DUT: D1900V2 - SN:5d118 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_150212 Medium parameters used: f = 1900 MHz; σ = 1.424 mho/m; ε r = 39.075; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：22. °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(8.4, 8.4, 8.4); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.518 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 84.923 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 17.510 W/kg SAR(1 g) = 9.35 mW/g; SAR(10 g) = 4.8 mW/g Maximum value of SAR (measured) = 13.653 mW/g 0 dB = 13.650mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.04 System Check_Head_2450MHz_150204 DUT: D2450V2 - SN:840 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_150204 Medium parameters used: f = 2450 MHz; σ = 1.817 mho/m; ε r = 39.195; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：22. °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(7.48, 7.48, 7.48); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (71x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 20.829 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.818 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 29.469 W/kg SAR(1 g) = 13.4 mW/g; SAR(10 g) = 6 mW/g Maximum value of SAR (measured) = 21.174 mW/g 0 dB = 21.170mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.02 System Check_Body_835MHz_150102 DUT: D835V2 - SN:4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_150202 Medium parameters used: f = 835 MHz; σ = 0.98 mho/m; ε r = 54.466; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：22. °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(9.31, 9.31, 9.31); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.851 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.007 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.295 W/kg SAR(1 g) = 2.24 mW/g; SAR(10 g) = 1.48 mW/g Maximum value of SAR (measured) = 2.832 mW/g 0 dB = 2.830mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.11 System Check_Body_1900MHz_150211 DUT: D1900V2 - SN:5d118 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_150211 Medium parameters used: f = 1900 MHz; σ = 1.538 mho/m; ε r = 52.792; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：22. °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(7.56, 7.56, 7.56); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.920 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.077 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 18.650 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.23 mW/g Maximum value of SAR (measured) = 14.776 mW/g 0 dB = 14.780mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.02 System Check_Body_2450MHz_150202 DUT: D2450V2 - SN:840 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_150202 Medium parameters used: f = 2450 MHz; σ = 1.943 mho/m; ε r = 50.962; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：22. °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(7.14, 7.14, 7.14); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SA…

Text truncated - open the document above for the full version.
