HLZDMZ530TWSmart HandHeld

1 English Product information For detailed product information, please go to www.acer.com. For service and support information, or to download the User Guide, drivers and applications, please follow the instructions below: 1. Go to www.acer.com and click Support > DRIVERS AND MANUALS. 2. Select appropriate items from Group > Series > Products. 3. Select the operating system from the drop-down menu. © 2015 All Rights Reserved Acer Liquid Z530 Quick Guide Model: T02 This revision: 09/2015 Acer Liquid Z530 Smartphone Model number:____________________________________ Serial number: ____________________________________ Date of purchase: _________________________________ Place of purchase: ________________________________ Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions. Your smartphone No.ItemDescription 13.5 mm headphone jack Connects to stereo headphones. 2Micro USB connector Connects to a USB cable/ charger. 3Front camera Front-facing camera suitable for video chats and self-portraits. 4Phone speaker Emits audio from your smartphone; suitable for holding to your ear. 5Touchscreen Touchscreen to display data, phone content and enter information. 1 7 8 9 11 10 2 3 5 6 English 6Handsfree speaker Emits audio from your smartphone; suitable for handsfree use. 7Power button Press to turn the screen on/off or enter sleep mode; press and hold to turn the smartphone on or off. 8Volume up/ down button Increases or decreases the phone volume. 9FlashLED flash for taking photos in low-light environments. 10 Spaker Internal Spaker. 11 CameraA camera for taking high- reso lution images. No.ItemDescription Note: For more on how your computer can help you to be more productive, please refer to the User’s Manual. The User’s Manual can be downloaded from the Acer support website by going to: http://go.acer.com/?id=17883 Specifications Performance • 1.3 GHz quad-core processor • System memory (8 GB or 16 GB) : • 8 GB 內建主記憶體硬體容量：8 GB，使用者可使用主記憶體容量至 少：4.61 GB。 • Android operating system Display • 5.0" TFT LCD,1280 x 720 resolution Multimedia Formats supported: USB connector • Micro USB connector • USB client • DC power-in (5 V, 1 A) Note Specifications may vary depending on region and configuration. TypeFormats ImageJPEG, GIF, PNG, BMP Audio playbackMP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC, MIDI, WAVE RingtoneMP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC, MIDI, WAVE Video recordingH.263, H.264, MPEG4 Video playbackH.263, H.264, MPEG4, VP8 • 16 GB 內建主記憶體硬體容量：16 GB，使用者可使用主記憶體容量至少：11.89 GB。 Connectivity •Bluetooth 4.0 + EDR •IEEE 802.11b/g/n • GSM 850 / 900 / 1800 / 1900 MHz HSPA / GPRS / EDGE Frequencies depend on model. 「因應各地區/國家所屬之規範、頻道及開放時程等服務細項的不同，請 依據當地主管機關與電信業者實際公告資訊為主。如服務細則有所變更， 請自行洽詢電信業者，恕不另行通知。」 WCDMA 850(B5) / 900(B8) / 1900(B2) / 2100(B1) MHz LTE Band 3 (1710-1770 MHz) LTE Band 8 (885-915 MHz) LTE Band 28 (703-748 MHz) • • GPS Dimensions Height144 mm Width70.3 mm Thickness8.9 mm Weight150 g (with battery) Note Length of battery operation will depend on power consumption which is based on system resource use. For example, constantly using the backlight or using power-demanding apps will shorten battery life between charges. Camera • 8 MP rear camera •Auto-focus •LED flash • 8 MP front camera • Fixed focus Expansion • microSD memory card slot (up to 32 GB) Battery •2500 mAh Li-Polymer battery (replaceable) 2 English Setting up for the first time Inserting the SIM cards and microSD card 1. Turn off the phone by pressing and holding the power button. 2. Insert your fingernail into the notch located at the bottom of the phone and remove the cover as illustrated. 3 English 3. Insert the SIM or microSD card as shown. 4. Align the gold-colored connectors on the battery with the connectors at the top of the battery compartment and insert the battery. * Note: Your smartphone may be equi pped with one or two SIM slots dep ending on model. 4 English 5. Replace the cover by aligning the tabs on the cover into the slots on the phone. Gently press the cover until it snaps in place. 5 English Charging your phone For initial use, you need to charge your smartphone for eight hours. After that you can recharge the battery as needed. Connect the AC adapter cord to the micro USB connector on your smartphone. Plug the AC adapter into any AC outlet and charge the device. It is normal for the phone to heat up when charging or during long periods of use. All phones are factory tested before release. Resetting and restarting the phone Open Settings from the Applications menu, then tap Backup & reset. Tap Factory data reset and then tap Reset phone. Tap Erase everything to format your phone. If your phone is no longer responding, press and hold the power button for 10 seconds to restart the phone. 3 Safety Battery information This product uses a Lithium-polymer battery. Do not use it in a hu mid, wet and/or corrosive environment. Do not put, store or leave your pr oduct in or near a heat source, in a high tem perature locat ion, in str ong direct sunlight, in a microwave oven or in a pr essurized container, and do not expose it to te mperatur es over 60 °C (140 °F ). Fa ilure to follow these guidelines may cause the ba ttery to leak acid, become hot, explode or ignite and cause injury and/ or damage. Do not pierce, open or disassemble th e battery. If th e batt ery leaks and you come into contact with the leaked fluid s, rinse thor oughly with water and seek medical attention immediately. For safety re asons, and to prolong the li fetime of the battery, charging will not occur at low (below 0 °C/ 32 °F) or high (over 45 °C /113 °F) temperatures. The f ull perfor mance of a new battery is achieved only after two or three complete charge and discharge cycles. The battery can be charged and discharged hu ndreds of times, but it w ill eventually wear out. When the talk and standby times are noticeably shorter t han normal, buy a new battery. Use only manufacturer approved bat teries, and re…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei‐Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886‐3‐327‐3456 ; Fax: 886‐3‐328‐4978 November 4, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Sporton International Inc. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Smart HandHeld , T02 FCC ID: HLZDMZ530TW Sincerely, Client’s signature Client’s name / title Jones Tsai/ Director Contact information / address [email protected]

Date: November 3, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD2046 Subject: Request for Confidentiality FCC ID: HLZDMZ530TW To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Harriot Lee [email protected]

Date: November 3, 2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: HLZDMZ530TW To Whom It May Concern: We hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. For Part 15B report, please refer to report number: FD571428 issued by SPORTON International Inc. which is located on No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. (FCC site registration number: TW1022) Sincerely yours, Harriot Lee [email protected]

Date: November 3, 2015 Power of Attorney To whom it may concern, Please be notified that I, Harriot Lee, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: HLZDMZ530TW If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Harriot Lee [email protected]

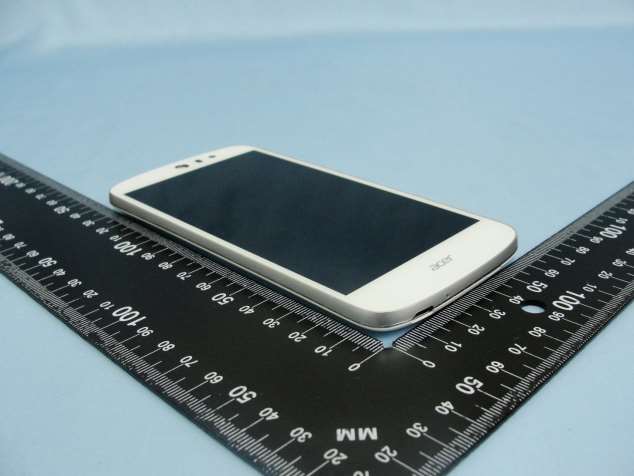

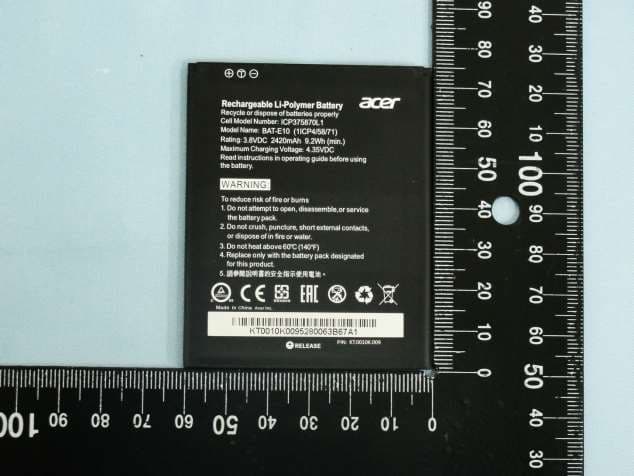

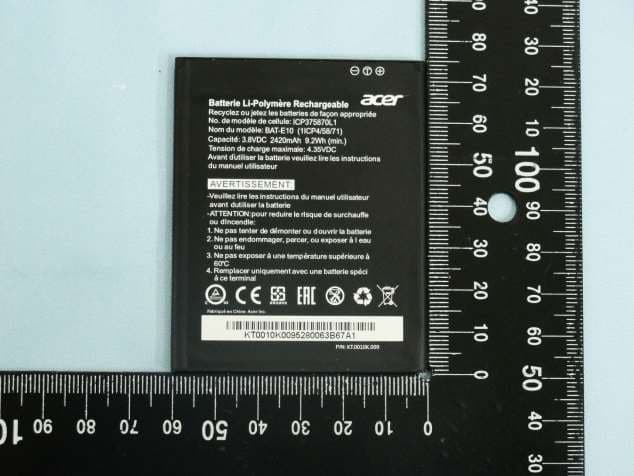

Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 3 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 4 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Specification of Accessory AC Adapter Brand Name DVE Model Name DSA-5PF02-05 FUS 050100 Battery Brand Name acer Model Name BAT-E10 Earphone Brand Name Ganet Model Name HF-HB27D-02 USB Cable Brand Name JPC Model Name PCB042100307-4 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 5 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW 720510 Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 6 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW AC Adapter Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 7 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Battery Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 8 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW

Back of the EUT Label Location Battery Compartment Label locates in the battery compartment and is visible to the users as they install the SIM card.

Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 9 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 10 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 11 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 12 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 13 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 14 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 15 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 16 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 17 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 18 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 19 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 20 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 21 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 22 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 23 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 24 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 25 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW WWAN Antenna Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 26 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 27 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Bluetooth & WLAN & GPS Antenna Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 28 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketing Name: Liquid Z530 SPORTON INTERNATIONAL INC. Page Number : 29 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: HLZDMZ530TW Diversity Antenna Photographs of EUT Report No.: EP571428 Brand Name: Acer / Model Name: T02 / Marketin…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Nov. 03, 2015 FCC ID : HLZDMZ530TW Page 1 of 38 Form version. : 150415 FCC SAR Test Report Report No. : FA571428 FCC SAR Test Report APPLICANT : Acer Incorporated EQUIPMENT : Smart HandHeld BRAND NAME : Acer MODEL NAME : T02 MARKETING NAME : Liquid Z530 FCC ID : HLZDMZ530TW STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Nov. 03, 2015 FCC ID : HLZDMZ530TW Page 2 of 38 Form version. : 150415 FCC SAR Test Report Report No. : FA571428 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 4 4. Equipment Under Test (EUT) Information ................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 5. RF Exposure Limits....................................................................................................................................................... 6 5.1 Uncontrolled Environment ...................................................................................................................................... 6 5.2 Controlled Environment .......................................................................................................................................... 6 6. Specific Absorption Rate (SAR) ................................................................................................................................... 7 6.1 Introduction ............................................................................................................................................................ 7 6.2 SAR Definition ........................................................................................................................................................ 7 7. System Description and Setup .................................................................................................................................... 8 8. Measurement Procedures ............................................................................................................................................ 9 8.1 Spatial Peak SAR Evaluation ................................................................................................................................. 9 8.2 Power Reference Measurement............................................................................................................................10 8.3 Area Scan .............................................................................................................................................................10 8.4 Zoom Scan ............................................................................................................................................................ 11 8.5 Volume Scan Procedures ...................................................................................................................................... 11 8.6 Power Drift Monitoring ........................................................................................................................................... 11 9. Test Equipment List .....................................................................................................................................................12 10. System Verification ....................................................................................................................................................13 10.1 Tissue Verification ...............................................................................................................................................13 10.2 System Performance Check Results ...................................................................................................................14 11. RF Exposure Positions ..............................................................................................................................................15 11.1 Ear and handset reference point .........................................................................................................................15 11.2 Definition of the cheek position ............................................................................................................................16 11.3 Definition of the tilt position..................................................................................................................................17 11.4 Body Worn Accessory .........................................................................................................................................18 11.5 Wireless Router ............…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/10/23 System Check_Head_835MHz_151023 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_151023 Medium parameters used: f = 835 MHz; σ = 0.927 mho/m; ε r = 42.6; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.76, 8.76, 8.76); Calibrated: 2015/9/28 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1388; Calibrated: 2015/9/25 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.06 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.7 V/m; Power Drift = 0.113 dB Peak SAR (extrapolated) = 3.60 W/kg SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.6 mW/g Maximum value of SAR (measured) = 3.06 mW/g 0 dB = 3.06mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/10/23 System Check_Body_835MHz_151023 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_151023 Medium parameters used: f = 835 MHz; σ = 1 mho/m; ε r = 55.3; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.9, 8.9, 8.9); Calibrated: 2015/9/28 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1388; Calibrated: 2015/9/25 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.09 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.8 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 3.04 mW/g 0 dB = 3.04mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/10/22 System Check_Head_1900MHz_151022 DUT: D1900V2-5d018 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_151022 Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.47, 7.47, 7.47); Calibrated: 2015/9/28 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1388; Calibrated: 2015/9/25 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 16.2 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 107.6 V/m; Power Drift = -0.123 dB Peak SAR (extrapolated) = 18.5 W/kg SAR(1 g) = 9.79 mW/g; SAR(10 g) = 5.01 mW/g Maximum value of SAR (measured) = 14.8 mW/g 0 dB = 14.8mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/10/23 System Check_Body_1900MHz_151023 DUT: D1900V2-5d018 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_151023 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 55; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.17, 7.17, 7.17); Calibrated: 2015/9/28 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1388; Calibrated: 2015/9/25 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 16.1 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 103.5 V/m; Power Drift = -0.006 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10 mW/g; SAR(10 g) = 5.21 mW/g Maximum value of SAR (measured) = 15.1 mW/g 0 dB = 15.1mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/10/26 System Check_Head_2450MHz_151026 DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_151026 Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.75, 6.75, 6.75); Calibrated: 2015/9/28 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1388; Calibrated: 2015/9/25 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postpro…

Text truncated - open the document above for the full version.
