HLZEMS510Smart HandHeld

2 © 2013 All Rights Reserved Acer Liquid S1 User’s Manual Model: S510 This revision: 7/2013 Acer Liquid S1 Smartphone Model number: _______________________________________________ Serial number: _______________________________________________ Date of purchase: ____________________________________________ Place of purchase: ___________________________________________ 3 Table of contents Table of contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 Setting up- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 Unpacking your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Getting to know your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Installing or removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Installing a SIM or microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Using your smartphone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Turning on for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Locking your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Navigating through menus and options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Using the touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 The Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Managing contacts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20 Managing your contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Making calls - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21 Before making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 The voice call screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Internet calling - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25 Adding an Internet calling account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Editing or removing an Internet calling account. . . . . . . . . . . . . . . . . . . . . . . . . 25 Using Internet calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Receiving Internet calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Calling a contact’s Internet calling address . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Calling a phone number using Internet calling . . . . . . . . . . . . . . . . . . . . . . . . . 25 Messaging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 Creating a new message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Replying to a message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 MMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Going online- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30 Browsing the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Setting up your Google email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Composing an email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Setting up Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 4 Maps, Navigation, Places and Latitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 AcerCloud setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 35 AcerCloud setup for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Using the Camera- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 39 Camera icons and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Taking a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Shooting a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Viewing photos and videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Geotagging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Advanced settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43 Putting your smartphone in Airplane mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Restarting your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Adjusting settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Connecting to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Multimedia playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Restoring to factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Accessories and tips - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 50 Using the headset . . . . . . . . . . …

Text truncated - open the document above for the full version.

Date: November 15, 2013 Statement We, Acer Incorporated, state that the label of our device, FCC ID: HLZEMS510, will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Harriot Lee [email protected]

Rev. 1/1/03 Date: November 15, 2013 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: HLZEMS510 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description  Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Harriot Lee [email protected]

Date: November 15, 2013 Power of Attorney To whom it may concern, Please be notified that I, Harriot Lee, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: HLZEMS510 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Harriot Lee [email protected]

1/1 Date: November 15, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : HLZEMS510 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Harriot Lee [email protected]

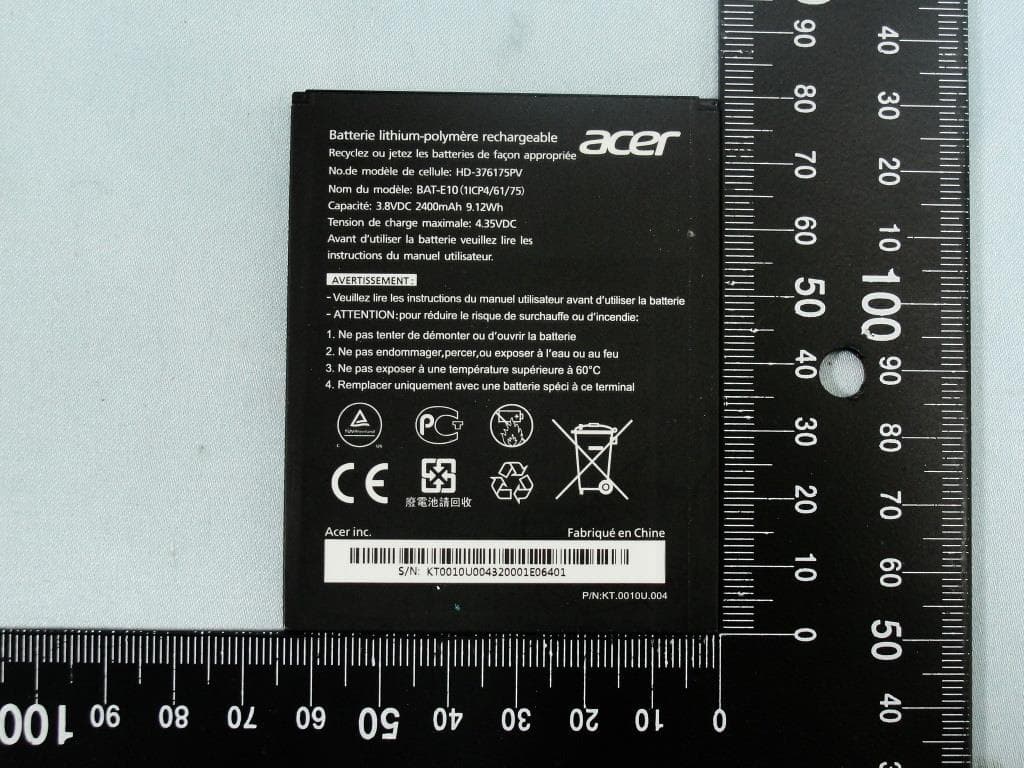

Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 1 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 1. External Photograph of EUT Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 2 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 3 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 4 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 720510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 5 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Specification of Accessory AC Adapter Brand Name Something High Electric (Xiamen) Co., Ltd. Model Name P6USB050100 US Battery Brand Name Acer Model Name BAT-E10 Earphone Brand Name LANF Acoustic Tech Model Name LF-H0102 USB Cable Brand Name Ruide Electronic Industrial Co. Model Name 71840014H Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 6 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 7 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 AC Adapter Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 8 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 720510 Battery

Back of the EUT Battery Compartment Label Location

Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 9 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 10 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 11 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 12 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 13 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 14 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 15 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 16 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 17 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 18 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 19 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 20 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 21 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 22 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 WWAN Antenna Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 23 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 24 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 GPS & Bluetooth & WLAN Antenna Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 25 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 26 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 WCDMA 2100 Diversity Antenna Photographs of EUT Report No.: EP3O2801 Brand Name: Acer / Model Name: S510 / Marketing Name: Liquid S1 SPORTON INTERNATIONAL INC. Page Number : 27 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 720510

SPORTON INTERNATIONAL INC. Page Number : 1 of 51 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 FCC SAR Test Report Report No. : FA3O2801 FCC SAR Test Report APPLICANT : Acer Incorporated EQUIPMENT : Smart HandHeld BRAND NAME : Acer MODEL NAME : S510 MARKETING NAME : Liquid S1 FCC ID : HLZEMS510 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was completely tested on Nev. 02, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 51 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZEMS510 FCC SAR Test Report Report No. : FA3O2801 Table of Contents 1. Statement of Compliance ....................................................................................................................................................... 4 2. Administration Data ................................................................................................................................................................ 5 2.1 Testing Laboratory ........................................................................................................................................................... 5 2.2 Applicant .......................................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................................ 5 3. General Information ................................................................................................................................................................ 6 3.1 Description of Equipment Under Test (EUT) .................................................................................................................... 6 3.2 Maximum RF output power among production units ........................................................................................................ 7 3.3 Applied Standard.............................................................................................................................................................. 8 3.4 Device Category and SAR Limits ..................................................................................................................................... 8 3.5 Test Conditions ................................................................................................................................................................ 8 4. Specific Absorption Rate (SAR) ............................................................................................................................................. 9 4.1 Introduction ...................................................................................................................................................................... 9 4.2 SAR Definition ................................................................................................................................................................. 9 5. SAR Measurement System ................................................................................................................................................... 10 5.1 E-Field Probe ................................................................................................................................................................. 11 5.2 Data Acquisition Electronics (DAE) ................................................................................................................................ 11 5.3 Robot ............................................................................................................................................................................. 12 5.4 Measurement Server ..................................................................................................................................................... 12 5.5 Phantom ........................................................................................................................................................................ 13 5.6 Device Holder ................................................................................................................................................................ 14 5.7 Data Storage and Evaluation ......................................................................................................................................... 15 5.8 Test Equipment List ........................................................................................................................................................ 17 6. Tissue Simulating Liquids .................................................................................................................................................... 18 7. System Verification Procedures ........................................................................................................................................... 20 7.1 Purpose of System…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/11/1 System Check_Head_835MHz_131101 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_131101 Medium parameters used: f = 835 MHz; σ = 0.886 mho/m; ε r = 41.339; ρ = 1000 kg/m 3 23.522.5 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(9.87, 9.87, 9.87); Calibrated: 2013/9/10; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2013/5/8 - Phantom: SAM Right; Type: QD000P40CC; Serial: TP:1383 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.04 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.381 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.622 mW/g SAR(1 g) = 2.4 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 3.04 mW/g 0 dB = 3.04 mW/g = 9.66 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/11/1 System Check_Body_835MHz_131101 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_131101 Medium parameters used: f = 835 MHz; σ = 0.996 mho/m; ε r = 54.843; ρ = 1000 kg/m 3 23.622.6 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(9.66, 9.66, 9.66); Calibrated: 2013/9/10; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2013/5/8 - Phantom: SAM Right; Type: QD000P40CC; Serial: TP:1383 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.15 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.037 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.691 mW/g SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.65 mW/g Maximum value of SAR (measured) = 3.13 mW/g 0 dB = 3.13 mW/g = 9.91 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/11/1 System Check_Head_1900MHz_131101 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_131101 Medium parameters used: f = 1900 MHz; σ = 1.432 mho/m; ε r = 39.04; ρ = 1000 kg/m 3 23.522.5 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.4, 8.4, 8.4); Calibrated: 2013/9/10; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2013/5/8 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 16.6 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 105.8 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 20.171 mW/g SAR(1 g) = 10.8 mW/g; SAR(10 g) = 5.55 mW/g Maximum value of SAR (measured) = 15.1 mW/g 0 dB = 15.1 mW/g = 23.58 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/11/1 System Check_Body_1900MHz_131101 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_131101 Medium parameters used: f = 1900 MHz; σ = 1.57 mho/m; ε r = 51.795; ρ = 1000 kg/m 3 23.622.6 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(7.61, 7.61, 7.61); Calibrated: 2013/9/10; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2013/5/8 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.7 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 95.599 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 18.158 mW/g SAR(1 g) = 9.95 mW/g; SAR(10 g) = 5.13 mW/g Maximum value of SAR (measured) = 13.8 mW/g 0 dB = 13.8 mW/g = 22.80 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/11/2 System Check_Head_2450MHz_131102 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_131102 Medium parameters used: f = 2450 MHz; σ = 1.856 mho/m; ε r = 39.22; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(7.59, 7.59, 7.59); Calibrated: 2013/9/10; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2013/5/8 - Phantom: SAM Right; Type: QD000P40CC; Serial: TP:1383 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 22.5 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 110.1 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 29.346 mW/g SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.32 mW/g Maximum value of SAR (measured) = 20.6 mW/g 0 dB = 20.6 mW/g = 26.28 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/11/2 System Check_Body_2450MHz_131102 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_131102 Medium parameters used: f = 2450 MHz; σ = 1.947 mho/m; ε r = 51.997; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(7.24, 7.24, 7.24); Calibrated: 2013/9/10; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2013/5/8 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (6…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/11/3 #01 HAC_E_GSM850_GSM Voice_Ch128 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: Air Medium parameters used: σ = 0 S/m, ε r = 1; ρ = 1000 kg/m 3 23.6 DASY5 Configuration: - Probe: ER3DV6 - SN2358; ConvF(1, 1, 1); Calibrated: 2013/1/21; - Sensor-Surface: (Fix Surface) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: HAC Test Arch with AMCC; Type: SD HAC P01 BA; - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Ch128/Hearing Aid Compatibility Test (101x101x1): Interpolated grid: dx=0.5000 mm, dy=0.5000 mm Device Reference Point: 0, 0, -6.3 mm Reference Value = 52.79 V/m; Power Drift = -0.06 dB PMF = 2.650 is applied. E-field emissions = 109.2 V/m Near-field category: M4 (AWF -5 dB) PMF scaled E-field Grid 1 M4 93.19 V/m Grid 2 M4 102.5 V/m Gri…

Text truncated - open the document above for the full version.
