HLZFX1Thin Client

Quick Setup Guide Leitfaden zur Schnelleinrichtung Guía rápida de instalación Guide d’installation rapide Guia de Instalação Rápida 快速安装使用指南 快速安裝使用指南 クイックセットアップガイド 빠른 설치 가이드 1 Acer Veriton N2010G Thin Client Quick Setup Guide 2 Notes, Cautions, and Warnings NOTE: Indicates important information that helps you make better use of your computer. CAUTION: Indicates that damage to hardware or loss of data may result if instructions are not followed. WARNING: Indicates that property damage, personal injury, or death may result if instructions are not followed. 3 Acer Veriton N2010G Thin Client Quick Setup Guide Before Setting Up Your VN2010G NOTE: Place the thin client in its vertical orientation for best performance. Your VN2010G thin client is shipped with the following items: 1 Power cord 2 Adapter 3 Terminal stand 4 Quick Setup Guide 5 DVI-I to VGA converter(optional) 6 Compact VESA holder (optional) 7 Warrranty card NOTE: Inspect all parts for damage. If anything is damaged,please contact your reseller immediately. 4 Setup and Features Front View 1 Power Button 2 Network activity indicator LED 3 Audio line-out jack 4 Microphone jack 5 USB 2.0 ports 5 Back View 5 USB 2.0 ports 6 DVI ports 7 Ethernet (RJ-45) port 8 DC-injack 9 Security cable slot 6 Quick Setup 1 Connect the monitor to one of the DVI ports on the back of the unit. 7 2 Connect the mouse and keyboard to the USB ports. 8 3 Connect the network cable to the Ethernet port on the unit and the other end of the cable to your local network. 9 4 Connect the power supply to the DC-in jack on the back of the unit. 10 5 Plug the power cord into a surge-protected AC outlet. CAUTION: To prevent overheating, and thus voiding your warranty, do not place anything on or over the thin client. 11 6 Press the Power button to turn on the unit. Power WARNING: Make all necessary connections before turning the unit on. Failure to do so may make the unit appear as if is not functioning properly. Do not shut the thin client down by removing the power cord. Loss of power can damage the unit. WARNING: Excessive volume from earphones and headphones can cause hearing loss. Adjust the equalizer to increase or decrease the earphones’ and headphones’ volume levels. CAUTION: It is important to not interrupt the power to the thin client while executing a firmware upgrade. Loss of power can result in a damaged operating system. 12 Specifications NOTE: The following specifications are only those required by law to ship with your thin client. For a complete and current listing of the specifications for your thin client, please go to www.acer.com. Environmental Temperature: Operating 0°to 35°C (32° to 95° F) Storage -20° to 60° C (-4° to 140° F) Relative humidity 20% to 80% non-condensing Altitude: Operating -15.2 to 2000 m (-50 to 6561.7 ft) Storage -15.2 to 10,665 m (-50 to 35,000 ft) 13 Regulatory Information The regulatory details of your VN2010Gthin client can be found on a pull-out tab on the back of the device. Vender: Elementech International Co., Ltd Model number: AU-799IN Description: 12V/4A 48W AC Adapter Or Vender: LiteOn Technology Corporation Model number: PA-1051-01AC-LF Description: 12V/4.16A 50W AC Adapter CAUTION: There is a risk of explosion if the battery is replaced with an incorrect type. Please dispose of used batteries according to the instructions. 14 Power Over Ethernet (POE) (for selected models) The POE 802.3at/af installation option allows the VN2010G to communicate and receive power on the same 10/100/1000Base-T Ethernet cable. 1 Connect the Ethernet cable to the RJ45 port on the VN2010G. 2 Plug the other end of the Ethernet cable into an 802.3at/af certified host system LAN port, or 802.3at/af port injector. NOTE: 802.3af host systems can provide power to the VN2010G via POE if certain peripherals are shut off. If POE is not providing enough power, connect a power supply. RJ45/Ethernet Connector Pinouts These are the locations for the Ethernet port. Use care when handling. WARNING: POE Ethernet connectors channel high voltage current. Do not make direct physical contact with the pins. 15 16 Getting the latest software and Echo Management software Please visit the website page through following http://www.devonit.com/acer , to get the latest software for clients and the latest Echo Management software for server. 1 Acer Veriton N2010G Thin Client Leitfaden zur Schnelleinrichtung 2 Hinweise, Vorsichtshinweise und Warnungen HINWEIS: Ein HINWEIS macht auf wichtige Informationen für die bessere Nutzung Ihres Computers aufmerksam. VORSICHT: Ein VORSICHTSHINWEIS weist auf eine potenzielle Beschädigung der Hardware bzw. auf potenziellen Datenverlust hin, wenn die Anweisungen nicht befolgt werden. WARNUNG: Eine WARNUNG weist auf eine potenzielle Beschädigung von Eigentum, Körperverletzungs- oder Todesgefahr hin. 3 Acer Veriton N2010G Thin Client Leitfaden zur Schnelleinrichtung Vor der Einrichtung Ihres VN2010G HINWEIS: Stellen Sie den Thin-Client für optimale Leistung vertikal ausgerichtet auf. Ihr VN2010G -Terminal wird mit den folgenden Artikeln geliefert: 1 Netzkabel 2 Adapter 3 Terminalständer 4 Leitfaden zur Schnelleinrichtung 5 DVI-I zu VGA Converter (optional) 6 Kompakte VESA-Halterung (optional) 7 Garantiekarte HINWEIS: Überprüfen Sie alle Teile auf sichtbare Beschädigungen. Sollte etwas beschädigt sein, wenden Sie sich bitte umgehend an Ihren Händler. 4 Einrichtung und Funktionsmerkmale Vorderansicht 1 Einschalttaste 2LED-Anzeige für Netzwerkaktivität 3 Audioleitung, Ausgang 4Mikrofonbuchse 5 USB 2.0-Anschlüsse 5 Rückansicht 5 USB 2.0-Anschlüsse 6 DVI-Anschlüsse 7 Ethernet (RJ-45)-Anschluss 8 DC-Eingangsbuchse 9 Sicherheitskabelschlitz 6 Schnelleinrichtung 1 Schließen Sie den Monitor am DVI-Anschlüsse an der Rückseite des Geräts an. 7 2 Schließen Sie die Maus und Tastatur an die USB-Anschlüsse an. 8 3 Schließen Sie das Netzwerkkabel an den Ethernet- Anschluss am Gerät an und verbinden Sie das andere Ende des Kabels mit dem LAN. 9 4 Sc…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Date:2011/8/22 To who may concern, I, the undersigned, responsible for the designated person in FCC grant communicator / IC company code contactor, hereby authorized RU Jan to sign the FCC / IC application form for certification process. Thank you, Sincerely Yours, Contact Person: Harriot S.L. Lee Company Name: Acer Incorporated E-Mail: [email protected]

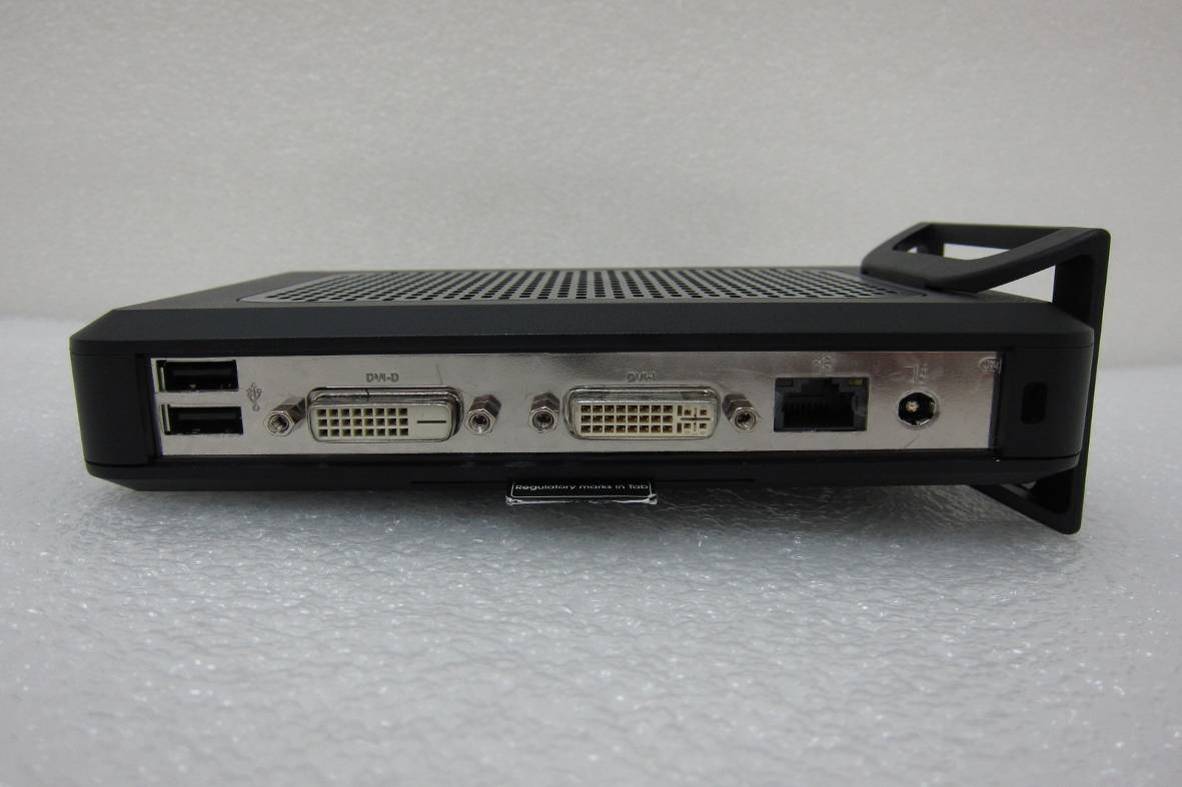

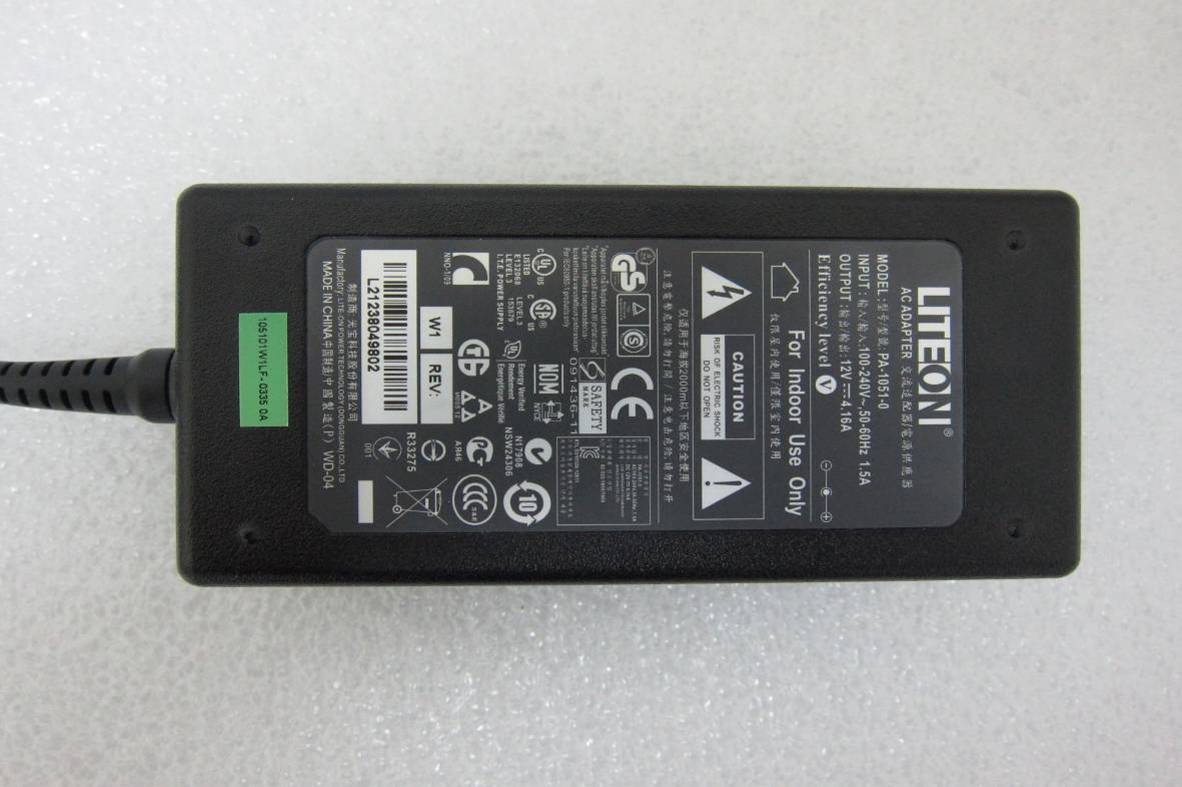

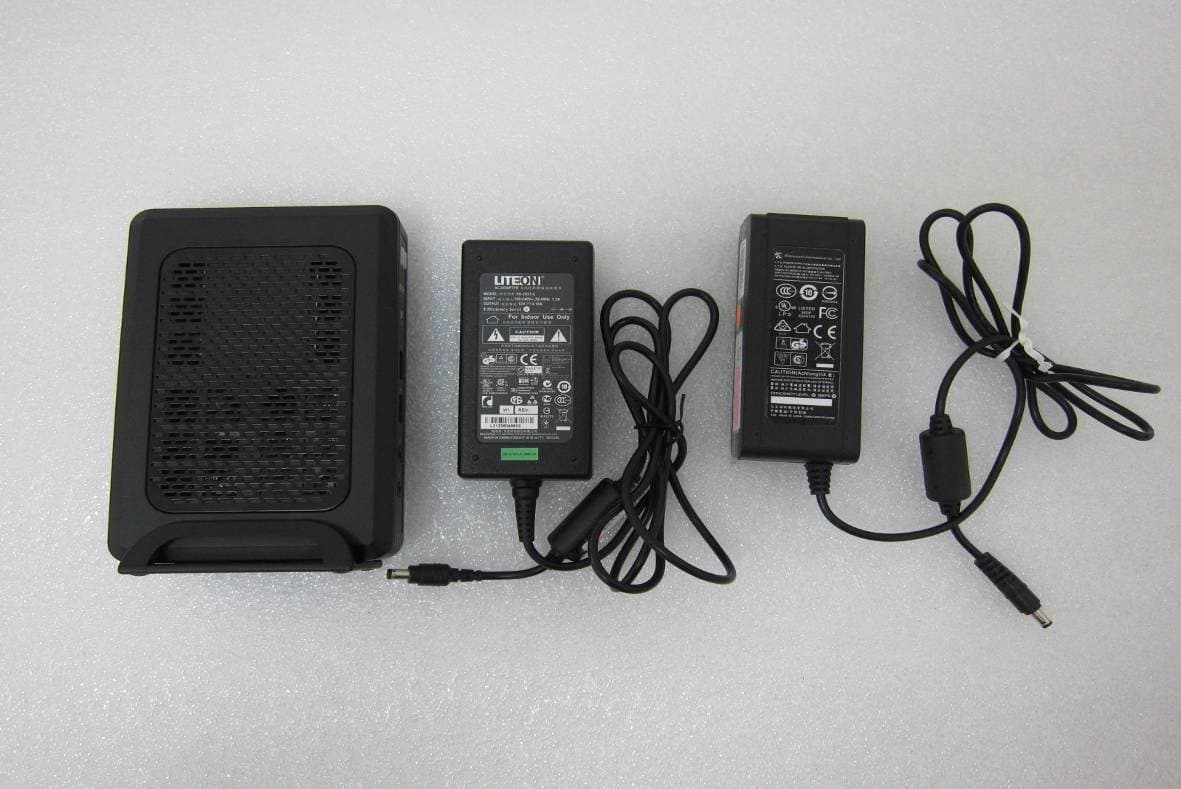

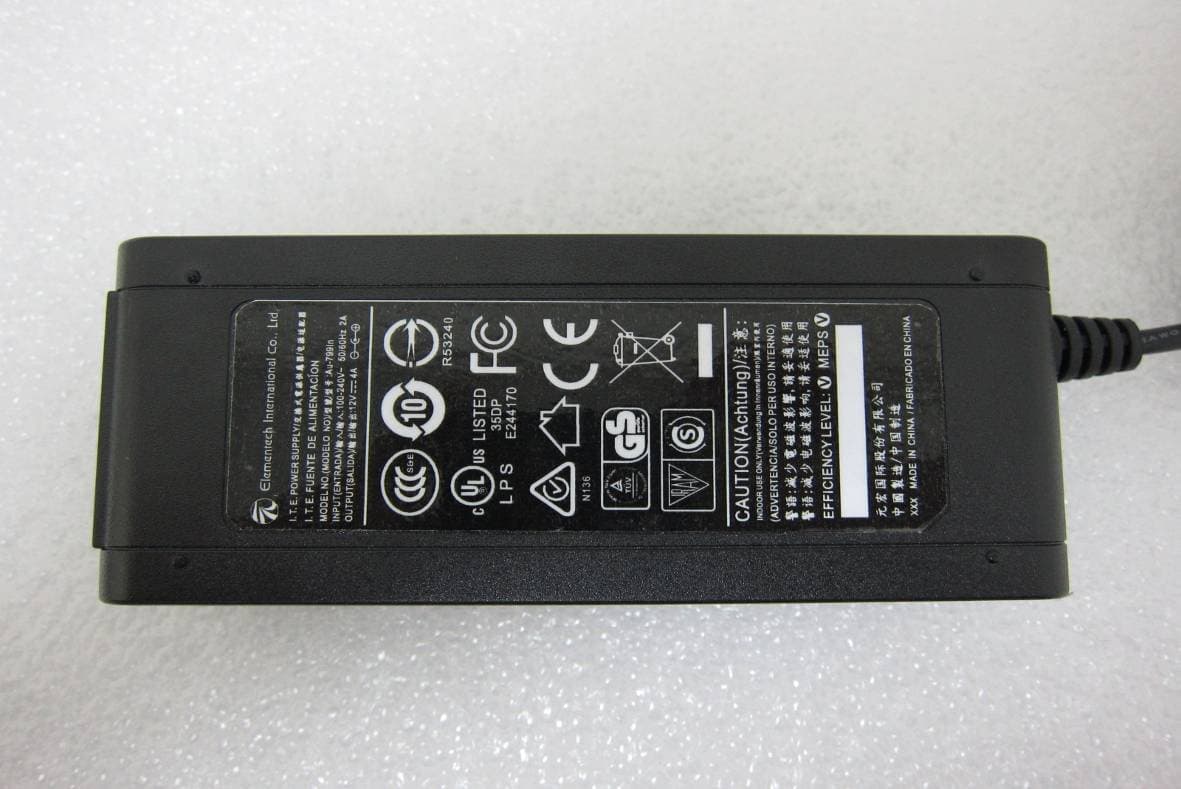

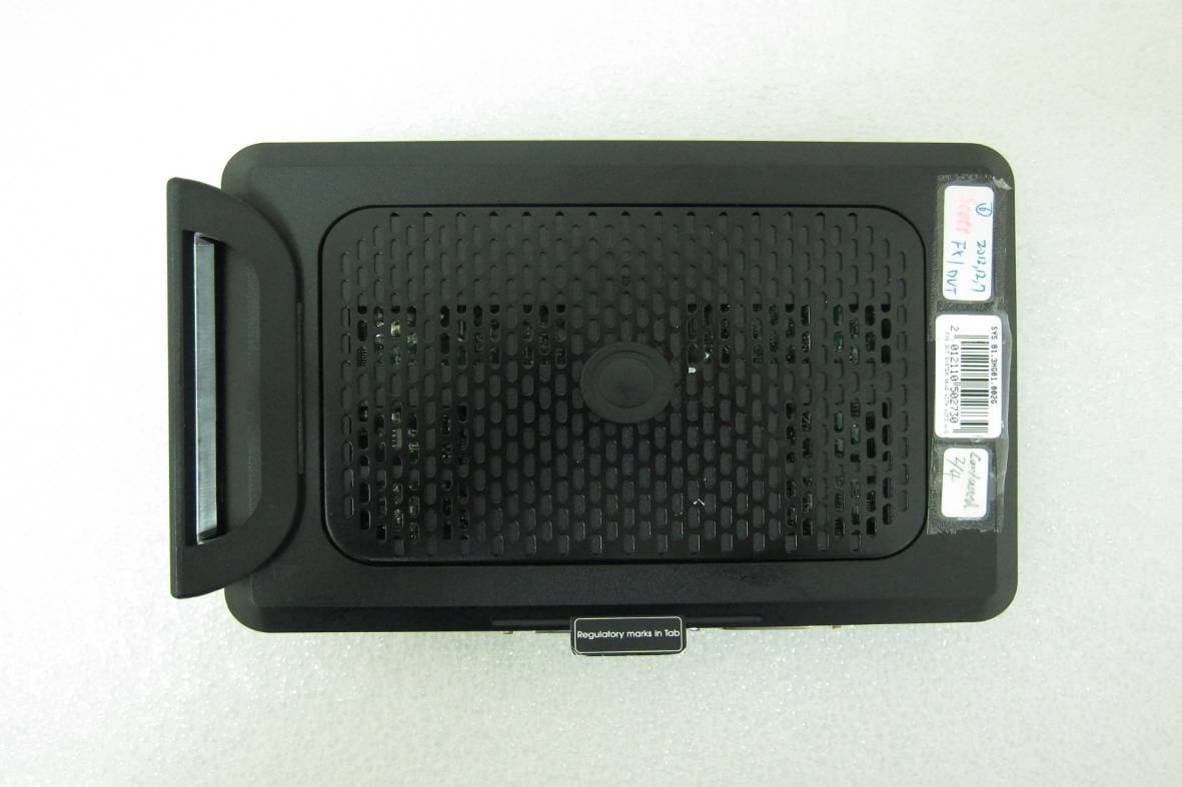

FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC EUT 1 EUT 2 FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC EUT 3 EUT 4 FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC EUT 5 EUT 6 FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC EUT 7

ID LABEL FORMAT AND LOCATION Applicant: Acer Incorporated FCC ID: HLZFX1 IC: 1754F-FX1 The label can be found on a pull-out tab on the back of the device. Inside Agency label 20*54mm Regulatory marks label 25*4.5mm RF label 14.5*8mm SN label 39.2*14mm MAC label 31.7*13.4mm FX1 VN2010G label location Outside Regulatory marks in Tab 中國製造/ 中國製造 瘦客戶機/ 精簡型電腦 型號/ 型號) 直流額定/ 直流額定) 電源適配器相關內容請參看用戶說明書. FCC ID: HLZFX1 IC: 1754F-FX1 Mylar Color : Black MARK lINE 54.00 24.00 26.00 10.00 2.00 4.50 3.00 5.00 13.20 *42.20 52.20 5.00 65.00 *58.00 25.00 24.00 54.00 26.00 19.00 0.50 MARK lINE TEXTURE ON THE SURFACE

FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC EUT 1 EUT 2 FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC EUT 3 EUT 4 FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC EUT 5 EUT 6 (antenna location) FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC EUT 7 (antenna ) EUT 8 (antenna ) ~ End of Report ~

-1 of 3- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC 1 Maximum Permissible Exposure (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density -2 of 3- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC 1.2 Maximum Permissible Exposure (MPE) Evaluation The worst case of Average power: refer to section 6.5 for detail measurement date. 802.11b Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 1 2412 20.05 17.84 30 6 2437 20.25 18.09 11 2462 20.40 18.16 MPE Prediction (802.11b) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum average output power at antenna input 18.16 (dBm) Maximum Av er ag e ou tpu t p ow er at anten na in pu t 6 5. 46 36 17 41 (mW) Duty cycle: 100 (%) Maximu m Pav : 6 5. 46 36 17 41 (mW) Antenna gain (typical): -2.07 (dBi) M aximum an ten na g ain : 0 .6 20 86 90 34 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit f or uncontrolled ex po sure at pred iction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0080900 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.008 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2462MHz. -3 of 3- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC The worst case of Average power: refer to section 6.5 for detail measurement date. 802.11n 20MHz(5G) Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 149 5745 17.53 11.76 30 157 5785 16.88 11.52 165 5825 17.11 11.84 MPE Prediction (802.11n 20MHz) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum average output power at antenna input 11.84 (dBm) Maximum Av er ag e ou tpu t p ow er at anten na in pu t 1 5. 27 56 60 58 (mW) Duty cycle: 100 (%) Maximu m Pav : 1 5. 27 56 60 58 (mW) Antenna gain (typical): 0.7 (dBi) M aximum an ten na g ain : 1 .1 74 89 75 55 (numeric) Prediction distance: 20 (cm) Prediction frequency: 5825 (MHz) MPE limit f or uncontrolled ex po sure at pred iction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0035723 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.0036 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 5825MHz.

Page: 1 of 94 TEST REPORT of FCC Part 15 Subpart C AND CANADA RSS-210 New Application; Class I PC; Class II PC Product : Thin Client Brand: acer Model: Veriton N2010G Model Difference: N/A FCC ID: HLZFX1 IC: 1754F-FX1 FCC Rule Part: §15.247, Cat: DTS IC Rule Part: RSS-210 issue 8 :2010, Annex 8 Applicant: Acer Incorporated Address: 8F, 88, Sec 1, Hsin Tai Wu Rd, Hsichih, New Taipei City 22181, Taiwan, R.O.C. Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-13LR036FC Issue Date : 2013/03/21 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC VERIFICATION OF COMPLIANCE Applicant: Acer Incorporated Product Description: Thin Client Brand Name: acer Model No.: Veriton N2010G Model Difference: N/A FCC ID: HLZFX1 IC: 1754F-FX1 FCC Rule Part: §15.407 IC Rule Part RSS-210 issue 8:2010, Annex 8 Date of test: 2013/03/04 ~ 2013/03/21 Date of EUT Received: 2013/03/04 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2013/03/21 Dion Chang / Engineer Prepared By: Date: 2013/03/21 Gigi Yeh / Specialist Approved By: Date: 2013/03/21 Vincent Su / Technical Manager -3 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Version Version No. Date Description 00 2013/03/21 Initial creation of document -4 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 8 1.2 Test Methodology .......................................................................................................................... 8 1.3 Test Facility .................................................................................................................................... 8 1.4 Special Accessories ........................................................................................................................ 8 1.5 Equipment Modifications ............................................................................................................... 8 2 SYSTEM TEST CONFIGURATION ....................................................................................... 9 2.1 EUT Configuration ........................................................................................................................ 9 2.2 EUT Exercise ................................................................................................................................. 9 2.3 Test Procedure ................................................................................................................................ 9 2.4 Configuration of Tested System ................................................................................................... 10 3 SUMMARY OF TEST RESULTS .......................................................................................... 11 4 DESCRIPTION OF TEST MODES ....................................................................................... 11 5 CONDUCTED EMISSION TEST........................................................................................... 12 5.1 Standard Applicable: .................................................................................................................... 12 5.2 Measurement Equipment Used: ................................................................................................... 12 5.3 EUT Setup: ................................................................................................................................... 13 5.4 Measurement Procedure: ............................................................................................................. 13 5.5 Measurement Result: ................................................................................................................... 13 6 PEAK /AVERAGE UTPUT POWER MEASUREMENT .................................................... 18 6.1 Standard Applicable: .................................................................................................................... 18 6.2 Measurement Equipment Used: ................................................................................................... 19 6.3 Test Set-up: .................................................................................................................................. 19 6.4 Measurement Procedure: ............................................................................................................. 19 6.5 Measurement Result: ...........................................…

Text truncated - open the document above for the full version.

-57 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Conducted Spurious Emission Measurement Result 802.11n_20M for 2.4GHz Ch Low 30MHz – 3GHz Ch Low 3GHz – 26.5GHz -58 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch Mid 30MHz – 3GHz Ch Mid 3GHz – 26.5GHz -59 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch High 30MHz – 3GHz Ch High 3GHz – 26.5GHz -60 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Conducted Spurious Emission Measurement Result 802.11a Ch Low 30MHz – 3GHz Ch Low 3GHz – 26GHz -61 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch Low 26GHz – 40GHz -62 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch Mid 30MHz – 3GHz Ch Mid 3GHz – 26GHz -63 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch Mid 26GHz – 40GHz -64 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch High 30MHz – 3GHz Ch High 3GHz – 26GHz -65 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch High 26GHz – 40GHz -66 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Conducted Spurious Emission Measurement Result 802.11n_20M for 5GHz Ch Low 30MHz – 3GHz Ch Low 3GHz – 26GHz -67 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch Low 26GHz – 40GHz -68 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch Mid 30MHz – 3GHz Ch Mid 3GHz – 26GHz -69 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch Mid 26GHz – 40GHz -70 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch High 30MHz – 3GHz Ch High 3GHz – 26GHz -71 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Ch High 26GHz – 40GHz -72 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Radiated Spurious Emission Measurement Result (below 1GHz) (worst case) Operation Mode 802.11 g TX CH Low Test Date 2013/03/11 Fundamental Frequency 2412MHz Test By Dino Temperature 25 °C PolVer./Hor Humidity 60 % No Freq Reading Factor Level Limit Over Limit Remark Pol MHz dBuV dB dBuV/mdBuV/mdB V/H 1 55.22 44.47 -14.36 30.11 40.00 -9.89 Peak VERTICAL 2 78.50 49.21 -18.14 31.07 40.00 -8.93 Peak VERTICAL 3 163.86 42.24 -13.70 28.54 43.50 -14.96 Peak VERTICAL 4 337.49 38.09 -11.71 26.38 46.00 -19.62 Peak VERTICAL 5 600.36 39.02 -6.74 32.28 46.00 -13.72 Peak VERTICAL 6 940.83 33.26 -1.38 31.88 46.00 -14.12 Peak VERTICAL 1 78.50 52.84 -18.14 34.70 40.00 -5.30 Peak HORIZONTAL 2 165.80 41.88 -13.86 28.02 43.50 -15.48 Peak HORIZONTAL 3 233.70 47.67 -14.77 32.90 46.00 -13.10 Peak HORIZONTAL 4 314.21 38.86 -12.14 26.72 46.00 -19.28 Peak HORIZONTAL 5 418.00 34.47 -10.16 24.31 46.00 -21.69 Peak HORIZONTAL 6 655.65 39.37 -5.90 33.47 46.00 -12.53 Peak HORIZONTAL Remark: 1 No further spurious emissions detected from the lowest internal frequency and 30MHz. 2 Measuring frequencies from the lowest internal frequency to the 1GHz. 3 Radiated emissions measured in frequency range from 9MHz to 1000MHz were made with an instrument detector setting 9-90KHz/110-490KHz using PK/AV and other Fre- quency Band using PK/QP 4 Measurement result within this frequency range shown “ - ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. 5 The IF bandwidth of SPA between 9kHz to 30MHz was 10kHz, VBW= 30kHz; between 30MHz to 1GHz was 100KHz, VBW=300KHz. -73 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Radiated Spurious Emission Measurement Result (below 1GHz) (worst case) Operation Mode 802.11g TX CH Mid Test Date 2013/03/11 Fundamental Frequency 2437MHz Test By Dino Temperature 25 °C PolVer./Ho r Humidity 60 % No Freq Reading Factor Level Limit Over Limit Remark Pol MHz dBuV dB dBuV/mdBuV/mdB V/H 1 55.22 43.52 -14.36 29.16 40.00 -10.84 Peak VERTICAL 2 78.50 49.76 -18.14 31.62 40.00 -8.38 Peak VERTICAL 3 165.80 41.22 -13.86 27.36 43.50 -16.14 Peak VERTICAL 4 338.46 37.65 -11.69 25.96 46.00 -20.04 Peak VERTICAL 5 600.36 39.34 -6.74 32.60 46.00 -13.40 Peak VERTICAL 6 940.83 32.29 -1.38 30.91 46.00 -15.09 Peak VERTICAL 1 78.50 51.26 -18.14 33.12 40.00 -6.88 Peak HORIZONTAL 2 166.77 41.53 -13.94 27.59 43.50 -15.91 Peak HORIZONTAL 3 208.48 42.75 -16.15 26.60 43.50 -16.90 Peak HORIZONTAL 4 313.24 39.31 -12.16 27.15 46.00 -18.85 Peak HORIZONTAL 5 418.00 35.55 -10.16 25.39 46.00 -20.61 Peak HORIZONTAL 6 641.10 40.23 -6.11 34.12 46.00 -11.88 Peak HORIZONTAL Remark: 1 No further spurious emissions detected from the lowest internal frequency and 30MHz. 2 Measuring frequencies from the lowest internal frequency to the 1GHz. 3 Radiated emissions measured in frequency range from 9MHz to 1000MHz were made with an instrument detector setting 9-90KHz/110-490KHz using PK/AV and other Fre- quency Band using PK/QP 4 Measurement result within this frequency range shown “ - ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. 5 The IF bandwidth of SPA between 9kHz to 30MHz was 10kHz, VBW= 30kHz; between 30MHz to 1GHz was 100KHz, VBW=300KHz. -74 of 94- FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Radiated Spurious Emission Measurement Result (below 1GHz) (worst case) Operation Mode 802.11g TX CH HighTest Date 2013/03…

Text truncated - open the document above for the full version.

FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC APPENDIX 1 PHOTOGRAPHS OF SET UP FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Radiated Emission Set up Photo FCC ID: HLZFX1 IC: 1754F-FX1 International Standards Laboratory Report Number: ISL-13LR036FC Conducted Emission Set up Photo
