HLZMWIT1Wireless for HDMI 60 GHz

1 60 GHz Wireless HD Transceiver MWIHD1 User's Guide Introduction Package contents The following items should be included: • Transmitter unit (MWIT1) • Receiver unit (MWIR1) • HDMI ® cable • User's Guide • Warranty • Power adapter • MHL cable If any of the above items is damaged or missing, please contact your supplier immediately. Using the product safely • Always treat your product with care and keep it in a clean and dust -free place. • Do not expose your product to liquid, moisture or humi dity. • Do not expose your product to temperatures above 40° C when in operation. • Do not drop or throw your product. • Do not attempt to disassemble or modify your product. Only authorized personnel should perf orm s ervice. • Your device is not water-resistant; keep it dry. • Only use the supplied AC adapter. 2 Hardware 60 GHz Wireless HD MWIR1 / MWIT1 Front panel LED indicator LED Color Behavior Indication Power Blue Blinking slowly The transmitter has started transmitting and has not yet found the receiver. Blinking fast Transmitter and receiver are linked and communicating with each other. On The MWIR1 and MWIT1 have established an audio/video connection, the network is established. Off The adapter is turned off or in sleep mode. 3 Rear panel Configuration Find next Short press (< 10 seconds) to detect the next source. This function allows you to switch the source of the audio/video to another in-range Wireless HD transmitter. This disconnects the current connection and triggers a connection to the next available source on the device list. Long press (> 10 seconds) to reset to factory defaults. This function allows you to reset the recei ver to its original shipping condition. HDMI/MHL Connect an HDMI/MHL cable to this port and a TV or computer. Power switch Press to turn the power on or off. DC-in Connect the power adapter to the power DC-in jack. Installation Setup steps 1. Connect the transmitter to a media source, such as a computer, Blu-ray player or a smartphone using the HDMI/MHL cable. If connected to a computer, make sure the computer output resolution is in a supported video format. 2. Connect the receiver to the HDMI/MHL port on the projector. Select WirelessHD from the projector source list. Find next HDMI/MHL Power switch DC-in 4 Step 1 The transmitter ( MWIT1) Step 2 The receiver (MWIR1) Notes  For the best results, the MWIT1 and MWIR1 should: Face each other and be in the same room. Be no more than 33 feet (10 meters) apart. MWIT1 should not be placed in a cabinet or on a closed shelf. Do not place near metal objects.  Do not forget to turn on the projector and ensure it is set up correctly. 5 3. Check that the transmitter is powered. 4. Turn on the transmitter. Select the source Connecting to a different transmitter 1. Turn on the new transmitter. 2. Press the Find next button for 2 seconds. 3. The LED on the transmitter will start blinking quickly. When the new connection has been established, the LED will stop blinking and stay lit. Power switch Bouton Trouver suivant 6 Specifications Specifications Standards Wireless HD 1.1, HDMI 1.4a, MHL V2.0 Frequency 60 GHz Input/output HDMI/MHL -n (MWIT1), MHL out x 1 (MWIR1) Antenna type 24 antenna array Range 10 meters in-room usage A/V port MWIT1: 1 port (CEC pass through) MWIR1: 1 port (CEC pass through) Physical Weight: Dimensions: 106 g (MWIT1) 120 g (MWIR1) 88.0 x 72.0 x 31.2 mm (MWIT1) 100.0 x 30.0 x 18.0 mm (MWIR1) Adapter Power Input: Output: AC 100 to 240 V at 50 / 60 Hz 0.3 A DC 5 V 2.0 A LED indicators One power indicator. Operating environment Operating temperature: 0 to 40° C Storage temperature: -20 to 70° C Operating humidity: 10% to 90% (non-condensing) Storage humidity: 5% to 90% (non-condensing) SRRC Number MWIT1: MWIR1: 7 Video formats Video format Vertical refresh Color space Sampling Supported 480i (1440 x 480i) 59.94 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s 480p/480pw (640 x 480p/ 720 x 480p) 59.94 / 60 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s 576i (1440 x 576i) 50 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s 576p/576pw (720 x 576p) 50 Hz YCbCr 4:2:2 Ye s YCbCr 4:4:4 Ye s RGB 4:4:4 Ye s 720p (1280 x 720p) 50 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s 59.94 / 60 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s 1080i (1920 x 1080i) 50 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s 59.94 / 60 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s 8 1080p (1920 x 1080p) 23.976 / 24 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s 50 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s 59.94 / 60 Hz YCbCr 4:2:2 Ye s 4:4:4 Ye s RGB 4:4:4 Ye s VGA (640 x 480) 59.94 Hz RGB 4:4:4 Ye s SVGA (800 x 600) 60 Hz RGB 4:4:4 Ye s XG A (1024 x 768) 60 Hz RGB 4:4:4 Ye s SXGA (1280 x 1024) 60 Hz RGB 4:4:4 Ye s WSXGA+ (1680 x 1050) 60 Hz RGB 4:4:4 Ye s 3D video formats Frame packing 1080p @ 24 Hz 720p @ 50/60 Hz Top to bottom 1080p @ 24 Hz 720p @ 50/60 Hz Side by side 720i @ 50/60 Hz 1080i @ 50/60 Hz 1080p @ 50/60 Hz 9 Audio formats Audio sample rate LPCM 2/6/8-channel LPCM 2-channel 32 kHz 44.1 kHz 48 kHz 88.2 kHz 96 kHz 176.4 kHz 192 kHz Supported Supported *Specification subject to change without notice. FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan Tel: 886-2-6606-3131 #3811 / Fax: 886-2-2696-3535 Confidential Letter Date: 2014/10/14 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：HLZMWIT1 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent Acer Incorporated requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Note: The registered grantee contact is not available, RU Jan is signing for grantee contact. He/She can be reached at email: [email protected]. Sincerely, Applicant’s company name : Acer Incorporated Applicant’s company address : 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan Signature : Signed for Harriot S.L. Lee Name and Job Title : Harriot S.L. Lee / Manager E-Mail : [email protected] Tel. : 886-2-6606-3131 #3811

Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan Tel: 886-2-6606-3131 #3811 / Fax: 886-2-2696-3535 DoC Attestation Letter Date: 2014/10/14 We Acer Incorporated, as the grantee of this project (FCC ID: HLZMWIT1 / Brand Name: Acer / Model No.: HLZ-MWIT1), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD491859, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, Note: The registered grantee contact is not available, RU Jan is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : Acer Incorporated Applicant’s company address : 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan Signature : Signed for Harriot S.L. Lee Name and Job Title : Harriot S.L. Lee / Manager E-Mail : [email protected] Tel. : 886-2-6606-3131 #3811

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Date:2011/8/22 To who may concern, I, the undersigned, responsible for the designated person in FCC grant communicator / IC company code contactor, hereby authorized RU Jan to sign the FCC / IC application form for certification process. Thank you, Sincerely Yours, Contact Person: Harriot S.L. Lee Company Name: Acer Incorporated E-Mail: [email protected]

Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan Tel: 886-2-6606-3131 #3811 / Fax: 886-2-2696-3535 Power of Attorney Date: 2014/10/14 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Acer / HLZ-MWIT1 FCC ID: HLZMWIT1 Product name: Wireless for HDMI 60 GHz Note: The registered grantee contact is not available, RU Jan is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : Acer Incorporated Applicant’s company address : 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan Signature : Signed for Harriot S.L. Lee Name and Job Title : Harriot S.L. Lee / Manager E-Mail : [email protected] Tel. : 886-2-6606-3131 #3811

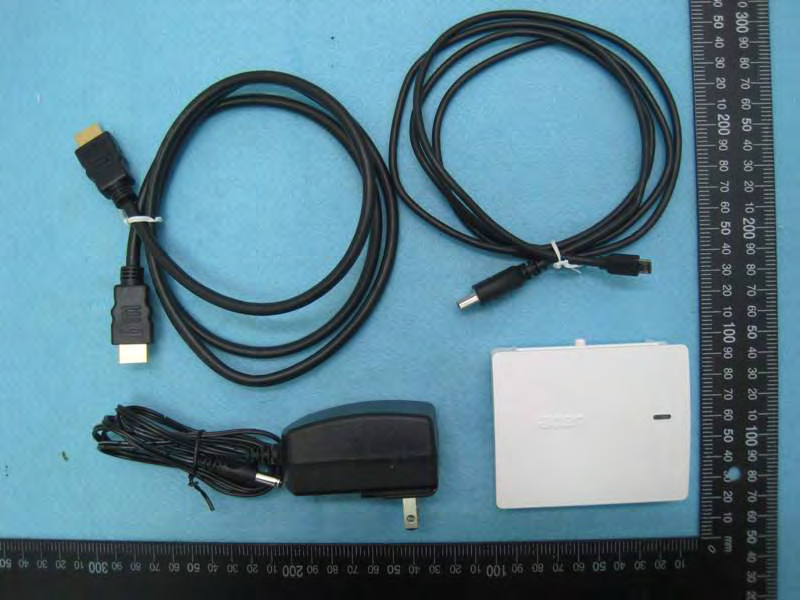

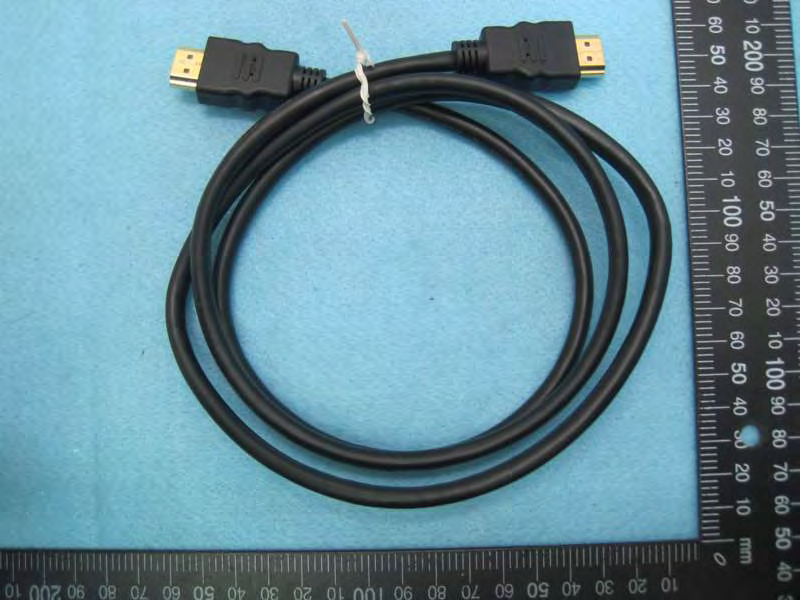

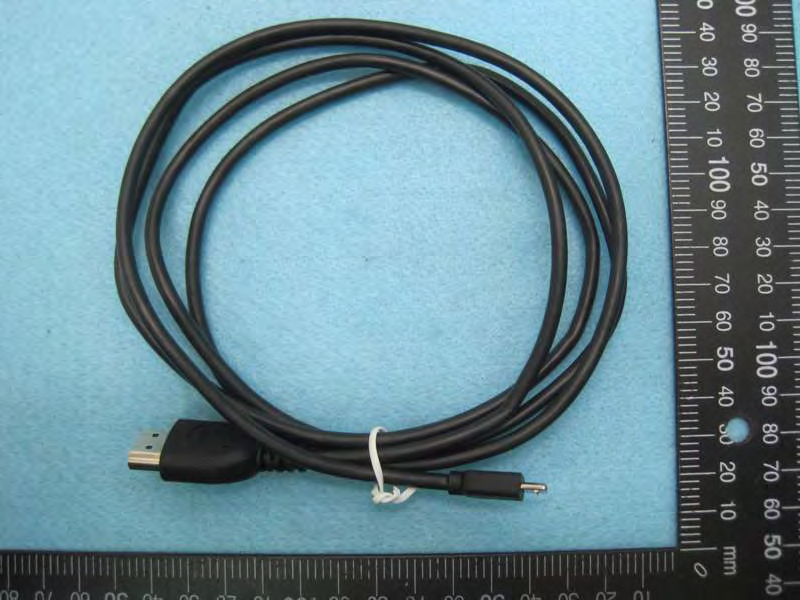

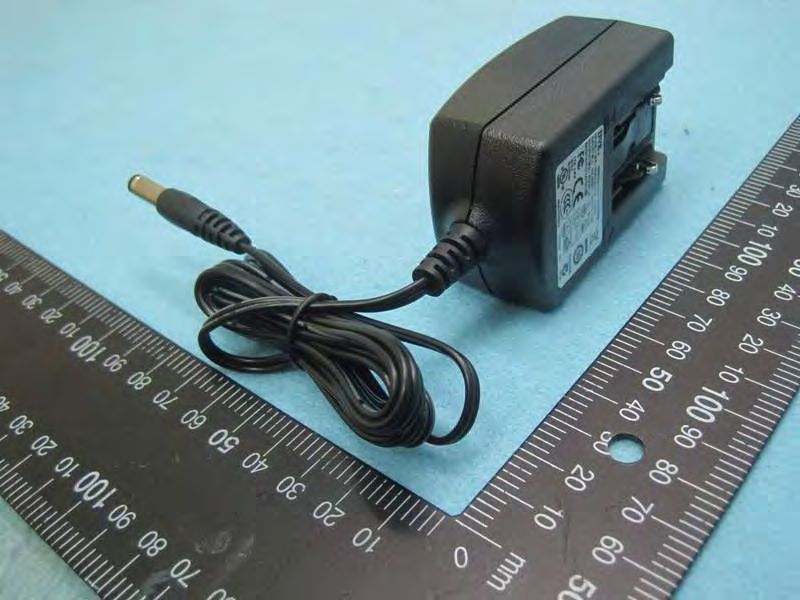

Report No.:491859 SPORTON International Inc. PAGE NUMBER : 1 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:491859 SPORTON International Inc. PAGE NUMBER : 2 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 3 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 4 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Adapter Report No.:491859 SPORTON International Inc. PAGE NUMBER : 5 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Plug Report No.:491859 SPORTON International Inc. PAGE NUMBER : 6 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 HDMI to HDMI cable Report No.:491859 SPORTON International Inc. PAGE NUMBER : 7 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 HDMI to Micro USB cable Report No.:491859 SPORTON International Inc. PAGE NUMBER : 8 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973

Label location & Label size: 29.50 x 21.50 mm MWIT1 Label MWIT1 Label location

Report No.:491859 SPORTON International Inc. PAGE NUMBER : 1 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:491859 SPORTON International Inc. PAGE NUMBER : 2 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 3 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 4 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 5 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 6 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 7 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 8 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 9 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 10 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973 Report No.:491859 SPORTON International Inc. PAGE NUMBER : 11 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Jan. 22, 2015 FAX : 886-3-327-0973

Report No.: FR491859 FCC ID: HLZMWIT1 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR491859 FCC ID: HLZMWIT1 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Limit of Maximum Permissible Exposure Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   Report No.: FR491859 FCC ID: HLZMWIT1 Page No. : B3 of B3 1.3. Result of Maximum Permissible Exposure Exposure Environment General Population / Uncontrolled Exposure Temp 23°C Humidity 61% Test Engineer Serway Li Test Date Oct. 10, 2014 ~ Oct. 18, 2014 Test results Maximum EIPR Power of Test Frequency (GHz) Average EIRP Power (dBm) Average EIRP Power (mW) Power Density (S) (mW/cm²) Separation Distance (cm) Limit of Power Density (S) (mW/cm²) LRP 60.16 GHz 18.32 67.89 0.014 20 1.00 MRP 60.48 GHz 24.30 269.41 0.054 20 1.00 HRP 60.48 GHz 26.94 494.77 0.098 20 1.00

FCC Radio Test Report Report No. : FR491859 SPORTON INTERNATIONAL INC. Page No. : 2 of 52 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 22, 2015 FCC ID: HLZMWIT1 TABLE OF CONTENTS TABLE OF CONTENTS .....................................................................................................................................2 SUMMARY OF TEST RESULT .........................................................................................................................3 REVISION HISTORY..........................................................................................................................................4 1 GENERAL DESCRIPTION ....................................................................................................................5 1.1 Information..............................................................................................................................................5 1.2 Additional Information Provided by the Submitter ..................................................................................7 1.3 Accessories ............................................................................................................................................7 1.4 Support Equipment.................................................................................................................................8 1.5 EUT Operation during Test ....................................................................................................................8 1.6 Test Setup Diagram ...............................................................................................................................9 1.7 Testing Applied Standards ...................................................................................................................12 1.8 Testing Location ...................................................................................................................................12 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ................................................................13 2.1 Test Channel Frequencies ...................................................................................................................13 2.2 Conformance Tests and Related Test Frequencies ............................................................................13 3 TRANSMITTER TEST RESULT ..........................................................................................................14 3.1 AC Power Conducted Emissions .........................................................................................................14 3.2 Occupied Bandwidth ............................................................................................................................18 3.3 EIRP Power and Power Density...........................................................................................................30 3.4 Peak Conducted Power........................................................................................................................32 3.5 Transmitter Spurious Emissions...........................................................................................................35 3.6 Frequency Stability ...............................................................................................................................44 3.7 Publicly-accessible Coordination Channel ...........................................................................................47 3.8 Operation Restriction and Group Installation .......................................................................................49 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................50 5 MEASUREMENT UNCERTAINTY ......................................................................................................52 APPENDIX A. TEST PHOTOS.............................................................................................A1 ~ A4 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE............................................................B1 ~ B3 FCC Radio Test Report Report No. : FR491859 SPORTON INTERNATIONAL INC. Page No. : 3 of 52 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 22, 2015 FCC ID: HLZMWIT1 SUMMARY OF TEST RESULT Standard Requirements and Conformance Test Specifications Report Clause Ref. Std. Clause Description Result Remark 3.1 FCC 15.207 AC Power Conducted Emissions Complied - 3.2 FCC 15.255(e) Occupied Bandwidth Complied - 3.3 FCC 15.255(b)(1) EIRP Power and Power Density Complied - 3.4 FCC 15.255(e) Peak Conducted Power Complied - 3.5 FCC 15.255(c) Transmitter Spurious Emissions Complied - 3.6 FCC 15.255(f) Frequency Stability Complied - 3.7 FCC 15.255(d) Publicly-accessible Coordination Channel Complied - 3.8 FCC 15.255(a),(h) Operation Restriction and Group Installation Complied - FCC Radio Test Report Report No. : FR491859 SPORTON INTERNATIONAL INC. Page No. : 4 of 52 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 22, 2015 FCC ID: HLZMWIT1 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR491859 Rev. 01 Initial issue of report Jan. 22, 2015 FCC Radio Test Report Report No. : FR491859 SPORTON INTERNATIONAL INC. Page No. : 5 of 52 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 22, 2015 FCC ID: HLZMWIT1 1 General Description 1.1 Information 1.1.1 The Channel Plan(s) The Channel Plan(s) Low-rate PHY (LRP) Band Channel 2 LRP: 60.16-60.80 GHz Channel 3 LRP: 62.32-62.96 GHz LRP Channel List Channel 2 LRP: 60.16-60.80 GHz: 60.16 +n x 0.16 (n=0, 1, 2, 3, 4) GHz Channel 3 LRP: 62.32-62.96 GHz: 62.32 +n x 0.16 (n=0, 1, 2, 3, 4) GHz Middle-rate PHY (MRP) Band Channel 2 MRP: 60.48 GHz Channel 3 MRP: 62.64 GHz High-rate PHY (HRP) Band Channel 2 HRP: 60.48 GHz Channel 3 HRP: 62.64 GHz 1.1…

Text truncated - open the document above for the full version.

Report No.: FR491859 FCC ID: HLZMWIT1 Page No. : A1 of A4 Appendix A. Test Photos Report No.: FR491859 FCC ID: HLZMWIT1 Page No. : A2 of A4 1. Photographs of AC Power Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR491859 FCC ID: HLZMWIT1 Page No. : A3 of A4 2. Photographs of Transmitter Spurious Emissions Test Configuration Test Configuration: Below 1GHz / Mode 1 FRONT VIEW REAR VIEW Report No.: FR491859 FCC ID: HLZMWIT1 Page No. : A4 of A4 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
