HLZN50PDA with Bluetooth and Wireless Lan 802.11b

Manual for Acer n50 o61!<!o61!qsfnjvn COPYRIGHT Copyright © 2004 Acer Inc. or its subsidiaries All Rights Reserved. Printed in Taiwan. Acer n50 Handheld Manual Original issue: November 2004 Acer and the Acer logo are registered trademarks of Acer Inc. Microsoft, ActiveSync, Outlook, Pocket Outlook, Windows, Windows NT, and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation. Other company’s product names or trademarks are used herein for identification purpose only and belong to their respective companies. Changes may be made periodically to the information in this publication without obligation to notify any person of such revision or changes. Such changes will be incorporated in new editions of this Manual or supplementary documents and publications. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of Acer Inc. DISCLAIMER AND LIMITATION OF LIABILITY Acer and its subsidiaries makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose. Acer and its subsidiaries assume no responsibility for any damage or loss resulting from the use of this Acer n50 Handheld Manual. NOTES Record the serial number, purchase date, and place of purchase information in the space provided below. The serial number is recorded on the label affixed to your Acer n50. All correspondence concerning your unit should include the serial number, and purchase information. Acer n50 Handheld S/N: _______________________________________ Purchase Date: ____________________________ Place of Purchase: _________________________ AboutthisManual iii About this Manual Welcome to the Acer n50 Handheld Manual. This Manual is designed to help you get up and running quickly with your new Acer n50—a Windows ® Powered Pocket PC 2004 handheld. It describes all you need to know about how to use your handheld as well as the application programs that come with it. This Manual will discuss the following topics: • A tour of the Acer n50 system • Setup and maintenance procedures • Viewing and entering data • Using the application programs bundled with your handheld • Taking advantage of your handheld’s expansion features • Synchronising data between your handheld and your computer • Connecting your handheld to a computer, a network, or the Internet • Personalising your handheld with your own preference settings This Manual introduces you to the many ways your Acer n50 can help you organise and manage both business and personal information to make your everyday activities a more productive and satisfying experience. AboutthisManual iv First things first Your guides v First things first We would like to thank you for making Acer n50 your choice for your handheld needs. Your new sleek Acer n50 is a multi-functional tool packed with user-friendly features and high-performance applications designed to make organising work- related information and synchronising it with your personal activities a time-efficient task. We hope you enjoy using your Acer n50 as much as we enjoyed creating it for you. Use your Acer n50 to effectively manage information related to both business and personal tasks. • Software installation and new applications • Use the Microsoft ® Pocket PC 2003 second edition software to perform organising and computing tasks • Synchronise the information on your computer with the information on your handheld using Microsoft ® ActiveSync ® • Get connected to the Internet with the Microsoft ® Pocket Internet Explorer • Create an on-the-go backup file • Expand your handheld’s capabilities using either the built-in SD/MMC slot or the CF slot • Exchange information between devices that have Bluetooth®(optional) / WLAN(optional) capabilities. • Beam information to another IR-enabled device • Customise your handheld based on your personal requirements and preferences Your guides To help you use your Acer n50, we have designed a set of guides: For information on:Refer to: Programs on your handheldThis Manual. Bundled in the Acer n50 Handheld Companion CD, it provides online reference for using your Acer n50. The Acer n50 Handheld Help. To view Help, tap and then Help. Programs on your handheld Additional programs that can be installed on your handheld The Acer n50 Handheld Companion CD. Connecting to and synchronising with your computer The Acer n50 Handheld Quick Guide. ActiveSync Help on your computer. To view Help, click Help and then Microsoft ActiveSync Help. First things first Package contents vi Package contents Your Acer n50 comes packed in a cardboard box. Carefully unpack the box and remove the contents. If any of the following items are missing or damaged, contact your dealer immediately: Maintaining your Acer n50 This section provides information on the following: • Proper care and usage of your handheld • Resetting your handheld Proper care and usage of your Acer n50 Your Acer n50’s rugged and tough construction is designed to provide you with years of reliable and trouble-free service. Observing the following general maintenance procedures will help ensure this: 1Take care not to scratch the screen of your handheld. Keep the screen clean. When working with your handheld, use the supplied stylus or plastic-tipped pens intended for use with touch-sensitive screens. Never use an actual pen or pencil or other sharp object on the screen surface. 2Your handheld is not waterproof and should not be exposed to rain or moisture. Under extreme conditions, water may enter the circuitry through the front panel buttons or expansion s…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih Taipei Hsien 221, Taiwan, R.O.C. Tel : 886-2-2696-1234 Fax : 886-2-2696-3535 www.acer.com April 19, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: HLZN50 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mr. Easy Lai / Director Acer Incorporated

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih Taipei Hsien 221, Taiwan, R.O.C. Tel : 886-2-2696-1234 Fax : 886-2-2696-3535 www.acer.com Power of Attorney Date: April 19, 2005 We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all matters relating to all processes related to FCC applications and communications issue. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please don’t hesitate to contact us. Thank you. Sincerely yours, Mr. Easy Lai / Director Acer Incorporated

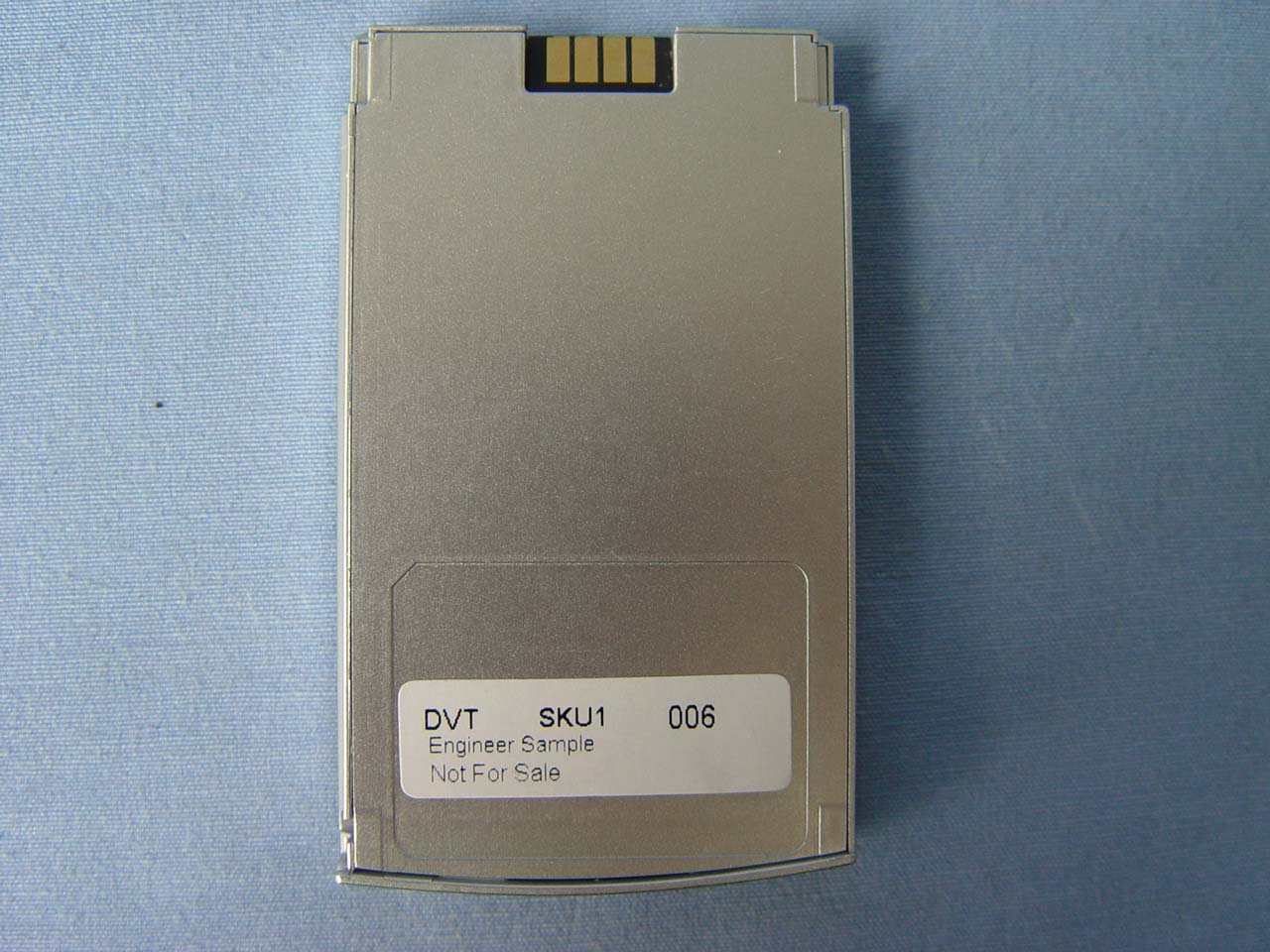

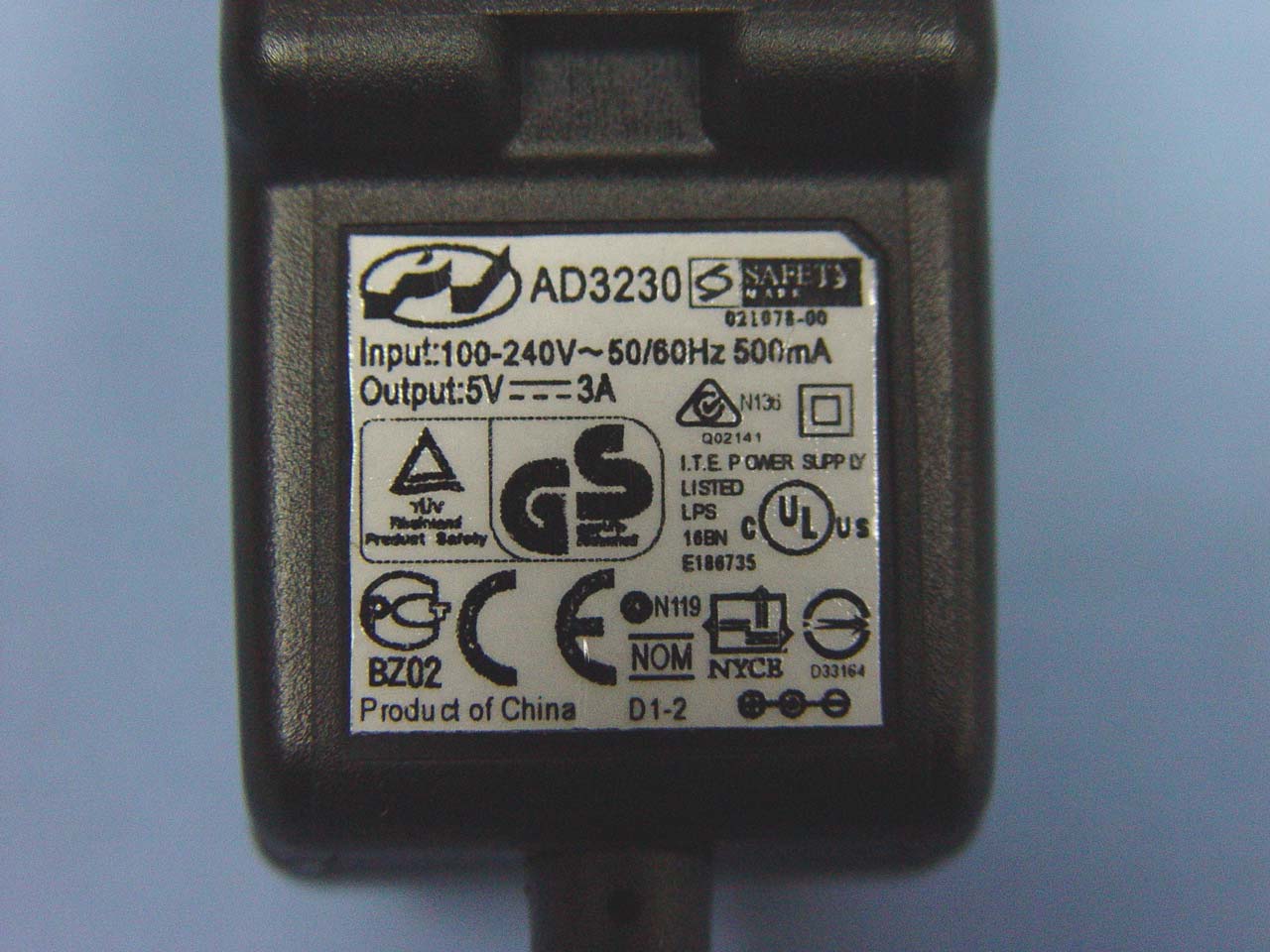

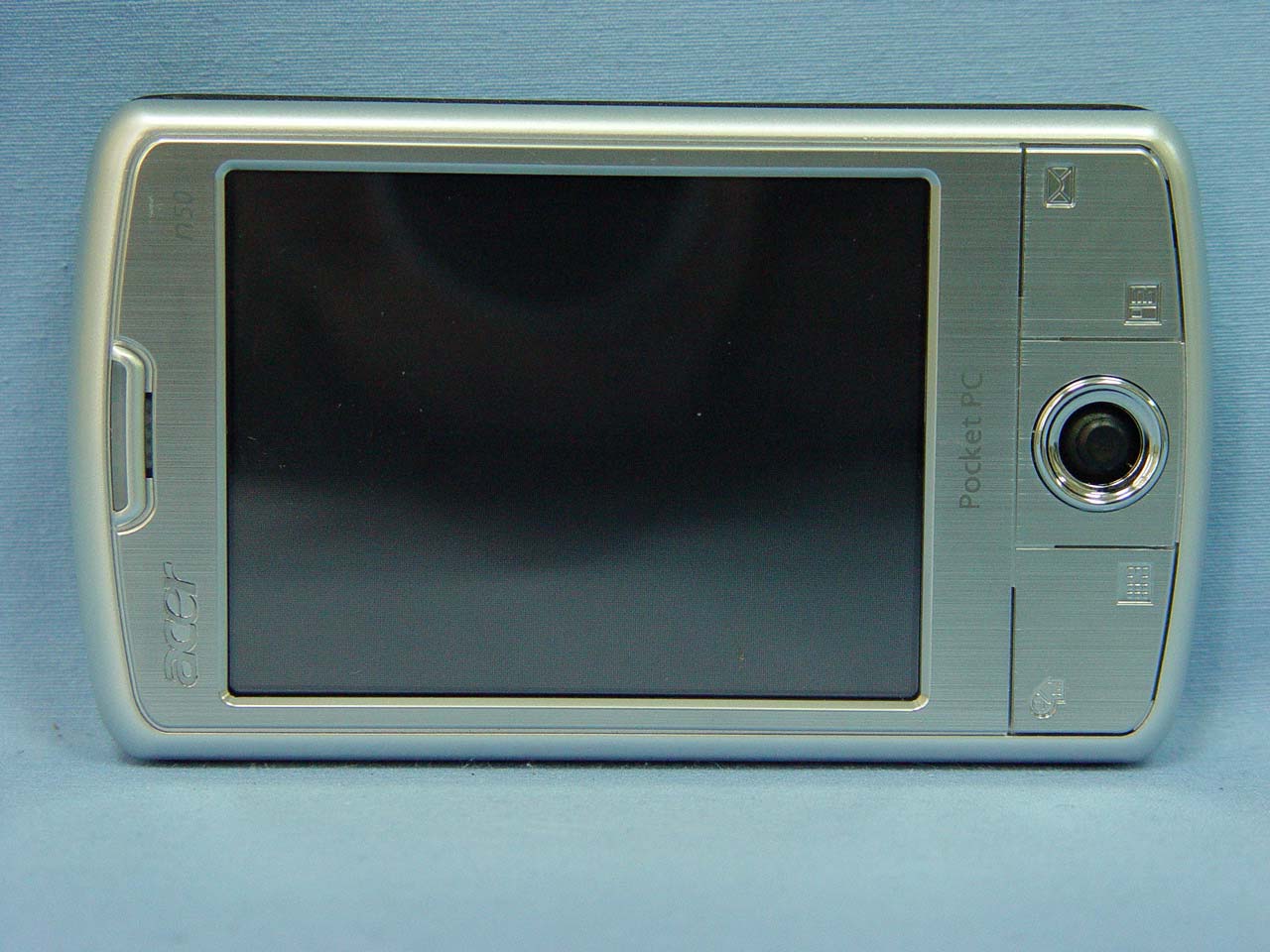

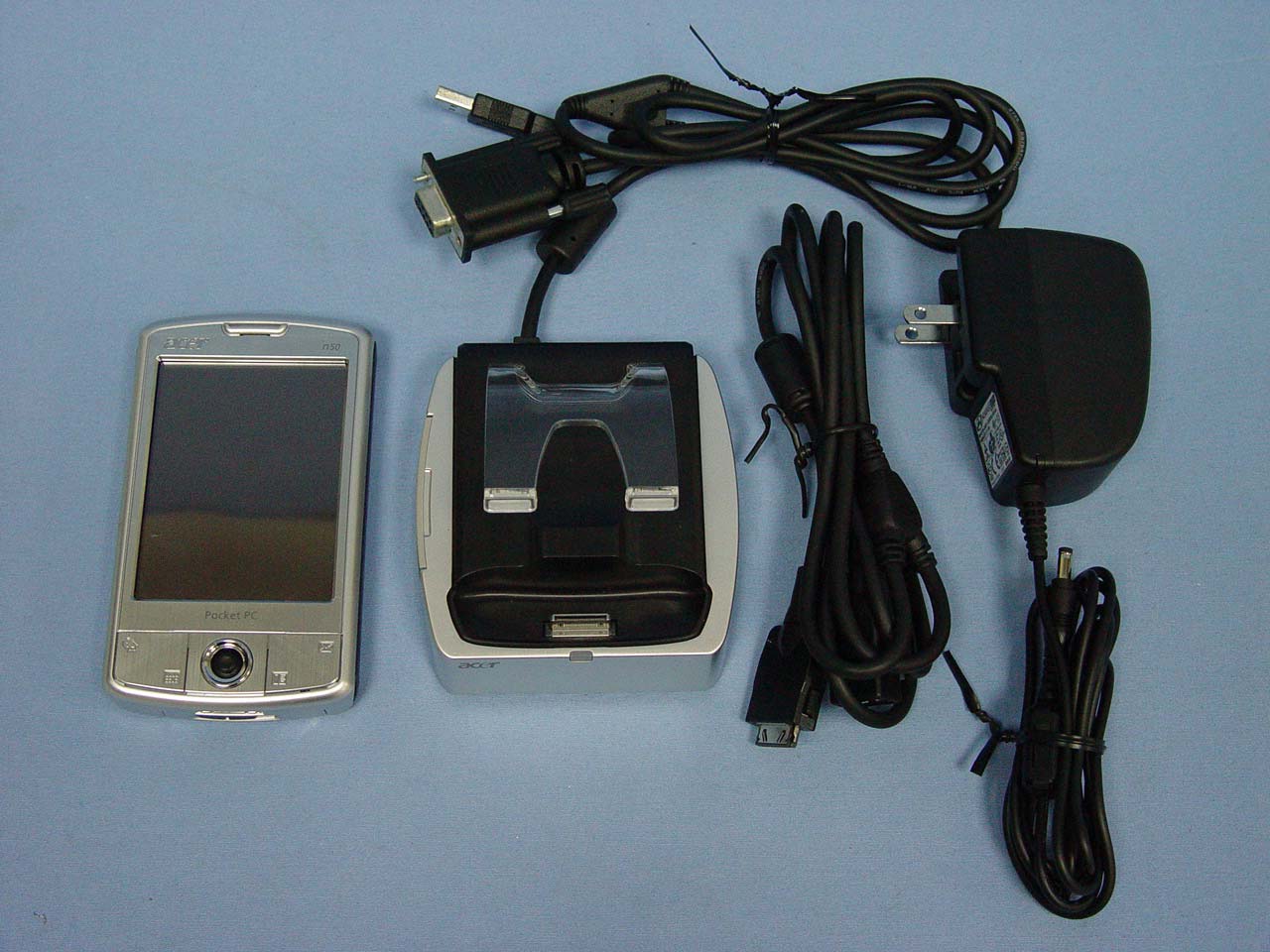

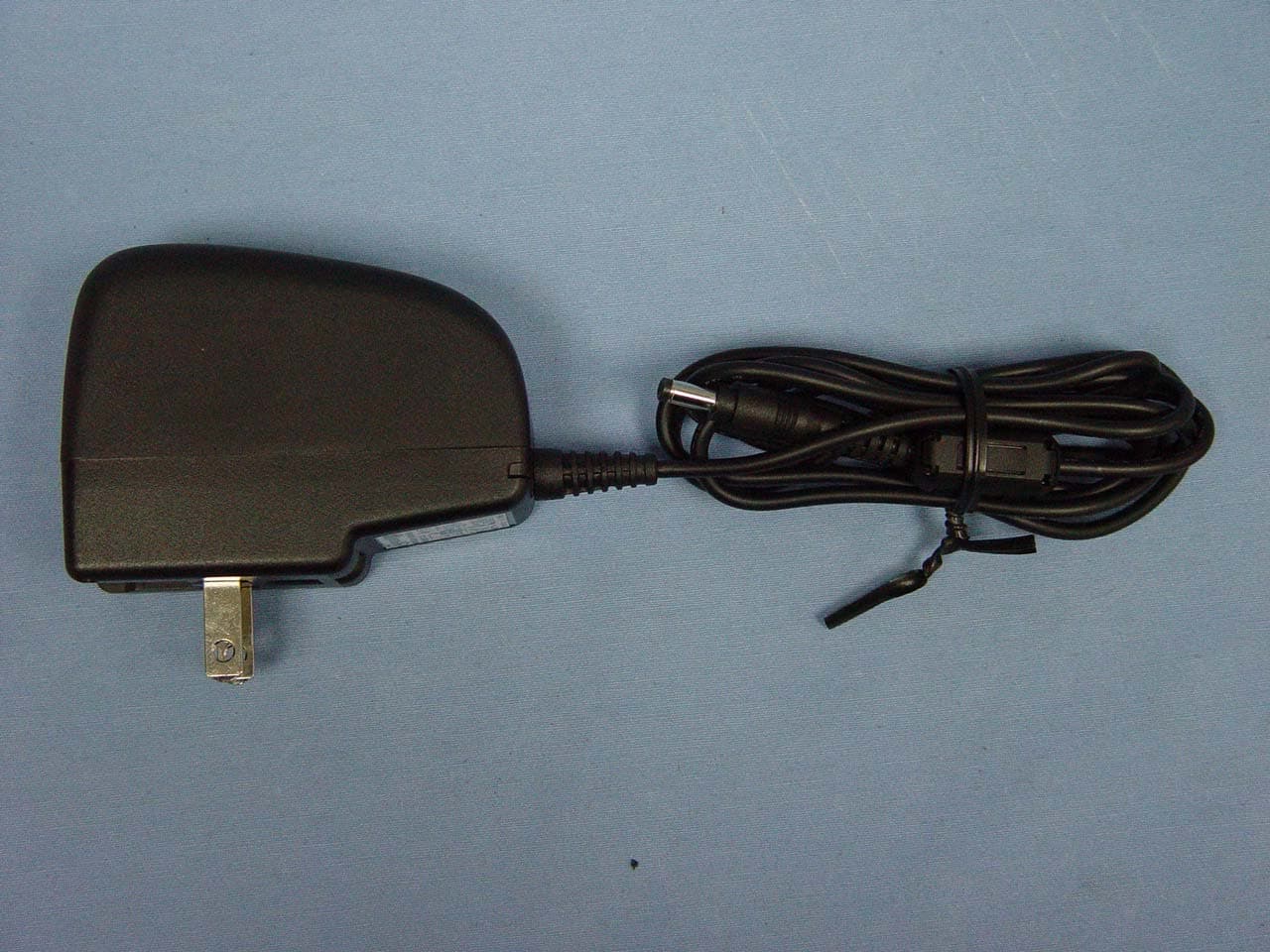

Compliance Certification Services Inc. Report No: 50414001 Date of Issue: April 21, 2005 Page 1 Total Page: 8 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50414001 Date of Issue: April 21, 2005 Page 2 Total Page: 8 Rev.00 Compliance Certification Services Inc. Report No: 50414001 Date of Issue: April 21, 2005 Page 3 Total Page: 8 Rev.00 Compliance Certification Services Inc. Report No: 50414001 Date of Issue: April 21, 2005 Page 4 Total Page: 8 Rev.00 Compliance Certification Services Inc. Report No: 50414001 Date of Issue: April 21, 2005 Page 5 Total Page: 8 Rev.00

Compliance Certification Services Inc. Report No: 50414001 Date of Issue: April 21, 2005 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50414001 Date of Issue: April 21, 2005 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 50414001 Date of Issue: April 21, 2005 Page 8 Rev.00

1    Customer
 n50 Measurement TimeΝ2004/11/04 Measurement InstrumentΝ1ΕAgilent Technologies E5071A 300K~8.5GHz ENASeries Network Analyzer 2ΕChamberΝ3.5m(W) * 3.25m(H) * 7.12m(L) Gain Horn AntennaΝSG-430 1.7~2.6GHz Measurement FrequencyΝ2.0 GHz ~ 3.0GHz Wireless AntennaBluetooth Antenna Wireless AntennaBluetooth Antenna 2.4 GHz2.45 GHz2.5 GHz2.4GHz2.45 GHz2.5 GHz VSWR 1.621.071.531.191.091.34 xjsfmftt!Boufoob!Uzqf;!Qj.Gb! Cmvfuppui!Boufoob!Uzqf;!Qj.Gb 2 Antenna Peak Gain & Average Gain Test Result Peak Gain (dBi)Average Gain (dBi) Wireless Antenna 2.4 GHz2.45 GHz2.5 GHz2.4 GHz2.45 GHz2.5 GHz V plane -1.16-1.31-1.83-4.86-4.72-4.56 H plane -4.43-5.43-5.25-8.37-8.76-8.85 V + H plane 0.01-0.31-0.37-3.26-3.28-3.19 Peak Gain (dBi)Average Gain (dBi) Bluetooth Antenna 2.4 GHz2.45 GHz2.5 GHz2.4 GHz2.45 GHz2.5 GHz V plane -5.18-4.95-5.34-8.96-8.95-8.58 H plane -1.96-2.51-2.74-5.49-6.17-6.52 V + H plane -0.23-0.68-0.97-3.88-4.33-4.42 3 Antenna Pattern Wireless Antenna Pattern -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2.40 GHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2.45 GHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2.50 GHz H V H + V Bluetooth Antenna Pattern -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2.40 GHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2.45 GHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2.50 GHz H V H + V

Compliance Certification Services Inc. Refer No.: 41203204 Report No.: 50414001-RP1 FCC ID: HLZN50 Date of Issue: April 22, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page 1 Total Page: 79 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For PDA with Bluetooth and Wireless Lan 802.11b Model: n50, n50 Premium Trade Name: Acer Issued to Acer Inc. 8F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih, Taipei, Hsien 221, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Refer No.: 41203204 Report No.: 50414001-RP1 FCC ID: HLZN50 Date of Issue: April 22, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION...................................................................................................... 3 2. EUT DESCRIPTION................................................................................................................................4 3. TEST METHODOLOGY........................................................................................................................ 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 MODIFICATION........................................................................................................................ 5 3.5 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.6 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION.......................................................................................................... 7 5. FACILITIES AND ACCREDITATIONS........................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT .................................................................................................. 10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................. 11 CONDITION A: WLAN OPERATION .......................................................................................................... 11 7.1 6DB BANDWIDTH.................................................................................................................. 11 7.2 PEAK POWER......................................................................................................................... 14 7.3 BAND EDGES MEASUREMENT ..................................................................................... 17 7.4 PEAK POWER SPECTRAL DENSITY......................................................................................... 22 7.5 RADIO FREQUENCY EXPOSURE............................................................................................. 25 7.6 SPURIOUS EMISSIONS ...................................................................................................... 26 CONDITION B: BLUETOOTH OPERATION.............................................................................................. 36 7.7 PEAK POWER......................................................................................................................... 36 7.8 BAND EDGES MEASUREMENT ..................................................................................... 39 7.9 PEAK POWER SPECTRAL DENSITY......................................................................................... 44 7.10 FREQUENCY SEPARATION ............................................................................................ 47 7.11 NUMBER OF HOPPING FREQUENCY............................................................................ 49 7.12 TIME OF OCCUPANCY (DWELL TIME) ........................................................................ 51 7.13 RADIO FREQUENCY EXPOSURE............................................................................................. 58 7.14 SPURIOUS EMISSIONS ...................................................................................................... 59 CONDITION C: CO-LOCATED OPERATION (WLAN & BLUETOOTH OPERATED SIMUTANEOUSLY) ......................................................................................................................................... 66 7.15 BAND EDGES MEASUREMENT ..................................................................................... 66 7.16 RADIATED EMISSIONS ................................................................................................... 71 7.17 POWER LINE CONDUCTED EMISSIONS...........…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Refer No.: 41203204 Report No.: 50414001-RP1FCC ID: HLZN50Date of Issue: April 22, 2005 Page 78 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Refer No.: 41203204 Report No.: 50414001-RP1FCC ID: HLZN50Date of Issue: April 22, 2005 Page 79 Rev. 00 Conducted Emission Set Up Photos
