HLZPKR200Gaming keyboard

/Product Type /Gaming keyboard /Model Name FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement.

Acer Incorporated 8F, 88, Sec. 1, Xintai 5th Rd., Xizhi New Taipei City 221, Taiwan Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-15-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing [Acer Incorporated] (“the applicant”) certifies that, as of the date of the filing of the application, [Acer America Corporation] is our designated U.S. agent for service of process. [Acer Incorporated] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [Acer America Corporation] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process. Sincerely, Designated U.S. Agent Information: Name: Acer America Corporation FRN: 0033486168 Contact Person: Young Kim Address: 1730 North First Street, Suite 400, San Jose, CA 95112 Tel.: (408) 533 7700 Email: [email protected] U.S. Agent Signature: Applicant: Company Name: Acer Incorporated Grantee Code: HLZ FRN0013355508 Contact Person: RU Jan Tel.: +886-2-8691-3289 Email: [email protected] Applicant Signature:

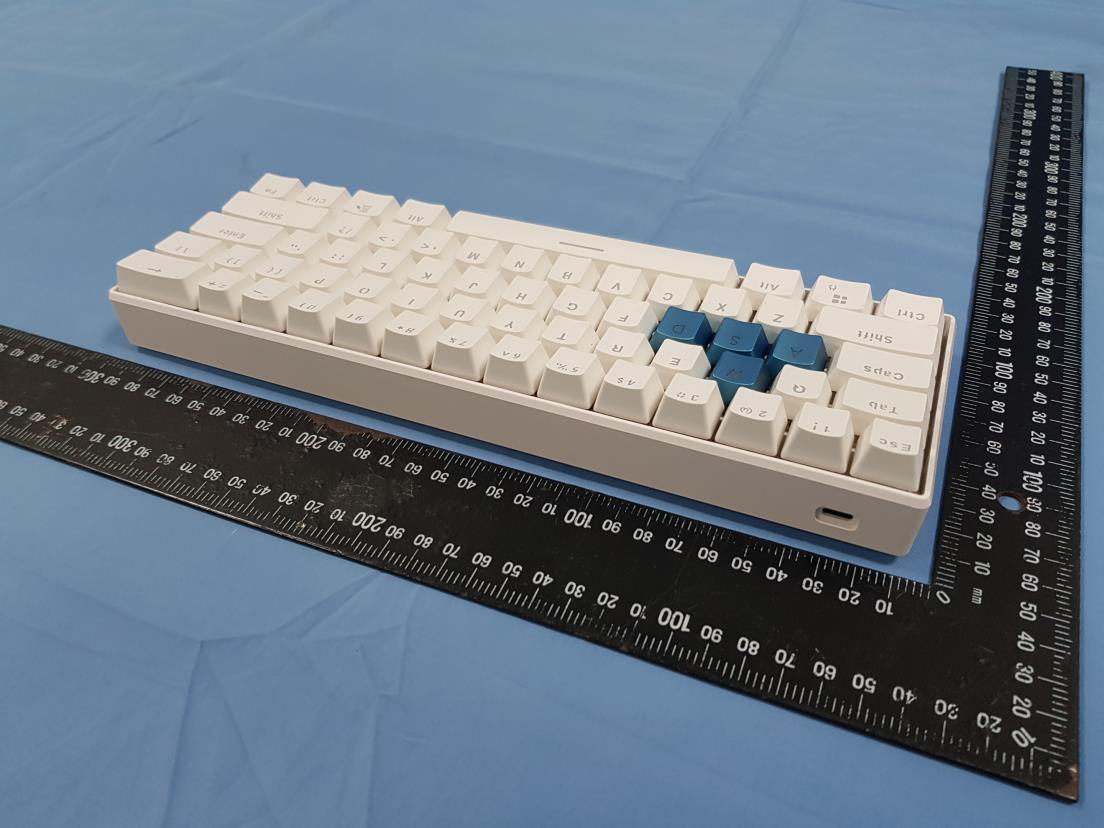

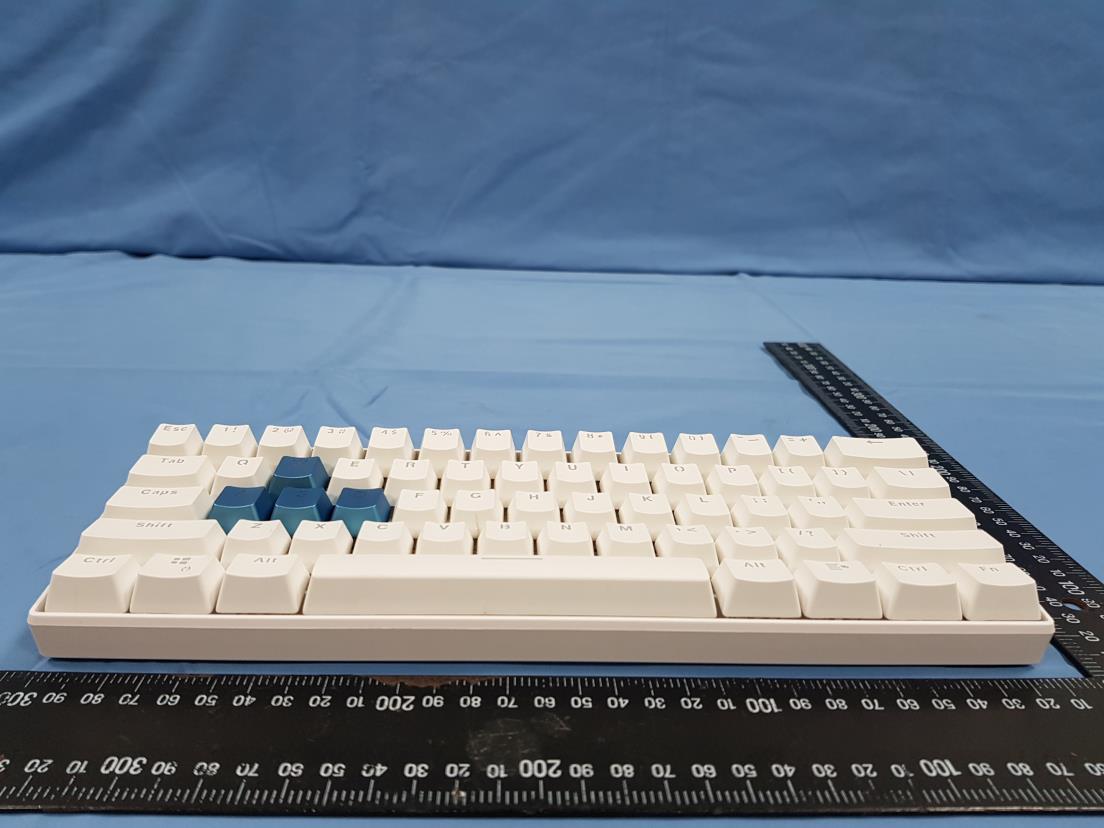

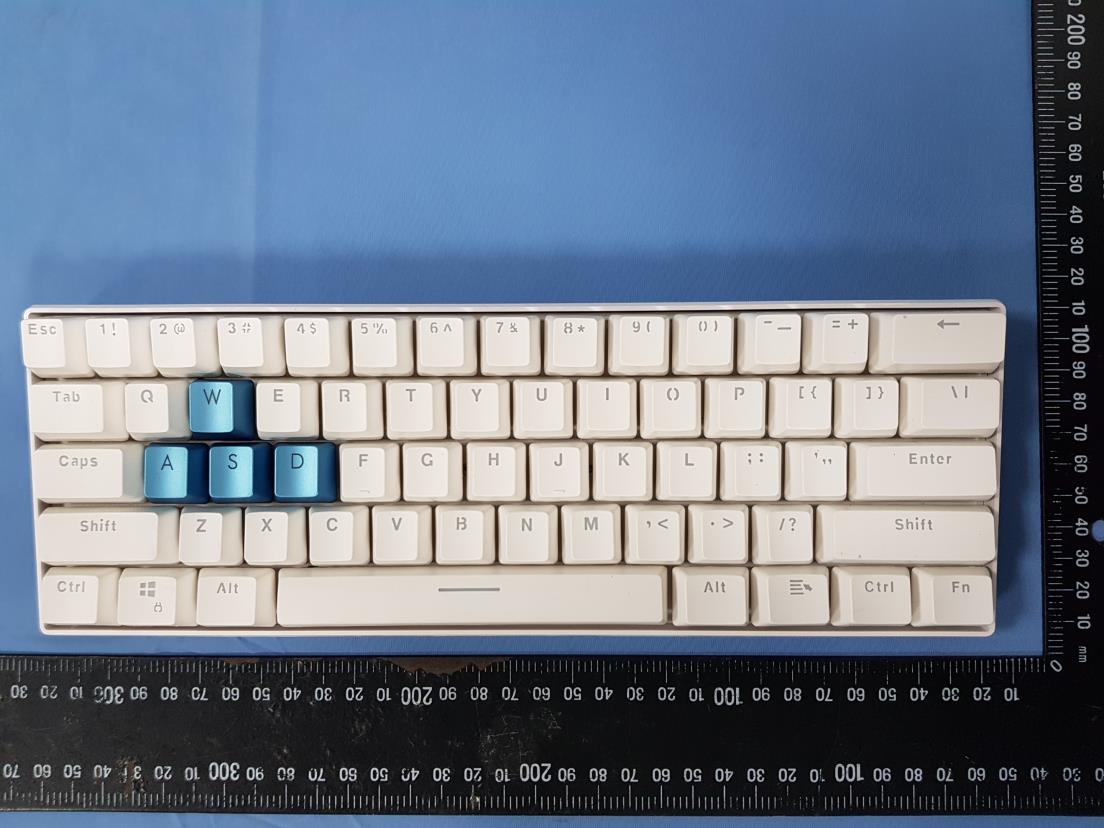

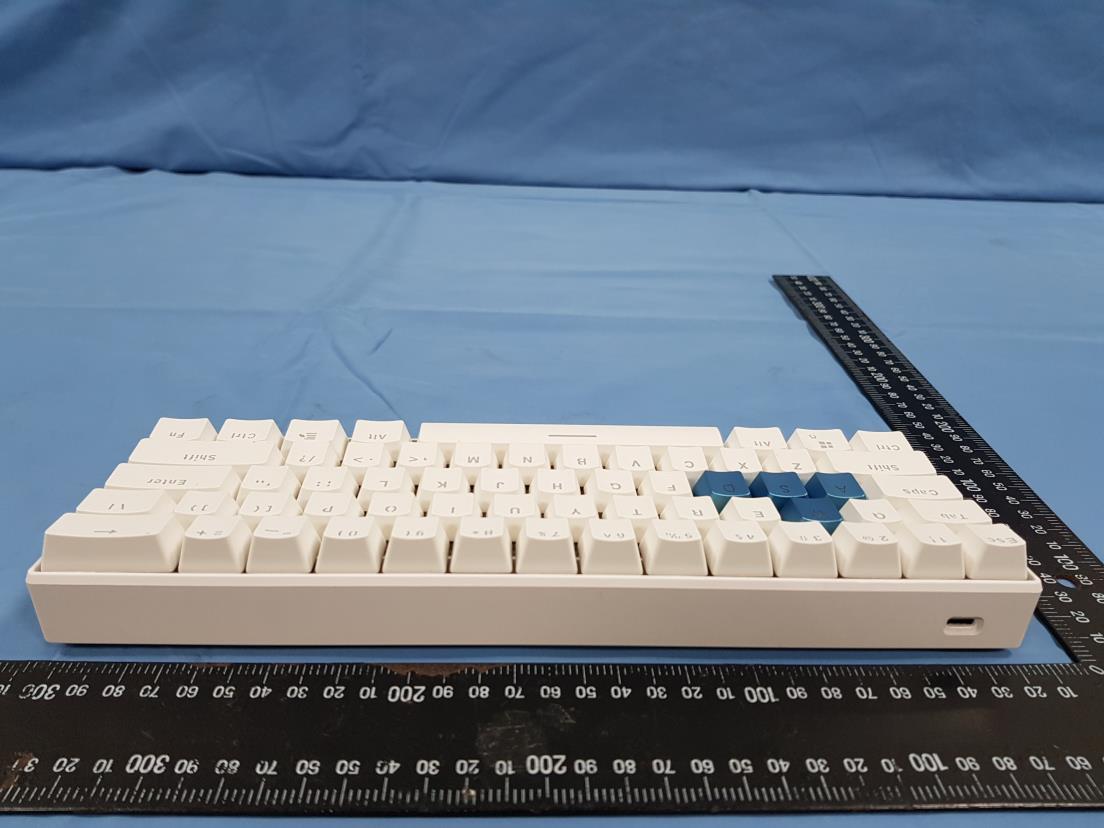

GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 4 EUT Constructional Details GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 4 GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 4 GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 4 -----End------

59.6mm 34.6mm NOTES: 1.59.6*34.6mm : +0.1/-0.1mm 2.100# 3. 4. 5. 6. 7. N IQC 1 IQC 2 IQC 3 IQC 4 IQC 1 1 1.0 GK8039FCC底贴(US文) 1 OF 1 ENGINEER CHANGE DESCRIPTION SIGNREV. DESIGN DATE ISSUED DRAWING 2023.05.18陈双喜 DESIGN CHECKED APPROVAL MODEL NAME COMPONENT NAME TEXTURE MATERIAL DATE COLOR POLISH VIEW SHEET REV. 1000 ~ 2000 LIMITS UNLESS OTHERWISE NOTED DRAWING NO. 6 ~ 30 30 ~ 100 100 ~ 300 ± 0.15 ± 0.05 ± 0.10 SCALE 1 ~ 6± 0.03 ± 0.5° ± 0.7 ± 0.5 ANG 2000 ~ M.M ± 0.2 UNIT 300 ~ 1000 GCIC Technology Corp. A1 1 东 莞 市 巨 臣 电 子 科 技 有 限 公 司 QR Code 二维码内容说明: 生产年月随订单变化 GPKBD1104A 2 29 00001 0B A1 产品P/N(固定不变) 生产年份(一年的最后一位数字) 生产周数 流水码(十六进制，0~9，A,B,C,D,E,F) 制造商代码(固定不变) 版本代码(固定不变) CCAH23LP6130T9 FCC ID: HLZPKR200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 3 EUT Constructional Details BT antenna GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 3 GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 3 -----End------

FCC ID: HLZPKR200 Page 1 of 4 RF EXPOSURE EVALUATION According to FCC §§1.1307 and 447498 D04 Interim General RF Exposure Guidance v01, the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW). 1) Option A. 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. 2) Option B. SAR-Based Exemption A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: FCC ID: HLZPKR200 Page 2 of 4 3) Option C MPE-Based Exemption An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power. For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). FCC ID: HLZPKR200 Page 3 of 4 In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. Where: a = number of fixed, mobile, or portable RF sources claiming exemption using the Table 1 formula for Pth, including existing exempt transmitters and those being added. b = number of fixed, mobile, or portable RF sources claiming exemption using the applicable Table 1 formula for Threshold ERP, including existing exempt transmitters and those being added. c = number of existing fixed, mobile, or portable RF sources with known evaluation for the specified minimum distance. P i = the available maximum time-averaged power or the ERP, whichever is greater, for fixed, mobile, or portable RF source i at a distance between 0.5 cm and 40 cm (inclusive). P th,i = the exemption threshold power (Pth) according to the Table 1 formula for fixed, mobile, or portable RF source i. ERP j = the available maximum time-averaged power or the ERP, whichever is greater, of fixed, mobile, or portable RF source j. ERP th,j = exemption threshold ERP for fixed, mobile, or portable RF source j, at a distance of at least λ/2π, according to the applicable Table 2 formula at the location in question. Evaluated k = the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation. Exposure Limit k = either the general population/uncontrolled maximum permissible exposure (MPE) or specific absorption rate (SAR) limit for each fixed, mobile, or portable sources, as applicable. FCC ID: HLZPKR200 Page 4 of 4 TEST RESULTS Table for Filed Antenna For BLE Antenna gain Antenna Type 3.85dBi PCB antenna Test Result of RF Exposure Evaluation Operating Mode Frequency Output Power Ant. Gain EIRP EIRP Separation Distance (MHz) (dBm) (dBi) (dBm) (mW) (mm) BLE 2402-2480 -0.29 3.85 3.56 2.27 5 Note: SAR and MPE evaluation is not required. End of Test Report

Global United Technology Services Co., Ltd. Report No.: GTSL2023070038F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 41 TEST REPORT Applicant: Acer Incorporated Address of Applicant: 8F, 88, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City, Taiwan Manufacturer: Acer Incorporated Address of Manufacturer: 8F, 88, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City, Taiwan Factory: Dongguan City Juchen Electronics Technology Co., LTD Address of Factory: Building 3, No. 252, Jinsha East Road, Shajiao, Shipai Town, Dongguan City, Guangdong Province Equipment Under Test (EUT) Product Name: Gaming keyboard Model No.: PKR200, PKR200-GP.KBD11.04A, PKR200- GP.KBD11.04B, PKR200-GP.KBD11.04J Trade Mark: acer FCC ID: HLZPKR200 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: 2023.06.29 Date of Test: 2023.07.04-2023.07.10 Date of report issued: 2023.07.10 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL2023070038F01 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 41 2 Version Version No. Date Description 00 July 10, 2023 Original Prepared By: Date: July 10, 2023 Project Engineer Check By: Date: July 10, 2023 Reviewer Report No.: GTSL2023070038F01 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 41 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED OUTPUT POWER ........................................................................................................... 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 17 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 22 7.6 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 25 7.6.1 Conducted Emission Method ..................................................................................................... 25 7.6.2 Radiated Emission Method ........................................................................................................ 31 8 TEST SETUP PHOTO ............................................................................................................................ 41 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 41 Report No.: GTSL2023070038F01 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 41 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 Pass Conducted Output Power 15.247 (b)(3) Pass Channel Bandwidth 15.247 (a)(2…

Text truncated - open the document above for the full version.

Antenna Specification Specifications Summary ITEMSPEC. Model Name ISM 2.4 GHz C enter Frequency 2.402GHz 2. 440GHz 2.480GHz 3.85 dBi 3.18 dBi 2.80 dBi MA X. GAIN 3.85 dBi PolarizationHorizontal Azimuth Beam Pattern Omni-directional Impedance 50 Ω Antenna Length 41 mm Ant enna Photo & Length Manufacturer: Dongguan new deep Chuang electronic technology Co., LTD No. 4, Southwest 4th Street, Shijie Town, Dongguan City, Guangdong Province Radiationpattern: Antenna1 . XZ Planeat f = 2 .402 GHz 180 90 0 -5 -10 -15 -20 -25 -30 -35 -30 -25 -20 -15 -10 -5 0 225 315 13545 270 0 180 90 135 -5 -10 -10-5 225 0 315 -15 45 0 270 0 Co-crosspolarizationfield (dBi ) Solidline : verticalpolarization Dashline : horizontalpolarization Totalfield (dBi ) UCI CENTERFORRF DESIGNANDCHARACTERIZATION Radiationpattern: Antenna1. YZ Planeat f = 2.40 2GHz 90 0 -5 -10 -15 -20 -25 -30 -35-30 -25 -20 -15 -10 -5 0 225 315 135 45 270 Co-crosspolarizationfield (dBi ) 0 180 90 135 -5 -10 -15 -10-5 225 315 45 0 0 27 0 Totalfield (dBi ) 0 Solidline : verticalpolarization Dashline : horizontalpolarization UCI CENTERFORRF DESIGNANDCHARACTERIZATION 180 Radiationpattern: Antenna1. XY Planeat f = 2.40 2GHz 180 90 0 -5 -10 -30 -35-30-25 -2 0 -15 -10 -5 -15 -20 135 -25 45 0 27 0 0 180 90 135 -5 225 -10 -15-10 315 45 -5 0 0 270 0 Co-crosspolarizationfield (dBi ) Solidline : verticalpolarization Dashline : horizontalpolarization Totalfield (dBi ) UCI CENTERFORRF DESIGNANDCHARACTERIZATION 225315 Radiationpattern: Antenna1. XZ Planeat f = 2.44 0GHz 90 0 -5 -10 225 -30 -35-30 -25 -20 -15 -10 -5 0 -20 -25 315 135 -15 45 270 Co-crosspolarizationfield (dBi ) 0 180 90 135 -5 -10 -1 0-5 225 0 315 -15 45 0 270 Totalfield (dBi ) 0 Solidline : verticalpolarization Dashline : horizontalpolarization UCI CENTERFORRF DESIGNANDCHARACTERIZATION 180 Radiationpattern: Antenna1 . YZ Planeat f = 2 .44 0GHz 180 90 0 135 -10 -15 225 -30 -35-30 -25 -20 -15 -10 -5 0 -20 -25 315 45 -5 27 0 90 0 180 135 -5 -10 -1 0-5 225 0 270 Co-crosspolarizationfield (dBi ) Solidline : verticalpolarization Dashline : horizontalpolarization Totalfield (dBi ) UCI CENTERFORRF DESIGNANDCHARACTERIZATION 315 -15 0 0 45 Radiationpattern: Antenna1. XY Planeat f = 2.44 0GHz 180 90 270 0 18 0 90 135 -5 -10 -15-10 225 315 45 -5 0 0 270 0 Co-crosspolarizationfield (dBi ) Solidline : verticalpolarization Dashline : horizontalpolarization Totalfield (dBi ) UCI CENTERFORRF DESIGNANDCHARACTERIZATION 0 -5 45 -10 -15 135 225 315 -20 -25 -30 -35-30-25 -20 -15 -10 -5 0 Radiationpattern: Antenna1. XZ Planeat f = 2.48 0GHz 90 0 -5 -1 0 -1 5 -2 0 -2 5 -3 0 -3 5-30 -25 -20 -15 -10 -5 0 225 315 13545 270 Co-crosspolarizationfield (dBi ) 90 0180 135 225 315 45 0 270 Totalfield (dBi ) Solidline : verticalpolarization Dashline : horizontalpolarization UCI CENTERFORRF DESIGNANDCHARACTERIZATION 180 0 -5 -10 -15-10-50 Radiationpattern: Antenna1. YZ Planeat f = 2.48 0GHz 180 90 0 -5 -10 -15 -20 -25 -30 -35-30-25 -20 -15 -10 -5 0 225 315 13545 270 90 0 180 225315 0 270 Co-crosspolarizationfield (dBi ) Solidline : verticalpolarization Dashline : horizontalpolarization Totalfield (dBi ) UCI CENTERFORRF DESIGNANDCHARACTERIZATION 135 -5 -10 -10-5 -15 45 0 0 UCI CENTERFORRF DESIGNANDCHARACTERIZATION Radiationpattern: Antenna1. XY Planeat f = 2.48 0GHz 90 0 -5 -10 -5 225 -1 5 -2 0 -35-30-25 -20 -15 -25 315 135 -1 0 -30 45 0 270 Co-crosspolarizationfield (dBi ) Solidline : verticalpolarization Dashline : horizontalpolarization 0 180 90 135 -5 -10 -50 22 5 315 -15 -10 45 0 270 Totalfield (dBi ) 0 180

GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 3 Product Name: Gaming keyboard Test Model No.: PKR200 Test Setup Photo Radiated Emission Below 30M GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 3 30M-1G Above 1G GTSL2023070038 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 3 Conducted Emission ------End------
