HLZSP3100Halo Smart Speaker

Acer Halo Smart Speaker Listen to how it can help 宏碁智慧音箱 智慧小助理，聲控日常大小事 Quick Start Guide 快速入門指南 MODEL: HSP3100G EN-1EN-2 ■A Closer Look 1 2 Front 1. LED display* 2. RGB lighting * The LED display function depends on the different models. 1 2 Back 1. AUX IN jack 2. DC-in jack 1 3 2 Top 1. Microphone on/off 2. Volume up/down 3. Play/Pause ■Plug In And Power On • Insert the power adapter cable into the DC-in jack on the back side of your Smart Speaker. • Install the included plug as shown in the figure and then plug it into a power outlet.* • The microphone is ON by default. * The plug type may vary by regions. EN-1EN-2 ■Get Started 1. Connect your mobile device to the Wi-Fi network that you'll use for your smart speaker. 2. Get the latest version of the Google Home app and Google app. 3. Make sure your device has Android 5.0 or higher. 4. On your phone or tablet, open the Google Home app. Follow the steps. Connect to Wi-Fi Choose the Wi-Fi network you would like to use with your Google Assistant speaker ACER ABC1234 Free Wi-Fi Next ‧ ‧ ‧ ■Using Google Assistant Easily enjoy music, plan your day, find answers and more, hands-free. Just say, "Hey Google" to get started. THINGS TO TRYExample voice commands Play and control musicPlay some music / Increase volume / Pause / Stop Set remindersRemind me to buy a cake at 5 PM on Friday Ask questionsWhat time is it in London? Set an alarmWake me up at 7 AM every day Check the weatherWhat’s the weather today? Plan your dayWhat is my agenda today? Control smart home devicesTurn on the lights Learn more about what Google Assistant can do at: http://assistant.google.com/discover/ Office Set up Google Assistant speaker Settings You don’t have any rooms yet. Add your devices to see everything in one place. Hey Google EN-3EN-PB ■Personalize The Display You can have the key messages on the display at a glance, for example: • Date• Time• Timer • Weather• Temperature• Volume Furthermore, your display can be customized with animations, designed icons or special texts/ numbers to share with others. To learn more about it, please visit www.acer.com. ■Bluetooth Pairing After finished speaker setup and connect to internet through Google Home app. Just say “Hey Google, Bluetooth Pairing” and follow voice instruction to pair speaker with your device. Acer Support NOTE • All images in this document are for reference only. Actual product may vary from image. • Pease visit Acer website for up-to-date information, help and downloads. • Google, Android, Google Play and Google Home are trademarks of Google LLC. • Google Assistant is not available in certain languages and countries. • Apple and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. TC-1TC-2 ■ 認識您的智慧音箱 1 2 前視圖 1. LED 顯示幕* 2. RGB 彩色燈光 * LED 顯示幕功能會因型號不同而有 所差異。 1 2 後視圖 1. AUX 音源輸入插孔 2. DC 電源插孔 1 3 2 上視圖 1. 麥克風開啟 / 關閉 2. 音量調高 / 調低 3. 播放 / 暫停 ■ 插入電源並開啟 • 將電源變壓器纜線插入智慧音箱背面的 DC 電源插孔。 • 如圖所示安裝隨附的插頭，然後將其插入電 源插座。* • 麥克風預設為開啟狀態。 * 插頭類型可能因地區而異。 TC-1TC-2 ■ 開始使用 1. 將行動裝置連上「Google 助理」裝置使用 的 Wi-Fi 網路。 2. 取得最新版的「Google Home」應用程式 和「Google app」。 3. 請確認您的裝置為 Android 5.0 以上版本。 4. 在您的手機或平板電腦上開啟「Google Home」應用程式。按照畫面上的步驟操 作。 選擇 Google 助理揚聲器要使用的 Ｗi-Fi 網路 ACER Free Wi-Fi 下一步 取消 邀請住家成員 設定 你尚未設定任何房間。新增裝置之後， 即可在同一位置查看所有資訊。 ■ 使用Google 助理 免動手就能輕鬆完成居家生活大小事。主要品牌行動號招：只要說出「Ok Google」即可。 我想要這樣做你可以這樣說 放音樂放點音樂來聽 / 提高音量 / 暫停 / 停止 提醒我提醒我晚上 7:00 要去買牛奶 問問題倫敦幾點鐘了? 設鬧鐘明天早上 7:00 叫我起床 報天氣今天天氣如何? 播放與控制音樂/媒體我今天的行事曆有什麼? 控制智慧家電裝置開燈 想要進一步了解Google 助理的功能，請造訪： https://assistant.google.com/intl/zh_tw/ Ok Google TC-3TC-PB ■ 設計個人化的 LED 顯示幕 您可以一目了然地在 LED 顯示幕上顯示重要訊息，例如： • 日期• 時間• 定時器 • 氣象• 溫度• 音量 此外，您可以設計動畫、圖示或富藏含意的文字 / 數字來客制化獨一無二的顯示幕，還可以與他 人分享。要了解更多資訊，請造訪: www.acer.com。 ■ 藍牙配對 智慧音箱設置完成後，透過 Google Home 應用程式連接至網際網路。 只需說「Hey Google，藍牙配對」，然後按照語音提示將智慧音箱與您的裝置配對即可。 Acer 服務支援 注意 • 本指南中的所有圖片僅供參考用。實際產品可能與圖片有所差異。 • 請造訪 Acer 網站以獲取最新資訊、幫助和下載。 • 「Google」、「Android」、「Google Play」和「Google Home」是 Google LLC 的商標。 • 某些語言和國家/地區無法使用 Google 助理。 • Apple 和 iPhone 均為 Apple Inc. 在美國及其他國家和地區註冊的商標。 Safety Instructions And Regulations 安全指示與規範 English ■ Information for your safety and comfort Safety instructions Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. CAUTION for plug as disconnecting device Observe the following guidelines when connecting and disconnecting power to the power adapter unit: Install the power adapter unit before connecting the power cord to the AC power outlet. Unplug the power cord before removing the power adapter unit from the smart speaker. CAUTION for accessibility Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet. Warnings • Do not use this product near water. • Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged. • Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided. • Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product. • To avoid damage of internal components, do not place the product on a vibrating surface. • Never use it under sporting, exercising, or any vibrating en…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Date:2011/8/22 To who may concern, I, the undersigned, responsible for the designated person in FCC grant communicator / IC company code contactor, hereby authorized RU Jan to sign the FCC / IC application form for certification process. Thank you, Sincerely Yours, Contact Person: Harriot S.L. Lee Company Name: Acer Incorporated E-Mail: [email protected]

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Acer Incorporated Address: 8F, 88, Sec 1, Hsin Tai Wu Rd, Hsichih, Taipei Hsien, 221, Taiwan Product Name: Halo Smart Speaker Model Number: HSP3100G FCC Identifier: HLZSP3100 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: RU Jan Date: 09/07/2020 Title: Manager Signature of applicant:

C5266091_X10_Ed.1 1/1 Acer Incorporated Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 09/07/2020 Subject: Request for Confidentiality FCC ID: HLZSP3100 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: RU Jan Title: Manager

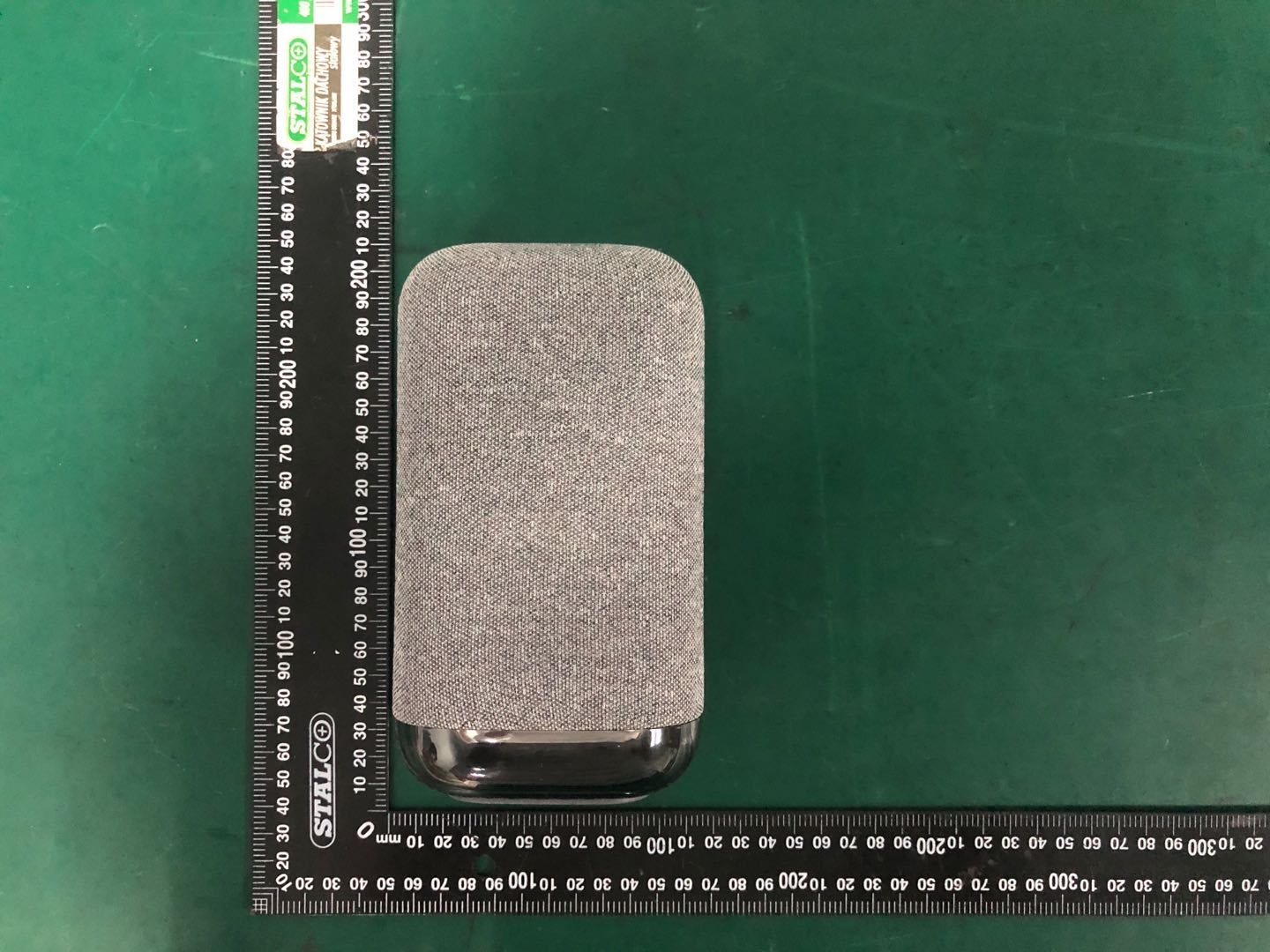

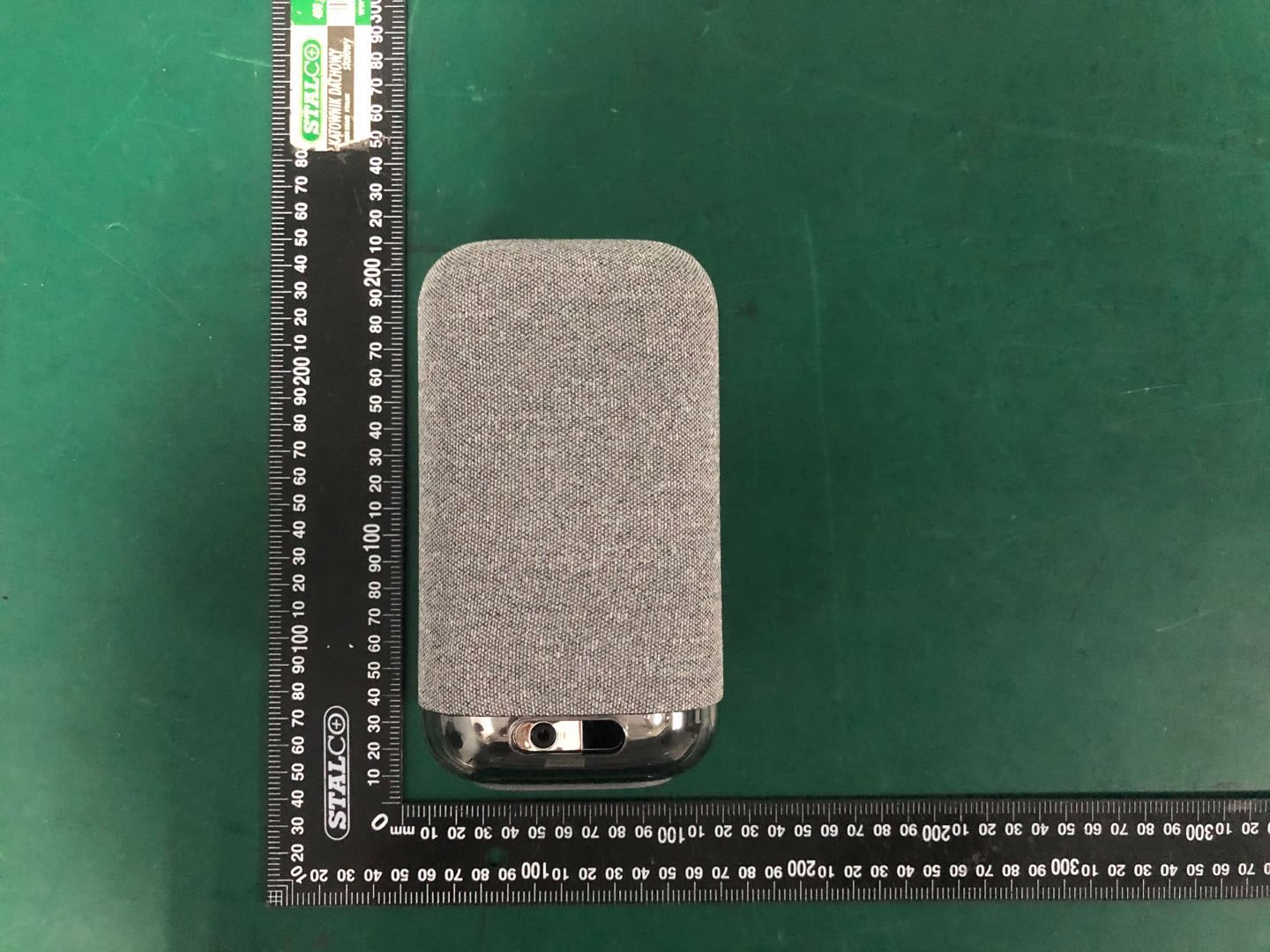

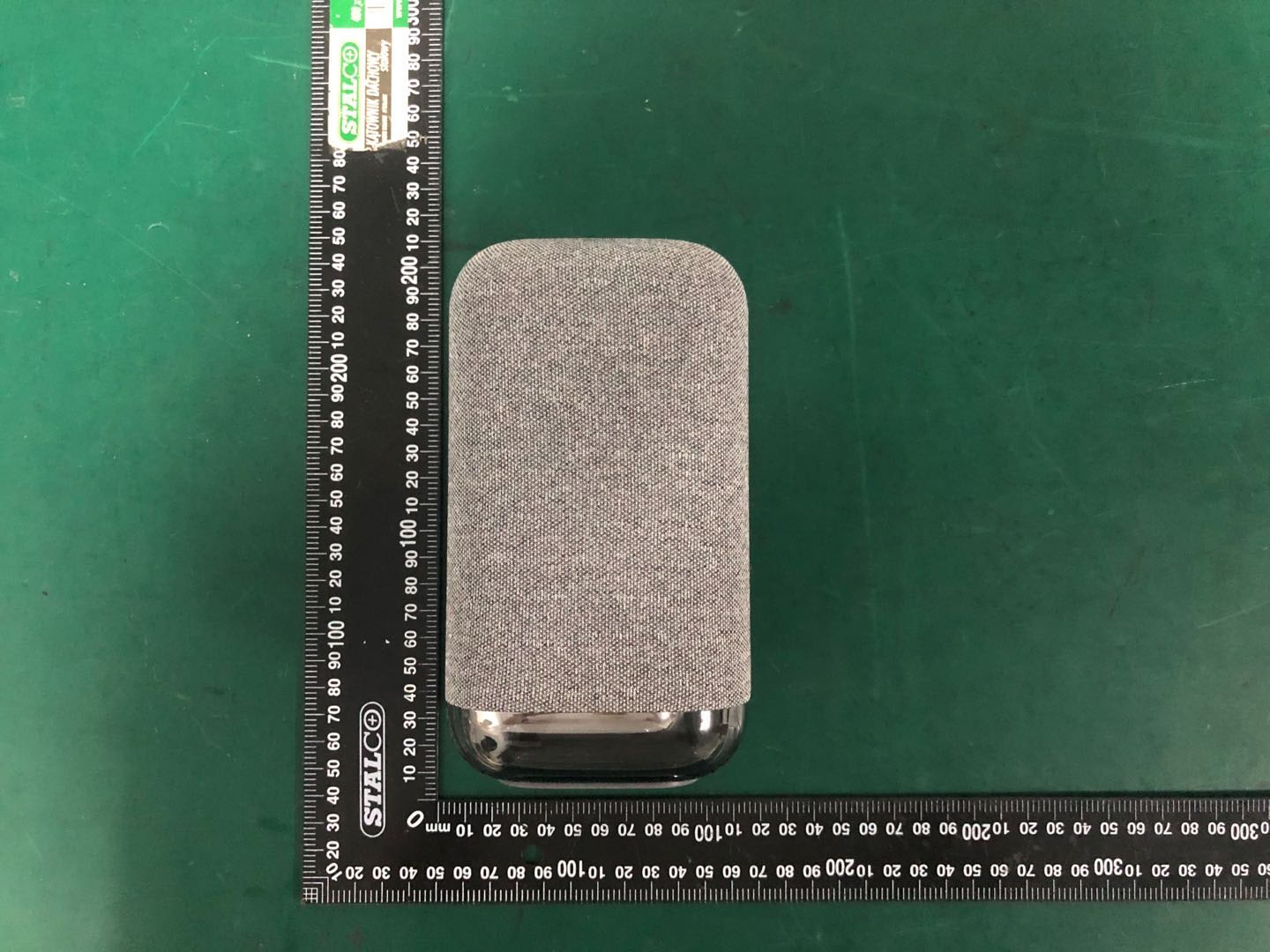

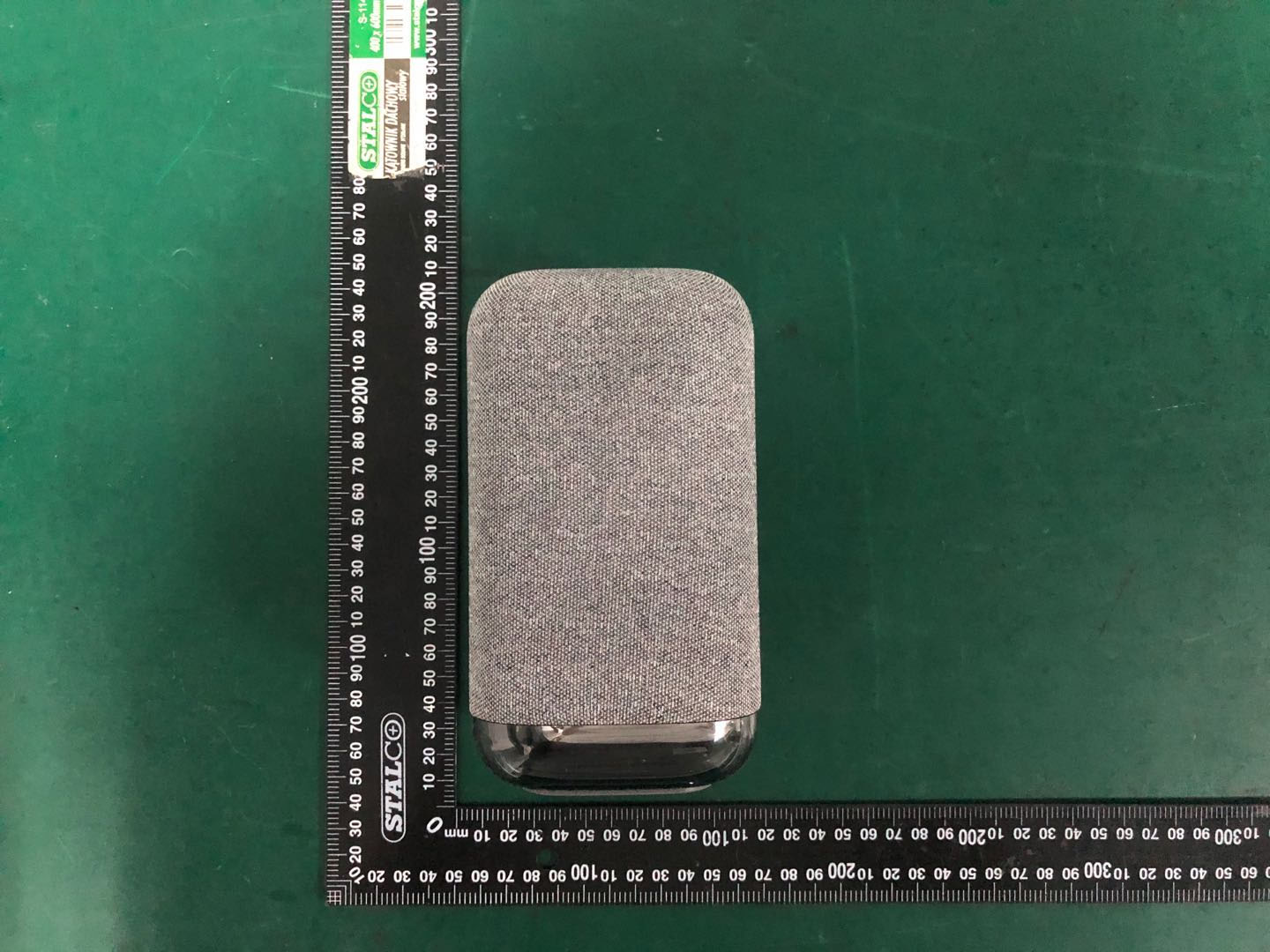

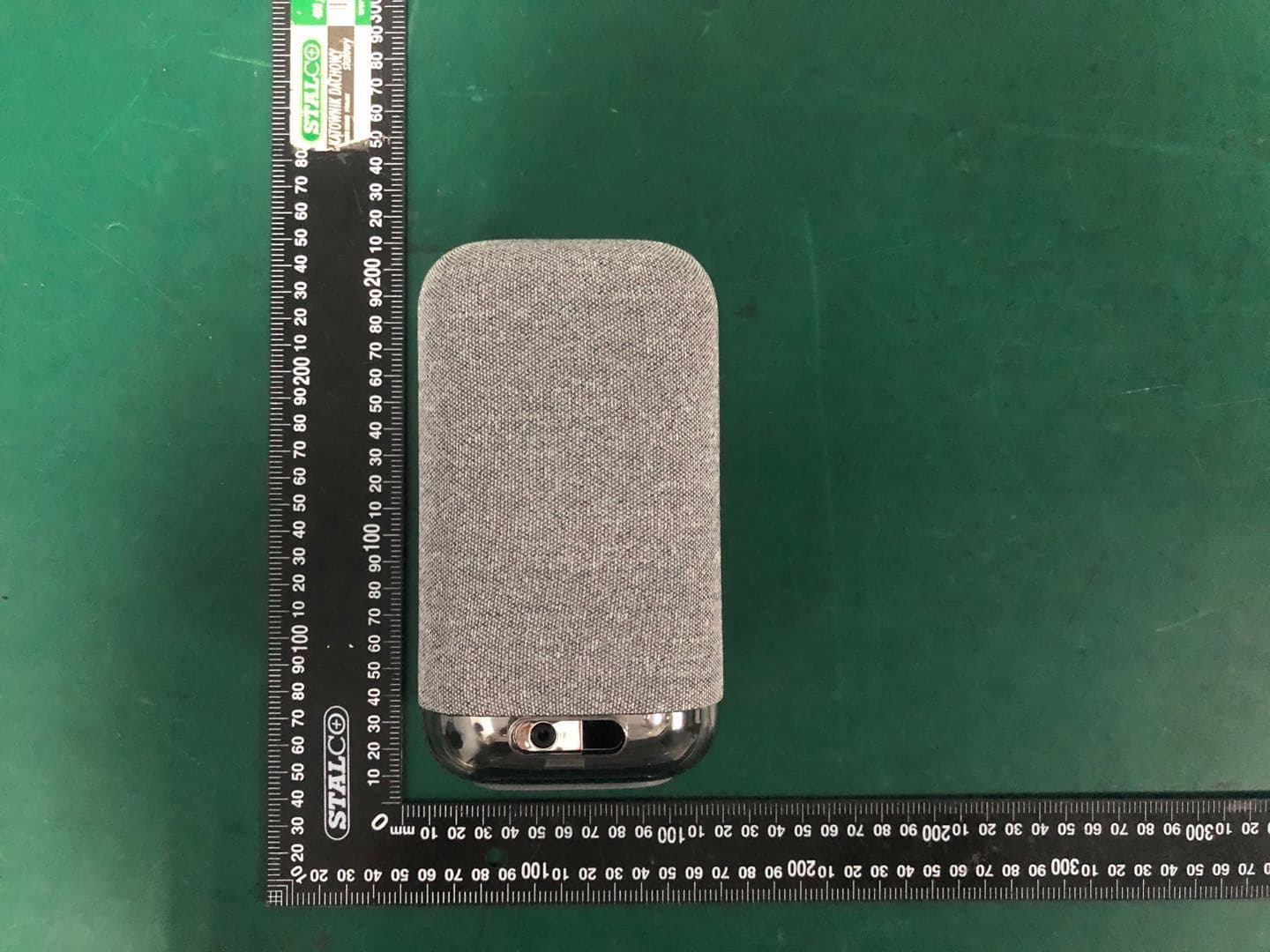

External Photos M/N: HSP3100G External Photos M/N: HSP3100G External Photos M/N: HSP3100G External Photos M/N: HSP3100G External Photos M/N: HSP3100G

25.6mm 20.4mm Printed Color: Pantone Cool Gray 7C Pantone Cool Gray 10C Pantone 432C W: 28.28mm H: 27.15mm Vivaldi_I/O cover_artwork_20200914 By IDBU I/O Cover Bottom View Label Location

Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G Internal Photos M/N: HSP3100G

FCC ID: HLZSP3100 EST Technology Co. ,Ltd Report No. ESTE-R2009037 Page 1 of 12 FCC 47 CFR MPE REPORT Acer Incorporated Halo Smart Speaker Model Number: HSP3100G FCC ID: HLZSP3100 Prepared for: Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd, Hsichih, Taipei Hsien, 221, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2009037 Date of Test: Jun. 15~Sep. 02, 2020 Date of Report: Sep. 04, 2020 FCC ID: HLZSP3100 EST Technology Co. ,Ltd Report No. ESTE-R2009037 Page 2 of 12 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: HLZSP3100 EST Technology Co. ,Ltd Report No. ESTE-R2009037 Page 3 of 12 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: HLZSP3100 EST Technology Co. ,Ltd Report No. ESTE-R2009037 Page 4 of 12 2. Conducted Power Result Antenna 1 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) GFSK 2402 3.82 2.410 3 ±2 2.2 1.66 2441 4.34 2.716 4 ±2 2.2 1.66 2480 4.84 3.048 4 ±2 2.2 1.66 8-DPSK 2402 5.41 3.475 5 ±2 2.2 1.66 2441 5.80 3.802 5 ±2 2.2 1.66 2480 5.79 3.793 5 ±2 2.2 1.66 BLE(1M) 2402 3.51 2.244 3 ±2 2.2 1.66 2440 4.09 2.564 4 ±2 2.2 1.66 2480 4.17 2.612 4 ±2 2.2 1.66 BLE(2M) 2402 3.94 2.477 3 ±2 2.2 1.66 2440 4.16 2.606 4 ±2 2.2 1.66 2480 3.97 2.495 3 ±2 2.2 1.66 IEEE 802.11b 2412 15.93 39.174 15 ±2 2.2 1.66 2437 15.88 38.726 15 ±2 2.2 1.66 2462 15.25 33.497 15 ±2 2.2 1.66 IEEE 802.11g 2412 19.60 91.201 19 ±2 2.2 1.66 2437 19.34 85.901 19 ±2 2.2 1.66 2462 18.80 75.858 18 ±2 2.2 1.66 IEEE 802.11n HT20 2412 18.15 65.313 18 ±2 2.2 1.66 2437 18.05 63.826 18 ±2 2.2 1.66 2462 17.54 56.754 17 ±2 2.2 1.66 IEEE 802.11a 5180 12.02 15.922 12 ±2 3.4 2.19 5200 12.07 16.106 12 ±2 3.4 2.19 5240 12.29 16.943 12 ±2 3.4 2.19 5260 12.16 16.444 12 ±2 3.4 2.19 5300 12.38 17.298 12 ±2 3.4 2.19 5320 12.36 17.219 12 ±2 3.4 2.19 5500 11.87 15.382 11 ±2 3.4 2.19 5580 11.89 15.453 11 ±2 3.4 2.19 5700 11.72 14.859 11 ±2 3.4 2.19 5745 12.19 16.558 12 ±2 3.4 2.19 FCC ID: HLZSP3100 EST Technology Co. ,Ltd Report No. ESTE-R2009037 Page 5 of 12 5785 12.05 16.032 12 ±2 3.4 2.19 5825 12.07 16.106 12 ±2 3.4 2.19 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) IEEE 802.11n HT20 5180 4.16 2.606 4 ±2 3.4 2.19 5200 3.48 2.228 3 ±2 3.4 2.19 5240 3.69 2.339 3 ±2 3.4 2.19 5260 11.31 13.521 11 ±2 3.4 2.19 5300 11.46 13.996 11 ±2 3.4 2.19 5320 11.38 13.740 11 ±2 3.4 2.19 5500 10.84 12.134 10 ±2 3.4 2.19 5580 10.93 12.388 10 ±2 3.4 2.19 5700 10.73 11.830 10 ±2 3.4 2.19 5745 11.17 13.092 11 ±2 3.4 2.19 5785 11.12 12.942 11 ±2 3.4 2.19 5825 11.09 12.853 11 ±2 3.4 2.19 IEEE 802.11ac VHT20 5180 4.19 2.624 4 ±2 3.4 2.19 5200 4.05 2.541 4 ±2 3.4 2.19 5240 4.69 2.944 4 ±2 3.4 2.19 5260 11.99 15.812 11 ±2 3.4 2.19 5300 12.03 15.959 12 ±2 3.4 2.19 5320 12.06 16.069 12 ±2 3.4 2.19 5500 11.93 15.596 11 ±2 3.4 2.19 5580 11.40 13.804 11 ±2 3.4 2.19 5700 11.01 12.618 11 ±2 3.4 2.19 5745 10.01 10.023 10 ±2 3.4 2.19 5785 11.05 12.735 11 ±2 3.4 2.19 5825 10.25 10.593 10 ±2 3.4 2.19 FCC ID: HLZSP3100 EST Technology Co. ,Ltd Report No. ESTE-R2009037 Page 6 of 12 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) IEEE 802.11n HT40 5190 6.13 4.102 6 ±2 3.4 2.19 5230 6.25 4.217 6 ±2 3.4 2.19 5270 10.41 10.990 10 ±2 3.4 2.19 5310 10.50 11.220 10 ±2 3.4 2.19 5510 11.62 14.521 11 ±2 3.4 2.19 5670 12.90 19.498 10 ±2 3.4 2.19 5755 12.78 18.967 9 ±2 3.4 2.19 5795 11.94 15.631 11 ±2 3.4 2.19 IEEE 802.11ac VHT40 5190 8.51 7.096 14 ±2 3.4 2.19 5230 8.85 7.674 8 ±2 3.4 2.19 5270 12.87 19.364 12 ±2 3.4 2.19 5310 13.00 19.953 13 ±2 3.4 2.19 5510 12.90 19.498 12 ±2 3.4 2.19 5670 11.94 15.631 11 ±2 3.4 2.19 5755 11.44 13.932 11 ±2 3.4 2.19 5795 12.18 16.520 12 ±2 3.4 2.19 IEEE 802.11ac VHT80 5210 9.61 9.141 9 ±2 3.4 2.19 5290 14.62 28.973 14 ±2 3.4 2.19 5530 12.89 19.454 12 ±2 3.4 2.19 5775 13.16 20.701 13 ±2 3.4 2.19 FCC ID: HLZSP3100 EST Technology Co. ,Ltd Report No. ESTE-R2009037 Page 7 of 12 Antenna 2 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) IEEE 802.11b 2412 16.94 49.431 16 ±2 2.5 1.78 2437 16.76 47.424 16 ±2 2.5 1.78 2462 16.43 43.954 16 ±2 2.5 1.78 IEEE 802.11g 2412 20.85 121.619 20 ±2 2.5 1.78 2437 …

Text truncated - open the document above for the full version.

FCC ID: HLZSP3100 EST Technology Co., Ltd Report No. ESTE-R2009032 Page 1 of 84 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Acer Incorporated Halo Smart Speaker Model Number: HSP3100G FCC ID: HLZSP3100 Prepared for: Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd, Hsichih, Taipei Hsien, 221, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2009032 Date of Test: Jun. 15~Sep. 02, 2020 Date of Report: Sep. 04, 2020 FCC ID: HLZSP3100 EST Technology Co., Ltd Report No. ESTE-R2009032 Page 2 of 84 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipmen ................................................................................................................................ 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 18 4.1. Limit ............................................................................................................................................... 18 4.2. Test Setup ....................................................................................................................................... 18 4.3. Spectrum Analyzer Setting ............................................................................................................. 18 4.4. Test Procedure ................................................................................................................................ 18 4.5. Test Result ...................................................................................................................................... 19 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 24 5.1. Limit ............................................................................................................................................... 24 5.2. Test Setup ....................................................................................................................................... 24 5.3. Spectrum Analyzer Setting ............................................................................................................. 24 5.4. Test Procedure ................................................................................................................................ 24 5.5. Test Result ...................................................................................................................................... 25 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 30 6.1. Limit ............................................................................................................................................... 30 6.2. Test Setup ....................................................................................................................................... 30 6.3. Spectrum Analyzer Setting ............................................................................................................. 30 …

Text truncated - open the document above for the full version.

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz) DFS
