HLZTMDMA200Tablet Computer

1 User Guide 2 © 2011. All Rights Reserved. Acer ICONIA TAB User Guide Model: A200 First issue: 10/2011 Acer ICONIA TAB Model number: __________________________________ Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ 3 Table of contents Getting to know your tablet Features and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Product registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Setting up Unpacking your tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Getting to know your tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using your tablet Charging your tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Turning on for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Locking your tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Using the touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 The Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 The onscreen keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Editing text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Connecting devices to your tablet Connecting to AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Inserting a microSD card (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Connecting to a PC as a USB storage device . . . . . . . . . . . . . . . . . . . . . . . . . 24 Connecting a USB device to your tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Connecting a Bluetooth device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Going online Managing Wi-Fi connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Browsing the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Setting up Gmail (Google mail) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Composing an email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Setting up the Email application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Online applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Playing music and video Multimedia playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Media server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Managing contacts Using the camera Camera icons and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Taking a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 4 Shooting a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Reading an eBook or pdf LumiRead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Advanced settings Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Putting your tablet in Airplane mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Activating or deactivating connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Adjusting Bluetooth settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Connecting to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Setting alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Changing language and text options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Managing applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Updating your tablet’s operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Resetting your tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 FAQ and troubleshooting Other sources of help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 End user license agreement 5Features and functions Getting to know your tablet Features and functions Your new tablet offers leading, easy-to-access multimedia and entertainment features. You can: • Connect to the Internet. • Access your email while on the move. • Keep in touch with your friends via your Contacts and social networking applications. Product registration When using your product for the first time, it is recommended that you immediately register it. This will give you access to useful benefits, such as: • Faster service from our trained representatives. • Membership in the Acer community: receive promotions and participate in customer surveys. • The latest news from Acer. Hurry and register, as other advantages await you! How to register To register your Acer product, please visit wwww.acer.com. Click RRegistration and foll…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Date: November 2, 2011 Power of Attorney To whom it may concern, Please be notified that I, Harriot S.L. Lee, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: HLZTMDMA200 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Harriot S.L. Lee Company: Acer Incorporated TEL: 886-2-6606-3131 FAX: 886-2-2696-3535 E-mail: [email protected]

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 November 3, 2011 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. November 3, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Tablet Compute Model name: A200 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Jones Tsai / Director Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com 1/1 Date: November 3, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : HLZTMDMA200 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: A200_ExtPho.pdf)  Internal Photos (file: A200_IntPho.pdf)  Test Setup Photos (file: A200_Tsup.pdf)  User Manual (file: A200_UserMan.pdf) The application contains technical information, which Acer Incorporated deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Harriot S.L. Lee

Rev. 1/1/03 Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Date: November 3, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: HLZTMDMA200 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Parts List (file: A200_PartsLst_Confidential.pdf) Block Diagram (file:A200_BlkDia.pdf) Parts List (file: A200_PartsLst.pdf) Operation Description (file: A200_OpDes.pdf) Schematics (file: A200_Schem.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Harriot S.L. Lee

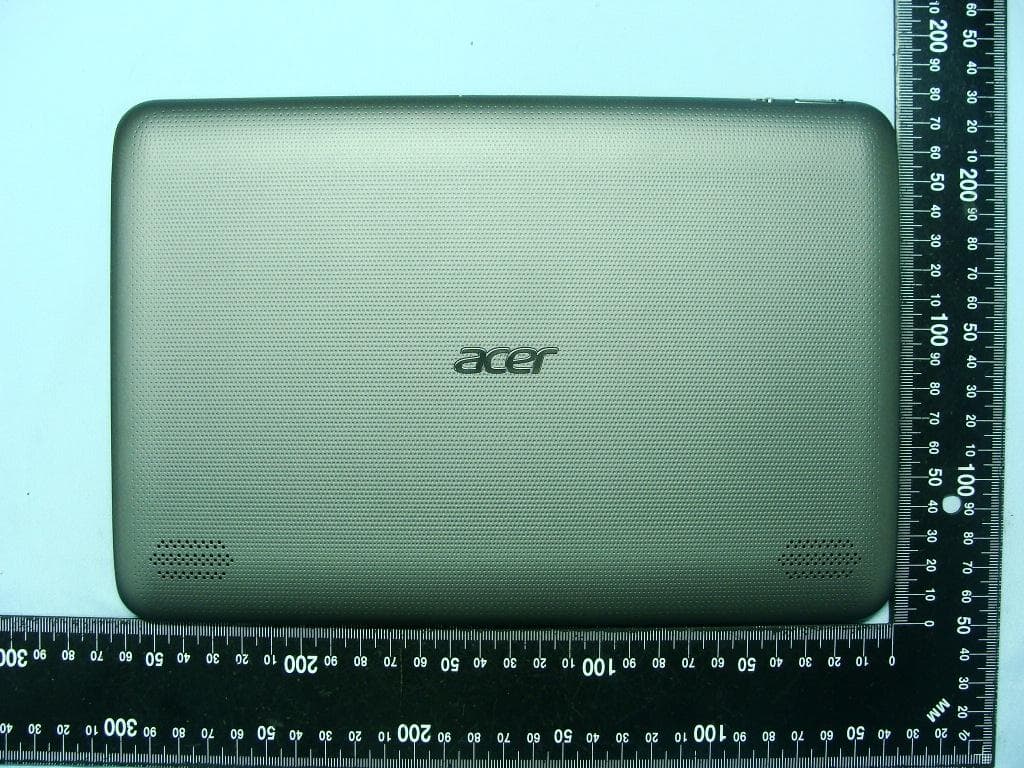

Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 1 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 720510 1. External Photograph of EUT Sample 1 & Sample 2 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 2 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 3 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Sample 3 & Sample 4 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 4 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 5 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 List of Accessory: Specification of Accessory AC Adapter Brand Name PHIHONG Model Name PSA18R-120P Battery Brand Name SANYO Model Name BAT1012 USB Cable 1 Brand Name MEC Model Name USB A-MICRO B USB Cable 2 Brand Name ICT Model Name USB A-MICRO B eMMC 1 Brand Name Sandisk 16GB Model Name SDIN5C1-16G eMMC 2 Brand Name Sandisk 8GB Model Name SDIN5C2-8G eMMC 3 Brand Name Kingston 16GB Model Name KE4BT4B6A eMMC 4 Brand Name Kingston 8GB Model Name KE44B-26BN/8GB LP DDR2 Brand Name Elpida Model Name EDB8132B2PB-6D-F Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 6 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 AC Adapter Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 7 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 8 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 9 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Battery Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 10 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 11 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 12 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 USB Cable 1 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 13 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 USB Cable 2

Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Nov. 03,2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Antenna location Length Width Bluetooth & WLAN Antenna <TX / RX> 3.2 cm 0.7 cm GPS Antenna <RX> 2.6 cm 0.7 cm GPS Antenna <Rx> 3.3 cm 16.1 cm 0.2 cm Bluetooth & WLAN Antenna <Tx / Rx> 10 cm 6.5 cm

Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Antenna location Length Width Bluetooth & WLAN Antenna <TX / RX> 3.2 cm 0.7 cm GPS Antenna <RX> 2.6 cm 0.7 cm GPS Antenna <Rx> 3.3 cm 16.1 cm 0.2 cm Bluetooth & WLAN Antenna <Tx / Rx> 10 cm 6.5 cm

Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 14 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 720510 3. Internal Photograph of EUT Sample 1 & Sample 2 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 15 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 16 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 eMMC 1 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 17 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 eMMC 2 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 18 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Sample 3 & Sample 4 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 19 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 20 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 eMMC 3 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 21 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 eMMC 4 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 22 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 LP DDR2 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 23 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 24 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 25 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200 GPS Antenna <Rx> Photographs of EUT Report No.: EP1O1401 Brand Name: Acer / Model Name: A200 SPORTON INTERNATIONAL INC. Page Number : 26 of 26 TEL : 886-3-327-3456 Report Issued Date : Nov. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 IC : 1754F-TMDMA200

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 02, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 FCC SAR Test Report Report No. : FA1O1401 FCC SAR Test Report APPLICANT : Acer Incorporated EQUIPMENT : Tablet Computer BRAND NAME : Acer MODEL NAME : A200 FCC ID : HLZTMDMA200 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Oct. 26, 2011 and completely tested on Oct. 26, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 02, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZTMDMA200 FCC SAR Test Report Report No. : FA1O1401 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Product Photos....................................................................................................................................................... 7 3.3 Applied Standards .................................................................................................................................................. 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment .............................................................................................................................................19 8. SAR Measurement Evaluation ....................................................................................................................................21 8.1 Purpose of System Performance check .........................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/10/26 System Check_Body_2450MHz_111026 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_111026 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(6.67, 6.67, 6.67); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/10/11 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - ; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.8 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87 V/m; Power Drift = 0.117 dB Peak SAR (extrapolated) = 27.5 W/kg SAR(1 g) = 13.4 mW/g; SAR(10 g) = 6.17 mW/g Maximum value of SAR (measured) = 15.4 mW/ g 0 dB = 15.4mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/10/26 System Check_Body_2450MHz_111026 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_111026 Medium parameters used: f = 2450 MHz; σ = 1.96 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/9/12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2011/6/17 - Phantom: ELI 4.0_Front; Type: QD 0VA 002 AA; Serial: TP-1131 - ; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.2 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 81.1 V/m; Power Drift = 0.0235 dB Peak SAR (extrapolated) = 27.8 W/kg SAR(1 g) = 12.6 mW/g; SAR(10 g) = 5.66 mW/g Maximum value of SAR (measured) = 14.4 mW/g 0 dB = 14.4mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/10/26 #01 802.11b_Bottom Face_0cm_Ch1_Sample1_Earphone DUT: 1O1401 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_111026 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(6.67, 6.67, 6.67); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/10/11 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - ; SEMCAD X Version 13.4 Build 125 Ch1/Area Scan (101x141x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.532 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.806 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.950 W/kg SAR(1 g) = 0.435 mW/g; SAR(10 g) = 0.205 mW/g Maximum value of SAR (measured) = 0.484 mW/ g 0 dB = 0.484mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/10/26 #02 802.11b_Primary Portrait_0cm_Ch1_Sample1_Earphone DUT: 1O1401 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_111026 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(6.67, 6.67, 6.67); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/10/11 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - ; SEMCAD X Version 13.4 Build 125 Ch1/Area Scan (41x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.103 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.25 V/m; Power Drift = -0.183 dB Peak SAR (extrapolated) = 0.154 W/kg SAR(1 g) = 0.080 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.083 mW/ g 0 dB = 0.083mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing …

Text truncated - open the document above for the full version.
