HLZW100Wristband

Striiv Touch Quick Start Guide Includes: 1. Striiv Touch device 2. USB Cable 3. Charging Cradle 4. Quick Start Guide Instructions: 1. Open Charging Cradle. 2. Line up charging pins of the Striiv Touch with pins of Charging Cradle. 3. Set Striiv Touch into Charging Cradle so that pins of the device and pins of the cradle are in contact. 4. Close the Charging Cradle. You will hear a click. 5. Plug the small end of USB Cable into Charging Cradle. 6. Plug the large end of the USB Cable into a compatible USB socket. 7. Allow Striiv Touch device to charge for at least 90 minutes. 8. Visit www.striiv.com/setup to complete the setup of your device. FCC Statement Model: W100 FCC ID: HLZW100 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment under FCC rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This device must not be co-located or operated in conjunction with any other antenna or transmitter instructions for satisfying RF exposure compliance. NOTE: Operating temperature ranges from -4°F to 149°F (-20°C to 65°C). Relative humidity ranges from 0% to 93% RH. Striiv, Striiv , and TruMotion are trademarks or registered trademarks of Striiv, Inc. Apple® and iPhone® are registered trademarks of Apple Inc., registered in the United States and other countries. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Striiv, Inc. is under license. All other brands and product names are or may be trademarks of their respective owners. Responsible Party Striiv, Inc., 541 Jefferson Ave., Suite 204, Redwood City, CA 94063 Software Licensing Agreement Last updated 08/08/13 For future updates, go to www.striiv.com/legal Compliant with the standard R&TTE 99/CE/05 Limited Hardware Warranty Last updated 8/06/2013. For future updates, go to www.striiv.com/legal 1. Limited Warranty. Striiv, Inc. (“Striiv”) warrants to the end user customer (“Customer”) of the Striiv electronic device (“Product”) that the Product hardware components (“Product Hardware”), when used in accordance with the documentation furnished by Striiv (“Documentation”), will be free in all material respects of defects in materials and workmanship (“Limited Warranty”), for a period of one (1) year after the date of purchase by Customer of the applicable Product from Striiv or Striiv authorized reseller (the “Warranty Period”). If the Product Hardware (or any component or portion thereof) fails to conform to the Limited Warranty, Striiv, at its own expense and as its sole obligation, and Customer’s sole and exclusive remedy, for breach of this warranty will either (at Striiv sole discretion) (a) repair or replace any defective Product Hardware; or (b) accept the return of the Product incorporating the defective Product Hardware and refund to Customer the fees actually paid by Customer to Striiv or Striiv authorized reseller for such Product. Replacement Products and Product Hardware may be refurbished and/or different models will be supplied, but will be functionally equivalent to the Products or Product Hardware being replaced. When a Product or Product Hardware is replaced, any replacement item becomes Customer’s property and the replaced Product or Product Hardware becomes Striiv property. Any Product that has either been repaired or replaced under this Limited Warranty will have warranty coverage for the longer of ninety (90) days or the remaining Warranty Period. This Limited Warranty is transferable from Customer to subsequent Product owners, but the Warranty Period will not be extended for any such transfer. 2. Process. Striiv warranty obligations are conditioned on Customer (a) notifying Striiv using the customer care contact information available at Striiv website (www.striiv.com/customercare), during the Warranty Period, of any failure of The Product to meet the Limited Warranty, including a detailed description of such alleged failure and proof of purchase information as requested by Striiv, (b) otherwise complying with Striiv then-current return merchandise authorization guidelines (if any), and (c) shipping the affected Product, at Customer’s cost, to Striiv or Striiv designated third party facility for repair or replacement. Before Customer ships Customer’s Product to Striiv for warranty service. Customer is responsible for making a separate backup copy of the contents of the Product. THE CONTENTS OF T…

Text truncated - open the document above for the full version.

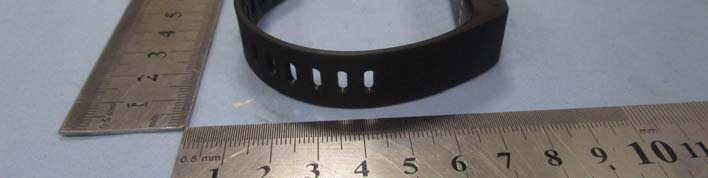

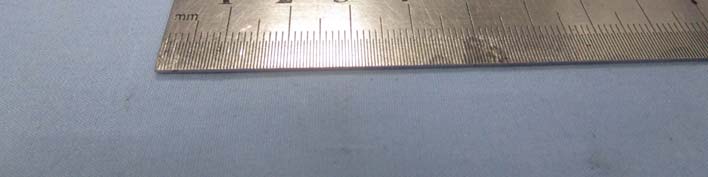

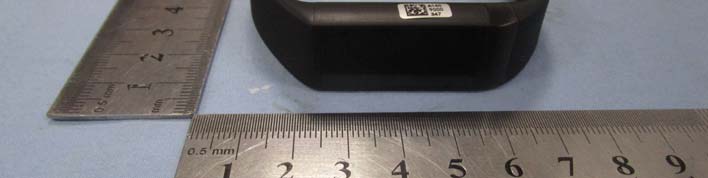

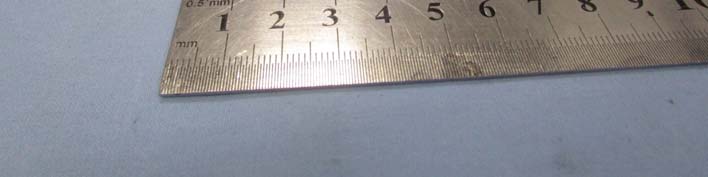

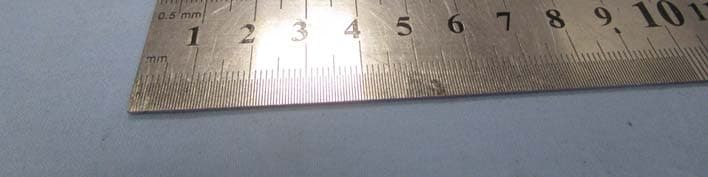

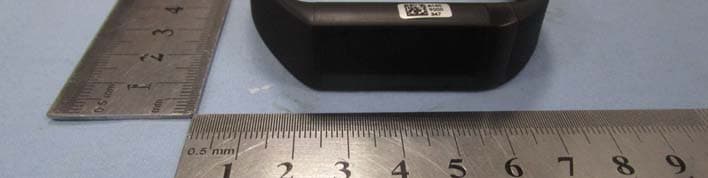

Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 EUT View 3 EUT View 4 Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 EUT View 5

Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: HLZW100 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: HLZW100 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 Solder Board-Component View 2

RF Exposure Requirements Product Description: Wristband Model No.: W100 FCC ID: HLZW100 According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: -4.502dBm Maximum Output Power: 0.3546mW Limit: 10mW Source-based time-averaged output power is 0.3546mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Acer Incorporated Model: W100 REPORT NO.: STR14108072I PAGE 1 OF 38 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd, Hsichih, Taipei Hsien, Ta i w a n FCC ID: HLZW100 FCC Rule(s): FCC Part 15.247 Product Description: Wristband Tested Model: W100 Report No.: STR14108072I Tested Date: 2014-10-17 to 2014-10-22 Issued Date: 2014-10-22 Tested By: Mark chen/ Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Acer Incorporated Model: W100 REPORT NO.: STR14108072I PAGE 2 OF 38 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 13 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. RF OUTPUT POWER ............................................................................................................................................ 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. FIELD STRENGTH OF SPURIOUS EMISSIONS ............................................................................................. 19 …

Text truncated - open the document above for the full version.

Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Acer Incorporated. Model: W100 REPORT NO.: STR14108072I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
