HLZW6DPredator Connect Wi-Fi Router

Predator Connect W6d Wi-Fi 6 Router Important Documentations © 2023 Acer Inc. Quick Start Guide Kurzanleitung Guida introduttiva Guide de démarrage rapide Guía rápida de inicio 6NUμFRQDLQVWUXNFMDREVíXJL 6WUXÍQ£UHIHUHQÍQ ̄Sÿ ̄UXÍND Guia de início rápido Guia de Inicialização rápida ⺩廝‣搾㇅∕ Predator Connect W6 6E WiFi Router 1 2 4 3 1. Plug in AC adapter. 1. Stecken Sie das Netzteil ein. 1. Branchez l'adaptateur secteur. 1. Conecte el adaptador de CA. 1. Collegare l’adattatore CA. 1. Ligue o transformador AC. 1. Podłącz zasilacz prądu zmiennego. 1. Připojte síťový adaptér. 1. ㎹⅌$&孱⢺♏ ̨ 1. Dugja be a hálózati adaptert. 1. Sluit de wisselstroomadapter aan. 1. Liitä verkkolaite. 1. Tilslut vekselstrømsadapteren (AC). 1. Plugg inn strømadapteren. 1. Koppla in AC-adaptern. 2. Plug into outlet. 2. Schließen Sie es an die Steckdose an. 2. Branchez dans la prise. 2. Conéctelo a la toma de corriente. 2. Inserire nella presa. 2. Ligue à tomada elétrica. 2. Podłącz do gniazda zasilania. 2. Připojte do elektrické zásuvky. 2. 㐣↶㐣⻸ ̨ 2. Dugja be a konnektorba. 2. Steek de stekker in het stopcontact. 2. Liitä pistorasiaan. 2. Slut den til stikkontakten. 2. Plugg inn i stikkontakten. 2. Anslut i ett uttag. 3. Plug in internet cable. 3. Schließen Sie das Internetkabel an. 3. Branchez le câble internet. 3. Conecte el cable de Internet. 3. Collegare il cavo Internet. 3. Ligue o cabo de Internet. 3. Podłącz kabel internetowy. 3. Připojte internetový kabel. 3. 㐣↶七曬七幀仭丫 ̨ 3. Csatlakoztassa az internetkábelt. 3. Sluit de internetkabel aan. 3. Liitä internet-kaapeli. 3. Tilslut internetkablet. 3. Plugg inn internetkabelen. 3. Koppla in internetkabeln. 4. Power on device. 4. Schalten Sie das Gerät ein. 4. Mettez l’appareil sous tension. 4. Encienda el dispositivo. 4. Accendere il dispositivo. 4. Ligue o dispositivo. 4. Włącz zasilanie urządzenia. 4. Zapněte napájení zařízení. 4. 旜▰央便杌㻡 ̨ 4. Kapcsolja be a készüléket. 4. Schakel het apparaat in. 4. Käynnistä laite. 4. Tænd enheden. 4. Slå på enheten. 4. Slå på enheten. 11 Quick Start Guide Kurzanleitung Guida introduttiva Guide de démarrage rapide Guía rápida de inicio 6NUμFRQDLQVWUXNFMDREVíXJL 6WUXÍQ£UHIHUHQÍQ ̄Sÿ ̄UXÍND Guia de início rápido Guia de Inicialização rápida ⺩廝‣搾㇅∕ Predator Connect W6 6E WiFi Router 1 2 4 3 1. Plug in AC adapter. 1. Stecken Sie das Netzteil ein. 1. Branchez l'adaptateur secteur. 1. Conecte el adaptador de CA. 1. Collegare l’adattatore CA. 1. Ligue o transformador AC. 1. Podłącz zasilacz prądu zmiennego. 1. Připojte síťový adaptér. 1. ㎹⅌$&孱⢺♏ ̨ 1. Dugja be a hálózati adaptert. 1. Sluit de wisselstroomadapter aan. 1. Liitä verkkolaite. 1. Tilslut vekselstrømsadapteren (AC). 1. Plugg inn strømadapteren. 1. Koppla in AC-adaptern. 2. Plug into outlet. 2. Schließen Sie es an die Steckdose an. 2. Branchez dans la prise. 2. Conéctelo a la toma de corriente. 2. Inserire nella presa. 2. Ligue à tomada elétrica. 2. Podłącz do gniazda zasilania. 2. Připojte do elektrické zásuvky. 2. 㐣↶㐣⻸ ̨ 2. Dugja be a konnektorba. 2. Steek de stekker in het stopcontact. 2. Liitä pistorasiaan. 2. Slut den til stikkontakten. 2. Plugg inn i stikkontakten. 2. Anslut i ett uttag. 3. Plug in internet cable. 3. Schließen Sie das Internetkabel an. 3. Branchez le câble internet. 3. Conecte el cable de Internet. 3. Collegare il cavo Internet. 3. Ligue o cabo de Internet. 3. Podłącz kabel internetowy. 3. Připojte internetový kabel. 3. 㐣↶七曬七幀仭丫 ̨ 3. Csatlakoztassa az internetkábelt. 3. Sluit de internetkabel aan. 3. Liitä internet-kaapeli. 3. Tilslut internetkablet. 3. Plugg inn internetkabelen. 3. Koppla in internetkabeln. 4. Power on device. 4. Schalten Sie das Gerät ein. 4. Mettez l’appareil sous tension. 4. Encienda el dispositivo. 4. Accendere il dispositivo. 4. Ligue o dispositivo. 4. Włącz zasilanie urządzenia. 4. Zapněte napájení zařízení. 4. 旜▰央便杌㻡 ̨ 4. Kapcsolja be a készüléket. 4. Schakel het apparaat in. 4. Käynnistä laite. 4. Tænd enheden. 4. Slå på enheten. 4. Slå på enheten. 11 Predator Connect W6d Quick Setup Quick Start Guide Kurzanleitung Guida introduttiva Guide de démarrage rapide Guía rápida de inicio 6NUμFRQDLQVWUXNFMDREVíXJL 6WUXÍQ£UHIHUHQÍQ ̄Sÿ ̄UXÍND Guia de início rápido Guia de Inicialização rápida ⺩廝‣搾㇅∕ Predator Connect W6 6E WiFi Router 1 2 4 3 1. Plug in AC adapter. 1. Stecken Sie das Netzteil ein. 1. Branchez l'adaptateur secteur. 1. Conecte el adaptador de CA. 1. Collegare l’adattatore CA. 1. Ligue o transformador AC. 1. Podłącz zasilacz prądu zmiennego. 1. Připojte síťový adaptér. 1. ㎹⅌$&孱⢺♏ ̨ 1. Dugja be a hálózati adaptert. 1. Sluit de wisselstroomadapter aan. 1. Liitä verkkolaite. 1. Tilslut vekselstrømsadapteren (AC). 1. Plugg inn strømadapteren. 1. Koppla in AC-adaptern. 2. Plug into outlet. 2. Schließen Sie es an die Steckdose an. 2. Branchez dans la prise. 2. Conéctelo a la toma de corriente. 2. Inserire nella presa. 2. Ligue à tomada elétrica. 2. Podłącz do gniazda zasilania. 2. Připojte do elektrické zásuvky. 2. 㐣↶㐣⻸ ̨ 2. Dugja be a konnektorba. 2. Steek de stekker in het stopcontact. 2. Liitä pistorasiaan. 2. Slut den til stikkontakten. 2. Plugg inn i stikkontakten. 2. Anslut i ett uttag. 3. Plug in internet cable. 3. Schließen Sie das Internetkabel an. 3. Branchez le câble internet. 3. Conecte el cable de Internet. 3. Collegare il cavo Internet. 3. Ligue o cabo de Internet. 3. Podłącz kabel internetowy. 3. Připojte internetový kabel. 3. 㐣↶七曬七幀仭丫 ̨ 3. Csatlakoztassa az internetkábelt. 3. Sluit de internetkabel aan. 3. Liitä internet-kaapeli. 3. Tilslut internetkablet. 3. Plugg inn internetkabelen. 3. Koppla in internetkabeln. 4. Power on device. 4. Schalten Sie das Gerät ein. 4. Mettez l’appareil sous tension. 4. Encienda el dispositivo. 4. Accendere il dispositivo. 4. Ligue o dispositivo. 4. Włącz zasilanie urządzenia. 4. Zapněte napájení zařízení. 4. 旜▰央便杌㻡 ̨ 4. Kapcsolja be a készüléket. 4. Schakel het apparaat in. 4. Käynnistä laite. 4. Tænd enheden. 4. Slå på enheten. 4. Slå på enheten. 11 W6d Quick Start Gu…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Xintai 5th Rd., Xizhi New Taipei City 221, Taiwan Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-15-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing [Acer Incorporated] (“the applicant”) certifies that, as of the date of the filing of the application, [Acer America Corporation] is our designated U.S. agent for service of process. [Acer Incorporated] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [Acer America Corporation] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process. Sincerely, Designated U.S. Agent Information: Name: Acer America Corporation FRN: 0033486168 Contact Person: Young Kim Address: 1730 North First Street, Suite 400, San Jose, CA 95112 Tel.: (408) 533 7700 Email: [email protected] U.S. Agent Signature: Applicant: Company Name: Acer Incorporated Grantee Code: HLZ Contact Person: RU Jan Tel.: +886-2-8691-3289 Email: [email protected] Applicant Signature:

2023-02-02

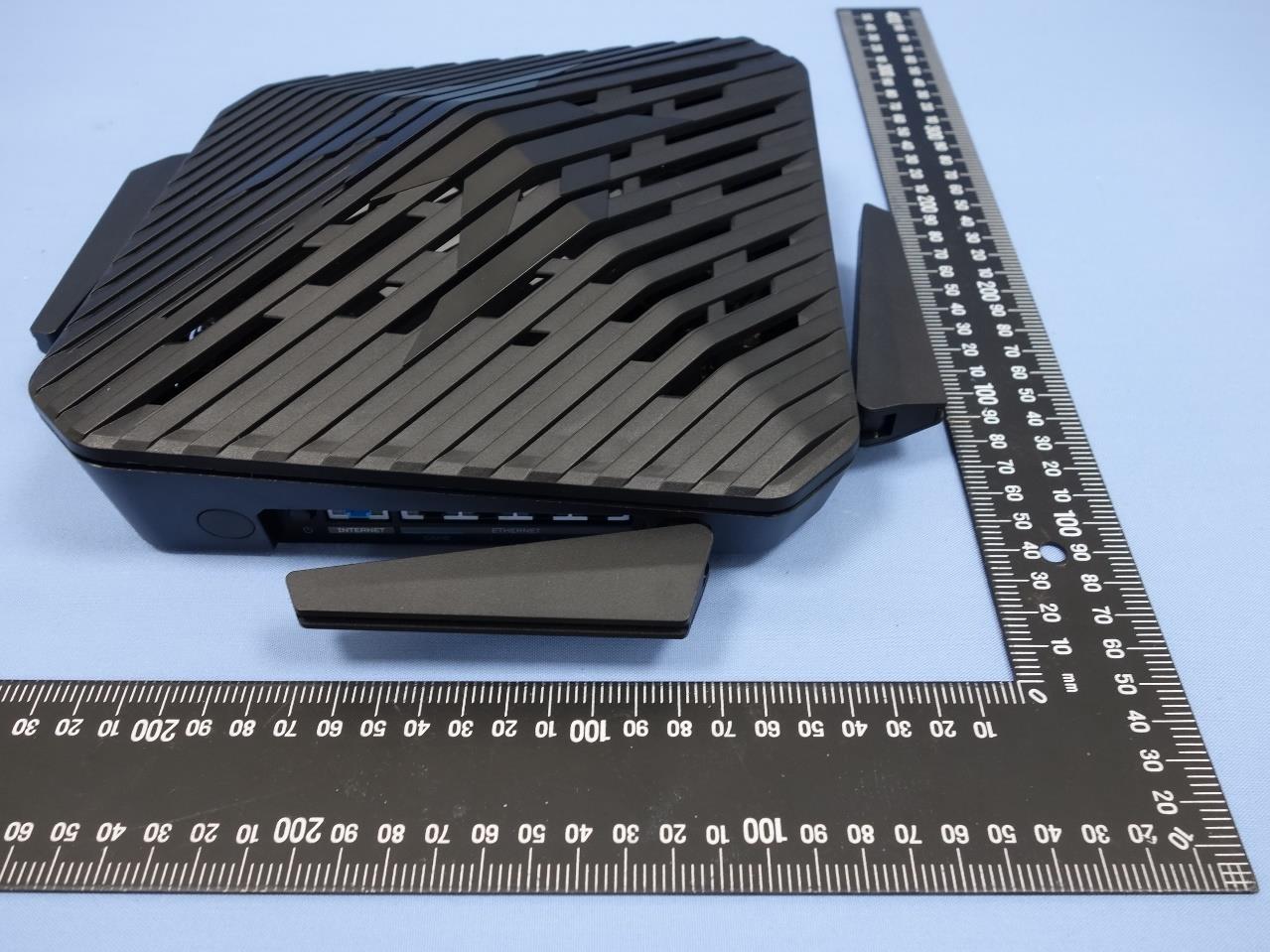

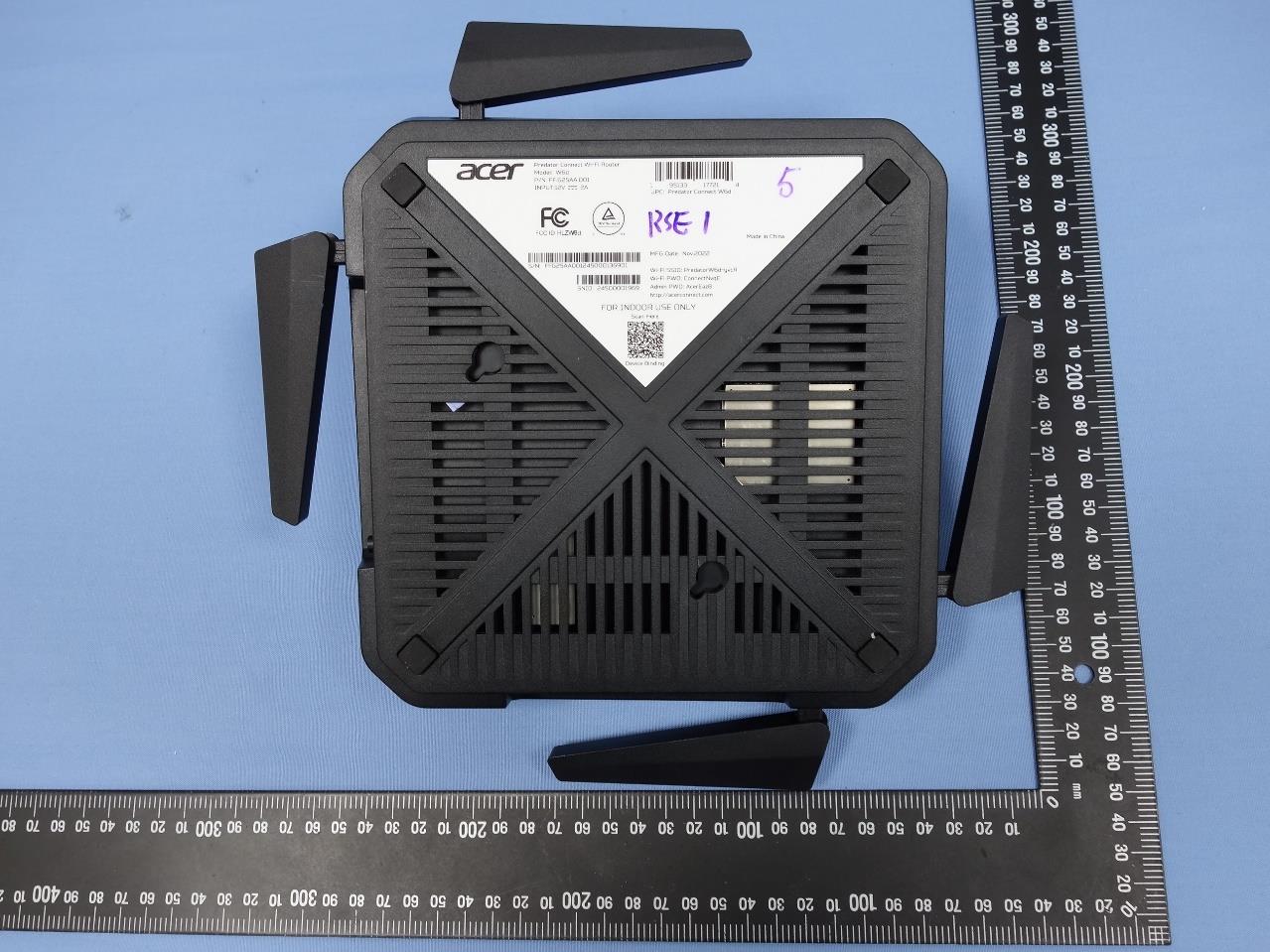

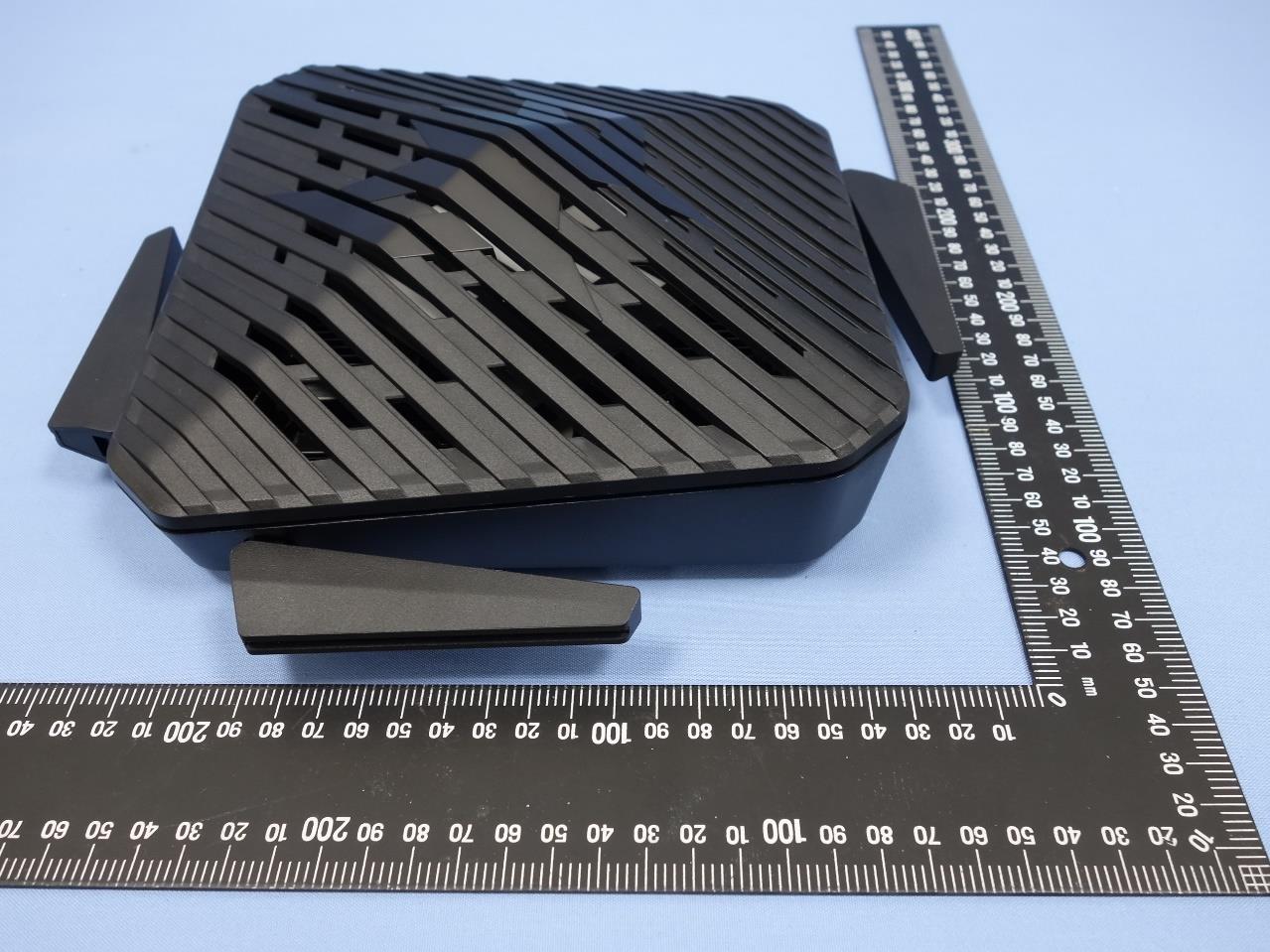

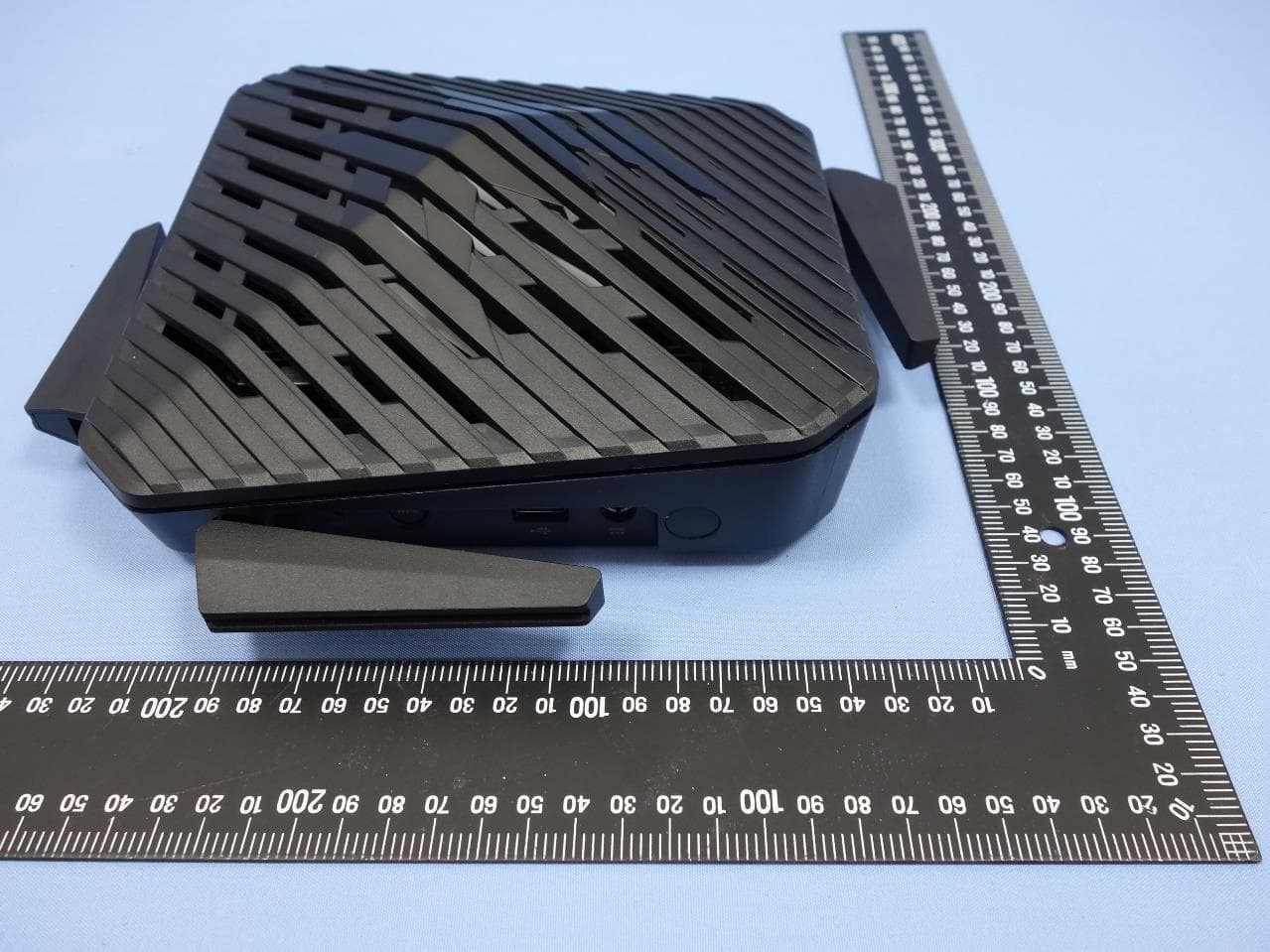

Appendix EP Photographs of EUT Page 1 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Ant 1 Ant 0 Ant 3 Ant 2 Appendix EP Photographs of EUT Page 2 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 3 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 4 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 15 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d <WB-24M12FU> Appendix EP Photographs of EUT Page 16 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d <WA-36W12FU>

Label & label location

Appendix EP Photographs of EUT Page 5 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 6 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 7 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 8 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 9 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 10 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 11 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 12 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 13 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d Appendix EP Photographs of EUT Page 14 of 16 CN23ML3X (P15C-WiFi) 001 CN23ML3X (P15E-WiFi) 001 CN23ML3X (FCC-Colocated) 001 CN23ML3X (FCC-MPE) 001 Product: Predator Connect Wi-Fi Router Type Identification: W6d

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN23ML3X (FCC-MPE) 001 Auftrags-Nr.: Order no.: 238549436 Seite 1 von 9 Page 1 of 9 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-12-21 Auftraggeber: Client: Acer Incorporated 8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221 Taiwan Prü fgegenstand: Test item: Predator Connect Wi-Fi Router Bezeichnung / Typ-Nr.: Identification / Type no.: W6d Auftrags-Inhalt: Order content: FCC Certification Prü fgrundlage: Test specification: IEEE Std C95.1 47 CFR §2.1091 47 CFR §1.1310 Wareneingangsdatum: Date of sample receipt: 2022-10-26 Prü fmuster-Nr.: Test sample no: A003360434-017 A003360434-026 Prü fzeitraum: Testing period: 2022-12-13 - 2023-03-02 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass ü berprü ft von: compiled by: Ethan Shao genehmigt von: authorized by: Brenda Chen Datum: Date: 2023-03-15 Ausstellungsdatum: Issue date: 2023-03-15 Stellung / Position: Assistant Project Engineer Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN23ML3X (FCC-MPE) 001 Seite 2 von 9 Page 2 of 9 Contents 1 GENERAL REMARKS ............................................................................................. 4 1.1 COMPLEMENTARY MATERIALS ............................................................................... 4 2 TEST SITES .......................................................................................................... 5 2.1 TEST FACILITIES ................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ......................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 6 3.2 RATINGS AND SYSTEM DETAILS ............................................................................. 6 4 MAXIMUM PERMISSIBLE EXPOSURE EVALUATION .................................................... 7 4.1 INTRODUCTION ..................................................................................................... 7 4.2 REFERENCE LEVELS ............................................................................................. 7 4.3 CLASSIFICATION OF THE ASSESSMENT METHODS.................................................... 8 5 TEST RESULTS ..................................................................................................... 9 5.1 MAXIMUM POWER DENSITY ................................................................................... 9 APPENDIX EP - PHOTOGRAPHS OF EUT Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN23ML3X (FCC-MPE) 001 Seite 3 von 9 Page 3 of 9 HISTORY OF THIS TEST REPORT Report No. Description Date Issued CN23ML3X (FCC-MPE) 001 Original Release 2023-03-15 Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN23ML3X (FCC-MPE) 001 Seite 4 von 9 Page 4 of 9 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix EP - Photographs of EUT 1.2 Decision Rule of Conformity The decision rule of conformity of this test report is following the requirements of the requested standard in the quotation, and agreed among testing laboratory and manufacturer (applicant) to exclude the consideration of Measurement Uncertainty, unless it is required by the specific standard. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN23ML3X (FCC-MPE) 001 Seite 5 von 9 Page 5 of 9 2 Test Sites 2.1 Test Facilities Taipei Testing Laboratories 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) 2.2 Test Facility Taipei Testing Laboratories No.458-18, Sec. 2, Fenliao Rd., Linkou Dist., New Taipei City 244 Taiwan (R.O.C.) Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN23ML3X (FCC-MPE) 001 Seite 6 von 9 Page 6 of 9 3 General Product Information 3.1 Product Function and Intended Use The EUT is Predator Connect Wi-Fi Router. It contains WLAN compatible module enabling the user to communicate data through a Wireless interface. For details refer to the User Guide, Data Sheet and Circuit Diagram. 3.2 Ratings and System Details Basic Information of EUT Item EUT Information Kind of Equipment/Test Item Predator Connect Wi-Fi Router Type Identification W6d FCC ID HLZW6D Technical Specification of EUT Item EUT Information Operating Frequency WLAN 2.4G: 2412 MHz ~ 2462 MHz WLAN 5G: 5180 MHz ~ 5240 MHz, 5260 MHz ~ 5320 MHz, 5500 MHz ~ 5…

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN23ML3X (P15E-WiFi) 001 Auftrags-Nr.: Order no.: 238549436 Seite 1 von 140 Page 1 of 140 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-12-21 Auftraggeber: Client: Acer Incorporated 8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221 Taiwan Prü fgegenstand: Test item: Predator Connect Wi-Fi Router Bezeichnung / Typ-Nr.: Identification / Type no.: W6d Auftrags-Inhalt: Order content: FCC Part 15E Test report (WiFi 5GHz) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart E Section 15.407 Wareneingangsdatum: Date of sample receipt: 2022-10-26 Prü fmuster-Nr.: Test sample no: A003360434-017 A003360434-026 Prü fzeitraum: Testing period: 2022-11-28 - 2023-03-01 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass überprü ft von: compiled by: Ethan Shao genehmigt von: authorized by: Brenda Chen Datum: Date: 2023-03-15 Ausstellungsdatum: Issue date: 2023-03-15 Stellung / Position: Assistant Project Engineer Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite 2 von 140 Page 2 of 140 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.407(a) & 15.203 Antenna Requirement Pass 5.1.2 15.407(a) Maximum Conducted Output Power Pass 5.1.3 15.407(h)(1) Transmit Power Control (TPC) Pass 5.1.4 15.407(a) 26 dB Bandwidth Pass 5.1.4 2.1049 99% Occupied Bandwidth Pass 5.1.5 15.407(e) 6 dB Bandwidth (U-NII-3 Band only) Pass 5.1.6 15.407(g) Frequency Stability Pass 5.1.7 15.407(a) Power Spectral Density Pass 5.1.8 15.407(b) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.1.9 15.407(h) & KDB 905462 D02 Dynamic Frequency Selection Pass 5.2.1 15.207 Mains Conducted Emission Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite 3 von 140 Page 3 of 140 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 11 3.4 SUBMITTED DOCUMENTS ..................................................................................... 11 4. TEST SET-UP AND OPERATION MODES ................................................................. 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 12 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 13 4.3 TEST OPERATION AND TEST SOFTWARE ............................................................... 14 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 18 4.5 TEST SETUP DIAGRAM ........................................................................................ 19 4.6 DUTY CYCLE OF TEST SIGNAL ............................................................................. 20 5. TEST RESULTS ................................................................................................... 22 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......…

Text truncated - open the document above for the full version.

Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite E1 von E29 Page E1 of E29 Appendix E: Dynamic Frequency Selection Radar Test waveform Short Pulse Radar Type 1 - 4 Step intervals of 0.1 microsecond for Pulse Width, 1 microsecond for PRI, 1 MHz for chirp width and 1 for the number of pulses will be utilized for the random determination of specific test waveforms. Short Pulse Radar Test Waveforms Radar Type Pulse Width (μsec) PRI (μsec) Number of Pulses Minimum Percentage of Successful Detection Minimum Number of Trials 0 1 1428 18 See Note 1 See Note 1 1 1 Test A: 15 unique PRI values randomly selected from the list of 23 PRI values in Table 5a Roundup { ( 1 360 )∙ ( 19∙10 6 PRI 휇푠푒푐 ) } 60% 30 Test B: 15 unique PRI values randomly selected within the range of 518-3066 μsec, with a minimum increment of 1 μsec, excluding PRI values selected in Test A 2 1-5 150-230 23-29 60% 30 3 6-10 200-500 16-18 60% 30 4 11-20 200-500 12-16 60% 30 Aggregate (Radar Types 1-4) 80% 120 Note 1: Short Pulse Radar Type 0 should be used for the detection bandwidth test, channel move time, and channel closing time tests. A minimum of 30 unique waveforms are required for each of the Short Pulse Radar Types 2 through 4. If more than 30 waveforms are used for Short Pulse Radar Types 2 through 4, then each additional waveform must also be unique and not repeated from the previous waveforms. Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite E2 von E29 Page E2 of E29 Pulse Repetition Intervals Values for Test A Pulse Repetition Frequency Number Pulse Repetition Frequency (Pulses Per Second) Pulse Repetition Interval (Microseconds) 1 1930.5 518 2 1858.7 538 3 1792.1 558 4 1730.1 578 5 1672.2 598 6 1618.1 618 7 1567.4 638 8 1519.8 658 9 1474.9 678 10 1432.7 698 11 1392.8 718 12 1355 738 13 1319.3 758 14 1285.3 778 15 1253.1 798 16 1222.5 818 17 1193.3 838 18 1165.6 858 19 1139 878 20 1113.6 898 21 1089.3 918 22 1066.1 938 23 326.2 3066 Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite E3 von E29 Page E3 of E29 Long Pulse Radar - Type5 Long Pulse Radar Test Waveform Radar Type Pulse Width (μsec) Chirp Width (MHz) PRI (μsec) Number of Pulses per Burst Number of Bursts Minimum Percentage of Successful Detection Minimum Number of Trials 5 50-100 5-20 1000- 2000 1-3 8-20 80% 30 The parameters for this waveform are randomly chosen. Thirty unique waveforms are required for the Long Pulse Radar Type waveforms. If more than 30 waveforms are used for the Long Pulse Radar Type waveforms, then each additional waveform must also be unique and not repeated from the previous waveforms. Each waveform is defined as follows: 1) The transmission period for the Long Pulse Radar test signal is 12 seconds. 2) There are a total of 8 to 20 Bursts in the 12 second period, with the number of Bursts being randomly chosen. This number is Burst Count. 3) Each Burst consists of 1 to 3 pulses, with the number of pulses being randomly chosen. Each Burst within the 12 second sequence may have a different number of pulses. 4) The pulse width is between 50 and 100 microseconds, with the pulse width being randomly chosen. Each pulse within a Burst will have the same pulse width. Pulses in different Bursts may have different pulse widths. 5) Each pulse has a linear frequency modulated chirp between 5 and 20 MHz, with the chirp width being randomly chosen. Each pulse within a transmission period will have the same chirp width. The chirp is centered on the pulse. For example, with a radar frequency of 5300 MHz and a 20 MHz chirped signal, the chirp starts at 5290 MHz and ends at 5310 MHz. 6) If more than one pulse is present in a Burst, the time between the pulses will be between 1000 and 2000 microseconds, with the time being randomly chosen. If three pulses are present in a Burst, the random time interval between the first and second pulses is chosen independently of the random time interval between the second and third pulses. 7) The 12 second transmission period is divided into even intervals. The number of intervals is equal to Burst Count. Each interval is of length (12,000,000 / Burst Count) microseconds. Each interval contains one Burst. The start time for the Burst, relative to the beginning of the interval, is between 1 and [(12,000,000 / Burst Count) – (Total Burst Length) + (One Random PRI Interval)] microseconds, with the start time being randomly chosen. The step interval for the start time is 1 microsecond. The start time for each Burst is chosen randomly. Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite E4 von E29 Page E4 of E29 LPluse_Radar_No.01 Trial Number: 1 Number of Bursts in Trial: 15 Burst Number of Pulses Pulse Width (μsec) Chirp Width (MHz) Pulse 1-to-2 Spacing (μsec) Pulse 2-to-3 Spacing (μsec) Starting Location Within Interval (μsec) 1 2 77.8 13.0 1665.0 1477.0 636185 2 1 51.9 13.0 1074.0 - 32674 3 1 63.8 13.0 1584.0 - 226294 4 3 96.6 13.0 1682.0 1786.0 417976 5 3 85.9 13.0 1795.0 1215.0 611152 6 2 73.7 13.0 1198.0 1549.0 8789 7 2 77.2 13.0 1837.0 1819.0 201917 8 2 68.4 13.0 1587.0 1114.0 395530 9 2 76.7 13.0 2000.0 1155.0 588564 10 1 53.2 13.0 1147.0 - 783794 11 3 85.7 13.0 1433.0 1695.0 177933 12 3 94.3 13.0 1670.0 1426.0 370624 13 2 77.6 13.0 1294.0 1671.0 564893 14 1 65.7 13.0 1512.0 - 759583 15 3 93.5 13.0 1444.0 1130.0 154262 Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite E5 von E29 Page E5 of E29 LPluse_Radar_No.02 Trial Number: 2 Number of Bursts in Trial: 8 Burst Number of Pulses Pulse Width (μsec) Chirp Width (MHz) Pulse 1-to-2 Spacing (μsec) Pulse 2-to-3 Spacing (μsec) Starting Location Within Interval (μsec) 1 2 75.0 5.0 1880.0 1527.0 653020 2 3 99.4 5.0 1401.0 1262.0 1015643 3 2 67.4 5.0 1531.0 1403.0 1379398 4 2 73.6 5.0 1449.0 1041.0 245489 5 1 65.9 5.0 1432.0 - 609113 6 3 83.8 5.0 1356.0 1292.0 970852 7 1 65.5 5.0 1543.0 - 1335913 8 3 98.6 5.0 1548.0 1796.0 200406 LPluse_Radar_No.03 Trial Number: 3 Number of Bursts in Trial: …

Text truncated - open the document above for the full version.

Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite D46 von D80 Page D46 of D80 802.11ax HE20 CH 157 (Horizontal) Peak CH 157 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite D47 von D80 Page D47 of D80 802.11ax HE20 CH 165 (Horizontal) Peak CH 165 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite D48 von D80 Page D48 of D80 802.11ax HE40 CH 151 (Horizontal) Peak CH 151 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite D49 von D80 Page D49 of D80 802.11ax HE40 CH 159 (Horizontal) Peak CH 159 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite D50 von D80 Page D50 of D80 802.11ax HE80 CH 155 (Horizontal) Peak CH 155 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite D51 von D80 Page D51 of D80 Spurious Emissions, Tx Mode, 9kHz ~30MHz U-NII-1 802.11ax HE40 CH 102(Open) (9kHz ~ 150kHz) CH 102(Open) (150kHz ~ 30MHz) Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite D52 von D80 Page D52 of D80 Spurious Emissions, Tx Mode, 30MHz ~ 1GHz U-NII-1 802.11ax HE40 CH 102 (Horizontal) CH 102 (Vertical) Prü fbericht - Nr.: Test Report No. CN23ML3X (P15E-WiFi) 001 Seite D53 von D80 Page D53 of D80 Spurious Emission…

Text truncated - open the document above for the full version.
