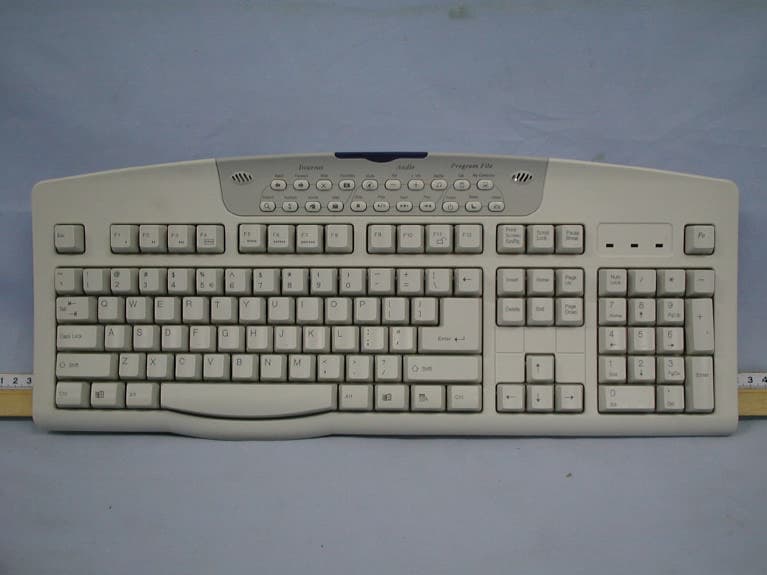

HQKKMEKF9801Wireless Keyboard

KF-9801 WIRELESS KEYBOARD USER’S INSTRUCTIONAL GUIDE CONTENT: CHAPTER 1: PRODUCTION 1.1 ABSTRACT 1.2 PRODUCT LIST CHAPTER 2: INSTALLATION AND SETUPS 2.1 HARDWARE INSTALLATION 2.2 SOFTWARE INSTALLATION CHAPTER3: HARDWARE MAINTENCE AND TROUBLESHOOTING 3.1 EASY HARDWARE MAINTENCE 3.2 CUTOMER’S TECHNICAL SUPPORTS AND SERVICES CHAPTER 1: INTRODUCTION: 1.1 ABSTRACT First of all, KME would like to thank you for purchasing its wireless keyboard KF-9801. KF-9801 is a multimedia keyboard embedded with 21 hot key functions. With its elegant design, it is simply made to fulfill people’s dreams as well as their desires. KF-9801 features not only the outstanding looks but also enables you with many convenient paths to specific functions. 1.2 PRODUCT LIST When you have opened the package of KF-9801, please make sure that all accessories are included as below: l Wireless Keyboard ×1 l Keyboard Receiver ×1 l Driver Disk ×1 l User’s instructional Guide ×1 l Batteries of size AA ×3 In case of missing or damage of the above accessories, please contact your purchased dealer immediately. CHAPTER 2: INSTALLATION AND SETUPS 2.1 HARDWARE INSTALLATION: Firstly, please switch off your computer system and then according to the keyboard’s receiver connector (PS2 or USB), connect it to your computer system. At the same time, please make sure that the frequency channel has been adjusted to CH1 (factory setting). You then remove the battery cover keyboard featured under the keyboard itself and check if the frequency channel has also been adjusted CH1. After all those procedures have been done, just insert 3 AA batteries into the keyboard to complete the hardware installation. (Remark: You may also set both of the frequency channels to CH2 but never with a situation in which both of the frequency channels are varied to each other, as it might end up with the abnormality of the keyboard operation.) 2.2 SOFTWARE INSTALLATION Inside the package of KF-9801, we have enclosed a disk called MULTIMEDIA KEYBOARD to support the operating systems of Windows 95/98/NT/2000/ME. This disk not only installs the driver for the keyboard but also provides end-users many extra functions. Once the installation of the hardware has been set, you can then begin the process of software installation. Firstly, please insert the disk into the disk drive and carry out A:\SETUP.EXE file. Step1: You will firstly see the installation icon asking you the path in which the duplication of the files is going to be located. After you have selected the location, you then press OK. Now you are suppose to see 5 folders been created in the location that you have selected. Step2: According to the needs of your operating system, select a proper folder name and then carry out “SETUP.EXE” Step3: You can then install or change the formula to specific menu according to the actual demands. Step 4: When the files have completed the duplication process, please restart your computer in order to finish your setup procedures. CHAPTER 3: EASY HARDWARE MAINTENCE AND TROUBLESHOOTING 3.1 EASY HARDWARE INSTALLATION AND TROUBLESHOOTING When your keyboard is not able to operate normally, please try the following procedures in order to solve the problems. Step1: Please make sure the setting of the frequency channel (both of them are set to either CH1 or CH2) Step2: Please check if the connector of the receiver is properly connected to your computer and see if there is any existence of other electrical products or obstacles around as it might influence the normality of the keyboard operations. ( For the best efficiency of the keyboard operation, the distance between the keyboard receiver and other peripherals must be kept at least 25cm away from each other) Step3: Please make sure that you have install the correct battery model, power and the polarities. Step4: Please shorten the transmitting distance if the surface of your table is metallic-made. Step5: The transmitting distance between the keyboard and the receiver is 2.5m at most. In case of the interference of the frequency, please try to change your frequency channel in order to fix the interferences. 3.2 CUSTOMER’S TECHNICAL SUPPORTS AND SERVICES When you have purchased our wireless keyboard products and having problems with the installation or setups, please firstly refer to this user’s instructional guide. If the problems persist, please do not hesitate to contact us immediately.

Model Name: KF-9801

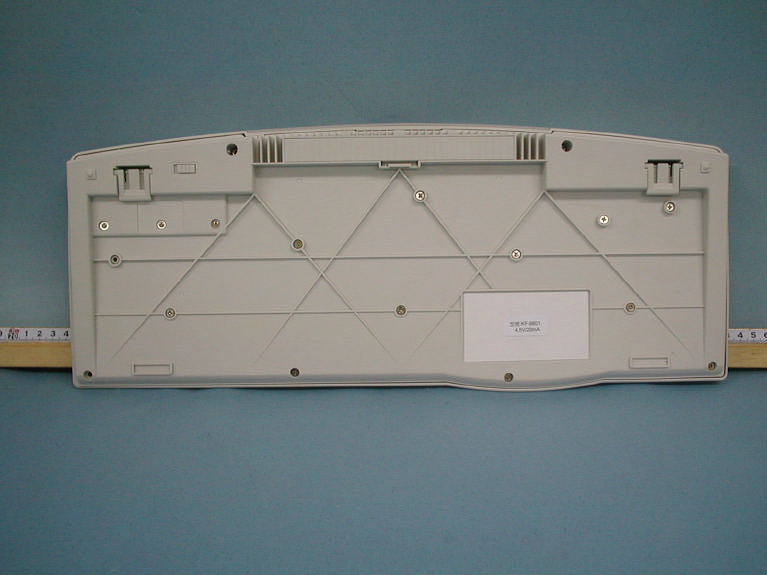

Appendix 1 FCC ID Label FCC ID LABEL FORMAT AND LOCATION Applicant: KEY MOUSE ELECTRONIC ENTERPRISE CO., LTD. FCC ID: HQKKMEKF9801 FCC ID: HQKKMEKF9801 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Operational Description The keyboard transmitter is a low powered, hand held unit for remote control and key in data to the computer . See the function descriptions in attached. The transmitter is powered by three 1.5 Volt batteries. It is designed to operate on a single fixed frequency at 27 MHz. See the attached block diagram and schematic. When key pressed, the keyboard control will generate a make code into FIFO and produces the digital control signals and will modulate the carrier signal. The carrier signal is generated by a crystal oscillator / frequency circuit comprised of a 27.095/27.145 MHz FSK .The frequency depend on the select channel switch to changed. The modulated output of the RF amplifier stage is coupled to the strip antenna. The transmitter is manually operated by the buttons pushed and automatically deactivate instant after the button being released. This feature is incorporated by the keyboard control internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user . No external ground is required or used with this transmitter.

Appendix 2 Schematics S18 R5 R7 S7 S4 S6 S3 S17 R1 S1 S9 R0 S13 S15 R2 S16 S8 S11 S0 R3 R4 R6 S14 S2 S5 S10 S12 C3 18P ANT1 + C4 47uf R3 1M C1 20PF C2 20PF S3 SW SPDT (1.5VX2) BATTERY 12 U1 DIP-00T4-2E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 2021 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 U2 MDT-02741 8 7 6 5 4 3 2 1 NC CH2 CH1 DATA GND VCC ANT GND Y1 2MHz Wednesday,June 20,2001 APPROVED PATH PCB NO DATE SHEET KEY MOUSE ELECTROINC ENTERPRISE CO.,LTD A NAME BITS TECHNICAL CORPORATION KF-9801 TX KME DRAWNCHECKED KEYBOARD Rev MODEL (DIP-00T4-2E) SizeDESIGNED Rev JP5 1501 PCB-00R42-325 NAME VCC CLK FUCTION SELECT DESIGNED DATE JP5 C320P DATA JP4 ANT1 D1 RXLED D4 CAPS C1 4.7uF Y1 4MHz KEY MOUSE ELECTROINC ENTERPRISE CO.,LTD Size PCB NO U3 MDR-02741 1 2 3 5 6 7 8 4 ANT GND VCC DATA CHx NC NC GND A PATH APPROVED D2 SCROLL C220P J1 CON4 1 2 3 4 KME BITS TECHNICAL CORPORATION U1 SMD-00R4-2E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 Wednesday,June 20,2001 MODEL D5 M/MODE D3 NUM KF-9801 RX DRAWN 9801 SHEET CHECKED VCC JP4 KEYBOARD Sw1 SLITE SW C5 CP VCC

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 27 MHz WIRELESS KEYBOARD MODEL: KF-9801 PRODUCT FAMILY:KF-1101; KF-1102; KF-1110; KF-1120; KF-1150; KF-1181; KF-1182; KF-1118; KF-1128; KF-1158; KF-1201; KF-1202; KF-1210; KF-1220; KF-1250; KF-1281; KF-1282; KF-1218; KF-1228; KF-1258; KF-1501; KF-1502; KF-1510; KF-1520; KF-1550; KF-1581; KF-1582; KF-1518; KF-1528; KF-1558; KF-1601; KF-1602; KF-1610; KF-1620; KF-1650; KF-1681; KF-1682; KF-1618; KF-1628; KF-1658; KF-1701; KF-1702; KF-1710; KF-1720; KF-1750; KF-1781; KF-1782; KF-1718; KF-1728; KF-1758; KF-1801; KF-1802; KF-1810; KF-1820; KF-1850; KF-1881; KF-1882; KF-1818; KF-1828; KF-1858; KF-1901; KF-1902; KF-1910; KF-1920; KF-1950; KF-1981; KF-1982; KF-1918; KF-1928; KF-1958; KF-9802; KF-9810; KF-9820; KF-9850; KF-9881; KF-9882; KF-9818; KF-9828; KF-9858 FCC ID NO: HQKKF9801 REPORT NO: 01R9829 ISSUE DATE: January 11, 2002 Prepared for KEY MOUSE ELECTRONIC ENTERPRISE CO., LTD. 6F-9, No. 3, Wu-Chuan 1 st Rd., Hsin Chuang City, Taipei, Taiwan, R. O. C. Prepared by COMPLIANCE ENGINE ERING SERVICES, INC. NO. 199, CHUNG SHENG ROAD, HSIN TIEN CITY, TAIPEI, TAIWAN, R. O. C. d.b.a. COMPLIANCE CERTIFICATION SERVICES REPORT NO: 01R9829 FCC ID: HQKKF9801 DATE: January 11, 2002 COMPLIANCE ENGINEERING SERVICES, INC. TEL: (02) 2217- 0894 FAX: (02) 2217- 1254 NO. 199, CHUNG SHENG ROAD, HSIN TIEN CITY, TAIPEI, TAIWAN, R. O. C. This report shall not be reproduced except in full, without the written approval of CES. This document may be altered or revised by Compliance Engineering Services personnel only, and shall be noted in the revision section of the document. (CCS DOCUMENT NO: CCSUP4002B) TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE........................................................................................1 2. PRODUCT DESCRIPTION........................................................................................................2 3. TEST FACILITY.........................................................................................................................2 4. MEASUREMENT STANDARDS..............................................................................................2 5. TEST METHODOLOGY............................................................................................................2 6. MEASUREMENT EQUIPMENT USED....................................................................................2 7. POWERLINE RFI LIMIT...........................................................................................................3 8. RADIATED EMISSION LIMITS...............................................................................................3 9. SYSTEM TEST CONFIGURATION.........................................................................................4 10. SYSTEM TEST CONFIGURATION.......................................................................................5 11. TEST PROCEDURE AND RESULT.......................................................................................5 11. 1 RADIATED EMISSION TEST PROCEDURE And RESULT.............................................5 l TEST DATA l EXTERNAL & INTERNAL PHOTOS l SCHEMATICS l BLOCK DIAGRAM l USER MANUAL REPORT NO: 01R9829 FCC ID: HQKKF9801 DATE: January 11, 2002 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC. TEL: (02)2217- 0894 FAX: (02)2217-1254 NO. 199, CHUNG SHENG ROAD, HSIN TIEN CITY, TAIPEI, TAIWAN, R. O. C. This report shall not be reproduced except in full, without the written approval of CES. This document may be altered or revised by Compliance Engineering Services personnel only, and shall be noted in the revision section of the document. (CCS DOCUMENT NO: CCSTP4005) 1. VERIFICATION OF COMPLIANCE COMPANY NAME: KEY MOUSE ELECTRONIC ENTERPRISE CO., LTD. 6F-9, No. 3, Wu-Chuan 1st Rd., Hsin Chuang City, Taipei, Taiwan, R. O. C. CONTACT PERSON: Nell Wu / R&D Assistant TELEPHONE NO.: 886-2-2298-2929 EUT DESCRIPTION: 27 MHz WIRELESS KEYBOARD MODEL NAME/NUMBER: KF-9801 FCC ID: HQKKF9801 DATE TESTED: December 7, 2001 REPORT NUMBER: 01R9829 TYPE OF EQUIPMENT REMOTE CONTROL EQUIPMENT TYPE 27 MHz WIRELESS KEYBOARD MEASUREMENT PROCEDURE ANSI C63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Engineering Services, Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Engineering Services, Inc. will constitute fraud and shall nullify the document. RICK YEO / EMC MANAGER COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO: 01R9829 FCC ID: HQKKF9801 DATE: January 11, 2002 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC. TEL: (02)2217- 0894 FAX: (02)2217-1254 NO. 199, CHUNG SHENG ROAD, HSIN TIEN CITY, TAIPEI, TAIWAN, R. O. C. This report shall not be reproduced except in full, without the written approval of CES. This document may be altered or revised by Compliance Engineering Services personnel only, and shall be noted in the revision section of the document. (CCS DOCUMENT NO: CCSTP4005) 2. PRODUCT DESCRIPTION CHASSIS TYPE Plastic Fundamental Frequency 27.095MHz, 27.145MHz Power source 4.5V Battery Transmitting Time Continuous Local Oscillators N/A 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are c…

Text truncated - open the document above for the full version.

Appendix 3 Spectrum Plot

REPORT NO: 01R9829 FCC ID: HQKKF9801 DATE: January 11, 2002 PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC. TEL: (02)2217- 0894 FAX: (02)2217-1254 NO. 199, CHUNG SHENG ROAD, HSIN TIEN CITY, TAIPEI, TAIWAN, R. O. C. This report shall not be reproduced except in full, without the written approval of CES. This document may be altered or revised by Compliance Engineering Services personnel only, and shall be noted in the revision section of the document. (CCS DOCUMENT NO: CCSTP4005) 9. SYSTEM TEST CONFIGURATION The EUT was configured for testing in a typical fashion ( as a customer would normally use it). Radiated Open Site Test Set-up
