HTO-SY832WiFi video handset

SY832 WiFi Video Handset User Manual 1/11 Version 1.0 SY832 WiFi Video Handset User Manual SY832 WiFi Video Handset User Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. SY832 WiFi Video Handset User Manual 2/11 Version 1.0 SY832 WiFi Video Handset User Manual 1. Introduction SY832 is a VoIP video handset which support WiFi standard (IEEE 802.11b/g), you can use it to make a phone call as you are in a WiFi hot spot, for example, airports, school, coffee shops etc,. SY832 provides you two calling mechanisms: - If you are subscribing to a service provider and get a phone number, you can use it just as an IP phone. - If you are not a subscriber of either service provider, you can also use IP direct call, however, you have to use a fixed IP address first. SY832 is not only a video handset; it indeed is a triple-play handheld device. It builds in media player to let you see media or video clips; Web browser provides you the facility to go to the Internet. Besides, it also has some functions such as datebookcalculatortask schedule that give you a more convenient personal information management(PIM). 2. Network Topology WLAN (a/b/g) LAN VOIP gateway WiFi VideoPhone IP Phone IP Phone WiFi VideoPhone SIP Server Hot Spot SY832 WiFi Video Handset User Manual 3/11 Version 1.0 SY832 WiFi Video Handset User Manual 3. Out looking CMOS Camera 2.8”/2.6” LCD with Touch Power button SD Card Slot IrDA Mini USB Tracking ball The ball will light up while charging Volume control while you are on a call Headset jack Side Buttons, you can push these buttons to make or cancel a call SY832 WiFi Video Handset User Manual 4/11 Version 1.0 SY832 WiFi Video Handset User Manual 4. Quick Setup your SY832 Following steps as below setting up your SY832. 4.1 Turn on power, and two welcome screen will be shown (about 30 seconds) 4.2 After power up, you can enter application page by touch the icon in the bottom of the main page. SY832 WiFi Video Handset User Manual 5/11 Version 1.0 SY832 WiFi Video Handset User Manual 4.3 Click to enter VOIP set up page. Other functions in this page as below, 4.4 This is the first page when you enter VoIP Setting, SY832 uses profile-based configuration thus reduce your configure time. You can create or edit profile and active a profile by pressing , an submenu will popup then you can edit or delete selected profile, or create a new profile. 4.5 By click , the profile you selected in the page will be active. SY-832 will connect to access point and sip server, which you configure in profile. You can also see current active profile in this screen Date Book Calculator Task Scheduler Calibration Applications Games MultiMedia Setup SY832 WiFi Video Handset User Manual 6/11 Version 1.0 SY832 WiFi Video Handset User Manual 4.6 Select (or add) a profile, push EDIT to enter the setting page, you can change profile name at Profile tab. 4.7 Setting your wirelesses connection at Wireless tab. You can scan and select an access point by clicking 4.8 You might need to provide the Security type and Key if the selected access point has define security policy such as WEP , WPA. Please get these information from your network service provider. SY832 WiFi Video Handset User Manual 7/11 Version 1.0 SY832 WiFi Video Handset User Manual 4.9 You can click the DHCP to get the IP from access point. Or provide static IP address and gateway information by click . 4.10 You can setup the SIP parameters in VoIP tab, please get these information from your VoIP service provider. Server: SIP server IP address Account: Your account (SIP phone number) Password: capital sensitive Domain: Domain Name Server IP address View: CIF/QCIF Expires: default is 3600 Frame Rate: recommend is 256K at least Port: default is 5060 4.11 Click to …

Text truncated - open the document above for the full version.

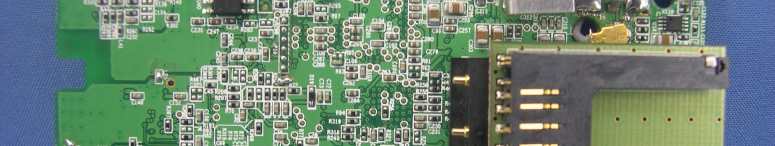

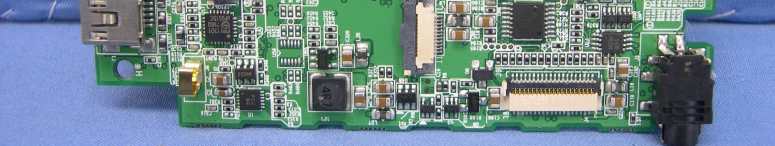

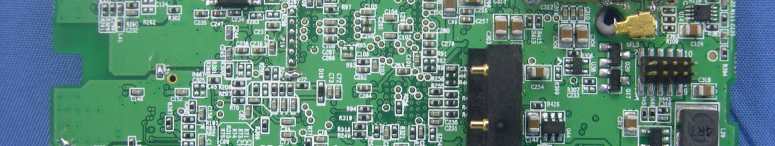

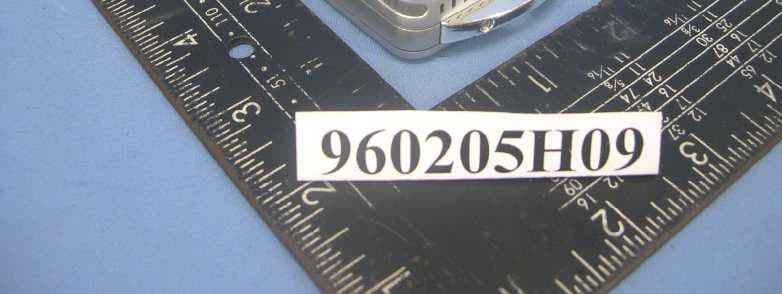

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

(Fig. 1) FCC ID: HTO-SY832 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC ID: HTO-SY832 ADT No.: RF960205H09 Operational Description For Bluetooth : The transmitter of the EUT (WiFi video handset) is powered by DC 5V from power adapter or 3.7V from battery, and employing GFSK modulation with 79 channels in 2.4 GHz Band. The antenna is Chip antenna without connector. The other instruction, please have a look at the users manual. For 2.4GHz : This device is a WiFi video handset, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (WiFi video handset) is powered by DC 5V from power adapter or 3.7V from battery. The antenna used in this product is PIFA antenna with Murata micro-coaxial connector The other instruction, please have a look at the users manual.

FCC ID: HTO-SY832 Report No.: SA960205H09 1 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.402 2.480 2.441 24.58 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 2.1 1.62 2 2.57 Threshold for no SAR evaluation is 24.58 mW Maximum TX Power is 1.62 mW Conducted and 2.57 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

FCC ID: HTO-SY832 Report No.: SA960205H09 1 For 2.4GHz : No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.412 2.462 2.437 24.37 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 13.5 22.387 -3 11.22 Threshold for no SAR evaluation is 24.37 mW Maximum TX Power is 22.387 mW Conducted and 11.22 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold FCC ID: HTO-SY832 Report No.: SA960205H09 2 For Bluetooth : No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.402 2.480 2.441 24.19 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 2.1 1.62 2 2.57 Threshold for no SAR evaluation is 24.19 mW Maximum TX Power is 1.62 mW Conducted and 2.57 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

Report No.: RF960205H09 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF960205H09 MODEL NO.: SY 832 RECEIVED: Feb. 05, 2007 TESTED: Feb. 08 to March 06, 2007 ISSUED: March 28, 2007 APPLICANT: UNIVERSAL MICROELECTRONICS CO., LTD. ADDRESS: 3, 27TH RD., TAICHUNG INDUSTRIAL PARK TAICHUNG, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960205H09 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION.....................................................................................................4 2 SUMMARY OF TEST RESULTS..............................................................................5 2.1 MEASUREMENT UNCERTAINTY...........................................................................5 3 GENERAL INFORMATION......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT........................................................................6 3.2 DESCRIPTION OF TEST MODES..........................................................................8 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:...........................9 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS........................................11 3.5 DESCRIPTION OF SUPPORT UNITS...................................................................12 3.6 CONFIGURATION OF SYSTEM UNDER TEST....................................................12 4 TEST TYPES AND RESULTS................................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT.........................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................13 4.1.2 TEST INSTRUMENTS...........................................................................................13 4.1.3 TEST PROCEDURES...........................................................................................14 4.1.4 TEST SETUP........................................................................................................14 4.1.5 EUT OPERATING CONDITIONS...........................................................................15 4.1.6 TEST RESULTS....................................................................................................16 4.2 RADIATED EMISSION MEASUREMENT..............................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................18 4.2.2 TEST INSTRUMENTS...........................................................................................19 4.2.3 TEST PROCEDURES...........................................................................................20 4.2.4 TEST SETUP........................................................................................................21 4.2.5 EUT OPERATING CONDITIONS...........................................................................21 4.2.6 TEST RESULTS....................................................................................................22 4.2.7 TEST RESULTS - DSSS.......................................................................................23 4.2.8 TEST RESULTS - OFDM.......................................................................................30 4.3 6dB BANDWIDTH MEASUREMENT.....................................................................37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................................37 4.3.2 TEST INSTRUMENTS...........................................................................................37 4.3.3 TEST PROCEDURE..............................................................................................38 4.3.4 TEST SETUP........................................................................................................38 4.3.5 EUT OPERATING CONDITIONS...........................................................................38 4.3.6 TEST RESULTS –DSSS........................................................................................39 4.3.7 TEST RESULTS-OFDM.........................................................................................42 4.4 MAXIMUM PEAK OUTPUT POWER.....................................................................45 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................45 4.4.2 TEST INSTRUMENTS...........................................................................................45 4.4.3 TEST PROCEDURES...........................................................................................46 4.4.4 TEST SETUP........................................................................................................46 Report No.: RF960205H09 3 Report Format Version 2.0.5 4.4.5 EUT OPERATING CONDITIONS...........................................................................46 4.4.6 TEST RESULTS – DSSS.......................................................................................47 4.4.7 TEST RESULTS –OFDM.......................................................................................48 4.5 POWER SPECTRAL DENSITY MEASUREMENT.................................................49 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................49 4.5.2 TEST INSTRUMENTS...........................................................................................49 4.5.3 TEST PROCEDURE...................................................…

Text truncated - open the document above for the full version.

Report No.: RF960205H09 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF960205H09 MODEL NO.: SY 832 RECEIVED: Feb. 05, 2007 TESTED: Feb. 08 to March 20, 2007 ISSUED: March 28, 2007 APPLICANT: UNIVERSAL MICROELECTRONICS CO., LTD. ADDRESS: 3, 27TH RD., TAICHUNG INDUSTRIAL PARK TAICHUNG, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960205H09 2 Report Format Version 2.0.5 TABLE OF CONTENTS 1 CERTIFICATION.....................................................................................................4 2 SUMMARY OF TEST RESULTS..............................................................................5 2.1 MEASUREMENT UNCERTAINTY...........................................................................6 3 GENERAL INFORMATION......................................................................................7 3.1 GENERAL DESCRIPTION OF EUT........................................................................7 3.2 DESCRIPTION OF TEST MODES..........................................................................9 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.........................10 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS........................................12 3.5 DESCRIPTION OF SUPPORT UNITS...................................................................13 3.6 CONFIGURATION OF SYSTEM UNDER TEST....................................................13 4 TEST PROCEDURES AND RESULTS..................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT.........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................14 4.1.2 TEST INSTRUMENTS...........................................................................................14 4.1.3 TEST PROCEDURES...........................................................................................15 4.1.4 TEST SETUP........................................................................................................15 4.1.5 EUT OPERATING CONDITIONS...........................................................................16 4.1.6 TEST RESULTS....................................................................................................17 4.2 NUMBER OF HOPPING FREQUENCY USED......................................................19 4.2.1 LIMIT OF HOPPING FREQUENCY USED............................................................19 4.2.2 TEST INSTRUMENTS...........................................................................................19 4.2.3 TEST PROCEDURES...........................................................................................20 4.2.4 DEVIATION FROM TEST STANDARD..................................................................20 4.2.5 TEST SETUP........................................................................................................21 4.2.6 TEST RESULTS....................................................................................................21 4.3 DWELL TIME ON EACH CHANNEL......................................................................23 4.3.1 LIMIT OF DWELL TIME USED..............................................................................23 4.3.2 TEST INSTRUMENTS...........................................................................................23 4.3.3 TEST PROCEDURES...........................................................................................24 4.3.4 DEVIATION FROM TEST STANDARD..................................................................24 4.3.5 TEST SETUP........................................................................................................24 4.3.6 TEST RESULTS....................................................................................................25 4.4 CHANNEL BANDWIDTH.......................................................................................29 4.4.1 TEST INSTRUMENTS...........................................................................................29 4.4.2 TEST PROCEDURE..............................................................................................30 4.4.3 DEVIATION FROM TEST STANDARD..................................................................30 4.4.4 TEST SETUP........................................................................................................30 4.4.5 EUT OPERATING CONDITION.............................................................................30 4.4.6 TEST RESULTS....................................................................................................31 4.5 HOPPING CHANNEL SEPARATION.....................................................................34 4.5.1 LIMIT OF HOPPING CHANNEL SEPARATION.....................................................34 4.5.2 TEST INSTRUMENTS...........................................................................................34 Report No.: RF960205H09 3 Report Format Version 2.0.5 4.5.3 TEST PROCEDURES...........................................................................................35 4.5.4 DEVIATION FROM TEST STANDARD..................................................................35 4.5.5 TEST SETUP........................................................................................................35 4.5.6 TEST RESULTS.................................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
