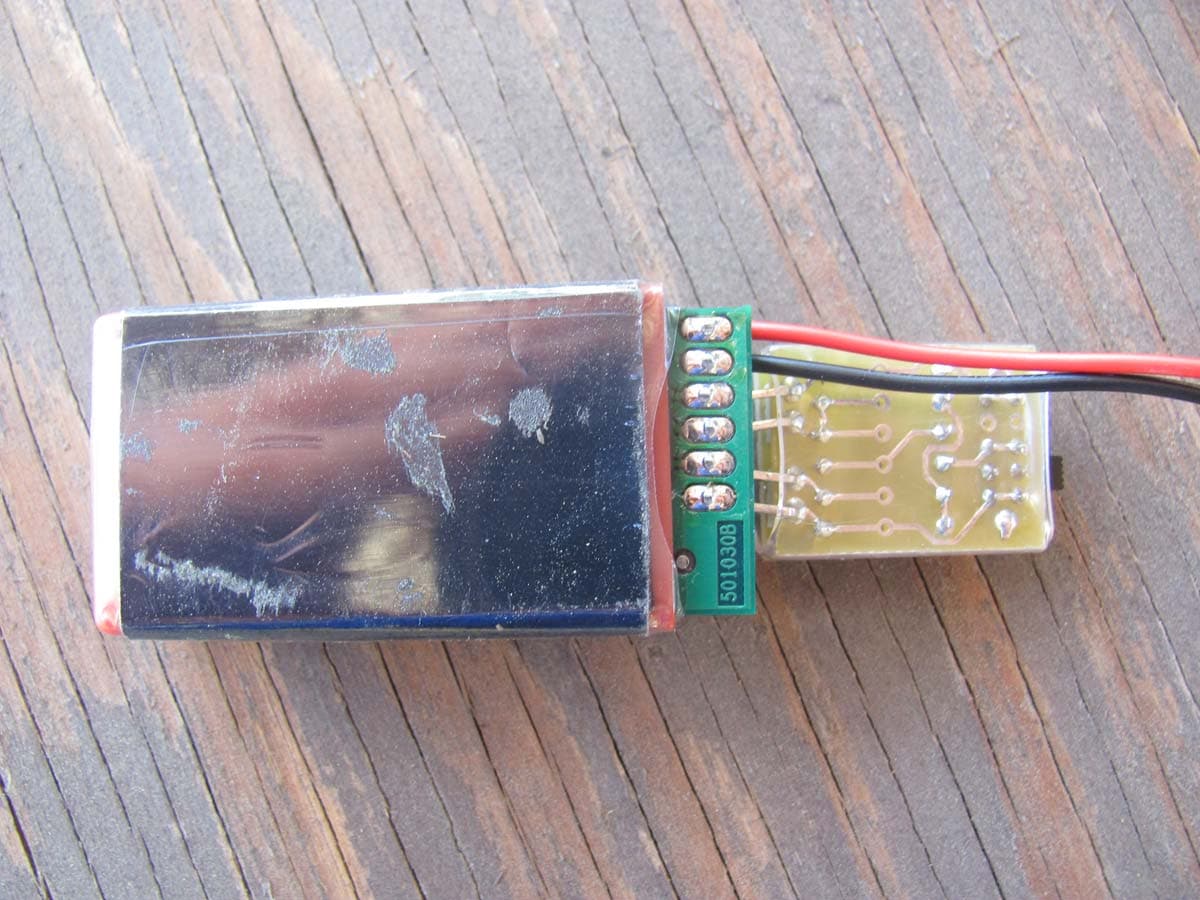

HWN-TX10K-LPLow Profile Transmitter

TorqueTrak 10K-LP Torque Telemetry System ...................................................................................... User’s Guide 86950094_LP - 1 - Table of Contents System Overview 2 System Components 3 Features and Controls 4 RX10K Receiver 4 Figure 1: Front view of the RX10K 4 Figure 2: Rear panel of the RX10K 5 TX10K Transmitter 10 Figure 3: TX10K Transmitter 10 RM10K Remote Control 12 Figure 4: RM10K Remote Control 13 Product Safety 16 Installation Procedure 16 Field Testing 17 Bench Testing 19 Calibration 21 Warranty and Service Information 22 FCC Rules Part 15: Computing Devices 23 Appendix A: TorqueTrak 10K Specifications 24 Appendix B: Calibration Calculations 29 B1: Torque on Round Shafts 30 B2: Axial Strain on Round Shafts 35 B3: Single Grid (1/4 Bridge) 37 Appendix C: Error Codes 38 Appendix D: Strain Gage Application 39 - 2 - System Overview The TorqueTrak 10K Torque Telemetry System utilizes proven digital RF technology to transmit a single data signal (most typically from a strain gage) a distance of 10 feet (3 meters) or more depending on the environment. Up to 16 systems can operate simultaneously on independent channels. The system, comprised of three main components, was designed with many user-friendly features. RX10K Receiver Stable 500Hz frequency response Selectable gain, offset, polarity and channel settings Digital data (RS-232) and analog voltage output signals Multiple level, selectable low pass output filtering Seven unique simulated transmitter inputs Simple keypad and LCD display for easy user interface TX10K Transmitter High signal-to-noise ratio for excellent resolution Low temperature coefficient for accuracy from -25 to 85°C Wide power supply input range from 6 to 25VDC Power Standby mode to extend battery life Two on-board shunt calibration values Status Indicator light to assist in troubleshooting Circuit fully encapsulated RM10K Remote Control (for TX10K Transmitter) Change Transmitter setup without tools or removal from shaft Infrared signal transmits up to 10 feet (3 meters) Handheld with a simple keypad The TorqueTrak 10K is a robust, precision strain measurement instrument ideal for short-term data collection and diagnostic testing. It is designed to withstand harsh field conditions with ease-of-use in mind. - 3 - System Components A standard TorqueTrak 10K Torque Telemetry System includes the following items: TX10K Transmitter Transmitter Antenna RX10K Receiver Receiver Antenna Element Receiver Antenna Magnetic Base with 25ft Cable RM10K Remote Control 110VAC-12VDC or 220VAC-12VDC Wall Plug Transformer 5-ft DB9 Cable 5-ft 2-Conductor Power Cable 10-ft 4-Conductor Ribbon Cable BS900 Bridge Simulator Screwdriver 3/32” Hex Wrench 9V Battery Connector 9V Lithium Batteries (2) 1 Roll of 1” Strapping Tape Butyl Rubber Sheet TT10K User’s Guide TT10K Equipment Case - 4 - Features and Controls RX10K Receiver The RX10K Receiver features a simple keypad on the front panel for user configuration and adjustment. A two-line display indicates the operational status of the RX10K. The RX10K outputs the signal received from the TX10K Transmitter in three ways: 1) as text and graphics on the display, 2) as an analog voltage signal, and 3) as a digital data signal. The top line of the RX10K display indicates the average level of the transmitted signal in numerical form on the left and in graphical form on the right (Figure 1). The numeric value corresponds to the Voltage Output signal in millivolts. For example, an output signal of +8.450V would be displayed as “+08450”. The bar graph provides a visual representation of the output signal level. Each position on the bar graph represents approximately 2V. Both the numerical and graphical indicators are averages of the received signal level over a time period of about 0.2 seconds. Figure 1: Front view of the RX10K When an operational error is detected, the top line of the display alternates between the corresponding error code and the actual signal. See Appendix C for a complete list of error codes. +08450 -_ _ _ _ _ 0 _ _ _ █ _+ Rx Ch: 1 = = = = = = = = = = - 5 - Located on the RX10K rear panel is the On/Off Power switch, a jack for 12VDC Power Input, a Fuse housing, a connector for attaching the Receiver Antenna, binding posts for the analog Voltage Output, and a Com (DB9) connector for the digital data signal. The analog Voltage Output signal has a nominal range of ±10VDC and a maximum range of ±12VDC. The digital data signal is an RS-232 type signal for input to a PC “Com” port. See Appendix A for the pin out and protocol. Power Input Antenna 12VDC 1 Amp Fuse On Power Off Com Voltage Output + Binsfeld Engineering Inc. Maple City, MI USA (+1) 231-334-4383 www.binsfeld.com Tested to Comply With FCC Standards SN: Figure 2: Rear panel of the RX10K CAUTION: The Power Input, Voltage Output and Com (digital output) share a common (or ground) connection. Specifically, the outside ring of the Power Input, the “-“ jack of the Voltage Output and pin 5 of the Com output are all internally connected. Care must be taken in connecting the RX10K to external components in order to eliminate ground loop problems. Such ground loop currents can cause errors in the output signals and possible internal damage. The included power supply is electrically isolated and will eliminate any ground loop problems with the Power Input. It is recommended that the Com (digital output) and Analog Output are not connected to external equipment at the same time. An exception to this rule exists when one of the two external devices accepting the analog or digital output signal is “floating” or not externally connected, such as battery operated voltmeter or a laptop powered by batteries. - 6 - User Parameter Selection and Adjustment The RX10K Receiver has seven user-configurable parameters. The parameter name and value are shown on the lower line of the display. Parameters are selected by scrolling through the parameter menu using the SELECT …

Text truncated - open the document above for the full version.

BEI CETCB_Appointment_Letter_Template.doc 10/19/2012 September 24, 2012 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for Binsfeld Engineering Inc. 4571 W. MacFarlane Road, Maple City, MI 49664, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Binsfeld Engineering Inc. product: telemetry transmitters and receivers under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Binsfeld Engineering Inc. nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Binsfeld Engineering Inc. will notify the Federal Communications Commission if, at any time, the situation changes causing Binsfeld Engineering Inc. to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 231-334-4383. Sincerely, Stephen Tarsa CEO

BEI TCB_Declaration_Letter_Template.doc 10/19/2012 September 24, 2012 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, Binsfeld Engineering Inc., would like to declare that the application being submitted for the device with FCC ID: HWN-TX10K-LP, has not been submitted to another TCB or FCC for certification. If you have any questions, please do not hesitate to contact us at 231-334-4383 Sincerely, Stephen Tarsa CEO

Report Number: B20817D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Low Profile Transmitter Model: TK10K-LP Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15 SUBPART B and C TEST REPORT for LOW PROFILE TRANSMITTER MODEL: TX10K-LP Prepared for BINSFELD ENGINEERING, INC 4571 WEST MACFARLANE ROAD MAPLE CITY, MICHIGAN 49664 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: OCTOBER 1, 2012 REPORTAPPENDICESTOTAL BODYA B C D E PAGES 16 2 2 2 11 21 54 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B20817D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Low Profile Transmitter Model: TK10K-LP Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – Emissions 8 4.1.1 Cable Construction and Termination 8 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 9 5.1 EUT and Accessory List 9 5.2 Emissions Test Equipment 10 6. TEST SITE DESCRIPTION 11 6.1 Test Facility Description 11 6.2 EUT Mounting, Bonding and Grounding 11 6.3 Facility Environmental Characteristics 11 7. TEST PROCEDURES 12 7.1 RF Emissions 12 7.1.1 Conducted Emissions Test 12 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 13 7.1.3 RF Emissions Test Results 15 8. CONCLUSIONS 16 Report Number: B20817D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Low Profile Transmitter Model: TK10K-LP Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos Test Setup Diagram Antenna and Amplifier Factors Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURETITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B20817D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Low Profile Transmitter Model: TK10K-LP Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested:Low Profile Transmitter Model: TX10K-LP S/N: N/A Product Description:See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: Binsfeld Engineering, Inc 4571West MacFarlane Road Maple City, Michigan 49664 Test Date(s): August 17, 2012 Test Specifications:Emissions requirements CFR Title 47, Part 15, Subpart B and Subpart C, Sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TESTDESCRIPTIONRESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions 10 kHz to 9300 MHz (Transmitter and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B20817D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report Low Profile Transmitter Model: TK10K-LP Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the emissions tests performed on the Low Profile Transmitter, Model: TX10K-LP. The Emissions measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to deter…
