I6ZCMXT62Remote Control Transmitter

Cenmax Group U.S.A.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: May 20, 2001
Application Purpose: Original Equipment
Date of Application: May 20, 2001
Equipment Note: Remote Control Transmitter
Frequency Range: 303.47100000 - 303.47100000
Company: Cenmax Group U.S.A.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

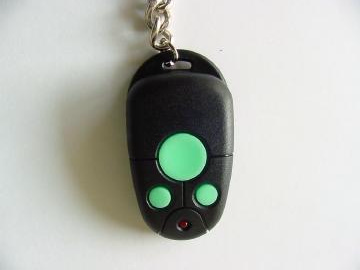

ETC Report No.:ET90R-02-038-02 Sheet 1 of 1 Sheets FCC ID.: I6ZCMXT62 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Front View of EUT 2. Rear View of EUT

Internal Photos

ETC Report No.:ET90R-02-038-02 Sheet 1 of 2 Sheets FCC ID.: I6ZCMXT62 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Internal View of EUT 2. Component View of Main Board ETC Report No.:ET90R-02-038-02 Sheet 2 of 2 Sheets FCC ID.: I6ZCMXT62 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Solder View of Main Board

Operational Description

It is programmable for multi-car control. Features can be programmable by over ride Switch. Previous intrusion can be alerted by LED

Test Report

Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : REMOTE CONTROL FCC ID. : I6ZCMXT62 MODEL : T62 Working Frequency : 303.471MHz for APPLICANT : AFROMAX CORPORATION ADDRESS : NO. 29-1, WU-CHUAN 3RD ROAD., WU-KU IND. ZONE, WU-KU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET90R-02-038-02 ETC Report No.:ET90R-02-038-02 FCC ID.: I6ZCMXT62 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : AFROMAX CORPORATION NO. 29-1, WU-CHUAN 3RD ROAD., WU-KU IND. ZONE, WU- KU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Manufacturer : AFROMAX CORPORATION NO. 29-1, WU-CHUAN 3RD ROAD., WU-KU IND. ZONE, WU- KU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Description of EUT : a) Type of EUT : REMOTE CONTROL b) Trade Name : GENIUS c) Model No. : T62 d) FCC ID : I6ZCMXT62 e) Working Frequency : 303.471MHz f) Power Supply : DC 12V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (1999) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Apr. 20, 2001 Test Engineer : ( Chin Cheng Yeh ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET90R-02-038-02 FCC ID.: I6ZCMXT62 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3. RADIATED EMISSION MEASUREMENT.............................................................................................................................5 3.1 APPLICABLE STANDARD.........................................................................................................................................................5 3.2 MEASUREMENT PROCEDURE..................................................................................................................................................5 3.3 TEST DATA.................................................................................................................................................................................7 3.4 FIELD STRENGTH CALCULATION..........................................................................................................................................8 3.5 ACTIVATE TIME........................................................................................................................................................................8 3.6 CALCULATION OF DUTY FACTOR.........................................................................................................................................8 3.7 RADIATED TEST EQUIPMENT.................................................................................................................................................9 3.8 MEASURING INSTRUMENT SETUP.........................................................................................................................................9 3.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................................10 4. BANDWIDTH OF EMISSION...............................................................................................................................................11 4.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH............................................................................................11 4.2 BANDWIDTH TEST EQUIPMENT...........................................................................................................................................11 4.3 PLOT GRAPHIC OF…

Text truncated - open the document above for the full version.

Test Setup Photos

ETC Report No.:ET90R-02-038-02 FCC ID.: I6ZCMXT62 Rev. No 1.0 Radiated Measurement Photos
