ICK-FRS-4622Walkie Talkie TX Portion

Instruction Manual for Model No. FRS-4622 Ear Band Talkie Operation 1) Open the battery cover with a screwdriver , then insert 4 pcs “G13” button battery and close the battery compartment. 2) Slide the “on/off” switch to “on” position, then you can communicate with each other, only one person can talk at the same time. 3) Put the talkie fit on your ear, speak in a normal voice into the microphone. The microphone is voice-activated, so as soon as you begin talking your message will be transmitted to the other talkie. The microphone will be activated if wind blows directly into it. Adjust your position to avoid the wind and other outside noises that interfere with the microphone. 4) In the event of interference caused by other radio signals in the vicinity. Move to a different location. 5) The units may have feedback (squealing noise) when played too close together. Move farther apart when it happens. 6) Stop playing, slide to “off” position. Care and Maintenance 1) Clean your unit with a damp (never wet) cloth, solvent or detergent should never be used. 2) Avoid leaving your unit in direct sunlight or in hot, humid or dusty places. 3) Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors. 4) When the sound of the unit becomes weak, it is the time to change batteries. Warning 1) Do not try to use metal objects to short battery connector, it may damage your unit. 2) The manufacturer is not responsible for any unauthorized modifications to this equipment, such modifications could void the user’s authority. 3) Specifications are subject to change without notice. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. LOYAL TECHNOLOGY FCC ID : ICK-FRS-4622 EXHIBIT # : 5

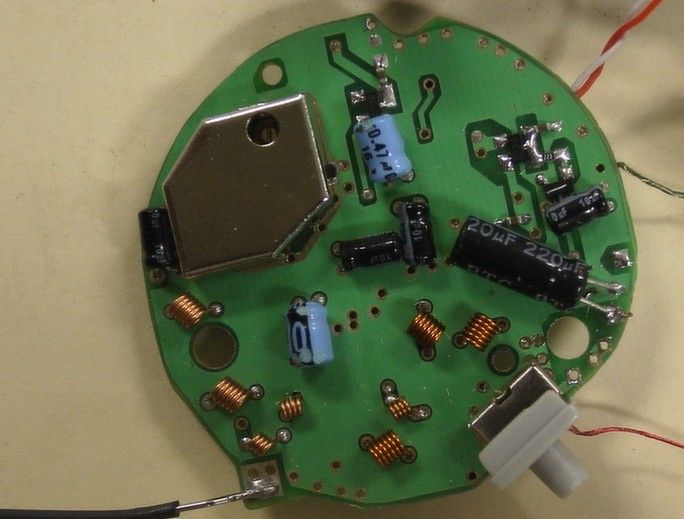

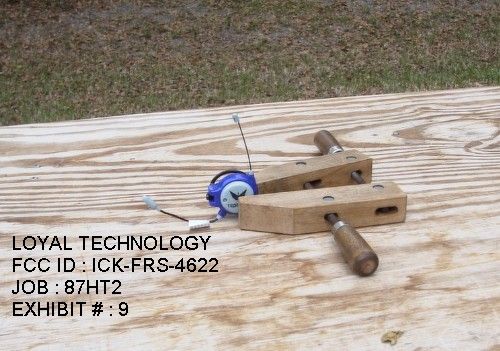

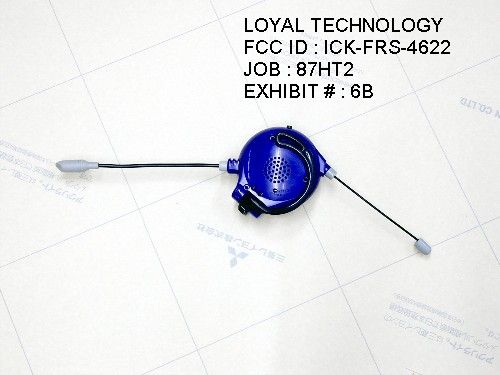

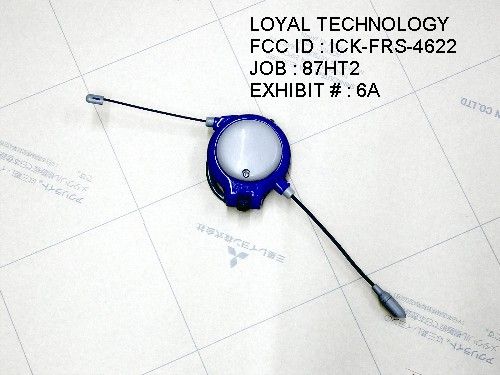

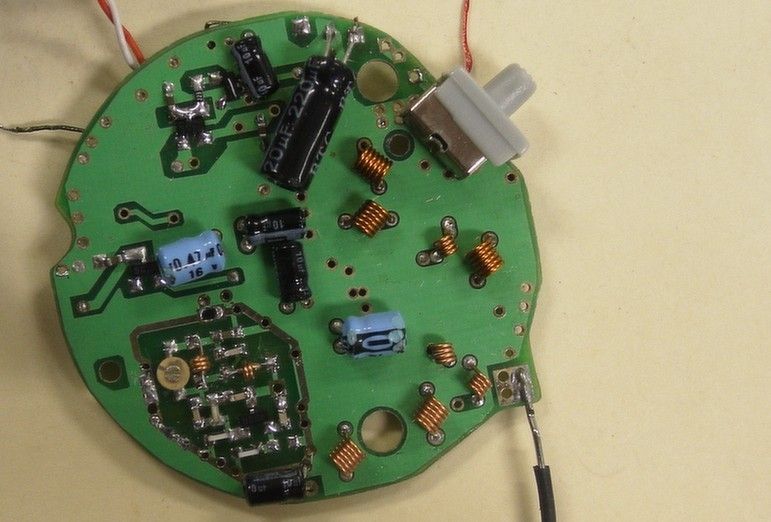

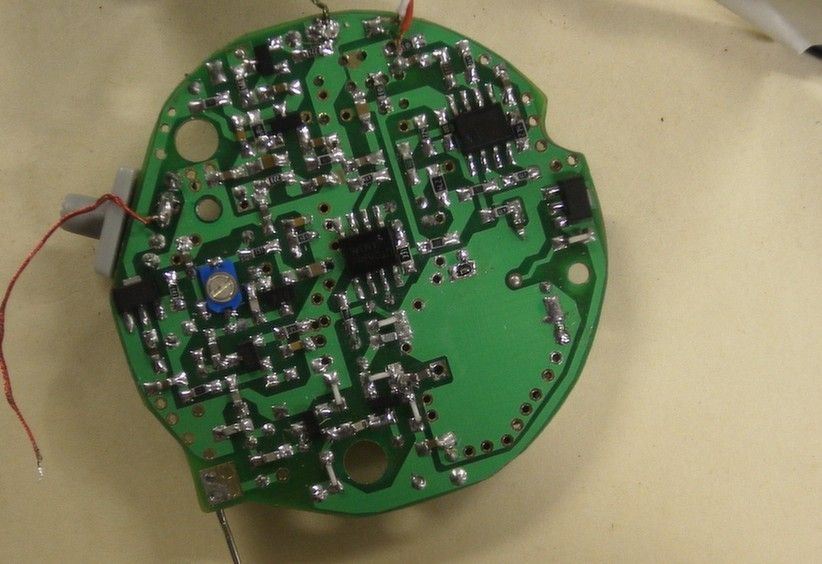

TABLE OF CONTENTS APPLICANT: LOYAL TECHNOLOGY CO., LTD. FCC ID: ICK-FRS-4622 REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............OCCUPIED BANDWIDTH PAGE 5.............OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1..........FCC ID LABEL SAMPLE EXHIBIT 2..........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3..........BLOCK DIAGRAM EXHIBIT 4..........SCHEMATIC EXHIBIT 5..........INSTRUCTION MANUAL EXHIBIT 6A.........EXTERNAL PHOTO – FRONT VIEW EXHIBIT 6B.........EXTERNAL PHOTO – REAR VIEW EXHIBIT 7A.........INTERNAL PHOTO – SOLDER VIEW EXHIBIT 7B.........INTERNAL PHOTO – COMPONENT VIEW EXHIBIT 7C.........INTERNAL PHOTO – COMPONENT VIEW – SHIELD REMOVED EXHIBIT 8..........CIRCUIT DESCRIPTION EXHIBIT 9..........TEST SET UP PHOTO EXHIBIT 10.........CONFIDENTIALITY REQUEST LETTER APPLICANT: LOYAL TECHNOLOGY CO., LTD. FCC ID: ICK-FRS-4622 REPORT #: L\LOYALICK\87HT2\87HT2TestReport.doc TABLE OF CONTENTS LIST APPLICANT: LOYAL TECHNOLOGY CO., LTD. FCC ID: ICK-FRS-4622 TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 8/31/01 Due 8/31/02 2.__ Biconnical Antenna: Eaton Model 94455-1, S/N 1057, Cal. 10/1/01 Due 10/1/02 3.__ Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 4/26/01 Due 4/26/03 4.__ Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Char. 10/15/01 Due 10/15/02 5._X_Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Char. 10/16/01 Due 10/16/02 6.__ Log-Periodic Antenna: Electro-Metrics Model LPA-25, S/N 1122 Char. 2/10/01 Due 3/10/02 7.__ Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 12/19/01 Due 12/19/02 8.__ 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 No Cal Required 9.__ Horn 40-60GHz: ATM Part #19-443-6R No Cal Required 10.__ Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 Due 3/16/02 11.__ Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Char. 1/22/02 Due 1/22/03 12.__ Frequency Counter: HP Model 5385A, S/N 3242A07460 Char. 12/11/01 Due 12/11/02 13.__ Peak Power Meter: HP Model 8900C, S/N 2131A00545 Char. 1/26/01 Due 1/26/02 14._X_Open Area Test Site #1-3meters Cal. 12/22/99 15.__ Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/15/01 Due 11/15/02 16.__ Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Char. 7/10/01 Due 7/10/02 17.__ Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 152 Cal. 3/21/01 Due 3/21/02 18.__ AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 10/9/01 Due 10/09/02 19._X_Digital Multimeter: Fluke Model 77, S/N 35053830 Char. 1/8/02 Due 1/8/03 20.__ Oscilloscope: Tektronix Model 2230, S/N 300572 Char. 2/1/01 Due 2/1/02 APPLICANT: LOYAL TECHNOLOGY CO., LTD. FCC ID: ICK-FRS-4622 REPORT #: L\LOYALICK\87HT2\87HT2TestReport.doc PAGE #: 1 TEST PROCEDURES GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. In the frequency range 10 kHz to 30 MHz the RBW was 10 kHz and from 30-1000 MHz the RBW of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 57° with a humidity of 43%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m APPLICANT: LOYAL TECHNOLOGY CO., LTD. FCC ID: ICK-FRS-4622 REPORT #: L\LOYALICK\87HT2\87HT2TestReport.doc PAGE #: 2 APPLICANT: LOYAL TECHNOLOGY CO., LTD. FCC ID: ICK-FRS-4622 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.209 REQUIREMENTS: 1705 to 30 MHz: 49.54 dBuV/M @ 3 METERS 30 to 88 MHz: 40.00 dBuV/M @ 3 METERS 88 to 216 MHz: 43.52 dBuV/M 216 to 960 MHz: 46.02 dBuV/M ABOVE 960 MHz: 54.00 dBuV/M TEST RESULTS: A search was made of the spectrum from 25 MHz to 10 th harmonic and the measurements indicate that the unit Does meet the FCC requirements. TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 462.70 25.5 H 2.99 17.21 45.70 0.30 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: ANSI C63.4-1992 using Hewlett Packard Model 8566B spectrum analyzer, a Hewlett Packard Model 85685A Preselector, a Hewlett Packard Model 85650A Quasi-Peak adapter, Electro-Metric Dipole Kit. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worst case emissions were reported. The EUT was measured in three(3) orthogonal planes. The unit was measured at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45 Newberry, Florida 32669. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: JOE SCOGLIO DATE: 2/11/02 APPLICANT: LOYAL TECHNOLOGY CO., LTD. FCC ID: ICK-FRS-4622 REPORT #: L\LOYALICK\87HT2\87HT2TestReport.doc PAGE #: 3 APPLICANT: LOYAL TECHNOLOGY CO., LTD. FCC ID: ICK-FRS-4622 NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.209 REQUIREMENTS: The field strength of any …
