IERRF-H588LTIRear Seat Entertainment System - Headphones

TSD B08001 1 RSE – OverviewThe Rear Seat Entertainment system (RSE) allows passengers inthe rear compartment to access multimedia content and basicInfotainment functions using the Touch Screen Remote (TSR) ora suitable device running the Bentley Flying Spur RSE app.Dependent upon specification, the RSE system may consist of the following items:• Display screens > • Multimedia interface > • Media loaders > • Left and right headphone sockets > • Wireless headphones > Fig. 1 RSE features (5 seat vehicle shown) 1 Display screen > 2 Media loader > 3 Touch screen remote (TSR) > 4 Headphone connections > Multimedia interfaceMedia loadersTouch screen remote (TSR)Using the RSESettingsHeadphones 1 2 1 3 2 4 B0918 2 TSD B08001 Multimedia interfaceFig. 2 Multimedia interface 1 RSE SIM card reader2 Multimedia interfaceThe multimedia interface (located in the glovebox), contains thefollowing:• Jukebox - 64GB memory capacity for storing media files. • Multimedia interface - Enables connection of a compatiblemedia device to the Infotainment system. • RSE SIM card reader - Enables access to the internet when a suitable SIM card is present. The SIM card should be inserted into the card slot with the ‘chip’ facing upwards and the ‘cut-off ’ corner pointing towards theright. Note • Very high or very low temperatures (a common occurrence in a car's interior) can cause damage to a portable player and/or impair itsperformance. Please do not leave your portable player in the car incase of extreme temperatures. • Handle the adapter cable with care. Make sure the cable does not become pinched or trapped. Media loadersTouch screen remote (TSR)Using the RSESettingsHeadphones B0922.LH 1 2 TSD B08001 3 Media loadersRaise the front of the cover to access the features of the medialoader.Fig. 3 Seatback features 1Display screen > 2 CD/DVD disc slot > 3 CD/DVD Eject button > 4 SD memory card slot > 5HDMI input > 6 USB connector > Multimedia interfaceTouch screen remote (TSR)Using the RSESettings Headphones B0920 1 USB HDMI SD 2 3 4 5 6 4 TSD B08001 Touch screen remote (TSR)When controlling the RSE system, the TSR works like a track pad,where the movement of a finger on the central area of the TSRtouch screen is used to highlight an option on the display screen.The highlighted option can then be selected by tapping the screen. It is possible to scroll through lists by ‘swiping’ a finger on thetouch screen in the direction desired. To quickly scroll through alist, hold a finger on the edge of the touch screen at the end ofthe swipe gesture. The scrolling action will stop when the end ofthe list is reached or when the finger is removed from the screen.For general information on usin g the TSR, refer to the ‘Touch screen remote’ heading in the Infotainment chapter of the Owner’sHandbook.Fig. 4 TSR in gesture mode (left-hand RSE system selected) 1 On/off function button > 2 Touch screen3 Select right-hand RSE system function button > 4 RSE main menu function button > Multimedia interfaceMedia loadersUsing the RSESettingsHeadphones B0935.EN 1 2 3 4 Menu TSD B08001 5 TSR function buttonsDependent upon the currently selected menu, the followingfunction buttons may appear on the TSR or the RSE display screen: - Press to turn the currently selected RSE system on or off.- Press to return to the previous menu screen.- Press to return to the RSE system main menu. - Displays the currently playing media. Switching the RSE system on and offSwitching between RSE screensAdjusting the volume Switching the RSE system on and offTo switch on the RSE system using the TSR, select the RSE app from the app selector screen.The TSR will prompt the user to select from the following options: - Left-hand RSE system and display monitor on.- Right-hand RSE system and display monitor on.- Both RSE systems and display monitors on. When both sides of the RSE system are switched on together, theTSR control will default to the left-hand RSE system.TSR function buttonsSwitching between RSE screensAdjusting the volume Menu 6 TSD B08001 Switching between RSE screensTo switch off the RSE system, proceed as follows:1. Use the or function button to select the desired side of the RSE system. 2. Press the function button. A pop-up window displaying the following options will open (the left-hand RSE system has beenselected for this example): Switch off left display or Switch on left display - Switches on or off the left-hand display only. When the display is switched off, the audio for the currently playing media willcontinue to be output through the currently selected source.Switch off left system - Switches off the left-hand RSE system.Cancel - Closes the pop-up window and returns to the previous TSR screen. 3. Select the desired option.To switch on the RSE system after it has been switched off via theTSR, or if only one side had been switched on at initial start-up,press the function button. TSR function buttonsSwitching the RSE system on and offAdjusting the volume Adjusting the volumeFig. 5 Volume controls 1 Left-hand RSE volume controls2 Infotainment system volume controls3 Right-hand RSE volume controls4 Volume control buttonPressing the volume control button (4) opens the volume controlpop-up window. It is possible to control the volume settings for the Infotainmentsystem or any wired or wireless headphones that may beconnected to the RSE system. Press the or function buttons for the desired device to increase or decrease the volumeof the desired output.Press the function button to mute the desired output. B0934 1 2 3 4 TSD B08001 7 If wired and wireless headphones are connected to the same sideof the RSE system, it is possible to toggle between adjustment foreach pair of headphones by pressing the or function button at the top of the pop-up window. Note The volume control pop-up window will close after approximately5 seconds of inactivity.TSR function buttonsSwitching the RSE system on and offSwitching between RSE screens Using the RSEFig. 6 Main menu There …

Text truncated - open the document above for the full version.

xx Important information Important informationRunning-in proceduresDetailed information regarding the running-in procedures for thecar can be found under the heading ‘Running-in procedures’ onpage 65.FuelThis handbook refers to cars fitted with catalytic converters in theexhaust system. This car can be run on either unleaded fuel or bioethanol E85, orany mixture ratio of these two fuels.For further information, refer to the heading ‘Fuel specification’on page 133. Occupant restraintsThis car is equipped with driver and passenger air bagsupplementary restraint systems, thorax protection on the outerp o r t i o n o f ea c h se a t b a ck res t a n d s i d e h e a d p ro t e c t i o n w i t h i n e a c hside of the upper trim panels. For maximum safety in all types of accidents, or if the car is stoppedsuddenly, the driver and all passe ngers should, at all times, be restrained by the safety belts provided. Air bag protection doesnot reduce the necessity to wear a safety belt. For the sake of the environment Undeployed air bag modules and pre-tensioners are classified asPerchlorate Material – Special handling may apply. Seewww.dtsc.ca.gov/hazardouswaste/perchlorate. When the vehicle or parts of the restraint system including air bag modules safety belts withpre-tensioners are scrapped, all applicable laws and regulations mustbe observed. Your authorised Bentley dealer is familiar with theserequirements and we recommend that you have your Dealer perform this service for you. ServiceThe importance of regular servicing on a time expired or mileagebasis cannot be over-emphasised. The driver information panel displays a reminder when the car isdue for service. However, it is the responsibility of the owner toensure that the car is maintained in accordance with the specifiedservice schedules. It is strongly recommended that all maintenanceand repair work is carried out by an authorised Bentley dealer. Work carried out under the terms of the Warranty given witheach new car must be performed by an authorised Bentley dealer. The Bentley insignia is displayed by authorised Bentley dealers whowill have factory trained personnel, up-to-date technicalinformation, specialist tools, and approved parts. Similarly, shouldcoachwork or paintwork repairs be required, the use of anauthorised Bentley dealer is recommended. Work arranged andundertaken at these establishments will be carried out usingapproved procedures and materials. WarrantyDetailed information on warranties applicable to cars conformingto certain market specifications can be found in the ServiceHandbook. Unt i t l ed1. f m Page xx Tuesday, N ovem ber 12, 2013 4: 08 PM Important information xxi Symbols used within this bookTo ensure the optimum safety of the occupants and the operationalsafety and reliability of the car, you are advised to pay particularattention to the information accompanying the warning symbols. The following symbols are used throughout this handbook: Caution Identifies information which prevents the car being damaged. Important Identifies information which will either, quickly improve theunderstanding of a feature, or informs the user to follow an instruction. For the sake of the environment Identifies information relating to the protection of the environment. Note Identifies additional information of a more general nature.Warning boxes WARNING Throughout these documents, any information regardingwarnings will be contained inside a box. These warnings containimportant information on safety and how to reduce the risk ofpersonal injury and death. The warning boxes will contain a symbol. An arrow in thebottom right-hand corner denotes there is more information inthe warning, either in the next column or on the next page.A square in the bottom right-hand corner denotes the end ofthe warning. Unt i t l ed1. f m Page xxi Tuesday, N ovem ber 12, 2013 4: 08 PM xxii Statements of compliance Trunk entrapment Interior release handle(emergency use only) California Proposition 65 warningStatements of complianceSecurity systemSiemens AG states that this device complies with part 15 of theFCC Rules. Operation is subject to the following two conditions.1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This digital apparatus does not exceed the Class A limits for radionoise emission from digital apparatus set out in the RadioInterference Regulations of Industry Canada. WARNING Never leave the car unattended especially with the trunk lid leftopen. A child could crawl into the trunk and pull the trunk lidclosed, becoming trapped and unable to get out. To reduce therisk of personal injury, always keep the trunk lid as well as thecar doors closed when not in use. In the event of accidental trunk entrapment, a release handle isfitted to the underside of the trunk lid. Ensure the handle remainsunobstructed at all times.The handle is visible from inside the trunk for up to thirty minutesafter the trunk lid is closed, to assist with exiting the car in theevent of accidental entrapment. Should accidental entrapment occur, press the handle downtowards the bumper, then push upward to open the trunk lid. WA RNI NG Engine Exhaust, some of its constituents, and certain carcomponents contain or emit chemicals known to the State ofCalifornia to cause cancer and birth defects and reproductiveharm. In addition, certain fluids contained in cars and certain productsof component wear contain or emit chemicals known to the Stateof California to cause cancer and birth defects or otherreproductive harm.Battery posts, terminals and related accessories contain lead andlead components, chemicals known to the State of California tocause cancer and reproductive harm. Wash hands after handling. WA RNI NG Any changes or modifications to any of the listed devices notexpressly approved by the party responsible for compliance couldvoid the user’s authority to…

Text truncated - open the document above for the full version.

搒夢䙩፧⍶ᘩ᜘⠑ᐔᔩ 搒夢䙩፧⍶ᘩ᜘⠑ᐔᔩ搒夢䙩፧⍶ᘩ᜘⠑ᐔᔩ 搒夢䙩፧⍶ᘩ᜘⠑ᐔᔩ BRIGHT HEADPHONE ELECTRONICS CO. 8F, 109, Li De St., Zhonghe District, New Taipei City, Taiwan, R.O.C. 235 TEL: +886 2 2225-6292 FAX: +886 2 2225-6327 Date: November 27, 2013 Telecommunication Certification Body UL VS Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Relationship between Bright Headphone Electronics Co. & Bentley Motors Ltd. FCC ID: IERRF-H588LTI To whom it may concern The headphones, FCC ID: IERRF-H588LTI is manufactured by Bright Headphone Electronics Co. and is used as part of a Bentley Motors Ltd infotainment system. As a result, exhibits for the certification of the Bright Headphone Electronics Co. FCC ID: IERRF-H588LTI comprises of documentation supplied by both Bright Headphone Electronics Co. and Bentley Motors Ltd. Please contact the undersigned if there are any further questions or additional information needed in this matter Yours faithfully Jim Liang Sales Manager

妖唆䉓$ᥠሓጂ⎕)ᄓ 妖唆䉓$ᥠሓጂ⎕)ᄓ妖唆䉓$ᥠሓጂ⎕)ᄓ 妖唆䉓$ᥠሓጂ⎕)ᄓ BRIGHT HEADPHONE ELECTRONICS CO. 8F, 109, Li De St., Zhonghe District, New Taipei City, Taiwan, R.O.C. 235 AGENCY LETTER 2013-10-08 Telecommunication Certification Body UL VS Ltd Pavilion A Ashwood Park Ashwood Way Basingstoke Hampshire RG23 8BG United Kingdom To whom it may concern This is to certify that Bright Headphone Electronics Co. authorises UL VS Ltd to act on our behalf for the application of the Headphones, model: D189100, FCC ID: IERRF-H588LTI to UL VS Ltd. Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Jim Liang Sales Manager Bright Headphone Electronics Company.

妖唆䉓$ᥠሓጂ⎕)ᄓ 妖唆䉓$ᥠሓጂ⎕)ᄓ妖唆䉓$ᥠሓጂ⎕)ᄓ 妖唆䉓$ᥠሓጂ⎕)ᄓ BRIGHT HEADPHONE ELECTRONICS CO. 8F, 109, Li De St., Zhonghe District, New Taipei City, Taiwan, R.O.C. 235 2013-10-08 Telecommunication Certification Body UL VS Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Confidentiality Request, Certification Application FCC ID: IERRF-H588LTI Pursuant to Sections 0.457 and 0.459 of CFR 47 Company Bright Headphone Electronics Co. request that the following information, provided to support the FCC application for the Equipment Headphones, model: D189100, FCC ID: IERRF-H588LTI, be held permanently confidential: Schematics Block Diagrams Parts List Operational Description The above material contains trade secrets not customarily released to public that are judged to have the potential to cause detriment to the applicant and provide unjustified benefits to its competitors. This information should not be available for public disclosure for an indefinite period of time. Yours sincerely Jim Liang Sales Manager Bright Headphone Electronics Company

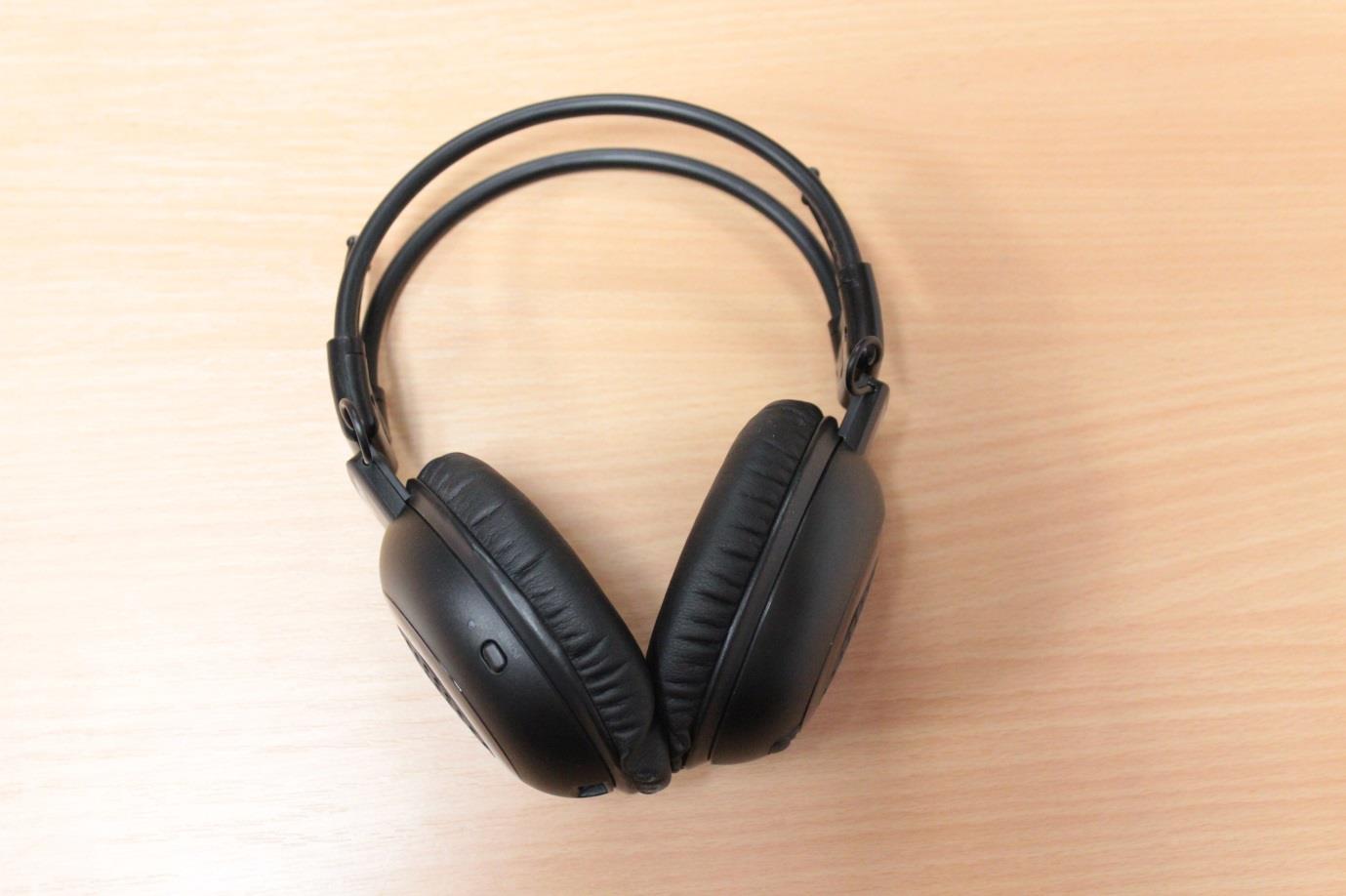

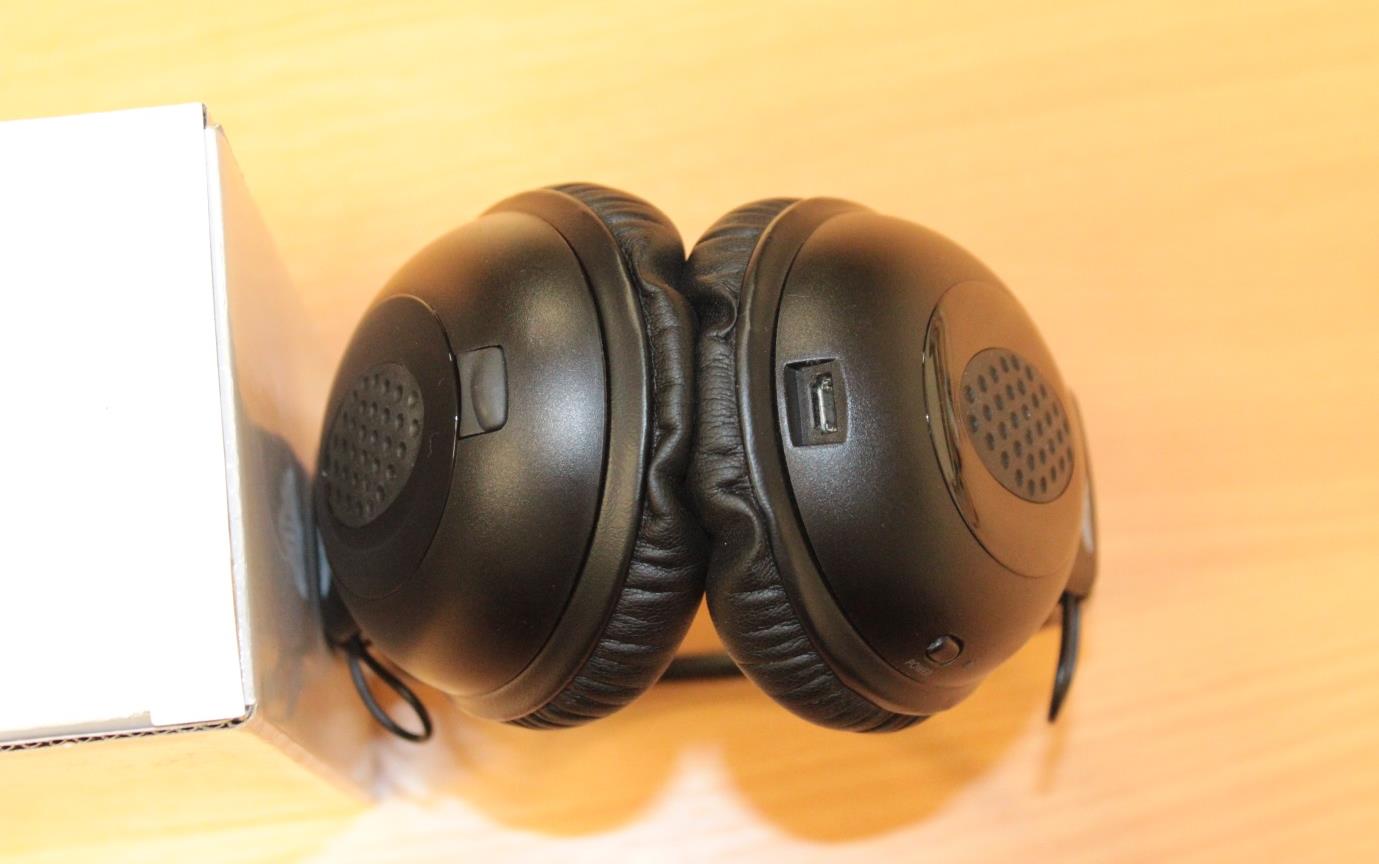

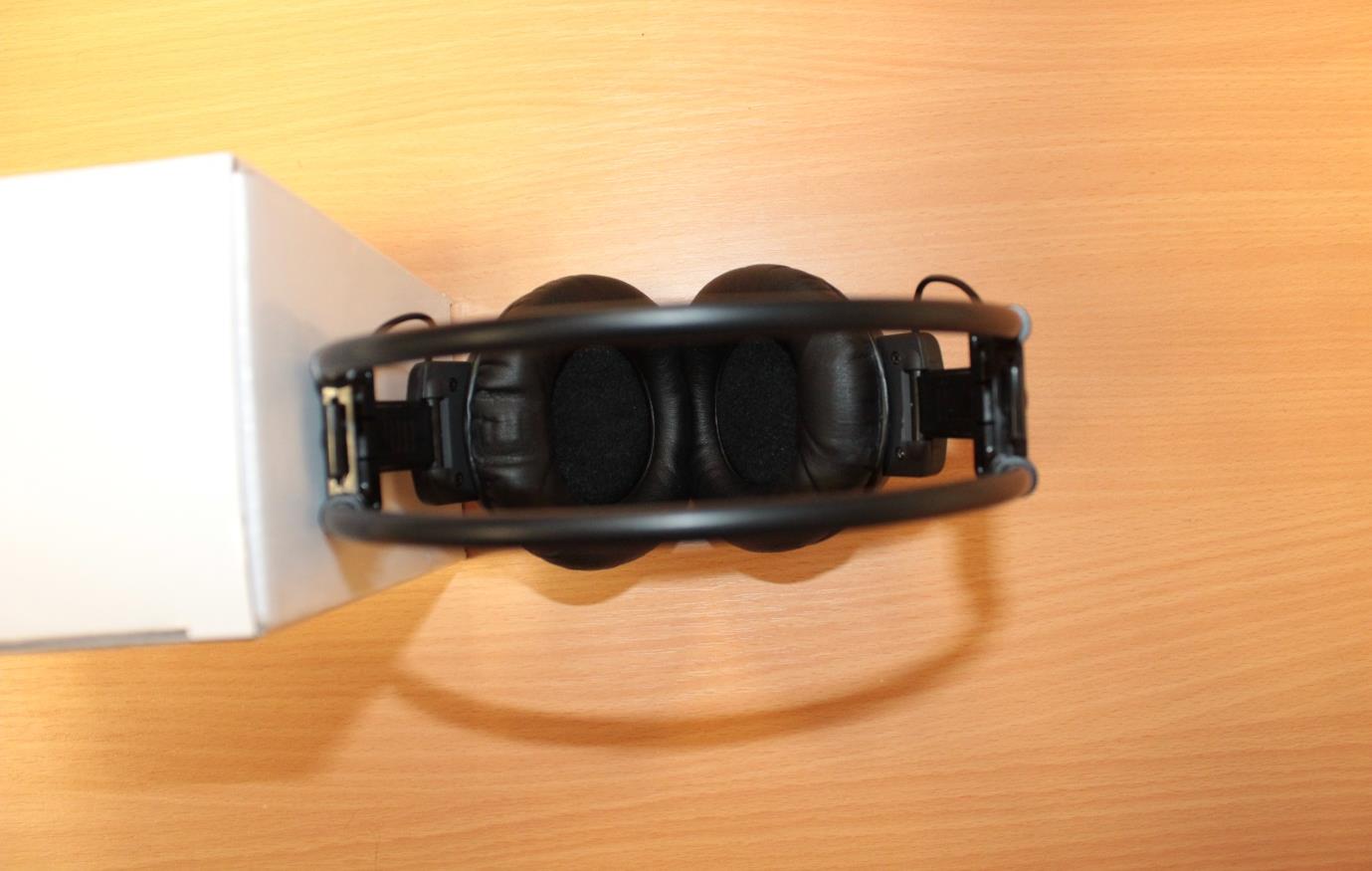

External Product Images of Headphones 1 CONFIDENTIAL External Images Top View Bottom view External Product Images of Headphones 2 CONFIDENTIAL Front view Rear View External Product Images of Headphones 3 CONFIDENTIAL RH LH

Internal Product Images of Headphones 1 CONFIDENTIAL Internal Images PCB Top View PCB Bottom View 2.4GHz RF circuit Internal Product Images of Headphones 2 CONFIDENTIAL PCB in Battery Terminal side Top View PCB in Battery Terminal side Bottom View

搒夢䙩፧⍶ᘩ᜘⠑ᐔᔩ 搒夢䙩፧⍶ᘩ᜘⠑ᐔᔩ搒夢䙩፧⍶ᘩ᜘⠑ᐔᔩ 搒夢䙩፧⍶ᘩ᜘⠑ᐔᔩ BRIGHT HEADPHONE ELECTRONICS CO. 8F, 109, Li De St., Zhonghe District, New Taipei City, Taiwan, R.O.C. 235 TEL: +886 2 2225-6292 FAX: +886 2 2225-6327 RF Exposure Analysis Product: Headphones FCC ID: IERRF-H588LTI Analysis for FCC portable use Standalone SAR test exclusion considerations are defined in KDB 447498D01 (v05r01) Chapter 4.3.1 where the 1-g head or body and 10-g extremity SAR exclusion threshold is defined by the following formula: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison For the Headphone set, the maximum conducted output power, including tune-up tolerance, is defined in the Operational Description (based on 2.1 V regulated operation) as 9 dBm (7.94 mW). Appendix A (below) shows the PCB trace antenna location which is positioned 13 mm from the outer surface of the enclosure on the face nearest to the user. The enclosure is covered by a fabric ear pad which provides a further 14 mm separation (total 27 mm) between the antenna and the user. However, considering that the ear pad is compressible when worn, and to ensure the most conservative separation distance is used, a distance of 5 mm has been chosen for the calculation as this is stated as the minimum separation distance in KDB 447498 4.3.1 (1). Furthermore, Appendix B is included to show the distance from the antenna at which a value of 3 for 1-g Head SAR is reached. When the above data is applied using the given formula, the following result for assessment against the ≤ 3.0 limit for 1-g head SAR is achieved: (8 mW / 5 mm) x √2.406 GHz ≤ 3.0 1.6 x 1.5511 = 2.5 2.5 is <3.0 limit for 1-g head SAR Thus for portable use, the SAR exclusion condition is fulfilled and SAR evaluation is not required for a separation distance of 5 mm or more. Signature: ________________________________________ Date: ___________________ NAME (Please print or type): Jim Liang TITLE (Please print or type): Sales Manager COMPANY: Bright Headphone Electronics Co. RF Exposure Analysis 2 of 3 Continued\.... Appendix A: Antenna location in Headphone Earpiece RF Exposure Analysis 3 of 3 Appendix B: Distance from Antenna at which a value of 3 for 1-g Head SAR is reached [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR The above equation is re-arranged for distance, giving: (Max. power of channel, mW * √f GHz ) / 3 = min. test separation distance, mm Substituting the values in: Min. test separation distance = (8 * √2.406) / 3 = 4.14 mm

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10033550JD01A V5.0 Manufacturer : BENTLEY MOTORS LIMITED Model No. : D189100 FCC ID : IERRF-H588LTI IC Certification No. : 11183A-RFH588LTI Technology : Proprietary (Wireless Audio Systems) Test Standard(s) : FCC Parts 15.247, 15.209(a) Industry Canada RSS -210 A8.2(a), A8.4(4) & A8.5 and RSS-Gen 4.6.1, 4.6.2, 4.8, 4.9, 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 5.0 supersedes all previous versions. Date of Issue: 26 November 2013 Checked by: Sarah Williams WiSE Engineer Issued by : pp John Newell Group Quality Manager, WiSE Basingstoke, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its’ terms of accreditation. TEST REPORT SERIAL NO: UL-RPT-RP10033550JD01A VERSION 5.0 ISSUE DATE: 26 NOVEMBER 2013 Page 2 of 38 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10033550JD01A VERSION 5.0 ISSUE DATE: 26 NOVEMBER 2013 UL VS LTD Page 3 of 38 Table of Contents 1. Customer Information .................................................................................................................4 2. Summary of Testing ....................................................................................................................5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) .....................................................................................................7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 8 3.3. Modifications Incorporated in the EUT 8 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 9 4. Operation and Monitoring of the EUT during Testing ............................................................10 4.1. Operating Modes 10 4.2. Configuration and Peripherals 10 5. Measurements, Examinations and Derived Results ...............................................................11 5.1. General Comments 11 5.2. Test Results 12 5.2.1. Transmitter Minimum 6 dB Bandwidth 12 5.2.2. Transmitter 99% Occupied Bandwidth 15 5.2.3. Transmitter Power Spectral Density 18 5.2.4. Transmitter Maximum Peak Output Power 22 5.2.5. Transmitter Radiated Emissions 27 5.2.6. Transmitter Band Edge Radiated Emissions 34 6. Measurement Uncertainty ........................................................................................................37 7. Report Revision History ...........................................................................................................38 TEST REPORT SERIAL NO: UL-RPT-RP10033550JD01A VERSION 5.0 ISSUE DATE: 26 NOVEMBER 2013 Page 4 of 38 UL VS LTD 1. Customer Information Company Name: BENTLEY MOTORS LIMITED Address: Pyms Lane Cheshire CW1 3PL United Kingdom TEST REPORT SERIAL NO: UL-RPT-RP10033550JD01A VERSION 5.0 ISSUE DATE: 26 NOVEMBER 2013 UL VS LTD Page 5 of 38 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Sections 15.209 Specification Reference: RSS-GEN Issue 3 December 2010 Specification Title: General Requirements and Information for the Certification of Radio Apparatus Specification Reference: RSS-210 Issue 8 December 2010 Specification Title: Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment. Site Registration: FCC: 209735; Industry Canada: 3245B-2 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 31 July 2013 to 23 September 2013 2.2. Summary of Test Results FCC Reference (47CFR) IC Reference Measurement Result Part 15.247(a)(2) RSS-Gen 4.6.2 RSS -210 A8.2(a) Transmitter Minimum 6 dB Bandwidth N/A RSS-Gen 4.6.1 Transmitter 99% Occupied Bandwidth Part 15.247(e) RSS-210 A8.2(b) Transmitter Power Spectral Density Part 15.247(b)(3) RSS-Gen 4.8 RSS-210 A8.4(4) Transmitter Maximum Peak Output Power Part 15.247(d)/ 15.209(a) RSS-Gen 4.9 RSS-210 A8.5 Transmitter Radiated Emissions Part 15.247(d)/ 15.209(a) RSS-Gen 4.9 RSS-210 A8.5 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: UL-RPT-RP10033550JD01A VERSION 5.0 ISSUE DATE: 26 NOVEMBER 2013 Page 6 of 38 UL VS LTD 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices Reference: KDB 558074 D01 v03r01 April 9, 2013 Title: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under 15.247 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10033550JD01A VERSION 5.0 ISSUE DATE: 26 NOVEMBER 2013 UL VS LTD Page 7 of 38 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: BENTLEY MOTORS LIMITED Model Name or Num…

Text truncated - open the document above for the full version.

FCC ID: IERRF-H588LTI IC: 11183A-RFH588LTI Test Set Up Photos for the Headphones 2.4GHz Testing Battery Powered FCC ID: IERRF-H588LTI IC: 11183A-RFH588LTI USB Powered
