IFAXDM5614USBUSB MODEM

EXHIBIT C User Manual

EXHIBIT E Block Diagram

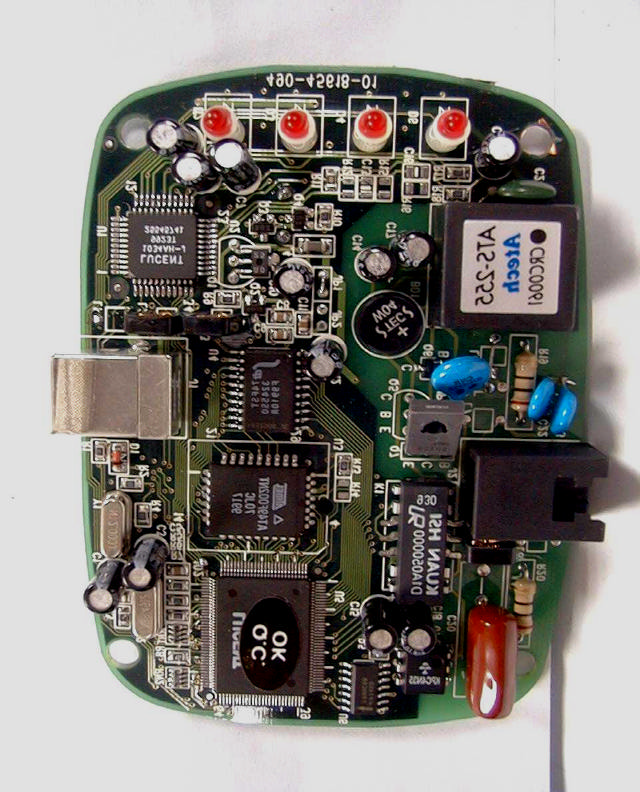

EXHIBIT F Photographs of EUT

EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: IFAXDM5614USB Model No.: DM-5614/USB LABEL Size : 3517 mm LABEL Position:

EXHIBIT D Circuit Diagram

EXHIBIT B Test Report Test Report------------------------------------------------------------------------------------------------------------ Report No.: A0415532, USB Modem, FCC Class B Test date: 07/16/99, Training Research Co., Ltd., TEL: 886-2-26461146,Fax: 886-2-26461778 2/14 Contents Chapter 1 Introduction Description of EUT........................................................................................................................3 Configuration of Test Setup............................................................................................................4 List of Support Equipment..............................................................................................................5 Chapter 2 Conducted Emission Test Test Condition and Setup...............................................................................................................7 Conducted Test Placement.............................................................................................................8 Chapter 3 Radiated Emission Test Test Condition and Setup...............................................................................................................9 Radiated Test Placement...............................................................................................................10 Appendix A: Conducted test result.....................................................................................................................11 Appendix B: Radiated test result........................................................................................................................12 Appendix C: Modification List............................................................................................................................14 Test Report------------------------------------------------------------------------------------------------------------ Report No.: A0415532, USB Modem, FCC Class B Test date: 07/16/99, Training Research Co., Ltd., TEL: 886-2-26461146,Fax: 886-2-26461778 3/14 Chapter 1Introduction Description of EUT: This USB data-fax-voice modem is a data communication device. It is designed to connect with PC or notebook via an USB cable that designed for the use of USB port and makes your data equipment available to transmit and receive data via the public telephone network. Connections of EUT: (1) The USB plug of EUT was connected with the USB port A of PC via USB cable. (2) The line jack of EUT is connected with the PABX located remotely via a line cable. (3) The phone jack of EUT is connected with a telephone set. Test method: Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. During testing, the EUT was operated at “transmitting” and “receiving” mode simultaneously. While testing, the transmitting rate was set to “AUTO” which means it transmitted the test file depending on the telephone line condition, normally the operating rate is the highest speed. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report------------------------------------------------------------------------------------------------------------ Report No.: A0415532, USB Modem, FCC Class B Test date: 07/16/99, Training Research Co., Ltd., TEL: 886-2-26461146,Fax: 886-2-26461778 4/14 Configuration of test setup To Far-End PABXRS-232 cable Power EUT Printer Modem Monitor PC Keyboard Mouse USB Joystick Connections: PC: *Serial A port --- a external modem with 76 cm shielded RS-232 cable *Serial B port --- a shielded RS232 cable with 76cm long, no ferrite bead *Printer port --- a Printer with 1.2m length data cable *Keyboard port --- a Keyboard with 1m length data cable *Mouse port --- a Mouse with 0.7m long of data cable *Monitor port --- a monitor with 1m length data cable *USB port A --- EUT *USB port B --- a USB joystick with 1.5m long, shielded, no ferrite bead data cable (Each port on PC is connected with suitable device) EUT: *USB plug --- connect to the USB port A of PC via the USB cable that is 1.9m long, shielded, with ferrite core. *Line jack --- via a 20 m long, no ferrite bead, RJ-11 cable to PABX located remotely Test Report------------------------------------------------------------------------------------------------------------ Report No.: A0415532, USB Modem, FCC Class B Test date: 07/16/99, Training Research Co., Ltd., TEL: 886-2-26461146,Fax: 886-2-26461778 5/14 List of support equipment Conducted (Radiated) test: PC : HP Model :VE6/350 SERIES 8 Serial No. :SG91002329 FCC ID:DoC Approval Power type:AC 100~127 / 200~240 VAC, Switching Power cord :non-Shielded, 1.7m long, Plastic, no ferrite core Monitor :HP Model No.:D2821 Serial No.:TW 73512262 (TW 73147163) FCC ID:A3KMO64 Power type:AC 110~120 / 220~240 VAC, Switching Power cord:Non-Shielded, 3m long, no ferrite core Data cable :Shielded, 1.8m long, with ferrite core Keyboard:Digital Model No.:KB-5923 Serial No.:9S74904837 (9S74904665) FCC ID:E8HKB-5923 Power type:By PC Data cable :Shielded, 1.8m long, with ferrite core Printer:HP Model No.:C2642A Serial No.:SG69A196GV FCC ID:B94C2642X Power type:220VAC, 50Hz Power cord:Non-shielded, 2m long, no ferrite core Data cable :Shielded, 1.84m long, no ferrite core (1.7m) Test Report------------------------------------------------------------------------------------------------------------ Report No.: A0415532, USB Modem, FCC Class B Test date: 07/16/99, Training Research Co., Ltd., TEL: 886-2-26461146,Fax: 886-2-26461778 6/14 Modem:ACEEX Model No.:XDM-56V14 FCC ID:IFAXDM-56V14 Power type:110VAC, 60HZ/ 9VAC, 1A Power cord:Non-shielded, 1.9m long, no ferrite cord Data cable :RS232, Shielded, 1.2m long, no f…
