IFDRSCHWireless Temperature/Humidity Sensor

Manual V2-CH Chirper Transmitters Rees Scientific Environmental Monitoring Systems www.ReesScientific.com 1007 Whitehead Road Ext. Trenton, NJ 08638 800-327-3141 Chirper transmitters Introduction: The V2 line of Chirper transmitters consists of probe attached, one-way communication devices that periodically transmit data to a system connected receiver. Incorporating unique identifiers and working in the lower frequency 418/433MHz frequency band, Chirper transmitters are ideal for the crowded lab environments found in today’s businesses. Connecting a Chirper Base to the System Before an endpoint Chirper transmitter can be connected to the system, the other end of the line, a chirper receiver, must be attached to the system. Whether you are connecting a BASE-Net, BASE-Zigbee, or any other Chirper base to the system refer to the standalone instructions regarding these components for system installation. Connecting a Chirper Transmitter to the System Once a Chirper base has been added to the system the addition of a specific transmitter is as easy as selecting it from the drop-down list. In the figures below the BASE receiver is connected on IP: 155.155.1.196 1) Select the Chirper Base MPX selection module from the drop-down list 2) Each Chirper Base can support up to 16 Chirper transmitters. Select the Chirper Base designation number from the input list in the upper-left-hand corner. Note: The Chirper Base designation number is not the same as an input number on the system and only serves as a means of organization for a specific Chirper Base. Once a module has been selected you can assign an input number to it on the system. 3) Use the serial number on the side of the Chirper transmitter to select it from the drop-down list. 4) Assign an input number and probe type to the transmitter. Once a module has been added to the system it behaves like any other input. Use the Workstation software to further program the input for alarms and reporting. FCC ID: IFDRSCH The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation.

Radio Transmitter (418 or 433 MHZ) Battery 3V @ 1000 mAh Analog MicroController Crystal 32.768kHz Programming Pin Header Readings Probe Resistor Array Antenna Rees Scientific Chirper Block Diagram

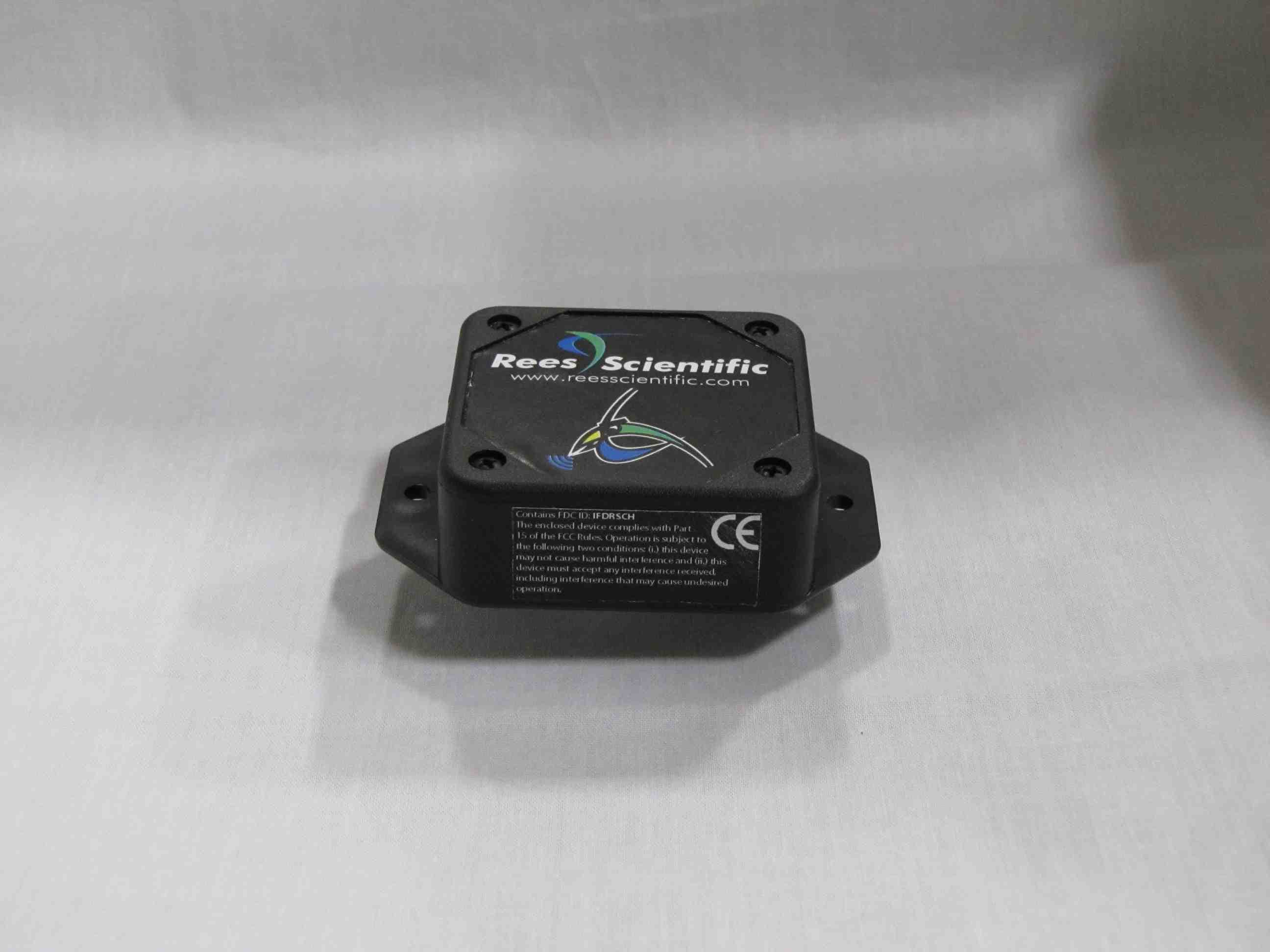

Rees Scientific V2 Chirper FEATURES • Rees V2 Chirper device • Safely coexists with 2.4GHz WIFI • Unique Transmission ID • Discrete (2.50” x 2.50” X 0.90”) ABS Enclosure • Battery backed up. Continues to work when the power goes out. DESCRIPTION The Rees V2-CH is a battery backed up transmitter that serves to broadcast probe data to the system. Operating as an FCC-certified device, the Rees V2-CH functions as an endpoint transmitter to relay a connected probe’s data back to a system connected receiver. Automatically transmitting every 10-15 seconds, the onboard clock wakes up the device causing it to sample input data from the built in 24-bit analog-to-digital converter. This information, once combined with a unique serial ID, is transmitted via a short duration data packet thereby extending the life of the integrated battery. The built-in LED provides feedback for when standard data is transmitted and serves as an indication of 1-way communication from the module. www.ReesScientific.com Rees Scientific The leader in Environmental monitoring for over a quarter century Transmission Interval 10-15 seconds Transmission Duration < 500 milliseconds Dimensions (enclosure) 2.50 W X 2.50 H X 0.95 D (inches) Weight 1.5 oz. Operating Temperature -40° to 85° C Input 30.1K ohm thermistor (alternative thermistors available) Humidity 0% to 90% non-condensing FCC ID IFDRSCH Part# V2-CH

Serial No. GM213009f FCC ID: IFDRSCH FCC TEST REPORT FOR THE REES SCIENTIFIC CORPORATION V2 CHIRPER WIRELESS TEMPERATURE/HUMIDITY SENSOR FCC ID: IFDRSCH Prepared for: Rees Scientific Corporation 1007 Whitehead Road Extension Trenton, NJ 08638 USA Submitted by: Green Mountain Electromagnetics, Inc. (802) 388-3390 (802) 388-6279 Fax [email protected] 219 Blake Roy Road • Middlebury, Vermont 05753 Copyright: February 19, 2013 This report shall not be reproduced, except in full, without the written approval of GME. GME Test Lab Cert 898.01 Serial No. GM213009f Rees Scientific Corporation, FCC ID: IFDRSCH February 2013 Page 2 of 28 GME, Inc. • 219 Blake Roy Road • Middlebury, VT 05753 • Tel: 802-388-3390 • gmelectro.com GME Rees Scientific Corporation FCC Testing At Green Mountain Electromagnetics, Inc. Unit: V2 Chirper, Wireless Temperature/Humidity Sensor FCC ID: IFDRSCH Received: 1/24/13 Tested: January 28 - 31, & February 13-18, 2013 The units described in this report were measured for verification of compliance with "47 CFR, Part 15 – Radio Frequency Devices, Subpart C: Intentional Radiators," paragraphs 15.209, Radiated Emissions and 15.231, Periodic Operation in the Band 40.66 - 40.70 MHz and above 70 MHz. Measurement procedures were in accordance with ANSI C63.4, "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (2009)," and FCC OET Bulletin 65, "Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields (Jan. 2001)." Additionally, the units described in this report were measured for certification with the Code of Federal Regulations Chapter 47 – "Telecommunication, Part 2 – Frequency Allocations and Radio Treaty Matters: General Rules and Regulations, Subpart J – Equipment Authorization Procedures." Measurements required were per paragraphs 2.1046 RF Power Output, 2.1049 Occupied Bandwidth, 2.1053 Field Strength of Spurious Radiation, and 2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices. II. Unit Tested: The Rees Scientific Corporation, V2 Chirper Wireless Temperature and Humidity sensors are used for commercial monitoring and parameter indication. The Chirper units are read remotely via a PC connected to a receiver. The Chirper consists of the plastic enclosure, the battery power circuit, the internal electronics, the sensor with cable, and the 418 MHz transmitter circuit with an integral wire antenna. Rees “Wireless System Administrator” software was used to evaluate the unit. Serial No. GM213009f Rees Scientific Corporation, FCC ID: IFDRSCH February 2013 Page 3 of 28 GME, Inc. • 219 Blake Roy Road • Middlebury, VT 05753 • Tel: 802-388-3390 • gmelectro.com GME The table below describes the unit that was subjected to measurements determining compliance with applicable EMC standards: Model Manufacturer Serial Number V2 Chirper Rees Scientific Corporation ENG001 The following table describes the system physical and electrical properties: Model Volts H/W/D in cm V2 Chirper 3-VDC Battery Style CR2477 6/6/3 The following table describes the support equipment used during testing: Product Manufacturer Model # Serial Number 418-MHz Receiver Rees .V2-CH-BASE-NET V2-NET-03599 Receiver Power Supply Condor HK-CPII-A075 n/a Laptop PC Dell W200DA00 26916802737 PC Power Supply Dell LA65NE1 CN05K74V71615 Signal cables were used for testing and are supplied by the manufacturer. The following table describes the system cables: Cable Description Agency Rating Signal (Sensor) Unshielded twisted pair n/a Signal (Communications) Cat 5 Ethernet UL E212964 III. Measurement Location: The GME laboratory and Open Area Test Site (OATS) are located at 219 Blake Roy Road, Middlebury, VT. The OATS is a 10/3/1-meter site complete with antenna positioner, ground plane and motorized turntable. The OATS is constructed in accordance with ANSI C63.7-2005 and complies with the requirements for radiated emissions testing in ANSI C63.4-2009 and CISPR standards. GME is internationally accredited by the American Association for Laboratory Accreditation (A2LA) and meets the quality requirements in ISO/IEC 17025 (2005), "General Requirements for the Competence of Testing and Calibration Laboratories." Serial No. GM213009f Rees Scientific Corporation, FCC ID: IFDRSCH February 2013 Page 4 of 28 GME, Inc. • 219 Blake Roy Road • Middlebury, VT 05753 • Tel: 802-388-3390 • gmelectro.com GME IV. Summary of Results: The Rees Scientific Corporation, V2 Chirper Wireless Temperature and Humidity sensor complies with the requirements in FCC 47 CFR, Paragraphs 2 and 15. Section X contains the results summarized in the table below. CFR 47 Frequency Specified Measured Test Mode/Port Paragraph or Range Values Values 1 RF Power Output Transmit 2.1046 15.231(e) 418 MHz 72 dBuV (4133.3473 uV/m = 16.6667xF 2833.3333) 69 dBuV 2 Occupied Bandwidth Transmit 2.1049 15.231(c) 20-dB down at 0.25% of Fundamental 1.045 MHz 0.1 MHz 3 Radiated and Spurious Emissions Enclosure 2.1053 15.209 15.231(e) 30 – 88 MHz 88 – 216 MHz 216 – 960 MHz 960 – 4.2 GHz 40 dBuV/m 43.5 dBuV/m 46 dBuV/m 54 dBuV/m Within 3m and 1m Limits 4 Exposure Evaluation Enclosure 2.1093 418 MHz 0.08 W/kg Body 1.6 W/kg 1g Vol Within All Limits Exploratory measurements indicate maximum radiation is found when antenna polarization is aligned with the EUT antenna and when antenna is pointed directly at the EUT at scan heights >10% of EUT height. Testing was performed by Kyle R. Kowalczyk, president, Green Mountain Electromagnetics and requested by: Rees Scientific Corporation 1007 Whitehead Road Extension Trenton, NJ 08638 USA ___________________________ Kyle R. Kowalczyk 2/19/13 Serial No. GM213009f Rees Scientific Corporation, FCC ID: IFDRSCH February 2013 Page 5 of 28 GME, Inc. • 219 Blake Roy Road • Middlebury, VT 05753 • Tel: 802-388-3390 • gmelectro.com GME V. Units of Measurement and Uncertainty: Measurements of radiated electric fields we…
