RS9803ELC2-WWVB USER’S MANUAL I. Features 1. Weather forecast for 4 states: sunny, partly cloudy, cloudy, rainy 2. Seven function keys: MODE, °C/°F, UP/ALARM ON/OFF, DOWN/TIME ZONE, MAX/MIN, CHANNEL,SNOOZE/LIGHT 3. Alarm and snooze 4. Indoor temperature and humidity 5. Outdoor temperature/ humidity with RF: up to 3 channels 6. Indoor/outdoor temperature and humidity max/min record 7. Key sound function 8. day of the week in 7 languages:NET,DAM,ESP,ENG,GER,FRE,ITA 9. Tolerance：temperature:+-2°C,humidity:+-8% 10. DST default: ON II. Main UNIT 1. Insert adaptor plug into main unit DC outlet. 2. The backlight will be on, all of the icons and the digits of the LCD will display for 3 seconds. It then beep and enter normal state. 3. Weather forecast indicator lamp light up from Sunny to Rainy, the defaults partly cloudy. 4. The clock/calendar defaults to AM12:00 Jan 1,2010 5. Alarm defaults to AM 12:00 6. Temperature unit defaults to degree Fahernheit (°F). 7. Time display defaults is 12 hours mode Note: The main unit is recommended to be powered by adaptor instead of batteries. III. SETTING INSTRUCTIONS 3.1 Normal states 1. Hold MODE to switch time and alarm display mode 2. Hold MODE to enter into time setting 3. Click “UP/ALARM ON/OFF” or” °C/°F” to switch between °C/°F 4. Click “MAX/MIN” to switch Maximum/Minimum temperature and humidity 5. Hold “MAX/MIN” for 2 seconds to clear the history record of temperature and humidity 6. When alarm rings, click “SNOOZE/LIGHT” to enter into the snooze state every 5 minutes 7. Click “SNOOZE/LIGHT”，the weather indicator light move a cycle 8. Press “CHANNEL” to switch RF channel, CH1 ÆCH2ÆCH3 9. Hold “CHANNEL” key for 2 seconds to clear out all data of current “Channel” 3.2 Time set Under time display mode 1. Hold “MODE” button for 2 seconds to enter into time setting 2. With each press of the MODE button, it will advance through the following sequence of time setting: 12/24 hour ÆHour ÆMinute Æ yearÆ MD/DM selectableÆ monthÆ dateÆ languageÆDST(ON/OFF) Æ Exit 3. The active setting will flash 4. Press “MODE” to confirm the setting, and enter the next setting state 5. Press “UP/ALARM ON/OFF” one time, the setting will go ahead for one step; hold the key for 2 seconds, it will run forward by 8 steps/second. 6. Press “DOWN/TIME ZONE” one time, the setting will backward for one step; hold for 2 seconds, it will run back by 8 steps/second. 7. The system will exit automatically if no key is operated in 30 seconds 3.3 DOWN/TIME ZONE key 1. click “DOMN/TIME ZONE” to change zone, the sequence: p ÆmÆcÆe. 2.Hold “DOWN/TIME ZONE” for 2 seconds to enter into RCC receiving. 3.3 MAX/MIN Key: a. Click MAX/MIN to switch Maximum/Minimum temperature and humidity b. Hold MAX/MIN for 2 seconds to clear the history record of temperature and humidity 3.4. °C/°F Key: Click °C/°F to switch between °C/°F 3.5 Alarm set Under Time display mode, click “MODE”to enter into Alarm display. Then hold “MODE” for 2 seconds to enter into Alarm setting. 1. With each press of MODE button, it will advance through the following sequence: hour Æ minute 2. Press UP/ALARM ON/OFF and DOWN/TIME ZONE to set the desired hour and minute. Press MODE to confirm setting 3. When alarm rings, press SNOOZE/LIGHT to enter snooze mode. The alarm will ring after every 5 minutes and the alarm icon and Z Z will flash. Press any other buttons to stop 4. The alarm will sound again at the same time the next day until it is turned off IV. Operations 4.1 Weather forecast Place the weather station in a natural ventilated area to get more accurate results. The four weather icons Sunny, Partly Cloudy, Cloudy and Rainy represent the weather forecasting. Sunny Partly cloudy Cloudy Rainy The forecast is calculated by changes in temperature and humidity and is indicative only. There is no guarantee of accuracy when using this unit for forecasting the weather as the calculation can be affected by many varying and local meteorological conditions. If there is any inconsistency of weather forecast between a local weather station and this unit, the local weather station's forecast should prevail. 4.2 Crystal Weather indicator lamp z Upon power on, crystal weather indicator lamp light up from Sunny to Rainy, then stop. And partly cloudy indicator lamp lights up. z The related weather indicator lamp will light up upon the weather forecast. z Press SNOOZE/LIGHT button, crystal weather indicator lamp light up a cycle. z Weather indicator lamp light up from Sunny to Rainy(a cycle) every 5 minutes automatically. V. TEMPERATURE FORMAT 1. On the main unit, press UP/ALARM ON/OFF or °C/°F button to change the units of temperature to Celsius (°C) or Fahrenheit (°F). 2. On the remote sensor, select either Celsius (°C) or Fahrenheit (°F) by pressing the C/F button under the rear battery compartment cover. Note: this setting is only applicable for the temperature indication on the remote sensor itself, not on the main unit. VI. USING THE REMOTE SENSOR 1. Always place the sensor in a location protected from direct sunlight, rain, moisture, splashing and dripping liquids. 2. Remove the rear battery compartment cover of the outdoor sensor and insert 2x AAA batteries observing correct polarity and replace the battery compartment cover on the sensor. 3. Set the channel selector to the desired channel (1~3). The channel is indicated on the LCD. Note: please set the same channel on the main unit by using the channel selector. 4. The remote sensor’s LCD will then display the temperature and humidity. 5. The outdoor temp on the main unit will display “- -.-” and humidity will display “- -” until it picks up the signal from the remote sensor. 6. When the main unit detects the remote sensor, it will beep and begin to display the data from the remote unit. 7. After first start-up or reset, if the main unit does not display outdoor temp and humidity within 5 minutes, press CHANNEL for more than 2 seconds to reset current channel information. If it still does …

Text truncated - open the document above for the full version.

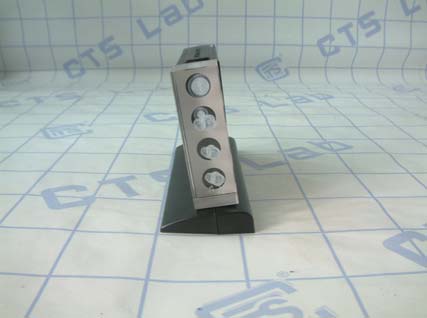

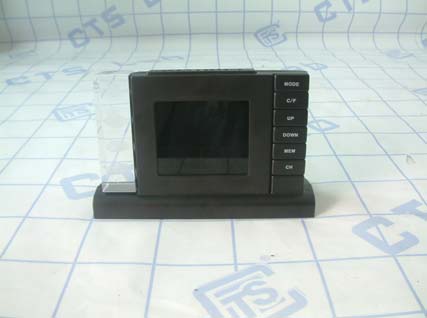

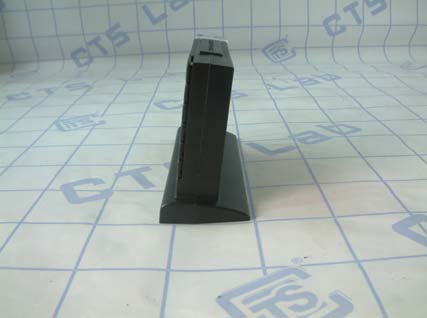

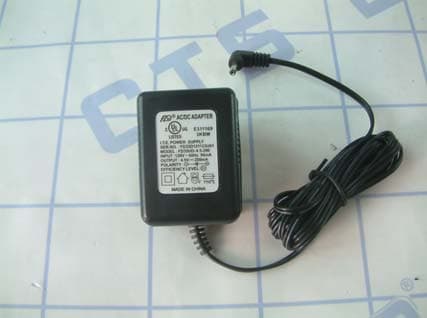

FCC ID:IGFSFA2650-RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140303-00159-EF Page 1 of 3 External Photos of the EUT External view Adapter view -1 Adapter view-2 FCC ID:IGFSFA2650-RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140303-00159-EF Page 2 of 3 External view-1 External view-2 External view-3 FCC ID:IGFSFA2650-RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140303-00159-EF Page 3 of 3 External view-4 External view-5 External view-6
