IHDP56HH2GSM Transceiver with WLAN and Bluetooth

INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. The text on the following three pages will be added to the user manual. APPLICANT: MOTOROLA,INC. FCC ID: IHDP56HH2 EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 0 . 98 W/kg, and when worn on the body, as described in th is user guide, is 0. 49 W/kg. 2 W hile there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. User’s Guide MOTO Z6w CMY CMMYCY CMY K v463387.A6.UG.Front.eps 9/11/2007 8:53:48 AM 1 HELLOMOTOFeel It, See It, Hear It! Your MOTO Z6w phone is made to be held, and made to be seen! • Make and receive calls over the Internet (instead of a cellular network) through a WiFi CERTIFIED® wireless connection. • Transfer your favorite music quickly and easily to your phone with Microsoft® Windows® Media Player 11. • Snap pictures automatically with your 2-megapixel multi-shot camera (page 53). • Capture key moments in high-definition video , then upload to your blog (page 57). • Access any Web site just like you do on your computer, with your phone’s full HTML browser (page 52). • Check your personal email accounts (like Hotmail®, Gmail TM webmail service, or Yahoo!®) on the Web (see your Quick Start Guide ). Or read and sync your corporate email (Microsoft Outlook) with MOTOSYNC (page 66). • Yo u r phone can recite text messages, incoming caller ID information, and menu items (page 29). For more information: To read feature instructions on your phone, press the center key s to open the main menu, then select V Help . To learn more about your phone and accessories, go to www.hellomoto.com . 2Introducing your new MOTO Z6w GSM wireless phone. Here’s a quick anatomy lesson. Center Sele c t Key Open m ain m enu & select m enu ite m s. Power/End KeyTurn on/off, hang up, exit m enus. R ig ht Soft Key Left Soft Key Play m usic or go online. Push B a r Push down to close slider. Send Key Make & answer calls. N a v iga t i on Key Scroll up, down, left, or right. Cle a r/B ac k Key 3 C a mer a Lens (on back of phone) I Vo ic e Key Use voice co mm ands to m ake calls & perfor m basic phone functions. Volume Keys Sm a rt Key M i n i -USB Port Insert battery charger & phone accessories. I Push B a r Push to open slider. C a mer a Key 4Note: This is the standard home screen and main menu layout. Your phone’s home screen and main menu may be different. To change your home screen shortcuts and main menu appearance, see your Quick Start Guide . Home S c reen M ai n Menu Press the Navigation Key u p , down, left, or r ig ht ( S ) to highlight a m enu feature. 3 Press the Center Key ( s ) to select it. 4 Press and hold the Power Key O for a few seconds, or until the display lights up, to turn on your phone. 1 Press the Center Key ( s ) to open the M ai n Menu . 2 Service Provider 10/15/2008 10 : 10 Options Main Menu Options Back Contacts 6 5 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-39…

Text truncated - open the document above for the full version.

INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. The text on the following three pages will be added to the user manual. APPLICANT: MOTOROLA,INC. FCC ID: IHDP56HH2 EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 0 . 98 W/kg, and when worn on the body, as described in th is user guide, is 0. 49 W/kg. 2 W hile there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. User’s Guide MOTO Z6w CMY CMMYCY CMY K v463387.A6.UG.Front.eps 9/11/2007 8:53:48 AM 1 HELLOMOTOFeel It, See It, Hear It! Your MOTO Z6w phone is made to be held, and made to be seen! • Make and receive calls over the Internet (instead of a cellular network) through a WiFi CERTIFIED® wireless connection. • Transfer your favorite music quickly and easily to your phone with Microsoft® Windows® Media Player 11. • Snap pictures automatically with your 2-megapixel multi-shot camera (page 53). • Capture key moments in high-definition video , then upload to your blog (page 57). • Access any Web site just like you do on your computer, with your phone’s full HTML browser (page 52). • Check your personal email accounts (like Hotmail®, Gmail TM webmail service, or Yahoo!®) on the Web (see your Quick Start Guide ). Or read and sync your corporate email (Microsoft Outlook) with MOTOSYNC (page 66). • Yo u r phone can recite text messages, incoming caller ID information, and menu items (page 29). For more information: To read feature instructions on your phone, press the center key s to open the main menu, then select V Help . To learn more about your phone and accessories, go to www.hellomoto.com . 2Introducing your new MOTO Z6w GSM wireless phone. Here’s a quick anatomy lesson. Center Sele c t Key Open m ain m enu & select m enu ite m s. Power/End KeyTurn on/off, hang up, exit m enus. R ig ht Soft Key Left Soft Key Play m usic or go online. Push B a r Push down to close slider. Send Key Make & answer calls. N a v iga t i on Key Scroll up, down, left, or right. Cle a r/B ac k Key 3 C a mer a Lens (on back of phone) I Vo ic e Key Use voice co mm ands to m ake calls & perfor m basic phone functions. Volume Keys Sm a rt Key M i n i -USB Port Insert battery charger & phone accessories. I Push B a r Push to open slider. C a mer a Key 4Note: This is the standard home screen and main menu layout. Your phone’s home screen and main menu may be different. To change your home screen shortcuts and main menu appearance, see your Quick Start Guide . Home S c reen M ai n Menu Press the Navigation Key u p , down, left, or r ig ht ( S ) to highlight a m enu feature. 3 Press the Center Key ( s ) to select it. 4 Press and hold the Power Key O for a few seconds, or until the display lights up, to turn on your phone. 1 Press the Center Key ( s ) to open the M ai n Menu . 2 Service Provider 10/15/2008 10 : 10 Options Main Menu Options Back Contacts 6 5 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-39…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HH2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDP56HH2 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Mobile Devices Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Mark Koziol TITLE: Engineering Manager Mobile Devices Date: 25-Sept-07 1 Exhibit 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HH2 Statement Of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDP56HH2) is in compliance with all applicable parts of the FCC Rules. NAME: Mark Koziol TITLE: Engineering Manager Mobile Devices Date: 25-Sept-07 2 Exhibit 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HH2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Mark Koziol TITLE: Engineering Manager Mobile Devices Date: 25-Sept-07 3 Exhibit 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HH2 October 18, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDP56HH2. Motorola is the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4: Block Diagrams • Exhibit 5: Schematics • Exhibit 10: Parts List / Tune-up Information • Exhibit 12: Operational Description Description: This equipment is a GSM portable transceiver with EDGE capability, operating in the 850 and 1900 MHz PCS bands. The unit also contains 2.4 GHz Bluetooth and 802.11b&g functions (Part 15.247). Equipment certification for USB computer connection ( Part 15, Class B Computing Device Peripheral), is filed separately through a Telecommunications Certification Body. Note: This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations . Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048 Exhibit 13 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HH2 Exhibit 13

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HH2 Oct 16, 2007 SHORT TERM CONFIDENTIALITY REQUEST 45 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHD P56HHH2 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 45 day s: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Slider Down (Front & Back) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 1 of 3EXHIBIT 3 Slider Up (Front & Back) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 2 of 3EXHIBIT 3 Back of the phone without the Battary cover APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 3 of 3EXHIBIT 3

Slider Down (Front & Back) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 1 of 4EXHIBIT 3 Slider Up (Front & Back) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 2 of 4EXHIBIT 3 Back of the phone without the Battary cover APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 3 of 4EXHIBIT 3 Left SideViews APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 4 of 4EXHIBIT 3 Right Side Views Top View Bottom View Revised

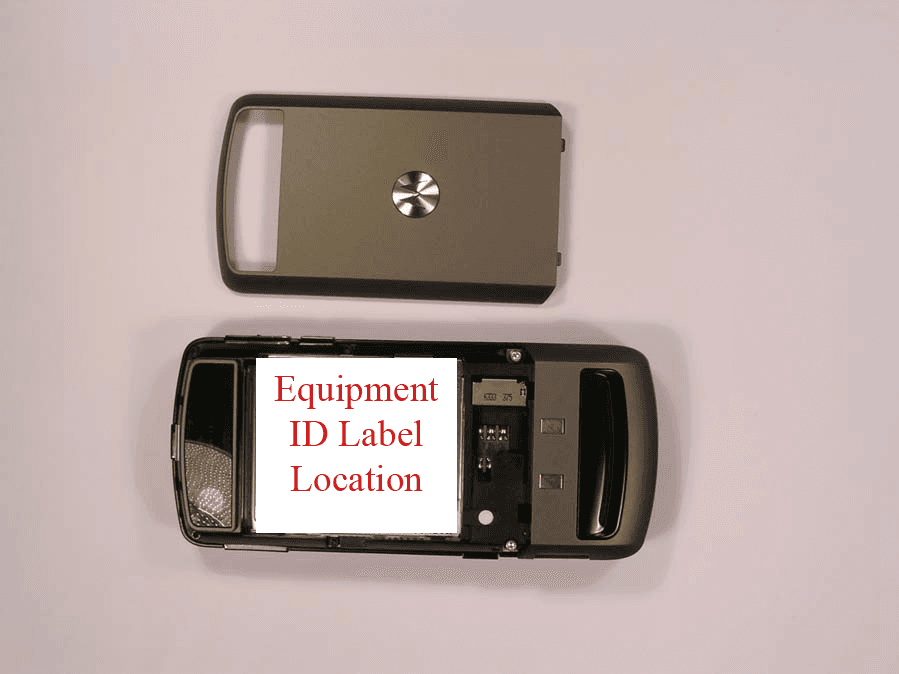

APPLICANT: MOTOROLA INC. FCC ID: IHDP56HH2 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDP56HH2 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

Internal Photos (Front & Back) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 1 of 3EXHIBIT 9 Main Board with Shields (Front & Back) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 2 of 3EXHIBIT 9 Main Board without Shields (Front & Back) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 3 of 3EXHIBIT 9

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HH2 1 of 3 EXHIBIT 9 Internal Photos (Front & Back) Main Board with Shields (Front & Back) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 2 of 3EXHIBIT 9 Main Board without Shields (Front & Back) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HH2 3 of 3EXHIBIT 9

0 0 Portable Cellular Phone SAR Test Report Test Report #: 21026-1F Date of Report: 10-Oct-2007 Date of Test: 31-Aug-2007 through 14-Sep-2007 FCC ID #: IHDP56HH2 Generic Name: MQ5-4411A24 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yangae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Jon Park Senior Staff Engineer Accreditation: TESTING CERT #2518-03 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21026-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 4 3.1 Dosimetric System 4 3.2 Additional Equipment 4 4. Electrical parameters of the tissue simulating liquid 5 5. System Accuracy Verification 6 6. Test Results 7 6.1 Head Adjacent Test Results 7 6.2 Body Worn Test Results 17 References 23 Appendix 1: SAR distribution comparison for system accuracy verification 24 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 25 Appendix 3: SAR distribution plots for Body Worn Configuration 26 Appendix 4: Probe Calibration Certificate 27 Appendix 5: Measurement Uncertainty Budget 28 Appendix 6: Photographs of the device under test 30 Appendix 7: Dipole Characterization Certificate 37 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21026-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 0.98 W/kg for head adjacent use and 0.49 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Bottom of Transceiver Length 88 mm Dimensions Width 7 mm Configuration FJA 2.2 Device description Serial Number LMC0250047 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 Bluetooth WiFi 802.11b/g Modulation Mode(s) GMSK GMSK GMSK GMSK GFSK FDMS Maximum Output Power Setting 32.30 dBm 33.00 dBm 30.50 dBm 30.50 dBm 4.00 dBm 15.20 dBm Duty Cycle 1:8 1:8 1:8 1:8 1:1 1:1 Transmitting Frequency Range(s) 824.2- 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz 2400.0 - 2483.5 MHz 2412.0 – 2472.0 Mhz Production Unit or Identical Prototype (47 CFR §2.908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21026-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 Mode(s) of Operation GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Modulation Mode(s) GMSK GMSK GMSK GMSK Maximum Output Power Setting 32.3 dBm 31.0 dBm 29.5 dBm 27.5 dBm 33.0 dBm 31.0 dBm 29.5 dBm 27.5 dBm 30.5 dBm 28.5 dBm 26.5 dBm 24.5 dBm 30.5 dBm 28.5 dBm 26.5 dBm 24.5 dBm Duty Cycle 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:81:8 2:8 3:84:8 1:8 2:8 3:84:8 Transmittin g Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz Mode(s) of Operation EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Modulation Mode(s) 8PSK 8PSK 8PSK 8PSK Maximum Output Power Setting 27.5 dBm 26.5 dBm 24.5 dBm 22.5 dBm 27.5 dBm 26.5 dBm 24.5 dBm 22.5 dBm 26.5 dBm 25.5 dBm 23.5 dBm 21.5 dBm 26.5 dBm 25.5 dBm 23.5 dBm 21.5 dBm Duty Cycle 1:8 2:8 3:8 4:8 1:8 2:8 3:84:81:8 2:8 3:84:8 1:8 2:8 3:84:8 Transmittin g Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz Note: Highest time-average power per band in bold type. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21026-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDP56HH2 Test Report Number: 21027-1 EXHIBIT 6 1 of 44 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 21027-1 Report Date – September 21, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: September 21, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDP56HH2 Test Report Number: 21027-1 EXHIBIT 6 2 of 44 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 8 Occupied Bandwidth 9 Measurement results 10 Spurious Emissions at Antenna Terminals 18 Measurement results 19 Field Strength of Spurious Emissions 23 Measurement results 24 Frequency Stability 29 Measurement results 30 Field Strength of Spurious Emissions -Unintentional Radiators 34 Measurement results 35 AC Line Conducted Emissions 37 Measurement results 38 APPLICANT: MOTOROLA INC FCC ID: IHDP56HH2 Test Report Number: 21027-1 EXHIBIT 6 3 of 44 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900, EDGE, Bluetooth FCC ID : IHDP56HH2 Serial Numbers: LMC0250023, LMC0250068, LMC0250107 LMC0250164, LMC0250001, LMC0230014 Testing Complete Date: September 11, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDP56HH2 Test Report Number: 21027-1 EXHIBIT 6 4 of 44 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average te…

Text truncated - open the document above for the full version.
