IHDP56HM1Portable GSM/EDGE/WCDMA Transceiver with Bluetooth

1 HELLOMOTOIntroducing your new Motorola W760r wireless phone. Here’s a quick anatomy lesson. Open m ain m enu, select m enu ite m s. Cle a r/B ac k Key Open Cellular Video.C a mer a Key Turn on/off, hang up, exit m enus. R ig ht Soft Key Go online. Volume Keys Make & answer calls. Left Soft Key Scroll up/down/left/right. Push To T a lk (PTT) Key M i n i -USB Port (on botto m of phone) 2 C a mer a Lens M i n i -USB Port Insert headset, battery charger, & other phone accessories. S i de Sele c t Key C a mer a Key Volume Keys Change alert profile in external display when flip is closed. Extern a l D i s p l a y See inco m ing call infor m ation when flip is closed, use as ca m era viewfinder when flip is closed & ca m era is active. 3 Note: This is the standard home screen and main menu layout. Your phone’s home screen and main menu may be different. To change your home screen shortcuts and main menu appearance, see page 34. Options Back Bluetooth AT&T 12:00AM 12/31/2008 Options Main Menu Home S c reen M ai n Menu Press & hold the power key P until the display lights up, to turn on your phone. 1 Press thecenter key s to select it. 4 Press thenavigation key S up/down/left/right to scroll to a m enu feature. 3 Press the center key s to open the M ai n Menu . 2 4 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-390-6456 (TTY/TDD United States for hearing impaired)1-800-461-4575 (Canada)Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation; and Windows XP and Windows Media are trademarks of Microsoft Corporation. Macintosh is a registered trademark of Apple Computer, Inc. All other product or service names are the property of their respective owners.© Motorola, Inc., 2007. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright NoticeThe Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: TBD-O contents 5 contentsmenu map . . . . . . . . . . . . . . . . 7Use and Care . . . . . . . . . . . . . . 9essentials . . . . . . . . . . . . . . . . 10 about this guide. . . . . . . . . . 10SIM card . . . . . . . . . . . . . . . 11memory card . . . . . . . . . . . . 11battery . . . . . . . . . . . . . . . . . 12turn the phone on & off . . . . 15make a call . . . . . . . . . . . . . 15answer a call . . . . . . . . . . . . 15end a call . . . . . . . . . . . . . . . 15store a phone number . . . . . 15call a stored phone number. 16search the contact list . . . . . 16your phone number . . . . . . . 17 basics . . . . . . . . . . . . . . . . . . . 18 display . . . . . . . . . . . . . . . . . 18 text entry . . . . . . . . . . . . . . . 20volume . . . . . . . . . . . . . . . . . 23side select key . . . . . . . . . . . 24external display . . . . . . . . . . 24voice commands . . . . . . . . . 24talking phone . . . . . . . . . . . . 26handsfree speaker . . . . . . . . 26codes & passwords . . . . . . . 27lock & unlock external keys . 27lock & unlock phone. . . . . . . 28 personalize . . . . . . . . . . . . . . . 29 profiles. . . . . . . . . . . . . . . . . 29time & date . . . . . . . . . . . . . 31themes . . . . . . . . . . . . . . . . 32display appearance . . . . . . . 33home screen shortcuts . . . . 34main menu appearance . . . . 34 rearrange main menu. . . . . 34answer options . . . . . . . . . 35 calls . . . . . . . . . . . . . . . . . . . . 36 turn off a call alert . . . . . . . 36recent calls. . . . . . . . . . . . . 36redial . . . . . . . . . . . . . . . . . 37return a call . . . . . . . . . . . . 37caller ID . . . . . . . . . . . . . . . 37emergency calls . . . . . . . . . 38voicemail . . . . . . . . . . . . . . 38 entertainment . . . . . . . . . . . . 39 music player . . . . . . . . . . . . 39browser . . . . . . . . . . . . . . . 47camera . . . . . . . . . . . . . . . . 49video . . . . . . . . . . . . . . . . . 52 messages . . . . . . . . . . . . . . . 56 text messaging . . . . . . . . . 56 6 contents mobile email…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDP56HM1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDP56HM1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Chad Kurszewski TITLE: Engineering Manager Motorola Mobile Devices Business Date: 10/10/07 Page 1 of 4 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDP56HM1 Page 2 of 4 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56HM1) is in compliance with all applicable parts of the FCC Rules. NAME: Chad Kurszewski TITLE: Engineering Manager Motorola Mobile Devices Business Date: 10/10/07 APPLICANT: MOTOROLA INC. FCC ID: IHDP56HM1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Chad Kurszewski TITLE: Engineering Manager Motorola Mobile Devices Business Date: 10/10/07 Page 3 of 4 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDP56HM1 Page 4 of 4 EXHIBIT 2 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDP56HM1. NAME: Chad Kurszewski TITLE: Engineering Manager Motorola Mobile Devices Business Date: 10/10/07

APPLICANT: MOTOROLA FCC ID: IHDP56HM1 Oct 08, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDP56HM1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 850 and 1900 MHz PCS band. It also operates in WCDMA 850 and 1900 MHz and employs GPRS Class 10 and EDGE Class 10. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247) and may be connected to a computer via a USB connection (Part 15 Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 Oct 10, 2007 SHORT TERM CONFIDENTIALITY REQUEST 45 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHD P56Hm1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 45 day s: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: December 11, 2007 Subject: Request for additional information regarding FCC ID: IHDP56HM1 Reference: Correspondence Reference Number: IHD7903 Confirmation Number: 710150903-05 Date of Original Email: November 13, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Operational Description has no information about the WDMA portion of this application. Please submit. Response: Please refer to revised Exhibit 12 (HM-EX12revA.pdf). 2. Please identify 3GPP Release version for the WCDMA portion of this device. If this device contains HSDPA (Rel 5), please update the FCC 3G conducted power measurements to include conducted powers with HSDPA active and inactive per Oct 2007, FCC SAR Measurement Procedures for 3G Devices, Page 14. Response: This is a UMTS Release 5 device with HSDPA. Refer to the following table for the Release 5 conducted power levels. Conducted Power (dBm) for WCDMA – HSDPA (Rel 5) modes Channel Sub test 1 Sub test 2 Sub test 3 Sub test 4 4132 23.29 20.86 20.34 20.53 4180 23.26 20.86 20.31 20.50 4233 23.17 20.80 20.23 20.48 9262 23.06 21.68 20.29 20.56 9400 22.90 21.00 20.26 20.47 9538 22.91 20.76 20.17 20.39 3. Please indicate 3G mode used for 22/24 EMC, SAR. HAC RF Emissions and T- coil testing. Response: 12.2 kbps AMR is used for both HAC RF Testing and HAC T-coil Testing. 4. Please identify and justify WCDMA 3G mode used in ABM2 investigation for Table 5 of the T-coil Report per July 2006 FCC guidance. Response: For T-coil measurements, ABM2 levels are investigated in the Table 1 below. 12.2 kbps AMR is used for T-coil testing because it shows one of the worst case scenarios. Table 1 ABM2 (dB A/m) 3.4k SRB -49.33 1.7k SRB -50.07 AMR 12.2 kbps 13.6k SRB -49.33 AMR 7.95k 3.4k SRB -49.60 AMR 4.75k 3.4k SRB -50.47 5. Please confirm if SAR Report are compliant to FCC 3G Procedures SAR Measurement Procedures for 3G Devices version 2.0 as of October 2007. The test reports indicate an older version. Response: Motorola confirms that the report and all SAR measurements performed are compliant to the FCC “SAR Measurement Procedures for 3G Devices” version 2.0 as of October 2007. 6. Page 84 of the Users Manual appears to state the incorrect Body SAR values for data transmission mode and regular body-worn mode . Please update or clarify. Response: Please refer to revised Users Manual (HM-EX08revA.pdf).

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 EXHIBIT 3 1 of 2 FRONT OF PHONE FLIP OPEN BACK OF PHONE FLIP OPEN APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 EXHIBIT 3 2 of 2 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED

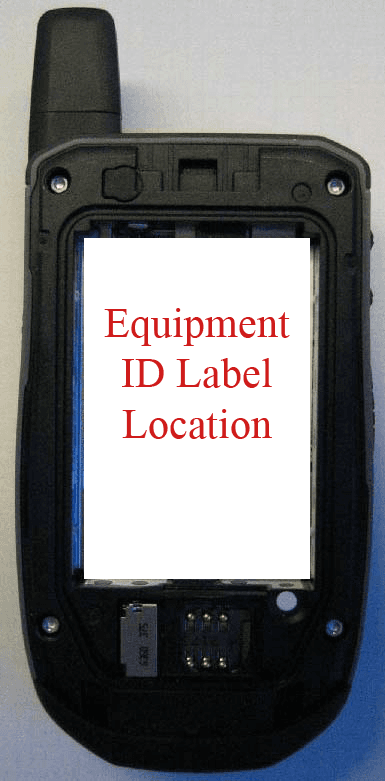

APPLICANT: MOTOROLA INC. FCC ID: IHDP56HM1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDP56HM1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 Main Board Bottom Without Shields Main Board Bottom With Shields EXHIBIT 9 1 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 REPLACE WITH YOUR PHOTO Main Board Top Without Popples Main Board Top With Popples EXHIBIT 9 2 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 Flip Board Flip LCD EXHIBIT 9 3 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 Daughter Board Bottom Daughter Board Top EXHIBIT 9 4 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 EXHIBIT 9 5 of 5 Inside Back Housing Inside Front Housing

APPLICANT: MOTOROLA INC FCC ID: IHDP56HM1 Test Report Number: 21073-1 Supplement 1 of 11 EXHIBIT 6A3 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 21073-1 Supplement Report Date – September 18, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: September 18, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDP56HM1 Test Report Number: 21073-1 Supplement 2 of 11 EXHIBIT 6A3 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA INC FCC ID: IHDP56HM1 Test Report Number: 21073-1 Supplement 3 of 11 EXHIBIT 6A3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900, WCDMA 850, WCDMA 1900, EDGE, Bluetooth FCC ID : IHDP56HM1 Serial Numbers: LKW0390068, LKW0390093, LKW0390099 LKW0390119, LKW0390162 Testing Complete Date: September 11, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 : X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDP56HM1 Test Report Number: 21073-1 Supplement 4 of 11 EXHIBIT 6A3 Summary of Testing Test Test Name # Pass/Fail _________ 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDP56HM1 Test Report Number: 21073-1 Supplement 5 of 11 EXHIBIT 6A3 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 3/19/2008 Rohde Schwarz Receiver ESI40 100001 5/02/2008 A.H. Systems Inc. DRG Horn Antenna SAS 200/571 365 5/24/2008 ETS Log-Periodic Antenna 3148 1189 9/12/2007 ETS Biconical Antenna 3110B 3369 9/12/2007 Attenuator Weinschel AS-6 6675 1/31/2008 Attenuator Weinschel AS-6 6677 6/21/2008 ETS LISN 3810/2NM 62907 5/02/2008 ETS LISN 3810/2NM 62912 5/02/2008 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. The Dell M20 Laptop Computer, the Iomega Z250S Zip Drive and the Olympus D-600L Camera are labeled as DoC. APPLICANT: MOTOROLA INC FCC ID: IHDP56HM1 Test Report Number: 21073-1 Supplement 6 of 11 EXHIBIT 6A3 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain, and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. APPLICANT: MOTOROLA INC FCC ID: IHDP56HM1 Test Report Number: 21073-1 Supplement 7 of 11 EXHIBIT 6A3 Measurement Results Operating Mode – Rx Mode, Data Transfer Mode. Notes: Worst Case emissions reported. 30 MHz – 1000 MHz Frequency MHz Level dBμV/m Measured dBμV Transd dB Cables dB Limit dBμV/m Margin dB Height cm Angle deg Pol. 30.68 35.7 15.08 12.8 7.8 40 4.3 99 138 VERT 47.96 34.87 16.75 10.2 7.9 40 5.1 100 225 VERT 75.72 33.46 15.84 8.9 8.7 40 6.5 100 201 VERT 79.96 32.45 14.11 9.5 8.8 40 7.6 100 174 VERT 83.80 28.41 9.29 10.2 8.9 40 11.6 129 143 VERT 147.28 35.04 11.94 13.0 10.1 43.5 8.5 204 244 VERT 196.36 34.83 9.05 15.2 10.6 43.5 8.7 250 235 HORI 261.80 37.04 12.72 13.0 11.3 46 9.0 100 102 HORI 287.68 35.66 10.45 13.6 11.6 46 10.3 124 251 HORI 327.28 36.56 9.05 1…

Text truncated - open the document above for the full version.

EMC TEST SETUP PHOTOS EMC Report #21073 AC Line - Part 15 APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 EMC Report #21073 Part 15, PC Peripheral APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 EMC Report #21073 Antenna - Substitution APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 EMC Report #21073 Tx Radiated APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21072-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 4 4 Appendix 6 SAR Test Setup Photographs of the device under test >>> Photographs are extracted from Exhibit 11<<< APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21072-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 5 5 Figure 1. Front of Phone Figure 2. Back of Phone Figure 3. Phone Open APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21072-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 6 6 Figure 4. Cheek/Touch Position Figure 5. Tilt Position APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21072-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 7 7 Figure 6. Push –to-Talk position Figure 7. Body Worn position APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 P P a a g g e e 2 2 1 1 E E x x h h i i b b i i t t 6 6 B B - - 1 1 Appendix 5 Pictures of Test Setup >>> Photos are extracted from FCC Exhibit6B1 <<< APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 P P a a g g e e 2 2 2 2 E E x x h h i i b b i i t t 6 6 B B - - 1 1 Figure A5-1. Phone Closed Figure A5-2. Phone Closed Figure A5-3. Phone Open - Orientation of Wireless Device and Measurement Plane APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 P P a a g g e e 2 2 3 3 E E x x h h i i b b i i t t 6 6 B B - - 1 1 Figure A5-4. View from the front Figure A5-5. View from the side APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 P P a a g g e e 3 3 1 1 E E x x h h i i b b i i t t 6 6 B B - - 2 2 Appendix 4 Pictures of Test Setup >>> Photos are extracted from FCC Exhibit6B2 <<< APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 P P a a g g e e 3 3 2 2 E E x x h h i i b b i i t t 6 6 B B - - 2 2 Figure A4-1. Phone Closed Figure A4-2. Phone Closed APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 P P a a g g e e 3 3 3 3 E E x x h h i i b b i i t t 6 6 B B - - 2 2 Figure A4-3. Phone Open - Orientation and Measurement Plane for RF Emissions Testing Figure A4-4. Coordinate Axis for T-coil Measurements Figure A4-5. Location of Measured Points APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HM1 P P a a g g e e 3 3 4 4 E E x x h h i i b b i i t t 6 6 B B - - 2 2 Figure A4-6. View from the front Figure A4-7. View from the side APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HM1 EXHIBIT 7
