IHDP56HQ1Cellular/ PCS GSM Portable Transceiver

User’s Guide motorola W260g C M Y CM MY CY CMY K v524443.eps 1/24/2008 9:03:23 AMv524443.eps 1/24/2008 9:03:23 AM 1 HELLOMOTOThanks for purchasing the Motorola W260g wireless phone! It’s an affordable phone with a sleek design that is sure to get attention. • My Phone, My Way — It’s your phone—make it that way. Customize your home screen with personal pictures, change wallpapers, and use your favorite song as your ringtone. • Convenient Extras — When you’re away from your home or office, use handy tools like Phonebook Calculator, Alarm Clock, and others. •Fun — Play a game when you have a little time to spare. • Messages — Exchange text messages with your friends, family, and colleagues. 2Here’s a quick anatomy lesson. Make & answer calls. Charge your battery. Left Soft Key R ig ht Soft Key Scroll up, down, right, & left. Turn on & off,hang up, exit m enus. Open m enus & select ite m s. Connect a headset. 3 & zå PH.BOOK MESSAGE Service Provider10/15/08 5:05pm t M x s G M ai n Menu Home S c reen Press & hold the power key Ë until the display lights up to turn on your phone.Press the center key s to open the M ai n Menu . Press thenavigation key S up/down/left/right to scroll to a m enu feature. Press thecenter key s to select it. SELECT EXIT Prepaid the [ n s e É Q t l Z 43 21 4 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-390-6456 (TTY/TDD United States for hearing impaired)1-800-461-4575 (Canada)Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners.© 2008 Motorola, Inc. All rights reserved.Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: 6809518A45-A contents 5 contentsmenu map . . . . . . . . . . . . . . . . 7Use and Care . . . . . . . . . . . . . . 9essentials . . . . . . . . . . . . . . . . 10 about this guide. . . . . . . . . . 10SIM card . . . . . . . . . . . . . . . 11battery . . . . . . . . . . . . . . . . . 11turn it on & off . . . . . . . . . . . 14make a call . . . . . . . . . . . . . 14answer a call . . . . . . . . . . . . 14adjust volume . . . . . . . . . . . 14change call alert. . . . . . . . . . 15store a phone number . . . . . 15call a stored phone number . . . . . . . . . . . . . . . . 15 tips & tricks . . . . . . . . . . . . . . 16 basics . . . . . . . . . . . . . . . . . . . 17 home screen . . . . . . . . . . . . 17menu shortcuts . . . . . . . . . . 19text entry . . . . . . . . . . . . . . . 21handsfree speaker . . . . . . . . 23codes & passwords . . . . . . . 23lock & unlock phone. . . . . . . 24check battery meter. . . . . . . 25tty operation . . . . . . . . . . . . 25 customize . . . . . . . . . . . . . . . . 27 ringstyles & alerts . . . . . . . . 27display appearance . . . . . . . 28answer options . . . . . . . . . . 29wallpaper . . . . . . . . . . . . . . . 29screen saver . . . . . . . . . . . . 29backlight. . . . . . . . . . . . . . . . 29more customizing features . 30 calls . . . . . . . . . . . . . . . . . . . . 31 redial . . . . . . . . . . . . . . . . . 31emergency calls . . . . . . . . . 31recent calls. . . . . . . . . . . . . 31notepad . . . . . . . . . . . . . . . 32speed dial. . . . . . . . . . . . . . 321-touch dial . . . . . . . . . . . . . 32quick dial . . . . . . . . . . . . . . 33caller ID . . . . . . . . . . . . . . . 33call waiting . . . . . . . . . . . . . 34 messages . . . . . . . . . . . . . . . 35 send message . . . . . . . . . . 35 receive message . . . . . . . . 35voicemail . . . . . . . . . . . . . . 36more messaging features . 36 6 contents other features . . . . . . . . . . . . 38 advanced calling . . . . . . . . . 38phonebook . . . . . . . . . . . . . 40call times & costs . . . . . . . . 41handsfree . . . . . . . . . . . . . . 42network. . . . . . . . . . . . . . . . 43personal organizer. . . . . . . . 43fun & games . . . . . . . . . . . . 45 service & repairs . . . . . . . . . . 4 6 SAR Data . . . . . . . . . . . . . . . . 4 7 Safety Information . . . . . . . . 50Industry Canada Notice . . . . 5 4 FCC Notice . . . . . . . . . . . . . . . 5 4 Warranty. . . . . . . . . . . . . . . . . 55Heari…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDP56HQ1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Diane Steel TITLE: Lead-Electrical-Engineer Motorola Mobile Devices Business Date: 12/18/07 Page 1 of 5 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 Page 2 of 5 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56HQ1) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business Date: 12/18/07 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDP56HQ1. NAME: Diane Steel TITLE: Lead-Electrical-Engineer Motorola Mobile Devices Business Date: 12/18/07 Page 4 of 5 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDP56HQ1 March 6, 2008 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDP56HQ1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the GSM standard in both the 850 MHz and the 1900 MHz PCS bands with HAC functionality. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( A.Bachler@ motorola.com) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

1 Date: March 07, 2008 Subject: Request for additional information regarding FCC ID: IHDP56HQ1 Reference: Correspondence Reference Number: IHD1070 Confirmation Number: 712261070 Date of Original Email: March 4, 2008 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 60048 Questions and responses follow: 1. Main schematics are missing from Exhibit 5. Please submit. Response: Please find the main schematics on Page 1of Exhibit 5. 2. Please provide a clear photograph of the circuit board showing electrical tracing for the internal photographs in Exhibit 9 Response: Please refer to the supplement file (HQ-EX09 Supplement) showing electrical tracing. 3. Users Manual image deviates greatly from the device illustrated in photographs. Please clarify. Response: Please refer to the updated User Manual (HQ-EX08 revA), in which the image matches the photos. 4. Please re-submit the letter for confidentiality Exhibit 13 for the FCC ID of interest. Response: Please refer to the corrected Exhibit 13(HQ-EX13 revA). 5. Please include updated HAC test procedure on Page 8, Exhibit 6B-1 per the test photographs. Response: Please refer to the revised HAC report (HQ-EX06B-1 revA), in which the updated HAC test procedure is included. 2 6. Page 9 states data mode tested at 25mm however no data mode Body SAR tests were found. Please clarify if this device has a data mode or not, and clarify the intended compliance body-worn distance. Response: This GSM device does not have a data mode. So Body SAR test was only performed at a body-worn distance of 15mm. Page 9 of the SAR report shouldn’t have included the statement of data mode testing. 7. Please clarify if this device will be used as a computer peripheral. USB functionality appears in the schematics. Response: Computer peripheral functionality is disabled in this device.

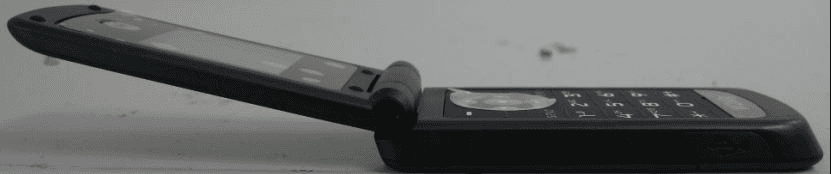

Front APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 1EXHIBIT 3 Back APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 2EXHIBIT 3 To p Bottom Side APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 3EXHIBIT 3 Back view with battery door removed APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 4EXHIBIT 3 Back view with battery & battery door removed Back view with FCC ID label APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 5EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDP56HQ1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDP56HQ1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

W260g PCB Photographs TOP View (w/ shielding cover) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HQ1 EXHIBIT 9 SUPPLEMENT TOP View (w/o shielding cover) APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HQ1 EXHIBIT 9 SUPPLEMENT BOTTOM View APPLICANT: MOTOROLA, INC.FCC ID: IHDP56HQ1 EXHIBIT 9 SUPPLEMENT

Portable Cellular Phone SAR Test Report Test Report #: 21435-1F Date of Report: 13-Dec-2007 Date of Test: 04-Dec-2007 FCC ID #: IHDP56HQ1 Generic Name: W260g Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yanjae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Jon Park Senior Staff Engineer Accreditation: TESTING CERT #2518-03 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21435-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 9 References 11 Appendix 1: SAR distribution comparison for system accuracy verification 12 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 13 Appendix 3: SAR distribution plots for Body Worn Configuration 14 Appendix 4: Probe Calibration Certificate 15 Appendix 5: Measurement Uncertainty Budget 16 Appendix 6: Photographs of the device under test 18 Appendix 7: Dipole Characterization Certificate 22 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21435-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 0.57 W/kg for head adjacent use and 0.85 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of the Transceiver Length 39.5 mm Dimensions Width 7.0 mm Configuration FJA 2.2 Device description Serial number 011424000047166 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GMSK GMSK Maximum Output Power Setting 32.8 dBm 30.0 dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.2-848.8 MHz 1850.2-1909.8 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21435-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE3 383 24-Aug-2008 E-Field Probe ETDV6 1515 28-Aug-2008 S.A.M. Phantom used for 800/900MHz TP-1129 S.A.M. Phantom used for 1800/1900MHz TP-1134 Dipole Validation Kit, DV900V2 97 1-May-2008 Dipole Validation Kit, DV1800V2 277tr 1-May-2008 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04630 Mar-02-2008 Power Meter E4419B US39250623 Mar-05-2008 Power Sensor #1 - 8481A 3318A86935 Mar-05-2008 Power Sen…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDP56HQ1 Test Report Number: 21436-1 EXHIBIT 6 1 of 31 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 21436-1 Report Date – December 20, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: December 20, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDP56HQ1 Test Report Number: 21436-1 EXHIBIT 6 2 of 31 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 13 Measurement results 14 Field Strength of Spurious Emissions 16 Measurement results 17 Frequency Stability 19 Measurement results 20 Field Strength of Spurious Emissions -Unintentional Radiators 22 Measurement results 23 AC Line Conducted Emissions 24 Measurement results 25 APPLICANT: MOTOROLA INC FCC ID: IHDP56HQ1 Test Report Number: 21436-1 EXHIBIT 6 3 of 31 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900 FCC ID: IHDP56HQ1 Serial Numbers: 01142000047299, 01142000047307, 01142000047315 Testing Complete Date: December 20, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 2 X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: ANSI 63.4 2003, ANSI/TIA-603-C-2004 APPLICANT: MOTOROLA INC FCC ID: IHDP56HQ1 Test Report Number: 21436-1 EXHIBIT 6 4 of 31 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDP56HQ1 Test Report Number: 21436-1 EXHIBIT 6 5 of 31 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 3/19/2008 Rohde Schwarz Receiver ESI26 100001 5/02/2008 Hewlett Packard EMC Analyzer E7405 US39440191 1/24/2008 Hewlett Packard Signal Generator 83712A 3429A00286 3/18/2008 ETS Horn Antenna 3115 6222 3/21/2008 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/24/2008 ETS Log-Periodic Antenna 3148 1188 6/18/2008 ETS Biconical Antenna 3110B 3370 3/15/2008 Attenuator Weinschel AS-6 6675 1/31/2008 Attenuator Weinschel AS-6 6677 6/21/2008 Thermotron Environmental Chamber S-4 31580 1/29/2008 Agilent Power Meter E4416A GB41293263 12/27/2008 Agilent Power Sensor E9323A US40412067 3/05/2008 ETS LISN 3810/2NM 62907 5/02/2008 ETS LISN 3810/2NM 62912 5/02/2008 Note that the Agilent power meter on a two-year calibration cycle. All other equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDP56HQ1 Test Report Number: 21436-1 EXHIBIT 6 6 of 31 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 850 Frequency (MHz) Power (dBm) 824.2 32.60 836.6 32.73 848.8 32.64 GSM 1900 Frequency (MHz) Power (dBm) 1850.2 29.92 1880.0 29.84 1909.8 29.85 APPLICANT: MOTOROLA INC FCC ID: IHDP56HQ1 Test Report Number: 21436-1 EXHIBIT 6 7 of 31 RADIATED POWER (EIRP AND ERP) Measurement Procedure The …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 P P a a g g e e 1 1 E E x x h h i i b b i i t t 6 6 B B - - 1 1 HAC Test Report for Near Field Emissions IHDP56HQ1 Date of test: Date of Report: 04-Dec-2007 18-Dec-2007 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yanjae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Test Responsible: Brian Lee RF Engineer Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC IHDP56HQ1 to which this declaration relates, complies with recommendations and guidelines FCC 47 CFR §20.19. The measurements were performed to ensure compliance to the ANSI C63.19-2006. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) Results Summary: M Category = M3 ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 P P a a g g e e 2 2 E E x x h h i i b b i i t t 6 6 B B - - 1 1 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST .............................................................................................3 3. TEST EQUIPMENT USED ....................................................................................................................................4 4. VALIDATION .........................................................................................................................................................5 5. PROBE MODULATION FACTOR ......................................................................................................................6 6. TEST RESULTS ......................................................................................................................................................8 APPENDIX 1: DETAILS JUSTIFYING THE CONVERSION TO PEAK ........................................................11 A1.1 Procedure for PMF measurements ...................................................................................................12 A1.2 0 Span Spectrum Plots for PMF measurements...............................................................................13 APPENDIX 2: HAC DISTRIBUTION PLOTS FOR VALIDATION .................................................................15 APPENDIX 3: HAC DISTRIBUTION PLOTS FOR E-FIELD AND H-FIELD................................................16 APPENDIX 4: MOTOROLA UNCERTAINTY BUDGET ..................................................................................17 A4.1 Motorola Uncertainty Budget for RF HAC Testing........................................................................18 A4.2 Probe Rotation Contributions to Isotropy Error.............................................................................18 APPENDIX 5: PICTURES OF TEST SETUP .......................................................................................................19 APPENDIX 6: PROBE CALIBRATION CERTIFICATES.................................................................................22 APPENDIX 7: DIPOLE CHARACTERIZATION CERTIFICATE ...................................................................23 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 P P a a g g e e 3 3 E E x x h h i i b b i i t t 6 6 B B - - 1 1 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed Hearing Aid Compatibility (HAC) measurements for the portable cellular phone (FCC ID IHDP56HQ1). The portable cellular phone was tested in accordance with ANSI PC63.19-2006 standard. The test results presented herein clearly demonstrate compliance FCC 47 CFR § 20.19. This report demonstrates compliance for near field emissions only and not for the T-coil performance compliance. 2. Description of the Device Under Test Table 1: Information for the Device Under Test FCC ID Number IHDP56HQ1 Serial number 011424000047257 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GMSK GMSK Maximum Output Power Setting 32.8 dBm 30.0 dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.2-848.8 MHz 1850.2-1909.8 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable Note: No Bluetooth profile exists in this phone that will allow a Bluetooth link while in a cellular call that passes audio to the earpiece. If the user had Bluetooth enabled and a link established, they could not be listening to the phone through the earpiece. APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HQ1 P P a a g g e e 4 4 E E x x h h i i b b i i t t 6 6 B B - - 1 1 3. Test Equipment Used The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the HAC measurements are taken within a shielded enclosure. The measurement uncertainty budget is given in Appendix 4. The list of calibrated equipment…
