IHDP56HR1Portable Cellular/ PCS GSM Transceiver

INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. The text on the following three pages will be added to the user manual. APPLICANT: MOTOROLA,INC. FCC ID: IHDP56HR1 EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 0 . 54 W /kg, and when worn on the body, as described in thi s user guide, is 0. 64 W /kg. 2 Wh ile there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. FCC NoticeFCC Notice To UsersFCC NoticeMotorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).If your mobile device or accessory has a USB connector, or is otherwise considered a computer peripheral device whereby it can be connected to a computer for purposes of transferring data, then it is considered a Class B device and the following statement applies:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. User’s Guide motorolaW270 1 HELLOMOTO Thanks for purchasing the Motorola W270 wireless phone! It’s an affordable phone with a sleek design that’s sure to get attention. My Phone, My Way – It’s your phone—make it that way. Customize your home screen with pictures, change wallpapers, and use your favorite song as your ringtone. Convenient Extras – When you are away from your home or desk, make use of handy office tools like Calendar, Calculator, Stopwatch, and others. Fun – When you have a little time to spare, play a game or listen to music. Browse the Web – Use Web Access to do a little surfing on the go. 2 Here’s a quick anatomy lesson. Navigate menus. Right Soft Key hang up, exit menus. Left Soft Key Radio Key Op…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA, INC. FCC ID: IHDP56HR1 ATTESTATION STATEMENTS Transceiver type (IHDP56HR1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: January 16, 2008 APPLICANT: MOTOROLA INC. FCC ID: IHDP56HR1 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDP56HR1. NAME: Andrew Bachler TITLE: FCC Liaison Mobile Device Business Motorola, Inc. Date: February 25, 2008 Exhibit 2D APPLICANT MOTOROLA INC. FCC ID: IHDP56HR1 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56HR1) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business STATEMENT OF CERTIFICATION

APPLICANT: MOTOROLA FCC ID: IHDP56HR1 Jan 30, 2008 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDP56HR1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 850 and 1900 MHz PCS band. It also employs GPRS Class 10. The unit may be connected to a computer (Part 15 Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: February 25, 2008 Subject: Request for additional information regarding FCC ID: IHDP56HR1 Reference: Correspondence Reference Number: IHD80077 Confirmation Number: 801310077-79 Date of Original Email: February 23, 2008 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please include a letter stating the stage of production for the HAC tests. Response: Please refer to exhibit 2d. 2. Operational Description and Block Diagram show filters and paths with USA band capabilities disabled. Please clarify. Response: This product has a US version (850 & 1900 MHz bands) and a separate EU version (900 & 1800 MHz bands). Please refer to the revised Block Diagram and Operational Description which are updated to highlight the US version. 3. Schematics indicate parts inline paths for EU operation. Please clarify. Response: This product is available in both a US version (850 & 1900 MHz bands) and a separate EU version (900 & 1800 MHz bands). The schematics, exhibit 5, are applicable to both versions. 4. Please provide photographs of the USB data cable used in results from Exhibit 6A-3. Response: Please refer to the following photo: 1 5. Users Manual p. 8 , 50, 66 indicate HAC mode in the device. Please clarify if HAC mode was used for HAC tests. Response: The HAC mode was not used for the M rating rf testing. 6. Please include HAC language requirement in the Users Manual for HAC compatible handsets per 20.19. Response: The user’s manual will include the attached hearing aid compatibility information. 7. In Page 21 Exhibit 6B-1 test setup photographs, there appears to be an external antenna in the photograph on the test table. Please clarify or explain per requirements of C63.19 Sec 4.3.1. Response: Please ignore the external antenna in the photograph. The antenna is used for validation only, and was not involved during the EUT testing. 2 He a ring Aids Hearing Aid Compatibility with Mobile PhonesHearing AidsSome Motorola phones are measured for compatibility with hearing aids. If the box for your particular model has “Rated for Hearing Aids” printed on it, the following explanation applies.When some mobile phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box.The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.)Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.

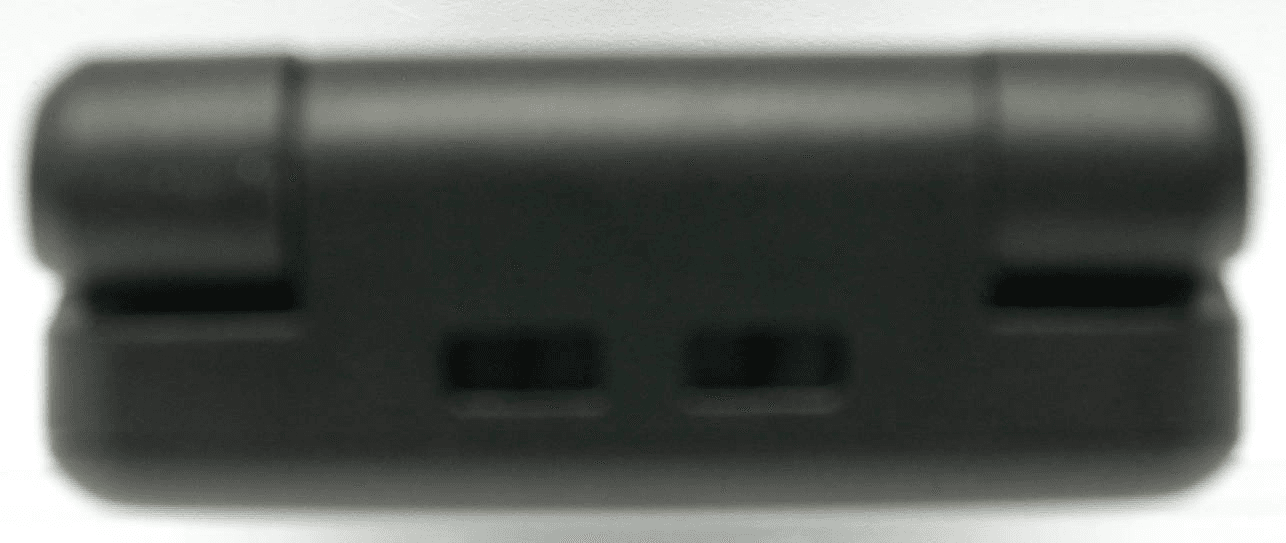

Front Back Top Bottom APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HR1 EXHIBIT 3 Side Back view with battery door removed APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HR1 EXHIBIT 3 Back view with battery & battery door removed Back view with FCC ID label Equipment ID Label Location APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HR1 EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDP56HR1 FCC IDENTIFICATION (W270) INFORMATION FCC ID: IHDP56HR1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

Internal back – Shielding removed Internal back – with Shielding APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HR1 EXHIBIT 9 Internal Front APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HR1 EXHIBIT 9

0 0 Portable Cellular Phone SAR Test Report Test Report #: 21535-1 Date of Report: 15-Feb-2008 Date of Test: 18-Jan-2008 through 21-Jan-2008 FCC ID #: IHDP56HR1 Generic Name: W270 US Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yangae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Jon Park Senior Staff Engineer Accreditation: TESTING CERT #2518-03 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21535-1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 9 References 11 Appendix 1: SAR distribution comparison for system accuracy verification 12 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 13 Appendix 3: SAR distribution plots for Body Worn Configuration 14 Appendix 4: Probe Calibration Certificate 15 Appendix 5: Measurement Uncertainty Budget 16 Appendix 6: Photographs of the device under test 18 Appendix 7: Dipole Characterization Certificate 22 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21535-1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ICNIRP (10g), the final SAR reading for this phone is 0.32 W/kg for head adjacent use and 0.46 W/kg for body worn use. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 0.54 W/kg for head adjacent use and 0.64 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of the transceiver Width 39.5 mm Dimensions Length 7.0 mm Configuration FJA 2.2 Device description Serial number 011440000000435 Mode(s) of Operation GSM 850 GSM 1900 GPRS 850 GPRS 1900 Modulation Mode(s) GMSK GMSK GMSK GMSK Maximum Output Power Setting 32.80 dBm 30.00 dBm 32.80 dBm 32.80 dBm 30.0 dBm 30.0 dBm Duty Cycle 1:8 1:8 1:8 2:8 1:8 2:8 Transmitting Frequency Rang(s) 824.2-848.8 MHz 1850.2 – 1909.8 MHz 824.2-848.8 MHz 1850.2 – 1909.8 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled Note: Bolded entries indicate data mode of highest time-average power per band and mode type. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21535-1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE3 383 24-Aug-2008 E-Field Probe ETDV6 1515 28-Aug-2008 S.A.M. Phantom used for 800/90…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDP56HR1 Test Report Number: 21536-1 EXHIBIT 6 1 of 31 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 21536-1 Report Date – February 6, 2008 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: February 6, 2008 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDP56HR1 Test Report Number: 21536-1 EXHIBIT 6 2 of 31 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 13 Measurement results 14 Field Strength of Spurious Emissions 16 Measurement results 17 Frequency Stability 19 Measurement results 20 Field Strength of Spurious Emissions -Unintentional Radiators 22 Measurement results 23 AC Line Conducted Emissions 24 Measurement results 25 APPLICANT: MOTOROLA INC FCC ID: IHDP56HR1 Test Report Number: 21536-1 EXHIBIT 6 3 of 31 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900 FCC ID: IHDP56HR1 Serial Numbers: 0114400000000401, 0114400000000252, 0114400000000179 Testing Complete Date: February 2, 2008 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDP56HR1 Test Report Number: 21536-1 EXHIBIT 6 4 of 31 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDP56HR1 Test Report Number: 21536-1 EXHIBIT 6 5 of 31 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 3/19/2008 Rohde Schwarz Receiver ESI26 100001 5/02/2008 Hewlett Packard EMC Analyzer E7405 US39440191 1/24/2008 Hewlett Packard EMC Analyzer E7405 US40240219 6/28/2008 Hewlett Packard Signal Generator 83712A 3429A00286 3/18/2008 ETS Horn Antenna 3115 6222 3/21/2008 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/24/2008 ETS Log-Periodic Antenna 3148 1188 6/18/2008 ETS Biconical Antenna 3110B 3370 3/15/2008 Attenuator Weinschel AS-6 6675 1/31/2008 Attenuator Weinschel AS-6 7074 7/23/2008 Attenuator Weinschel AS-6 6677 6/21/2008 Thermotron Environmental Chamber S-4 31580 1/29/2008 Agilent Power Meter E4416A GB41293263 12/27/2008 Agilent Power Sensor E9323A US40412067 3/05/2008 Agilent Microwave Preamplifier 8449B 3008A00535 12/06/2008 ETS LISN 3810/2NM 62907 5/02/2008 ETS LISN 3810/2NM 62912 5/02/2008 All testing was performed using equipment that was within calibration at the time that the test was performed. No equipment listed in the table above was used after the specified calibration due date. If, during the course of product testing, a piece of equipment went out of calibration and that piece of equipment was needed to complete product testing, a similar piece of calibrated equipment was substituted. If a substitution was made, that new piece of equipment would be listed in the above table along with the piece that was removed from service. Note that the Agilent power meter on a two-year calibration cycle. All other equi…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HR1 P P a a g g e e 1 1 E E x x h h i i b b i i t t 6 6 B B - - 1 1 HAC Test Report for Near Field Emissions IHDP56HR1 Date of test: Date of Report: Jan-25-2008 Feb-11-2008 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11F, Hibrand Building 215, Yangjae-dong, Seocho-gu, Seoul 137-924, Korea Test Responsible: DH Moon RF Engineer Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC IHDP56HR1 to which this declaration relates, complies with recommendations and guidelines FCC 47 CFR §20.19. The measurements were performed to ensure compliance to the ANSI C63.19-2006. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) Results Summary: M Category = M3 ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDP56HR1 P P a a g g e e 2 2 E E x x h h i i b b i i t t 6 6 B B - - 1 1 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST .............................................................................................3 3. TEST EQUIPMENT USED ....................................................................................................................................4 4. VALIDATION .........................................................................................................................................................5 5. PROBE MODULATION FACTOR ......................................................................................................................6 6. TEST RESULTS ......................................................................................................................................................8 APPENDIX 1: DETAILS JUSTIFYING THE CONVERSION TO PEAK ........................................................11 A1.1 Procedure for PMF measurements ...................................................................................................12 A1.2 0 Span Spectrum Plots for PMF measurements...............................................................................13 APPENDIX 2: HAC DISTRIBUTION PLOTS FOR VALIDATION .................................................................15 APPENDIX 3: HAC DISTRIBUTION PLOTS FOR E-FIELD AND H-FIELD................................................16 APPENDIX 4: MOTOROLA UNCERTAINTY BUDGET ..................................................................................17 A4.1 Motorola Uncertainty Budget for RF HAC Testing........................................................................18 A4.2 Probe Rotation Contributions to Isotropy Error.............................................................................18 APPENDIX 5: PICTURES OF TEST SETUP .......................................................................................................19 APPENDIX 6: PROBE …

Text truncated - open the document above for the full version.
