IHDP56KC6Portable Cellular/ PCS GSM/ EDGE AWS WCDMA Transceiver with WLAN and Bluetooth

APPLICANT MOTOROLA INC. FCC ID: IHDP56KC6 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 Please note:This draft documents features as they were available and functioning at the time of production.Any screen captures are preliminary.This draft uses an A6-size template. 1 Congratulations CongratulationsMOTOROLA MB710 with MOTOBLURMOTOROLA MB710 with MOTOBLUR is the latest way to stay up to date on the friends and information that mean the most to you. Finally, spend less time managing your life and more time living it.• Sync contacts, messages, feeds and updates from today’s most popular social sites • Always backed-up + AGPS for locating your phone + remote wipe = totally secure • Get more from the Web, with a huge screen and full HTML. Search, browse, everything you want to do, all made easier. More informationOn your computer —Go to www.motorola.com/support/ . Caution: Before assembling, charging or using your phone for the first time, please read the important legal and safety information packaged with your phone. Once your phone is up and running, press Menu > Settings > About phone > Safety information to read the full information. After you create a MOTOBLUR account, you can also log in and find help with MOTOBLUR: www.motorola.com/mymotoblur . So, whether you want to talk, read, watch, or play, we can help. 2 Congratulations Your phonethe important keys & connectorsNote: Your phone might look a little different. TOC to be developed Press to put thedisplay to sleep,or hold to turn off. 3.5mm He a dset J ac k Home Key B ac k Key M ic ro p hone Menu Key To u c hs c reen C a mer a Key Power Key Volume Keys Press to open m enu options. Se a r c h Key Press for textsearch or holdfor voice search. M ic ro USB Conne c tor Charge or connect to PC. Press to close any m enu or app & return to the ho m e screen. Press to go back. HDMI Conne c tor Let’s golet’s get you up and runningAssemble & charge Caution: Please read the battery use and safety text at the back of this guide. 1 SIM in 2 microSD in (may already be inserted) 3 battery in 4 cover on 5 charge up 3H 3 Let’s go Set up & goCreate or log into a MOTOBLUR account to get your contacts, email, messages, and status information, for all your accounts, all in one place, all the time. There’s more in “Your MOTOBLUR account” on page 32. Registration is secure, and should only take a few minutes: 1 Turn on. 2 Select a language.Tip: For product support, you can tap Emergency Call and dial 611. After you sign in, your phone imports your contacts from your T-Mobile Mobile Backup account, or your SIM card if you haven’t used Mobile Backup . To see your contacts, tap Contacts . 3 Register or log in.Tip: Open your phone to type.Tip: Tap a text field to open the display keypad. If you have not created a MOTOBLUR account, you’ll need to register: Enter your name, your current email address (where MOTOBLUR can send account information), and a new MOTOBLUR account password. 4 Add your accounts. To add an account, tap it and enter the user name or email and password that you set up on that account. MOTOBLUR ID: Enter email address Your name: e.g. John Smith Password: Password Next Back Creating your MOTOBLUR account... F acebook T wi TT t te r L ast FM P i cas a Photobucke t My sp ace 4 Let’s go Tip: To manually import contacts from a SIM card, tap Contacts , then press Menu > Settings > Import from SIM card . Tap OK to confirm. Turn it on & offTo turn on your phone, press and hold Power (on top of the phone).To turn off your phone, press and hold Power , then tap Power off . Wi-Fi connectIf you want to use a Wi-Fi computer network for even faster Internet access, press Menu > Settings > Wireless & networks > Wi-Fi settings . Cool content & moreBrowse and download thousands of the coolest apps on the planet from Android Market™. Learn more about downloading new apps with “Android Market ™ ” on page 20. Your phone comes with a microSD memory card installed—you can load it up with photos, videos, and music from your computer using “USB drag & drop” on page 43. SecurityYour contacts are backed-up on MOTOBLUR, so don’t worry. Even if you lose your phone, MOTOBLUR can help you find it or wipe it. And when you get your next MOTOBLUR product, your stored info makes it a snap to set up with just a username and password.Of course, it doesn't stop there. There are plenty of ways to protect your phone and your information, in “Security” on page 46. 5 Touchscreen & keys Touchscreen & keysa few essentialsTouch tipsHere are some tips on how to navigate around your phone.Ta pTo choose an icon or option, tap it. Tap & holdTo open special options, tap and hold an icon or other item. Try it: In the home screen, tap Contacts , then tap and hold a contact to open options. Phone Contacts Browser Maps Rick Wasser Wallace Mans Jennie Jenkins Leo Heaton Mick West JL M RW DragTo scroll through a list or move slowly, drag across the touchscreen. Try it: In the home screen, tap Contacts , then drag your Contacts list up or down. Tip: When you drag or flick a list, a scroll bar appears on the right. Drag the scroll bar to move the list to a letter A-Z.FlickTo scroll through a list or move quickly, flick across the touchscreen (drag quickly and release).Tip: When you flick a long list, tap the screen to stop it from scrolling.ZoomGet a closer look at maps or web pages. To zoom in, double-tap the screen, or tap the screen with two fingers and then slide them apart. To zoom out, double tap the screen again, or drag your fingers together. Rick Wasser Wallace Mans Jennie Jenkins Leo Heaton JL M R 6 Touchscreen & keys My SignDraw on your screen to get to your favorite apps. To open My Sign , tap the My Sign icon on the home screen or in the Applications tab. Draw the sign for the action you want. For example, draw a “V” to go to voicemail.To see which actions are already assigned to signs, press Menu . You’ll also see several signs that are unassigne…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDP56KC6 Page 1 of 3 EXHIBIT 2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDP56KC6) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Frank.Hyochang Kim TITLE: Engineering Manager Motorola Mobile Devices Business Date: Dec, 11, 2009 APPLICANT: MOTOROLA INC. FCC ID: IHDP56KC6 Page 2 of 3 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56KC6) is in compliance with all applicable parts of the FCC Rules. NAME: Frank.Hyochang Kim TITLE: Engineering Manager Motorola Mobile Devices Business Date: Nov, 6, 2009 APPLICANT: MOTOROLA INC. FCC ID: IHDP56KC6 Page 3 of 3 EXHIBIT 2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Frank.Hyochang Kim TITLE: Engineering Manager Motorola Mobile Devices Business Date: Dec, 11, 2009

Date: January 5, 2010 Subject: Request for additional information regarding FCC ID: IHDP56KC6 Reference: Correspondence Reference Number: IHD91475 Confirmation Number: 912091475-8 Date of Original Email: Dec. 30, 2009 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 60048 Questions and responses follow: 1. The licensed transmitter block diagram does not show the clock/oscillator values- please revise and resubmit. Response: Please refer to the revised Block Diagrams submitted online. 2. Please provide an operational description that addresses the RF sections of both the WLAN and BT transmitters (e.g., modulation type, power generation and control, etc.). Response: Please refer to the revised Operational Description submitted online. Frequency range, maximum output power and modulation technique were updated. 3. The EDGE 850 ERP appears to be quite low- please confirm that the EUT was operating at max power for this measurement. Response: Please refer to the revised EMC report submitted online, the radiated power has been re-measured. 4. Please provide RF conducted bandedge plots of the AWS WCDMA emission beginning at points removed from both bandedges by 1 MHz using RBW= 1 MHz, as required by Section 27.53(h)(1). Please note that, since a peak detector was used to measure EIRP, these bandedge measurements must also use a peak detector, pursuant to Section 27.53(h)(3). 1 2 Response: Please refer to the AWS WCDMA 1MHz Offset plots submitted online. 5. In the WLAN RE report, the plots on pp. 9 – 13 and 17 – 21 show multiple peak emissions that exceed the average limit (some by 10 dB or more). Please provide tabular data, including average field strength values, for these emissions. Response: Please refer to the WLAN Radiated Emissions Tabular Data submitted online. 6. FYI: in the WLAN report, many of the conducted spurious plots on pp. 19 – 30 have the DL set at a value that is not 20 dBc. Response: Noted.

APPLICANT: MOTOROLA FCC ID: IHDP56KC6 Exhibit 13 December 24, 2009 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiv er, FCC ID: IHDP56KC6. Motorola is also the manufacturer of this equipment. Confidentiality : Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 85 0, 900,1800 and 1900 MHz PCS band. It also operates in WCDMA 1700 and 2100 MHz and contains EDGE/GPRS Class 12 and a 2.4 GHz Bluetooth and 802.11b&g functions (Part 15.247). The unit may also be connected to a computer via a USB connection (Part 15 Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

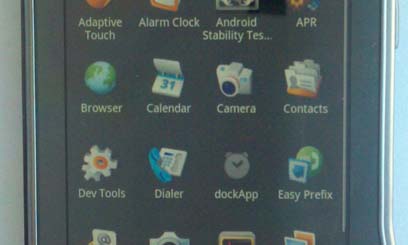

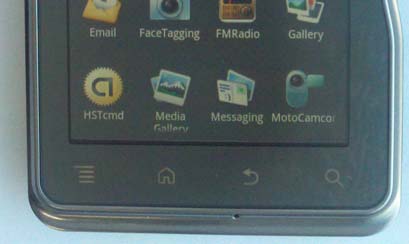

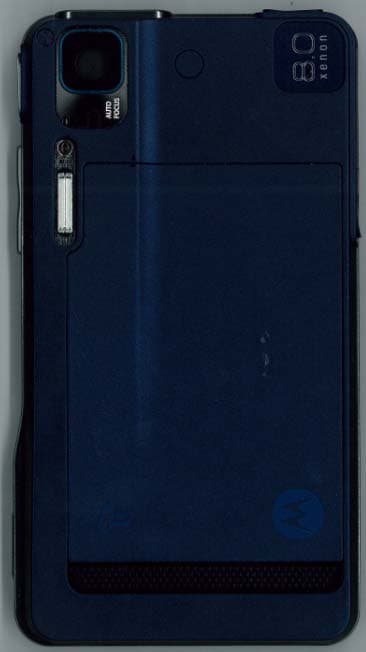

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC 6 EXHIBIT 3 2 of 2 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC 6 EXHIBIT 3 2 of 2 SIDE OF PHONE TOP OF PHONE BOTTOM OF PHONE

APPLICANT: MOTOROLA INC. FCC ID: IHDP56KC6 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDP56KC6

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC6 EXHIBIT 9 1 of 8 Main Board Top With shields Main Board Top Without shields Main Board Bottom With Shields Main Board Bottom Without Shields APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC6 EXHIBIT 9 2 of 8 Daughter Board Top With Shields Daughter Board Top Without Shields Daughter Board Bottom With metal plate Daughter Board Bottom APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC6 EXHIBIT 9 3 of 8 Audio Board Top With shield Audio Board Top Without shield Audio Board Bottom APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC6 EXHIBIT 9 4 of 8 LCD Bridge Flex Bottom Bottom Key Flex Bottom LCD Bridge Flex TOP Bottom Key Flex TOP APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC6 EXHIBIT 9 5 of 8 Side Key flex TOP Side Key flex BOTTOM Xenon Flash TOP Camera TOP APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC6 EXHIBIT 9 6 of 8 Xenon Flash BOTTOM Camera BOTTOM Battery Cover Inside Battery Cover APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC6 EXHIBIT 9 7 of 8 Display Cover Ass’y LCD Ass’y Main lens Ass’y Acoustic Chamber ass’y Back Inside Rear Housing Ass’y Front End Ass’y APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KC6 EXHIBIT 9 8 of 8 Acoustic Chamber ass’y Rear Housing Ass’y Inside Front End Ass’y Inside Main lens Ass’y LCD Ass’y backDisplay Cover Ass’y Back

MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23511-1F FCC ID: IHDP56KC6 Exhibit 11 Portable Cellular Phone SAR Test Report Tests Requested By: Motorola Mobile Devices 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 23511-1F Date of Report: Dec-15-2009 Date of Test: Dec-04-2009 to Dec-09-2009 FCC ID #: IHDP56KC6 Generic Name: MKQ7-334411A21 Test Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Thomas Knipple Senior RF Engineer Accreditation: TESTING CERT #2518-02 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2009 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23511-1F FCC ID: IHDP56KC6 Exhibit 11 Page 2 of 16 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 4 2.1 Antenna description 4 2.2 Device description 4 3. Test Equipment Used 5 3.1 Dosimetric System 5 3.2 Additional Equipment 5 4. Electrical parameters of the tissue simulating liquid 6 5. System Accuracy Verification 7 6. Test Results 8 6.1 Head Adjacent Test Results 9 6.2 Body Worn Test Results 12 References 16 Appendix 1: SAR distribution comparison for the system accuracy verification Appendix 2: SAR distribution plots for Phantom Head Adjacent Use Appendix 3: SAR distribution plots for Body Worn Configuration Appendix 4: Probe Calibration Certificate Appendix 5: Measurement Uncertainty Budget Appendix 6: Dipole Characterization Certificate MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23511-1F FCC ID: IHDP56KC6 Exhibit 11 Page 3 of 16 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1 g average set in [3] and 2.0 W/kg in a 10 g average set in [2]. For ANSI / IEEE C95.1 (1 g), the final SAR reading for this phone is 0.65 W/kg for head-adjacent use and 1.12 W/kg for body-worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23511-1F FCC ID: IHDP56KC6 Exhibit 11 Page 4 of 16 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Bottom Rear of Transceiver Length 55.9 mm Dimensions Width 1.3 mm Configuration Loop Antenna 2.2 Device description Serial Number(s) 352296030006264 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 WCDMA 1700 WCDMA 2100 Wi-Fi 802.11b/g Bluetooth Modulation Mode(s) GSMK GSMK GSMK GSMK QPSK QPSK BPSK GFSK Maximum Output Power Setting 33.0 dBm 33.0 dBm 30.0 dBm 30.0 dBm 24.0 dBm 24.0 dBm 20 dBm 10 dBm Duty Cycle 1:8 1:8 1:8 1:8 1:1 1:1 1:1 1:1 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz 1712.4 - 1752.6 MHz 1922.4 - 1977.6 MHz 2412.0 - 2462.5 MHz 2402.0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled Mode(s) of Operation GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Modulation GMSK GMSK GMSK GMSK Maximum Output Power Setting 33.0 31.0 29.0 27.0 33.0 31.0 29.0 27.0 30.0 28.0 26.0 24.0 30.0 28.0 26.0 24.0 Duty Cycle 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz Mode(s) of Operation EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Modulation 8PSK 8PSK 8PSK 8PSK Maximum Output Power Setting 27.5 25.5 23.5 21.5 27.5 25.5 23.5 21.5 26.5 24.5 22.5 20.5 26.5 24.5 22.5 20.5 Duty Cycle 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz Note: Bolded entries indicate data mode configurations of highest time-average power output per band and data mode type. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23511-1F FCC ID: IHDP56KC6 Exhibit 11 Page 5 of 16 3. Test E…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDP56KC6 Test Report Number: 23513-1WLAN Page 1 of 28 EXHIBIT 6A3 FCD-1757, Rev 3 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT - Addendum Test Report Number – 23513-1 WLAN Report Date – 2009-12-14 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Signature: Name: Lei Yang Title: EMC Project Manager Test: 2009-08-26 to 2009-09-16 As the responsible test lab manager, I hereby declare that the model tested as specified in this report conforms to the requirements indicated . Signature: Name: Yilin Zhao Title: Test Lab Manager Date: 2009-12-14 This report must not be reproduced, except in full, without written approval from this laboratory. FCC Registration Number: 177885 IC Registration Number: 109AW-1 ADR Testing Service location ADR BJ ISO/IEC-17025:2005 accredited by UKAS 2404 APPLICANT: MOTOROLA INC FCC ID: IHDP56KC6 Test Report Number: 23513-1 WLAN Page 2 of 28 EXHIBIT 6A3 Table of Contents Test Report Details .............................................................................................................3 Applicable Standards .......................................................................................................... 4 Summary of Testing............................................................................................................ 5 General and Special Conditions.......................................................................................... 5 Equipment and Cable Configurations................................................................................. 6 Measuring Equipment and Calibration Information ........................................................... 6 Measurement Procedures and Data..................................................................................... 8 FIELD STRENGTH OF SPURIOUS EMISSIONS....................................................... 8 Measurement Procedure.............................................................................................. 8 Measurement Results .................................................................................................. 9 WLAN Band (b) ......................................................................................................... 9 WLAN Band (g) ....................................................................................................... 16 BAND-EDGE COMPLIANCE OF RF RADIATED EMISSIONS............................. 24 Measurement Procedure............................................................................................ 24 Measurement Results ................................................................................................ 24 WLAN Band (b) ....................................................................................................... 25 WLAN Band (g) ....................................................................................................... 27 APPLICANT: MOTOROLA INC FCC ID: IHDP56KC6 Test Report Number: 23513-1 WLAN Page 3 of 28 EXHIBIT 6A3 Test Report Details Tests Performed By: Motorola (China) Technologies Ltd. Asia Global Compliance Labs No.1 Wang Jing East Road Chao Yang District Beijing, 100102, P. R. China Phone: +86 10 8473 2610 FCC Registration Number: 177885 IC Registration Number: 109AW-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cell phone with embedded WLAN Signaling Capability: WCDMA 1700/2100, GSM 850/900/1800/1900, HSDPA 10.2 Mbps (Category 9/10)/7.2 Mbps (Category 7/8), EDGE Class 12, GPRS Class 12, HSUPA 5.76 Mbps, Standalone GPS/eCompass, Bluetooth, 802.11b/802.11g IMEI: 0044010227563077 FCC ID: IHDP56KC6 Project number: 23513-1 Testing Complete Date: 2009-09-16 APPLICANT: MOTOROLA INC FCC ID: IHDP56KC6 Test Report Number: 23513-1 WLAN Page 4 of 28 EXHIBIT 6A3 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart C – Intentional Radiators Part 22 Subpart H - Public Mobile Services Part 24 - Personal Communications Services Part 27 - Wireless Communications Service Part 90 - Private Land Mobile Radio Service Applicable Standards: ANSI C63.4-2003, RSS-Gen Issue 2, RSS-210 Issue 7. The following tests were performed according to the regulations: • The spurious radiated emission requirements of § 15.247 and § 15.249 of CFR47 Part 15 2007, specifically” radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). • Under this project only 30 to 1000 MHz, 1 to 26.5 GHz radiated and radiated band-edge measurements were performed. • For frequencies below 1 GHz a 100 kHz RBW (6 dB) is used and above 1 GHz a 1 MHz RBW (6 dB) is used. APPLICANT: MOTOROLA INC FCC ID: IHDP56KC6 Test Report Number: 23513-1 WLAN Page 5 of 28 EXHIBIT 6A3 Summary of Testing Test Test Name Pass/Fail _____________________________________________________________________ 1 Field Strength of Spurious Emissions Pass 2 Band-edge Compliance of RF Radiated Emissions Pass Test Test Name Results ______________________________________________________________________ 1 Field Strength of Spurious Emissions See plots 2 Band-edge Compliance of RF Radiated Emissions See plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The 23513-1 test sample was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDP56KC6 EXHIBIT 6A3 Page 1 of 2 WLAN Band (b) Only the worst case table is shown in below in the range from 2500 MHz to 2700 MHz. 2500 – 2700 MHz Low Channel Dual Polarization Z (Peak Detector) 2500 – 2700 MHz Low Channel Dual Polarization Z (Average Detector) APPLICANT: MOTOROLA INC. FCC ID: IHDP56KC6 EXHIBIT 6A3 Page 2 of 2 WLAN Band (g) Only the worst case table is shown in below in the range from 2500 MHz to 2700 MHz. 2500 – 2700 MHz Low Channel Dual Polarization Z (Peak Detector) 2500 – 2700 MHz Low Channel Dual Polarization Z (Average Detector)

APPLICANT: MOTOROLA INC FCC ID: IHDP56KC6 Test Report 23513-1 WLAN 1 of 40 EXHIBIT 6A5 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 23513-1 WLAN Report Date – December 9, 2009 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: December 9, 2009 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDP56KC6 Test Report 23513-1 WLAN 2 of 40 EXHIBIT 6A5 Table of Contents Test Report Details .............................................................................................................3 Applicable Standards .......................................................................................................... 3 Summary of Testing............................................................................................................ 4 General and Special Conditions.......................................................................................... 4 Equipment and Cable Configurations ................................................................................. 5 Measuring Equipment and Calibration Information ........................................................... 5 Description of WLAN Transmitter ..................................................................................... 5 Measurement Procedures and Data..................................................................................... 6 Spectrum Bandwidth....................................................................................................... 6 Measurement Procedure.............................................................................................. 6 Measurement Results .................................................................................................. 6 Peak Output Power ....................................................................................................... 13 Measurement Procedure............................................................................................ 13 Measurement Results ................................................................................................ 13 Power Spectral Density................................................................................................. 17 Measurement Procedure............................................................................................ 17 Measurement Results ...…
