IHDP56KV1i1 iDEN PORTABLE WITH WLAN AND BLUETOOTH

FCC Filing Package for Motorola i1 Transceiver FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 8: User’s Manual -- 47 CFR 2.1033(b)(3) The attached User’s Manual is the final production-intended version of the generic Motorola International English User Manual. This guide will be adapted to carrier-specific versions, but the key information herein will be retained. Translations into other languages will also be done to support the needs of other markets. Minor revisions may be made to these manuals, prior to and subsequent to, placing this product onto the market. Selected portions of the User Guide can be found as indicated below: 8.1 Safety Section: Page 46 8.2 Part 15B Declaration of Conformity: Page 52 8.3 Specific Absorption Rate (SAR) Data: Page 47 8.4 Guidance for use with Hearing Aids: Page 55 1Congratulations Congratulations MOTOROLAi1 The MOTOROLAi1brings the convenience of push-to-talk calls together with a premium browsing and messaging experience, all in a touchscreen device. • Private Calls.Stay in touch with your family, friends and colleagues with the simple touch of a button. • Organization.Check your email, calendar, and contacts wherever you are. • Browsing.Get more from the Web with a huge screen for an improved browser experience. Search, browse, everything you want to do, all made easier. • Maps, entertainment, and more.The latest technology and apps. Google Maps™ to find your way. YouTube™ to stay entertained. Easy access to Google™ and thousands of Android applications to expand your world. Caution:Before assembling, charging or using your phone for the first time, please read the important legal and safety information packaged with your phone. More information On your computer—Go to www.motorola.com/support/. So, whether you want to read, watch, or play, we can help. Note:Remember to check your data plan with your service provider. Streaming downloads, surfing and other services may use a lot of data. 2Your phone Your phone the important keys & connectors Note:Your phone might look a little different. 6:50 PM Browser MessagingCall log Contacts Press to turn on or off. 2.5mm Headset Jack Home Key Back Key Microphone Menu Key Micro USB Connector Charge or connect to PC. PTT Button Touchscreen Camera Key Speaker Key Volume Keys Talk Key End/Power Key Screen Lock Key Navigation Key OK Key OK Contents Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Touchscreen & keys. . . . . . . . . . . . . . . . . . . . . . . . . . 4 Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Push-to-Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Google Maps™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Latitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 YouTube™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Apps for all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Manage your life . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . . 37 Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 USB & memory card . . . . . . . . . . . . . . . . . . . . . . . . 40 Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Rugged Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Safety, Regulatory & Legal. . . . . . . . . . . . . . . . . . . . 45 3Let’s go Let’s go let’s get you up and running Assemble & charge 1Remove cover2SIM in 3MicroSD in4Battery in 5Cover on6Charge up 3H Caution: Please read “Battery Use & Safety” on page 45. Set up & go The first time you turn on your phone, a setup wizard guides you through: •Setting up your Wi-Fi connection •Signing into your existing Google™ account. Note: If you don’t have a Google account, you can create one using the wizard. Tip: Remember to write down your user name and password, and keep them in a safe place. •Setting up additional email accounts such as POP3, IMAP, or Microsoft™ Exchange. •Enabling your location setting. •Loading contacts from your SIM card. •Loading applications from your microSD card. •Selecting your keyboard type. Note: Remember to check your data plan with your service provider. Streaming, downloads, surfing and other services may use a lot of data. 4Touchscreen & keys Turn it on & off To turn on your phone, press and hold End/Power . To turn off your phone, press and hold End/Power , then touch Power off. Wi-Fi connect If you want to use a Wi-Fi computer network for even faster Internet access, press Menu > Settings > Wireless controls > Wi-Fi settings. Cool content & more Browse and download thousands of the coolest apps on the planet from Android Market™. Your phone comes with a microSD memory card slot—you can load it up with photos, videos, and music from your computer using “USB drag & drop” on pag…

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Samar Ayoub SIGNATURE: /s/ Samar Ayoub DATE: 4-Feb 2010 TITLE: Electrical Engineering Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT67JC1) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE 5-Feb-2010 TITLE: Engineering Manager, Product Safety and Compliance Page 2 - 1 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Page 2 - 2 2.3. Attestation Statement (MOTOtalk/WiFi/Bluetooth) This device contains an embedded Bluetooth device, and MOTOtalk capabilities, that Motorola confirms are compliant with the applicable Part 15 regulations. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Samar Ayoub SIGNATURE: /s/ Samar Ayoub DATE: 4-Feb 2010 TITLE: Electrical Engineering Manager 2.4. Attestation Statement (Hearing Aid Compatibility) Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance. NAME: Samar Ayoub SIGNATURE: /s/ Samar Ayoub DATE: 4-Feb 2010 TITLE: Electrical Engineering Manager FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN 2.5. Part 15B Declaration of Conformity Attestation We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the Class B computer peripheral portion of this composite filing. NAME: Andrew Bachler SIGNATURE: DATE: 5-Feb 2010 TITLE: Manager, Regulatory Compliance Page 2 - 3

FCC Filing Package for Motorola i1 Transceiver FCC ID: IHDP56KV1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN 23 February 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of multiple transmitter with FCC ID: IHDP56KV1, i1 with WiFi and Bluetooth. Gentlemen; Motorola Inc., 600 North US Hwy 45, Libertyville, IL herein submits its application for certification of the multi-mode handset with FCC ID: IHDP56KV1. This is a variable output power (0.22 to 640 milliwatts) transmitter that is part of a handheld transceiver used in SMR and EA SMR trunking systems operating within the United States 806-821/851-866 MHz and 896-901/935-940 MHz frequency bands. Operation is also extended for use in a Narrowband PCS system operating in the United States in the spectrum between 901-902/940-941 MHz, on channels which the licensee has aggregated together to form twenty-one 25 kHz operating channels. This device also possesses a transmitter that operates in the ISM band (902 – 928 MHz). The two transmitters are configured so that they operate exclusive of each other (i.e. only one mode can operate at a time). While in this mode there is no connectivity to any cellular networks, and the transceiver uses only the FHSS protocol, as permitted in the ISM band. The operational mode is selected by the user via a menu selection. Certification is also sought for this transceiver, and performance data is provided for that purpose (Exhibit 6c). To facilitate global roaming it is kindly requested that a note be provided in the Grant for Equipment Authorization, which states that this ‘receive first’ type of equipment is compliant for transmitter operation over the broader range 806-825 MHz when used with a compatible Authorized Base Station. This will aid equipment authorization in foreign countries, which accept a United States FCC Grant for Equipment Authorization, yet not jeopardize United States public safety or cellular systems licensed to operate in the 821-825 MHz frequency band since no compatible base station may be authorized on those frequencies in the United States. This radio product is also equipped with a WiFi (802.11b/g) transceiver. WiFi supports both voice and data for short range wireless communications. The WiFi Band of Operation is 2.412 - 2.462 GHz, with channels up to 17 MHz in bandwidth for 802.11g operation and 80 mW of output power. The WiFi device complies 15.247 (c), 15.205 and 15.209 (b). Page 13a - 1 FCC Filing Package for Motorola i1 Transceiver FCC ID: IHDP56KV1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN This radio product is also equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.402 - 2.480 GHz (1 MHz channel bandwidth). It is a Class 1 type device, with power rated +4 to +10 dBm (typically +8 dBm). The physical location of the Bluetooth antenna (which is shared with the WiFi transceiver) is shown in Exhibit 7b. The BT device complies 15.247 (c), 15.205 and 15.209 (b). All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). This radio product features an integrated GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). For these reasons a Declaration of Conformity has been prepared and provided as part of the User Guide (Exhibit 8), as shown on the exhibit cover page. Enclosed is a complete Certification Application. Contact me at (847) 523-6167 if you require any additional information. Sincerely, Page 13a - 2 Andrew J. Bachler FCC Liaison Motorola Mobile Devices Business Email: [email protected]

FCC ID: IHDP56KV1 CONFIDENTIALITY REQUEST 24 February 2010 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDP56KV1. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. P56KV1_Ex_04 (Block Diagrams).pdf Schematic Diagrams. P56KV1_Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. P56KV1_Ex_10 (Active Components).pdf Transmitter Characteristics. P56KV1_Ex_12 (TX Characteristics).pdf Motorola requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Page 13b - 1 FCC ID: IHDP56KV1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN SHORT TERM ONFIDENTIALITY REQUEST – 60 DAYS (Until 31 April 2010) Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. P56KV1_Ex_03 (External_Photos).pdf Test set-up photographs. P56KV1_Ex_07b (SAR Test Set- up_Details).pdf P56KV1_Ex_07c (Part 15 Test Set- up_Details).pdf P56KV1_Ex_07d (HAC Test Set- up_Details).pdf User’s Manual. P56KV1_Ex_08 (User Guide).pdf Internal product photographs. P56KV1_Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Sincerely, Page 13b - 2 Andrew J. Bachler FCC Liaison Motorola Mobile Devices Business Email: [email protected]

FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product shapes, colors and housings/bezels may vary. Figure 3-1. Front of radio Page 3 - 1 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Figure 3-2. Back of radio Page 3 - 2 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Figure 3-3. Button Side of radio Figure 3-4. Opposite Side of radio Page 3 - 3 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Figure 3-5. Top of radio Figure 3-6. Bottom of radio Page 3 - 4 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Figure 3-7. Interior Compartment of radio FCC Label Location. See Exhibit 1 for details. Page 3 - 5

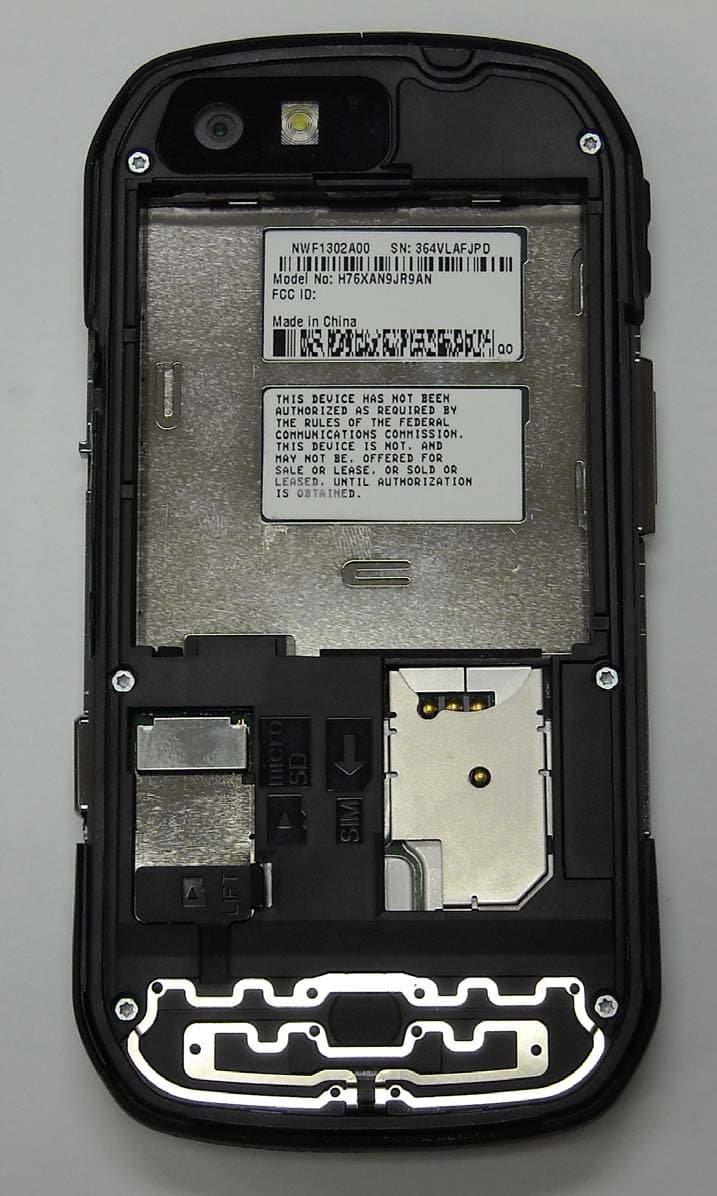

FCC Filing Package for Motorola i1 Transceiver FCC ID: IHDP56KV1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, beneath the battery (see also Exhibit 3). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. This label will be placed on the equipment (within the Battery Compartment) as shown below. Other information may also be included on this label, and other labels may also be present. FCC ID: IHDP56KV1 IC: 109O-KV1 Model No. H76XAN9JR9AN Page 1 - 1 FCC Filing Package for Motorola i1 Transceiver FCC ID: IHDP56KV1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Interior Battery Compartment FCC Label Back Side of Phone Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. Further, at the time of purchase, batteries are shipped in a separate section or compartment of the radio packaging, and are not attached to the radio. In some instances they may be shipped in separate boxes. So, the customer needs to physically install the battery by removing the battery cover, if any, or attach the battery before using the radio. Further, the placement of the label in the battery compartment is done because space is limited on the exterior of the device. The battery compartment also helps to protect the label from getting obliterated or made unreadable through regular handling and use. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure Performance data located in Exhibit 6 are supplied in accordance with the Commission’s rules: 47 CFR Part 2, Subpart J. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 15, Subparts A, B, and C; Part 24 Subparts B and D; and Part 90, Subparts I and S. 1A.3 Similar, currently Certified Transceiver FCC ID: IHDT56KD1 (does not have 802.11b/g WiFi capabilities). Page 1 - 2 FCC Filing Package for Motorola i1 Transceiver FCC ID: IHDP56KV1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Page 1 - 3 1A.4 Additional Considerations This radio product integrates a receiver designed to process signals from Global Positioning System satellites, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR 15.3(r). For this reason a Declaration of Conformity has been prepared and provided on page 3 of the User Guide in Exhibit 8. Compliance with Part 15 requirements for the Direct-Conversion (zero IF superheterodyne) receiver has been determined by verification in accordance with 47 CFR 15.1.

FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) Photograph 9-1: Back side view of radio, back housing removed, showing PC Board. Page 9 - 1 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Photograph 9-2: Back side view of radio, Battery Cover removed, showing Main Antenna. Page 9 - 2 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Photograph 9-3: Back side view of PC Board, Shields in place. Page 9 - 3 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Photograph 9-4: Back side view of PC Board, Shields removed. Page 9 - 4 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Photograph 9-5: Front side view of PC Board, Shields in place. Page 9 - 5 FCC Filing Package for Motorola i1 Transceivers FCC ID: IHDP56KV1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Photograph 9-6: Front side view of PC Board, Shields removed. Page 9 - 6

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KV1 23551-1 Exhibit 6B - 1 Page 1 of 9 HAC Test Report for Near Field Emissions IHDP56KV1 Tests Requested By: Motorola Mobile Devices 600 N. US Highway 45 Libertyville, IL 60048 Date of Tests: Date of Report: Jan-20-2010 to Jan-21-2010 Jan-27-2010 Test Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Thomas Knipple Senior RF Engineer Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDP56KV1 to which this declaration relates, complies with recommendations and guidelines per FCC 47 CFR §20.19. The measurements were performed to ensure compliance to ANSI C63.19- 2007. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) Results Summary: M Category = M3 ©Motorola, Inc. 2010 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KV1 23551-1 Exhibit 6B - 1 Page 2 of 9 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 4. VALIDATION .........................................................................................................................................................5 5. PROBE MODULATION FACTOR ......................................................................................................................6 6. TEST RESULTS......................................................................................................................................................8 Appendix 1: Details justifying the conversion to peak A1.1 Procedure for PMF measurements A1.2 0-span spectrum plots for PMF measurements Appendix 2: HAC Distribution Plots for Validation Appendix 3: HAC Distribution Plots for E-Field and H-Field Appendix 4: Motorola Uncertainty Budget A4.1 Motorola Uncertainty Budget for RF HAC testing A4.2 Probe Rotation Contributions to Isotropy Error Appendix 5: Pictures of Test Setup Appendix 6: Probe Calibration Certificates Appendix 7: Dipole Characterization Certificates APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KV1 23551-1 Exhibit 6B - 1 Page 3 of 9 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed Hearing Aid Compatibility (HAC) measurements for the portable cellular phone (FCC ID IHDP56KV1). The portable cellular phone was tested in accordance with the ANSI C63.19-2007 standard. The test results presented herein clearly demonstrate compliance per FCC 47 CFR § 20.19. This report demonstrates compliance for near-field emissions only and not for Telecoil HAC performance compliance. 2. Description of the Device Under Test Table 1: Information for the Device Under Test Serial number 364VKYLKNF Mode(s) of Operation 800 iDEN 900 iDEN Bluetooth Wi-Fi 802.11b/g Modulation Mode(s) QAM QAM GFSK BPSK Maximum Output Power Setting 28.06 dBm 28.06 dBm 10.0 dBm 19 dBm Duty Cycle 1:6 / 2:6 1:6 / 2:6 1:1 1:1 Transmitting Frequency Range(s) 806.0125 – 824.9875 MHz 896.01875 – 901.98125 MHz 2400.0 - 2483.5 MHz 2412.0 - 2462.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable Note: No Bluetooth profile exists in this phone that will allow a Bluetooth link while in a cellular call that passes audio to the earpiece. If the user had Bluetooth enabled and a link established, they could not be listening to the phone through the earpiece. Note: Wi-Fi capability is included in this phone without measurements for hearing aid compatibility based on the interim ruling by the FCC according to paragraph 37 of the Federal Register, Volume 3, Number 89, as of May 7, 2008. Users shall be informed of this via the product user guide per the same FCC ruling. APPLICANT: MOTOROLA, INC. FCC ID: IHDP56KV1 23551-1 Exhibit 6B - 1 Page 4 of 9 3. Test Equipment Used The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (DASY4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the HAC measurements are taken within a shielded enclosure. The measurement uncertainty budget is given in Appendix 4. The list of calibrated equipment used for the measurements is shown below. Table 2: Dosimetric System Equipment Description Serial Number Cal Due Date E-Field Probe ER3DV6R 2248 Jul-16-2010 DAE4 376 Mar-11-2010 H-Field Probe H3DV6 6074 Jul-16-2010 DAE4 699 Apr-27-2010 835 MHz Dipole CD835V3 1042 May-14-2010 Table 3: Additional Test Equipment Description Serial Number Cal Due Date Power Supply 6623B US37360826 Aug-22-2010 Signal Generator E4438C MY45090104 Aug-22-2011 Amplifier ZHL-42-SMA 1040 3 dB Attenuator 8491A 50581 Sep-04-2010 Directional Coupler 778D 18621 Sep-05-2010 Power Meter E4417A MY45100481 Sep-01-2011 Power Sensor #1 – E9323A MY44420341 Aug-25-2010 Power Sensor #2 - E9323A MY44420342 Aug-25-2010 10 dB Attenuator 8491A 3929M50702 Oct-17-2010 Spectrum Analyzer E4403B US39440480 Sep-12-2010 Power Splitter ZAPD-21-S(+) SU327300437 APPLICANT: MOTOROLA, INC. FCC…

Text truncated - open the document above for the full version.

FCC ID: IHDP56KV1 SR7833 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 1 of 73 TESTING CERT # 2518.01 FCC ID: IHDP56KV1 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 02/26/2010 Report Revision: O Report ID: SAR rpt_H76XAN9JR9AN_Rev O_02262010_SR7833 DUT P hot o (R ef er t o E xh ib i t 7B) DUT P hot o (R ef er t o E xh ib i t 7B) Max. Calc. : 1-g Avg. SAR: 0.95 W/kg (Body); 10-g Avg. SAR: 0.70 W/kg (Body) Max. Calc. : 1-g Avg. SAR: 1.30 W/kg (Head); 10-g Avg. SAR: 0.81 W/kg (Head) Max. Calc. : 1-g Avg. SAR: 0.56 W/kg (Face); 10-g Avg. SAR: 0.40 W/kg (Face) The test results clearly demonstrate compliance with FCC General Population/Uncontrolled RF Exposure limits of 1.6 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 2.0 W/kg averaged over 10grams of contiguous tissue. Responsible Engineer: Stephen C. Whalen (Principal Staff Eng.) Report Author: Stephen C. Whalen (Principal Staff Eng.) Date/s Tested: 01/07/10 – 01/20/10, 02/01/10, 02/18/10 – 02/23/10 Manufacturer/Location: China Sector/Group/Div.: iDEN Mobile Devices Date submitted for test: 01/06/10 DUT Description: TDMA: 81:12…

Text truncated - open the document above for the full version.
