IHDP56KY1i296 PORTABLE iDEN/MOTOTALK MOBILE WITH BLUETOOTH

FCC Filing Package for Motorola i296 Transceiver FCC ID: IHDP56KY1 Motorola Confidential Restricted iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 8: Draft User’s Manual -- 47 CFR 2.1033(b)(3) The attached User’s Manual is the final production-intended version of the generic Motorola International English User Manual. This guide will be adapted to carrier-specific versions, but the key information herein will be retained. Translations into other languages will also be done to support the needs of other markets. Minor revisions may be made to these manuals, prior to and subsequent to, placing this product onto the market. Selected portions of the User Guide can be found as indicated below: 8.1 Part 15B Declaration of Conformity: Page 4 8.2 Safety Section: Page 84 8.3 Specific Absorption Rate (SAR) Data: Page 92 8.4 Guidance for use with Hearing Aids: Page 47, 97 User’s Guide i294 i296 DECLARATION OF CONFORMITY Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola, Inc. Address: 8000 West Sunrise Boulevard Plantation, FL 33322 USA Phone Number: 1 (800) 453-0920 Hereby declares that the product: Product Name: i294, i296 Model Number: H88XAH6JR2BN (i294), H88XAH6JR2AN (i296) FCC-ID: IHDP56KY2 (i294), IHDP56KY1 (i296) Conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) FCC Notice to Users The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC-ID: IHDP56KY2 (i294), IHDP56KY1 (i296) on the product label. Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. Class B Digital Device As a personal computer peripheral, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Industry Canada Notice to Users Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN 7.1.5. Motorola, Inc. Consumer Advocacy Office 600 North US Highway 45 Libertyville, IL 60048 www.hellomoto.com Note: Do not ship your phone to the above address. If you need to return your phone for repairs, replacement, or warranty service, please contact the Motorola Customer Support Center at: 1-800-453-0920 (United States) 1-877-483-2840 (TTY/TDD United States for hearing impaired) Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. © Motorola, Inc., 2009. Manual Number: NNTN7906A 1 HELLOMOTO Introducing your new Motorola wireless phone. Here’s a quick anatomy lesson. Left Soft Key Perform function in lower left display. Right Soft Key Perform function in lower right display. End/Power Key End calls, exit menu system, turns phone on/off. Talk Key Make & answer calls. OK Key In menus & lists, press to select highlighted option. 4-Way Navigation Key On/Off Key Volume Buttons PTT Button 2.5mm Audio Jack Micro USB Connector Connects charger and accessories. Speaker Key Menu Key From home screen, open main menu. 2 check it out 1 2 3 4 Press and hold the Power Key for a few seconds, or until the screen lights up, to turn on your phone. Customizable r key that can be used to open the Settings screen. Press the Navigation Key up, down, left or right to highlight a menu feature. Press the r key to select. 10:05pm 10/23 Ready 3 contents contents check it out . . . . . . . . . . . 2 menu map. . . . . . . . . . . . 6 use and care . . . . . . . . . . 8 essentials . . . . . . . . . . . . 9 about this guid…

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Kitty Chen SIGNATURE: /s/ Kitty Chen DATE: 9-January-2010 TITLE: Senior Electrical Engineer 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT67JC1) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE 13-Jan-10 TITLE: Engineering Manager, Product Safety and Compliance Page 2 - 1 FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Page 2 - 2 2.3. Attestation Statement (Bluetooth/MOTOtalk) This device contains an embedded Bluetooth device, and MOTOtalk capabilities, that Motorola confirms are compliant with the applicable Part 15 regulations. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Kitty Chen SIGNATURE: /s/ Kitty Chen DATE: 9-January-2010 TITLE: Senior Electrical Engineer 2.4. Attestation Statement (Hearing Aid Compatibility) Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance. NAME: Kitty Chen SIGNATURE: /s/ Kitty Chen DATE: 9-January-2010 TITLE: Senior Electrical Engineer FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN 2.5. Part 15B Declaration of Conformity Attestation We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the Class B computer peripheral portion of this composite filing. NAME: Andrew Bachler SIGNATURE: DATE: 21-Nov-2008 TITLE: Manager, Regulatory Compliance Page 2 - 3

FCC Filing Package for Motorola i1 Transceiver FCC ID: IHDP56KY1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN 13 January 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of dual transmitter with FCC ID: IHDP56KY1, i296 with Bluetooth. Gentlemen; Motorola Inc., 600 North US Hwy 45, Libertyville, IL herein submits its application for certification of the multi-mode handset with FCC ID: IHDP56KY1. This is a variable output power (0.22 to 640 milliwatts) transmitter that is part of a handheld transceiver used in SMR and EA SMR trunking systems operating within the United States 806-821/851-866 MHz and 896-901/935-940 MHz frequency bands. Operation is also extended for use in a Narrowband PCS system operating in the United States in the spectrum between 901-902/940-941 MHz, on channels which the licensee has aggregated together to form twenty-one 25 kHz operating channels. This device also possesses a transmitter that operates in the ISM band (902 – 928 MHz). The two transmitters are configured so that they operate exclusive of each other (i.e. only one mode can operate at a time). While in this mode there is no connectivity to any cellular networks, and the transceiver uses only the FHSS protocol, as permitted in the ISM band. The operational mode is selected by the user via a menu selection. Certification is also sought for this transceiver, and performance data is provided for that purpose (Exhibit 6c). To facilitate global roaming it is kindly requested that a note be provided in the Grant for Equipment Authorization, which states that this ‘receive first’ type of equipment is compliant for transmitter operation over the broader range 806-825 MHz when used with a compatible Authorized Base Station. This will aid equipment authorization in foreign countries, which accept a United States FCC Grant for Equipment Authorization, yet not jeopardize United States public safety or cellular systems licensed to operate in the 821-825 MHz frequency band since no compatible base station may be authorized on those frequencies in the United States. This radio product is also equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.4 - 2.4835 GHz (1 MHz channel bandwidth). It is a Class 2 type device, with power rated +6 to +4 dBm (typical 0 dBm). The physical location of the Bluetooth antenna is shown in Exhibit 7b. The BT device complies 15.247 (c), 15.205 and 15.209 (b). Page 13a - 1 FCC Filing Package for Motorola i1 Transceiver FCC ID: IHDP56KY1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). This radio product features an integrated GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). For these reasons a Declaration of Conformity has been prepared and provided as part of the User Guide (Exhibit 8), as shown on the exhibit cover page. Enclosed is a complete Certification Application. Contact me at (847) 523-6167 if you require any additional information. Sincerely, Page 13a - 2 Andrew J. Bachler FCC Liaison Motorola Mobile Devices Business Email: [email protected]

FCC ID: IHDP56KY1 CONFIDENTIALITY REQUEST 13 January 2010 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDP56KY1. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. P56KY1_Ex_04 (Block Diagrams).pdf Schematic Diagrams. P56KY1_Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. P56KY1_Ex_10 (Active Components).pdf Transmitter Characteristics. P56KY1_Ex_12 (TX Characteristics).pdf Motorola requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Page 13b - 1 FCC ID: IHDP56KY1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN SHORT TERM ONFIDENTIALITY REQUEST – 75 DAYS (until 31 March 2010) Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. P56KY1_Ex_03 (External_Photos).pdf Test set-up photographs. P56KY1_Ex_07b (SAR Test Set- up_Details).pdf P56KY1_Ex_07c (Part 15 Test Set- up_Details).pdf P56KY1_Ex_07d (HAC Test Set- up_Details).pdf User’s Manual. P56KY1_Ex_08 (User Guide).pdf Internal product photographs. P56KY1_Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Sincerely, Page 13b - 2 Andrew J. Bachler FCC Liaison Motorola Mobile Devices Business Email: [email protected]

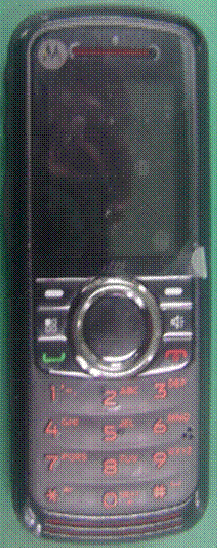

FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product shapes, colors and housings/bezels may vary. Figure 3-1. Front of radio Figure 3-2. Back of radio Page 3 - 1 FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Figure 3-3. Button Side of radio (connectors exposed) Figure 3-4. Opposite Side of radio Page 3 - 2 FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Figure 3-5. Top of radio Figure 3-6. Bottom of radio Page 3 - 3 FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Figure 3-7. Interior Compartment of radio FCC Label Location. See Exhibit 1 for details. Page 3 - 4

FCC Filing Package for Motorola i296 Transceiver FCC ID: IHDP56KY1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, beneath the battery (see also Exhibit 3). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. This label will be placed on the equipment (within the Battery Compartment) as shown below. Other information may also be included on this label, and other labels may also be present. FCC ID: IHDP56KY1 IC: 109O-KY1 Model No. H88XAH6JR2AN Page 1 - 1 FCC Filing Package for Motorola i296 Transceiver FCC ID: IHDP56KY1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Interior Battery Compartment FCC Label Back Side of Phone Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. Further, at the time of purchase, batteries are shipped in a separate section or compartment of the radio packaging, and are not attached to the radio. In some instances they may be shipped in separate boxes. So, the customer needs to physically install the battery by removing the battery cover, if any, or attach the battery before using the radio. Further, the placement of the label in the battery compartment is done because space is limited on the exterior of the device. The battery compartment also helps to protect the label from getting obliterated or made unreadable through regular handling and use. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure Performance data located in Exhibit 6 are supplied in accordance with the Commission’s rules: 47 CFR Part 2, Subpart J. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 15, Subparts A, B, and C; Part 24 Subparts B and D; and Part 90, Subparts I and S. 1A.3 Similar, currently Certified Transceiver FCC ID: IHDT56KB1 Page 1 - 2 FCC Filing Package for Motorola i296 Transceiver FCC ID: IHDP56KY1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Page 1 - 3 1A.4 Additional Considerations This radio product integrates a receiver designed to process signals from Global Positioning System satellites, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR 15.3(r). For this reason a Declaration of Conformity has been prepared and provided on page 3 of the User Guide in Exhibit 8. Compliance with Part 15 requirements for the Direct-Conversion (zero IF superheterodyne) receiver has been determined by verification in accordance with 47 CFR 15.1.

FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) Photograph 9-1: Front side view of radio product PC Board. Page 9 - 1 FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Photograph 9-2: Front side view of radio product Keypad PC Board (Shields Removed). Page 9 - 2 FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Photograph 9-3: Back side view of radio PC Board. Page 9 - 3 FCC Filing Package for Motorola i296 Transceivers FCC ID: IHDP56KY1 Temporary Confidentiality Requested iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Photograph 9-4: Back side view of radio PC Board (Shields Removed). Page 9 - 4

FCC ID: IHDP56KY1 SR7814 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 1 of 55 TESTING CERT # 2518.01 FCC ID: IHDP56KY1 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 01/13/2010 Report Revision: O Report ID: SAR rpt_H88XAH6JR2AN_Rev O_01132010_SR7814 DUT P hot o (R ef er t o E xh ib i t 7B) DUT P hot o (R ef er t o E xh ib i t 7B) Max. Calc. : 1-g Avg. SAR: 1.09 W/kg (Body); 10-g Avg. SAR: 0.79 W/kg (Body) Max. Calc. : 1-g Avg. SAR: 1.43 W/kg (Head); 10-g Avg. SAR: 1.00 W/kg (Head) Max. Calc. : 1-g Avg. SAR: 0.97 W/kg (Face); 10-g Avg. SAR: 0.69 W/kg (Face) The test results clearly demonstrate compliance with FCC General Population/Uncontrolled RF Exposure limits of 1.6 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 2.0 W/kg averaged over 10grams of contiguous tissue. Responsible Engineer: Stephen C. Whalen (Principal Staff Eng.) Report Author: Stephen C. Whalen (Principal Staff Eng.) Date/s Tested: 12/04/09 – 12/14/09, 01/08/10 Manufacturer/Location: China Sector/Group/Div.: iDEN Mobile Devices Date submitted for test: 11/23/09 DUT Description: TDMA: 236:310 WiDEN (76.1%), 81:120, 2:6, 1:12, and 1:6; M64QAM, M16QAM, and QPSK Modulations; 0.6 W Pulse Avg; MOTOtalk: 114:120 8FSK; 0.85 W nominal (GPS and Bluetooth Capable). Test TX mode(s): Phone 1:3, Dispatch 1:6, Data 236:310 and MOTOtalk:114:120 Max. Power output: 0.64 W pulsed average conducted power (iDEN/WiDEN); 0.891 W (MOTOtalk); 0.0025 W (Bluetooth) Nominal Power: 0.60 W pulsed average conducted power (iDEN); 0.85 W (MOTOtalk); 0.001 W (Bluetooth ) Tx Frequency Bands: 806-825, 896-902 MHz (iDEN); 902-928 MHz (MOTOtalk); 2.402-2.480 GHz (Bluetooth) Signaling type: TDMA: QPSK, M16-QAM, M64-QAM; FHSS: 8FSK (PTT); BT Model(s) Tested: H88XAH6JR2AN Model(s) Certified: H88XAH6JR2AN Serial Number(s): 364VKUTFS8, 364VKUPGSJ Classification: General Population/Uncontrolled Rule Part(s): 15 & 90 Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 01/13/10 Certification Date: 01/13/10 Certification No.: L1100101P FCC ID: IHDP56KY1 SR7814 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 2 of 55 Part 1 of 2 1.0 Introduction.........................................................................................4 2.0 Abbreviations / Definitions.................................................................4 3.0 Referenced Standards and Guidelines ................................................4 4.0 SAR Limits .........................................................................................5 5.0 SAR Result Scaling Methodology ......................................................5 6.0 Description of Device Under Test (DUT) ..........................................6 7.0 Optional Accessories and Test Criteria ..............................................7 7.1 Antennas ....................................................................................7 7.2 Batteries .....................................................................................7 7.3 Body worn Accessories .............................................................7 7.4 Audio Accessories .....................................................................8 8.0 Description of Test System.................................................................8 8.1 Description of Robotics/Probes/Readout Electronics................8 8.2 Description of Phantom(s) .........................................................9 8.2.1 Dual Flat Phantom .........................................................9 8.2.2 SAM Phantom................................................................9 8.2.3 Elliptical Phantom..........................................................9 8.3 Description of Simulated Tissue ................................................9 9.0 Additional Test Equipment ...............................................................10 10.0 SAR Measurement System Verification ...........................................11 10.1 Equivalent Tissue Test Results ................................................11 10.2 System Check Test Results ......................................................12 11.0 Environmental Test Conditions ........................................................12 12.0 DUT Test Methodology ....................................................................12 12.1 Measurements ..........................................................................13 12.2 DUT Configuration(s)..............................................................13 12.3 DUT Positioning Procedures ...................................................13 12.3.1 Body .............................................................................13 12.3.2 Head .............................................................................13 12.3.3 Face ..............................................................................13 12.4 DUT Test Plan ...............…

Text truncated - open the document above for the full version.

FCC ID: IHDP56KY1 SR7814 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 1 of 53 TESTING CERT # 2518.01 FCC ID: IHDP56KY1 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 2 Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 01/13/2010 Report Revision: O Report ID: SAR rpt_H88XAH6JR2AN_Rev O_01132010_SR7814 DUT P hot o (R ef er t o E xh ib i t 7B) DUT P hot o (R ef er t o E xh ib i t 7B) Max. Calc. : 1-g Avg. SAR: 1.09 W/kg (Body); 10-g Avg. SAR: 0.79 W/kg (Body) Max. Calc. : 1-g Avg. SAR: 1.43 W/kg (Head); 10-g Avg. SAR: 1.00 W/kg (Head) Max. Calc. : 1-g Avg. SAR: 0.97 W/kg (Face); 10-g Avg. SAR: 0.69 W/kg (Face) The test results clearly demonstrate compliance with FCC General Population/Uncontrolled RF Exposure limits of 1.6 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 2.0 W/kg averaged over 10grams of contiguous tissue. Responsible Engineer: Stephen C. Whalen (Principal Staff Eng.) Report Author: Stephen C. Whalen (Principal Staff Eng.) Date/s Tested: 12/04/09 – 12/14/09, 01/08/10 Manufacturer/Location: China Sector/Group/Div.: iDEN Mobile Devices Date submitted for test: 11/23/09 DUT Description: TDMA: 236:310 WiDEN (76.1%), 81:120, 2:6, 1:12, and 1:6; M64QAM, M16QAM, and QPSK Modulations; 0.6 W Pulse Avg; MOTOtalk: 114:120 8FSK; 0.85 W nominal (GPS and Bluetooth Capable). Test TX mode(s): Phone 1:3, Dispatch 1:6, Data 236:310 and MOTOtalk:114:120 Max. Power output: 0.64 W pulsed average conducted power (iDEN/WiDEN); 0.891 W (MOTOtalk); 0.0025 W (Bluetooth) Nominal Power: 0.60 W pulsed average conducted power (iDEN); 0.85 W (MOTOtalk); 0.001 W (Bluetooth ) Tx Frequency Bands: 806-825, 896-902 MHz (iDEN); 902-928 MHz (MOTOtalk); 2.402-2.480 GHz (Bluetooth) Signaling type: TDMA: QPSK, M16-QAM, M64-QAM; FHSS: 8FSK (PTT); BT Model(s) Tested: H88XAH6JR2AN Model(s) Certified: H88XAH6JR2AN Serial Number(s): 364VKUTFS8, 364VKUPGSJ Classification: General Population/Uncontrolled Rule Part(s): 15 & 90 Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representat…

Text truncated - open the document above for the full version.
