IHDP56LD1Portable Cellular/ PCS WCDMA/ GSM/ EDGE Transceiver with WLAN and Bluetooth

APPLICANT MOTOROLA INC. FCC ID: IHDP56LD1 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 Your Phone1 DRAFT - MOTOROLA CONFIDENTIAL & PROPRIETARY INFORMATION DRAFT - MOTOROLA CONFIDENTIAL & PROPRIETARY INFORMATION Your Phone Most of what you need is in the touchscreen and three simple keys: “Menu, Home, & Back Keys” on page 5. Microphone Home Micro USB Connect charger or PC. Volume 3.5mm Headset Message Indicator Back Menu Power / Sleep Hold= power Press= sleep To open the display keypad, touch a text field, or touch and hold Menu. To close the keypad, touch Back. Note: Your phone might look a little different. Delete ReturnSymbols Shift Settings Voice DRAFT - MOTOROLA CONFIDENTIAL & PROPRIETARY INFORMATION DRAFT - MOTOROLA CONFIDENTIAL & PROPRIETARY INFORMATION Device Setup2 Contents Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Device Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Ringtones & Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Touchscreen & Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Social Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Email & Text Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Voice Input & Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Photos & Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Music Player & Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Apps & Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Location Apps (GPS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 AT&T Features & Services. . . . . . . . . . . . . . . . . . . . . . . . . . 33 Bluetooth® & Wi-Fi® Connections . . . . . . . . . . . . . . . . . . 34 Memory Card & USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Synchronize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Icons & Battery Life. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Safety, Regulatory & Legal. . . . . . . . . . . . . . . . . . . . . . . . . 47 Device Setup Assemble & Charge 1.Cover off2.SIM in 3.Battery in4.Cover on 5.Charge up6.Power up & log in Caution: Before assembling, charging or using your phone for the first time, please read the Safety, Regulatory, & Legal Information provided with your phone. Device Setup3 DRAFT - MOTOROLA CONFIDENTIAL & PROPRIETARY INFORMATION DRAFT - MOTOROLA CONFIDENTIAL & PROPRIETARY INFORMATION Start MOTOBLUR When you first turn on your phone, you need to create or log into your MOTOBLUR account. MOTOBLUR syncs your contacts, posts, feeds, messages, emails, and photos from your other accounts. Registration is secure and should only take a few minutes: 1.Press and hold Power on top of your phone to turn it on. 2.Select a language. 3.Log in or register: Enter your name, your current email address (where MOTOBLUR can send account information), and a new MOTOBLUR account password. 4.To add an account to MOTOBLUR, touch the account type, then enter the account’s user name (or email) and password. 5.When you’re done, touch Done adding accounts. Tip: To see the accounts you added, touch Menu > Settings >Accounts. If your contacts don’t import within an hour, see “Transfer contacts” on page 12. Your MOTOBLUR Account Only MOTOBLUR syncs your contacts, posts, feeds, messages, emails, photos and much more—from sources like Facebook®, Twitter, MySpace, your work email, Picasa™, Photobucket®—and automatically serves it up just the way you want it. No opening and closing apps and menus, it’s all front and center on your home screen and integrated throughout the entire phone so you can communicate any way you like. You can log into your MOTOBLUR account from a computer to upload contacts, reset your password, get help, or even locate your phone: www.motorola.com/mymotoblur Security Your contacts are backed up on MOTOBLUR, so don’t worry. Even if you lose your phone, MOTOBLUR can help you find it or wipe it. When you get your next MOTOBLUR product, your stored info makes it a snap to set up with just a username and password. Of course it doesn't stop there. There are plenty of ways to protect your phone and your information, in “Security” on page 40. DRAFT - MOTOROLA CONFIDENTIAL & PROPRIETARY INFORMATION DRAFT - MOTOROLA CONFIDENTIAL & PROPRIETARY INFORMATION Ringtones & Settings4 Ringtones & Settings Quick Start: Ringtones & Settings You can customize sound and display settings: •To set your ringtone and notifications, touch Menu> Settings> Sound & display. To use a song as a ringtone, touch > Music, touch and hold the song name, then touch Use as phone ringtone. •To s witch to silen t mode when you have Screen lock turned on, you can slide the silence switch on the unlock screen., •To set notifications for different message types, touch > Messaging > Menu > Messaging Settings > Text Messaging, Email, or Social Messaging. •To set your display brightness, orientation, wallpaper, and more, touch Menu > Settings > Sound & display. Sounds Date & Time Set date, time, time …

Text truncated - open the document above for the full version.

SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDP56LD1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Suresh Sethuraman TITLE: EE Engineering Manager Motorola Inc. Mobile Devices Business Date: June 23, 2010 TAC Code 35157404 FCC ID (NA Model) IHDP56LD1 WCDMA 1900/850 GSM 850/900/1800/1900 HSDPA 7.2 Mbps (Category 7/8) EDGE Class 12 GPRS Class 12 eCompass/aGPS Bluetooth Class 2, Version 2.1+EDR 802.11b/802.11g/802.11n Type Name (NA Model) MB520 APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LD1 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56LD1) is in compliance with all applicable parts of the FCC Rules. NAME: Suresh Sethuraman TITLE: EE Engineering Manager Motorola Inc. Mobile Devices Business Date: June 23, 2010 APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LD1 EXHIBIT 2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Suresh Sethuraman TITLE: EE Engineering Manager Motorola Inc. Mobile Devices Business Date: June 23, 2010 APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LD1 EXHIBIT 2

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LD1 Exhibit 2A October 5, 2010 Attestation Statement Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Reference: TCB PBA Tracking Number 373736 (Pre PBA Tracking Number 294775) This is in response to your request of October 5, 2010, for Motorola’s confirmation of subsequent steps regarding the grant of FCC ID: IHDP56LD1 and future filings using TCB’s. Motorola confirms that TCB filings must use the appropriate manufacturer calibrated certificates per FCC KDB pub 450824. * Motorola further confirms with regard to the grant of FCC ID: IHDP56LD1 that supplemental (not replacement) data comprising system check and results for purposes of confirming the correctness of the original data will be submitted to the TCB within two weeks from the grant date and that the supplemental data will be taken as follows: utilizing manufacturer certificated dipole antennas with SAR results repeating the highest SAR configurations for each transmit mode and any configurations with SAR higher than 1.5 W/kg. Regards, Andrew J. Bachler FCC Liaison Motorola Mobility, Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 * Note that Motorola maintains that its alternate calibration methodology conforms to the requirements of the KDB, which does not reference a requirement that calibration be done by the manufacturer. Nevertheless, for subsequent filings, Motorola will submit data utilizing manufacturer-calibrated dipoles.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LD1 Exhibit 13 August 16, 2010 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiv er, FCC ID: IHDP56LD1. Motorola is also the manufacturer of this equipment. Confidentiality : Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 85 0, 900,1800 and 1900 MHz PCS band. It also operates in WCDMA 850 and 1900 MHz and contains EDGE/GPRS Class 12 and 2.4 GHz Bluetooth & WiFi functions (Part 15.247). The unit may also be connected to a computer via a USB connection (Part 15 Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LD1 SHORT TERM CONFIDENTIALITY REQUEST 180 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDP56L D1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 180 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: Sep 01, 2010 Subject: Request for additional information regarding FCC ID: IHDP56LD1 Reference: Correspondence Reference Number: IHD100977 Confirmation Number: Y1008170977-80 Date of Original Email: Aug 24, 2010 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 60048 Questions and responses follow: 1. The Operational Description lists 802.11n 40 MHz channels and MIMO capability- please confirm that these are not implemented in the EUT. Response: It is confirmed that this EUT does not support 40MHz channels and MIMO architecture. Please refer to the revised operational description submitted online. 2. On p. 19/69 of the DTS EMC report, the Heading states “Peak output power”, but the data tables all state “Average power”. Please reconcile. Response: The table on page 16 of the DTS EMC report contains initial average power measurements of all data rates in all supported modes. These measurements are used to determine which data rates in each supported mode will be fully tested. The plots following that table, starting on page 17, show final peak power measurements for the fully tested data rates. 3. Page 52/60 of the User’s Manual lists the maximum SAR level in data transmission mode as 0.23 W/kg. How is this value derived? Please clarify. Response: The SAR value in data transmission mode is from GPRS Class 10 body warn table(Table 9) of the SAR report. 4. Due to the simultaneous transmission SAR measurement requirement, this application is classified as Permit but Ask. Please submit the KDB response received by the SAR lab from the FCC accepting the proposed simultaneous SAR measurement procedure and test configurations, if available. 1 2 Response: Please refer to the tracking number 294775 for the PBA submitted to the FCC. 5. The FCC has stated that, given modern phone design, when body SAR data is provided with the front of the phone facing the phantom, it should be made clear that it is to cover the use of potential accessories that may cause the front of the phone to face the user (in other words, it is not because the assumption is being made that the phone may be kept in a pocket with the front facing the user, as a separation distance of 0.5 cm is more realistic for this configuration). As a result, since the SAR report contains body data with the front of the phone facing the phantom, please provide the referenced attestation. Alternatively, you may remove all references and data for the phone facing the phantom configuration from the SAR report and resubmit it. Response: Please refer to the added statement in Sec 6.2 of the revised SAR report submitted online. 6. The SAR plot on p.63/89 of the SAR report shows a power drift of more than 0.5 dB (5%)- this is not is accordance with the requirements of IEEE P1528. Please address. Response: The SAR measurement was on a low power Bluetooth signal that is aperiodic by nature. The measured drift was a negative drift, which indicates that the power measured at the end of the SAR scan was lower than the power measured at the beginning of the scan. This decrease in power is accounted for in the tabulated results, in a worst-case manner, by extrapolating for the SAR value at the beginning of the scan by the formula Extrapolated SAR = Measured SAR * 10^(-drift/10). As the extrapolated SAR value is below 0.00 mW/g (1 g), no further investigation was deemed necessary. 7. FYI: in the DTS EMC report, the RF conducted spurious emission plots (including the bandedge plots) all set the D.L. at 20 dBc. Please note that, in order to use the average detector for the conducted output power measurements, the oob limit for which compliance must be demonstrated is 30 dBc, not 20 dBc. Response: Since the final power measurements were taken using the peak detector, the 20dBc DL used is correct. 8. FYI: the FCC is now requiring that, for SAR dipoles with calibration more than 1 year old, additional justification for an extended calibration cycle must be provided. This includes a comparison of return loss and impedance values from one calibration to the next. Please see the appropriate KDB (attached to a previous email), and, if appropriate, include the required data in future submittals. Response: Noted.

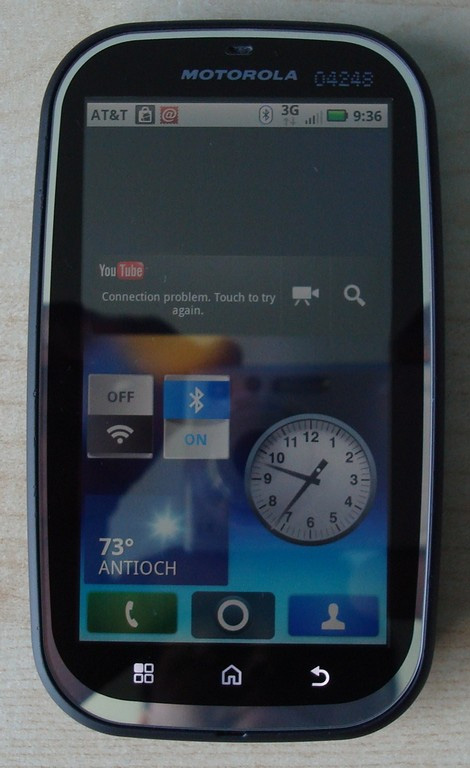

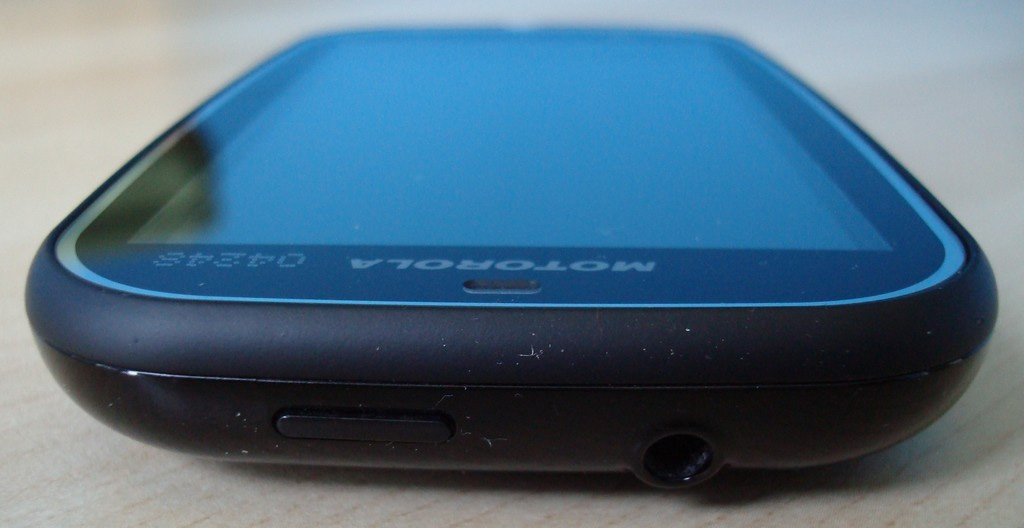

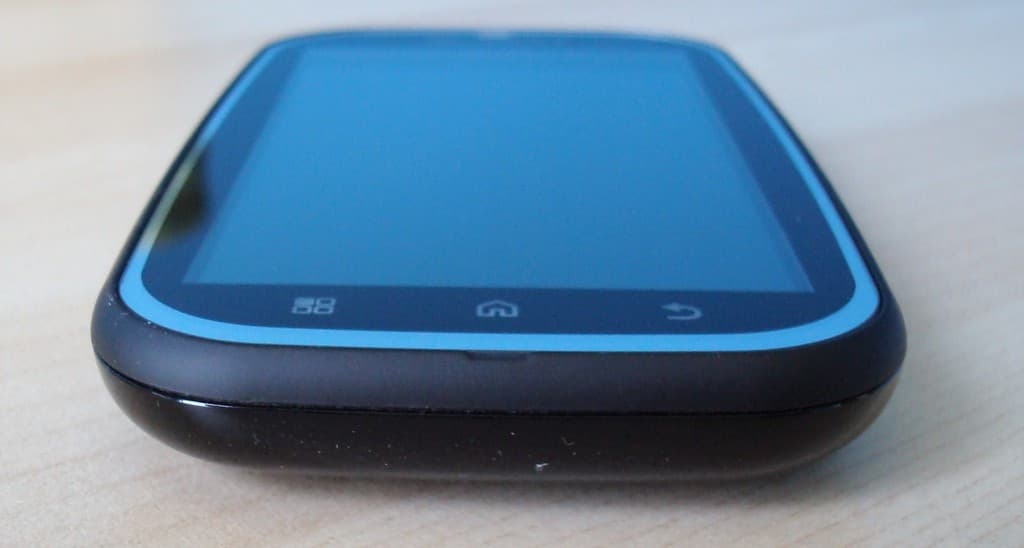

APPLICANT: MOTOROLA MOBILITY, I NC. FCC ID: IHDP56LD1 EXHIBIT 3 1 Front of the phone Back of the phone Back o f the phone with battery cover off APPLICANT: MOTOROLA MOBILITY, I NC. FCC ID: IHDP56LD1 EXHIBIT 3 2 Right Side of the Phone (Volume Up/Volume Down Keys) Top Side of the Phone Left Side of the Phone (Micro USB Connector) Bottom Side of the Phone

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LD1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDP56LD1

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LD1 EXHIBIT 9 1 of 2 TAC Code 35157404 FCC ID (NA Model) IHDP56LD1 WCDMA 850/1900, GSM 850/900/1800/1900, HSDPA 7.2 Mbps (Category 7/8), EDGE Class 12, GPRS Class 12, eCompass/aGPS , Bluetooth Class 2, Version 2.1+EDR, 802.11b/802.11g/802.11n Type Name (NA Model) MRQ6-334411F11 APPLICANT: MOTOROLA, INC. FCC ID: IHDP56LD1 EXHIBIT 9 2 of 2 Outer Shell Inner Outside View Inner Inside View Inside Assembed Display Front Display Back Lens FrontLens Back Lens + Display Back

MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23908-2F Rev. D FCC ID: IHDP56LD1 Exhibit 11 Portable Cellular Phone SAR Test Report Tests Requested By: Motorola Mobility, Inc. 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 23908-2F Rev. E Date of Report: Sep-09-2010, revised Oct-5-2010 Date of Test: Jul-15-2010 to Aug-10-2010 FCC ID #: IHDP56LD1 Generic Name: MRQ6-334411F11 Test Laboratory: Motorola Mobility, Inc. - Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Thomas Knipple Senior RF Engineer Accreditation: 2404 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2010 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23908-2F Rev. D FCC ID: IHDP56LD1 Exhibit 11 Page 2 of 23 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 4 2.1 Antenna description 4 2.2 Device description 5 3. Test Equipment Used 6 3.1 Dosimetric System 6 3.2 Additional Equipment 6 4. Electrical parameters of the tissue simulating liquid 7 5. System Accuracy Verification 8 6. Test Results 9 6.1 Head Adjacent Test Results 12 6.2 Body Worn Test Results 18 References 23 Appendix 1: SAR distribution comparison for the system accuracy verification Appendix 2: SAR distribution plots for Phantom Head Adjacent Use Appendix 3: SAR distribution plots for Body Worn Configuration Appendix 4: Probe Calibration Certificate Appendix 5: Measurement Uncertainty Budget Appendix 6: Dipole Characterization Certificate MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23908-2F Rev. D FCC ID: IHDP56LD1 Exhibit 11 Page 3 of 23 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1 g average set in [3] and 2.0 W/kg in a 10 g average set in [2]. For ANSI / IEEE C95.1 (1 g), the final stand-alone SAR readings for this phone are 1.55 W/kg for head-adjacent use and 0.50 W/kg for body-worn use. The final simultaneous-transmission SAR readings for this phone are 1.49 W/kg for head-adjacent use and 0.53 W/kg for body-worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23908-2F Rev. D FCC ID: IHDP56LD1 Exhibit 11 Page 4 of 23 2. Description of the Device Under Test 2.1 Antenna description Antenna for 1800/1900 MHz Bands Type Internal Location Top Rear of Transceiver Dimensions Length 56 mm Width 13 mm Antenna for 850/900 MHz Bands Type Internal Location Bottom Rear of Transceiver Dimensions Length 54 mm Width 12 mm Antenna for Bluetooth/Wi-Fi Type Internal Location Right-Side Rear of Transceiver Dimensions Length 15 mm Width 2 mm MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23908-2F Rev. D FCC ID: IHDP56LD1 Exhibit 11 Page 5 of 23 2.2 Device description 1 Serial Number(s) 351574040016601 (GSM/WCDMA conducted power measurements, all SAR testing) 351574040021486 (Wi-Fi/Bluetooth conducted power measurements) Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 WCDMA 850 WCDMA 1900 Wi-Fi 802.11b/g/n Bluetooth Modulation Mode(s) GMSK GMSK GMSK GMSK QPSK QPSK BPSK GFSK Maximum Output Power Setting 33.0 dBm 33.0 dBm 30.5 dBm 30.5 dBm 24.0 dBm 23.5 dBm 20 dBm 10 dBm Duty Cycle 1:8 1:8 1:8 1:8 1:1 1:1 1:1 1:1 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz 826.4 - 846.6 MHz 1852.4 - 1907.6 MHz 2412.0 - 2462.5 MHz 2402.0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled Mode(s) of Operation GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Modulation GMSK GMSK GMSK GMSK Maximum Output Power Setting 33.0 31.0 29.0 27.0 33.0 31.0 29.0 27.0 30.5 28.5 26.5 24.5 30.5 28.5 26.5 24.5 Duty Cycle 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 178…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDP56LD1 Test Report Number: 23901-1 WLAN Page 1 of 21 EXHIBIT 6A3 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT - Addendum Test Report Number – 23901-1 WLAN Report Date –2009-08-10 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Signature: Name: Lei Yang Title: EMC Project Manager Test: 2010-07-12 to 2010-08-10 As the responsible test lab manager, I hereby declare that the model tested as specified in this report conforms to the requirements indicated . Signature: Name: Yilin Zhao Title: Test Lab Manager Date: 2010-08-11 This report must not be reproduced, except in full, without written approval from this laboratory. FCC Registration Number: 177885 IC Registration Number: 109AW-1 ADR Testing Service location ADR BJ ISO/IEC-17025:2005 accredited by UKAS 2404 APPLICANT: MOTOROLA INC FCC ID: IHDP56LD1 Test Report Number: 23901-1 WLAN Page 2 of 21 EXHIBIT 6A3 Table of Contents Test Report Details .............................................................................................................3 Applicable Standards .......................................................................................................... 4 Summary of Testing............................................................................................................ 5 General and Special Conditions.......................................................................................... 5 Equipment and Cable Configurations ................................................................................. 6 Measuring Equipment and Calibration Information ........................................................... 6 Measurement Procedures and Data..................................................................................... 8 FIELD STRENGTH OF SPURIOUS EMISSIONS....................................................... 8 Measurement Procedure.............................................................................................. 8 Measurement Results .................................................................................................. 9 WLAN Band (b) ......................................................................................................... 9 WLAN Band (g) ....................................................................................................... 11 BAND-EDGE COMPLIANCE OF RF RADIATED EMISSIONS............................. 13 Measurement Procedure............................................................................................ 13 Measurement Results ................................................................................................ 13 WLAN Band (b) ....................................................................................................... 14 WLAN Band (g) ....................................................................................................... 16 WLAN Band (n) @ 7.22 Mbps................................................................................. 18 WLAN Band (n) @ 6.5 Mbps................................................................................... 20 APPLICANT: MOTOROLA INC FCC ID: IHDP56LD1 Test Report Number: 23901-1 WLAN Page 3 of 21 EXHIBIT 6A3 Test Report Details Tests Performed By: Motorola (Beijing) Mobility Technologies Co., Ltd. Asia Global Compliance Labs No.1 Wang Jing East Road Chao Yang District Beijing, 100102, P. R. China Phone: +86 10 8473 2610 FCC Registration Number: 177885 IC Registration Number: 109AW-1 Tests Requested By: Motorola Mobility, Inc. 600 North US Hwy 45 Libertyville, IL 60048 United States Product Type: Cell phone with embedded WLAN Signaling Capability: GSM 850 & 1900, EDGE 850 & 1900, WCDMA 850 & 1900, HSDPA, Bluetooth, 802.11b & g & n IMEI: 351574040010091 FCC ID: IHDP56LD1 Project number: 23901-1 Testing Complete Date: 2010-08-11 APPLICANT: MOTOROLA INC FCC ID: IHDP56LD1 Test Report Number: 23901-1 WLAN Page 4 of 21 EXHIBIT 6A3 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart C – Intentional Radiators Part 22 Subpart H - Public Mobile Services Part 24 - Person…
