IHDP56LH1SMART PHONE

F902 TM MOTO XT502 Quick Start Guide Table of Contents Table of Contents What’s in the Box? .............................. 1 Your Phone......................................... 2 Installing SIM Card, Battery and Memory Card .................................................... 3 Charging the Battery ........................... 5 First Start Up....................................... 6 The Home Screen............................... 6 Making Your First Call ........................ 7 Entering Information ........................... 7 Contacts.............................................. 9 Sending a Text Message .................... 10 Sending a Multimedia Message.......... 10 Sending a Voice MMS ........................ 11 Setting up Wi-Fi™............................... 11 Setting up an Email Account............... 12 Sending and Receiving Emails ........... 13 Using the Browser .............................. 14 Using Bluetooth ® ................................ 16 Taking Photos and Videos .................. 16 Viewing Photos and Videos ................ 18 Changing Basic Phone Settings ......... 20 Safety, Regulatory & Legal ................. 21 Quick Start Guide 1 Congratulations on your purchase of the Motorola XT502. This Quick Start Guide will help you go through the basic features of your phone to get you started. For more detailed information, see the User Guide which you can download from www.motorola.com/support. What’s in the Box? Your package comes with the following items. If any are missing, please contact your retailer. Motorola XT502 AC Adapter Battery Quick Start Guide Headset Important: A headset has been provided for use with your mobile phone. This headset is the only model headset that Motorola warrants to operate with your phone. Quick Start Guide 2 Your Phone Touch screen Menu Home Call Microphone Earpiece Back Browser End Trackball Volume: Slide up/ down to increase/ decrease volume Shutter Flash 3.0 Megapixel camera Back cover Micro USB connector Speaker Strap holes Power Headset jack Quick Start Guide 3 Installing SIM Card, Battery and Memory Card Caution: Before assembling, charging, or using your phone for the first time, please read the important legal and safety information at the back of this guide. 1. Open the back cover. 2. If the battery is inserted, lift and remove the battery. 3. Insert the SIM card. Make sure the gold contacts are facing down and the cut-off corner is facing towards the battery slot. Quick Start Guide 4 4. Insert the memory card with the gold contacts facing down. 5. Push the memory card until it clicks into place. Note: • To remove the memory card, push it down to eject it from the slot. • Do not remove the memory card while the phone is turned on. Sudden removal of the memory card may cause data loss or unpredictable system crashes. 6. Insert the battery. Make sure the contacts of the battery are aligned with the connectors on the battery slot. 7. Secure the hooks on the back cover with designated holes on the phone and close the back cover. 5 Quick Start Guide Charging the Battery 1. Open the micro USB connector cover. 2. Connect the USB cable to the phone. 3. Connect the other end of the USB cable to the AC adapter. 4. Plug the AC adapter into a wall outlet to start charging. Note: To fully charge battery, charge it for 3 hours. Battery life will vary depending on the applications used. Note: The battery can also be charged when you connect your phone to a computer using the USB cable. Note: Users have to use the connection to USB interfaces with USB 2.0 version or higher. LED Indicators Your phone has two LED indicators: green and red. LED Location Indication Green (solid) Call key Battery is fully charged. 6 Quick Start Guide Red (solid) End key Battery is charging. 7 Quick Start Guide First Start Up After installing the SIM card and charging the battery, you are now ready to turn on the phone - press and hold the Power key on the top of the phone. The Home Screen From the Home screen, you can quickly access common features and view notifications of missed calls, receive messages and check connection status. Notifications - Flick down to display Tap an icon to open it. Flick left/right to show more home screen panels. Status Icons Application Drawer Tap the Application Drawer to open the application menu. For more information about the Home screen, please refer to the User Guide. 8 Quick Start Guide Making Your First Call On the Home screen, tap Dialer. To make a call 1. Enter the phone number using the keypad. 2. Tip: Tap to erase a wrong number. Tap and hold to erase the entire number. 3. Press Call or tap the number to dial. 4. To end the call, press End. To answer a call To answer a call, press Call. Entering Information You can enter information using the on-screen keyboard. To use the on-screen keyboard When an application requires text input, tap the input box to display the on-screen keyboard. 9 Quick Start Guide 1. Tap the input box to display the on-screen keyboard. Note: To toggle between upper and lowercase, tap . To display the numeric and the symbols keyboard, tap . Tap to toggle back. 2. Tap keys on the keyboard to enter characters. Note: If word completion is activated, the screen displays a list of suggested words as you type the characters. 10 Quick Start Guide Contacts To add a Contact 1. On the Home screen, tap Contacts. 2. Tap Menu > New > Create contact. 3. Enter contact information, such as name, phone number, email address etc. Tap Done to save the contact or tap Revert to exit without saving the changes. Note: Your SIM card only stores the name and the phone number. To store more information, such as an email address, create a new contact on the phone. To import contacts 1. On the Home screen, tap Contacts. 2. Tap Menu > More > Import Contacts. 3. Select to import contacts from SIM Card or SD Card. 4. Select contacts to import or tap Menu again to select Import all. 11 Quick Start Guide Sending a Text Messag…

Text truncated - open the document above for the full version.

Motorola Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Tel: 847-523-6167 ; Fax: 847 523-4538 Date: June 17, 2010 Statement We, Motorola Inc., states that our device, FCC ID: IHDP56LH1, has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Charlene Tsai

Rev. 1/1/03 Motorola Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Tel: 847-523-6167 ; Fax: 847 523-4538 Date: June 17, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: IHDP56LH1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: XT502_Schem.pdf) Block Diagram (file: XT502_BlkDia.pdf) Parts List (file: XT502_PartsLst.pdf) Operation Description (file: XT502_OpDes.pdf) Tune up Procedure (file: XT502_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ____ ____________________ Charlene Tsai

June 17, 2010 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Grantee Code IHD Authorization: I, Andrew Bachler, the FCC contact for Grantee Code “IHD”; hereby authorize the following company (agent) to act on behalf of Motorola Inc. Mobile Devices for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures • Technical Contact • Non-Technical Contact • Test Firm Contact Information The grant should still be mailed to the applicant of record for Grantee Code “IHD”. Authorized Agent: CharleneTsai Chi Mei Communication Systems, Inc. No. 4, MingSheng St. TuCheng City Taipei County, 23678 Taiwan Specific Application: • FCC ID: IHDP56LH1 Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this authorization. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13-1

May 5, 2010 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Grantee Code IHD Authorization: I, Andrew Bachler, the FCC contact for Grantee Code “IHD”; hereby authorize the following company (agent) to act on behalf of Motorola Inc. Mobile Devices for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures • Technical Contact • Non-Technical Contact • Test Firm Contact Information The grant should still be mailed to the applicant of record for Grantee Code “IHD”. Authorized Agent: Roy Wu, Manager SPORTON INTERNATIONAL INC. 6F, No. 106, Hsin Tai Wu Rd., Sec.1, Hsi Chih, Taipei Hsien, Taiwan 221, R.O.C. Specific Application: • FCC ID: IHDP56LH1 Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this authorization. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

1/1 Motorola Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Tel: 847-523-6167 ; Fax: 847 523-4538 Date: June 17, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDP56LH1 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:
External Photos (file: XT502_ExtPho.pdf)
Internal Photos (file: XT502_IntPho.pdf)
Test Setup Photos (file: XT502_Tsup.pdf)
User Manual (file: XT502_UserMan.pdf) The application contains technical information, which Motorola Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Charlene Tsai

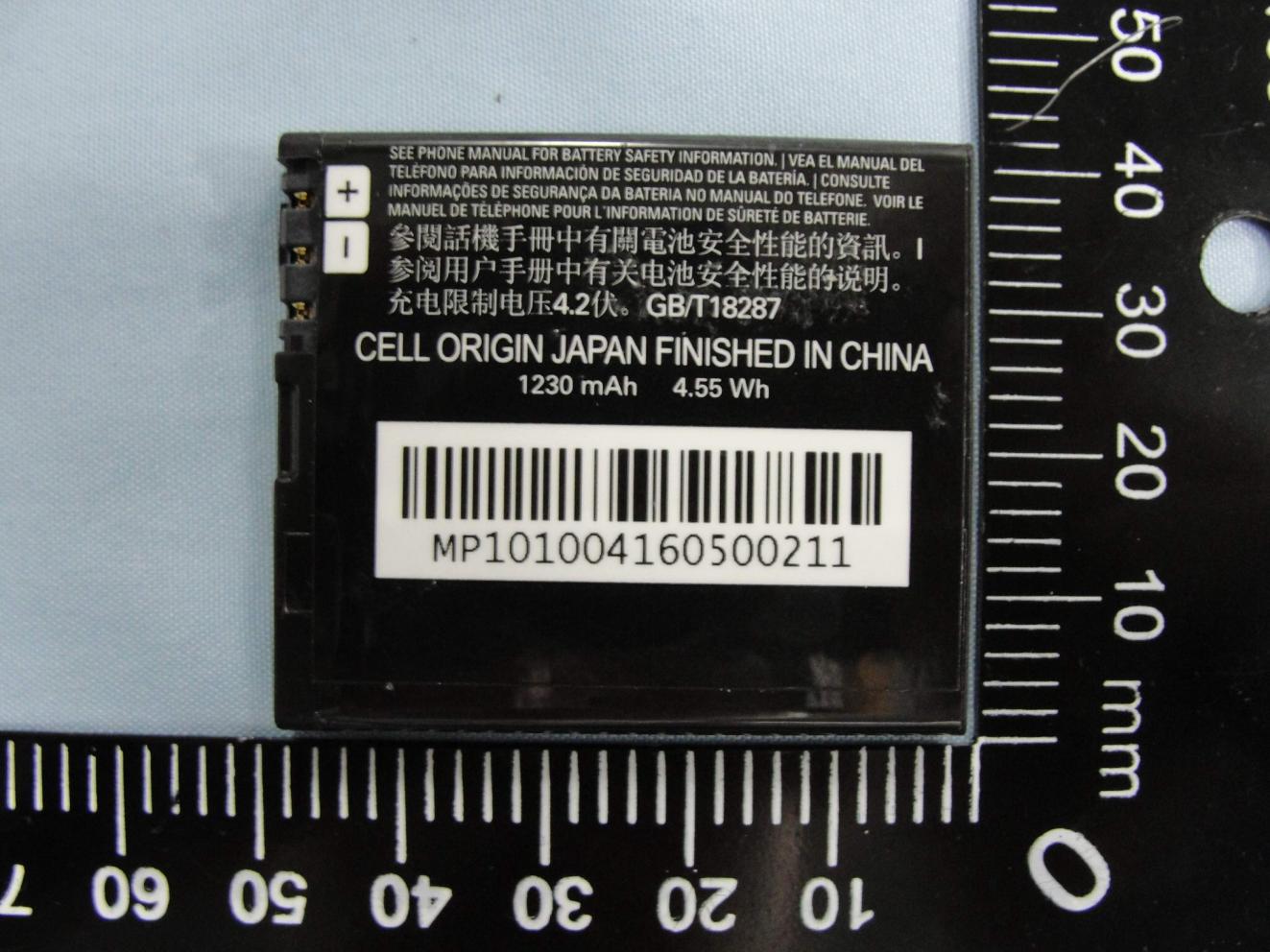

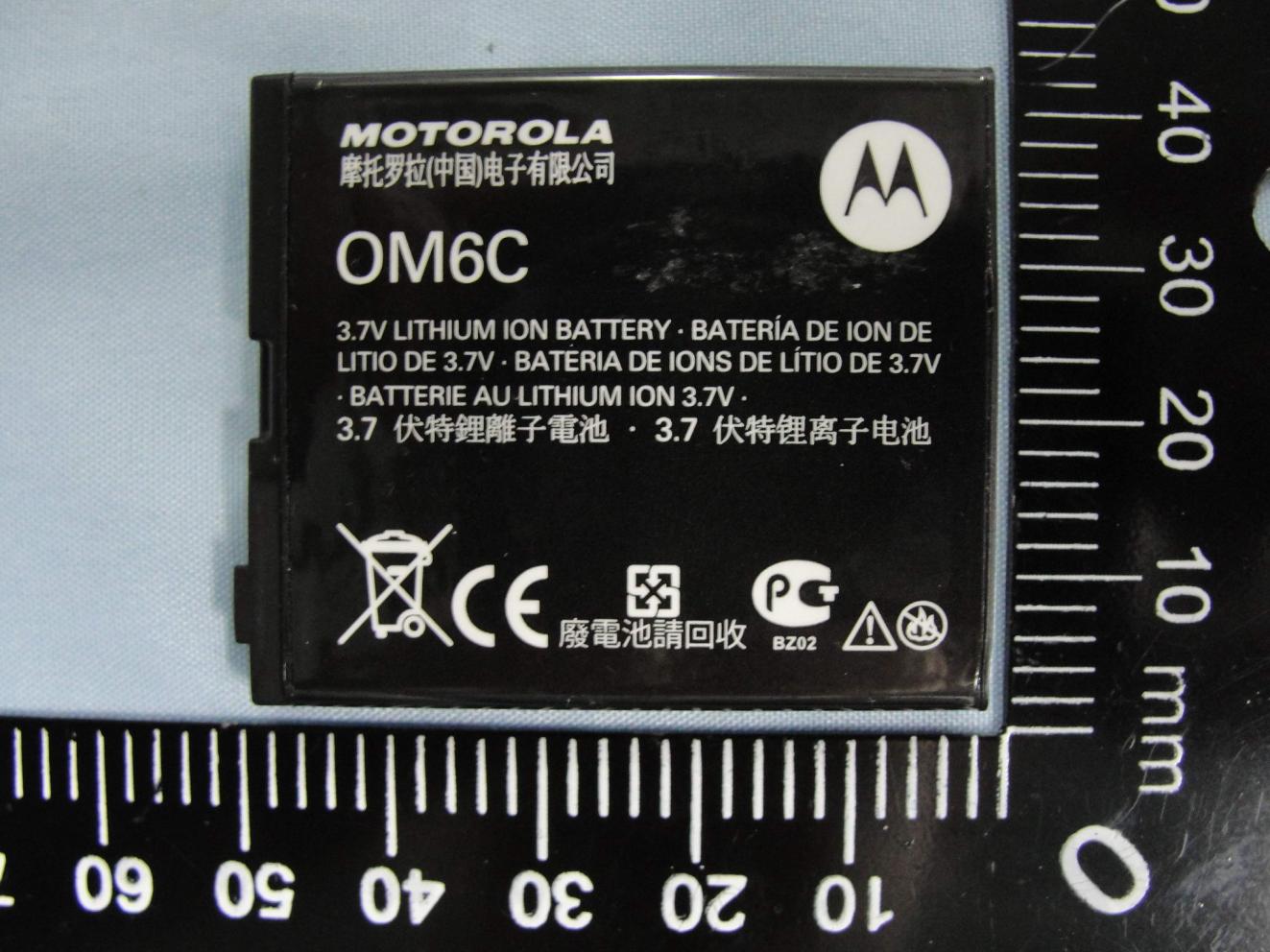

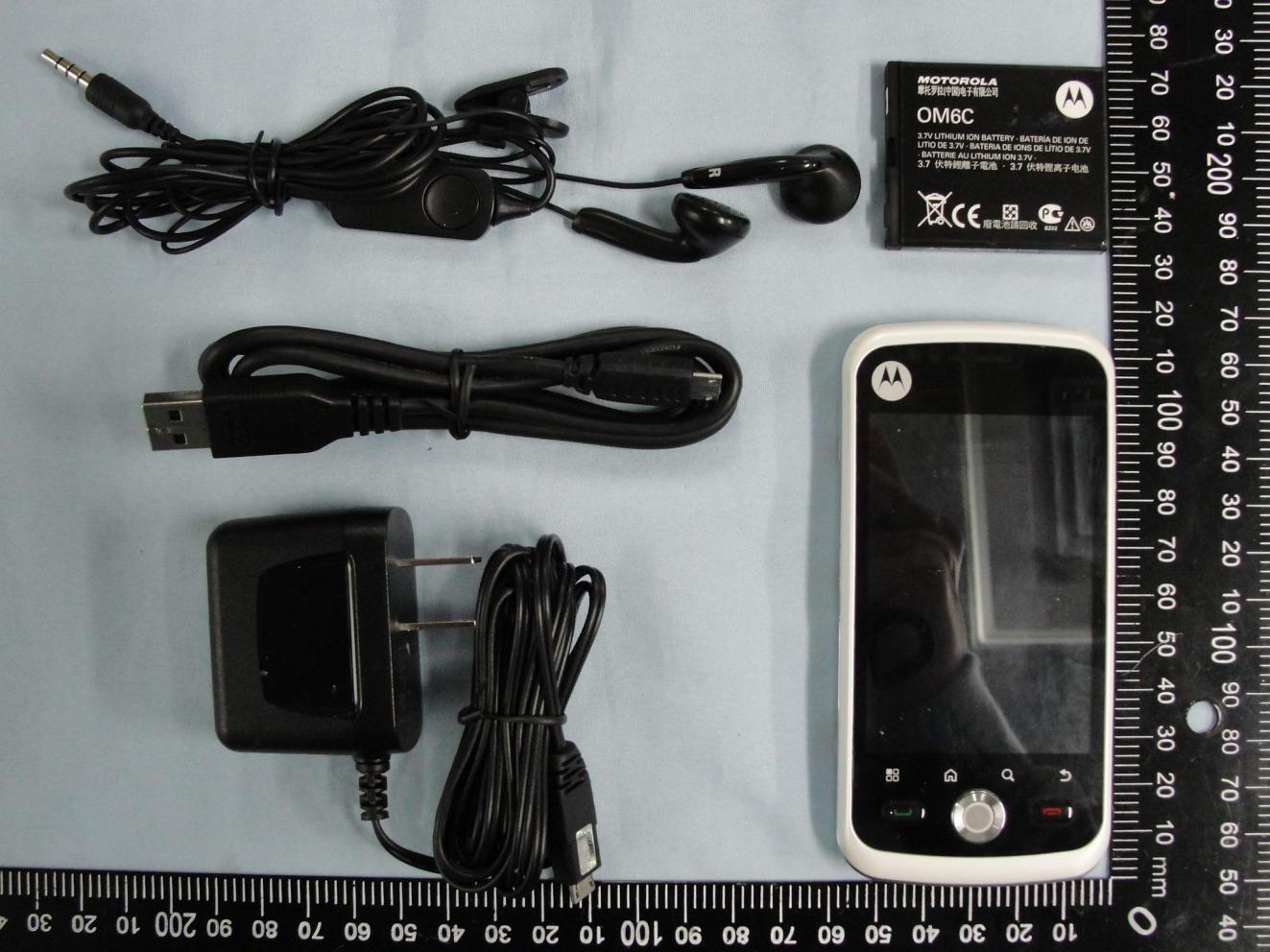

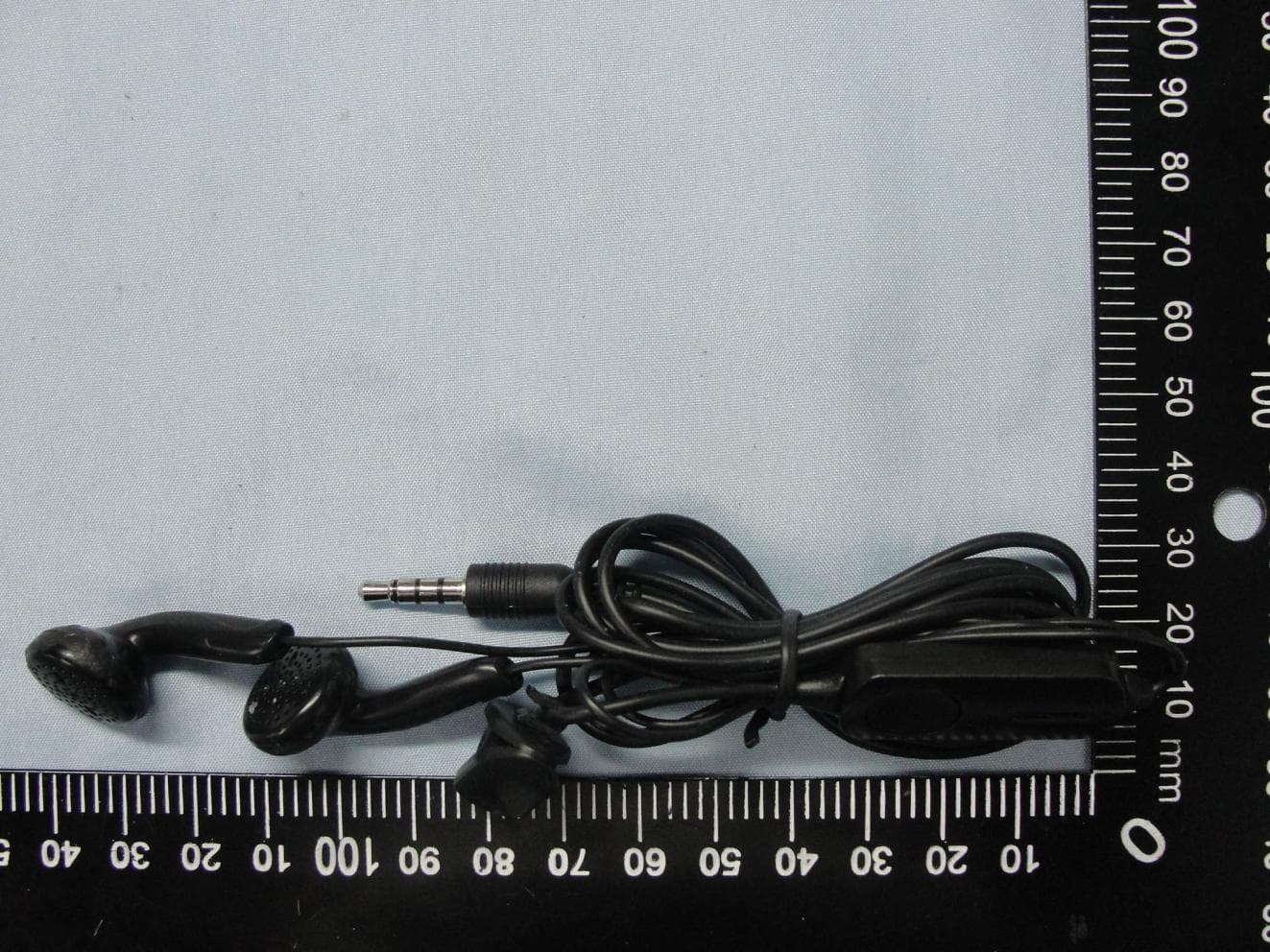

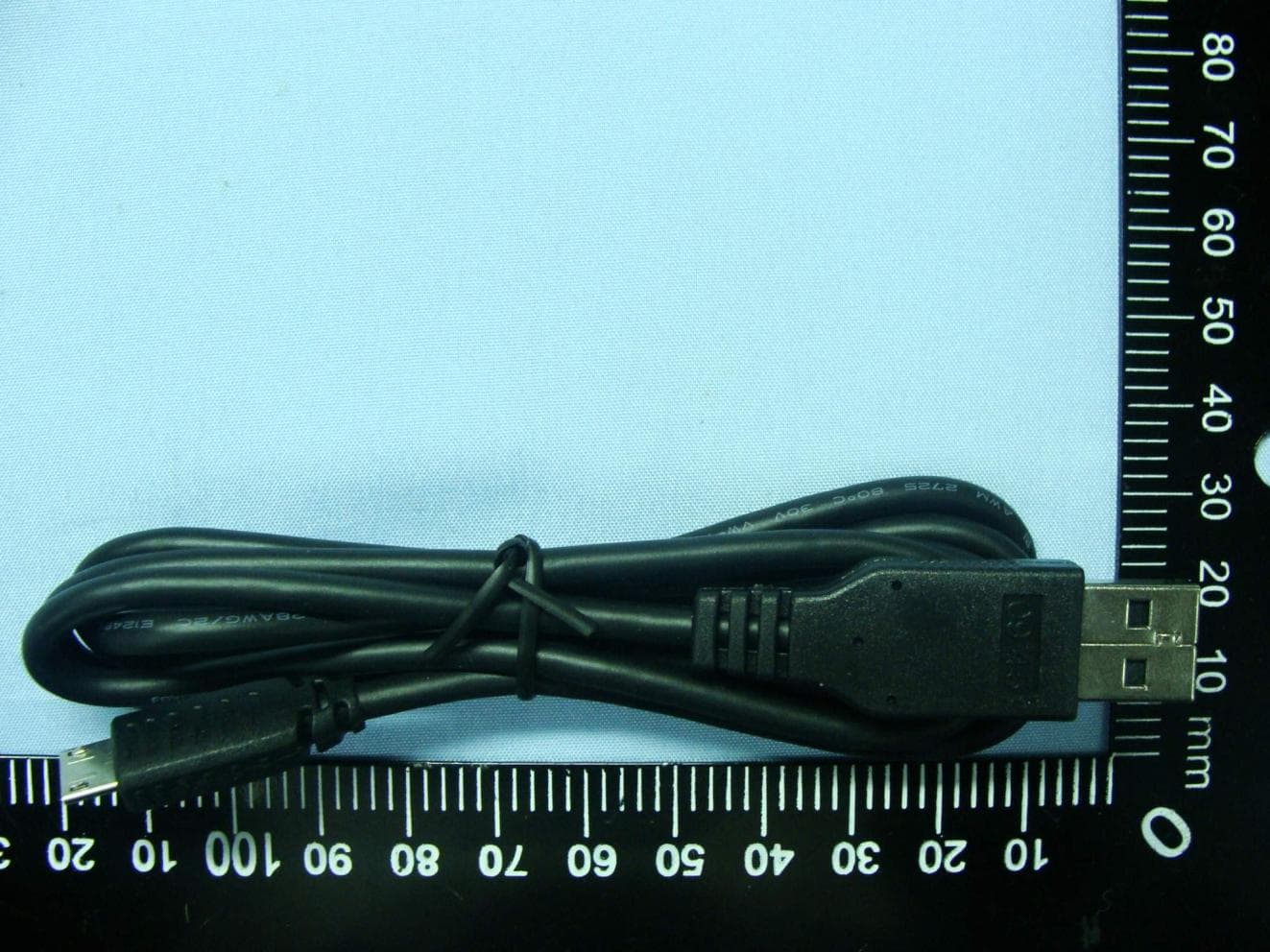

Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 1 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 2 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 3 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 4 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 5 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 6 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 7 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 2. Photograph of Accessory Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 8 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 9 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 10 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 11 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 12 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 13 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 14 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 720510 2. Photograph of Accessory

Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 15 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 3. Internal Photograph of EUT Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 16 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 17 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 18 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 19 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 20 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 21 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 22 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 23 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 24 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 25 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 26 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 27 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 28 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 29 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Bluetooth and WLAN Antenna (Tx/Rx) GPS Antenna WWAN Antenna (Tx/Rx) 6.8 cm Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 30 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Bluetooth and WLAN Antenna Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 31 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 GPS Antenna Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 32 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 WWAN Antenna Photographs of EUT Report No.: EP981906-16 Model Name: XT502 SPORTON INTERNATIONAL INC. Page Number : 33 of 33 TEL : 886-3-327-3456 Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 720510 WWAN Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 35 TEL : 886-3-327-3456 Report Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56LH1 FCC SAR Test Report Report No. : FA981906-16A FCC SAR Test Report APPLICANT : Motorola Inc. EQUIPMENT : Smart phone BRAND NAME : MOTOROLA MODEL NAME : XT502 MARKETING NAME : Quench XT3 / Quench XT5 FCC ID : IHDP56LH1 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jun. 07, 2010 and completely tested on Jun. 26, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 35 TEL : 886-3-327-3456 Report Issued Date : Jun. 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56LH1 FCC SAR Test Report Report No. : FA981906-16A Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 7 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 8 3.5 Test Conditions ................................................................................................................................................. 8 3.5.1 Ambient Condition .................................................................................................................................. 8 3.5.2 Test Configuration ................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ...............................................................................................................................10 4.1 Introduction ......................................................................................................................................................10 4.2 SAR Definition .................................................................................................................................................10 5. SAR Measurement System .......................................................................................................................................11 5.1 E-Field Probe...................................................................................................................................................12 5.1.1 E-Field Probe Specification ...................................................................................................................12 5.1.2 E-Field Probe Calibration .......................................................................................................................13 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................13 5.3 Robot ...............................................................................................................................................................13 5.4 Measurement Server .......................................................................................................................................14 5.5 Phantom ..........................................................................................................................................................15 5.6 Device Holder ..................................................................................................................................................16 5.7 Data Storage and Evaluation ...........................................................................................................................18 5.7.1 Data Storage .....…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/6/25 System Check_835MHz_100625 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_100625 Medium parameters used: f = 835 MHz; σ = 0.916 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.21, 6.21, 6.21); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.03 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.8 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.954 mW/g; SAR(10 g) = 0.625 mW/g Maximum value of SAR (measured) = 1.03 mW/g 0 dB = 1.03mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/6/26 System Check_835MHz_100626 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_100626 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.00 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.4 V/m; Power Drift = -0.004 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.916 mW/g; SAR(10 g) = 0.603 mW/g Maximum value of SAR (measured) = 0.993 mW/g 0 dB = 0.993mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/6/7 System Check_1900MHz_100607 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_100607 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.11, 5.11, 5.11); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.84 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.9 V/m; Power Drift = -0.0095 dB Peak SAR (extrapolated) = 7.2 W/kg SAR(1 g) = 4.08 mW/g; SAR(10 g) = 2.12 mW/g Maximum value of SAR (measured) = 4.65 mW/g 0 dB = 4.65mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/6/25 System Check_1900MHz_100625 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_100625 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.09, 5.09, 5.09); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.68 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.7 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 6.75 W/kg SAR(1 g) = 3.88 mW/g; SAR(10 g) = 2.04 mW/g Maximum value of SAR (measured) = 4.40 mW/g 0 dB = 4.40mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/6/25 #01 GSM850_Right Cheek_Ch189 DUT: 981906-16 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100625 Medium parameters used: f = 836.4 MHz; σ = 0.918 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.21, 6.21, 6.21); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.709 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.72 V/m; Power Drift = -0.041 dB Peak SAR (extrapolated) = 0.865 W/kg SAR(1 g) = 0.679 mW/g; SAR(10 g) = 0.489 mW/g Maximum value of SAR (measured) = 0.705 mW/g 0 dB = 0.705mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/6/25 #02 GSM850_Right Tilted_Ch189 DUT: 981906-16 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100625 Medium parameters used: f = 836.4 MHz; σ = 0.918 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.21, 6.21, 6.21); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8…
