Dummy Page - To be discarded before printing ITC Notes: Use this template with A7MotoQSG StructApps. WX245g GSM GSG 7/8/10 1 congratulations The MOTO WX245g is an affordable phone with a stylish bar type design. It satifies you with the simplest value for text, voice and fun. •Personalization: Change your desired wallpapers and user your favorite ringtone. •Message: Quickly edit and exchange messages to keep in touch with your family and friends. •Fun: When you have a little time to spare, play a game on your phone. We’ve crammed all the main features of your phone into this handy guide, and in a matter of minutes we’ll show you just how easy your phone is to use. You may be surprised at what you discover. If you’d like to get more information about how to use your new phone, please visit www.motorola.com. Caution: Before using your phone for the first time, please read the important legal and safety information at the back of the Getting Started Guide. 2 contents my phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 let’s go. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 customize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 personal organizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Legal, Safety & Regulatory . . . . . . . . . . . . . . . . . . . . . . . . 22 my phone 3 my phone Note: All the illustrations, simulated screen and related images used in this manual are for reference only. There may be slight defference between the phone and keys and content of display used in this manual and those of your phone. Please refer to your phone for actuality. home screen 4 home screen keep you updated at all times... The home screen appears when you turn on the phone. It gives you all your latest information in one place. Status indicators can appear on the top of the home screen. Note: Your home screen may look different. status indicators Single StrengthRing Only New MessagesVibrate Only Alarm ClockVibrate and Ring Flight ModeVibrate then Ring BatteryHeadset menu map 5 menu map Prepaid •Add Airtime •Buy Airtime •My Phone Number •Airtime Info. •Airtime Display •Serial Number •SIM Number •Code Entry Mode Contacts •Add New Contact •Contact List Recent Call •Call History •Call Settings Messages •Write Message •Inbox •Drafts •Outbox •Broadcast Message •Templates •SMS Settings Games & Apps •Copter •Chicken •Games Settings User Profiles •General •Meeting •Outdoor •Indoor •Headset To o l s •SIM App •Calendar •Tasks •Alarm •World Clock •Calculator Settings •Phone Settings •Network Settings •Security Settings •Restore Factory Settings •Shortcuts Alarm This is the standard main menu layout. Your phone’s menu may be different . let’s go 6 let’s go Note: Your battery is intentionally tight fitting. basics 7 basics here’s a few essentials: about this guide Press the Left Soft Key to open the Main Menu and select OK or Options. Use the Navigation Key up, down, left, or right to scroll to an item, then press the Center Key to select the highlighted item. Press the Right Soft Key to select Back and move up to the previous level. This guide shows how to locate a menu eature as follows: Find it: Press Menu > Recent Calls > Call history This means that, from the home screen: 1Press the Left Soft Key to open the Main Memu. 2Press the Navigation Key to scroll to Recent Calls, then press the Center Key to select it. 3Press the Navigation Key to scroll to Call history, then press the Center Key to select it. basics 8 turn it on & off Press and hold the Power/End Key for a few seconds to turn the phone on and off. If prompted, enter your unlock code to turn it on. access the main menu 1From the home screen, press the Left Soft Key to open the Main Menu. 2You can press the Right Soft Key to move up the previous level. You also can press the Power/End Key to return to the home screen at anytime. menu shortcut You can press the Navigation Key to quickly open an application on your phone. The default setting is: •Up: Tools •Down: Contacts •Left: Game & App •Right: Ring Style calls 9 calls it’s good to talk prepaid Find it: Press Menu > Prepaid With prepaid service, you buy wireless network services in advance. Your phone works the same way it did before. In the Prepaid menu, you can activate and deactivate prepaid service, check your prepaid balance, add money to your account, call customer service, and provide other information requested by the prepaid service provider. Note: Available prepaid service may vary depending on your service provider or region. Contact your service provider for availability and more information. make a call From the home screen, enter a number and press the Send Key . answer a call Press the Send Key when your phone rings or vibrates. calls 10 end a call Press the Power/End Key when your phone rings or vibrates. redial a number 1From the home screen, press the Send Key to see a list of All Calls showing recent missed calls, dialled calls and received calls. 2Scroll to the entry you want to call and press the Send Key . go handsfree During an a…

Text truncated - open the document above for the full version.

April 15, 2010 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Grantee Code IHD Authorization: I, Andrew Bachler, the FCC contact for Grantee Code “IHD”; hereby authorize the following company (agent) to act on behalf of Motorola Inc. Mobile Devices for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures • Technical Contact • Non-Technical Contact • Test Firm Contact Information The grant should still be mailed to the applicant of record for Grantee Code “IHD”. Authorized Agent: David Wang / Director Compliance Certification Service Inc. No 11, Wugong 6th Rd., Wugu Township, Taipei County 248, Taiwan (R.O.C.) Specific Applications: • FCC ID: IHDP56LJ1 • FCC ID: IHDP56LJ4 • FCC ID: IHDP56LJ5 Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this authorization. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

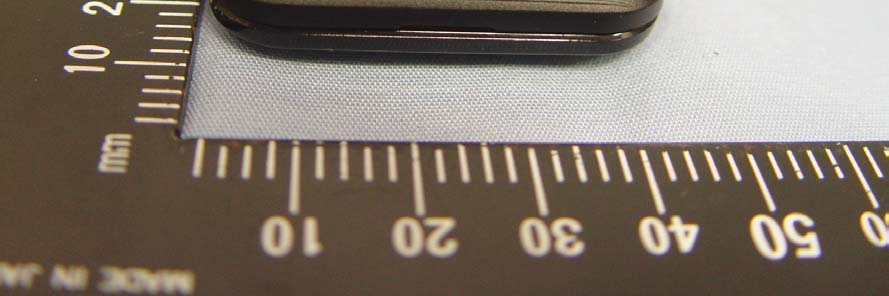

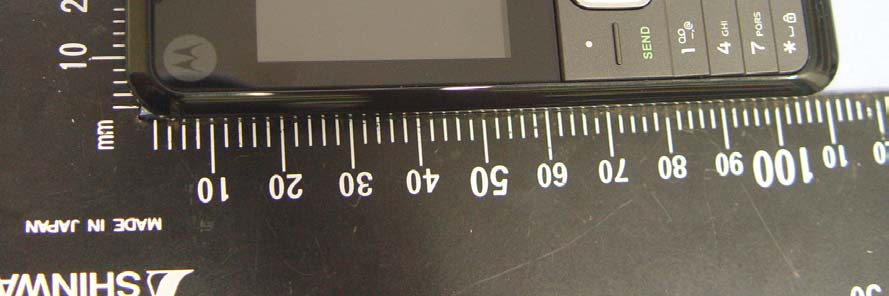

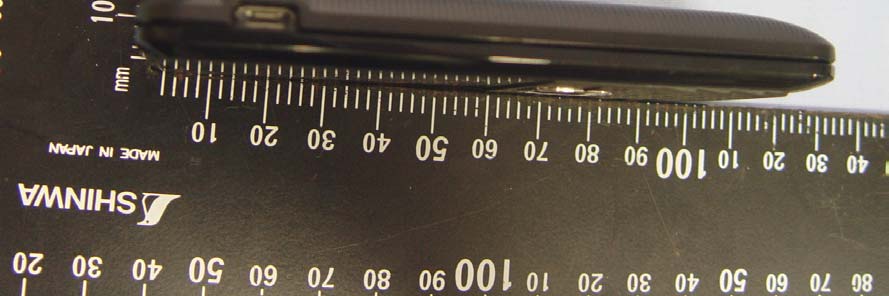

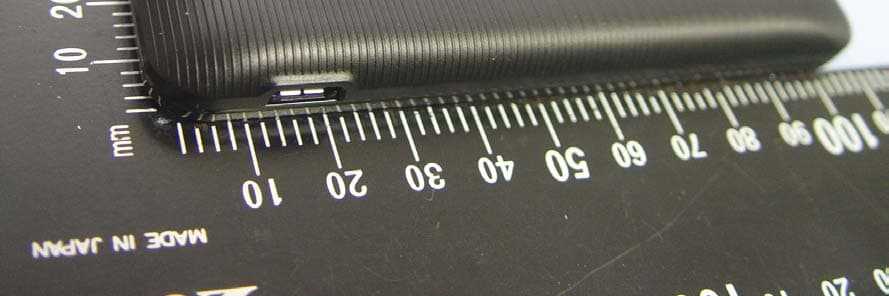

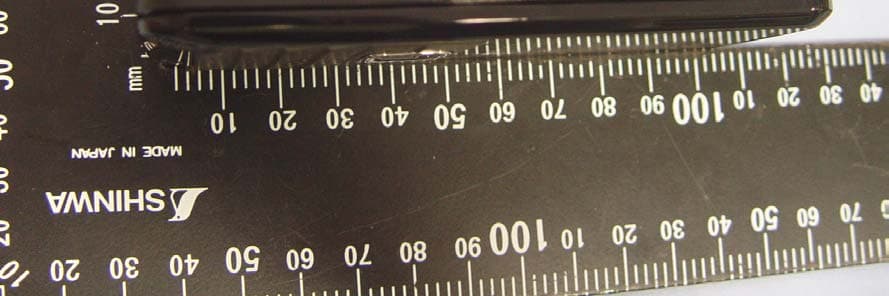

Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 1 Total Page: 14 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 6 Rev. 00

2010/04/ 30 Label 35.35mm 24.69mm 40.12mm 17.87mm 0.10mm 8201 2010/04/30 Joy qiu Morray hou Morray hou S/N:1025846031B IMEI:01236000000001 Model:WX244 MB:005 FCC ID:IHDP56LJ4 Engineering Samples 7L-820100-0001 Back of the EUT Label Location

2010/04/ 30 Label 35.35mm 24.69mm 40.12mm 17.87mm 0.10mm 8201 2010/04/30 Joy qiu Morray hou Morray hou S/N:1025846031B IMEI:01236000000001 Model:WX245g MB:005 FCC ID:IHDP56LJ4 Engineering Samples 7L-820100-0001 Back of the EUT Label Location

Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 7 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T100525101 Date of Issue: June 2, 2010 A1 - 14 Rev. 00

Compliance Certification Services Inc. Report No: T100525101-SF FCC ID: IHDP56LJ4 Date of Issue: May 29, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 31 Rev. 00 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Mobile Phone Model: WX245g, WX244 Trade Name: MOTORAL Issued to Motorola Inc. 600 N. U.S. Highway 45 Libertyville, Illinois United states 60048-5343 Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien, 248 Taiwan. http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No: T100525101-SF FCC ID: IHDP56LJ4 Date of Issue: May 29, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) .............................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ................................5 4. DOSIMETRIC ASSESSMENT SETUP ..............................................................................................5 4.1 MEASUREMENT SYSTEM DIAGRAM........................................................................................... 6 4.2 SYSTEM COMPONENTS..................................................................................................................... 7 5. EVALUATION PROCEDURES .......................................................................................................10 6. MEASUREMENT UNCERTAINTY ................................................................................................14 7. EXPOSURE LIMIT ...........................................................................................................................16 8. EUT ARRANGEMENT.....................................................................................................................17 8.1 ANTHROPOMORPHIC HEAD PHANTOM................................................................................... 17 8.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION................................................................. 18 8.3 DEFINITION OF THE “TILTED” POSITION................................................................................. 19 9. MEASUREMENT RESULTS............................................................................................................20 9.1 SYSTEM PERFORMANCE CHECK................................................................................................ 20 9.2 TEST LIQUIDS CONFIRMATION................................................................................................... 20 9.3 EUT TUNE-UP PROCEDURES......................................................................................................... 25 9.4 SAR MEASUREMENT RESULTS.................................................................................................... 26 10. EQUIPMENT LIST & CALIBRATION STATUS............................................................................30 11. FACILITIES .......................................................................................................................................31 12. REFERENCES ...................................................................................................................................31 13. ATTACHMENTS ..............................................................................................................................32 Compliance Certification Services Inc. Report No: T100525101-SF FCC ID: IHDP56LJ4 Date of Issue: May 29, 2010 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: Motorola Inc. 600 N. U.S. Highway 45 Libertyville, Illinois United states 60048-5343 Equipment Under Test: Mobile Phone Trade Name: MOTOROLA Model Number: WX245g, WX244 Date of Test: May 27 ~ 28, 2010 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C(Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Tested by: Rex Lai Anson Lu Section Manager Test Engineer Compliance Certification Services Inc. Compliance Certification Services Inc Compliance Certification Services Inc. Report No: T100525101-SF FCC ID: IHDP56LJ4 Date of Issue: May 29, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Mobile Phone Model Number WX245g, WX244 Trade Name MOTOROLA Model Discrepancy All the specification and layout are identical except they come with different model numbers for marketing purposes. Module Trade Name MTK Module Model Number MTK6223D Frequency Range GSM / GPRS / EGPRS: 850: 824.2 ~ 848.8 MHz GSM / GPRS / EGPRS: 1900: 1850.2 ~ 1909.8 MHz Transmit Power(Average) 850 Band: GSM 850: 32.1 dBm 1900 Band: GSM 1900: 29. 8 dBm Max. SAR (1g): GSM 850: Head: 0.766 W/kg (Left head Cheek position) Body: 0.806 W/kg (Body position) PCS1900: Head: 1.100 W/kg (Left head Cheek position) Body: 0.773 W/kg (Body position) Modulation Technique GSM / PCS: GMSK Antenna Specification Antenna. Type: Embedded inverted-F antenna Compliance Certification Services Inc. Report No: T100525101-S…

Text truncated - open the document above for the full version.

'DWH7LPH30 7HVW/DERUDWRU\&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF  '961G+HDG '87'LSROH0+]7\SH'96HULDOG &RPPXQLFDWLRQ6\VWHP&:)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHG LQWHUSRODWHG I 0+]ı PKRPİ U  ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ $LU7HPSHUDWXUH24.6 deg C;Liquid Temperature:23.6GHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ z3UREH(;'961&RQY)   z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ  z(OHFWURQLFV'$(6Q&DOLEUDWHG z3KDQWRPSAM with CRP; Type: SAM; Serial: 1506 z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG  G PP3LQ P:$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  G PP3LQ P:=RRP6FDQ [[ &XEH0HDVXUHPHQWJULGG[ PPG\ PPG] PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J   P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  G PP3LQ P:=6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PPG] PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  'DWH7LPH1330 7HVW/DERUDWRU\&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF  '961G%RG\ '87'LSROH0+]7\SH'96HULDOG &RPPXQLFDWLRQ6\VWHP&:)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHG LQWHUSRODWHG I 0+]ı PKRPİ U  ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ $LU7HPSHUDWXUH24.6 deg C;Liquid Temperature:23.6GHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ z3UREH(;'961&RQY) 282828  z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ  z(OHFWURQLFV'$(6Q&DOLEUDWHG z3KDQWRPSAM with CRP; Type: SAM; Serial: 1506 z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG  G PP3LQ P:$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  G PP3LQ P:=RRP6FDQ [[ &XEH0HDVXUHPHQWJULGG[ PPG\ PPG] PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J   P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  G PP3LQ P:=6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PPG] PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  'DWH7LPH$0 7HVW/DERUDWRU\&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF  '961G+HDG '87'LSROH0+]7\SH'96HULDOG &RPPXQLFDWLRQ6\VWHP&:)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHG LQWHUSRODWHG I 0+]ı 4PKRPİ U  ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ $LU7HPSHUDWXUH24.6 deg C;Liquid Temperature:23.6GHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ z3UREH(;'961&RQY)   z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ  z(OHFWURQLFV'$(6Q&DOLEUDWHG z3KDQWRPSAM with CRP; Type: SAM; Serial: 1506 z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG  3LQ P:G PP$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  3LQ P:G PP=RRP6FDQ [[ &XEH0HDVXUHPHQWJULGG[ PPG\ PPG] PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J   P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  3LQ P:G PP=6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PPG] PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  'DWH7LPH0215P0 7HVW/DERUDWRU\&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF  '961G%RG\ '87'LSROH0+]7\SH'96HULDOG &RPPXQLFDWLRQ6\VWHP&:)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHGI 0+]ı PKRPİ U  ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ $LU7HPSHUDWXUH24.6 deg C;Liquid Temperature:23.6GHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ z3UREH(;'961&RQY) 7.28728728  z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ  z(OHFWURQLFV'$(6Q&DOLEUDWHG z3KDQWRPSAM with CRP; Type: SAM; Serial: 1506 z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG  3LQ P:G PP$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  3LQ P:G PP=RRP6FDQ [[ &XEH0HDVXUHPHQWJULGG[ PPG\ PPG] PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J   P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  3LQ P:G PP=6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PPG] PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  'DWH7LPH30 7HVW/DERUDWRU\Compliance Certification Services Inc.  *60/HIW+HDGWX245g '87WX245g; Type: Mobile Phone6HULDO1$ &RPPXQLFDWLRQ6\VWHP*60)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHG LQWHUSRODWHG I 0+]ı PKRPİ U  ȡ NJP    3KDQWRPVHFWLRQ/HIW6HFWLRQ $LU7HPSHUDWXUH24.6 deg C;Liquid Temperature:23.6GHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ  z3UREH(;'961&RQY)   z6HQVRU6XUIDFHP…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100525101-RP2 FCC ID: IHDP56LJ4 Date of Issue: June 2, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 60 Rev. 00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E TEST REPORT For Mobile Phone Model: WX245g, WX244 Trade Name: MOTOROLA Issued to Motorola Inc. 600 N. U.S. Highway 45 Libertyville, Illinois United states 60048-5343 Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100525101-RP2 FCC ID: IHDP56LJ4 Date of Issue: June 2, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 8 4.3 MEASUREMENT UNCERTAINTY .................................................................................... 9 5. FACILITIES AND ACCREDITATIONS ................................................................................. 10 5.1 FACILITIES............................................................................................................................ 10 5.2 EQUIPMENT........................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 12 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 12 6.2 SUPPORT EQUIPMENT..................................................................................................... 12 7. FCC PART 22 & 24 REQUIREMENTS ................................................................................... 13 7.1 PEAK POWER......................................................................................................................... 13 7.2 AVERAGE POWER............................................................................................................... 15 7.1 ERP & EIRP MEASUREMENT .......................................................................................... 17 7.2 OCCUPIED BANDWIDTH MEASUREMENT ................................................................. 21 7.3 OUT OF BAND EMISSION AT ANTENNA TERMINALS .............................................. 27 7.4 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT............................. 34 7.5 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT............................ 48 7.6 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ...................................... 50 7.7 POWERLINE CONDUCTED EMISSIONS.................................................................................... 52 APPENDIX I RADIO FREQUENCY EXPOSURE ........................................................................ 55 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...................................................................... 57 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100525101-RP2 FCC ID: IHDP56LJ4 Date of Issue: June 2, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Motorola Inc. 600 N. U.S. Highway 45 Libertyville, Illinois United states 60048-5343 Equipment Under Test: Mobile Phone Trade Name: MOTOROLA Model Number: WX245g, WX244 Date of Test: May 26 ~ 31, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 22 Subpart H & Part 24 Subpart E No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-C: 2004 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rule FCC PART 22 Subpart H and PART 24 Subpart E. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100525101-RP2 FCC ID: IHDP56LJ4 Date of Issue: June 2, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Mobile Phone Trade Name MOTOROLA Model Number WX245g, WX244 Model Di…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100525101-RP2 FCC ID: IHDP56LJ4 Date of Issue: June 2, 2010 Page 55 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT EUT Specification EUT Mobile Phone Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: GSM 850MHz: 824.2 ~ 848.8 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power ERP: 30.29 dBm (1069.05 mW) Antenna gain (Max) -4.18 dBi (Numeric gain: 0.38) Evaluation applied MPE Evaluation SAR Evaluation* N/A Remark: 1. The maximum output power is 30.29dBm (1069.05mW) at 824.20MHz (with 0.38 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. TEST RESULTS No non-compliance noted. Not applicable, Please refers to the SAR test report. Compliance Certification Services Inc. Report No.: T100525101-RP2 FCC ID: IHDP56LJ4 Date of Issue: June 2, 2010 Page 56 Rev. 00 EUT Mobile Phone Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: GSM 1900: 1850.2 ~ 1909.8 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power ERP: 29.56 dBm (903.64 mW) Antenna gain (Max) -4.33 dBi (Numeric gain: 0.36) Evaluation applied MPE Evaluation SAR Evaluation* N/A Remark: 3. The maximum output power is 29.56 dBm (903.64 mW) at 1880.00MHz (with 0.36 numeric antenna gain.) 4. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. TEST RESULTS No non-compliance noted. Not applicable, Please refers to the SAR test report.

Compliance Certification Services Inc. Report No.: T100525101-RP2 FCC ID: IHDP56LJ4 Date of Issue: June 2, 2010 Page 57 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Set Up Photo Compliance Certification Services Inc. Report No.: T100525101-RP2 FCC ID: IHDP56LJ4 Date of Issue: June 2, 2010 Page 58 Rev. 00 Radiated Emission Set up Photos GSM 850 at Y mode Compliance Certification Services Inc. Report No.: T100525101-RP2 FCC ID: IHDP56LJ4 Date of Issue: June 2, 2010 Page 59 Rev. 00 GSM 1900 at Z mode Com…
