IHDP56LK1Portable Cellular/ PCS CDMA Transceiver with WLAN and Bluetooth

APPLICANT MOTOROLA INC. FCC ID: IHDP56LK1 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 User Guide [VENUS 2] BY MOTOROLA 1 Congratulations CongratulationsVENUS 2 by Motorola You work. You have a life. VENUS 2 by Motorola lets you harness it all, hassle free.• View and edit documents from anywhere. • Manage your hectic calendar, and then sync with your computer for instant access to important contacts, meetings, email, and documents. • Stay on top of work email and personal email. • Browse the Web for the latest news headlines or just for fun! Caution: Before assembling, charging or using your phone for the first time, please read the important legal and safety information packaged with your phone. Once your phone is up and running, touch Menu > Settings > About phone > Safety information to read the full information. More•Answers: To u ch > Help Center . You can also flick your home screen left or right to see the Tips & Tricks widgets. •Updates: Phone updates, PC software, online help and more at motorola.com/myvenus2 . • Accessories: Find accessories for your phone at www.motorola.com/products . Notes:• All screen shots in this guide are simulated. Actual displays may vary. • Instructions to perform tasks in this guide may change depending on the software version on your phone. • Unless specified otherwise, all instructions to perform tasks in this guide assume that you are starting from the home screen. 2 Congratulations Your phonethe important keys & connectors Power Key Press - Sleep. Hold - Turn off. 3.5mm He a dset J ac k Home Key B ac k Key M ic ro p hone Menu Key M ic ro USB Conne c tor Charge or connect to PC. Not i f ica t i on LED On=Charged. Flashing=New notification. Volume Keys To u c hs c reen Se a r c h Key To u c h pa d (on back) DeleteEnter Sh i ft S pac e Sym b ols Altern a te W hen you turn your phone, the screen adjusts for you. 3 Contents ContentsLet’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . 5Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Digital living . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26YouTube™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31Social networking . . . . . . . . . . . . . . . . . . . . . . . . . . 34Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37Maps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39Latitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41Apps for all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42Bluetooth® wireless . . . . . . . . . . . . . . . . . . . . . . . . 44Wi-Fi™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45Memory card & file management. . . . . . . . . . . . . . 47Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 53 Let’s golet’s get you up and runningAssemble & charge 1 SIM in 2 MicroSD in (may already be inserted) 3 Battery in 4 Cover on 5 Charge up 3H 4 Let’s go Caution: Please read the battery use and safety text in the important legal and safety information packaged with your phone.Tip: To save battery life, see “Battery tips” on page 19. Set up & goThe first time you turn on your phone, a setup wizard guides you through signing in to your Gmail™ account. If you don’t have one, don’t worry, the wizard will help you create one. After you log into Gmail, you can set up social networking, or you can do it later. Note: This phone supports data-intensive apps and services. It is strongly recommended that you purchase a data plan that meets your needs. Contact your service provider for details. 1 Press and hold Power on top of your phone to turn it on. 2 Select a language. 3 Follow the setup wizard to create or log in to your Gmail account. Note: If you have an existing Gmail account, your contacts from that account are synced to your phone. Whenever you choose to select all contacts for the one Power Key you want, your phone shows every contact, in every groups. Wi-Fi connectIf you want to use a Wi-Fi computer network for even faster Internet access, touch Menu > Settings > Wireless & networks > Wi-Fi settings . Cool content & moreBrowse and download thousands of the coolest apps on the planet from Android Market™. Your phone comes with a microSD memory card installed—you can load it up with photos, videos, and music from your computer using “Memory card” on page 47. 5 Touchscreen & keys Touchscreen & keysa few essentialsTouch tipsHere are some tips on how to navigate around your phone.TouchTo choose an icon or option, touch it. Touch & holdTo open special options, touch and hold an icon or other item. Try it: In the home screen, touch Contacts , then touch and hold a contact to open options. Browser Market Voicemail Text Messa Contacts: A-Z Arthur BandoBarry SmythCheyenne MedinaChristine Fanning Contacts: All contacts Arthur Bando View contactCall contactSend text message DragTo scr…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDP56LK1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Frank.Hyochang Kim TITLE: Engineering Manager Motorola Mobile Devices Business Date: Aug, 10, 2010 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 2 ST ATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56LK1) is in compliance with all applicable parts of the FCC Rules. NAME: Frank.Hyochang Kim TITLE: Engineering Manager Motorola Mobile Devices Business Date: Aug, 10, 2010 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 2 AT TESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Frank.Hyochang Kim TITLE: Engineering Manager Motorola Mobile Devices Business Date: Aug, 10, 2010 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 DECLARATION Motorola Mobility, Inc. declares that CDMA is the only network used in US territories for this product. The WCDMA/GSM network functions are disabled in US territories by the firmware and are SIM locked by the US carrier. NAME: Frank.Hyochang Kim TITLE: Engineering Manager Motorola Mobility, Inc. Mobile Devices Business Date: Aug. 10, 2010 EXHIBIT 2

APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LK1 August 10, 2010 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDP56L K1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the Digital CDMA standard in the 800 and 1900 MHz PCS band. The unit also employs EVDO and contains a Bluetooth transmitter & WiFi (Part 15.247). The unit may be connected to a computer via a USB connection (Part 15, Class B, Computing Device Peripheral). Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LK1 SHORT TERM CONFIDENTIALITY REQUEST 180 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDP56L K1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 180 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

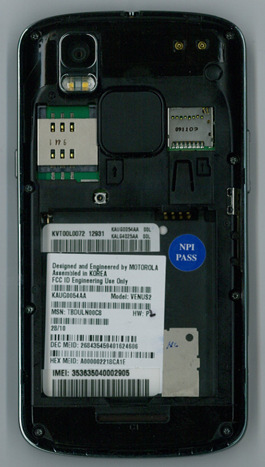

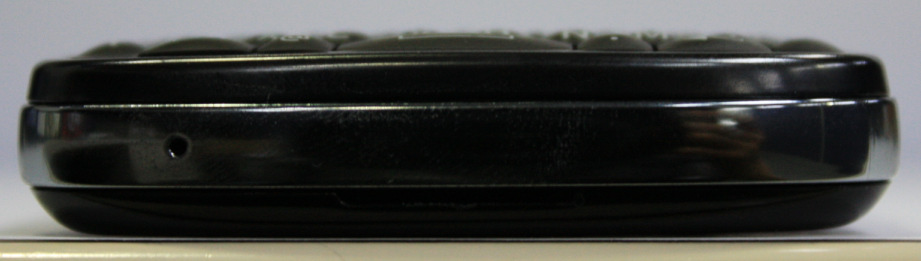

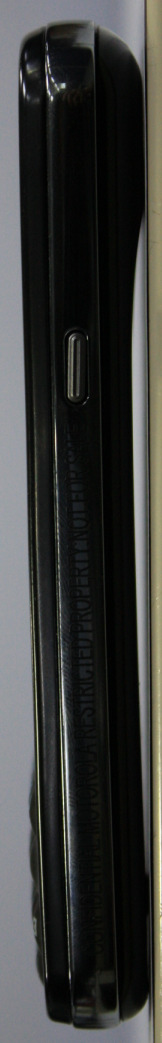

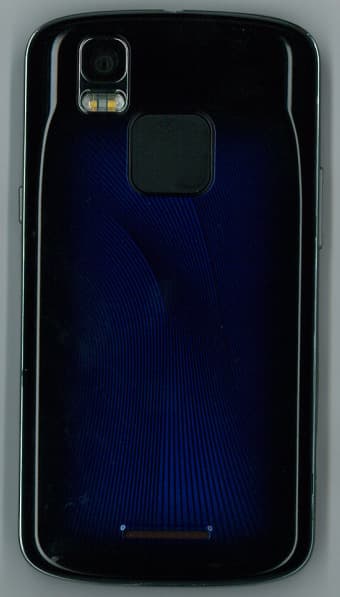

APPLICANT: MOTOROLA MOBILITY , INC. FCC ID: IHDP56LK1 EXHIBIT 3 1 of 2 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED APPLICANT: MOTOROLA MOBILITY , INC. FCC ID: IHDP56LK1 EXHIBIT 3 2 of 2 SIDE OF PHONE TOP OF PHONE BOTTO M OF PHONE

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDP56LK1

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 9 1 of 6 Main Board Top With shields Main Board Top Without shields Main Board Bottom With Shields Main Board Bottom Without Shields APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 9 2 of 6 Daughter Board Top Daughter Board Bottom With metal plate Daughter Board Bottom APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 9 3 of 6 Headset Jack Flex Top Headset Jack Flex Bottom Rear Touch Flex Top Rear Touch Flex Bottom Jumper Flex Top Jumper Flex Bottom, APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 9 4 of 6 Keypad Keypad PCB TOP Keypad PCB Bottom Keypad Bottom APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 9 5 of 6 Inside Battery Cover Inside Rear Housing Ass’y Display Cover Ass’y LCD Ass’y Camera Bottom Front End Ass’y Speaker Bottom Main Lens Ass’y APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LK1 EXHIBIT 9 6 of 6 Battery Cover Rear Housing Ass’y Inside Front End Ass’y Display Cover Ass’y LCD Ass’y Back Inside Main Lens Ass’y Speaker Top Camera Top

APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LK1 Test Report Number: 23980-1 Supplement 1 of 11 EXHIBIT 6A4 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 23980-1 Supplement Report Date – September 9, 2010 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: September 9, 2010 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LK1 Test Report Number: 23980-1 Supplement 2 of 11 EXHIBIT 6A4 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LK1 Test Report Number: 23980-1 Supplement 3 of 11 EXHIBIT 6A4 Test Report Details Tests Performed By: Motorola Mobility Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 FCC Registration Number: 316588 Industry Canada Number: 109O Tests Requested By: Motorola Mobility, Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: CDMA 800/1900, CDMA 1X/EV-DO Release A, WCDMA 850/1900, GSM 850/900/1800/1900, HSUPA, EDGE, GPRS, Bluetooth, 802.11b/802.11g/802.11n Note: The GSM network function has been disabled by firmware and is SIM locked for all US operators. FCC ID: IHDP56LK1 Serial Numbers: 353635040003317 Testing Complete Date: August 19, 2010 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47: X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003, RSS-210 Issue 7 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LK1 Test Report Number: 23980-1 Supplement 4 of 11 EXHIBIT 6A4 Summary of Testing Test Test Name # Pass/Fail _________ 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions All testing for this report was performed with a fully charged Model SNN5843A 1390mAH Battery. All testing was done in an indoor controlled environment. The temperature and the relative humidity were maintained within the ANSI C63.4 2003 Standard requirements during the entire duration of testing. APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LK1 Test Report Number: 23980-1 Supplement 5 of 11 EXHIBIT 6A4 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde & Schwarz Receiver ESIB40 100226 04/08/11 ETS DRG Horn Antenna 3115 6222 10/02/10 ETS Log-Periodic Antenna 3148 1188 2/02/2011 ETS Biconical Antenna 3110B 3370 10/02/10 Agilent Microwave Preamplifier 8449B 3008A00535 10/05/11 Attenuator Weinschel AS-6 6675 NCR Attenuator Weinschel AS-6 6677 NCR ETS LISN 3810/2NM0023630 10/5/10 ETS LISN 3810/2NM2179 10/6/10 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. All test equipment was within their calibration date during the time of testing. When equipment went out of calibration during testing it was replaced using a similar piece of calibrated equipment. All these equipments are listed in the equipment list. The Dell M20 Laptop Computer, Iomega Z250S Zip Drive and the Olympus D-600L Camera are labeled as DoC. APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LK1 Test Report Number: 23980-1 Supplement 6 of 11 EXHIBIT 6A4 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LK1 Test Report Number: 23980-1 Supplement 7 of 11 EXHIBIT 6A4 Measurement Results Operating Mode – Rx Mode, Data Transfer Mode. Notes: Worst Case emissions reported. 30 MHz – 1000 MHz Frequency MHz Le…

Text truncated - open the document above for the full version.

EMC TEST SETUP PHOTOS Radiated Emissions APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LK1 EXHIBIT 7 AC Line Conducted Emissions APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LK1 EXHIBIT 7 Antenna - Substitution APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LK1 EXHIBIT 7 Part 15, PC Peripheral Radiated Emissions APPLICANT: MOTOROLA MOBILITY, INC.FCC ID: IHDP56LK1 EXHIBIT 7
