IHDP56LQ3Portable Cellular/ PCS GSM/ EDGE and Cellular WCDMA Transceiver with WLAN and Bluetooth

APPLICANT MOTOROLA INC. FCC ID: IHDP56LQ3 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 Motorola XT300 MOTOROLA XT300 1 Congratulations CongratulationsMOTOROLA XT300 Introducing the MOTOROLA XT300 — stay in touch with your peeps and keep up with your life.• Use customizable widgets, so you're in control of the messages and updates you receive. • Download thousands of cool apps from Android Market™ to play and surf to your heart’s content. • The BACKTRACK™ navigation pad provides unobstructed navigation without blocking the screen. Caution: Before assembling, charging or using your phone for the first time, please read the important legal and safety information packaged with your phone. More•Updates: Phone updates, PC software, online help and more at www.motorola.com . • Accessories: Find optional accessories for your phone at www.motorola.com/products . 2 Your phone Your phonethe important keys & connectors 11:35 Contacts Browser Camera B NOW Arthur BaudoToday, 11:35 AM Christine FanningToday, 11:33 AM 3.5mm He a dset J ac k Home Key B ac k Key Menu Key To u c hs c reen Power Key Volume Keys M ic ro USB Conne c tor Charge or connect to PC. M ic ro p hone Press to putdisplay to sleep,or hold to turn off. Se a r c h Key Press for text search, hold for voice search. Tip: Set the screen to adjust when you turn the phone: touch Menu > Settings > Sound & display > Orientation . Note: Your phone might look a little different. 11:35 Contacts Browser Camera B NOW Arthur BaudoToday, 11:35 AM Christine FanningToday, 11:33 AM 11:35 Contacts Browser Camera tacts Browser rowse ows Cam NOW Arthur BaudoToday, 11:35 AM Christine FanningToday, 11:33 AM 11 3G :35 NOW Delete Enter Sh i ft Sym b ols Se a r c h Altern a te Touchpad on back S pac e 3 Let’s go ContentsLet’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . 5Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18YouTube™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Apps for all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . 22WiFi™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . 28Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31USB & memory card. . . . . . . . . . . . . . . . . . . . . . . . 35Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 40Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 41 Let’s golet’s get you up and runningAssemble & charge Caution: Please read “Safety, Regulatory & Legal” on page 41. 1 Cover off 2 SIM in 3 MicroSD in (may already be inserted) 4 Battery in 5 Cover on 6 Charge up 3H 4 Let’s go Turn it on & offTo turn on your phone, press and hold Power (on the top of the phone).To turn off your phone, press and hold Power , then touch Power off . Lock & unlockTo lock the screen/phone:• Press Power . • Let the screen time out (don’t press anything). To unlock the screen/phone:• Press Power , then drag to the right. If you've set a lock pattern or passcode, you'll be asked to enter it. For more security features, see “Security” on page 38. WiFi™ connectIf you want to use a WiFi network for even faster Internet access, touch Menu > Settings > Wireless & networks > WiFi settings . Cool content & moreBrowse and download thousands of the coolest apps on the planet from Android Market™ (see “Apps for all” on page 22).Your phone comes with a microSD memory card installed—you can load it up with photos, videos, and music from your computer using “USB drag & drop” on page 36. 5 Touchscreen & keys Touchscreen & keysa few essentialsTouch tips• Touch: Choose an icon or option. • Touch & Hold: Open options. •Drag: Scroll or move slowly. •Flick: Scroll or move quickly. •Pinch: Zoom in on maps, Web pages, or photos. Tip: When you flick a list, touch again to stop scrolling. If your screen goes to sleep, press Power . BACKTRACK™ touchpadTo navigate without obstructing the touchscreen, you can use the rear touchpad to swipe between panels, lists and websites.To a c t i v a t e glow mode , touch and hold on the touch pad. Then, use 11:35 Contacts Browser Camera NOW Arthur BaudoToday, 11:35 AM Christine FanningToday, 11:33 AM 1 1 : 3 5 Co n tacts B r o w se r Ca m e r a B NO W Arthur BaudoToday, 11:35 AMToT MMMMMMMMMMMMMM Christine Fanning ngngngngng ggggggggggg T o d ay, 11:33 A M To z o o m , pinch two fingers together or apart. Touch to open.Touch & hold to m ove ite m s (or open options in lists). Drag or flick to open panels (or scroll, in lists). 6 Touchscreen & keys the touchpad to navigate the glow on the display. Touch the touchpad to select an item.Key tipsMenu, home, & backTouch Home to close any menu or app and return to the home screen. In the home screen, touch and hold Home to show the last few apps you used, then touch an app to open it.Press Search for text search, or press and hold for voice search.Touch Menu to open menu options, or touch Back to go back. …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LQ3 Exhibit 13 September 14, 2010 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiv er, FCC ID: IHDP56LQ3. Motorola is also the manufacturer of this equipment. Confidentiality : Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 850 and 1900 MHz PCS band. It also operates in WCDMA 850 and contains 2.4 GHz Bluetooth and WiFi functions (Part 15.247). The unit may also be connected to a computer via a USB connection (Part 15 Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LQ3 SHORT TERM CONFIDENTIALITY REQUEST 180 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHD P56LQ3 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 180 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: Sep 28, 2010 Subject: Request for additional information regarding FCC ID: IHDP56LQ3 Reference: Correspondence Reference Number: IHD100995A Confirmation Number: Y1008170991-4 Date of Original Email: Sep 23, 2010 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 60048 Questions and responses follow: 1. The DSS/DTS (BT/WiFi) block diagram on p.2 of the BLD exhibit does not list the value of the crystal / external clock. Please revise so that it does so and resubmit it. Response: Please refer to the revised block diagrams submitted online. 2. The GPRS and EDGE SAR data provided in the SAR test report is not sufficient for Class 12 capability. According to the conducted power data of Tables 4 and 5, cellular and PCS GPRS slots 2 & 3 and all slots for EGPRS require SAR test data. Please address. Response: Please refer to the Supplement Response submitted online. 3. The rationale for stand-alone Bluetooth SAR testing provided on page 20 of the SAR report incorrectly explains that that the output power of the Bluetooth transmitter is less or equal to Pref when in fact it is more than Pref according to the Bluetooth test report data. This being the case, then stand-alone Bluetooth SAR data is required per OET 648474 requirements. Please address. Response: Please refer to the Supplement Response submitted online. 4. The LISN listed on page of the 22/24 Certification test report is out of calibration for a 1 year calibration cycle and is not listed in the 2 year calibration cycle 1 2 equipment list. Please address. Response: Please refer to the revised EMC report submitted online. 5. The EIRP and ERP measurement procedure has reference to WCDMA 1700 testing. Please remove as it is not applicable to the EUT test. Response: Please refer to the revised EMC report submitted online. 6. The DTS EMC report demonstrates compliance with the 30 dBc oob limit. Both average and peak conducted output power levels are included in the report- which do you prefer to have listed on the grant? The application does not indicate this. Response: We prefer to have peak power level listed on the grant. 7. Please provide test set-up photos for the JBP Part 15B testing. Response: Please refer to the JBP test setup photos submitted online. 8. The FCC has stated that the inclusion in the SAR report of body SAR data for the front of the phone facing the body where the measurement separation distance is in excess of 5mm must be justified (e.g., in order to cover the potential situation where an accessory positions the phone with its front facing the user). Please revise the SAR report accordingly. Response: Please refer to the revised SAR reports submitted online. 9. The SAR report does not address HSUPA (Rel 6) operation- please revise to include this required data. Response: The EUT does not support HSUPA function.

From: Lillian Li Sent: Thursday, September 30, 2010 2:29 PM To: PCTEST TCB/CB; PCTEST - Gregory Czumak Subject: Re: Follow-Up Questions Regarding FCC ID: IHDP56LQ3 Hi Greg, Please see our response to you question below and let us know if you have any further questions. Thanks! Lillian Li Certification and Approvals On Wed, Sep 29, 2010 at 5:31 PM, PCTEST TCB/CB <[email protected] > wrote: Hello Andy, Thank you for your email. In the response to RT que stion #3, it was mentioned that Bluetooth average power levels were used to determine SAR test requirements. Please provide Bluetooth average conducted power measurements in the SAR test report to support Bluetooth SAR test exclusion. The item indicated above must be submitted before pr ocessing can continue on the above referenced application. Response: The conducted power levels are provided in section 8.4 (p. 20 of 59) of the Exhibit 11 SAR test report. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST TCB/CB Tel. 1.410.290.6652 Fax. 1.410.290.6654
Please consider the environment before printing this e- mail . This communication and its attachments contain information from PCTEST TCB/CB and are intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or

From: Lillian Li Sent: Friday, October 01, 2010 11:14 AM To: PCTEST TCB/CB; PCTEST - Gregory Czumak Subject: Re: Additional Follow-Up Questions Regarding FCC ID: IHDP56LQ3 Hi Greg, Please find our response to your question below and let us know if you have any further questions. Thanks! Lillian Li Certification and Approvals On Thu, Sep 30, 2010 at 6:49 PM, PCTEST TCB/CB <[email protected] > wrote: Hello Andy, Thank you for your email. Peak output power in Exhi bit 6A1 BT Test Report is 11 dBm but the SAR Report shows peak output power as 7.8 dBm. Please rectify or confirm if the SAR Report power is average. Response: The conducted power levels in the SAR report were obtained using an average detector. This detector senses the average power in the burst of the signal, and thus is sometimes called a "peak" measurement because it does not average over a long time duration. This does differ from a peak detector that measures the true peak power of the burst. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, G regory Czumak Senior Certification Engineer Quality Manager PCTEST TCB/CB Tel. 1.410.290.6652
Please consider the environment before printing this e- mail. This communication and its attachments contain information from PCTEST TCB/CB and are intended for the exclusive use of the recipient (s) named above. It may contain information that is

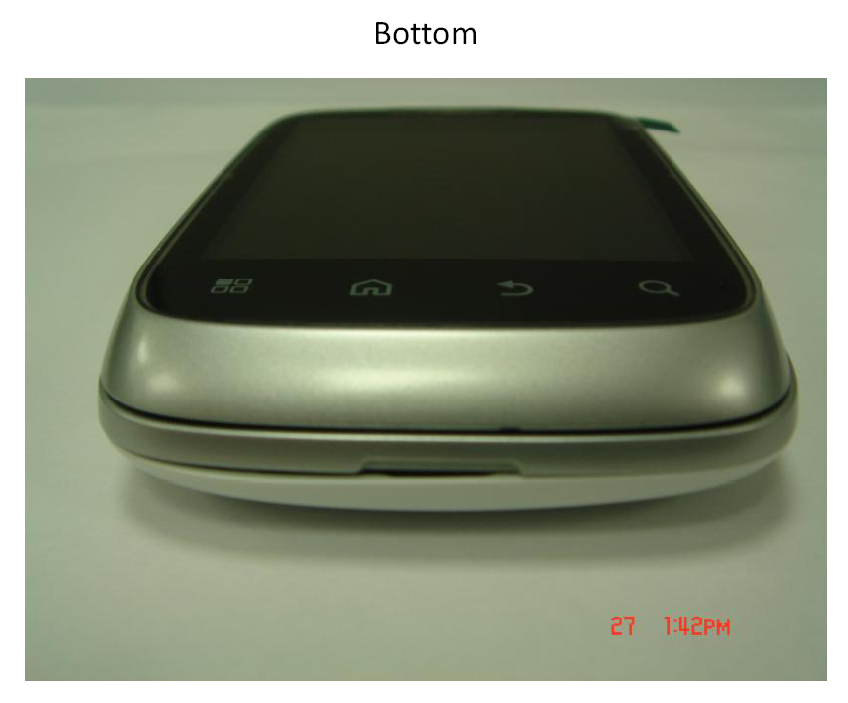

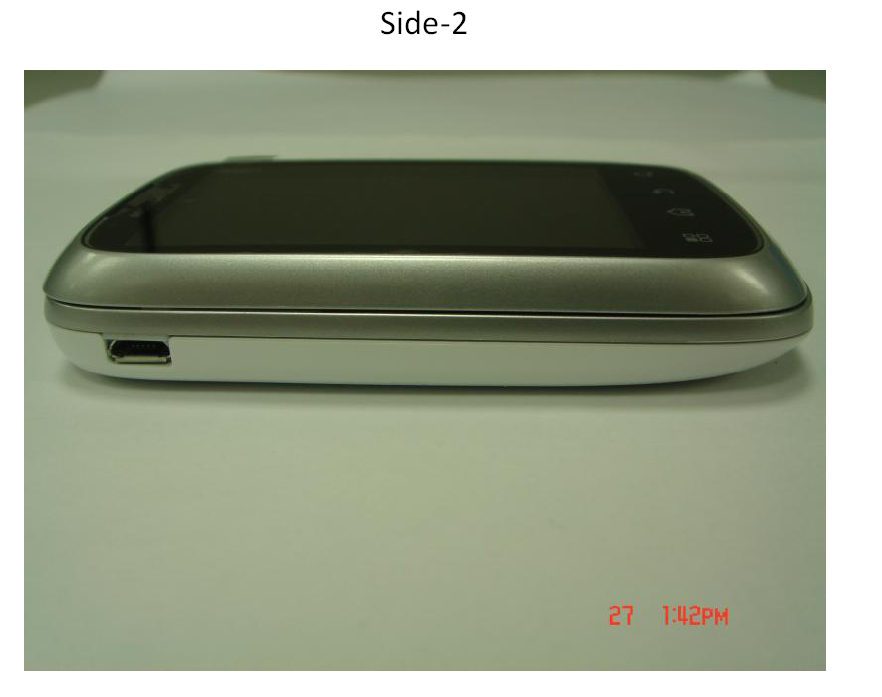

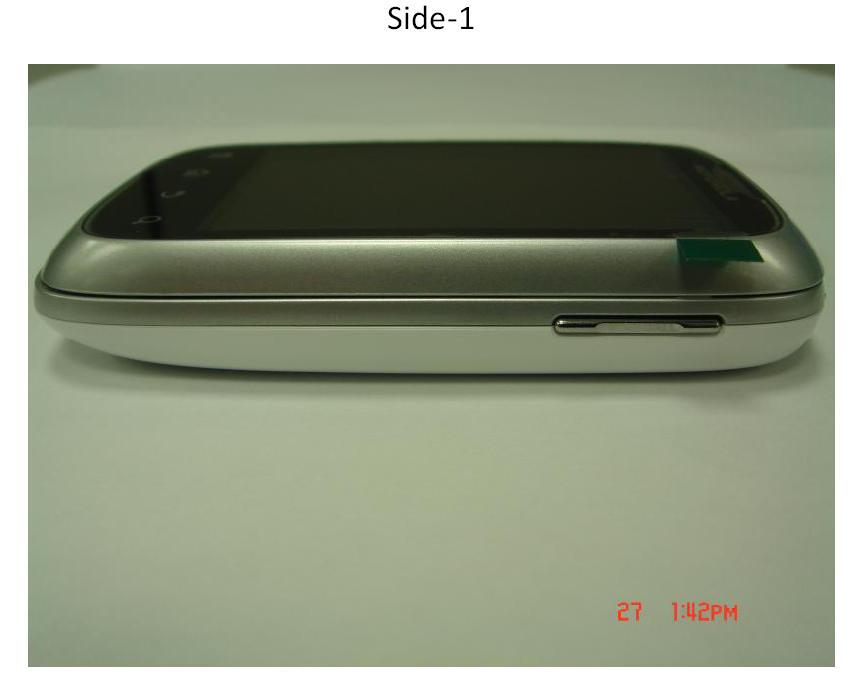

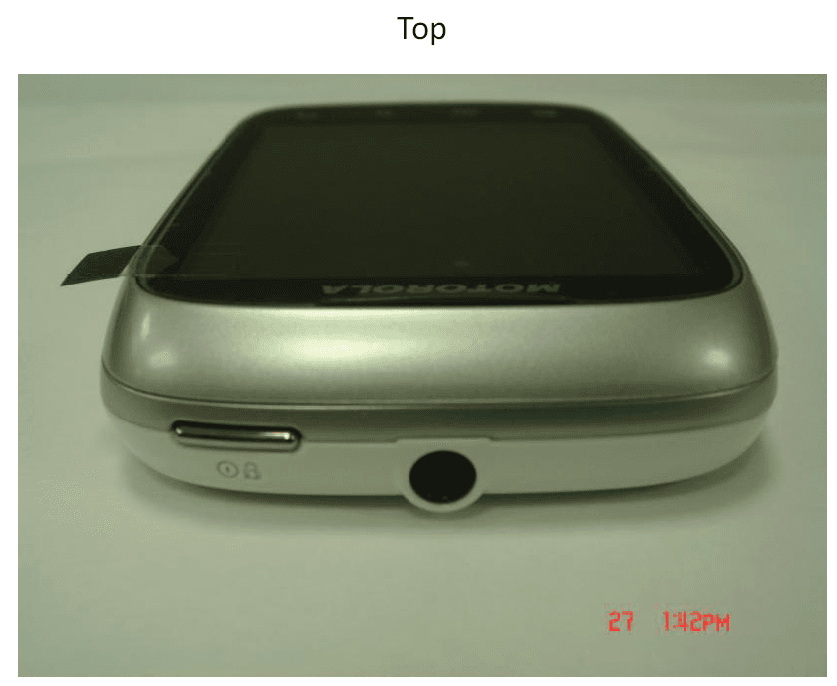

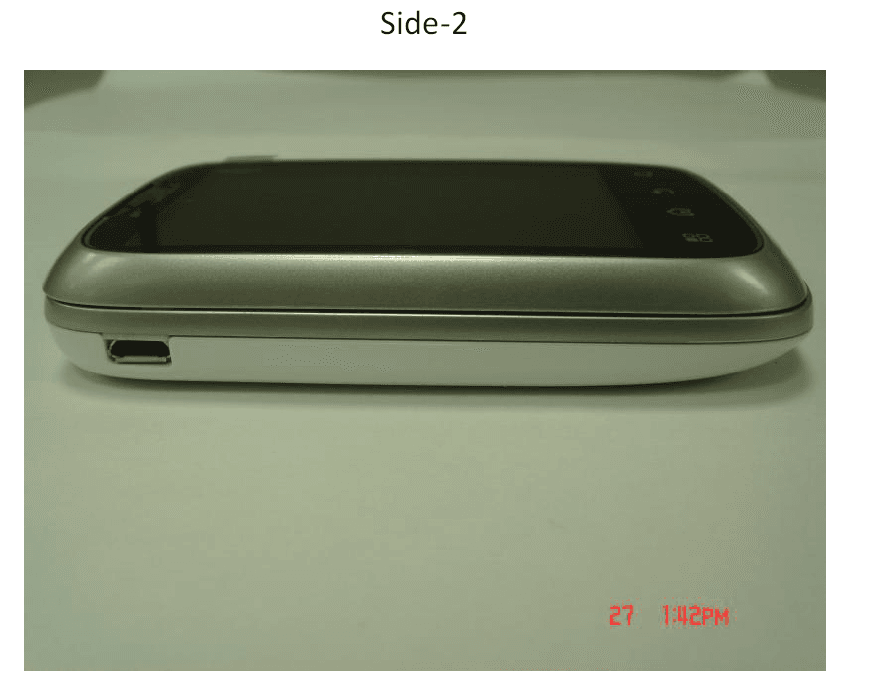

Applicant: Motorola Mobility, Inc . FCC ID: IHDP56LQ3 Exhibit 3 Applicant: Motorola Mobility, Inc. FCC ID:I HDP56LQ3 Exhibit 3 Applicant: Motorola Mobility, Inc. FCC ID: I HDP56LQ3 Exhibit 3 Back without the battery door FCC ID Label Location Applicant: Motorola Mobility, Inc. FCC ID: I HDP56LQ3 Exhibit 3 Applicant: Motorola Mobility, Inc. FCC ID: I HDP56LQ3 Exhibit 3 Applicant: Motorola Mobility, Inc. FCC ID: I HDP56LQ3 Exhibit 3 Applicant: Motorola Mobility, Inc. FCC ID: I HDP56LQ3 Exhibit 3 Applicant: Motorola Inc. IHDP56LQ3 Exhibit 3 Applicant: Motorola Mobility, Inc. FCC ID:I HDP56LQ3 Exhibit 3

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LQ3 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDP56LQ3

Applicant: Motorola Mobility, Inc. IHDP56LQ3 Exhibit 9 EXHIBIT 9 Applicant: Motorola Mobility, I nc. IHDP56LQ3 Exhibit 9 EXHIBIT 9 Applicant: Motorola Mobility, Inc. IHDP56LQ3 EXHIBIT 9

No.2010SAR00101 Page 1 of 178 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2010SAR00101 For Motorola (Beijing) Mobility Technologies Ltd. GSM quad band and UMTS dual band mobile phone Sesame XT300 With Hardware Version: DVT2 Software Version: 01.18 FCCID: IHDP56LQ3 Issued Date: 2010-09-21 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010SAR00101 Page 2 of 178 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 11 6 LABORATORY ENVIRONMENT .............................................................................................. 11 7 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 7.1 SUMMARY.................................................................................................................................................... 11 7.2 CONDUCTED POWER.................................................................................................................................... 11 8 TEST RESULTS ........................................................................................................................13 8.1 DIELECTRIC PERFORMANCE......................................................................................................................... 13 8.2 SYSTEM VALIDATION.................................................................................................................................... 14 8.3 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 15 8.4 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH AND WIFI FUNCTION) ............................................... 20 8.5 CONCLUSION................................................................................................................................................ 22 9 MEASUREMENT UNCERTAINTY ............................................................................................22 10 MAIN TEST INSTRUMENTS ..................................................................................................24 ANNEX A MEASUREMENT PROCESS....................................................................................25 ANNEX B TEST LAYOUT .............................................................................…

Text truncated - open the document above for the full version.

No.2010SAR00101 Page 71 of 178 Fig. 34-1 Z-Scan at power reference point (850 MHz CH4182) No.2010SAR00101 Page 72 of 178 WCDMA 850 Right Cheek Low-Slide up Date/Time: 2010-9-15 13:32:01 Electronics: DAE4 Sn771 Medium: Head 900 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.88 mho/m; εr = 42.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0oC Liquid Temperature: 22.5 o C Communication System: WCDMA 850 Frequency: 826.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek Low/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.355 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.02 V/m; Power Drift = -0.042 dB Peak SAR (extrapolated) = 0.421 W/kg SAR(1 g) = 0.327 mW/g; SAR(10 g) = 0.248 mW/g Maximum value of SAR (measured) = 0.342 mW/g Fig. 35 850 MHz CH4132 No.2010SAR00101 Page 73 of 178 WCDMA 850 Right Tilt Middle-Slide up Date/Time: 2010-9-15 13:46:23 Electronics: DAE4 Sn771 Medium: Head 900 Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.90 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0oC Liquid Temperature: 22.5 o C Communication System: WCDMA 850 Frequency: 836.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Middle/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.452 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 0.533 W/kg SAR(1 g) = 0.431 mW/g; SAR(10 g) = 0.326 mW/g Maximum value of SAR (measured) = 0.455 mW/g Fig.36 850 MHz CH4182 No.2010SAR00101 Page 74 of 178 850 Body Towards Phantom High with GPRS- Slide down Date/Time: 2010-9-15 14:37:22 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.94 mho/m; εr = 54.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Phantom High/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.389 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.2 V/m; Power Drift = -0.116 dB Peak SAR (extrapolated) = 0.471 W/kg SAR(1 g) = 0.362 mW/g; SAR(10 g) = 0.267 mW/g Maximum value of SAR (measured) = 0.378 mW/g Fig. 37 850 MHz CH251 No.2010SAR00101 Page 75 of 178 850 Body Towards Phantom Middle with GPRS- Slide down Date/Time: 2010-9-15 14:52:43 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.95 mho/m; εr = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Phantom Middle/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.380 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.8 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 0.460 W/kg SAR(1 g) = 0.355 mW/g; SAR(10 g) = 0.263 mW/g Maximum value of SAR (measured) = 0.375 mW/g Fig. 38 850 MHz CH190 No.2010SAR00101 Page 76 of 178 850 Body Towards Phantom Low with GPRS- Slide down Date/Time: 2010-9-15 15:08:11 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.93 mho/m; εr = 55.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Phantom Low/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.290 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.7 V/m; Power Drift = -0.102 dB Peak SAR (extrapolated) = 0.640 W/kg SAR(1 g) = 0.277 mW/g; SAR(10 g) = 0.200 mW/g Maximum value of SAR (measured) = 0.288 mW/g Fig. 39 850 MHz CH128 No.2010SAR00101 Page 77 of 178 850 Body Towards Ground High with GPRS- Slide down Date/Time: 2010-9-15 15:23:35 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.94 mho/m; εr = 54.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground High/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.977 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.0 V/m; Power Drift = -0.076 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.914 mW/g; SAR(10 g) = 0.625 mW/g Maximum value of SAR (measured) = 0.955 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.0 V/m; Power Drift = -0.076 dB Peak SAR (extrapolated) = 1.12 W/kg SAR(1 g) = 0.721 mW/g; SAR(10 g) = 0.433 mW/g Maximum value of SAR (measured) = 0.818 mW/g Fig. 40 850 MHz CH251 No.2010SAR00101 Page 78 of 178 Fig. 40-1 Z-Scan at power reference point (850 MHz CH251) No.2010SAR00101 Page 79 of 178 850 Body Towards Ground Middle with GPRS- Slide down Date/Time: 2010-9-15 15:38:52 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.95 mho/m; εr = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground Middle/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.950 mW/g Toward Ground Middle/Zo…

Text truncated - open the document above for the full version.

No.2010SAR00101 Page 138 of 178 ANNEX E PROBE CALIBRATION CERTIFICATE No.2010SAR00101 Page 139 of 178 No.2010SAR00101 Page 140 of 178 No.2010SAR00101 Page 141 of 178 No.2010SAR00101 Page 142 of 178 No.2010SAR00101 Page 143 of 178 No.2010SAR00101 Page 144 of 178 No.2010SAR00101 Page 145 of 178 No.2010SAR00101 Page 146 of 178 No.2010SAR00101 Page 147 of 178 No.2010SAR00101 Page 148 of 178 No.2010SAR00101 Page 149 of 178 No.2010SAR00101 Page 150 of 178 No.2010SAR00101 Page 151 of 178 No.2010SAR00101 Page 152 of 178 No.2010SAR00101 Page 153 of 178 No.2010SAR00101 Page 154 of 178 No.2010SAR00101 Page 155 of 178 No.2010SAR00101 Page 156 of 178 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2010SAR00101 Page 157 of 178 No.2010SAR00101 Page 158 of 178 No.2010SAR00101 Page 159 of 178 No.2010SAR00101 Page 160 of 178 No.2010SAR00101 Page 161 of 178 No.2010SAR00101 Page 162 of 178 No.2010SAR00101 Page 163 of 178 No.2010SAR00101 Page 164 of 178 No.2010SAR00101 Page 165 of 178 1900 MHz Dipole Calibration Certificate No.2010SAR00101 Page 166 of 178 No.2010SAR00101 Page 167 of 178 No.2010SAR00101 Page 168 of 178 No.2010SAR00101 Page 169 of 178 No.2010SAR00101 Page 170 of 178 No.2010SAR00101 Page 171 of 178 No.2010SAR00101 Page 172 of 178 No.2010SAR00101 Page 173 of 178 No.2010SAR00101 Page 174 of 178 2450 MHz Dipole Calibration Certificate No.2010SAR00101 Page…
