IHDP56LU1CDMA 850/1900 TRANSCEIVER WITH BT & WLAN

APPLICANT MOTOROLA INC. FCC ID: IHDP56LU1 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 1 At a glance At a glanceCongratulationsDROID XOOM by Motorola leads a revolution in mobile computing. • Enjoy full length movies in mind-blowing 1080 HD that’s richer and clearer than ever before. It’s like ripping your HDTV off the wall and taking it with you. • Experience out of this world entertainment wherever you go. Books, music, and movies, all available wherever, whenever. • Stay in the loop, always. Access information from all your different sources—check your Gmail or exchange email, view your calendars, even send out appointments or meeting notices. • If you’re a gamer, you’re no longer tied to your console. With NVIDIA powering rich graphics at lightning fast speeds, you’ll get intense, supercharged performance. Caution: Before charging or using your device for the first time, please read “Safety, Regulatory & Legal” on page 59. Once your phone is up and running, press Menu > Settings > About phone > Safety & regulatory to read the full information. Your deviceNote: Your device might look a little different. 2 At a glance Home screenYou’ll see the home screen when you turn on the tablet or touch Home from a menu. With a touch or a swipe you can see more home screen panels, select apps and widgets, scroll though lists, zoom in and out, and more. (See “Android on your tablet” on page 5.)Featured apps• Google Editions —Buy books directly from Google and other online retailers—including independent bookstores—and add them to an online library tied to your Google account. [Other content pending—depending on apps availability.]More•Answers: Touch Launcher icon > Help Center . You can also flick your home screen left or right to see the Getting Started and Tips & Tricks widgets. •Updates: Updates, online help and more at www.motorola.com/mydroidxoom . • Accessories: Find accessories for your device at www.motorola.com/products . Notes:• All screens in this guide are simulated. Actual displays may vary. • This device supports data-intensive apps and services. It is strongly recommended that you purchase a data plan that meets your needs. Contact your service provider for details. • Instructions to perform tasks in this guide may change depending on the software version on your device. • Unless specified otherwise, all instructions to perform tasks in this guide assume that you are starting from the home screen. 3 Contents ContentsLet’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Android on your tablet . . . . . . . . . . . . . . . . . . . . . . . 5Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Google Maps™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Google Latitude™ . . . . . . . . . . . . . . . . . . . . . . . . . . 29Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30e-books . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31Bluetooth® wireless . . . . . . . . . . . . . . . . . . . . . . . . 32Wi-Fi™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Memory card & file management. . . . . . . . . . . . . . 35Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 40Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 41 Let’s golet’s get you up and runningCharge your tabletCaution: Please read the battery use and safety text in the important legal and safety information packaged with your phone.Tip: To save battery life, see “Battery tips” on page 30. Power on & go 1 Press and hold Power/Lock on the back of your tablet to turn it on. 4 Let’s go 2 Follow the screens to select a language and a location service, then set the date and time. 3 Touch Activate to activate your mobile service now (if not already activated), or touch Skip to set up a Wi-Fi connection.Note: See the next section “Wi-Fi™ connect” for Wi-Fi setup instructions. 4 Follow the setup wizard to create or log in to your Gmail account. Record your Google account information for future reference.Username:[email protected]:______________________________________ Note: If you have an existing Gmail account, your contacts from that account are synced to your device. Whenever you choose to select all contacts for the one you want, your tablet shows every contact, in every groups. Wi-Fi™ connectIf you want to use a Wi-Fi network for even faster Internet access, touch the Quick Settings Menu and drag upward. Touch Settings > Wireless & networks > Wi-Fi settings . Then touch Wi-Fi to search for and connect to wireless networks. There’s more in “Wi-Fi™” on page 33. 5 Android on your tablet Key tipsSleep & wake upTo save your battery, prevent accidental touches. or when you want to wipe smudges off your touchscreen, put the touchscreen to sleep by pressing Power/Lock . To wake up the touchscreen, just press Power/Lock again. Lock screenTo lock the screen, press Power/Lock . or let the screen time out (don’t press anything).To unlock the screen, press Power/Lock . Then, drag to the right. Change volumePress the volume keys to adjust the volume. Android on your tableta few essentialsTouch tipsHere are some tips on how to navigate around your DROID XOOM by Motorola.TouchTo choose an icon or option, touch it. Touch & holdTo open special options, touch and hold an icon or other item. 6 Androi…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LU1 Page 1 of 3 EXHIBIT 2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDP56LU1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Matthew Biggerstaff TITLE: Engineering Manager Motorola Mobile Devices Business Date: 11/16/2010 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LU1 Page 2 of 3 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56LU1) is in compliance with all applicable parts of the FCC Rules. NAME: Matthew Biggerstaff TITLE: Engineering Manager Motorola Mobile Devices Business Date: 11/16/2010 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LU1 Page 3 of 3 EXHIBIT 2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) the hopping sequence must be pseudorandom all Channels are used equally on average the receiver input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Matthew Biggerstaff TITLE: Engineering Manager Motorola Mobile Devices Business Date: 11/16/2010

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LU1 November 29, 2010 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Dear Sir/Madame: Motorola Mobility, Inc., 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits Application for Equipment Authorization for Certification of a Cellular/PCS Transceiver, FCC ID: IHDP56L U1. Motorola Mobility is also the manufa cturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission’s rules (CFR 47), Motorola Mobility requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola’s trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipmen t is a Digital CDMA portable transceiver, which operates in the Cellular 850 and PCS 1900 MHz band. It employs EVDO data transission in the network and contains 2.4 GHz Bluetooth and WiFi functions (part 15.247). The unit may also be connected to a computer via a USB connection. (Part 15B Computing Device Peripheral). Note: This device also contains functions that are not operational in the U.S. territories. This filing is only applicable for US operations. Contact Information: If there are any further questions or additional information needed concerning this filing, please contact me, John Lewczak, by telephone at (954) 723-6272 or via E-mail at: [email protected] . Reg ards, FCC Liaison Motorola Mobility, Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 E-mail: [email protected] Exhibit 13 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDP56LU1 EXHIBIT 3 9.8 Inches 6.6 Inches 10.1 Inches APPLICANT: MOTOROLA, INC. FCC ID: IHDP56LU1 EXHIBIT 3 LEFT SIDE RIGHT SIDE TOP SIDE BOTTOM SIDE

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LU1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDP56LU1

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LU1 Diversity Antenna Main Antenna LTE Antenna EXHIBIT 9 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LU1 GPS Antenna EXHIBIT 9 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LU1 Diversity Antenna Wifi/BT Antenna EXHIBIT 9 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LU1 EXHIBIT 9

MOTOROLA, INC. Portable Hand-held device SAR Test Report Number: 24253-1F Rev. B FCC ID: IHDP56LU1 Exhibit 11 Portable Hand-Held Device SAR Test Report Tests Requested By: Motorola Mobility, Inc. 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 24253-1F Re v. B Date of Report: Dec-30-2010, revised Feb-02-2011 Date of Test: Nov-17-2010 to Dec-19-2010 , Jan-19-2011 to Jan-20-2011 FCC ID #: IHDP56LU1 Generic Name: N/A Test Laboratory: Motorola Mobility, Inc. - Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Thomas Knipple Senior RF Engineer Accreditation: 2404 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable hand-held device model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: Motorola’s ISO 17025 accreditation scope does not currently include SAR testing in the 5 GHz band. Therefore, SAR testing performed in this band was performed outside of our ISO 17025 accreditation. The general procedures and guidelines provided within; FCC KDB 248227 D01, FCC KDB 648474 D01, FCC KDB 865664 D01 and IEC 62209-2 were utilized for testing. ©Motorola, Inc. 2011 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Hand-held device SAR Test Report Number: 24253-1F Rev. B FCC ID: IHDP56LU1 Exhibit 11 Page 2 of 18 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 4 2.1 Antenna description 4 2.2 Device description 4 2.3 Evaluation of CDMA modes 6 2.4 Evaluation of Wi-Fi 802.11 modes 7 2.5 Evaluation of Simultaneous Transmitters 9 3. Test Equipment Used 11 3.1 Dosimetric System 11 3.2 Additional Equipment 11 4. Electrical parameters of the tissue simulating liquid 12 5. System Accuracy Verification 13 6. Test Results 14 6.1 Body Worn Test Results 15 References 18 Appendix 1: SAR distribution comparison for the system accuracy verification Appendix 2: SAR distribution plots for Body Worn Configuration Appendix 3: Probe Calibration Certificate Appendix 4: Measurement Uncertainty Budget Appendix 5: Dipole Characterization Certificate MOTOROLA, INC. Portable Hand-held device SAR Test Report Number: 24253-1F Rev. B FCC ID: IHDP56LU1 Exhibit 11 Page 3 of 18 1. Introduction The Motorola Mobility Product Safety & Compliance Laboratory has performed measurements of the maximum potential exposure to the user of the portable hand-held device covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable hand-held device was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable hand-held device are below the maximum recommended levels of 1.6 W/kg in a 1 g average set in [3] and 2.0 W/kg in a 10 g average set in [2]. For ANSI / IEEE C95.1 (1 g), the final stand-alone SAR readings for this hand-held device are 1.34 W/kg for body- worn use. The final simultaneous-transmission SAR readings for this hand-held device are 1.32 W/kg for body- worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. MOTOROLA, INC. Portable Hand-held device SAR Test Report Number: 24253-1F Rev. B FCC ID: IHDP56LU1 Exhibit 11 Page 4 of 18 2. Description of the Device Under Test 2.1 Antenna description 800/1900 MHz Antenna Type Internal Location Top-Right Rear of Device Width 17 mm Dimensions Length 42 mm Bluetooth/Wi-Fi 2 GHz / 5 GHz Antenna Type Internal Location Top-Center Rear of Device Width 3 mm Dimensions Length 10 mm 2.2 Device description Serial Number(s) (Functional Use) 99000052000858 (CDMA conducted power measurements, CDMA SAR testing) 99000052000875 (Wi-Fi SAR testing, CDMA SAR testing) 99000052000852 (Wi-Fi/Bluetooth conducted power measurements) Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled Mode(s) of Operation CDMA 800 CDMA 1900 EV-DO Rev. A 800 EV-DO Rev. A 1900 Wi-Fi 802.11b/g/n Wi-Fi 802.11a/n Bluetooth Modulation Mode(s) QPSK QPSK QPSK QPSK BPSK BPSK GFSK Maximum Output Power Setting 25.0 dBm 25.0 dBm 25.0 dBm 25.0 dBm 20.0 dBm 9.0 dBm 10 dBm Duty Cycle 1:1 1:1 1:1 1:1 1:1 1:1 1:1 Transmitting Frequency Range(s) 824.70 - 848.31 MHz 1851.20 - 1908.75 MHz 824.70 - 848.31 MHz 1851.20 - 1908.75 MHz 2412.0 - 2462.5 MHz 5180 - 5240, 5745 - 5805, MHz 2402.0 - 2483.5 MHz MOTOROLA, INC. Portable Hand-held device SAR Test Report Number: 24253-1F Rev. B FCC ID: IHDP56LU1 Exhibit 11 Page 5 of 18 The DUT utilizes a set of reduced limits for the maximum …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LU1 Test Report 24262-1 WLAN @ 5.8 GHz 1 EXHIBIT 6A6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 24262-1 WLAN @ 5.8 GHz Report Date – January 4, 2011 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: January 4, 2011 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY UKAS OR ANY AGENCY OF THE U.S. GOVERNMENT. UKAS Certificate Number: 2404 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LU1 Test Report 24262-1 WLAN @ 5.8 GHz 2 EXHIBIT 6A6 Table of Contents Test Report Details .............................................................................................................3 Applicable Standards .......................................................................................................... 3 Summary of Testing............................................................................................................ 4 General and Special Conditions.......................................................................................... 4 Equipment and Cable Configurations ................................................................................. 5 Measuring Equipment and Calibration Information ........................................................... 5 Description of WLAN Transmitter ..................................................................................... 5 Measurement Procedures and Data..................................................................................... 6 Spectrum Bandwidth....................................................................................................... 6 Measurement Procedure.............................................................................................. 6 Measurement Results .................................................................................................. 6 Peak Output Power ....................................................................................................... 16 Measurement Procedure............................................................................................ 16 Measurement Results ................................................................................................ 16 Power Spectral Density................................................................................................. 23 Measurement Procedure............................................................................................ 23 Measurement Results ................................................................................................ 23 Spurious RF Conducted Emissions............................................................................... 24 Measurement Procedure............................................................................................ 24 Measurement Results ................................................................................................ 24 AC Line Conducted Emissions ..................................................................................... 52 Measurement Procedure............................................................................................ 52 Measurement Results ................................................................................................ 52 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LU1 Test Report 24262-1 WLAN @ 5.8 GHz 3 EXHIBIT 6A6 Test Report Details Tests Performed By: ADR Testing Service Location Code: ADR LV Motorola Mobility Inc Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 FCC Registration Number: 316588 Industry Canada Number: 109O-1 Tests Requested By: Motorola Mobility Inc. 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Hand Held Device Signaling Capability: CDMA 800 & 1900, Bluetooth, WLAN a/b/g/n FCC ID: IHDP56LU1 Serial Numbers: 990000520008520 Testing Complete Date: December 17, 2010 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart C – Intentional Radiators Applicable Standards: ANSI 63.4 2003, RSS-210 Issue 7 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LU1 Test Report 24262-1 WLAN @ 5.8 GHz 4 EXHIBIT 6A6 Summary of Testing Test Test Name Pass/Fail ___________________________________________________________ 1 Spectrum Bandwidth Pass 2 Peak Power Pass 3 Power Spectral Density Pass 4 Spurious RF Conducted Emissions Pass 5 AC Line Conducted Emissions Pass Test Test Name Results ____________________________________________________________ 1 Spectrum Bandwidth See plots 2 Peak Power See plots 3 Power Spectral Density See tables 4 Spurious RF Conducted Emissions See plots 5 AC Line Conducted Emissions See Plots General and Special Conditions This product utilizes an internal battery that is not removable. All testing was done using a fully charged battery. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment. The temperature and the relative humidity were maintained within the ANSI C63.4 2003 Standard requirements during the entire duration of testing. APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LU1 Test Report 24262-1 WLAN @ 5.8 GHz 5 E…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LU1 Test Report 24262-1 WLAN @ 5.2 GHz 1 EXHIBIT 6A7 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 24262-1 WLAN @ 5.2 GHz Report Date – January 4, 2011 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: January 4, 2011 This report must not be reproduced, except in full, without written approval from this laboratory. APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LU1 Test Report 24262-1 WLAN @ 5.2 GHz 2 EXHIBIT 6A7 Table of Contents Test Report Details .............................................................................................................3 Applicable Standards .......................................................................................................... 3 Summary of Testing............................................................................................................ 4 General and Special Conditions.......................................................................................... 4 Equipment and Cable Configurations ................................................................................. 5 Measuring Equipment and Calibration Information ........................................................... 5 Description of WLAN Transmitter ..................................................................................... 5 Measurement Procedures and Data..................................................................................... 6 26 dB Bandwidth ............................................................................................................ 6 Measurement Procedure.................................................................................................. 6 Measurement Results ...................................................................................................... 6 Peak Output Power ....................................................................................................... 13 Measurement Procedure................................................................................................ 13 Measurement Results .................................................................................................... 13 Peak Power Spectral Density ........................................................................................ 20 Measurement Procedure................................................................................................ 20 Measurement Results .................................................................................................... 20 Peak Excursion Ratio .................................................................................................... 21 Measurement Procedure................................................................................................ 21 Measurement Results .................................................................................................... 21 Frequency Stability ....................................................................................................... 23 Measurement Procedure................................................................................................ 23 Measurement Results .................................................................................................... 23 AC Line Conducted Emissions ..................................................................................... 25 Measurement Procedure................................................................................................ 25 Measurement Results .................................................................................................... 25 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LU1 Test Report 24262-1 WLAN @ 5.2 GHz 3 EXHIBIT 6A7 Test Report Details Tests Performed By: ADR Testing Service Location Code: ADR LV Motorola Mobility Inc Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 FCC Registration Number: 316588 Industry Canada Number: 109O-1 Tests Requested By: Motorola Mobility Inc. 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Hand Held Device Signaling Capability: CDMA 800 & 1900, Bluetooth, WLAN a/b/g/n FCC ID: IHDP56LU1 Serial Numbers: 990000520008520 Testing Complete Date: December 17, 2010 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart E – Unlicensed National Information Infrastructure Devices Applicable Standards: ANSI 63.4 2003, RSS-210 Issue 7 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56LU1 Test Report 24262-1 WLAN @ 5.2 GHz 4 EXHIBIT 6A7 Summary of Testing Test Test Name Pass/Fail ___________________________________________________________ 1 26 dB Bandwidth Pass 2 Peak Power Pass 3 Peak Power Spectral Density Pass 4 Peak Excursion ration Pass 5 Frequency Stability Pass 6 AC Line Conducted Emissions Pass Test Test Name Results ____________________________________________________________ 1 26 dB Bandwidth Pass 2 Peak Power Pass 3 Peak Power Spectral Density Pass 4 Peak Excursion ration Pass 5 Frequency Stability Pass 6 AC Line Conducted Emissions Pass General and Special Conditions This product utilizes an internal battery that is not removable. All testing was done using a fully charged battery. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilize…

Text truncated - open the document above for the full version.

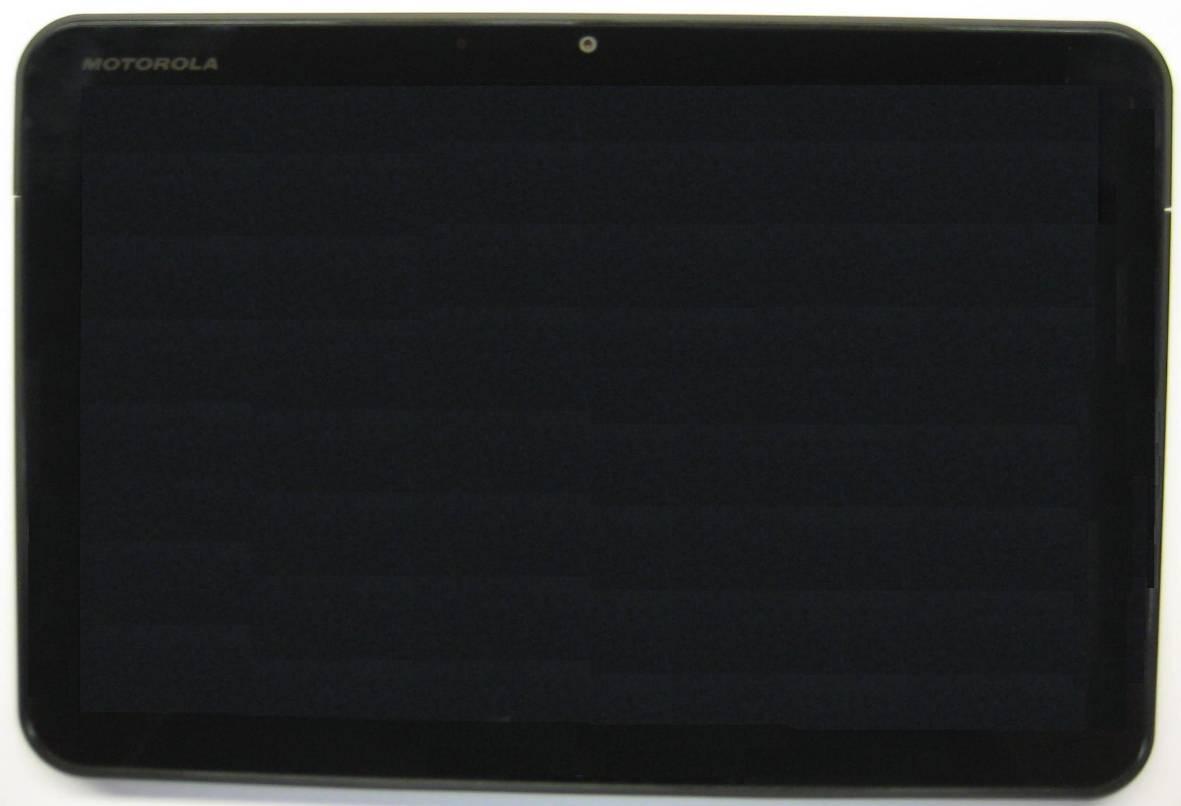

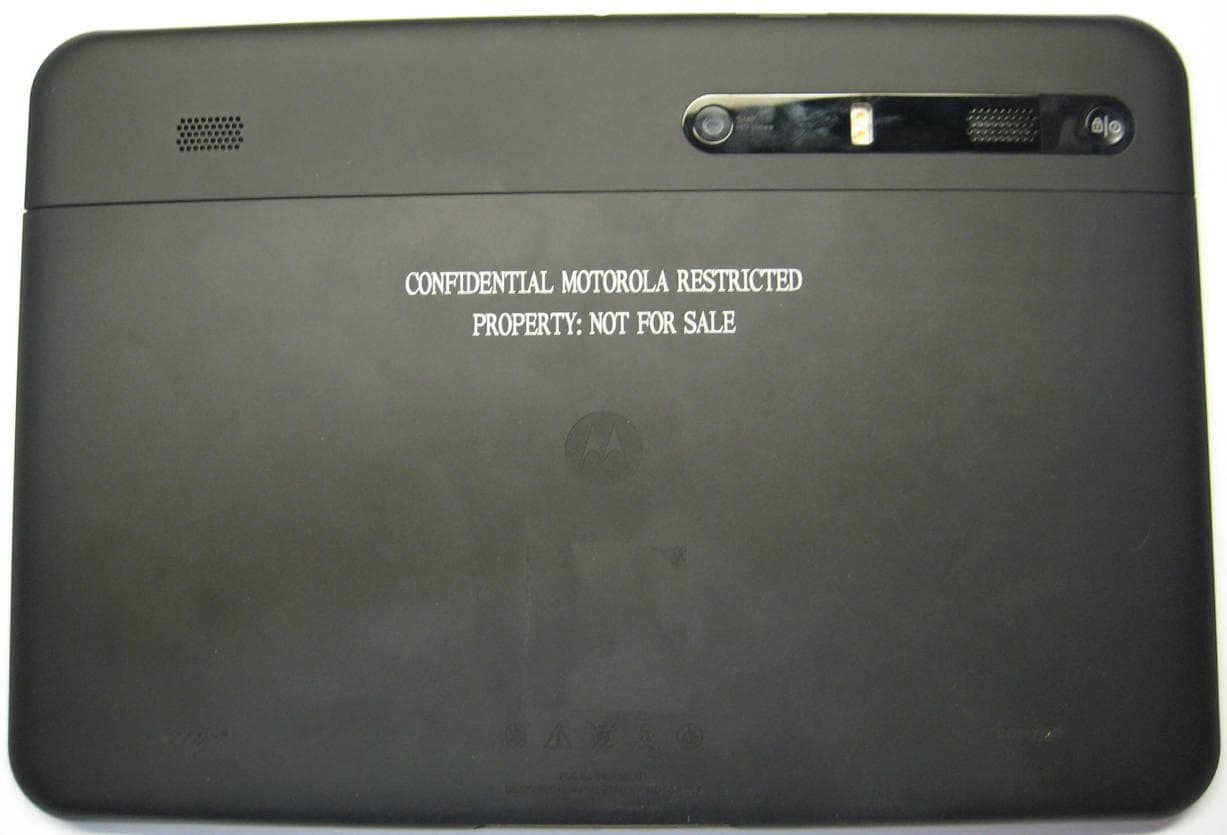

Applicant: Motorola, Inc. FCC ID: IHDP56LU1 24253-1P Exhibit 7D Page 0 0 Portable Cellular DUT SAR Test Report Photographs of the Device Under Test Applicant: Motorola, Inc. FCC ID: IHDP56LU1 24253-1P Exhibit 7D Page 1 1 Figure 1: DUT Front Surface Figure 2: DUT Back Surface Applicant: Motorola, Inc. FCC ID: IHDP56LU1 24253-1P Exhibit 7D Page 2 2 Figure 3: Device Dimensions and Antenna Separation Distances Figure 4: Back Surface of DUT toward Phantom, 0 mm Separation Applicant: Motorola, Inc. FCC ID: IHDP56LU1 2425…

Text truncated - open the document above for the full version.
