IHDP56ME4Portable Cellular/ PCS WCDMA/ GSM/ EDGE Transceiver with WLAN and Bluetooth

MOTOROLA RAZR TM This product meets the applicable limit for exposure to radio waves (known as SAR) of 1.6 W/kg (FCC). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. At a glance Introducing the powerful smartphone in a RAZR slim design. MOTOROLA RAZR™ has tons of advanced features for everything you want to do—video, web browsing, multimedia, and more. Use this guide to get started, then see “Want more?” to get all the help you need. Note: Certain apps and features may not be available in all countries. 11:23 Arturo Roman JP Jordan Tatia Torrey Kim Vonesh BrowserMarketEmail Phone Apps TextCamera 11:23 Arturo Roman JP Jordan Tatia Torrey Kim Vonesh Browser http://www. MarketEmail Phone Apps TextCamera Micro USB HD Webcam Micro SIM microSD Micro HDMI 3.5mm Headset Volume 4.3" Super AMOLED Advanced Touchscreen Power Press = sleep Hold = power Menu Home Search Back Start Let’s get you up and running. Tip: In the unlikely event that your device becomes unresponsive, try a forced reboot—press and hold both Power and the down volume key for 10 seconds. Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information provided with your product. 1 Micro SIM in. 2 microSD in. 3 Charge up. 3H Note: Pull down the access door to insert the micro SIM and microSD cards. Set up & go Create or log in to a Google™ Gmail™ account to get the best from your smartphone. It's secure and should only take a few minutes. After you log in to Gmail, you can set up social networking and other accounts, or you can do it later. Note: This smartphone supports apps and services that use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. 11:23 Arturo Roman JP Jordan Tatia Torrey Kim Vonesh BrowserMarketEmail Phone Apps TextCamera P Jordan T Browse Camera JP Turn on.Tu 1 l t Create account, or log in. C o 3 Set up your Google Account Don’t have a Google Account? Already have a Google Account? Want to set up an account later? Create Sign in Skip Add accounts. er A 4 Set Up Accounts If you use any of the services below, tap the icon to set it up. Corporate Sync MotoCast ID Email Accounts Yahoo! Mail Google Tat http://www. Select a language.S 2 Welcome Touch the android to begin. Emergency dialChange language Home & apps Your two main smartphone screens—Home and Apps. The home screen is what you see when you turn on the smartphone or touch Home from a menu. To see all of your apps, just touch. Want more? No problem. To download more apps, touch > Market. 11:23 Arturo Roman JP Jordan Tatia Torrey Kim Vonesh Browser http://www. MarketEmail Phone Apps TextCamera Status Indicators Shortcuts Touch to open. Notifications Drag this bar down to see details. Open the app menu. Flick left or right to see more panels of widgets & shortcuts. Webtop Browse, or use web apps, on a large screen in a full Firefox® browser. Create and share documents, spreadsheets, and presentations with online tools, like Google Docs. To open the webtop application, connect your smartphone to an HD display or monitor using an optional dock accessory. Account Manager LapDock Display, HDTV, or Monitor Mobile View App TrayFull Desktop Browser Optional LapDock or HD Dock Want more? There’s more help, more accessories, more free stuff. We’re here to help. •Help: Smartphone—touch> Help Center. Webtop—touch Settings>Help. •Updates: Smartphone updates, PC software, user’s guides, online help, and more at www.motorola.com/myrazr. •Accessories: Find more for your smartphone at www.motorola.ca. •Social: The latest news, tips & tricks, videos, and so much more—join us on: YouTube™ www.youtube.com/motocanada Facebook™ www.facebook.com/motorolacanada Twitter www.twitter.com/motorola_ca Regulatory Information For Your Safety Before assembling, charging or using your mobile device for the first time, please read the important product safety and legal information provided with your product. Specific Absorption Rate (FCC) SAR (IEEE) YOUR MOBILE DEVICE MEETS FCC LIMITS FOR EXPOSURE TO RADIO WAVES. Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) adopted by the Federal Communications Commission (FCC). These limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 1.6W/kg. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. The highest SAR values under the FCC guidelines for your device model are listed below: During use, the actual SAR values for your device are usually well below the values stated. This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your mobile device is automatically decreased when full power is not needed for the call. The lower the power output of the device, the lower its SAR value. If you are interested in further reducing your RF exposure then you can easily do so by limiting your usage or simply using a hands-free kit to keep the device away from the head and body. Additional information can be found at www.motorola.com/rfhealth. Head SARGSM/UMTS 850/1900, Wi-Fi, Bluetooth0.42W/kg Body-worn SARGSM/UMTS 850/1900, Wi-Fi, Bluetooth0.48W/kg European Union Directives Conformance Statement EU Conformance The following CE compliance information is applicable to Motorola mobile devices that carry one of the following CE marks: Hereby, Moto…

Text truncated - open the document above for the full version.

EN Safe, Smart, Protected 1Product Safety & Legal Product Safety & Legal Battery Use & Safety Battery Use & Safety The following battery use and safety information applies to all Motorola mobile devices. If your mobile device uses a non-removable main battery (as stated in your product information), details related to handling and replacing your battery should be disregarded—the battery should only be replaced by a Motorola-approved service facility, and any attempt to remove or replace your battery may damage the product. Important: Handle and store batteries properly to avoid injury or damage. Most battery issues arise from improper handling of batteries, and particularly from the continued use of damaged batteries. DON’Ts • Don’t disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery. • Don’t let the mobile device or battery come in contact with liquids.* Liquids can get into the mobile device’s circuits, leading to corrosion. • Don’t allow the battery to touch metal objects. If metal objects, such as jewelry, stay in prolonged contact with the battery contact points, the battery could become very hot. • Don’t place your mobile device or battery near a heat source.* High temperatures can cause the battery to swell, leak, or malfunction. • Don’t dry a wet or damp battery with an appliance or heat source, such as a hair dryer or microwave oven. DOs • Do avoid leaving your mobile device in your car in high temperatures.* • Do avoid dropping the mobile device or battery.* Dropping these items, especially on a hard surface, can potentially cause damage.* • Do contact your service provider or Motorola if your mobile device or battery has been damaged by dropping, liquids or high temperatures. * Note: Always make sure that the battery compartment and any connector covers are closed and secure to avoid direct exposure of the battery to any of these conditions, even if your product information states that your mobile device can resist damage from these conditions. Important: Motorola recommends you always use Motorola-branded batteries and chargers for quality assurance and safeguards. Motorola’s warranty does not cover damage to the mobile device caused by non-Motorola batteries and/or chargers. To help you 2Product Safety & Legal identify authentic Motorola batteries from non-original or counterfeit batteries (that may not have adequate safety protection), Motorola provides holograms on its batteries. You should confirm that any battery you purchase has a “Motorola Original” hologram. If you see a message on your display such as Invalid Battery or Unable to Charge, take the following steps: •Remove the battery and inspect it to confirm that it has a “Motorola Original” hologram; •If there is no hologram, the battery is not a Motorola battery; •If there is a hologram, replace the battery and try charging it again; •If the message remains, contact a Motorola authorized service center. Warning: Use of a non-Motorola battery or charger may present a risk of fire, explosion, leakage, or other hazard. Proper and safe battery disposal and recycling: Proper battery disposal is not only important for safety, it benefits the environment. You can recycle your used batteries in many retail or service provider locations. Additional information on proper disposal and recycling can be found at www.motorola.com/recycling Disposal: Promptly dispose of used batteries in accordance with local regulations. Contact your local recycling center or national recycling organizations for more information on how to dispose of batteries. Warning: Never dispose of batteries in a fire because they may explode. Battery Charging Battery Charging Notes for charging your product’s battery: • During charging, keep your battery and charger near room temperature for efficient battery charging. •New batteries are not fully charged. •New batteries or batteries stored for a long time may take more time to charge. •Motorola batteries and charging systems have circuitry that protects the battery from damage from overcharging. Third Party Accessories Use of third party accessories, including but not limited to batteries, chargers, headsets, covers, cases, screen protectors and memory cards, may impact your mobile device’s performance. In some circumstances, third party accessories can be dangerous and may void your mobile device’s warranty. For a list of Motorola accessories, visit www.motorola.com/products 032375o 3Product Safety & Legal Driving Precautions Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction. Using a mobile device or accessory may be prohibited or restricted in certain areas, always obey the laws and regulations on the use of these products. While driving, NEVER: • Type or read texts. •Enter or review written data. •Surf the web. •Input navigation information. •Perform any other functions that divert your attention from driving. While driving, ALWAYS: • Keep your eyes on the road. •Use a handsfree device if available or required by law in your area. •Enter destination information into a navigation device before driving. •Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available. •Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle. •End your call or other task if you cannot concentrate on driving. Remember to follow the “Smart Practices While Driving” in this guide and at www.motorola.com/callsmart (in English only). Seizures/Blackouts Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when playing videos or games. These may occur even if a person has never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such oc…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDP56ME4) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Derrick Steel SIGNATURE: /s/ Derrick Steel DATE: 31 October 2011 TITLE: Engineering Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56ME4) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: 31 October 2011 TITLE: Engineering Manager, Product Safety and Compliance Page 2 - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains embedded Bluetooth and Wi-Fi device capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. Personal Hotspot operation is only supported in the 2.4 GHz band. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(d) In order to ensure compliance with band edge emissions requirements at the upper end of the authorized spectrum, the conducted RF power of this device is reduced when operating on Channel 11, in the 802.11 g/n modes. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Derrick Steel SIGNATURE: /s/ Derrick Steel DATE: 31 October 2011 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Attestation Statement (Equipment Class NII - U-NII Wi-Fi) This device contains an embedded U-NII Wi-Fi device that Motorola Mobility confirms to be compliant with the applicable Part 15E regulations. Note that Personal Hotspot operation is not supported within equipment class. 15.407(c) The device will automatically discontinue transmission in case of either the absence of information to transmit or operational failure. 15.407(h)(1) This device does operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, but the device’s EIRP is less than 500 mW, and as such Transmit Power Control (TPC) is not required. 15.407(h)(2) This device does operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, and as such implements Dynamic Frequency Selection (DFS) as a client device. This device cannot initiate transmissions nor does it support ad-hoc networking in this band. NAME: Derrick Steel SIGNATURE: /s/ Derrick Steel DATE: 31 October 2011 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 4 2.5. Attestation Statement (Equipment Class PCE – GSM/WCDMA 850/1900 MHz - Hearing Aid Compatibility) Motorola Mobility hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance. Features List: Model – XT910-series GSM GPRS/EDGE WCDMA Wi-Fi (a/b/g/n) Bluetooth (Stereo) Location-Based Services Voice Commands Talking Phone Photo Camera Video Camera Video Player Hands Free Speaker Phone Music Player HTML Browser Text Messaging NAME: Derrick Steel SIGNATURE: /s/ Derrick Steel DATE: 31 October 2011 TITLE: Engineering Manager

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com 11 October 2011 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDP56ME4, PCS (WCDMA/GSM) Handsets, with W-Fi and Bluetooth. Gentlemen; Motorola Mobility, Inc.; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDP56ME4. The primary transceiver in this composite device operates in the 850 MHz Public Mobile Service (PMS) and the 1900 MHz Personal Communications Service (PCS). It supports GSM and WCDMA signaling, and employs HSPA/EDGE data transmission capabilities. Note: This device also contains functions, and operates within frequency bands, that are not authorized within the United States or its territories. This filing is only applicable to supported US operations. This radio product is also equipped with a Wi-Fi (802.11a/b/g/n) transceiver. Wi-Fi supports both voice and data for short range wireless communications. The Wi-Fi Band of Operation is in the 2.4 GHz ISM band and the 5 GHz U-NII band. The Wi-Fi device complies with the requirements of 15.407, 15.247, 15.205, and 15.209 (b). This radio product is also equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.4 - 2.4835 GHz (1 MHz channel bandwidth). The Bluetooth device complies with the requirements of FCC Rule Parts 15.247, 15.205 and 15.209 (b). All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). This radio product features an integrated GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). A Part 15B test report is included for certification. Page 13a - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Enclosed is a complete Certification Application. Contact me at (954) 723-6272 if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected] Page 13a - 2

FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 11 October 2011 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDP56ME4. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDP56ME4_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDP56ME4 _Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDP56ME4 _Ex_10 (Active Components).pdf Transmitter Characteristics. IHDP56ME4 _Ex_12 (TX Characteristics).pdf Motorola Mobility, Inc. requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility, Inc. understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com SHORT TERM ONFIDENTIALITY REQUEST – 180 DAYS Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility, Inc. is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility, Inc. temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDP56ME4 _Ex_03 (External_Photos).pdf Test set-up photographs. IHDP56ME4 _Ex_07b (SAR Test Set- up_Details).pdf IHDP56ME4 _Ex_07c (Part 15 Test Set- up_Details).pdf User’s Manual. IHDP56ME4 _Ex_08 (User Guide).pdf Internal product photographs. IHDP56ME4 _Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 E-mail: [email protected] Page 13b - 2

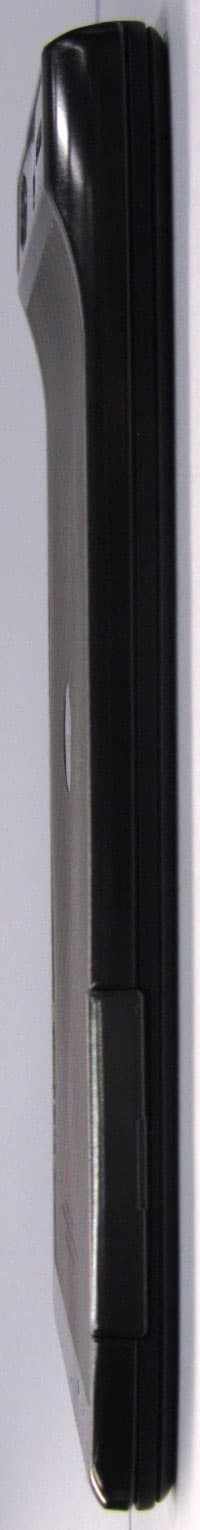

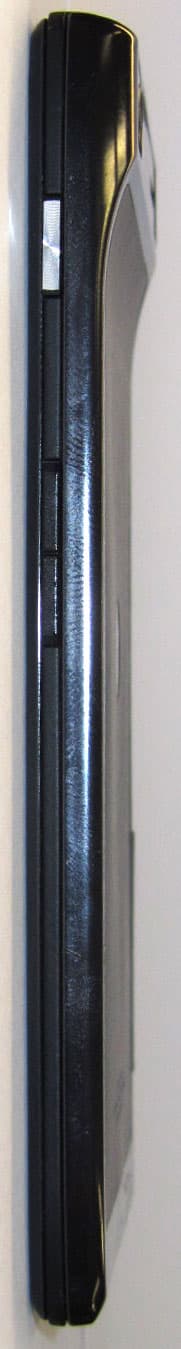

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product shapes, colors and housings/bezels may vary. Figure 3-1. Front of device Page 3 - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Temporary Confidentiality Requested Figure 3-2. Back of device Page 3 - 2 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-3. Side Views of Device Page 3 - 3 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-4. Top of device Figure 3-5. Bottom of device Page 3 - 4

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, etched near the bottom edge of the device (see also Exhibit 3). 1.2 Type The label will be laser etched into the rear housing of the device. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. Figure 1.3.2. Representation of FCC Label information. This label will be etched onto the equipment’s back housing as shown below. Other information may also be included on this label, and other labels may also be present. FCC ID: IHDP56ME4 IC: 109O-P56ME4 Model No. XT910S Model No. XT910K FCC ID: IHDP56ME4 IC: 109O-P56ME4 Page 1 - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 1.3.3. Location of FCC Label (position, orientation, and other information shown may vary). Back of Device Back Face of Device FCC Label Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure Performance data located in Exhibit 6 are supplied in accordance with the Commission’s rules: 47 CFR Part 2, Subpart J. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 15, Subparts A, B, C, and E; Part 22, Subpart H; and Part 24, Subpart E. 1A.3 Similar, currently Certified Transceiver FCC ID: IHDP56ME2. 1A.4 Additional Considerations In addition to the radio receivers associated with the services authorized within this application, this device integrates a receiver designed to process signals from Global Positioning System satellites. Compliance with FCC requirements was done via the Verification process (47 CFR 2.902). Page 1 - 2 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 3 This device may be considered to be a digital device, per47 CFR 15.3(k), and can function as a computer peripheral device when functioning as an RF modem, as described in 47 CFR 15.3(r). For this reason, a Part 15B test report is included with this application.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) Photograph 9-1: Front side view of the device’s PC Board, Shields in place. Page 9 - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Temporary Confidentiality Requested Photograph 9-2: Front side view of the device’s PC Board, Shields Removed. Page 9 - 2 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Temporary Confidentiality Requested Photograph 9-3: Back side view of the device’s PC Board, No Shielding in Design. Page 9 - 3 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Temporary Confidentiality Requested Photograph 9-4: Housing Interior, Showing Battery and Antennas (at the periphery). Page 9 - 4 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56ME4 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Photograph 9-5: Schematic, showing physical locations of all Antennas. Page 9 - 5

FCC ID: IHDP56ME4 SAR EVALUATION REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 29 0Y1111162004.IHD 11/17/11 - 11/19/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 Applicant Name: Date of Testing: Motorola Mobility, Inc. 11/17/11 - 11/19/11 8000 West Sunrise Blvd. Test Site/Location: Plantation, FL 33322 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1111162004.IHD F C C I D : IHDP 5 6 ME 4 AP P L I C AN T : MO TO RO L A M O B I LIT Y, I NC . EUT Type: Portable Handset Application Type: Certification (5 GHz SAR Only) FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] Test Device Serial No.: Pre-Production [S/N: TA22300PEA] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) 5.2 GHz WLAN5180 - 5240 MHz10.480.020.02 5.3 GHz WLAN5260 - 5320 MHz10.440.020.03 5.5 GHz WLAN5500 - 5700 MHz10.550.050.03 5.8 GHz WLAN5745 - 5825 MHz10.350.020.03 SAR Band & ModeTx Frequency Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all capabilities. This wireless portable device has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: IHDP56ME4 SAR EVALUATION REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 29 0Y1111162004.IHD 11/17/11 - 11/19/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 T A B L E O F C O N T E N T S 1 INTRODUCTION ...................................................................................…
