IHDP56MH1i940 iDEN MOBILE WITH WI-FI AND BLUETOOTH

FCC Filing Package for Motorola i940-series Transceiver FCC ID: IHDP56MH1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 8 - 1 Exhibit 8: Draft User’s Manual -- 47 CFR 2.1033(b)(3) The attached User’s Manual is the final production-intended version of the generic Motorola International English User Manual. This guide will be adapted to carrier-specific versions i , but the key information herein will be retained. Translations into other languages will also be done to support the needs of other markets. Minor revisions may be made to these manuals, prior to and subsequent to, placing this product onto the market. Selected portions of the User Guide can be found as indicated below: 8.1 Safety and Regulatory Section: Part 2; Page 20 8.2 Specific Absorption Rate (SAR) Data: Part 2; Page 22 8.3 Guidance for use with Hearing Aids (Pursuant to 47 CFR 20.19(f)(1): Part 2; Page 16, 27 i Motorola Mobility asserts that the User’s Guide provided with product shipping into Canada will provide any required Industry Canada notices and/or statements in both English and French, per the requirements of RSS-Gen. MOTOROLA i940 1 Congratulations CongratulationsMOTOROLA i940Get the convenience of push-to-talk calls together with a premium browsing and messaging experience, all in a touchscreen phone.• Private Calls. Stay in touch with your family, friends, and colleagues with the simple touch of a button. • Organization. Check your email, calendar, and contacts wherever you are. •Browsing. Get more from the web with a huge screen. Search, browse, everything you want to do, all made easier. • Maps, entertainment, and more. The latest technology and apps. Google Maps™ to find your way. YouTube™ to stay entertained. Easy access to Google™ and thousands of Android™ applications to expand your world. Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information in this guide. More•Answers: Touch > Help Center . You can also flick your home screen left or right to see the Getting Started and Tips & Tricks widgets. • Support: Phone updates, PC software, user guides, online help and more at www.motorola.com/myi940 . • Accessories: Find accessories for your phone at www.motorola.com/products . 2 Contents Your phonethe important keys & connectorsNote: Your phone might look a little different. 12:00 Email Browser Messaging Celendar Menu Key Home Key B ac k Key T a lk Key End Key PTT Button Volume Keys 3.5 mm He a dset Power/Lo c k Key S p e a ker Key To u c hs c reen M ic ro USB Conne c tor ContentsYour phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Push-to-Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Messaging & email. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Tips & tricks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31YouTube™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36Personalize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40Apps for all. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43Wireless manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45USB & memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55Update my phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57Safety, Regulatory & Legal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 3 Let’s go Let’s golet’s get you up and runningAssemble & charge Caution: Please read “ Battery Use & Safety ” on page 58. 1 Cover off 2 SIM in 3 microSD in 4 Battery in 5 Cover on 6 Charge up 3H Tip: To save battery life, see “ Battery tips ” on page 27. Set up & goThe first time you turn on your phone, a setup wizard guides you through:• Setting up your Wi-Fi connection. • Signing in to your existing Google account. Note: If you don’t have a Google account, you can create one using the wizard.Tip: Remember to write down your user name and password, and keep them in a safe place. • Setting up additional email accounts, such as POP3, IMAP, or Microsoft™ Exchange. • Loading contacts from your SIM card. • Selecting your keypad type. Note: This phone supports data-intensive apps and services. It is strongly recommended that you …

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDT56ME1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Thomas Ket Tung Liew SIGNATURE: /s/ Thomas Ket Tung Liew DATE: 3 August 2011 TITLE: Electrical Section Manager, Hi-P International, Ltd. 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56MH1) is in compliance with all applicable parts of the FCC Rules. SIGNATURE: DATE: 3 August 2011 NAME: John Lewczak TITLE: Engineering Manager, Product Safety and Compliance Page 2 - 1 FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Classes DTS and DSS - Bluetooth/Wi-Fi) This device contains an embedded Bluetooth device, Wi-Fi device, and MOTOtalk capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Thomas Ket Tung Liew SIGNATURE: /s/ Thomas Ket Tung Liew DATE: 3 August 2011 TITLE: Electrical Section Manager, Hi-P International, Ltd. FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Attestation Statement (Equipment Class PCE – iDEN 800/900 MHz - Hearing Aid Compatibility) Motorola Mobility hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance. Features List: Model – Motorola Admiral iDEN Dual Band iDEN Data Hands Free Speaker Phone Voice Commands Talking Phone Photo Camera Video Camera Video Player Bluetooth (Stereo) Music Player HTML Browser Text Messaging NAME: Thomas Ket Tung Liew SIGNATURE: /s/ Thomas Ket Tung Liew DATE: 3 August 2011 TITLE: Electrical Section Manager, Hi-P International, Ltd. FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 4 2.5. Attestation Regarding SAR Drift (Equipment Class PCE) Motorola Mobility hereby declares that the DUT utilized for SAR testing was found to be operating in a manner consistent with its design characteristics, and the drift values reported for the licensed Part 90 service (between -0.325 and +0.277 dB) have been confirmed as inherent to the operation of the device. Motorola has amended the measurement uncertainty budget contained within its SAR test reports for equipment submitted for FCC equipment authorization. The change was to the "SAR drift" line item on the "Test Sample Related" section of the uncertainty budget. SAR measurements in the report are individually evaluated to determine whether a correction is applied to account for the measured SAR drift noted in any particular scan. This correction is applied in a conservative fashion: no correction is made to a measured SAR value when the drift is upwards (i.e. an apparent increase in power). A correction is applied only when a downward SAR drift is noted. Therefore, Motorola has changed the "SAR drift" line item to 0% (i.e. u i = 0%) reflecting the fact that we do not account for the measured SAR drift as an uncertainty item. Rather it is represented in the report as a source-based bias with included corrections to the measured SAR values. This method is essentially that described in the IEC 62209-2 SAR method of measurement standard (Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices - Human models, instrumentation, and procedures - Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices). NAME: John Lewczak SIGNATURE: /s/ John Lewczak DATE: 3 August 2011 TITLE: Engineering Manager, Product Safety and Compliance

FCC Filing Package for Motorola i940-series-Series Transceivers FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com 27 July 2011 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDP56MH1, i940-Series Handsets, with Wi-Fi and Bluetooth. Gentlemen; Motorola Mobility, Inc.; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDP56MH1. This is a variable output power (0.22 to 640 milliwatts) transmitter that is part of a handheld transceiver used in SMR and EA SMR trunking systems operating within the United States 806-821/851-866 MHz and 896-901/935-940 MHz frequency bands. Operation is also extended for use in a Narrowband PCS system operating in the United States in the spectrum between 901-902/940-941 MHz, on channels which the licensee has aggregated together to form twenty-one 25 kHz operating channels. To facilitate global roaming it is kindly requested that the grant for Part 90 800 MHz SMR operation reflects an extended frequency range (806 – 825 MHz) beyond that permitted under that part. Pursuant the guidance provide in KDB 634817 D01 (Freq Range Listing for Grants, v02r01), this application qualifies under the requirements of paragraph (d)(iii): use in other countries. This product will be distributed to operators in ITU Region 1 (Middle East), Region 2 (South America), and Region 3 (Asia) in countries that accept a United States FCC Grant for Equipment Authorization. This product is of the ‘receive first’ type of equipment, which can only transmit on frequencies assigned to it by a compatible Authorized Base Station. Therefore, no unauthorized transmission can occur within the United States or its territories, thus the product will not jeopardize United States public safety or other services licensed to operate in the 821-825 MHz frequency band, as no compatible base station may be authorized for those frequencies in the United States. This radio product is also equipped with a Wi-Fi (802.11b/g) transceiver. Wi-Fi supports both voice and data for short range wireless communications. The Wi-Fi Band of Operation is 2.412 - 2.462 GHz, with channels up to 17 MHz in bandwidth for 802.11g operation. The Wi-Fi device complies 15.247 (c), 15.205 and 15.209 (b). This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.4 - 2.4835 GHz (1 MHz channel bandwidth). The BT device complies with the requirements of FCC Rule Parts 15.247 (c), 15.205 and 15.209 (b). Page 13a - 1 FCC Filing Package for Motorola i940-series-Series Transceivers FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). This radio product features an integrated GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). Enclosed is a complete Certification Application. Contact me at (847) 523-6167 if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected] Page 13a - 2

FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 27 July 2011 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDP56MH1. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDP56MH1_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDP56MH1_Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDP56MH1_Ex_10 (Active Components).pdf Transmitter Characteristics. IHDP56MH1_Ex_12 (TX Characteristics).pdf Motorola Mobility, Inc. requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility, Inc. understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com SHORT TERM ONFIDENTIALITY REQUEST – 60 DAYS (to 09/30/2011) Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility, Inc. is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility, Inc. temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDP56MH1_Ex_03 (External_Photos).pdf Test set-up photographs. IHDP56MH1_Ex_07b (SAR Test Set- up_Details).pdf IHDP56MH1_Ex_07c (Part 15 Test Set- up_Details).pdf IHDP56MH1_Ex_07d (HAC Test Set- up_Details).pdf User’s Manual. IHDP56MH1_Ex_08 (User Guide).pdf Internal product photographs. IHDP56MH1_Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 E-mail: [email protected] Page 13b - 2

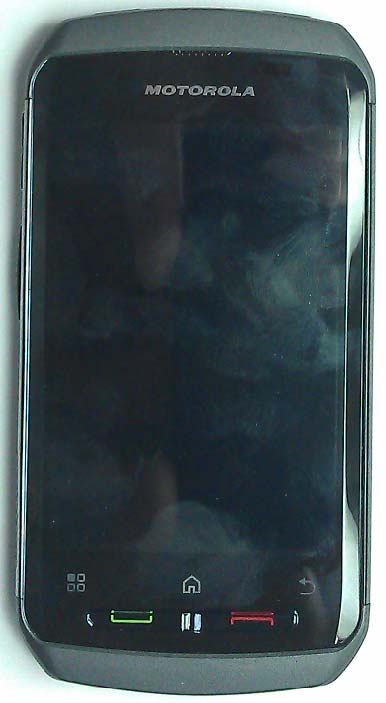

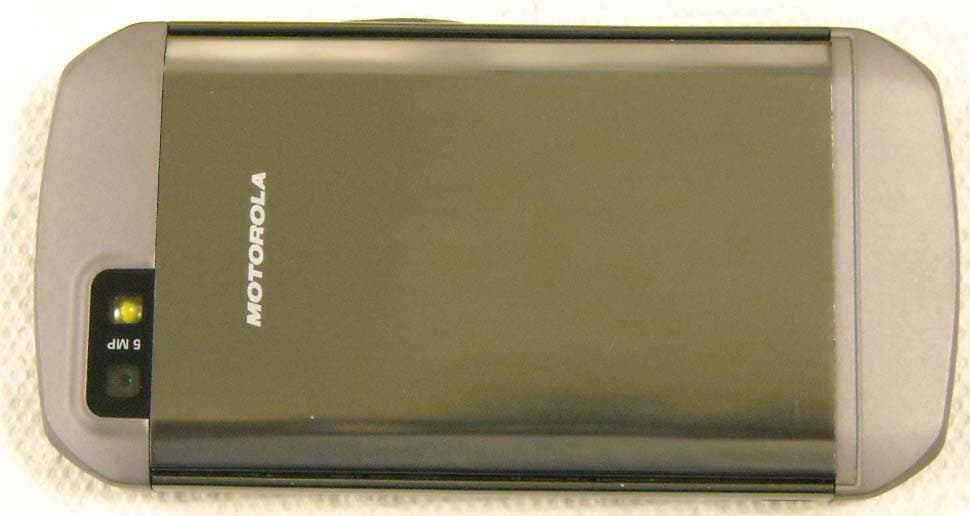

FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product shapes, colors and housings/bezels may vary. Figure 3-1. Front of radio Figure 3-2. Back of radio Page 3 - 1 FCC Filing Package for Mes Transceivers FCC ID: IHDP56MH1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com otorola i940-seri Figure 3-3. Button Side of radio Figure 3-4. Opposite Side of radio Page 3 - 2 FCC Fi Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com ling Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Temporary Confidentiality Requested Figure 3-5. Top of radio Figure 3-6. Bottom of radio Page 3 - 3 FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-7. Interior Compartment of radio FCC Label Location. See Exhibit 1 for details. Page 3 - 4

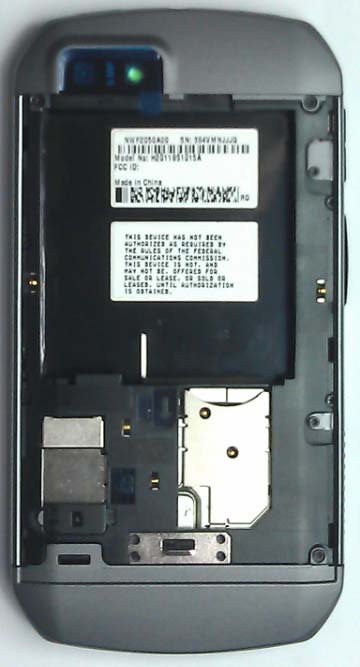

FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, beneath the battery (see also Exhibit 3). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information (Model A). Figure 1.3.2. Representation of FCC Label information (Model B). Model No. H2011B51015B Model No. H2011B51015A FCC ID IHDP56MH1 IC: 109O- P56MH1 FCC ID IHDP56MH1 IC: 109O- P56MH1 Page 1 - 1 FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 1.3.3. Representation of FCC Label information (Model C). This label will be placed on the equipment (within the Battery Compartment) as shown below. Other information may also be included on this label, and other labels may also be present. Model No. H2011B51015C FCC ID IHDP56MH1 IC: 109O- P56MH1 Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Back Side of Phone FCC Label Interior Battery Compartment Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently affixed to the product, and be readily visible to the purchaser at the time of purchase. Further, at the time of purchase, batteries are shipped in a separate section or compartment of the radio packaging, and are not attached to the radio. In some instances they may be shipped in separate boxes. So, the customer needs to physically install the battery by removing the battery cover, if any, or attach the battery before using the radio. Further, the placement of the label in the battery compartment is done because space is limited on the exterior of the device. The battery compartment also helps to protect the label from getting obliterated or made unreadable through regular handling and use. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Page 1 - 2 FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 3 Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure Performance data located in Exhibit 6 are supplied in accordance with the Commission’s rules: 47 CFR Part 2, Subpart J. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 15, Subparts A, B, and C; Part 24 Subparts B and D; and Part 90, Subparts I and S. 1A.3 Similar, currently Certified Transceiver FCC ID: IHDT56MH1 1A.4 Additional Considerations This radio product integrates a receiver designed to process signals from Global Positioning System satellites, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR 15.3(r). Compliance with Part 15 requirements for the Direct-Conversion (zero IF superheterodyne) receiver has been determined by verification in accordance with 47 CFR 15.1.

FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) Photograph 9-1: Front side view of radio product PC Board, Shields in Place. Page 9 - 1 FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Photograph 9-2: Front side view of radio product PC Board, Shields Removed. Page 9 - 2 FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Photograph 9-3: Rear side view of radio product PB Board, Shields in Place. Page 9 - 3 FCC Filing Package for Motorola i940-series Transceivers FCC ID: IHDP56MH1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Photograph 9-4: Rear side view of radio product PB Board, Shields Removed. Page 9 - 4

MOTOROLA MOBILITY, INC. Portable Cellular Phone SAR Test Report Number: 24591-1 FCC ID: IHDP56MH1 Exhibit 11 Portable Cellular Phone SAR Test Report Tests Requested By: Motorola Mobility, Inc. 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 24591-1 Date of Report: Jul-26-2011 Date of Test: Jul-02-2011 to Jul-05-2011 FCC ID #: IHDP56MH1 Generic Name: N/A Test Laboratory: Motorola Mobility, Inc. - ADR Test Services Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Thomas Knipple Senior RF Engineer Accreditation: 2404 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: Motorola’s ISO 17025 accreditation scope does not currently include SAR testing in the 5 GHz band. Therefore, SAR testing performed in this band was performed outside of our ISO 17025 accreditation. The general procedures and guidelines provided within; FCC KDB 248227 D01, FCC KDB 648474 D01, FCC KDB 865664 D01 and IEC 62209-2 were utilized for testing. ©Motorola Mobility, Inc. 2011 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA MOBILITY, INC. Portable Cellular Phone SAR Test Report Number: 24591-1 FCC ID: IHDP56MH1 Exhibit 11 Page 2 of 18 Table of Contents 1. Introduction .............................................................................................................................................................3 2. Description of the Device Under Test ....................................................................................................................4 2.1 Antenna description.............................................................................................................................................4 2.2 Device Signaling..................................................................................................................................................4 2.3 Device Conducted Power Measurements ............................................................................................................5 2.3.1 iDEN modes .................................................................................................................................................5 2.3.2 Wi-Fi 802.11 modes .....................................................................................................................................5 3. Test Equipment Used ..............................................................................................................................................6 3.1 Dosimetric System ...............................................................................................................................................6 3.2 Additional Equipment ..........................................................................................................................................6 4. Electrical parameters of the tissue simulating liquid ...........................................................................................7 5. System Accuracy Verifications...............................................................................................................................8 6. Test Results ..............................................................................................................................................................9 6.1 Head Adjacent Test Results ...............................................................................................................................10 6.2 Dispatch/Push-to-Talk Test Results...................................................................................................................13 6.3 Body Worn Test Results.....................................................................................................................................15 6.4 Description and Evaluation of Simultaneous Transmitters...............................................................................17 References ..................................................................................................................................................................18 Appendix 1: SAR distribution comparisons for System Accuracy Verifications Appendix 2: SAR distribution plots for Head Adjacent Test Results Appendix 3: SAR distribution plots for Dispatch/Push-to-Talk Test Results Appendix 4: …
