IHDP56MJ3WIFI TRANSCEIEVER WITH BT

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 LIFE. POWERED. B ac k Next More Su pp ort + MOTOROLA Your tabletStartWant More?TroubleshootingSafety, Regulatory & Legal Your tablet Your tabletMOTOROLA [Fleming] has the latest tablet innovations, with access to Android Market™ to get even more.At a glance —When you’re up and running, be sure to explore what your tablet can do:• Customize: “ Personalize ” your tablet, then “ Surf ” and bookmark your favorite websites. • Create: Check and send your “ Email ”, and even create and edit documents and calendar events for “ Work ”. • Enjoy: “ Load up ” your tablet’s apps and games, or “ Play & record ” video, music, and more. Tips & tricks• Power/Sleep: To turn your tablet on or off, press and hold Power/Sleep on the back. To make the screen sleep or wake up, press but don’t hold. Note: Certain apps and features may not be available in all countries. This product meets the applicable limit for exposure to radio waves (known as SAR) of 1.6 W/kg (FCC). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. LIFE. POWERED. B ac k Next More Su pp ort + MOTOROLA Your tabletStartWant More?TroubleshootingSafety, Regulatory & Legal Start StartSet upLet’s get you up and running.Note: This product uses a non-removable battery. The battery should only be replaced by a Motorola-approved service facility. Any attempt to remove or replace your battery may damage the product.Note: This device supports apps and services that use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. 1 Insert the charger into the MicroUSB port on the bottom of your tablet, then wait for the battery charging indicator to show a steady white light (fully charged). 2 Press and hold Power/Sleep on the back of your tablet to turn it on. 3 Choose a language and touch Start . In the WiFi setup screen, touch the network you want to connect, then enter a password if you need to.Choose location settings and touch Next (for the most accurate location features, check both services).Follow the setup wizard to set your time zone, and confirm the time and date.Note: To change your Wi-Fi settings or time zone later, touch Apps > Settings > Wireless & networks , or Date & Time . 4 Follow the setup wizard to create or log into your Google Account and go to the home screen. Record your Google Account information for future reference.Check the Motorola Mobile Services approval and touch Next . Note: You can use your Google account to back up your contacts, bookmarks, user dictionary, Wi-Fi passwords, some app information, and other settings, in case you lose your tablet or reinstall an app. To set up sync later, touch Apps > Settings > Accounts & sync . Tip: In the unlikely event that your tablet becomes unresponsive, try a forced reboot—press and hold both Power/Sleep and the up volume key for three seconds. LIFE. POWERED. B ac k Next More Su pp ort + MOTOROLA Your tabletStartWant More?TroubleshootingSafety, Regulatory & Legal Want More? Want More?More informationYou can get more information, more help, more free stuff. We’re here to help. • Answers: Check out the help center on your tablet—touch Apps > Help Center . If your device does not have Help Center , you can download it from www.motorola.com /[Fleming]help . • Support: Tablet software updates, PC software, user guides, online help, and more at www.motorola.com /my[Fleming] or www.motorola.com/my[Fleming]wifi . You can call us with warranty and support questions at 1-800-734-5870 (United States), 1-888-390-6456 (TTY/TDD United States for hearing impaired), or 1-800-461-4575 (Canada). • Updates: To keep your tablet current, software updates may be available. Touch Apps > Settings > About tablet > System updates to see if your tablet is up to date. If it isn’t, touch Update . • Join us: Get the latest news, apps, tips & tricks, videos and so much more—join us on: YouTube ™ www.youtube. com/motorola Facebook™ www.facebo ok.com/motorola Twitter www.twitter.co m/motomobile AccessoriesYou can find accessories for your phone at www.motorola.c om/products . LIFE. POWERED. B ac k Next More Su pp ort + MOTOROLA Your tabletStartWant More?TroubleshootingSafety, Regulatory & Legal Troubleshooting TroubleshootingForce a rebootIn the unlikely event that your tablet becomes unresponsive, try a forced reboot: Press and hold both Power/Sleep and the volume up key for three seconds. Reset your tabletIf you forget your unlock pattern or password, your tablet should prompt you to reset it after five tries. If it doesn't, you can do a factory data reset to restore your tablet to its factory settings:Warning: This deletes all of your data on the tablet. This includes pictures, videos, documents, and other files that you have not backed up online or on a PC. 1 Turn on your tablet and, when the Motorola logo appears, press and hold the volume down key. Keep holding the volume down key until Android recovery text appears in top left corner. 2 Press the volume up key to put device in Android recovery mode. 3 When the Android recovery screen appears, press and hold Power/Sleep . While holding Power/Sleep , press and release the volume up key. 4 Your tablet should show a wipe data/factory reset option. Press Power/Sleep to select the reset option. 5 Use the volume keys to select Yes , then press Power/Sleep to confirm the reset. 6 After your tablet resets, press Power/Sleep to select reboot system now . Service & repairsIf you have questions or need assistance, go to http://www.motoro la.com/support , where you can select from a number of customer care options. You can also contact the Motorola Customer Support Center at 1-800-734-5870 (…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDP56MJ3) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Frank.Hyochang Kim SIGNATURE: /s/ Frank.Hochang Kim DATE: 10/12/2011 TITLE: Engineering Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDP56MJ3) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: 10/12/2011 TITLE: Engineering Manager, Product Safety and Compliance Page 1 - 3 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains an embedded Bluetooth device and Wi-Fi device and capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Frank.Hyochang Kim SIGNATURE: /s/ Frank.Hochang Kim DATE: 10/12/2011 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 3 - 3 2.4. Attestation Statement (Equipment Class NII - U-NII Wi-Fi) This device contains an embedded U-NII Wi-Fi device that Motorola Mobility confirms to be compliant with the applicable Part 15E regulations. 15.407(c) The device will automatically discontinue transmission in case of either the absence of information to transmit or operational failure. Details of how this is implemented can be found in Exhibit 12. 15.407(h)(1) This device does not operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, and as such Transmit Power Control (TPC) is not required. 15.407(h)(2) This device does not operate in the bands between 5.25 – 5.35 GHz and 5.47 – 5.725 GHz, and as such Radar Detection Function of Dynamic Frequency Selection (DFS) is not required. NAME: Frank.Hyochang Kim SIGNATURE: /s/ Frank.Hochang Kim DATE: 10/12/2011 TITLE: Engineering Manager

FCC ID: IHDP56MJ3 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 27 September 2011 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDP56MJ3. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDP56MJ3_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDP56MJ3 _Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDP56MJ3 _Ex_10 (Active Components).pdf Transmitter Characteristics. IHDP56MJ3 _Ex_12 (TX Characteristics).pdf Motorola Mobility, Inc. requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility, Inc. understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDP56MJ3 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com SHORT TERM ONFIDENTIALITY REQUEST – 180 DAYS Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility, Inc. is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility, Inc. temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDP56MJ3 _Ex_03 (External_Photos).pdf Test set-up photographs. IHDP56MJ3 _Ex_07d (SAR Test Set- up_Details).pdf IHDP56MJ3 _Ex_07 (EMC Test Set- up_Details).pdf User’s Manual. IHDP56MJ3 _Ex_08 (User Guide).pdf Internal product photographs. IHDP56MJ3 _Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 E-mail: [email protected] Page 13b - 2

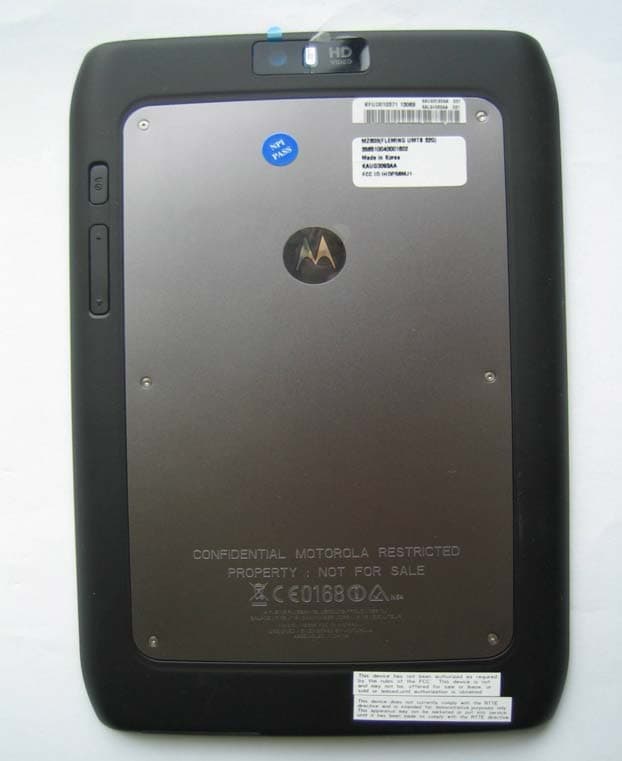

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 EXHIBIT 3 2 of 2 FRONT OF TABLET BACK OF TABLET Dimension : 13.98 cm (width) x 21.6cm (length) x 0.899cm (thickness) APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 EXHIBIT 3 2 of 2 SIDE S OF TABLET TOP OF TABLET BOTTOM OF TABLET Dimension : 13.98 cm (width) x 21.6cm (length) x 0.899cm (thickness)

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, near the lower edge of the device (see also Exhibit 3). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. This label will be placed on the equipment (rear housing) as shown below. Other information may also be included on this label, and other labels may also be present. FCC ID: IHDP56MJ3 IC: 109O-P56MJ3 Page 1 - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Back of Device FCCLabel Please note that this label and its placement complies with the requirement of FCC Rule 47 CFR 2.925(d) that the label be permanently etched or otherwise affixed to the product, and be readily visible to the purchaser at the time of purchase.. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure Performance data located in Exhibit 6 are supplied in accordance with the Commission’s rules: 47 CFR Part 2, Subpart J. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 15, Subparts A, B, and C. 1A.3 Similar, currently Certified Transceiver FCC ID: IHDP56LU1 Page 1 - 2 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 3 1A.4 Additional Considerations In addition to the radio receivers associated with the services authorized within this application, this device integrates a receiver designed to process signals from Global Positioning System satellites. Compliance with FCC requirements was done via the Verification process (47 CFR 2.902). This device may be considered to be a digital device, per47 CFR 15.3(k), and can function as a computer peripheral device when functioning as an RF modem, as described in 47 CFR 15.3(r). For this reason, a Part 15B test report is included with this application.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 EXHIBIT 9 1 of 7 Main Board Bottom Main Board Bottom with Shields without Shields APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 EXHIBIT 9 2 of 7 Main Board Bottom Main Board Bottom with Shields without Shields APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 EXHIBIT 9 3 of 7 Camera Flex Top Camera Flex Bottom Headset Jack Flex Top Headset Jack Flex Bottom APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 EXHIBIT 9 4 of 7 Inside Rear Housing Display Chassis Back Embedded Battery APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 EXHIBIT 9 5 of 7 Display Chassis Front Main Lens Ass’y Inside 8.2 inch Display Back APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 EXHIBIT 9 6 of 7 Main Lens Ass’y Front 8.2 inch Display Front Speaker Top Display IPEX Cable APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56MJ3 EXHIBIT 9 7 of 7 GPS and BT/WiFi Antenna Location GPS Antenna BT/WiFi Antenna BT/WiFi Antenna GPS Antenna Display Chassis Back Display Chassis Front

APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56MJ3 Test Report Number: 24771-1JBC 1 of 15 EXHIBIT 6A4 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 24771-1JBC Report Date – October 18, 2011 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: October 18, 2011 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY UKAS OR ANY AGENCY OF THE U.S. GOVERNMENT. UKAS Certificate Number: 2404 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56MJ3 Test Report Number: 24771-1JBC 2 of 15 EXHIBIT 6A4 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Equipment List 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56MJ3 Test Report Number: 24771-1JBC 3 of 15 EXHIBIT 6A4 Test Report Details Tests Performed By: ADR Testing Service Location Code: ADR LV Motorola Mobility Inc Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 FCC Registration Number: 316588 Industry Canada Number: 109O-1 Tests Requested By: Motorola Mobility Inc. 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Tablet Signaling Capability: Bluetooth+EDR, 802.11a/802.11b/802.11g/802.11n FCC ID: IHDP56MJ3 Serial Numbers: KFLC140080 Testing Complete Date: October 18, 2011 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47: X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003, RSS-210 Issue 8 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56MJ3 Test Report Number: 24771-1JBC 4 of 15 EXHIBIT 6A4 Summary of Testing Test Test Name # Pass/Fail _________ 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions This product utilizes an internal battery that is not removable. When applicable, EMC testing was performed with the internal battery fully charged. All testing was done in an indoor controlled environment. The temperature and the relative humidity were maintained within the ANSI C63.4 2003 Standard requirements during the entire duration of testing. APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56MJ3 Test Report Number: 24771-1JBC 5 of 15 EXHIBIT 6A4 Equipment and Cable Configurations The EUT was tested with all the available ports populated. Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde & Schwarz Receiver ESIB26 100001 9/23/2011 Rohde & Schwarz Receiver ESIB40 100226 3/30/2012 Rohde & Schwarz Receiver ESI26 838786/010 12/23/2011 A. H. Systems DRG Horn Antenna SAS 200/571 365 8/24/2012 ETS Log-Periodic Antenna 3148 1189 1/19/2012 ETS Biconical Antenna 3110B 3370 1/19/2012 Agilent Microwave Preamplifier 8449B 3008A00535 10/05/2011 Agilent Microwave Preamplifier 8449B 3008A01442 9/22/2012 Attenuator Weinschel AS-6 6675 NCR Attenuator Weinschel AS-6 6677 NCR ETS LISN 3810/2NM 00023630 9/02/2012 ETS LISN 3810/2NM 2179 9/02/2012 ETS Loop Antenna 6507 00049471 2/17/2012 Rohde & Schwarz Receiver ESU40 100268 7/13/2012 HP Monitor HP2311X CNT101X68Q NA Note that the power meter, signal generator and microwave preamplifier are on a two- year calibration cycle. All other equipment is on a one-year calibration cycle. All testing was performed using equipment that was within calibration at the time that the test was performed. No equipment listed in the table above was used after the specified calibration due date. If, during the course of product testing, a piece of equipment went out of calibration and that piece of equipment was needed to complete product testing, a similar piece of calibrated equipment was substituted. If a substitution was made, that new piece of equipment would be listed in the above table along with the piece that was removed from service. The HP Monitor is labeled as DoC. APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDP56MJ3 Test Report Number: 24771-1JBC 6 of 15 EXHIBIT 6A4 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average and peak detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the peripheral equipment were setup according to the procedures in ANSI C63.4- 2003. The USB port of the EUT was connected to an AC out…
