IHDP56MM6MOBILE PHONE

MOTOLUXE EN TM 2 March 2012 2 March 2012 1Congratulations Congratulations MOTOLUXE™ Yo u r M O TOLUXE phone delivers more for work and play. •Search: Touch to search your apps, contacts, web, and maps—or just enter a web address. • Apps: Open Market to download games, social networking apps (like Facebook™ or Twitter), or find something else you like with “Apps” on page 8. • Camera: Capture photos and videos with the 8MP auto-focus camera in “Photos & videos” on page 28. Note: Certain apps and features may not be available in all countries. This product meets the applicable limit for exposure to radio waves (known as SAR) of 1.6 W/kg (FCC & IC). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information provided with your product. 2 March 2012 2Congratulations listed in the regulatory information packaged with your product. More • Support: Phone updates, PC software, online help and more at www.motorola.com/mymotoluxe . • Accessories: Find accessories for your phone at www.motorola.ca . 2 March 2012 3Your phone Your phone the important keys & connectors Press = sleep. Hold = turn off. 3.5mm Headset Jack Back Key Menu Key Home Key Power/ Lock Key Volume Keys Open options. Camera Key Search Key Micro USB Connector Microphone Front Camera Notification Light 2 March 2012 4Your phone Contents Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Bluetooth™, Wi-Fi, & cable connections . . . . . . . . . . . . . . . . . 32 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 2 March 2012 5Let’s go Let’s go let’s get you up and running Assemble & charge Caution: Please read “Battery Use & Safety” on page 38. 1Cover off2SIM in 3microSD in (optional)4Battery in 5Cover on6Charge up 3H 2 March 2012 6Let’s go Set up & go Note: This phone supports data-intensive apps and services. It is strongly recommended that you purchase a data plan that meets your needs. Contact your service provider for details. When you turn on your new phone, you can create or enter a Google™ account so that you can download apps, use Gmail™, and much more: 1Press and hold Power/Lock to turn on your phone. 2Touch the Android™ to begin setup. 3Touch Create to make a Google account, Sign in with one you have, or Skip. You can log into your account from a computer at http://accounts.google.com . 4Choose an account sync option: •To change whether your phone shows the Google account’s contacts, Gmail™, and calendar, touch the Google account name. •To add another account, touch Add account. For details, see “Email” on page 20. •To exit setup, touch Home. Press = sleep. Hold = turn off. Power/ Lock Key 2 March 2012 7Let’s go Note: If your phone cannot connect, touch Menu > Settings > Wireless & networks to change network settings. sleep & wake up Your screen sleeps when you hold it to your ear during a call, or when it is inactive. To set the sleep delay, touch Menu > Settings > Display > Screen timeout. To unlock the screen, drag to the outer ring. Tip: Drag onto an app to open it. Keys Use your phone’s keys to navigate and open options. Press the volume keys to change the ringer volume (in the home screen), or the earpiece volume (during a call). Press on the side of the phone to open the camera. Touch Home to return to the home screen. Touch and hold Home to see recent apps. Volume Keys Camera Key Menu, Home, Back, & Search Keys 2 March 2012 8Home screen & apps Home screen & apps a few essentials Quick start: Home screen You’ll see the home screen when you turn on the phone or touch Home from a menu: Apps To see your apps, touch. 11:19 BrowserMarket Notifications Flick down for details. Status Indicators Open apps. Widgets Touch to open. Touch & hold to move or delete. Drag or flick to open panels (or scroll in lists). 2 March 2012 9Home screen & apps Tip: Choose your apps and updates carefully, from trusted sites, like Market, as some may impact your phone’s performance—see “Choose carefully” on page 10. Note: When installing an app, make sure you read the alerts that tell you what information the app will access. If you don’t want the app to have access to this information, cancel the installation. To download new apps from Android Market™, touch > Market. Touch Search to find an app, or touch Downloads to show or reinst…

Text truncated - open the document above for the full version.

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: February 17, 2012 Statement We, Sporton International Inc., states that our device, FCC ID: IHDP56MM6, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Jones Tsai

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: February 17, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDP56MM6 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: XT615_ExtPho.pdf)  Internal Photos (file: XT615_IntPho.pdf)  Test Setup Photos (file: XT615_Tsup.pdf)  User Manual (file: XT615_UserMan.pdf) The application contains technical information, which Sporton International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

FCC ID: IHDP56MM6 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Pag e 13B - 1 5 October 2011 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Grantee Code IHD . Authorization: I, John Lewczak, the FCC contact for Grantee Code “IHD,” hereby authorize the following company (agent) to act on behalf of Motorola Mobility, Inc. for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures. • Technical Contact. • Non-Technical Contact. • Test Firm Contact Information. The grant should still be mailed to the applicant of record for Grantee Code “IHD,” and any audit requests should also be directed to the applicant of record. Authorized Agent: Jones Tsai SPORTON INTERNATIONAL, INC. No. 52, Hwa Ya 1 st Road Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Specific Application: FCC ID: IHDP56MM6 Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ([email protected] ), if there are questions or additional information needed concerning this authorization Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022

FCC ID: IHDP56MM6 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Pag e 13A - 1 16 February 2012 Power of Attorney RE: Power of Attorney. We, the undersigned Motorola Mobility, Inc. hereby authorize Sporton International, Inc. to act on our behalf in all matters relating to any and all processes required in obtaining FCC Part 15 approval for FCC ID: IHDP56MM6, and any communication required with the national authority. Any and all acts carried out by Sporton International, Inc. on our behalf shall have the same effects as acts of our own, subject to this Power of Attorney. This Power of Attorney will be effective between 20 February 2012 and 20 May 2012, and will expire thereafter. If you have any questions regarding this authorization, please don’t hesitate to contact us. Sincerely yours, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022 Phone: (954) 723-6272 FAX: (954) 337-2377 Mail: [email protected]

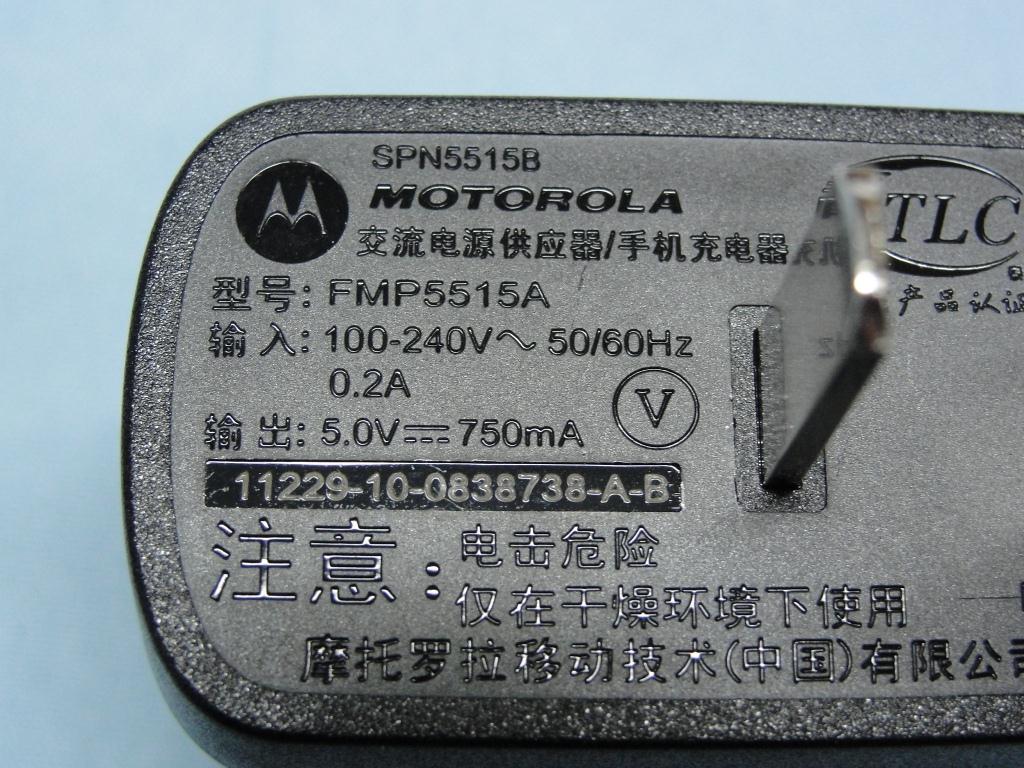

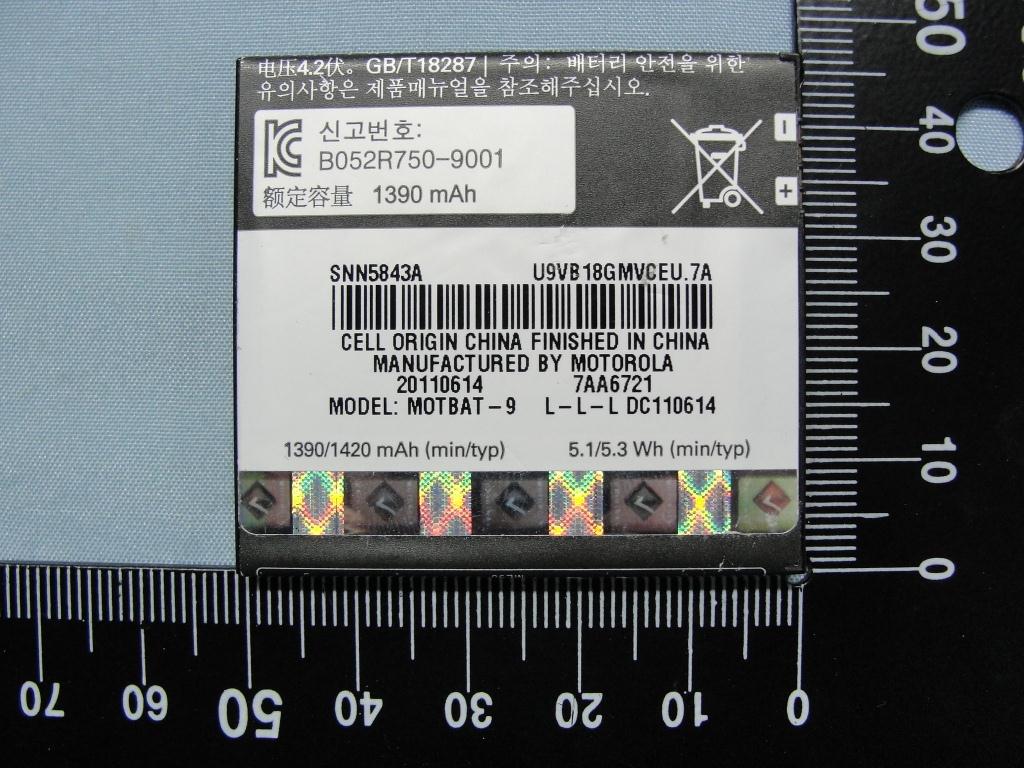

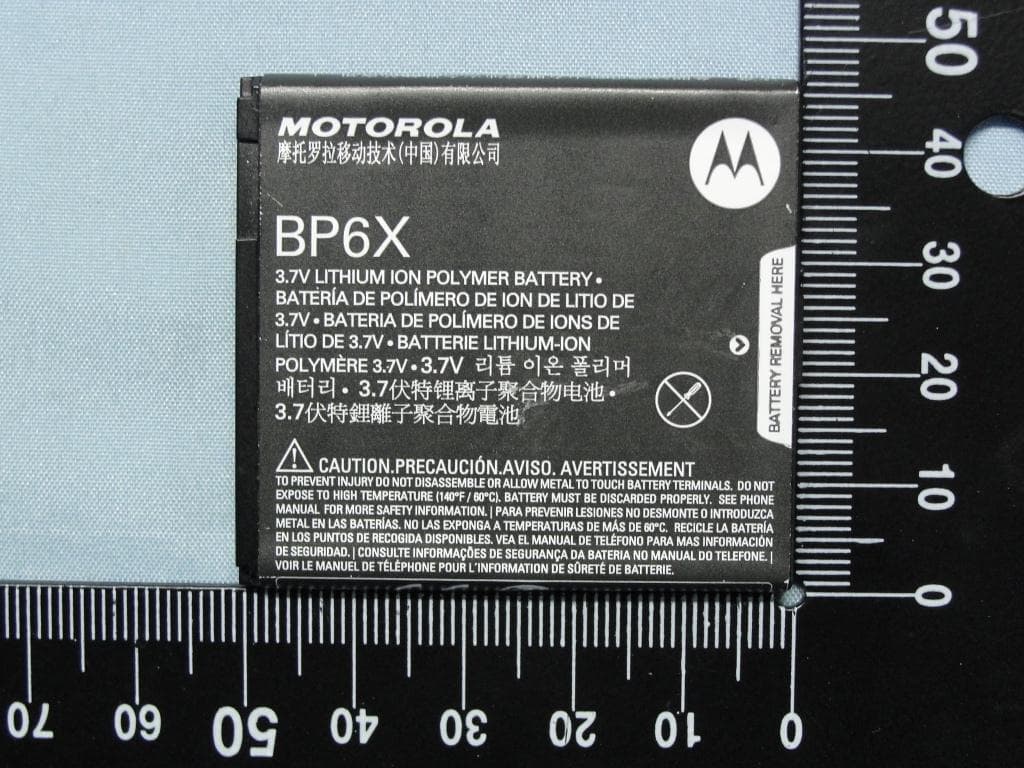

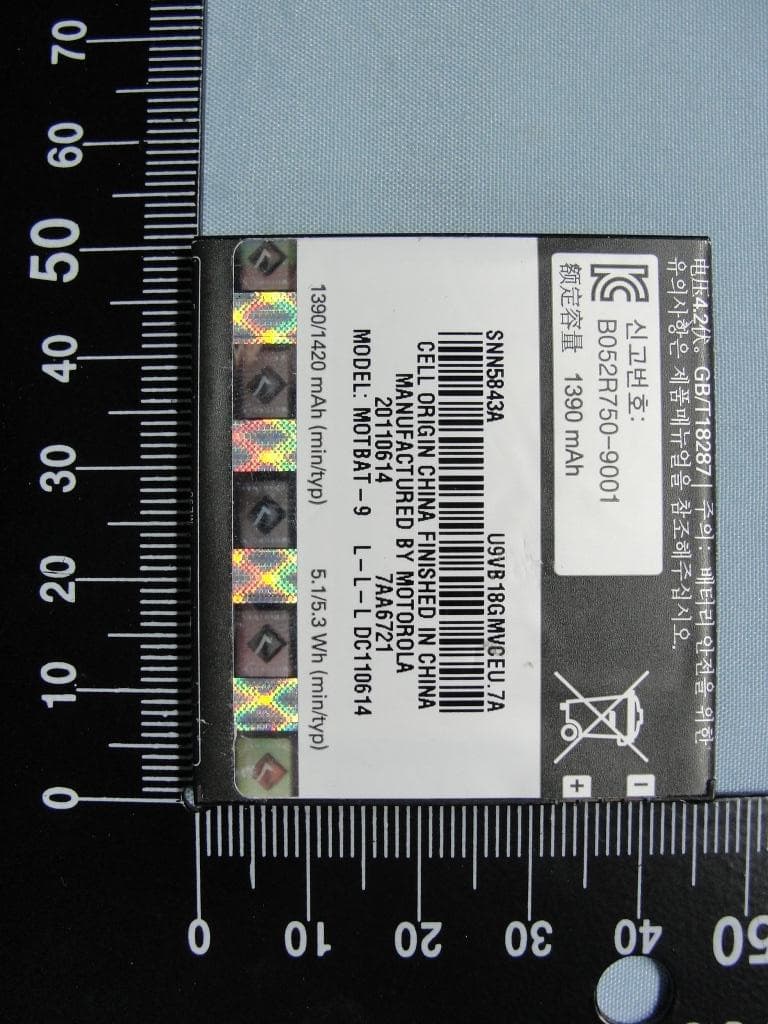

Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 1 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 1. External Photograph of EUT Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 2 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 720510 Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 3 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 List of Accessory: Specification of Accessory AC Adapter Brand Name Motorola Model Name SPN5515B Battery Brand Name Motorola Model Name BP6X(SNN5843A) Earphone Brand Name Motorola Model Name SJYN0760A USB Cable Brand Name Motorola Model Name SKN6378A Camera 1 Brand Name Lite-on Model Name 11P1BA811 Camera 2 Brand Name FIH(SZ) Model Name 66-202F-RW04010 LCD Panel Brand Name TOSHIBA Model Name LT040MDT9000 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 4 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 5 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 6 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 7 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 720510

XT615 IMEI Label ‐ non MEXICO 6mm 6mm 6mm 6mm 5mm

XT615 IMEI Label ‐ MEXICO 45.6*48.5mm 6mm 6mm 6mm 6mm 5mm

XT615 Label Location FCC ID: IHDP56MM6 Label Location Battery Compartment EUT Back

Photographs of EUT Report No.: 211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 Antenna location Length Width WWAN Antenna <TX / RX> 5.7 cm 1.3 cm Bluetooth & WLAN Antenna <TX / RX> 1.5 cm 0.5 cm GPS Antenna <RX> 1.7 cm 1.1 cm Bluetooth & WLAN Antenna <Tx / Rx> WWAN Antenna <Tx / Rx> 0.2cm 0.1cm 0.2cm 8.3cm 0.1cm 0.1cm 5.2cm GPS Antenna <Rx>

Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 8 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 3. Internal Photograph of EUT Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 9 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 10 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 11 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 12 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 WLAN & Bluetooth Antenna <Tx / Rx> Photographs of EUT Report No.: EP211846 Brand Name: Motorola / Model Name: XT615 / Marketing Name: XT615 SPORTON INTERNATIONAL INC. Page Number : 13 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 720510 GPS Antenna (Rx)

SPORTON INTERNATIONAL INC. Page Number : 1 of 42 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 FCC SAR Test Report Report No. : FA211846 FCC SAR Test Report APPLICANT : Motorola Mobility, Inc. EQUIPMENT : Mobile Phone BRAND NAME : MOTOROLA MODEL NAME : XT615 MARKETING NAME : XT615 GPPD NUMBER : 3192 FCC ID : IHDP56MM6 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jan. 19, 2012 and completely tested on Jan. 20, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 42 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MM6 FCC SAR Test Report Report No. : FA211846 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Product Photos....................................................................................................................................................... 7 3.3 Applied Standards .................................................................................................................................................. 8 3.4 Device Category and SAR Limits ........................................................................................................................... 8 3.5 Test Conditions ....................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4.1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................13 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................16 5.8 Test Equipment List ...............................................................................................................................................18 6. Tissue Simulating Liquids ...........................................................................................................................................19 7. Uncertainty Assessment .............................................................................................................................................21 8. SAR Measurement Evaluation ....................................................................................................................................23 8.1 Purpose of System P…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/1/19 System Check_Head_835MHz_120119 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120119 Medium parameters used: f = 835 MHz; σ = 0.873 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.44 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.5 V/m; Power Drift = -0.158 dB Peak SAR (extrapolated) = 3.48 W/kg SAR(1 g) = 2.28 mW/g; SAR(10 g) = 1.49 mW/g Maximum value of SAR (measured) = 2.47 mW/g 0 dB = 2.47mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/1/19 System Check_Body_835MHz_120119 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120119 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(9.02, 9.02, 9.02); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.46 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.3 V/m; Power Drift = 0.036 dB Peak SAR (extrapolated) = 3.39 W/kg SAR(1 g) = 2.28 mW/g; SAR(10 g) = 1.49 mW/g Maximum value of SAR (measured) = 2.46 mW/g 0 dB = 2.46mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-1-20 System Check_Head_1900MHz_120120 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120120 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011-05-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-04-28 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.3 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.8 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 16.9 W/kg SAR(1 g) = 9.63 mW/g; SAR(10 g) = 5.09 mW/g Maximum value of SAR (measured) = 10.8 mW/g 0 dB = 10.8mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/1/20 System Check_Body_1900MHz_120120 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_120120 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.17, 7.17, 7.17); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.6 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.1 V/m; Power Drift = 0.093 dB Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 10.5 mW/g; SAR(10 g) = 5.81 mW/g Maximum value of SAR (measured) = 11.6 mW/g 0 dB = 11.6mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-1-20 System Check_Body_1900MHz_120120(1787) DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_120120 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.48, 4.48, 4.48); Calibrated: 2011-05-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-04-28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.7 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.8 V/m; Power Drift = 0.078 dB Peak SAR (extrapolated) = 16.7 W/kg SAR(1 g) = 9.75 mW/g; SAR(10 g) = 5.18 mW/g Maximum value of SAR (measured) = 11.1 mW/g 0 dB = 11.1mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-1-20 System Check_Head_2450MHz_120120 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_120120 Medium parameters used: f = 2450 MHz; σ = 1.84 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.41, 4.41, 4.41); Calibrated: 2011-05-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-04-28 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 …

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/1/19 #01 GSM850_Right Cheek_Ch128 DUT: 211846 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_120119 Medium parameters used : f = 824.2 MHz; σ = 0.864 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.302 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.51 V/m; Power Drift = 0.104 dB Peak SAR (extrapolated) = 0.352 W/kg SAR(1 g) = 0.288 mW/g; SAR(10 g) = 0.222 mW/g Maximum value of SAR (measured) = 0.300 mW/g 0 dB = 0.300mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/1/19 #02 GSM850_Right Tilted_Ch128 DUT: 211846 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_120119 Medium parameters used : f = 824.2 MHz; σ = 0.864 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.200 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.53 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 0.235 W/kg SAR(1 g) = 0.190 mW/g; SAR(10 g) = 0.145 mW/g Maximum value of SAR (measured) = 0.197 mW/g Ch128/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.53 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 0.190 W/kg SAR(1 g) = 0.134 mW/g; SAR(10 g) = 0.089 mW/g Maximum value of SAR (measured) = 0.163 mW/g 0 dB = 0.163mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/1/19 #03 GSM850_Left Cheek_Ch128 DUT: 211846 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_120119 Medium parameters used : f = 824.2 MHz; σ = 0.864 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (51x91x1): …

Text truncated - open the document above for the full version.
