IHDP56MR1QUAD-BAND GSM/GPRS/EDGE AND DUAL-BAND WCDMA MOBILE PHONE WITH BT/WIFI

MOTOROLA XT535 EN Jan. 12. 2012 Jan. 12. 2012 1Congratulations Congratulations MOTOROLA XT535 Yo u r M O TO R O L A XT535 helps you seamlessly manage your “Office” and “Outdoor” lifestyles. • Lifeproof: Your phone is water-resistant, dustproof, and has a scratch-resistant screen, because accidents happen. • Dashboard: Easy access to all your favorite Outdoor apps, like Camera, Compass, and a pedometer, see“Dashboard” on page 12. • MotoSwitch: MotoSwitch is a dynamic interface that gives you seamless access to content that is relevant to you. For details, see “motoswitch” on page 13. • Extended battery life: So you have longer to use your phone outdoors. Note: Certain apps and features may not be available in all countries. This product meets the applicable limit for exposure to radio waves (known as SAR) of 2.0 W/kg (ICNIRP). The limits and guidelines Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information provided with your product. Jan. 12. 2012 2Congratulations include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. Note: When using the product while worn on your body, either use an approved accessory such as a holster or maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with SAR requirements. Note that the product may be transmitting even if you are not making a phone call. Want more? More help, more accessories, more free stuff. We’re here to help. • Updates: Phone updates, PC software, user’s guides, online help, and more at www.motorola.com/support . • Accessories: Find more for your phone at www.motorola.com/products . •Social: The latest news, tips & tricks, videos, and so much more—join us on: YouTube™ www.youtube.com/motorola Facebook™ www.facebook.com/motorola Twitter www.twitter.com/motomobile Jan. 12. 2012 3Your phone Your phone the important keys & connectors Front Camera Notification Light Flash=missed call, new message, or other notification. Microphone Volume Keys Micro USB 3.5mm HSJ Headset Jack Menu Open options. Home Touch= home screen Hold= recent apps Search Touch=text Back Go back one screen. Power/ Sleep Key Press=sleep Hold=power Jan. 12. 2012 4Your phone Note: To help protect your phone, always make sure that the battery cover and any connector covers are closed and secure. Camera Cover Lock Jan. 12. 2012 5Contents Contents Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Bluetooth™, Wi-Fi, & cable connections . . . . . . . . . . . . . . . . . 38 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Jan. 12. 2012 6Let’s go Let’s go let’s get you up and running Assemble & charge 1Cover off2SIM in 3microSD in (may already be inserted) 4Battery in 5Cover on6Charge up 1 2 3 3 1 2 3H Jan. 12. 2012 7Let’s go Caution: Please read “Battery Use & Safety” on page 43. Set up & go Note: This phone supports apps and services that use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. When you turn on your new phone, you can create or enter a Google™ account so that you can download apps, use Gmail™, and much more: 1Press and hold Power to turn on your phone. 2Touch the Android™ image to begin setup. 3Touch a button to Create a Google account, Sign in with one you have, or Skip. You can log into your account from a computer at accounts.google.com . 4When your phone confirms the account, it shows account sync options. •To change whether your phone shows the Google account’s contacts, Gmail™, and calendar, touch the Google account name. •To add another account, touch Add account. For details, see “Email” on page 24. •To exit setup, touch Home. Power Key Jan. 12. 2012 8Let’s go If your phone cannot connect, touch Menu > WLAN settings to change mobile network settings. Rugged Yo u r M O TO R O L A XT535 stands up to water, dust and life. Now your investment is safe and protected from life’s little challenges, like that sudden rain shower and other everyday mishaps. Of course, your phone isn’t indestructible, so to avoid damage from natural elements, such as water, sand, and dust intrusion, always make sure that the battery door cover and connector covers are closed and secure. If your phone gets we…

Text truncated - open the document above for the full version.

43Safety, Regulatory & Legal Safety, Regulatory & Legal Battery Use & Safety Battery Use & Safety The following battery use and safety information applies to all Motorola mobile devices. If your mobile device uses a non-removable main battery (as stated in your product information), details related to handling and replacing your battery should be disregarded—the battery should only be replaced by a Motorola-approved service facility, and any attempt to remove or replace your battery may damage the product. Important: Handle and store batteries properly to avoid injury or damage. Most battery safety issues arise from improper handling of batteries, and particularly from the continued use of damaged batteries. DON’Ts • Don’t disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery. • Don’t use tools, sharp objects, or excessive force to insert or remove the battery as this can damage the battery. • Don’t let the mobile device or battery come in contact with liquids.* Liquids can get into the mobile device’s circuits, leading to corrosion. • Don’t allow the battery to touch metal objects. If metal objects, such as jewelry, stay in prolonged contact with the battery contact points, the battery could become very hot. • Don’t place your mobile device or battery near a heat source.* High temperatures can cause the battery to swell, leak, or malfunction. • Don’t dry a wet or damp battery with an appliance or heat source, such as a hair dryer or microwave oven. DOs • Do avoid leaving your mobile device in your car in high temperatures.* • Do avoid dropping the mobile device or battery.* Dropping these items, especially on a hard surface, can potentially cause damage.* • Do contact your service provider or Motorola if your mobile device or battery has been damaged in any of the ways listed here. * Note: Always make sure that any battery, connector and compartment covers are closed and secure to avoid direct exposure of the battery to any of these conditions, even if your product information states that your mobile device can resist damage from these conditions. Jan. 12. 2012 44Safety, Regulatory & Legal Important: Motorola recommends you always use Motorola-branded batteries and chargers for quality assurance and safeguards. Motorola’s warranty does not cover damage to the mobile device caused by non-Motorola batteries and/or chargers. To help you identify authentic Motorola batteries from non-original or counterfeit batteries (that may not have adequate safety protection), Motorola provides holograms on its batteries. You should confirm that any battery you purchase has a “Motorola Original” hologram. If you see a message on your display such as Invalid Battery or Unable to Charge, take the following steps: •Remove the battery and inspect it to confirm that it has a “MotorolaOriginal” hologram; •If there is no hologram, the battery is not a Motorola battery; •If there is a hologram, replace the battery and try charging it again; •If the message remains, contact a Motorola authorized service center. Warning: Use of a non-Motorola battery or charger may present a risk of fire, explosion, leakage, or other hazard. Proper and safe battery disposal and recycling: Proper battery disposal is not only important for safety, it benefits the environment. You can recycle your used batteries in many retail or service provider locations. Additional information on proper disposal and recycling can be found at www.motorola.com/recycling Disposal: Promptly dispose of used batteries in accordance with local regulations. Contact your local recycling center or national recycling organizations for more information on how to dispose of batteries. Warning: Never dispose of batteries in a fire because they may explode. Battery Charging Battery Charging Notes for charging your product’s battery: • During charging, keep your battery and charger near room temperature for efficient battery charging. •New batteries are not fully charged. •New batteries or batteries stored for a long time may take more time to charge. •Motorola batteries and charging systems have circuitry that protects the battery from damage from overcharging. Third Party Accessories Use of third party accessories, including but not limited to batteries, chargers, headsets, covers, cases, screen protectors and memory cards, may impact your mobile device’s performance. In some circumstances, third party accessories can be dangerous and may void 032375o Jan. 12. 2012 45Safety, Regulatory & Legal your mobile device’s warranty. For a list of Motorola accessories, visit www.motorola.com/products Driving Precautions Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction, and may be prohibited or restricted in certain areas—always obey the laws and regulations on the use of these products. While driving, NEVER: •Type, read, enter or review texts, emails, or any other written data. •Surf the web. •Input navigation information. •Perform any other functions that divert your attention from driving. While driving, ALWAYS: • Keep your eyes on the road. •Use a handsfree device if available or required by law in your area. •Enter destination information into a navigation device before driving. •Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available. •Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle. •End your call or other task if you cannot concentrate on driving. Remember to follow the “Smart Practices While Driving” at www.motorola.com/callsmart (in English only). Seizures, Blackouts & Eyestrain To reduce eyestrain and avoid headaches, it is always a good idea to hold the screen a comfortable distance from your eyes, use in a well-lit area, and take frequent breaks. Some people may be s…

Text truncated - open the document above for the full version.

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: January 17, 2012 Statement We, Sporton International Inc., states that our device, FCC ID: IHDP56MR1, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Jones Tsai

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: January 17, 2012 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: IHDP56MR1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: XT535_Schem.pdf) Block Diagram (file: XT535_BlkDia.pdf) Parts List (file: XT535_PartsLst.pdf) Operation Description (file: XT535_OpDes.pdf) Tune up Procedure (file: XT535_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Jones Tsai

FCC ID: IHDP56MR1 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Page 13B - 1 16 December 2011 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Grantee Code IHD. Authorization: I, John Lewczak, the FCC contact for Grantee Code “IHD,” hereby authorize the following company (agent) to act on behalf of Motorola Mobility, Inc. for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures. • Technical Contact. • Non-Technical Contact. • Test Firm Contact Information. The grant should still be mailed to the applicant of record for Grantee Code “IHD,” and any audit requests should also be directed to the applicant of record. Authorized Agent: Jones Tsai Sporton International, Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien; Taiwan, R.O.C Specific Application: FCC ID: IHDP56MR1 Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ([email protected]), if there are questions or additional information needed concerning this authorization Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: January 17, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDP56MR1 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: XT535_ExtPho.pdf)  Internal Photos (file: XT535_IntPho.pdf)  Test Setup Photos (file: XT535_Tsup.pdf)  User Manual (file: XT535_UserMan.pdf) The application contains technical information, which Sporton International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

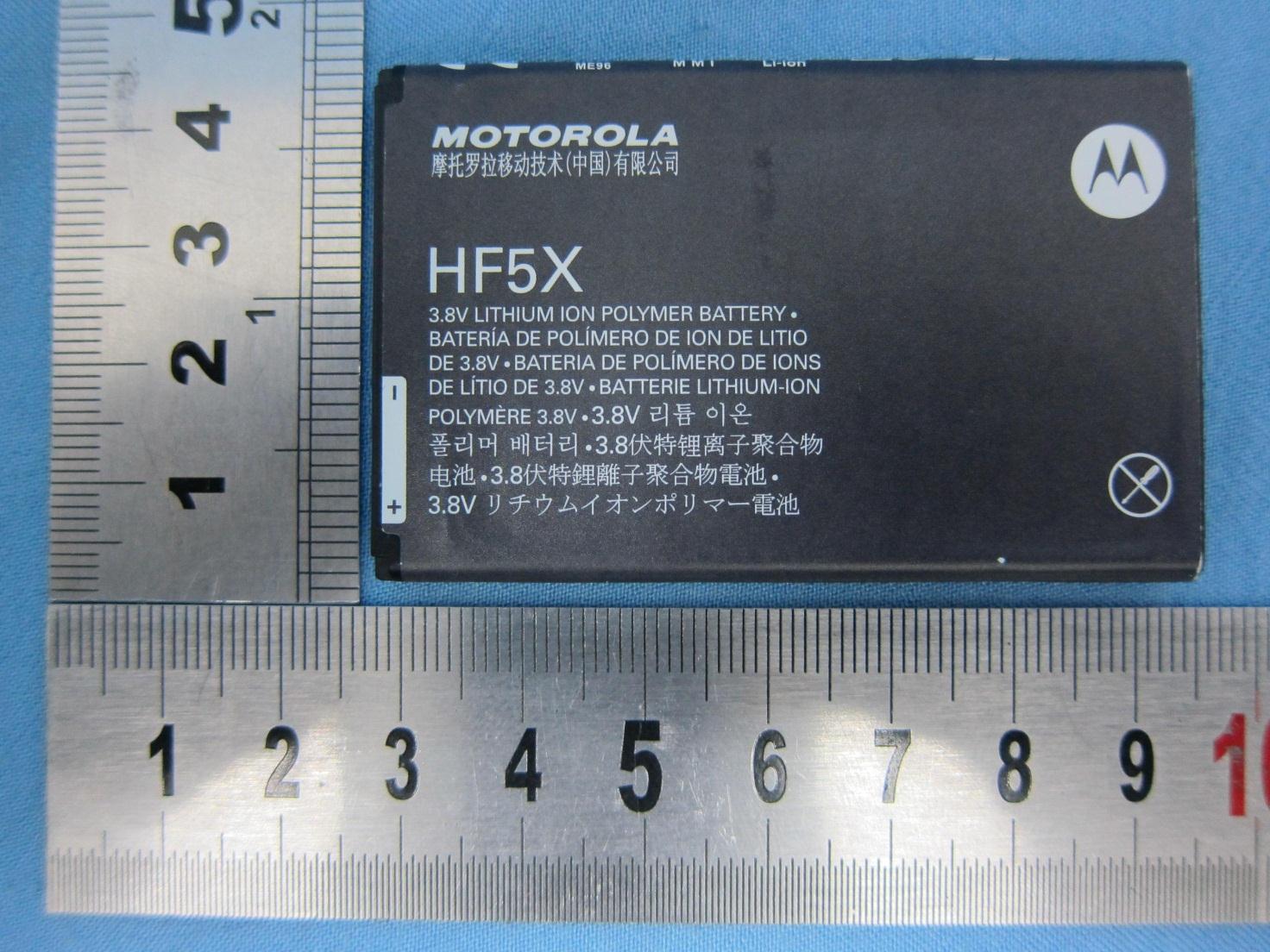

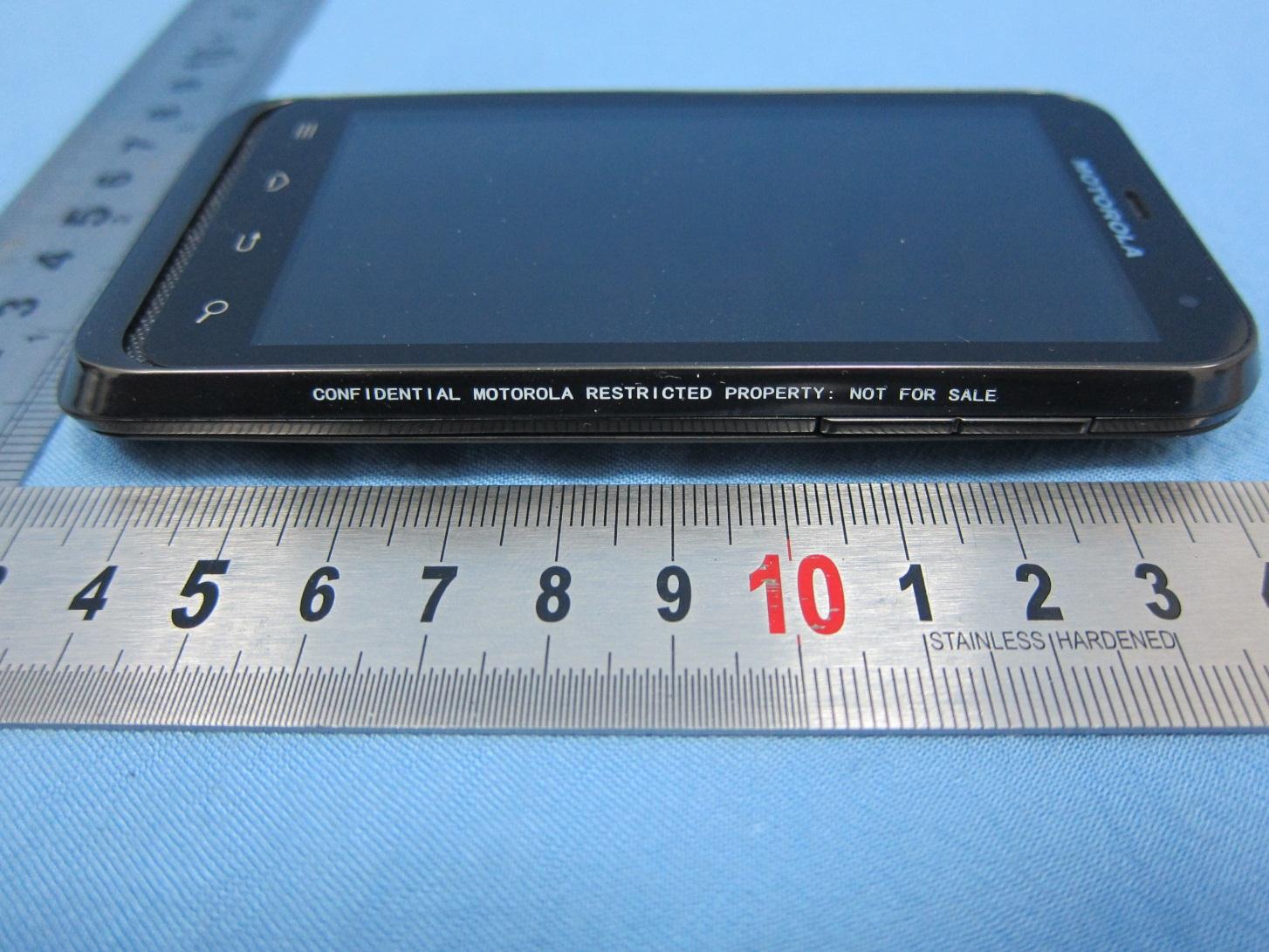

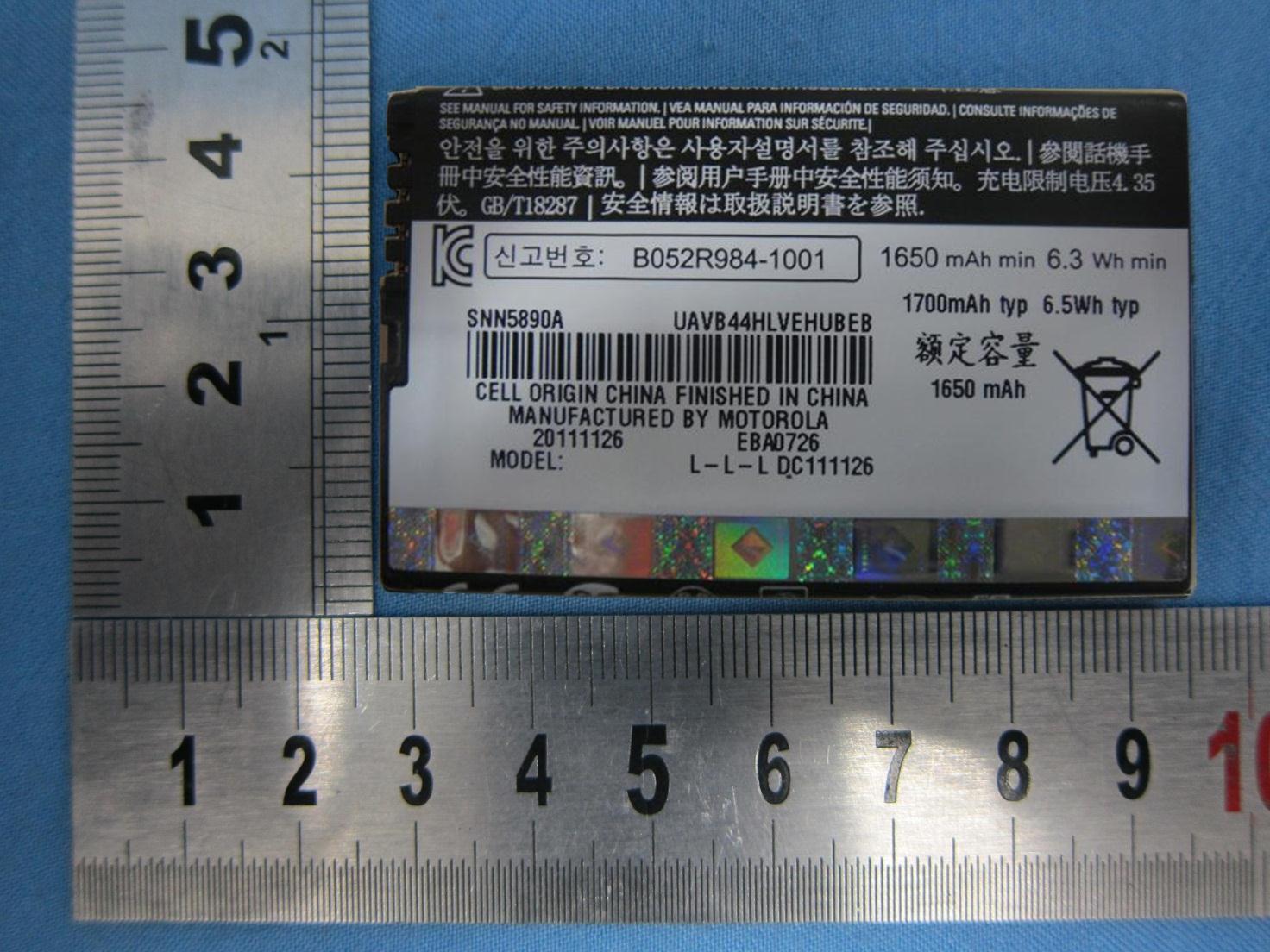

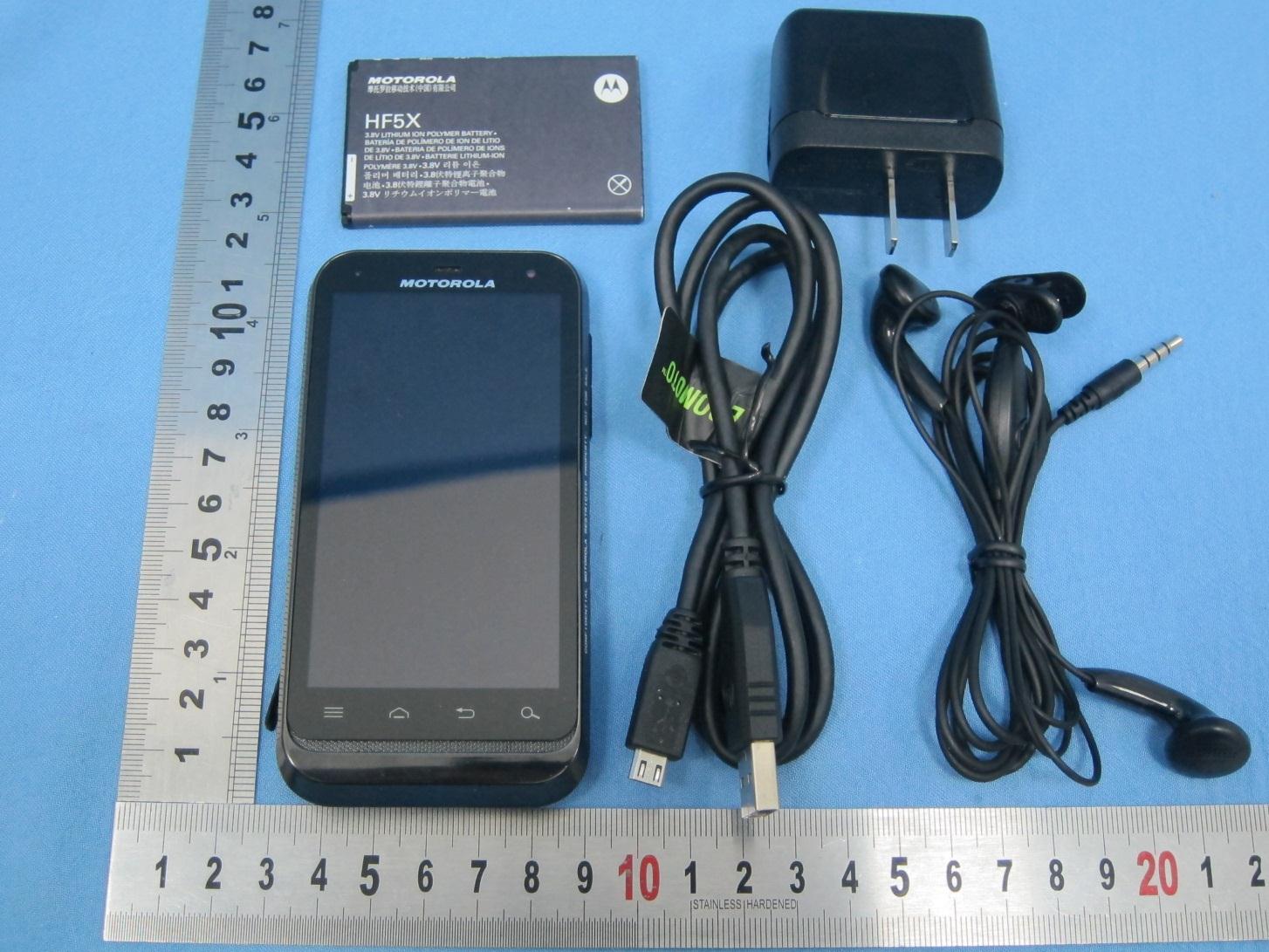

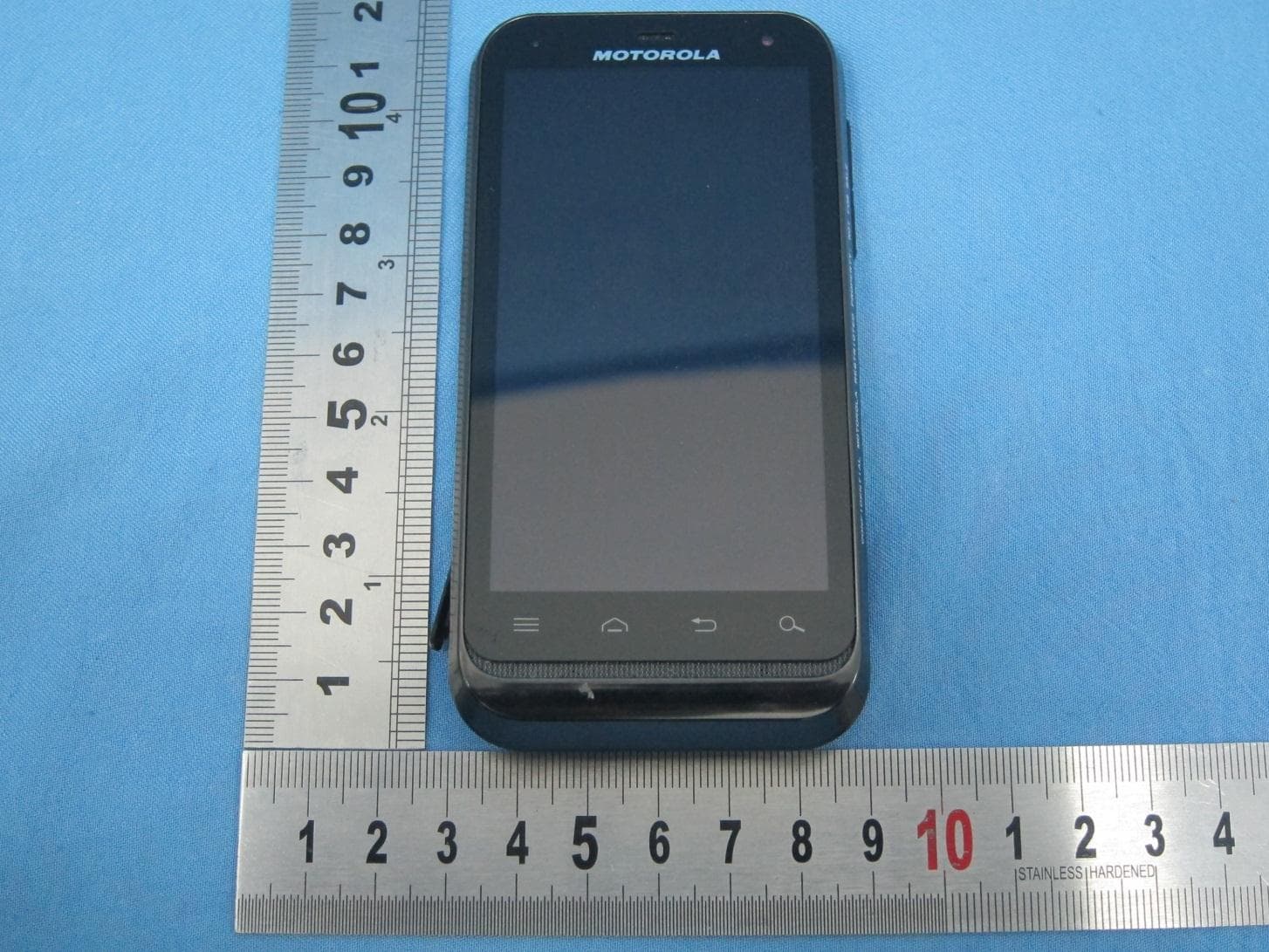

Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 1 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 1. External Photograph of EUT Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 2 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 3 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 4 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 5 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 6 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 720510 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 7 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 List of Accessory: Specification of Accessory AC Adapter Brand Name MOTOROLA Model Name SPN5515B Battery Brand Name MOTOROLA Model Name HF5X Earphone Brand Name MOTOROLA Model Name SJYN0760A USB Cable Brand Name MOTOROLA Model Name SKN6378A Camera 1 Brand Name Truly Model Name CM6313 Camera 2 Brand Name Omnivision Model Name OVM7692 LCD Panel Brand Name MOTOROLA Model Name 720006130001 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 8 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 720510 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 9 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 10 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 11 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1

Label Location Battery Compartment Back of device XT535_Label Location

5*23mm 7.5*9mm 5*5mm

Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 12 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 3. Internal Photograph of EUT Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 13 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 14 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 15 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 16 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 17 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 18 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 19 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 20 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 21 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP1D0840 Brand Name: Motorola / Model Name: XT535 / Marketing Name: XT535 SPORTON INTERNATIONAL INC. Page Number : 22 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 720510 Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 FCC Test Report Report No. : FC1D0840A FCC Test Report APPLICANT : Motorola Mobility Inc. EQUIPMENT : Quad-Band GSM/GPRS/EDGE and Dual-Band WCDMA Mobile Phone with BT/Wifi BRAND NAME : Motorola MODEL NAME / MARKETING NAME : XT535 TYPE NAME : M0C86 GPPD Number : 3206 FCC ID : IHDP56MR1 STANDARD : FCC 47 CFR FCC Part 15 Subpart B CLASSIFICATION : Certification The product was received on Dec. 08, 2011 and completely tested on Dec. 13, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 FCC Test Report Report No. : FC1D0840A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1. GENERAL DESCRIPTION .......................................................................................................................... 5 1.1. Applicant ............................................................................................................................................ 5 1.2. Manufacturer ..................................................................................................................................... 5 1.3. Feature of Equipment Under Test ..................................................................................................... 6 1.4. Test Site ............................................................................................................................................ 7 1.5. Applied Standards ............................................................................................................................. 7 1.6. Ancillary Equipment List .................................................................................................................... 7 2. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1. Test Mode ......................................................................................................................................... 8 2.2. Connection Diagram of Test System .............................................................................................. 10 2.3. Test Software .................................................................................................................................. 11 3. TEST RESULT ........................................................................................................................................... 12 3.1. Test of AC Conducted Emission Measurement .............................................................................. 12 3.2. Test of Radiated Emission Measurement ....................................................................................... 16 4. LIST OF MEASURING EQUIPMENT ........................................................................................................ 20 5. UNCERTAINTY OF EVALUATION ........................................................................................................... 21 SPORTON INTERNATIONAL INC. Page Number : 3 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 FCC Test Report Report No. : FC1D0840A REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FC1D0840A Rev. 01 Initial issue of report Jan. 02, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 FCC Test Report Report No. : FC1D0840A SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.107 7.2.4 AC Conducted Emission < 15.107 limits < RSS-Gen table 2 limits PASS Under limit 5.18 dB at 1.930 MHz 3.2 15.109 7.2.3.2 Radiated Emission < 15.109 limits or < RSS-Gen table 1 limits (Section 6) PASS Under limit 5.08 dB at 240.060 MHz SPORTON INTERNATIONAL INC. Page Number : 5 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 FCC Test Report Report No. : FC1D0840A 1. General Description 1.1. Applicant Motorola Mobility Inc. No. 1, Wang Jing East Road, Chao Yang District, 100102 Beijing, P. R. China 1.2. Manufacturer Foxconn (TianJin) Precision Industry Co., Ltd. No. 207, Nanhai Road, TEDA, Tianjin, P.R. China, 300457 SPORTON INTERNATIONAL INC. Page Number : 6 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 FCC Test Report Report No. : FC1D0840A 1.3. Feature of Equipment Under Test Product Feature & Specification Equipment Quad-Band GSM/GPRS/EDGE and Dual-Band WCDMA Mobile Phone with BT/Wifi Brand Name Motorola Model Name / Marketing Name XT535 Type Name M0C86 FCC ID IHDP56MR1 Tx Frequency Range GSM850 : 824 MHz ~ 849 MHz GSM1900 : 1850 MHz ~ 1910 MHz WCDMA Band V : 824 MHz ~ 849 MHz Bluetooth : 2400 MHz ~ 2483.5 MHz WLAN : 2400 MHz ~ 2483.5 MHz Rx…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 22 TEL : 886-3-327-3456 Report Issued Date : Jan. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDP56MR1 FCC Test Report Report No. : FC1D0840A FCC Test Report APPLICANT : Motorola Mobility Inc. EQUIPMENT : Quad-Band GSM/GPRS/EDGE and Dual-Band WCDMA Mobile Phone with BT/Wifi BRAND NAME : Motorola MODEL NAME / MARKETING NAME : XT535 TYPE NAME : M0C86 GPPD Number : 3206 FCC ID : IHDP56MR1 STANDARD : FCC 47 CFR FCC Part 15 Subpart B CLASSIFICATION : Certification The product was received on Dec. 08, 2011 and completely tested on Dec. 13, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 22 TEL : 886-3-327-3456 Report Issue…

Text truncated - open the document above for the full version.
