IHDT56AQ9Mobile Cellular Phone

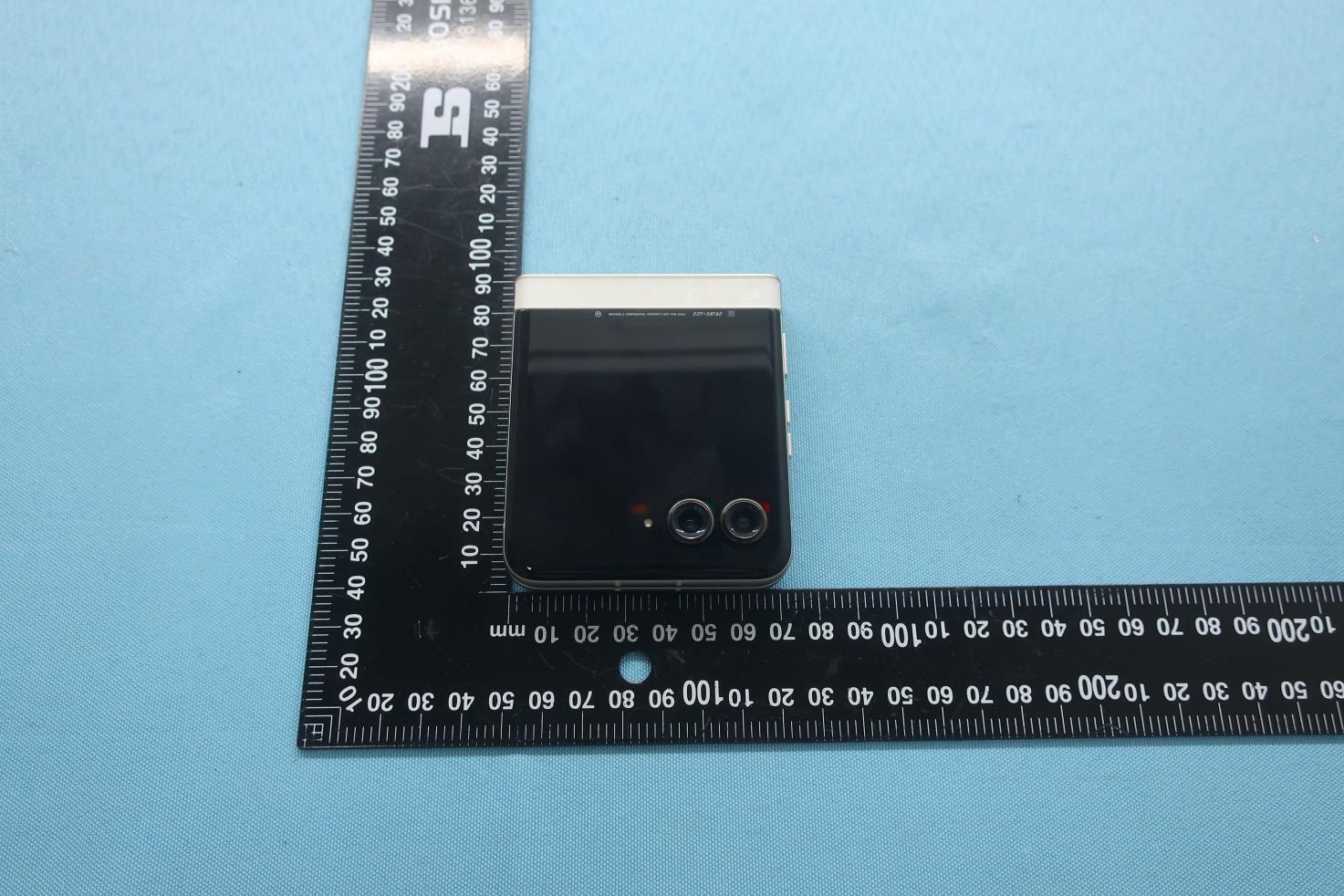

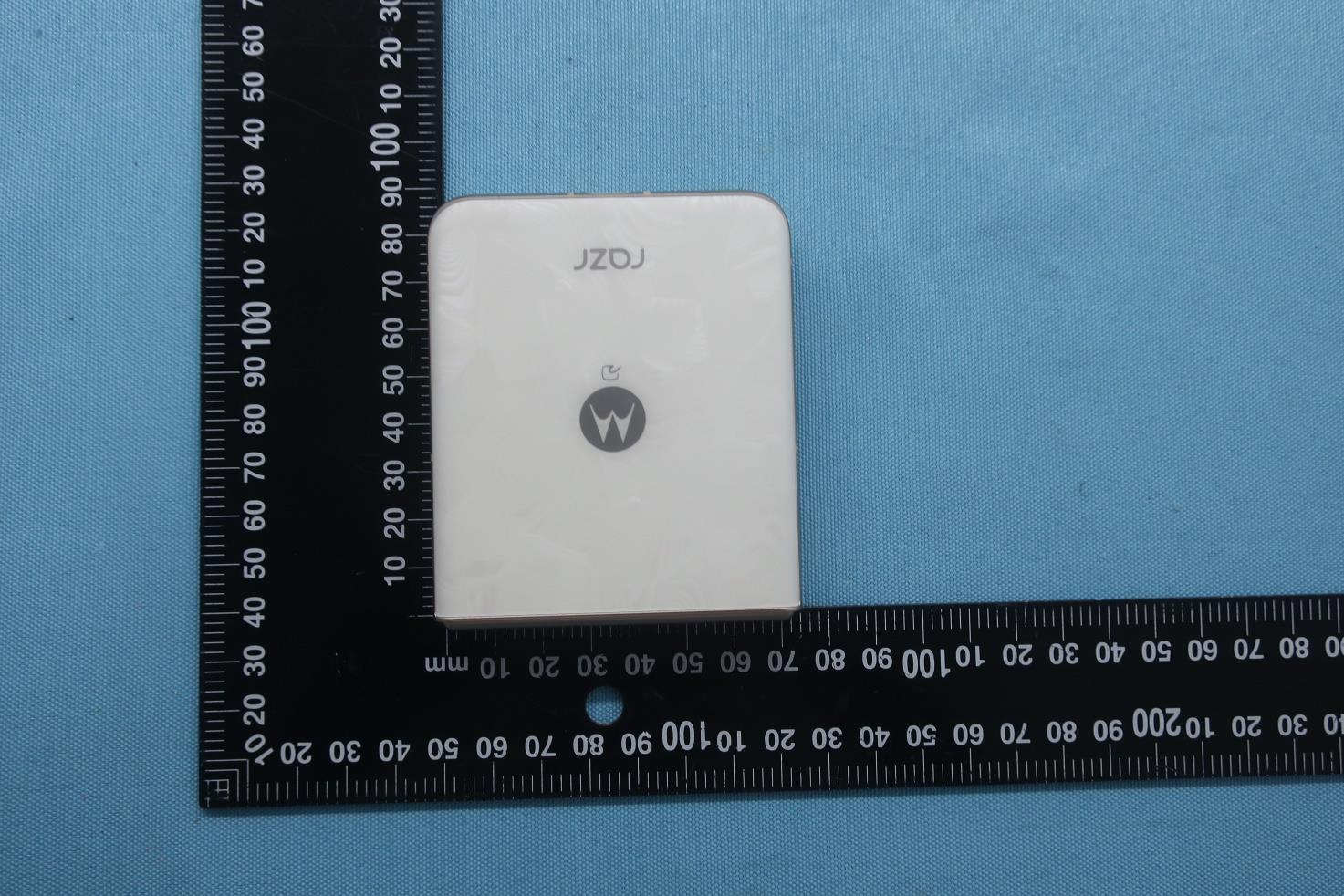

motorola.com read me ja Tue, Apr 3 Earpiece/Speaker Volume Buttons Power Button/ Fingerprint Sensor Main Display 1 (see “Take care of your phone”) SIM Card Tray Microphone Microphone Microphone Air Vent Ambient Light Sensor (under display) Front Camera Air Vent Tue, Apr 3 Main Camera Ultrawide/ Macro Camera Flash External Display Wireless Charging Area Proximity Sensor/ Ambient Light Sensor (under display) USB-C® & Charging Port/ Digital Headset Jack‚ Speaker NFC Felica Touchpoint Phone openPhone back 2 Wireless Charging: Charge your phone using a Qi-certified wireless charger (sold separately). 3 Use a digital headset: To use a digital headset, you’ll need one with a USB-C connector. If using a 3.5mm headset, you’ll need a 3.5mm to USB-C digital headset adapter to connect it. Headset and adapter may be sold separately. 1 Protect your main display: Please do not remove the attached screen protector or use third party screen protectors. Doing so will void the device warranty. [VDR] [LOC] MMM/YY PART NUMBER Printed in [Country] M-51E(XT2453-8) Put in a physical SIM card 1 With the phone closed and the external display facing down, insert the SIM tool into the SIM card tray hole to pop out the tray. Make sure you use a standard Nano SIM card and don’t cut the SIM card. 2 Insert the SIM card with the gold contacts down, and the notch aligned with the card tray, then gently push the tray into the slot. eSIM option: Your phone may have an eSIM (embedded SIM card) in addition to the physical SIM card. Contact your service provider for details if you want to activate and use it. Power on and off •Press and hold the Power button to turn on your phone, then follow the prompts to get started. •To turn off your phone, press the Power and Volume Up buttons at the same time. 2 Nano SIM 1 Scan with your Camera app for how-to videos. Take care of your phone Don’t use third-party screen protectors. Your phone comes with a Motorola-developed screen protector customized to Razr’s unique foldable design. The Motorola screen protector is of superior quality and preserves the predicted service life of your phone. In contrast, using third-party screen protectors may reduce your phone’s screen sensitivity, cause the main display to become unresponsive, damage the screen, or cause other touch screen problems. In such cases, Motorola reserves the right to evaluate the situation and decide whether to provide you with free-of- charge warranty service during the remaining warranty period. Contact an authorized Motorola service center if your screen protector has air bubbles, warps, or separates from the main display during use. We may replace the screen protector because a compromised screen protector can damage the main display and shorten the service life of the phone. Only replace your screen protector using Motorola-approved service personnel who use professional equipment. Don’t replace the screen protector in service centers that Motorola doesn’t authorize or try to remove or replace the screen protector yourself. This may damage the main display and void the warranty. Take care not to physically damage your phone. Don’t puncture or apply excessive force to the main display with a hard or sharp object while carrying your phone. Before closing the phone, always ensure that there are no obstructions between the screens or hinges. Items such as cards, coins, keys, and other objects can damage your screen or prevent your phone hinge from closing properly. Don’t use excessive force to press the middle area of the screen. Avoid exposing your phone to water, coffee, or other liquids. Also, don’t expose your phone to tiny pieces of debris, such as grit. Important: This product contains magnets. Always keep products with magnets more than 20cm. (8 in.) from medical devices, such as pacemakers, internal cardio defibrillators, or other devices that can be affected by a magnetic field. Also, keep away from credit cards, ID cards, and other media that use magnetically encoded information. Reminder: The crease at the bend on the main display and the faint noise you may hear while flipping open the phone are part of the design and do not impact product durability. To guarantee your warranty service and ensure you have a satisfying phone experience, please care for your phone as follows: Help & more Get answers, updates, and info: •Help is here: From the home screen, swipe up and tap Settings > Help to learn how to use your phone and get support. •Get more: Get software, user guides, and more at www.motorola.com/myrazr. •Get apps: Tap Play Store to browse and download apps. •Connect with 5G: 5G service plan and 5G network coverage required; available only in select areas; device not compatible with all 5G networks. Contact your service provider for details. Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water immersion and splash resistance. Tested under controlled laboratory conditions, the phone is water and splash resistant to a rating of IPX8 (IEC 60529) and can be submerged up to 1.5 meters in still, fresh water for up to 30 minutes. Resistance will decrease as a result of normal wear. Not designed to work while submerged underwater. Do not expose to pressurized water, or liquids other than fresh water. Do not attempt to charge a wet phone. Not waterproof. For more about your phone’s water- resistant design and care, swipe up and tap Settings > Help. Charging and battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. The phone is PD (Power Del…

Text truncated - open the document above for the full version.

1 en-US Legal, safety, and regulatory Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water repellent. Your phone is not waterproof. For more about your phone’s water-repellent design and care, see the user guide. Regulatory information (e-label). To view regulatory information for this phone, from the home screen swipe up and tap Settings > , then type Regulatory, or visit www.motorola.com/device-legal. Battery safety. Your phone uses a removable battery. Don’t use tools, sharp objects, or excessive force to insert or remove the battery. This may damage the battery and could cause burning and injury. Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger. Use of other chargers is not recommended. Don’t charge your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). For more, see the “Legal information” section of this guide, or visit www.motorola.com/device-legal. Driving precautions. Responsible and safe driving is your primary responsibility when driving a vehicle. Always obey local laws and regulations. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Seizures, blackouts, eyestrain & discomfort. This device may display flashing images or loud sounds. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Medical devices. This device may interfere with pacemakers and other medical devices. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Class 1 Laser. This device is classified as a Class 1 Laser product, which is safe in normal use per IEC60825-1:2007 and IEC60825-1:2014. This device complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice 50, dated June 24, 2007. Do not attempt to modify or disassemble. Extreme heat or cold. Don’t use your phone in temperatures below 2 en-US -20°C (-4°F) or above 45°C (113°F). Don’t store/transport your phone in temperatures below -20°C (-4°F) or above 60°C (140°F). SAR information (on e-label). To view specific absorption rate (SAR) values for t phone, from the home screen swipe up and tap Settings > , then type Regulatory, or visit www.motorola.com/sar. Operational warnings. Obey all local restrictions when using mobile devices in public areas, such as hospitals, airplanes, or schools. • Potentially explosive areas: Potentially explosive areas are often, but not always, posted and can include blasting areas, fueling stations, fueling areas (such as below decks on boats), fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or metal powders. Turn off your phone before entering such an area, and do not charge batteries. In such areas, sparks can occur and cause an explosion or fire. • Symbol key: Your charger, phone, battery (if user-removable), phone display, user’s guide, or packaging may contain symbols, defined as follows: Important safety information follows. The package and paper products that came with your phone can be recycled. Don’t dispose of your battery or phone with your household waste. See “Disposal & recycling” for more information. Don’t dispose of your battery or phone in a fire. For indoor use only. Listening at high volume to music or voice through a headset or headphone may damage your hearing. Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long 3 en-US periods. Disposal & recycling. For help recycling products and packaging responsibly, go to www.motorola.com/recycling. Usage. This phone supports apps and services that could use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. Certain apps and features may not be available in all countries. Warranty. This product is covered by Motorola’s limited warranty. o review the warranty on your phone, swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. You may also obtain a copy of the warranty by contacting Motorola at: Motorola Mobility LLC, Attention Customer Service—Warranty Request, 222 West Merchandise Mart Plaza, Suite 1800, Chicago, IL 60654. Arbitration & opt-out. Except where prohibited by law, any controversy or claim arising out of or relating to any Motorola product will be resolved by binding arbitration, instead of in court, unless you opt-out. To opt-out, send a written rejection notice within 30 days of purchase that includes your name, address, phone number, phone, and phone serial number, and tells Motorola that you are rejecting this Arbitration provision to: Motorola Mobility LLC, 222 West Merchandise Mart Plaza, Suite 1800, Attn: Arbitration Provision Opt-Out, Chicago, IL 60654 or [email protected]. To locate your phone’s serial (IMEI) number, from the home screen swipe up and tap Settings > , then type IMEI. For more information on this arbitration provision, on your phone, swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/ charges may apply. Features, functionality, and other product specifications, as well as the i…

Text truncated - open the document above for the full version.

Date: 2024-02-27 01_LTE Band 71_20M_QPSK_1RB_0Offset_Left Cheek_0mm_Ch133322 Communication System: Band 71; Frequency: 683.000 Medium: HSL. Medium parameters used: f= 683.000 MHz; σ= 0.873 S/m; ε r = 42.6 Ambient Temperature: 23.1°C; Liquid Temperature: 22.6°C DASY6 Configuration: - Probe: EX3DV4 - SN7706; ConvF(9.34, 10.73, 9.7); Calibrated: 2024-01-24 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn1649; Calibrated: 2023-04-24 - Phantom: Twin-SAM V8.0 (30deg probe tilt); Serial: 2024 - Measurement Software: 16.2.4.2448 Area Scan (120.0 mm x 210.0 mm): Measurement Grid: 15.0 mm x 15.0 mm SAR (1g) = 0.321 W/kg; SAR (10g) = 0.225 W/kg; Zoom Scan (30.0 mm x 30.0 mm x 30.0 mm): Measurement Grid: 6.0 mm x 6.0 mm x 1.5 mm Power Drift = -0.02 dB SAR (1g) = 0.327 W/kg; SAR (10g) = 0.257 W/kg; Date: 2024-02-27 02_LTE Band 12_10M_QPSK_1RB_0Offset_Left Cheek_0mm_Ch23095 Communication System: Band 12; Frequency: 707.500 Medium: HSL. Medium parameters used: f= 707.500 MHz; σ= 0.882 S/m; ε r = 42.5 Ambient Temperature: 23.1°C; Liquid Temperature: 22.6°C DASY6 Configuration: - Probe: EX3DV4 - SN7706; ConvF(9.34, 10.73, 9.7); Calibrated: 2024-01-24 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn1649; Calibrated: 2023-04-24 - Phantom: Twin-SAM V8.0 (30deg probe tilt); Serial: 2024 - Measurement Software: 16.2.4.2448 Area Scan (120.0 mm x 210.0 mm): Measurement Grid: 15.0 mm x 15.0 mm SAR (1g) = 0.299 W/kg; SAR (10g) = 0.210 W/kg; Zoom Scan (30.0 mm x 30.0 mm x 30.0 mm): Measurement Grid: 6.0 mm x 6.0 mm x 1.5 mm Power Drift = 0.13 dB SAR (1g) = 0.317 W/kg; SAR (10g) = 0.251 W/kg; Date: 2024-02-27 03_LTE Band 13_10M_QPSK_1RB_0Offset_Left Cheek_0mm_Ch23230 Communication System: Band 13; Frequency: 782.000 Medium: HSL. Medium parameters used: f= 782.000 MHz; σ= 0.910 S/m; ε r = 42.3 Ambient Temperature: 23.1°C; Liquid Temperature: 22.6°C DASY6 Configuration: - Probe: EX3DV4 - SN7706; ConvF(9.34, 10.73, 9.7); Calibrated: 2024-01-24 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn1649; Calibrated: 2023-04-24 - Phantom: Twin-SAM V8.0 (30deg probe tilt); Serial: 2024 - Measurement Software: 16.2.4.2448 Area Scan (120.0 mm x 210.0 mm): Measurement Grid: 15.0 mm x 15.0 mm SAR (1g) = 0.275 W/kg; SAR (10g) = 0.191 W/kg; Zoom Scan (30.0 mm x 30.0 mm x 30.0 mm): Measurement Grid: 6.0 mm x 6.0 mm x 1.5 mm Power Drift = -0.12 dB SAR (1g) = 0.292 W/kg; SAR (10g) = 0.229 W/kg; Date: 2024-02-27 04_LTE Band 14_10M_QPSK_1RB_0Offset_Left Cheek_0mm_Ch23330 Communication System: Band 14; Frequency: 793.000 Medium: HSL. Medium parameters used: f= 793.000 MHz; σ= 0.912 S/m; ε r = 42.2 Ambient Temperature: 23.1°C; Liquid Temperature: 22.6°C DASY6 Configuration: - Probe: EX3DV4 - SN7706; ConvF(9.34, 10.73, 9.7); Calibrated: 2024-01-24 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn1649; Calibrated: 2023-04-24 - Phantom: Twin-SAM V8.0 (30deg probe tilt); Serial: 2024 - Measurement Software: 16.2.4.2448 Area Scan (120.0 mm x 210.0 mm): Measurement Grid: 15.0 mm x 15.0 mm SAR (1g) = 0.299 W/kg; SAR (10g) = 0.208 W/kg; Zoom Scan (30.0 mm x 30.0 mm x 30.0 mm): Measurement Grid: 6.0 mm x 6.0 mm x 1.5 mm Power Drift = -0.12 dB SAR (1g) = 0.318 W/kg; SAR (10g) = 0.249 W/kg; Date: 2024-02-27 05_FR1 n71_20M_QPSK_50RB_28Offset_Left Cheek_0mm_Ch136100 Communication System: Band n71; Frequency: 680.500 Medium: HSL. Medium parameters used: f= 680.500 MHz; σ= 0.873 S/m; ε r = 42.6 Ambient Temperature: 23.1°C; Liquid Temperature: 22.6°C DASY6 Configuration: - Probe: EX3DV4 - SN7706; ConvF(9.34, 10.73, 9.7); Calibrated: 2024-01-24 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn1649; Calibrated: 2023-04-24 - Phantom: Twin-SAM V8.0 (30deg probe tilt); Serial: 2024 - Measurement Software: 16.2.4.2448 Area Scan (120.0 mm x 210.0 mm): Measurement Grid: 15.0 mm x 15.0 mm SAR (1g) = 0.129 W/kg; SAR (10g) = 0.090 W/kg; Zoom Scan (30.0 mm x 30.0 mm x 30.0 mm): Measurement Grid: 6.0 mm x 6.0 mm x 1.5 mm Power Drift = 0.01 dB SAR (1g) = 0.134 W/kg; SAR (10g) = 0.105 W/kg; Date: 2024-02-27 06_FR1 n12_15M_QPSK_36RB_22Offset_Right Cheek_0mm_Ch141500 Communication System: Band n12; Frequency: 707.500 Medium: HSL. Medium parameters used: f= 707.500 MHz; σ= 0.882 S/m; ε r = 42.5 Ambient Temperature: 23.1°C; Liquid Temperature: 22.6°C DASY6 Configuration: - Probe: EX3DV4 - SN7706; ConvF(9.34, 10.73, 9.7); Calibrated: 2024-01-24 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn1649; Calibrated: 2023-04-24 - Phantom: Twin-SAM V8.0 (30deg probe tilt); Serial: 2024 - Measurement Software: 16.2.4.2448 Area Scan (120.0 mm x 210.0 mm): Measurement Grid: 15.0 mm x 15.0 mm SAR (1g) = 0.056 W/kg; SAR (10g) = 0.039 W/kg; Zoom Scan (30.0 mm x 30.0 mm x 30.0 mm): Measurement Grid: 6.0 mm x 6.0 mm x 1.5 mm Power Drift = -0.15 dB SAR (1g) = 0.059 W/kg; SAR (10g) = 0.046 W/kg; Date: 2024-02-27 07_FR1 n14_10M_QPSK_1RB_1Offset_Left Cheek_0mm_Ch158600 Communication System: Band n14; Frequency: 793.000 Medium: HSL. Medium parameters used: f= 793.000 MHz; σ= 0.912 S/m; ε r = 42.2 Ambient Temperature: 23.1°C; Liquid Temperature: 22.6°C DASY6 Configuration: - Probe: EX3DV4 - SN7706; ConvF(9.34, 10.73, 9.7); Calibrated: 2024-01-24 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn1649; Calibrated: 2023-04-24 - Phantom: Twin-SAM V8.0 (30deg probe tilt); Serial: 2024 - Measurement Software: 16.2.4.2448 Area Scan (120.0 mm x 210.0 mm): Measurement Grid: 15.0 mm x 15.0 mm SAR (1g) = 0.206 W/kg; SAR (10g) = 0.142 W/kg; Zoom Scan (30.0 mm x 30.0 mm x 30.0 mm): Measurement Grid: 6.0 mm x 6.0 mm x 1.5 mm Power Drift = 0.04 dB SAR (1g) = 0.219 W/kg; SAR (10g) = 0.171 W/kg; Date: 2024-02-28 08_GSM850_GPRS (4 Tx slots)_Left Cheek_0mm_Ch189 Communication System: GSM 850; Frequency: 836.400 Medium: HSL. Medium parameters used: f= 836.400 MHz; σ= 0.929 S/m; ε r = 42.1 Ambient Temperature: 23.3°C; Liquid Temperature: 22.9°C DASY6 Configuration: - Probe: EX3DV4 - SN7706; ConvF(9.26, 10.67, 9.28); Calibrated: 2024-01-24 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn1649; Calibrated: 2023-04-24 - Phantom: Twin-…

Text truncated - open the document above for the full version.

LTEBWBWULULUL#UL LTE BWDLDLW ith CAW ithout CA Freq.RB Freq.Tx. PowerTx. Power (MHz)Offset(MHz)(dBm)(dBm) Band 12Ant010M707.523095QPSK10Band 4820M36095583022.0322.21 Band 12Ant110M707.523095QPSK10Band 4820M36095583021.6221.76 Band 30Ant010M231027710QPSK10Band 1710M740579024.0424.20 Band 30Ant110M231027710QPSK10Band 1710M740579023.1623.31 Band 30Ant210M231027710QPSK10Band 1710M740579023.5523.64 Band 30Ant310M231027710QPSK10Band 1710M740579022.8522.95 Band 17Ant010M71023790QPSK10Band 3010M2355982022.0122.10 Band 17Ant110M71023790QPSK10Band 3010M2355982021.5321.70 Band 66Ant020M1745132322QPSK104x4MIMOBand 1710M740579023.3123.37 Band 66Ant120M1745132322QPSK104x4MIMOBand 1710M740579023.0823.12 Band 66Ant220M1745132322QPSK104x4MIMOBand 1710M740579023.3523.41 Band 66Ant320M1745132322QPSK104x4MIMOBand 1710M740579023.1523.27 Band 17Ant010M71023790QPSK10Band 6620M2155668864x4MIMO21.9522.10 Band 17Ant110M71023790QPSK10Band 6620M2155668864x4MIMO21.5221.70 Band 25Ant020M188026340QPSK104x4MIMOBand 4120M2593406204x4MIMO23.1823.31 Band 25Ant120M188026340QPSK104x4MIMOBand 4120M2593406204x4MIMO22.6422.80 Band 25Ant220M188026340QPSK104x4MIMOBand 4120M2593406204x4MIMO23.3023.49 Band 25Ant320M188026340QPSK104x4MIMOBand 4120M2593406204x4MIMO23.3423.43 Band 26Ant015M831.526865QPSK10Band 4120M2593406204x4MIMO22.0222.22 Band 26Ant115M831.526865QPSK10Band 4120M2593406204x4MIMO21.7221.92 Band 2Ant020M188018900QPSK104x4MIMOBand 3820M2599.8380484x4MIMO23.2123.27 Band 2Ant120M188018900QPSK104x4MIMOBand 3820M2599.8380484x4MIMO22.6322.71 Band 2Ant220M188018900QPSK104x4MIMOBand 3820M2599.8380484x4MIMO23.3523.41 Band 2Ant320M188018900QPSK104x4MIMOBand 3820M2599.8380484x4MIMO23.2823.36 Band 38Ant 020M259538000QPSK104x4MIMOBand 220M19609004x4MIMO24.1124.35 Band 38Ant 120M259538000QPSK104x4MIMOBand 220M19609004x4MIMO23.6723.73 Band 38Ant 220M259538000QPSK104x4MIMOBand 220M19609004x4MIMO24.0424.16 Band 38Ant 320M259538000QPSK104x4MIMOBand 220M19609004x4MIMO22.8423.05 Band 41Ant020M259340620QPSK104x4MIMOBand 4820M3609558304x4MIMO24.3824.52 Band 41Ant120M259340620QPSK104x4MIMOBand 4820M36095583023.4923.61 Band 41Ant220M259340620QPSK104x4MIMOBand 4820M36095583024.1124.16 Band 41Ant320M259340620QPSK104x4MIMOBand 4820M36095583022.8522.93 Band 48Ant310M362555990QPSK10Band 4810M3644.85618822.9423.06 Band 48Ant410M362555990QPSK10Band 4810M3644.85618823.5623.73 Band 48Ant610M362555990QPSK10Band 4810M3644.85618823.1623.36 Band 48Ant810M362555990QPSK10Band 4810M3644.85618823.2223.29 Band 4Ant020M1732.520175QPSK104x4MIMOBand 4820M36095583023.1523.31 Band 4Ant120M1732.520175QPSK104x4MIMOBand 4820M36095583022.9823.06 Band 4Ant220M1732.520175QPSK104x4MIMOBand 4820M36095583023.1823.24 Band 4Ant320M1732.520175QPSK104x4MIMOBand 4820M36095583022.9823.12 Band 5Ant 010M836.520525QPSK10Band 4120M2593406204x4MIMO22.1122.18 Band 5Ant 110M836.520525QPSK10Band 4120M2593406204x4MIMO21.6421.82 Band 41Ant020M259340620QPSK104x4MIMOBand 510M881.5252524.3924.52 Band 41Ant120M259340620QPSK104x4MIMOBand 510M881.5252523.5123.61 Band 41Ant220M259340620QPSK104x4MIMOBand 510M881.5252523.9824.16 Band 41Ant320M259340620QPSK104x4MIMOBand 510M881.5252522.7722.93 Band 7Ant 020M253521100QPSK104x4MIMOBand 7120M6836878622.0322.18 Band 7Ant 120M253521100QPSK104x4MIMOBand 7120M6836878623.5223.67 Band 7Ant 220M253521100QPSK104x4MIMOBand 7120M6836878624.0424.22 Band 7Ant 1020M253521100QPSK104x4MIMOBand 7120M6836878624.0424.17 Band 71Ant020M683133322QPSK10Band 720M265531004x4MIMO22.3522.54 Band 71Ant120M683133322QPSK10Band 720M265531004x4MIMO22.0122.13 Band 7Ant015M253521100QPSK104x4MIMOBand 75M2544.331934x4MIMO22.0522.18 Band 7Ant115M253521100QPSK104x4MIMOBand 75M2544.331934x4MIMO23.5323.67 Band 7Ant215M253521100QPSK104x4MIMOBand 75M2544.331934x4MIMO24.1524.22 Band 7Ant315M253521100QPSK104x4MIMOBand 75M2544.331934x4MIMO24.0324.17 DL CA Power CA_26A-41A CA_41A-48A CA_48B DL Antenna Configuratio n CA_25A-41A CA_17A-30A 2CA DL Power Channel CA_2A-38A CA List Band(MHz)ChannelRBBand(MHz) SCCPCC Ant DL Antenna Configuratio n Mod. CA_5A-41A CA_7A-71A CA_4A-48A CA_7B CA_12A-48A CA_17A-66A LTEBWBWULULUL#UL LTE BWDLDLLTE BW DLDLW ith CAW ithout CA Freq.RB Freq.Freq.Tx. PowerTx. Power (MHz)Offset(MHz)(MHz)(dBm)(dBm) Band 12Ant010M707.523095QPSK10Band 6620M2155668864x4MIMOBand 3010M2355982022.0922.21 Band 12Ant110M707.523095QPSK10Band 6620M2155668864x4MIMOBand 3010M2355982021.6621.76 Band 30Ant010M231027710QPSK10Band 6620M2155668864x4MIMOBand 1210M737.5509524.0424.20 Band 30Ant110M231027710QPSK10Band 6620M2155668864x4MIMOBand 1210M737.5509523.1623.31 Band 30Ant210M231027710QPSK10Band 6620M2155668864x4MIMOBand 1210M737.5509523.5523.64 Band 30Ant310M231027710QPSK10Band 6620M2155668864x4MIMOBand 1210M737.5509522.8522.95 Band 66Ant020M1745132322QPSK104x4MIMOBand 3010M23559820Band 220M19609004x4MIMO23.2223.37 Band 66Ant120M1745132322QPSK 04x4MIMOBand 3010M23559820Band 220M19609004x4MIMO23.0623.12 Band 66Ant220M1745132322QPSK104x4MIMOBand 3010M23559820Band 220M19609004x4MIMO23.3023.41 Band 66Ant320M1745132322QPSK104x4MIMOBand 3010M23559820Band 220M19609004x4MIMO23.1323.27 Band 12Ant010M707.523095QPSK10Band 4820M360955830Band 4820M3628.85602822.0922.21 Band 12Ant110M707.523095QPSK10Band 4820M360955830Band 4820M3628.85602821.6621.76 Band 12Ant010M707.523095QPSK10Band 6620M2155668864x4MIMOBand 665M2197.5673114x4MIMO22.0922.21 Band 12Ant110M707.523095QPSK10Band 6620M2155668864x4MIMOBand 665M2197.5673114x4MIMO21.6621.76 Band 66Ant020M1745132322QPSK104x4MIMOBand 665M2197.5673114x4MIMOBand 1210M737.5509523.2223.37 Band 66Ant120M1745132322QPSK 04x4MIMOBand 665M2197.5673114x4MIMOBand 1210M737.5509523.0623.12 Band 66Ant220M1745132322QPSK104x4MIMOBand 665M2197.5673114x4MIMOBand 1210M737.5509523.3023.41 Band 66Ant320M1745132322QPSK104x4MIMOBand 665M2197.5673114x4MIMOBand 1210M737.5509523.1323.27 Band 12Ant010M707.523095QPSK10Band 6620M2155668864x4MIMOBand 6620M2174.8670844x4MIMO22.0922.21 Band 12Ant110M707.523095QPSK10Band 6620M2155668864x4MIMOBand 6620M2174.8670844x4MIMO21.6621.76 Band 66Ant020M1745132…

Text truncated - open the document above for the full version.

Full&Default&ECI4 Power Mode 128189251128189251 824.2836.4848.8824.2836.4848.8 31.6431.7031.6733.5022.6422.7022.6724.50 31.6631.6831.6533.5022.6622.6822.6524.50 30.6230.6630.5832.0024.6224.6624.5826.00 28.5528.6128.5730.0024.2924.3524.3125.74 27.4627.4827.4229.0024.4624.4824.4226.00 26.8426.8826.8528.0017.8417.8817.8519.00 25.5525.6425.6226.5019.5519.6419.6220.50 23.1723.2723.2224.5018.9119.0118.9620.24 21.8321.9421.9323.0018.8318.9418.9320.00 512661810512661810 1850.218801909.81850.218801909.8 27.9928.1028.0629.0018.9919.1019.0620.00 28.0228.0327.9429.0019.0219.0318.9420.00 27.0027.0626.9828.0021.0021.0620.9822.00 24.9925.0825.0226.0020.7320.8220.7621.74 23.9424.0423.9925.0020.9421.0420.9922.00 24.5424.6324.6025.0015.5415.6315.6016.00 23.1523.1823.1624.0017.1517.1817.1618.00 20.6120.6720.6221.5016.3516.4116.3617.24 19.0419.0919.0520.0016.0416.0916.0517.00 926294009538131214131513413241824233 966298009938153716381738435744074458 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99AMR 12.2Kbps22.1122.2322.2023.0022.0122.1522.0523.0024.1824.3224.2225.00 3GPP Rel 99RMC 12.2Kbps22.1522.3022.2323.0022.0522.2222.1823.0024.2624.3424.2925.00 3GPP Rel 6HSDPA Subtest-121.2221.3421.2822.0021.1121.2121.1622.0023.3123.3723.4024.00 3GPP Rel 6HSDPA Subtest-221.1421.2221.1822.0021.0321.0821.1122.0023.2723.3523.2224.00 3GPP Rel 6HSDPA Subtest-320.6920.8120.6821.5020.6420.6720.6121.5022.8122.9022.8323.50 3GPP Rel 6HSDPA Subtest-420.6620.7020.6621.5020.6220.6320.5621.5022.7622.8622.7323.50 3GPP Rel 8DC-HSDPA Subtest-121.1921.2621.1922.0021.0721.1721.0622.0023.3223.3523.3724.00 3GPP Rel 8DC-HSDPA Subtest-221.1221.2021.0822.0020.9921.1421.0322.0023.1823.2723.2024.00 3GPP Rel 8DC-HSDPA Subtest-320.5420.7520.6021.5020.3920.6720.5321.5022.6922.8522.6623.50 3GPP Rel 8DC-HSDPA Subtest-420.5220.6620.6421.5020.4720.5420.5421.5022.5822.7122.7123.50 3GPP Rel 6HSUPA Subtest-121.0221.1921.1822.0020.9421.1121.1422.0023.1323.2823.1924.00 3GPP Rel 6HSUPA Subtest-219.1619.2719.2520.0019.0419.1219.1720.0021.2321.3721.2822.00 3GPP Rel 6HSUPA Subtest-320.2620.2920.3021.0020.2220.1620.2521.0022.3422.4422.3523.00 3GPP Rel 6HSUPA Subtest-419.1419.2319.0920.0019.0719.1718.9820.0021.2221.2921.2222.00 3GPP Rel 6HSUPA Subtest-521.1221.2221.0822.0021.0321.0820.9922.0023.1623.2823.2724.00 3GPP Rel 7HSPA+ (16QAM) Subtest-118.7718.9118.7419.5018.6518.8518.6719.5020.7820.9620.8921.50 TX Channel GSM850 Ant 0Burst Average Power (dBm) Tune-up Limit (dBm) Frame-Average Power (dBm) Tune-up Limit (dBm) Frequency (MHz) GPRS 2 Tx slots GSM 1 Tx slot GPRS 1 Tx slot GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GSM1900 Ant 0Burst Average Power (dBm) Tune-up Limit (dBm) Frame-Average Power (dBm) Tune-up Limit (dBm) GPRS 2 Tx slots GPRS 3 Tx slots TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot EDGE 4 Tx slots Frequency (MHz) BandWCDMA II Ant 0 Tune-up Limit (dBm) WCDMA IV Ant 0 Tune-up Limit (dBm) WCDMA V Ant 0 Tune-up Limit (dBm) TX Channel Rx Channel 128189251128189251 824.2836.4848.8824.2836.4848.8 31.7031.7731.7233.5022.7022.7722.7224.50 31.6931.7431.6733.5022.6922.7422.6724.50 30.6730.7130.6332.0024.6724.7124.6326.00 28.5528.6428.5930.0024.2924.3824.3325.74 27.4827.5027.4629.0024.4824.5024.4626.00 26.5826.6926.6828.0017.5817.6917.6819.00 25.3625.4425.3426.5019.3619.4419.3420.50 23.0523.1023.0124.5018.7918.8418.7520.24 21.6721.7321.7123.0018.6718.7318.7120.00 926294009538131214131513413241824233 966298009938153716381738435744074458 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99AMR 12.2Kbps21.3121.4721.3723.0021.4021.5321.4523.0024.2224.3024.2525.00 3GPP Rel 99RMC 12.2Kbps21.3421.5221.4023.0021.4121.5821.5023.0024.2724.3424.3125.00 3GPP Rel 6HSDPA Subtest-120.4720.5620.5022.0020.5420.6220.5822.0023.2623.3923.3024.00 3GPP Rel 6HSDPA Subtest-220.3320.4620.4022.0020.4420.6220.5122.0023.3323.3523.2724.00 3GPP Rel 6HSDPA Subtest-319.9420.0019.8821.5020.0920.1020.0121.5022.7522.8522.7923.50 3GPP Rel 6HSDPA Subtest-419.8419.8719.8621.5019.9620.0319.9421.5022.6922.7722.7523.50 3GPP Rel 8DC-HSDPA Subtest-120.3920.4620.3422.0020.4820.5920.4922.0023.2723.3023.3524.00 3GPP Rel 8DC-HSDPA Subtest-220.2820.3820.2822.0020.3920.5320.4022.0023.1623.2923.2524.00 3GPP Rel 8DC-HSDPA Subtest-319.8020.0119.7521.5019.9120.1019.8721.5022.7022.9022.6923.50 3GPP Rel 8DC-HSDPA Subtest-419.7819.8719.8221.5019.9120.0219.9221.5022.6722.7922.6823.50 3GPP Rel 6HSUPA Subtest-120.1720.3720.3422.0020.2420.4920.4122.0023.1723.2223.1924.00 3GPP Rel 6HSUPA Subtest-218.4018.5118.5220.0018.5218.6118.6220.0021.2621.3421.2722.00 3GPP Rel 6HSUPA Subtest-319.5019.5019.4621.0019.6619.6119.6021.0022.3722.4222.4223.00 3GPP Rel 6HSUPA Subtest-418.3318.4918.3420.0018.4418.5518.4920.0021.2621.3321.2122.00 3GPP Rel 6HSUPA Subtest-520.2920.4420.3022.0020.3920.5620.3722.0023.2523.2823.2724.00 3GPP Rel 7HSPA+ (16QAM) Subtest-117.9818.1517.9619.5018.0918.2918.1319.5020.8120.9020.9121.50 Rx Channel Frequency (MHz) BandWCDMA II Ant 1 Tune-up Limit (dBm) WCDMA IV Ant 1 Tune-up Limit (dBm) WCDMA V Ant 1 Tune-up Limit (dBm) TX Channel EDGE 3 Tx slots EDGE 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots GPRS 2 Tx slots GSM 1 Tx slot GPRS 1 Tx slot TX Channel GSM850 Ant 1Burst Average Power (dBm) Tune-up Limit (dBm) Frame-Average Power (dBm) Tune-up Limit (dBm) Frequency (MHz) 512661810512661810 1850.218801909.81850.218801909.8 29.3629.4429.3430.5020.3620.4420.3421.50 29.3729.4029.3030.5020.3720.4020.3021.50 28.3728.4328.3929.0022.3722.4322.3923.00 26.4426.4426.4127.0022.1822.1822.1522.74 25.3025.4025.2926.0022.3022.4022.2923.00 25.8125.8325.7527.0016.8116.8316.7518.00 24.3524.4324.3225.5018.3518.4318.3219.50 21.8221.8421.8323.0017.5617.5817.5718.74 20.2320.2920.1921.5017.2317.2917.1918.50 926294009538131214131513 966298009938153716381738 1852.418801907.61712.41732.61752.6 3GPP Rel 99AMR 12.2Kbps23.1423.2223.1724.0023.1023.1523.0524.00 3GPP…
