IHDT56BG1Portable Cellular / PCS Transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56BG1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 PRELIMINARY Welcome Congratulations! You are now the proud owner of a Motorola V102c Personal Communicator. Your Personal Communicator combines advanced calling and messaging capabilities in a stylish, compact unit. ! . Volume Keys Adjust earpiece and ringer volume. Left Soft Key Perform functions of left display prompt. Menu Key Right Soft Key Perform functions of right display prompt . Send Key Send & answer calls, view recent dialed calls list. Smart Button Access Phone Book, make calls using Voice Tags. Power/End Key Long press— power on and off. Short press—end calls. Voice Note Key Record & activate voice notes, phonebook & shortcut names. Display User.Guide.Tarpon.book Page 1 Saturday, June 23, 2001 5:03 PM 2 PRELIMINARY Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. © 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A. Computer Program Copyrights The Motorola products described in this manual may include Motorola computer programs stored in semiconductor memories or other media that are copyrighted with all rights reserved worldwide to Motorola. Laws in the United States and other countries preserve for Motorola, Inc. certain exclusive rights to the copyrighted computer progr ams, including the exclusive right to copy, reproduce, modify, decompile, disassemble, and reverse-engineer the Motorola computer progr ams in any manner or form without Motorola's prior written consent. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license or rights under the copyrights, patents, or patent applications of Motorola, except for a nonexclusive license to use the Motorola product and the Motorola computer programs with the Motorola product. Manual number: Cover number: User.Guide.Tarpon.book Page 2 Saturday, June 23, 2001 5:03 PM 3 Preliminary " Menu Map Main Menu • Phonebook • Radio • Messages • Voicemail • Text Msgs • Browser Alerts • Quick Notes • Outbox • Drafts • Shortcuts • Voice Notes • Browser • Settings (see next page) Note: This is the standard phone menu layout. You or your service provider may have changed the menu layout or changed some feature names. Not all features may be available for all users. For example, the Radio feature on the main menu (left) is displayed only when the FM Stereo Radio Headset accessory is plugged into the accessory connector port on your phone (see phone illustration, page 1). For a description of the standard menu features, see pages 53 to 64. Shortcuts Change display zoom: Press M, then press and hold M Lock/unlock keypad: Press M * Display my phone number: Press M # Go to dialed calls list: Press N User.Guide.Tarpon.book Page 3 Saturday, June 23, 2001 5:03 PM 4 Preliminary " Settings Menu • Ring/Vibrate • Alert • Alert Detail • Phone Status • My Tel. Number • Battery Meter • Other Information • Connection • Incoming Call • In-Call Setup • In-Call Timer • Answer Options • Security • Phone Lock • Lock Keypad • Lock Application • Restrict Calls • New Passwords • Other Settings • Personalize • Main Menu • Keys • Greeting • Banner • Quick Dial • Initial Setup • Time and Date • Auto PIN Dial • Auto Redial • Backlight • Zoom • Scroll • Animation • Language • Contrast Setting • DTMF • Master Reset • Master Clear • Network • Car Settings • Headset User.Guide.Tarpon.book Page 4 Saturday, June 23, 2001 5:03 PM 5 PRELIMINARY Contents Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Safety and General Information . . . . . . . . . . . . . . . . . . . 10 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Turning On Your Personal Communicator . . . . . . . . . . . . . . . . 19 Sending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Displaying Your Phone Number . . . . . . . . . . . . . . . . . . . . . . . 21 Basic Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Changing the Zoom Setting . . . . . . . . . . . . . . . . . . . . . . . . . 24 Volume Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Messages—Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Setting Up the Text Message Inbox . . . . . . . . . . . . . . . . . . . . 27 Receiving a New Text Message . . . . . . . . . . . . . . . . . . . . . . . 28 Reading, Locking, or Deleting a Text Message . . . . . . . . . . . . 29 Sending a New Text Message . . . . . . . . . . . . . . . . . . . . . . . . 30 Sending a New Text Message to More Than One Person . . . . 32 Sending a Quick Note Text Message . . . . . . . . . . . . . . . . . . . 33 Sending a Quick Note to More than One Person . . . . . . . . . . 34 Sending and Receiving Calls . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56BG1 EXHIBIT 8A INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows. This version replaces the earlier Exhibit 8. 1 Welcome Congratulations! You are now the proud owner of a Motorola V200 Personal Communicator device. Your Personal Communicator device combines advanced messaging and calling capabilities in a stylish, compact unit. ! . Volume Keys Move up or down through menus and lists. Left Soft Key Perform function shown in the lower left corner of the display (usually EXIT or BACK). Menu Key Enter the menu system, or open a sub-menu, when M appears in the bottom center of the display. Right Soft Key Perform function shown in lower right corner of the display (usually SELECT the highlighted menu item). End Key Exit the menu system without making changes, return to the idle display Smart Button Access most frequently used (preprogrammed) function. Answer/end a call without opening the device.. Scroll Keys Move up or down through menus and lists. 2 Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. © 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A. Computer Program Copyrights The Motorola products described in this manual may include Motorola computer programs stored in semiconductor memories or other media that are copyrighted with all rights reserved worldwide to Motorola. Laws in the United States and other countries preserve for Motorola, Inc. certain exclusive rights to the copyrighted computer progr ams, including the exclusive right to copy, reproduce, modify, decompile, disassemble, and reverse-engineer the Motorola computer progr ams in any manner or form without Motorola's prior written consent. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license or rights under the copyrights, patents, or patent applications of Motorola, except for a nonexclusive license to use the Motorola product and the Motorola computer programs with the Motorola product. Manual number:6881039B35-O Cover number:8988485L49-O 3 " Menu Map Main Menu • Contacts • Messages • Voicemail • Inbox • Outbox • Drafts • Quick Notes • Browser Alerts • Browser • Date Book • Recent Calls • Received Calls • Dialed Calls • Notepad • Call Times • Voicenotes • Read • Write • Shortcuts • Settings (see next page) Note: This is the standard menu layout. You or your service provider may have changed the menu layout or changed some feature names. Not all features may be available for all users. 4 " Settings Menu • Ring/Vibrate • Alert • Alert Detail • Phone Status • My Tel. Number • Phone • Battery Meter • Other Information • Connection • Incoming Call • In-Call Setup • In-Call Timer • Answer Options • Security • Phone Lock • Lock Keypad • Lock Application • Restrict Calls • New Passwords • Other Settings • Personalize • Main Menu • Keys • Greeting • Banner • Initial Setup • Time and Date • Auto Redial • Backlight • Scroll • Animation • Language • Contrast Setting • DTMF • Master Reset • Master Clear • Network • Current Network • Set Mode • Service Tone • Call Drop Tone • Car Settings • Auto Answer • Auto Handsfree • Power Off Delay • Charger Time • Headset • Auto Answer 5 Contents Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Safety and General Information . . . . . . . . . . . . . . . . . . . 10 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Turning On Your Personal Communicator . . . . . . . . . . . . . 20 Basic Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Display Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Volume Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Messages—Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Setting Up the Messages Inbox . . . . . . . . . . . . . . . . . . . . . . . 25 Receiving a New Text Message . . . . . . . . . . . . . . . . . . . . . 27 Reading, Locking, or Deleting a Text Message . . . . . . . . . . . . 27 Sending a New Text Message . . . . . . . . . . . . . . . . . . . . . . 29 Entering the Message Editor from the Idle Display . . . . . . . . . 31 Sending a Quick Note Text Message . . . . . . . . . . . . . . . . . 32 Sending and Receiving Calls . . . . . . . . . . . . . . . . . . . . . . 33 Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Using the Built-in Speakerphone . . . . . . . . . . . . . . . . . . . . . . 33 Sending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Displaying Your Phone Number . . . . . . . . . . . . . . . . . . . . . . . 35 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Using Automatic Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Contents 6 Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC.FCC ID: IHDT56BG1 EXHIBIT 2A SPECIFICATION COMPLIANCE STATEMENT The transceiver type IHDT56BG1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 1500 Gateway Blvd.,Boynton Beach, Florida. NAME:Miguel Pellon TITLE:Business Manager Signed: (Signed) Date : June 29, 2001 APPLICANT MOTOROLA INC.FCC ID: IHDT56BG1 EXHIBIT 2B STATEMENT OF CERTIFICATION The technical data supplied with this application , was taken under my supervision is hereby duly certified . I also certify that this transmit equipment (FCC ID : IHDT56BG1) compliance with all applicable parts of the FCC Rules. NAME:Jorge Castilla TITLE:Program Manager Signed: (Signed) Date : June 29, 2001 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief , the facts set forth in this application and accompanying technical data are true and correct . NAME:Steven Fradella TITLE:Engineering Manager Signed: (Signed) Date : June 29, 2001

APPLICANT: MOTOROLAFCC ID: IHDT56BG1 Exhibit 13 July 10, 2001 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $640, and Exhibits, for Type Acceptance of a Cellular Transceiver; FCC ID: IHDT56BG1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the Digital CDMA standard in both the 800 MHz and the PCS bands, as outlined in EIA/TIA IS-95-A "Mobile Station – Base Station Compatibility Standard for Dual- Mode Wideband Spread Spectrum Cellular System”. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167,or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

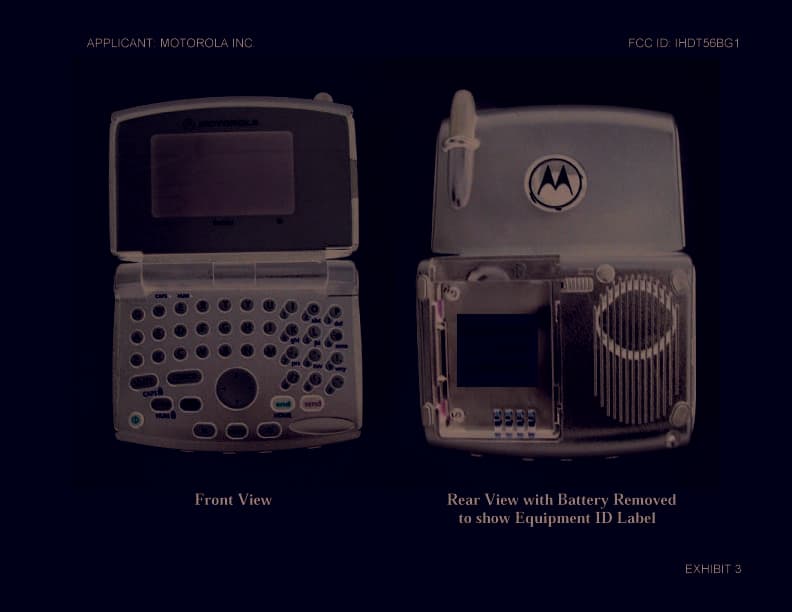

APPLICANT: MOTOROLA INC.FCC ID: IHDT56BG1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT56BG1

APPLICANT: MOTOROLA INC. FCC ID: IHDT56BG1 EXHIBIT 9A Controller Board Front ViewController Board Rear View (Shield Removed) (Shield Removed) APPLICANT: MOTOROLA INC. FCC ID: IHDT56BG1 EXHIBIT 9B Transceiver Board Front ViewTransceiver Board Rear View (Shield Removed) (Shield Removed)

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56BG1 EXHIBIT 10 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

Motorola, Inc.FCC ID: IHDT56BG1 REFERENCECOMPANY PART NO.DESCRIPTION C1002113743N40CAP, 39pf C1022113743N20CAP, 5.6pF C1032113743N40CAP, 39pf C1042104801Z17CAP, 3.0pF C1052113743N13CAP, 3pF C1072113743N13CAP, 3pF C1092113743N40CAP, 39pf C105DNP2113743N01CAP, 0.5pF C1102113743N28CAP, 12pf C1172113743N26CAP, 10pF C1182104801Z06CAP, 1.0pF C1192113743N28CAP, 12pF C1212104801Z06CAP, 1.0pF C1232113743Q07CAP, 1.5pF C1252113743N34CAP, 22pF C1272113743L17CAP, 1000pf C1502113743L17CAP, 1000pf C1512113743N18CAP, 4.7pF C1522113743N18CAP, 4.7pF C1542113743N16CAP, 3.9pF C1552113743N50CAP, 100pF C153DNP2104801Z01CAP, 0.5pF C1602113743L17CAP, 1000pf C1612113743N40CAP, 39pF C1642109445U27CAP, 10pF C20184DNP2104801Z01CAP, 0.5pF C20185DNP2104801Z01CAP, 0.5pF C3002113743M24CAP, 0.1uf C3012113743L41CAP, .01uF C3022113743N42CAP, 47pf C3032113743N40CAP, 39pf C3042113743N24CAP, 8.2pf C3052113743N14CAP, 3.3pf C3252113743L41CAP, .01uF C3262113743M24CAP, 0.1uf C3272113743L17CAP, 1000pF C4022113743N21CAP, 6.2pf C4032113743L41CAP, .01uF C4042113743L41CAP, .01uF C4052113743L41CAP, .01uF C4062113743N26CAP, 10pf C4082113743N07CAP, 1.5pf C4102113743N40CAP, 39pf C4112113743N21CAP, 6.2pf C4142113743N16CAP, 3.9pf C4152113743N26CAP, 10pf C4172113743N07CAP, 1.5pf C4192113743L41CAP, .01uF C4202113743N26CAP, 10pf C4212113743N26CAP, 10pf 1Exhibit 10B Motorola, Inc.FCC ID: IHDT56BG1 C4222113743N26CAP, 10pf C4232113743N26CAP, 10pf C4242113743N26CAP, 10pf C4252113743N28CAP, 12pF C4282113743N50CAP, 100pf C429DNP2113743N12CAP, 2.7pf C4302113743N34CAP, 22pF C4312113743N26CAP, 10pf C4322113743N34CAP, 22pf C4352113743N26CAP, 10pf C4372113743L41CAP, .01uF C4392113743N40CAP, 39pf C4412113743N40CAP, 39pf C4422113743N40CAP, 39pF C4432113743N40CAP, 39pf C4462113743L41CAP, .01uF C5002113743N40CAP, 39pf C5012113743N16CAP, 3.9pF C5022113743N42CAP, 47pf C5032113928C03CAP, 1.0uF C5062113743N42CAP, 47pf C5082113743N24CAP, 8.2pF C5092113743N19CAP, 5.1pF C505DNP2104801Z01CAP, 0.5pF C5102113743N24CAP, 8.2pF C5122113743N20CAP, 5.6pf C5132113743N42CAP, 47pf C5182113743L41CAP, .01uF C5192113743N40CAP, 39pf C5212113928N01CAP, 0.1uF C5232113743L41CAP, .01uF C5242113928A01CAP, 1.0uF C5252113743N26CAP, 10pf C5262113743N26CAP, 10pf C5272113743N30CAP, 15pf C5282113928N01CAP, 0.1uF C5292113743N30CAP, 15pf C522DNP2113743M24CAP, 0.1uF C5312113743N26CAP, 10pF C5332113743N03CAP, 1pF C5342104801Z17CAP, 3.0pF C5382113743N30CAP, 15pf C5392113743N42CAP, 47pf C535DNP2104801Z01CAP, 0.5pF C537DNP2104801Z01CAP, 0.5pF C5412113743N18CAP, 4.7pF C540DNP2104801Z01CAP, 0.5pF C6002113928C03CAP, 1.0uF C6012113743E20CAP, 0.1uf C6022113743L41CAP, .01uF C6252113743N42CAP, 47pF C6282104801Z06CAP, 1.0pF 2Exhibit 10B Motorola, Inc.FCC ID: IHDT56BG1 C6292113743N40CAP, 39pF C6352109445U25CAP, 8.2pF C6362104801Z01CAP, 0.5pF C6372113743N34CAP, 22pF C6502113743N16CAP, 3.9pF C6512113743N24CAP, 8.2pF C6522113743N32CAP, 18pF C6532113743N28CAP, 12pF C6542113743L41CAP, .01uF C6552113928C03CAP, 1.0uF C6562104801Z06CAP, 1.0pF C6572113743M24CAP, 0.1uf C6582113928A01CAP, 1.0uF C6592113743N50CAP, 100pf C6602113743L41CAP, .01uF C6652113743N40CAP, 39pF C6662113743Q07CAP, 1.5pF C7002113928N01CAP, 0.1uF C7012113743L17CAP, 1000pF C7022113743M24CAP, 0.1uf C7032113928C04CAP, 4.7uf C7042113743M24CAP, 0.1uf C7252113743M24CAP, 0.1uf C7262113743L41CAP, .01uF C7282113928P04CAP, 1.0uF C7292113743M24CAP, 0.1uf C7302113928N01CAP, 0.1uF C7502113928N01CAP, 0.1uF C7512113743L41CAP, .01uF C7522113743L41CAP, .01uF C7532113928N01CAP, 0.1uF C7542113928N01CAP, 0.1uF C7562113743L17CAP, 1000pF C7752113928G01CAP, 0.22 C7762113743L25CAP, 2200pf C7772113928N01CAP, 0.1uF C7782113928P04CAP, 1.0uF C7792113928P04CAP, 1.0uF C7802113928P04CAP, 1.0uF C7812113928P04CAP, 1.0uF C7822113928N01CAP, 0.1uF C7832113928P04CAP, 1.0uF C11222113743L41CAP, .01uF C12372113743N40CAP, 39pF C99212113743L41CAP, .01uF C99442113928N01CAP, 0.1uF C99742113928C04CAP, 4.7uf C99802113743N40CAP, 39pf C99832113743N40CAP, 39pF C99892113743L41CAP, .01uF C99902113743N28CAP, 12pF C99912113743N10CAP, 2.2pF 3Exhibit 10B Motorola, Inc.FCC ID: IHDT56BG1 C99922113743N40CAP, 39pf C99982113743L41CAP, .01uF C201342104801Z06CAP, 1.0pF C201602113743N40CAP, 39pF C201612113743N40CAP, 39pF C201732113743L41CAP, .01uF C201762113743L01CAP, 220pF C201882104801Z17CAP, 3.0pF C201922113743N46CAP, 68pF C201942113743N26CAP, 10pF C201952113743N26CAP, 10pF C201962113928P04CAP, 1.0uF C201972113928P04CAP, 1.0uF C201982113743N09CAP, 2pF C202262113743N03CAP, 1pF C202302113743N50CAP, 100pF C202312113743N40CAP, 39pF C202322113743N40CAP, 39pF C202482113743N09CAP, 2pF C202492113743N09CAP, 2pF C202512113743N40CAP, 39pf C202522113743N46CAP, 68pF CPL5005885811G04CP0805B, 1800Mhz CPL6255803703S01LDC15B CPL6355804632Z01LDC15B CR3004809877C081SV279 CR5004809948D13BA892 CR5014809924D16HSMS282K CR6504809877C131SV305 CR6514809877C081SV279 CR6524809948D10BAR63-03W E12462586G01BLM11A121S FL309109239M08855817 FL509185911J0811J03 FL519109361K0361K03 FL539185906G0806G08 FL1009103913K0413K04 FL1509109405J0605J06 FL4019185726J0326J03 FL4039109247M03D232M FL4049103913K0313K03 FL4099109239M0439M04 J90000987378K01SWITCH J90010962117B02CONN_J L1012487319K11IDCTR, 8.2nH L103DNP2409154M03IDCTR, 1.5nH L104DNP2409154M03IDCTR, 1.5nH L1132409154M06IDCTR, 2.7nH L1152409154M03IDCTR, 1.5nH L1236DNP2409154M64IDCTR, 12.0nH L1312487319K11IDCTR, 8.2nH L1502462587V59IDCTR, 390nH 4Exhibit 10B Motorola, Inc.FCC ID: IHDT56BG1 L1512462587V59IDCTR, 390nH L1522409646M98IDCTR, 100nH L1532409414M16IDCTR, 68nH L1602404574Z14IDCTR, 270nH L20162DNP2409646M53IDCTR, 5.6nH L3002409414M11IDCTR, 27nH L4002404574Z13IDCTR, 220nH L4012404574Z13IDCTR, 220nH L4042409154M62IDCTR, 8.2nH L4092409154M11IDCTR, 6.8nH L4102409154M11IDCTR, 6.8nH L4112409154M65IDCTR, 15.0nH L4172409154M51IDCTR, 1.0nH L4182409154M63IDCTR, 10.0nH L4192409154M65IDCTR, 15.0nH L5002409154M09IDCTR, 4.7nH L5012488428L09IDCTR, 18nH L5022409154M11IDCTR, 6.8nH L5032488428L09IDCTR, 18nH L5042409154M09IDCTR, 4.7nH L5052409154M65IDCTR, 15.0nH L5062409154M61IDCTR, 6.8nH L5072409154M08IDCT…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56BG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report: IHDT56BG1 Date of test: June 19, 2001 Laboratory: Motorola Personal Communications Sector Product Safety Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Steven Hauswirth Staff Engineer Accreditation: ISO Guide 25 Accredited Lab, A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56BG1 to which this declaration relates, is in conformity with the appropriate RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: ©Motorola This test report shall not be reproduced in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56BG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Results 3 4) Test Equipment 4 4.1 Dosimetric system 4 4.2 Additional equipment used 5 5) Electrical parameters of the tissue simulating liquid 5 6) System Accuracy Verification 5 Reference Notes Appendix 1: SAR distribution comparison for the system accuracy verification 6 Appendix 2: SAR distribution plots for Body Worn Configuration 7 Appendix 3: Photographs of the device under test 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56BG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT56BG1. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with the latest available test guidelines. The SAR values found for the portable cellular phone (FCC ID IHDT56BG1) are below the maximum recommended levels of 1.6 W/kg. Detailed procedures of the test are described in the Motorola Exhibit 11 Reference SAR Test Report. 2. Description of the Device Under Test Antenna description Type Fixed Dual Band Location Front hinge, top left side Configuration Stub Device description FCC ID Number IHDT56BG1 Serial number 19060101 Mode(s) of Operation CDMA800 CDMA1900 Modulation Mode(s) CDMA CDMA Maximum Output Power Setting 24.90dBm 25.20dBm Duty Cycle 1:1 1:1 Transmitting Frequency Rang(s) 824-849MHz 1851-1909MHz 3. Test Results The SAR results shown in table 1 are the maximum SAR values averaged over 1 gram of phantom tissue. Also shown are the measured conducted output powers. The test sample was operated in a test mode that allows control of the transmitter without the need to place actual phone calls. For the purposes of this test the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. The phone was then placed in the SAR measurement system with a fully charged battery. A full data set output of two test conditions with the highest SAR values from the Dasy measurement system is included as appendix 2. The test conditions included are indicated as bold numbers in the following table. All other test conditions measured lower SAR values than those included. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56BG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 SAR, 1g (W/kg) Plastic Holster f (MHz) Description Conducted Output Power (dBm) Ant Fixed Channel 1013 24.85dBm 0.085 Channel 384 25.16dBm 0.054 Digital 800MHz Channel 779 25.05dBm 0.071 Channel 25 27.33dBm 0.457 Channel 600 26.90dBm 0.448 Digital 1900MHz Channel 1175 25.14dBm 0.241 Table 1: SAR measurement results for the portable cellular telephone FCC ID IHDT56BG1 at highest possible output power. Measured against the body. 4. Test Equipment Used 4.1 Dosimetric System The Motorola Personal Communications Sector Product Safety Laboratory utilizes a Dosimetric Assessment System (Dasy3™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±12.0% (K=1). Description Serial Number Cal Due Date DASY3 DAE V1 SN383 3/1/02 E-Field Probe ETDV6 SN1506 10/6/01 Dipole Validation Kit, DV900V2 SN79 10/26/02 Dipole Validation Kit, DV1800V2 SN250 9/29/01 4.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04810 11/15/02 Power Meter E4419B GB39511087 11/14/01 Power Sensor E9301A US39211007 11/28/02 5. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with HP85070 Dielectric Probe Kit These values are shown in the table below. The mass density, ρ, used by the dosimetric system is also given. Recommended limits for maximum permittivity, minimum conductivity and maximum mass density are also shown. These come from the Federal Communication Commission, “Tissue Dielectric Properties” web site at http://www.fcc.gov/fcc-bin/dielec.sh. It is seen that the measured parameters are satisfactory for compliance testing. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56BG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 5 5 f Dielectric Parameters (MHz) Tissue type Limits / Measured ε r σ (S/m) ρ (g/cm 3 ) Measured, 6/19/01 50.45 1.06 1.00 836 Body Recommended Limits 56.11 0.94 1.04 Mea…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56BG1 Exhibit 6 1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Submission Number – 3277-2 Report Date – June 29, 2001 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56BG1 Exhibit 6 2 Test Report Details Tests Performed By:Motorola Personal Communications Sector Product Safety and Compliance Group 1500 Gateway Boulevard Boynton Beach, FL 33426 Test Report Number:3091-2 Test Report Date:June 29, 2001 Product Type:Cellular Phone Signaling Capability:CDMA 800 CDMA 1900 Model Number:N/A Received Date:June 4, 2001 Testing Start Date:June 5, 2001 Testing Complete Date:June 27, 2001 Summary of Testing All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Test Test Name Comply Does Not # Comply 1RF Power OutputX 2Occupied BandwidthX 3Spurious Emissions at Antenna TerminalX 4Field Strength of Spurious EmissionsX…
