APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 P R E L IMI N A RY Welcome Bottom of phone: EarpieceInternal Antenna USB Connector Insert data cable. Right Soft Key Perform right display prompt functions. Menu Key Open a menu when you see G in the display. Power/End Key Press and hold to turn phone on and off. Press and release to end phone calls, exit menu system. Send/Answer Key Make and answer calls; press in idle to list recently dialed calls. Navigation Key Scroll through lists, set volume. Left Soft Key Perform left display prompt functions. Microphone Headset Connector Power Connector Insert charger. Volume Keys Adjust earpiece and ringer volume. Smart Key Select menu items, send and end calls. UG.E380.GSM.book Page 1 Thursday, June 12, 2003 8:42 AM 2 P R E L IMI N A R Y Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number:6809461A46-O Cover number:8988485L49-O UG.E380.GSM.book Page 2 Thursday, June 12, 2003 8:42 AM 3 P R E L IMI N A RY Contents Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Changing Your SIM Card. . . . . . . . . . . . . . . . . . . . . . . . 16 Changing Your Phone’s Lens . . . . . . . . . . . . . . . . . . . . 18 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 20 Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 22 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 23 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Using the 4-Way Navigation Key . . . . . . . . . . . . . . . . . . 27 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Choosing a Text Entry Method . . . . . . . . . . . . . . . . . . . 38 Using Your Phone While it is Closed . . . . . . . . . . . . . . . 39 Using the Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 42 Changing a Code or Password . . . . . . . . . . . . . . . . . . . 43 If You Forget a Code or Password . . . . . . . . . . . . . . . . . 44 Locking and Unlocking the Keypad . . . . . . . . . . . . . . . . 44 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 45 Storing Your Name and Phone Number . . . . . . . . . . . . 45 Setting the Time and Date. . . . . . . . . . . . . . . . . . . . . . . 45 UG.E380.GSM.book Page 3 Thursday, June 12, 2003 8:42 AM 4 P R E L IMI N A R Y Setting an Alert Style . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Setting Answer Options . . . . . . . . . . . . . . . . . . . . . . . . . 47 Activating Club Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . . 48 Selecting a Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . 49 Setting Display Color . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Setting Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . . 50 Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Zooming In and Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Conserving Battery Power . . . . . . . . . . . . . . . . . . . . . . . 51 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . . 52 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . . 53 Turning Off a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Calling an Emergency Number . . . . . . . . . . . . . . . . . . . . 54 Dialing International Numbers . . . . . . . . . . . . . . . . . . . . 55 Viewing the Receiv…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DD1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION IHDT56DD1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

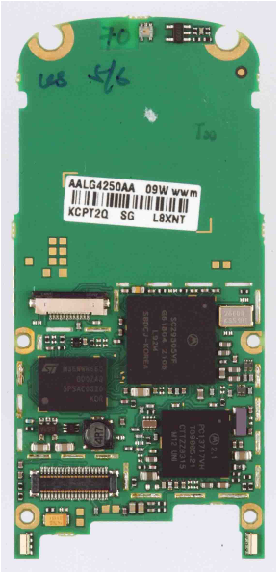

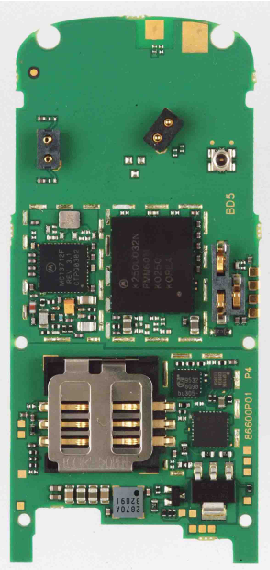

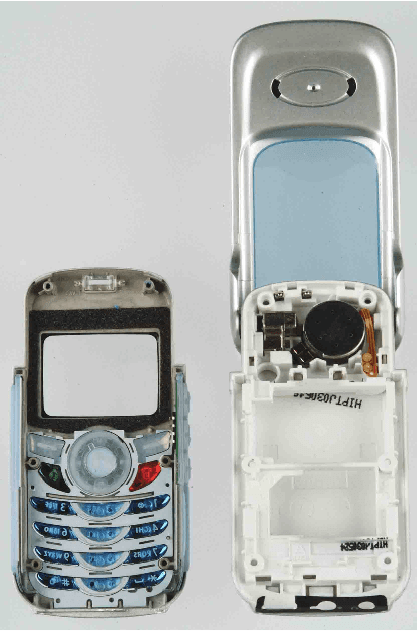

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 EXHIBIT 9 Front View Rear View 1 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 EXHIBIT 9 Front View Schields Removed Rear View Schields Removed 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 EXHIBIT 9 3 of 3 Inside View of Housings

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process, as special equipment is required to perform such adjustments. EXHIBIT 10 1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 PARTS LIST Reference Symbol Part Number Description C101 2113743N02 CAP CHIP 0.75 PF +-.25PF COG C121 2113743N16 CAP CHIP 3.9 PF +-.25PF COG C122 2113743N16 CAP CHIP 3.9 PF +-.25PF COG C131 2113743N24 CAP CHIP 8.2 PF + -.5PF COG C132 2113743N24 CAP CHIP 8.2 PF + -.5PF COG C133 2311049A76 CAP TANT CHIP 2.2UF 10% 6V C134 2113928C04 CAP CER CHIP 4.7UF 6.3V10%0805 C145 2113743N28 CAP CHIP 12.0 PF 5% COG C150 0888600M24 CAP,FILM,8200PF,+5%,-5%,50V-DC C1501 2113743N40 CAP CHIP 39.0 PF 5% COG C1503 2113928T01 CAP CER CHIP 1.0 UF 6.3V 0402 C1504 2113743N28 CAP CHIP 12.0 PF 5% COG C1505 2113743N28 CAP CHIP 12.0 PF 5% COG C1506 2113743N28 CAP CHIP 12.0 PF 5% COG C1507 2113743N28 CAP CHIP 12.0 PF 5% COG C151 2113743L15 CAP CHIP 820 PF 10% X7R C152 2113743L07 CAP CHIP 390 PF 10% X7R C153 2113743L11 CAP CHIP 560 PF 10% X7R C154 2113743L19 CAP CHIP 1200 PF 10% X7R C155 0888600M24 CAP,FILM,8200PF,+5%,-5%,50V-DC C156 2113743N24 CAP CHIP 8.2 PF + -.5PF COG C157 2113743N54 CAP CHIP 150 PF 5% COG C159 2113743N52 CAP CHIP 120 PF 5% COG C174 2113743N22 CAP CHIP 6.8 PF + -.5PF COG C175 2113743N28 CAP CHIP 12.0 PF 5% COG C176 2113743L41 CAP CHIP 10000 PF 10% X7R C177 2113743N40 CAP CHIP 39.0 PF 5% COG C2814 2113743N28 CAP CHIP 12.0 PF 5% COG C3002 2113743N28 CAP CHIP 12.0 PF 5% COG C3003 2113743N28 CAP CHIP 12.0 PF 5% COG C3005 2113743N28 CAP CHIP 12.0 PF 5% COG C3006 2113743N28 CAP CHIP 12.0 PF 5% COG C302 2113743N28 CAP CHIP 12.0 PF 5% COG C309 2113743F18 CAP CHIP 2.2 UF 16V +80-20% C314 2113743F18 CAP CHIP 2.2 UF 16V +80-20% C330 2113743N40 CAP CHIP 39.0 PF 5% COG C332 2113743N28 CAP CHIP 12.0 PF 5% COG C333 2113743N28 CAP CHIP 12.0 PF 5% COG C334 2113743N28 CAP CHIP 12.0 PF 5% COG C602 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C701 2113743L41 CAP CHIP 10000 PF 10% X7R C705 2113743L41 CAP CHIP 10000 PF 10% X7R C8001 2113743N28 CAP CHIP 12.0 PF 5% COG C8002 2113743N28 CAP CHIP 12.0 PF 5% COG C8004 2113743N28 CAP CHIP 12.0 PF 5% COG EXHIBIT 10 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 C8005 2113743N40 CAP CHIP 39.0 PF 5% COG C8006 2113743N40 CAP CHIP 39.0 PF 5% COG C8007 2113743N40 CAP CHIP 39.0 PF 5% COG C8008 2113743N28 CAP CHIP 12.0 PF 5% COG C8009 2113743N38 CAP CHIP 33.0 PF 5% COG C801 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C8011 2113743N28 CAP CHIP 12.0 PF 5% COG C802 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C803 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C805 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C806 2113743L41 CAP CHIP 10000 PF 10% X7R C808 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C809 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C810 2113743L41 CAP CHIP 10000 PF 10% X7R C811 2113743L41 CAP CHIP 10000 PF 10% X7R C812 2113743L41 CAP CHIP 10000 PF 10% X7R C813 2113743L41 CAP CHIP 10000 PF 10% X7R C814 2113928C04 CAP CER CHIP 4.7UF 6.3V10%0805 C815 2113743L41 CAP CHIP 10000 PF 10% X7R C816 2113743L41 CAP CHIP 10000 PF 10% X7R C818 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C819 2113743N24 CAP CHIP 8.2 PF + -.5PF COG C820 2113743M24 CAP CHIP 100000 PF +80-20% Y5V C8204 2113928C04 CAP CER CHIP 4.7UF 6.3V10%0805 C8205 2113928C04 CAP CER CHIP 4.7UF 6.3V10%0805 C8206 2113743N40 CAP CHIP 39.0 PF 5% COG C821 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C822 2170282K01 CAP,TANTALUM,10UF,+20,-20,6.3V C823 2113743N40 CAP CHIP 39.0 PF 5% COG C8230 2311049A89 CAP TANT CHIP 22 UF 4V 10% C8231 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C8232 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C8233 2113928T01 CAP CER CHIP 1.0 UF 6.3V 0402 C8234 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C8235 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C8238 2113743N38 CAP CHIP 33.0 PF 5% COG C8239 2113743N38 CAP CHIP 33.0 PF 5% COG C8240 2113743L17 CAP CHIP 1000 PF 10% X7R C8241 2113743M24 CAP CHIP 100000 PF +80-20% Y5V C8242 2113928R03 CHIP CAPACITOR (CERAMIC),MONOL C8249 2113743L41 CAP CHIP 10000 PF 10% X7R C825 2113743M24 CAP CHIP 100000 PF +80-20% Y5V C8250 2113743N30 CAP CHIP 15.0 PF 5% COG C8251 2113743N28 CAP CHIP 12.0 PF 5% COG C8252 2113743N03 CAP CHIP 1.0 PF +-.25PF COG C8253 2113743N20 CAP CHIP 5.6 PF + -.5PF COG C8255 2113743M24 CAP CHIP 100000 PF +80-20% Y5V C826 2113743M24 CAP CHIP 100000 PF +80-20% Y5V EXHIBIT 10 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 C827 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C828 2113743L41 CAP CHIP 10000 PF 10% X7R C829 2113743N38 CAP CHIP 33.0 PF 5% COG C830 2113743N19 CAP CHIP 5.1 PF + -.5PF COG C890 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C900 2113743N30 CAP CHIP 15.0 PF 5% COG C901 2113743N30 CAP CHIP 15.0 PF 5% COG C902 2113743N26 CAP CHIP 10.0 PF 5% COG C903 2113743N26 CAP CHIP 10.0 PF 5% COG C907 2113743M24 CAP CHIP 100000 PF +80-20% Y5V C908 2113743M24 CAP CHIP 100000 PF +80-20% Y5V C909 2113928C04 CAP CER CHIP 4.7UF 6.3V10%0805 C910 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C911 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C915 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C916 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C917 2113928P04 CAP,CER,1UF,,+20%,-20%,,0603 C921 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C922 2113928C04 CAP CER CHIP 4.7UF 6.3V10%0805 C926 2113743L21 CAP CHIP 1500 PF 10% X7R C927 2113743M24 CAP CHIP 100000 PF +80-20% Y5V C929 2113743N26 CAP CHIP 10.0 PF 5% COG C930 2113948E11 CAP,NTWK,,,+20%,-20%,10V-DC C931 2113743N40 CAP CHIP 39.0 PF 5% COG C932 2113743N40 CAP CHIP 39.0 PF 5% COG C933 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C934 2113946D02 CHIP CAPACITOR (CERAMIC),MONOL C937 2113743N26 CAP CHIP 10.0 PF 5% COG C938 2113928N01 CAP CER CHIP 0.1UF 10% 6.3 C939 2113743N26 CAP CHIP 10.0 PF 5% COG C940 2113928C12 CAP,CER,10UF,,+10%,-10%,,0805 C941 211374…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56DD1 Date of test: Date of Report: 07/08/2003-07/15/2003 08/08/2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Firass Badaruzzaman Senior RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56DD1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 4 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 7 References: Appendix 1: SAR distribution comparison for the system accuracy verification 9 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 10 Appendix 3: SAR distribution plots for Body Worn Configuration 13 Appendix 4. Probe Calibration Certificate 15 Appendix 5. Dipole Characterization Certificate 16 Appendix 6: Measurement Uncertainty Budget 17 Appendix 7. Photographs of the device under test 20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56DD1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Internal Antenna Location Back of phone Length 35 mm Dimensions Width 25 mm Configuration Internal Patch Device description FCC ID Number or Device Model E380 Serial number 10050000490712 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GSM GSM Target Value for Maximum Output Power Setting 30.00 dBm 30.50 dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.20 - 848.80 MHz 1850.20 – 1909.80 MHz Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN365 10-Dec-03 E-Field Probe ET3DV6 SN1502 27-Sep-03 Dipole Validation Kit, D900V2 SN96 24-Jun -04 S.A.M. Phantom used for 800MHz TP-1131 Dipole Validation Kit, D1800V2 SN272TR 24-Jun-04 S.A.M. Phantom used for 1900MHz TP-1250 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DD1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04822 07/06/2005 Power Meter E4419B GB39511087 02/06/2004 Power Sensor #1 - 8481A US39210929 02/06/2004 Power Sensor #2 - 8481A US39210933 02/06/2004 Network Analyzer HP8753ES US39172529 18-Jun-03 Dielectric Probe Kit HP85070B US99360070 N/A 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the HP85070 Dielectric Probe Kit These values, along with the temperature of the tissue simulate are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfactory for compliance testing. Die…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56DD1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 11484-1 Report Date – August 11, 2003 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : _ 2003-08-11____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. EXHIBIT 6 A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56DD1 Table of Contents Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 9 GSM 850 Occupied Band Plot 9 GSM 850 Reference Plot 10 GSM 850 Lower Band Edge 10 GSM 850 Upper Band Edge 11 GSM 850 A*(Lower) Max Block Edge 11 GSM 850 A Max Block Edge 12 GSM 850 B Min. Block Edge 12 GSM 850 B Max Block Edge 13 GSM 850 A*(Upper) Min. Block Edge 13 GSM 850 A*(Upper) Max Block Edge 14 GSM 850 B* Min. Block Edge 14 GSM 1900 Occupied Band Plot 15 GSM 1900 Reference Plot 15 GSM 1900 Lower Band Edge 16 GSM 1900 Upper Band Edge 16 GSM 1900 A Max Block Edge 17 GSM 1900 B Min. Block Edge 17 GSM 1900 B Max Block Edge 18 GSM 1900 C Min. Block Edge 18 GSM 1900 C Max Block Edge 19 GSM 1900 D Min. Block Edge 19 GSM 1900 D Max Block Edge 20 GSM 1900 E Min. Block Edge 20 GSM 1900 E Max Block Edge 21 GSM 1900 F Min. Block Edge 21 Spurious Emissions at Antenna Terminals 13 GSM 850 Tabular and Graphical Data 14 GSM 1900 Tabular and Graphical Data 15 Field Strength of Spurious Emissions 16 Test Report Number: 11484-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56DD1 GSM 850 Tabular and Graphical Data 17 GSM 1900 Tabular and Graphical Data 18 Frequency Stability 19 GSM 850 Tabular and Graphical Data 20 GSM 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions From Unintentional Radiators GSM 850 Tabular and Graphical Data 23 GSM 1900 Tabular and Graphical Data 24 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 25 Figure A.2 – Substitution Measurement 25 Test Report Number: 11484-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56DD1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900 Model Number: AAUG1347AA Serial Numbers: 001005000490740, 001005000490700, 001005000490720 Testing Complete Date: August 3, 2003 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 11484-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56DD1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 12.9 dB 6 Field Strength of Spurious Emissions 9.6 dB 7 Frequency Stability 48.21 Hz 8 Field Strength of Spurious Emissions 3.3 dB from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 11484-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56DD1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ETSDRG Horn Antenna311562229/30/2003 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712654/29/2004 ETSLog-Periodic Antenna314811894/29/2004 ETSBiconical Antenna3110B33694/29/2004 ETSBiconical Antenna3110B337010/25/2003 AttenuatorWeinschel AS-6667510/3/2003 AttenuatorWeinschel AS-6667710/3/2003 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett Packard Signal Generator 83623B 3844A01195 5/20/2004 ThermotronEnvironmental ChamberS-43158012/19/2003 Hewlett PackardPre-Amplifier8347A Hewlett PackardPre-Amplifier8447F2805A0…
