IHDT56DH1Portable Cellular/PCS Transceiver (AMPS/CDMA)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: START HERE > D RA F T 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola E810 CDMA wireless phone. D RA F T 2 Check It Out! FeatureDescription Take Photo Activate the camera: M >Media Center >PicturesM >New>New Picture Point lens at subject, press CAPTURE(+), K, or the camera key to capture viewfinder image. Shortcut: You can also activate the camera by pressing and holding the camera key. Mirror Aim camera lens for self portraits Camera Lens Take photos to send to others and use on your phone External Display View incoming call information Camera Key Use to snap photos. D RA F T 3 Send Photo Send the photo to a phone number or email address. After taking the photo: Press STORE(+) >Send In Message Set Photo as Caller ID Picture Assign a photo to a Contacts entry to enable picture caller ID. After taking the photo: Press STORE(+)>Apply to Contacts Send Multimedia Message Send a message with inserted pictures, animations, sounds: M >Message Center >CREATE > Multimedia Message FeatureDescription D RA F T 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: 6809467A43-O Cover number:8988485L61-O D RA F T 5 Contents Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Turning On Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . 21 Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Changing the Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . 23 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 23 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Taking and Sending a Photo . . . . . . . . . . . . . . . . . . . . . 24 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . 26 Receiving an MMS Message. . . . . . . . . . . . . . . . . . . . . 28 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 30 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Using the External Display . . . . . . . . . . . . . . . . . . . . . . 46 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 46 Changing a Code or Password . . . . . . . . . . . . . . . . . . . 48 If You Forget a Code or Password . . . . . . . . . . . . . . . . . 48 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 49 Storing Your Name and Phone Number . . . . . . . . . . . . 49 Setting the Time and Date. . . . . . . . . . . . . . . . . . . . . . . 49 Setting an Alert Style. . . . . . . . . . . . . . . . . . . . . . . . . . . 49 D RA F T 6 Setting Answer Options . . . . . . . . . . . . . . . . . . . . . . . . . 50 Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . . 50 Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . . 51 Setting Display Color . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Hiding or Showing Location Information . . . . . . . . . . . . . 53 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . . 55 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Using Automatic Redial. . . . . . . . . . . . . . . . . . . . . . . . . . 55 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . . 56 Turning Off a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Calling an Emergency Number . . . . . . . . . . . . . . . . . . . . 57 Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Returning an Unanswe…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56DH1 ATTESTATION STATEMENTS Transceiver type IHDT56DH1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, IL NAME: Jim Miller TITLE: ENGINEERING MANAGER PERSONAL COMMUNICATIONS SECTOR I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56DH1) is in compliance with all applicable parts of the FCC Rules. NAME: John Tuck TITLE: Lead Engineer Date: 10/01/2003 EXHIBIT 2 1 APPLICANT MOTOROLA INC. FCC ID: IHDT56DH1 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. EXHIBIT 2 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56DH1 INFORMATION REGARDING ELECTRONIC SERIAL NUMBER PROTECTION This cellular transceiver uses a microprocessor to control its call processing operation. This microprocessor accesses a programmable memory area, which is used to store an encrypted data block that contains the Electronic Serial Number (ESN). A proprietary scheme is used to create this data block whereby it is encrypted using methods similar to known public key cryptography methods. It is emphasized that the method used is similar to but different from these known methods and the actual method used is kept proprietary to provide the essential security for the ESN. Also, the transceiver will not operate unless the microprocessor is able to decrypt this data block correctly. Access is controlled to both the method of encryption and to the production/repair equipment that has the ability to program the encrypted data block. EXHIBIT 2 3

Date: October 31, 2003 Subject: Request for additional information regarding FCC ID: IHDT56DH1 (Cellular/PCS transceiver) Reference: Application Received: 10/10/2003 Correspondence Reference Number: 231030A.IHD Confirmation Number: TC3259 Date of Original Email: 10/30/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: EMC: 1. Page 7 of the EMC report- the attenuator kit and the system dc power supply are listed as past their cal due dates- please correct. 2. Please correct the typo on p.8 of the EMC report: the AMPS mid channel power output is missing a decimal point. 3. Please correct the typo on p.14 of the EMC report: "AMPS" should be "CDMA" (note- this is a duplicate of p.20. You do not need to perform the occupied bandwidth measurement on the AMPS signal). 4. The measured PCS occupied bandwidth is quite narrow: 1.18 MHz. Please verify that this is the actual, correct value (for use in the emission designator on the grant). Response: Verified 5. Please provide the PCS upper bandedge plot (the one submitted is at 1895 MHz, instead of 1910 MHz). Response: Please refer to the Revised test report (Exhibit 6) submitted on October 31, 2003. SAR 6. Please correct the typo in the SAR report data table, p.8: the AMPS left tilt Antenna Extended value should be 0.252 W/kg to match the plot. 7. Please provide the following SAR plots: CDMA left tilt ant. ext. CDMA left tilt ant. retracted CDMA right touch ant. ext. CDMA right touch ant. retracted All right tilt plots (AMPS, CDMA, PCS, both ext. and retract. antenna) All left touch plots (AMPS, CDMA, PCS, both ext. and retract. antenna) PCS body- clip w/ 90 degree rotation, antenna retracted CDMA body- clip against body, antenna extended CDMA body- clip against body, antenna retracted Response: Please refer to the supplemental SAR report submitted on October 31, 2003. 1

Date: November 4, 2003 Subject: Request for additional information regarding FCC ID: IHDT56DH1 (Cellular/PCS transceiver) Reference: Application Received: 10/10/2003 Correspondence Reference Number: 231103A.IHD Confirmation Number: TC3259 Date of Original Email: 10/30/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1. Regarding the additional SAR plots that you submitted in response to our original email, a number of them have values that differ from those listed in the Tables of highest SAR values, on pages 8 and 9. Please correct the values listed in the Tables to the values listed below, so that they correspond to the data plots. CDMA Channel 384 right tilt antenna extended should be corrected to 0.234 CDMA Channel 384 right tilt antenna retracted should be corrected to 0.215 PCS Channel 600 right tilt antenna extended should be corrected to 0.213 PCS Channel 600 right tilt antenna retracted should be corrected to 0.288 CDMA Channel 384 body- clip against body antenna extended should be corrected to 0.213 Response: Please refer to the supplemental SAR report submitted on November 4, 2003. 2. We note that several of the recently submitted SAR plots list values for the conductivity and dielectric constant that differ from the values listed in the Table on p.4. Please address. Response: Please refer to the supplemental SAR report submitted on November 4, 2003 1

APPLICANT: MOTOROLA FCC ID: IHDT56DH1 October 8, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56DH1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular standard in the 800 MHz cellular band, and the Digital CDMA standard in both the 800 MHz and the 1900 MHz PCS bands. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

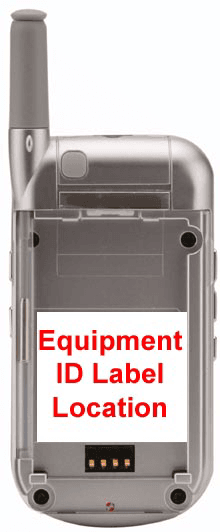

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DH1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT56DH1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 EXHIBIT 9 Rear View (Shields Removed) Rear View 1of 2 Front View APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 EXHIBIT 9 2 of 2 Housings Internal Views

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process, as special equipment is required to perform such adjustments. EXHIBIT 10 1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 PARTS LIST Reference Symbol Part Number Description 10-36000-03 ASS'Y-DOME SWITCH / V810 10-36000-04 ASS'Y-DOME SIDE KEY / V810 50-00612-01 Mic(Solderless) / OB210-44S1033 54-26000-12 STICKER INDICATOR(Φ4) / ARIA 54-16000-17 17 LABEL BSN / ARMSTRONG 93-03624-01 UNDER FILL BOND / LPD-3513 01-36051-51 SMD MAIN PCB ASS'Y / TTC DBTM(V810) R203 06-00026-01 RES 000 5% / MCR01MZS000J/RC1005J000CS R17, 19, 27 06-01026-01 RES 10 5% / MCR01MZS 100J/RC1005J100CS R4 06-02426-01 RES 24 5% / MCR01MZS 240J R300, 304 06-03326-01 RES(1005) 33 Ohm 5% MCR01MZS330J/RC1005J330CS R5 06-03926-01 RES 39 5% / MCR01MZS 390J R308 06-04726-01 RES 47 5% / MCR01MZS 470J R18, 22, 23 06-05126-01 RES 51 5% / MCR01MZS 510J/RC1005J510CS R236 06-06826-01 RES 68 5% / MCR01MZS 680J R234, 239, 241, 326, 328, 329, 330, 331, 332, 333, 334, 335, 336, 337, 338, 339, 238, 240, 242, 235 06-11026-01 RES 100 5% / MCR01MZS 101J/RC1005J101CS R313 06-13326-01 RES 330 5% / MCR01MZS 331J R20, 21 06-16826-01 RES 680 5% / MCR01MZS 681J R12, 16, 25, 32, 225, 226, 230, 231 06-21026-01 RES 1K 5% / MCR01MZS 102J/RC1005J102CS R301 06-21526-01 RES 1.5K 5% / MCR01MZS 152J/RC1005J152CS R33 06-21826-01 RES 1.8K 5% / MCR01MZS 182J R30, 217, 220, 246 06-22226-01 RES 2.2K 5% / MCR01MZS 222J/RC1005J222CS R204, 233, 219 06-23326-01 RES 3.3K 5% / MCR01MZS 332J/RC1005J332CS R35 06-23926-01 RES 3.9K 5% / MCR01MZS 392J R29, 315 06-24726-01 RES 4.7K 5% / MCR01MZS 472J R10, 11, 13 06-25725-02 RES 5.76K 1% / MCR01MZPF 5761 R306 06-29125-01 RES 9.1K 1% / MCR01MZSF9101 R318 06-31025-01 RES 10K 1% / MCR01MZS 103F / RC1005F103CS R312, 322, 323, 324, 325, 340, 342, 344, 174 06-31026-01 RES 10K 5% / MCR01MZS 103J/RC1005J103CS R14, 36 06-31125-02 RES(1005) 11.3K 1 % / MCR01MZPF1132 R171 06-32026-01 RES 20K 5% / MCR01MZS 203J/RC1005J203CS R201, 215 06-32726-01 RES 27K 5% / MCR01MZS 273J/RC1005J273CS R302 06-32725-01 RES 27K 1% / RES(1005) 27K 1% / MCR01MZS2702F R200 06-33326-01 RES 33K 5% / MCR01MZS 333J/RC1005J333CS R28, 34, 37, 345 06-34726-01 RES 47K 5% / MCR01MZS 473J/RC1005J473CS R214 06-35625-01 RES 56K 1% / MCR01MZS 563F/RC1005F563CS R202, 172, 305, 307 06-41026-01 RES 100K 5% / MCR01MZS 104J/RC1005J104CS R347 06-41526-01 RES 150K 5% / MCR01MZS 154J R205, 211 06-41826-01 RES 180K 5% / MCR01MZS 184J/RC1005J184CS R218 06-43025-01 RES(1005) 300K Ohm 1% / MCR01MZS304F/RC1005F304CS R208 06-45126-01 RES 510K 5% / MCR01MZS 514J/RC1005J514CS R314, 346 06-00035-02 RES 0.3 Ohom(1608) 1% / ERJ3RQFR30V EXHIBIT 10 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 EXHIBIT 10 3 C67, 79, 80, 54, 107 21-00122-01 CAP 1P +/-0.25 P/ C1005CH1H010C C66 21-00122-02 CAP 1.5P +/-0.25 P / C1005CH1H015C C47, 53, 96, 97, 98 21-00222-01 CAP 2P +/-0.25 P/ C1005CH1H020C/CL05C020CBNC C78 21-00322-01 CAP 3P +/-0.25P / C1005CH1H030C/CL05C030CBNC C16, 21, 24, 29 21-00422-01 CAP 4P +/-0.25 P/ C1005CH1H040C C110 21-00522-01 CAP 5P +/-0.25P / C1005CH1H050C C9 21-00923-01 CAP 9P +/-0.5 P/ C1005CH1H090D/CL05C090DBNC C242, 245, 311, 312 21-01826-01 CAP 18P 5% / C1005CH1H180J C268 21-02726-01 CAP 27P 5% / C1005CH1H270J C246 21-03326-01 CAP 33P 5% / C1005CH1H330J/CL05C330JBN C270 21-03926-01 CAP 39P 5% / C1005CH1H390J/CL05C390JBNC C256, 257, 275 21-04726-01 CAP 47P 5% / C1005CH1H470J C222 21-05626-01 CAP 56P 5% / C1005CH1H560J/CL05C561JBNC C265, 264, 269, 266, 267, 272, 286, 350 21-08226-01 CAP 82P 5% / C1005CH1H820J C203, 239, 240, 241 21-11026-01 CAP 100P 5% / C1005CH1H101J/CL05C101JBNC C84, 86 21-12026-01 CAP 200P 5% / MCH155A201JK C93 21-12227-01 CAP 220P 10% / C1005H1H221K C71 21-13327-01 CAP 330P 10% / C1005JB1H 331K C202 21-14727-01 CAP 470P 10% / C1005CH1H471K C204, 232 21-21027-01 CAP 1000P 10% / C1005JB1H102K/CL05B102KBNC C83 21-22227-01 CAP 2200P 10% / C1005JB1H222K C321 21-24727-01 CAP 4700P 10% / C1005JB1H472K C88 21-25627-01 CAP 5600P 10% / C1005JB1H562K C200, 201, 253, 21-31027-01 CAP 0.01u 10% / C1005JB1C103K/CL05B103KONC C229, 230, 231, 234 21-32227-01 CAP 0.022U 10% / C1005JB1C223K/CL05B223KONC C40, 211, 212, 213, 273, 252, 345, 346, 153, 155 21-41028-01 CAP 0.1UF +80/-20% / C1005JF1C104Z/CL05F104ZONC C56, 347, 280, 90 21-00428-01 CAP(1005) 0.47UF 10V +80/-20% / GRM36Y5V474Z10 C251 21-40638-01 CAP 0.68u 6.3V +80%/-20% /GRM36Y5V684Z C226, 314, 325, 326 21-51028-02 CAP 1UF +80/-20% / C1005Y5V0J105ZT C85 21-36837-01 CAP 0.068uF(1608) 16V 10% / GRM39X7R683K C87 21-38238-02 CAP 0.082UF(1608) +80/-20 / C1608X7R1H823KT C209, 210 21-51038-01 CAP 1UF(1608) +80/-20% / C1608JF1C 105Z/CL10F105ZONC C72, 94, 276, 340 21-02238-01 CAP 2.2uF(1608) +80/-20% / C1608Y5V1A225Z C328, 329 21-52247-03 CAP 2.2uF(2012) +80/-20% /GRM21BF51A225ZA01L C75, 330, 331 21-04747-02 CAP 4.7UF(2012) +/- 10% / C2012JF1A475Z C63, 327, 322 21-61048-03 CAP 10u(2012) 10V / C2012Y5V1A106Z C237, 308, 335 21-62258-03 CAP(3216) 22U 10V / GJ231MF51A226ZD01L C309 21-64768-01 CAP(3225) 47uF 10V +80/-20% / GJ232CF51A476Z01L C225 21-41037-01 CAP(1608) 0.1uF 16V +/- 10% / C1608JB1C104K/CL10B104KONC C278 21-52238-01 TANTAL(1608) 2.2U 10V M / TMCJ1A225MTR/TEESVJ1A225M8R C141 21-61008-01 TANTAL 10UF 6.3V M / TA-6R3TCML100M-PR/TMCP0J106MTR BF200, 202 24-11206-04 IND BEAD 120(OHM) / HB-1M1005-121JT BF201 24-00339-01 IND BEAD(1608) 30 (Ohm) / HB1H1608-300JT L22 24-00102-01 IND 1NH +/-0.3NH / LL1005-FH1N0S L7 24-00102-02 IND 1.2NH +/-0.3NH / LL1005-FH1N2S L11, 13 24-00202-01 IND 2.2NH +/-0.3NH / LL1005-FH2N2S APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 L16, 125 24-00202-02 IND 2.7NH +/-0.3NH / LL1005-FH2N7S L24 24-00302-01 IND 3.3NH +/-0.3NH / LL1005-FH3N3S L10, 15 24-00302-02 IND 3.9NH +/-0.…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report Date of test: Date of Report: 09/30/2003 – 10/04/2003 10/09/2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Firass Badaruzzaman Senior RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56DH1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 5 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 8 References: Appendix 1: SAR distribution comparison for the system accuracy verification 11 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 12 Appendix 3: SAR distribution plots for Body Worn Configuration 16 Appendix 4. Probe Calibration Certificate 19 Appendix 5. Dipole Characterization Certificate 20 Appendix 6: Measurement Uncertainty Budget 21 Appendix 7. Photographs of the device under test 24 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56DH1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type External Location Upper Right Length 84 mm Dimensions Width 5 mm Configuration Helix Device description FCC ID Number IHDT56DH1 Serial number 3D50A909 Mode(s) of Operation AMPS800 CDMA800 CDMA1900 Modulation Mode(s) AMPS CDMA CDMA Maximum Output Power Setting 27.00 dBm 24.50 dBm 24.50 dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824-849MHz 824-849MHz 1851-1909MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN437 18-Mar-04 E-Field Probe ET3DV6 SN1501 16-Apr-04 Dipole Validation Kit, D900V2 SN79 24-Jun-04 S.A.M. Phantom used for 800MHz TP-1132 Dipole Validation Kit, D1800V2 SN246tr 24-Jun-04 S.A.M. Phantom used for 1900MHz TP-1160 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DH1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04632 10/10/2004 Power Meter E4419B GB39511090 2/6/2004 Power Sensor #1 - 8481A US39211007 2/6/2004 Power Sensor #2 - 8481A US39210931 8/5/2004 Network Analyzer HP8753ES US39172529 6/18/2004 Dielectric Probe Kit HP85070B US33020235 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the HP85070 Dielectric Probe Kit These values, along with the temperature of the tissue simulate are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfactory f…

Text truncated - open the document above for the full version.

October 31, 2003 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID: IHDT56DH1) Prepared by: Firass Badaruzzaman Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56DH1). The requested information is addressed below in the same numbering sequence received. 6. Please correct the typo in the SAR report data table, p.8: the AMPS left tilt Antenna Extended value should be 0.252 W/kg to match the plot. Response : Please refer to the following updated table. Left Head (15° Tilt Position) Ant Extended Ant Retracted f (MHz) Description Conducted Output Power (dBm) Measured (W/kg) Drift (dB) Extrapolated (W/kg) Simulate Temp (°C) Measured (W/kg) Drift (dB) Extrapolated (W/kg) Simulate Temp (°C) Channel 991 26.97 Channel 384 26.90 0.252 -0.05 0.26 19.50 0.218 -0.06 0.22 19.50 Analog 800MHz Channel 799 26.93 Channel 1013 24.40 Channel 384 24.61 0.238 -0.06 0.24 19.9 0.202 -0.08 0.21 19.9 Digital 800MHz Channel 779 24.53 Channel 25 24.62 Channel 600 24.63 0.322 0.03 0.32 20 0.37 0.07 0.37 20 Digital 1900MHz Channel 1175 24.43 7. Please provide the following SAR plots: CDMA left tilt ant. ext. CDMA left tilt ant. Retracted CDMA right touch ant. ext. CDMA right touch ant. Retracted All right tilt plots (AMPS, CDMA, PCS, both ext. and retract. antenna) All left touch plots (AMPS, CDMA, PCS, both ext. and retract. antenna) PCS body- clip w/ 90 degree rotation, antenna retracted CDMA body- clip against body, antenna extended CDMA body- clip against body, antenna retracted Response: Please refer to appendix 1 of this supplement. Appendix 1 Requested SAR plots SN# 3D50A909Ch# 384 / Pwr Step: Always Up / Antenna Position: Ext / Battery Model #: SNN5725A / DE VICE POSITION: Cheek touch R5 TP-1132 Sugar SAM Expanded (Rev. 2)-9Jan03 Phantom; Left Hand Section; Position: ( 90°,180°); Frequency: 837 MHz Probe: ET3DV6R - SN1501 - IEEE Head; ConvF(6.40,6.40,6. 40); Crest factor: 1.0; 835 MHz Head & Body: σ = 0.93 mho/m ε r = 43.2 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.14 mW/g, SAR (10g): 0.757 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0Penetration depth: 14.5 (13.2, 16.0) [mm]Powerdrift: -0.11 dB SAR Tot [mW/g] 5.42E-21.63E-12.71E-13.79E-14.88E-15.96E-17.05E-18.13E-19.21E-11.03E+0 10/01/03Motorola, Inc. SN# 3D50A909Ch# 799 / Pwr Step: Always UP / Antenna Position: EXT / Battery Model #: SNN5725A / DE VICE POSITION: Cheek touch R5 TP-1132 Sugar SAM Expanded (Rev. 2)-9Jan03 Phantom; Left Hand Section; Position: ( 90°,180°); Frequency: 849 MHz Probe: ET3DV6R - SN1501 - IEEE Head; ConvF(6.40,6.40,6. 40); Crest factor: 1.0; 835 MHz Head & Body: σ = 0.92 mho/m ε r = 42.7 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.08 mW/g, SAR (10g): 0.710 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 10.0, Dz = 10.0Penetration depth: 14.0 (13.2, 15.1) [mm]Powerdrift: 0.13 dB SAR Tot [mW/g] 5.27E-21.58E-12.64E-13.69E-14.74E-15.80E-16.85E-17.90E-18.96E-11.00E+0 10/01/03Motorola, Inc. SN# 3D50A909Ch# 991 / Pwr Step: Always UP / Antenna Position: EXT / Battery Model #: SNN5725A / DE VICE POSITION: Cheek touch R5 TP-1132 Sugar SAM Expanded (Rev. 2)-9Jan03 Phantom; Lef…

Text truncated - open the document above for the full version.
