IHDT56DN1Portable Cellular/PCS Transceiver (AMPS/CDMA)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DN1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: Dummy Page - To be discarded before printing D RA F T 3 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola T300p wireless phone with Push to Talk capability. Earpiece Headset Jack Insert headset accessory for hands-free use. Status Light See incoming call & service status. Vo l u m e B u t t o n (J) Adjust earpiece & ringer volume. Push to Talk (PTT) Button ( I) Used for two-way communications with other PTT subscribers. Vo i c e Key Make & use voice recordings. Display Microphone Accessory Connector Port Insert charger & phone accessories. Right Soft Key Perform functions identified by right display prompt. Menu Key Power Key/End Key Turn on/off, end phone calls, exit menu system. Scroll Key Scroll through menus & lists. Left Soft Key Perform functions identified by left display prompt. Send Key Send & answer calls, view recent dialed calls list. Speakerphone Button (H) Internal Speakerphone D RA F T 4 Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. TrueSync, Sidekick, Starfish and the Stylized Starfish Logo are registered trademarks of Starfish Software, Inc., a wholly owned independent subsidiary of Motorola, Inc. © Motorola, Inc. 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: TBD Cover number: 8988485L49-O D RA F T 5 Menu Map Main Menu • Phonebook • Recent Calls • Received Calls • Dialed Calls • Notepad • Call Times • Messages • Voicemail • Create Message •Inbox •Outbox • Quick Notes • Drafts • Browser Alerts • Radio * • Get It Now • Get It Now Shop •Browser • Settings • (see next page) • Ring Styles •Style • StyleDetail •My Tones • Picture Viewer • Shortcuts • Calculator • Datebook • Voice Record * This is the standard phone menu layout. Menu organization and feature names may vary on your phone. Not all features may be available for all users. For example, the Radio feature (left) is available only when the optional FM Stereo Radio Headset accessory is plugged into your phone. D RA F T 6 Settings Menu • Ring Styles •Style • Style Detail •My Tones • Phone Status •My Tel. Number • Active Line • Battery Meter • Other Information • Browser Setup • Connection • Incoming Call • In-Call Setup •In-Call Timer •Answer Options • Security • Phone Lock • Lock Application • Restrict Calls •New Passwords • Location • Other Settings • Personalize • Main Menu •Keys •Greeting • Screen Saver • Banner • Initial Setup • Time and Date • SpeakerPhone • Auto PIN Dial • Auto Redial • Backlight • Status Light • Zoom • TTY Setup •Scroll •Animation • Language • Contrast •DTMF •Master Reset • Master Clear •Network • Current Network • Analog Only • Set Mode • Srvc Status •Service Tone • Call Drop Tone • Car Settings • Auto Answer • Auto Hands-Free • Power-Off Delay • Charger Time • Headset • Auto Answer D RA F T 7 Shortcuts Change display text zoom: Press M, then press and hold M (does not zoom graphics). Display my phone number: Press M #. Dial voicemail number: Press and hold 1. Go to dialed calls list: Press N. Exit menu system: Press O. Go to PTT Contacts List: Press I. D RA F T 8 Contents D RA F T 9 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. D RA F T 10 Phone Operation When placing or receiving a phone call, hold your phone as you would a…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56DN1 ATTESTATION STATEMENTS Transceiver type IHDT56DN1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, IL NAME: Tom Urschel TITLE: SENIOR ENGINEERING MANAGER, PERSONAL COMMUNICAITONS SECTOR Page 1 of 2 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56DN1 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56DN1) is in compliance with all applicable parts of the FCC Rules. NAME: Tom Urschel TITLE: SENIOR ENGINEERING MANAGER, PERSONAL COMMUNICAITONS SECTOR Date: 10/31/03 Page 2 of 2 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DN1 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B- Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. Exhibit 2b APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DN1 Exhibit 2c INFORMATION REGARDING ELECTRONIC SERIAL NUMBER (ESN) PROTECTION This cellular transceiver uses a microprocessor to control its call processing operation. This microprocessor accesses a programmable memory area, which is used to store an encrypted data block that contains the Electronic Serial Number (ESN). A proprietary scheme is used to create this data block whereby it is encrypted using methods similarto known public key cryptography methods. It is emphasized that the method used is similar to but different from these known methods and the actual method used is kept proprietary to provide the essential security for the ESN. Also, the transceiver will not operate unless the microprocessor is able to decrypt this data block correctly. Access is controlled to both the method of encryption and to the production/repair equipment that has the ability to program the encrypted data block.

Date: November 6, 2003 Subject: Request for additional information regarding FCC ID: IHDT56DN1 (Cellular/PCS transceiver) Reference: Application Received: 10/31/2003 Correspondence Reference Number: 231106A.IHD Confirmation Number: TC3286 Date of Original Email: 11/06/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1. Please provide tissue parameters and validation test results for SAR tests performed on 10/22/03 and 10/31/03. 2. Please justify SAR testing the EUT in CDMA and PCS modes only for PTT operation (i.e., not testing AMPS for PTT). Response: Please refer to the supplemental SAR report submitted on November 6, 2003 1

APPLICANT: MOTOROLA FCC ID: IHDT56DN1 April 1, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56DN1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular standard in the 800 MHz cellular band, and the Digital CDMA standard in both the 800 MHz and the 1900 MHz PCS bands. Note: This phone provides a user PTT function in the digital CDMA mode. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: February 26, 2004 Subject: Request for additional information regarding FCC ID: IHDT56DN1 (Cellular/PCS transceiver) Reference: Correspondence Reference Number: 111386 731 Confirmation Number: TC566984 Date of Original Email: 02/26/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: The user manual mentions Blue Tooth operations. Please clarify if this device has a BT transmitter. Response: No, there is no co-located Bluetooth transmitter in FCC ID: IHDT56DN1. 1

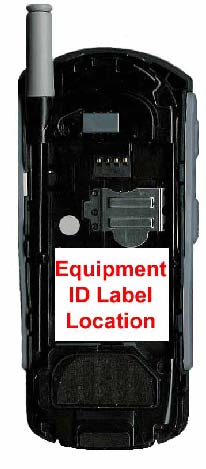

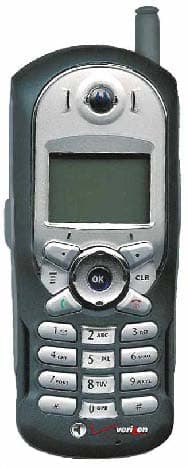

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DJ1 EXHIBIT 3 Front V iew R ear V iew, with B a ttery R emoved to S how E quipment ID L a bel

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DN1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT56DN1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DN1 EXHIBIT 9 Rear View Front View 1 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DN1 EXHIBIT 9 Rear View Shields Removed Front View Shields Removed 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DN1 EXHIBIT 9 Inter nal Views 3 of 3

Applicant: Motorola, Inc. FCC ID: IHDT56DN1 Transceiver Adjustments/Tune-Up Procedure There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Exhibit 10 1 Applicant: Motorola, Inc. FCC ID: IHDT56DN1 Parts List Reference Symbol Part Number Description C1011 2113743L33 CHIP 4700 PF 10% X7R C111 2113743N10 CHIP 2.2 PF +-.25PF COG C113 2113743N07 CHIP 1.5 PF +-.25PF COG C117 2113743L41 CHIP 10000 PF 10% X7R C118 2113743N14 CHIP 3.3 PF +-.25PF COG C124 2113743N44 CHIP 56.0 PF 5% COG C2007 2113928N01 CER CHIP 0.1UF 10% 6.3 C206 2113743N16 CHIP 3.9 PF +-.25PF COG C212 2113928P04 CAP,CER,1UF,,+20%,-20%,,0603 C217 2113928N01 CER CHIP 0.1UF 10% 6.3 C252 2113743N03 CHIP 1.0 PF +-.25PF COG C271 2113743N09 CHIP 2.0 PF +-.25PF COG C274 2113743N36 CHIP 27.0 PF 5% COG C294 2113743N26 CHIP 10.0 PF 5% COG C296 2113743N18 CHIP 4.7 PF +-.25PF COG C297 2113743L17 CHIP 1000 PF 10% X7R C300 2113743N50 CHIP 100 PF 5% COG C3001 2113743N26 CHIP 10.0 PF 5% COG C3002 2113743L17 CHIP 1000 PF 10% X7R C3006 2113743N40 CHIP 39.0 PF 5% COG C3007 2113928P04 CAP,CER,1UF,,+20%,-20%,,0603 C3011 2113743L41 CHIP 10000 PF 10% X7R C3018 2113928E03 CERAMIC CHIP 2.2 UF C3021 2113743A24 CHIP .330 UF 10% 16V C304 2311049A69 TANT CHIP 10.0 UF 20%6.3V C312 2113743L33 CHIP 4700 PF 10% X7R C3800 2113743A31 CHIP 1.0 UF 10% X7R C3802 2113928C12 CAP,CER,10UF,,+10%,-10%,,0805 C3803 2113947B05 DL ARRAY 33.0PF 50V 0504 C400 2113743N30 CHIP 15.0 PF 5% COG C4003 2113947H01 DL ARRAY 100,000PF 6.3V 05 C4005 2113947H01 DL ARRAY 100,000PF 6.3V 05 C4007 2311049A89 TANT CHIP 22 UF 4V10% C4011 2113743L03 CHIP 270 PF 10% X7R C4014 2113743L01 CHIP 220 PF 10% X7R C421 2113743N24 CHIP 8.2 PF + -.5PFCOG C451 2113743N28 CHIP 12.0 PF 5% COG C452 2113743L29 CHIP 3300 PF 10% X7R C50 2113743Q03 CHIP 1.0 PF +/-.1PF 20*40 C500 2113743N50 CHIP 100 PF 5% COG C505 2113743N60 CHIP 5.0PF 16V .25PF COG C506 2113743N65 CHIP 8.0PF 16V .5PF COG C514 2113743L01 CHIP 220 PF 10% X7R C518 2113743N40 CHIP 39.0 PF 5% COG C520 2113743L29 CHIP 3300 PF 10% X7R C527 2113743N32 CHIP 18.0 PF 5% COG Exhibit 10 2 Applicant: Motorola, Inc. FCC ID: IHDT56DN1 C530 2113743L05 CHIP 330 PF 10% X7R C531 2113743L21 CHIP 1500 PF 10% X7R C6006 2113946S35 CAP,MELF,1UF,+/-1500PF,+15 C650 2113928C04 CER CHIP 4.7UF 6.3V10%0805 CR200 4809877C28 VARAC DUAL 400MHZ SOT323 CR500 4809948D39 PIN BAR63-02W ESC 1 CR502 4809877C29 VARAC DUAL 550MHZ SOT323 D5101 4809606E08 DUAL SCHOTTKEY RB715F 2 D6005 4805729G97 ARRAY,,,,,,,,,,,WHT 1 FL100 9185673J02 FLTR,SAW,BAND REJECT FL101 9109239M19 SAW BP 1575MHZ 2520 SMD FL102 9109239M08 SAW BP 1960MHZ 3X3MM SMD FL250 9109142L10 FLTR,XTAL,,183.6MHZMAX FL270 9109405J20 FLTR,SAW,,183.6MHZMAX FL416 9103913K16 SAW BP 836MHZ 3X3MM SMD FL431 9188203L01 FLTR,SAW,,1.88GHZMAX FL450 9185906G09 CER DIPLX 859/1230 2012 FL5100 4889526L01 ESD FLTR 6CH 3X1.3MM 15CSP FL5101 4889526L02 ESD FLTR 4CH 3X1.3MM 15CSP FL600 9188203L02 FLTR,,,,,,,,,,,BAW 1.88/1.960G FL601 9187725N01 FILTER,,,,,,,,,,DUPLEX,836 1 FL602 9188000N01 FLTR,CER,,,,,,,,TRIPLEXER 859 J10 0987636K06 CONN,I/O,F,17,,I/O 17 PINS SM J30 0985645E01 CONNECTOR AUDIO JACK J6000 0962117K02 RECEPTACLE SMT 0.5MM L101 2409154M34 INDUCTOR,CHIP,6.8NH,5%,, 1 L102 2409154M29 INDUCTOR,CHIP,2.7NH,,,.1 1 L104 2409154M17 INDUCTOR,CHIP,22NH,5%,,. 1 L105 2409154M09 INDUCTOR,CHIP,4.7NH,,,.2 1 L106 2409154M04 INDUCTOR,CHIP,1.8NH,,,.1 1 L108 2409154M71 INDUCTOR,CHIP,47NH,5%,,2 1 L109 2409154M39 INDUCTOR,CHIP,18NH,5%,,. 1 L111 2409154M12 INDUCTOR,CHIP,8.2NH,5%,, 1 L112 2409154M10 INDUCTOR,CHIP,5.6NH,5%,, 1 L201 2409154M96 INDUCTOR,CHIP,47NH,5%,14 1 L202 2409154M48 INDUCTOR,CHIP,100NH,5%,, 1 L204 2485793G06 IDCTR,CHIP,15NH,2%,600MA,,SMD L251 2413926N25 CER CHIP 120.0 NH 5% L252 2409377M34 IDCTR,CHIP,150NH,5%,280MA,.92O L271 2409154M73 INDUCTOR,CHIP,68NH,5%,,4 1 L272 2485793G21 CHIP WW 72 NH 2%1608 SMD L274 2409646M22 CER MULTILYR 82 NH 1608 L292 2485793G13 CHIP WW 56 NH 2%1608 SMD L416 2485793G04 CHIP WW 10 NH 2%1608 SMD L50 2409154M33 INDUCTOR,CHIP,5.6NH,,,.2 2 L503 2409646M98 CER MULTILYR 100NH 1608 L506 2409377M19 IDCTR,CHIP,120NH,5%,300MA,.65O L508 2409154M15 INDUCTOR,CHIP,15NH,5%,,. 1 Exhibit 10 3 Applicant: Motorola, Inc. FCC ID: IHDT56DN1 L509 2487685L25 CHIP 7.5NH WW 2% 0603 L513 2409154M37 INDUCTOR,CHIP,12NH,5%,,. 1 L514 2409154M13 INDUCTOR,CHIP,10NH,5%,,. 1 L515 2409154M32 INDUCTOR,CHIP,4.7NH,,,.2 1 L54 2409154M29 INDUCTOR,CHIP,2.7NH,,,.1 2 L601 2409154M13 INDUCTOR,CHIP,10NH,5%,,. 2 L650 2409154M75 INDUCTOR,CHIP,100NH,5%,, 2 M1 3985620D01 CONTACT SPEAKER P1 3985545C01 CONTACTS M3 I85S 2 Q1000 4809939C39 PURPOSE SMALL SIG,,NP 1 Q300 4809608E03 DIG PNP DTA114YE 2 Q3801 4809579E02 MOSFET N-CHAN 25K1830 2 Q3802 4809579E39 FET DUAL FDG6323L SC70-6 Q3804 4809579E29 FET P-CHAN SI3443DV 6TSOP Q400 4809579E23 FET P-CHAN SI2301 SOT23 Q4000 4809939C39 PURPOSE SMALL SIG,,NP 2 Q401 4809939C37 DUAL NPN DIGITAL EMT6 Q600 4809939C34 DUAL PNP EMB10T2R EMT6 R1000 0662057V60 CHIP 8.25 K 1% 0402 R1001 0662057M74 CHIP 1000 5% 20X40 R101 0662057V60 CHIP 8.25 K 1% 0402 R102 0662057U96 CHIP 6.2K 1% 1/16W R201 0662057M70 CHIP 680 5% 20X40 R202 0609591M37 CHIP DUAL 10K 5% 0.63W R250 0662057M84 CHIP 2700 5% 20X40 R270 0662057M86 CHIP 3300 5% 20X40 R271 0662057M01 CHIP 0 5% 20X40 R3002 0662057M58 CHIP 220 5% 20X40 R302 0662057M28 CHIP 12 5% 20X40 R306 0662057N27 CHIP 150K 5% 20X40 R3805 0662057M71 CHIP 750 5% 20X40 R3806 0662057M85 CHIP 3000 5% 20X40 R3808 0609591M37 CHIP DUAL 10K 5% 0.63W R3809 0662057M90 CHIP 4700 5% 20X40 R3810 0662057M43 CHIP 51 5% 20X40 R4002 0609591M29 CHIP DUAL 2.2K 5% 0.63W R4005 0662057N23 CHIP 100K 5% 20X40 R401 0662057N03 CHIP 15K 5% 20X40 R4011 0662057N31 CHIP 220K 5% 20X40 R4014 0662057M86 CHIP 3300 5% 20X40 R4015 0662057V09 CHIP 18K 1% 1/16W R4016 0662057V19 CHIP 47K 1% 1/16W R4018 0662057N09 CHIP 27K 5% 20X40 R403 0662057V61 CHIP 12.1 K 1% 0402 R417 0662057M01 CHIP 0 5% 20X40 R433 2409154M04 INDUCTOR,CHIP,1.8NH,,,…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DN1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56DN1 Date of test: Date of Report: 20-29 Oct, 2003 31 Oct, 2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56DN1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DN1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION...................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................................... 3 2.1 Antenna description.................................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED........................................................................................................................ 3 3.1 Dosimetric System .................................................................................................................................................3 3.2 Additional Equipment...........................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID............................................. 4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................. 5 6. TEST RESULTS........................................................................................................................................ 5 6.1 Head Adjacent Test Results..................................................................................................................................6 6.2 Body Worn Test Results .......................................................................................................................................8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.... 11 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE....................... 12 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION........................... 15 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR PUSH TO TALK CONFIGURATION....................... 17 APPENDIX 5: PROBE CALIBRATION CERTIFICATE.......................................................................... 18 APPENDIX 6: DIPOLE CHARACTERIZATION CERTIFICATE............................................................ 19 APPENDIX 7: MEASUREMENT UNCERTAINTY BUDGET................................................................... 20 APPENDIX 8: PHOTOGRAPHS OF DEVICE UNDER TEST ................................................................... 23 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DN1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56DN1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type Helix Location Right Side Length 75 mm Dimensions Width 8 mm Configuration Extendable b. Device description FCC ID Number IHDT56DN1 Serial number A8EE70AC Mode(s) of Operation 800 AMPS 800 CDMA 1900 PCS Modulation Mode(s) AMPS CDMA PCS Maximum Output Power Setting 27.80 dBm 25.00 dBm 25.00 dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824.04 – 848.97 MHz 824.70 – 848.31 MHz 1851.25 – 1908.75 MHz Production Unit or Identical Prototyp…

Text truncated - open the document above for the full version.

November 6, 2003 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID: IHDT56DN1) Prepared by: Steven Hauswirth Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56DN1) . The requested information is addressed below in the same numbering sequence received. 1. Please provide tissue parameters and validation test results for SAR tests performed on 10/22/03 and 10/31/03. RESPONSE: The table for the additional validation test tissue parameters and test results is shown below. f Dielectric Parameters (MHz) Description SAR (W/kg), 1gram ε r σ (S/m) Ambient Temp (°C) Tissue Temp (°C) Measured, 22-Oct-03 9.7 41.6 0.90 20 19.6 Measured, 31-Oct-03 10.2 42.5 0.92 20 19.8 835 Recommended Limits 10.1 41.5 ±5% 0.90 ±5% 18-25 18-25 Measured, 31-Oct-03 40.5 39.4 1.37 20 19.8 1800 Recommended Limits 39.7 40.0 ±5% 1.4 ±5% 18-25 18-25 Please see Appendix 1 for additional validation test SAR plots. 2. Please justify SAR testing the EUT in CDMA and PCS modes only for PTT operation (i.e., not testing AMPS for PTT). RESPONSE: The PTT mode is only available as an option in the CDMA modes. The PTT mode does not work in AMPS. SAR testing was performed in PTT mode for both CDMA800 and CDMA1900. Appendix 1: Additional SAR Plots Dipole 835 MHz835MHz System Performance Check / Dipole Sn# 425TRForward Power = 253mW Reflected Power = -27.90dBRoom Temp at time of measurement = 20 Simulant Temp at time of measurement = 19.6R1 TP-1005 SAM Expanded S ugar (Rev. 2)-9Jan03; Flat Probe: ET3DV6R - SN1506 - Validation.3; ConvF(6.10,6. 10,6.10); Crest factor: 1.0; 835 MHz VALIDATION: σ = 0.90 mho/m ε r = 41.6 ρ = 1.00 g/cm 3 Cubes (2): Peak: 3.87 mW/g ± 0.06 dB, SAR (1g): 2.46 mW/g ± 0.06 dB, SAR (10g): 1.58 mW/g ± 0.06 dB, (Worst-case extrapol ation) Penetration depth: 12.0 (11.0, 13.4) [mm]Powerdrift: -0.06 dB SAR Tot [mW/g] 2.20E-14.39E-16.59E-18.78E-11.10E+01.32E+01.54E+01.76E+01.98E+02.20E+0 10/22/03Motorola, Inc. Dipole 835 MHz835MHz System Performance Check / Dipole Sn# 425TRForward Power = 253mW Reflected Power = -27.90dBRoom Temp at time of measurement = 20 Simulant Temp at time of measurement = 19.6R1 TP-1005 SAM Expanded Sugar (Rev. 2)-9Jan03 Phanto m; Section; Position: ; Frequency: 835 MHz Probe: ET3DV6R - SN1506 - Validation.3; ConvF(6.10,6. 10,6.10); Crest factor: 1.0; 835 MHz VALIDATION: σ = 0.90 mho/m ε r = 41.6 ρ = 1.00 g/cm 3 : , , ()Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 5.0Penetration depth: 12.0 (11.0, 13.3) [mm]10/22/03Motorola, Inc. 01234 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 SAR tot [mW/g] [mm] Dipole 835 MHz835 MHz System Performance Check / Dipole Sn# 425TRForward Power =254mW Reflected Power =-26.5dBRoom Temp at time of measurement =20 Simulant Temp at time of measurement = 19.8R1 TP-1005 SAM Expanded S ugar (Rev. 2)-9Jan03; Flat Probe: ET3DV6R - SN1506 - Validation.3; ConvF(6.10,6. 10,6.10); Crest factor: 1.0; 835 MHz VALIDATION: σ = 0.92 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Cubes (2): Peak: 4.06 mW/g ± 0.04 dB, SAR (1g): 2.59 mW/g ± 0.04 dB, SAR (10g): 1.66 mW/g ± 0.05 dB, (Worst-case extrapol ation) Penetration depth: 11.9 (10.9, 13.3) [mm]Powerdrift: -0.00 dB SAR Tot [mW/g] 2.31E-14.61E-16.92E-19.22E-11.15E+01.38E+01.61E+01.84E+02.07E+02.31E+0 10/31/03Motorola, Inc. Dipole 835 MHz835 MHz System Performance Check / Dipole Sn# 425TRForward Power =254mW Reflected Power =-26.5dBRoom Temp at time of measurement =20 Simulant Temp at time of measurement = 19.8R1 TP-1005 SAM Expanded Sugar (Rev. 2)-9Jan03 Phanto m; Section; Position: ; Frequency: 835 MHz Probe: ET3DV6R - SN1506 - Validation.3; ConvF(6.10,6. 10,6.10); Crest factor: 1.0; 835 MHz VALIDATION: σ = 0.92 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 : , , ()Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 5.0Penetration depth: 12.0 (11.1, 13.3) [mm]10/31/03Motorola, Inc. 012345 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 SAR tot [mW/g] [mm] Dipole 1800 MHz1800 MHz System Performance Check / Dipole Sn# 250trForward Power =252mW Reflected Power = -22.7dBRoom Temp at time of measurement = 20 Simulant Temp at time of measurement = 19.8R1 TP-1154 GLYCOL SAM Expanded (Rev. 2)-9Jan03; FlatProbe: ET3DV6R - SN1506 - Validation.3; ConvF(4.90,4. 90,4.90); Crest factor: 1.0; 1800 MHz VALIDATION: σ = 1.37 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 Cubes (2): Peak: 18.6 mW/g ± 0.10 dB, SAR (1g): 10.2 mW/g ± 0.07 dB, SAR (10g): 5.35 mW/g ± 0.05 dB, (Worst-case extrapol ation) Penetration depth: 8.6 (8.3, 9.4) [mm]Powerdrift: 0.14 dB SAR Tot [mW/g] 9.59E-11.92E+02.88E+03.84E+04.80E+05.76E+06.72E+07.68E+08.63E+09.59E+0 10/31/03Motorola, Inc. Dipole 1800 MHz1800 MHz System Performance Check / Dipole Sn# 250trForward Power =252mW Reflected Power = -22.7dBRoom Temp at time of measurement = 20 Simulant Temp at time of measurement = 19.8R1 TP-1154 GLYCOL SAM Expanded (Rev. 2)-9Jan03 Phan tom; Section; Position: ; Frequency: 1800 MHz Probe: ET3DV6R - SN1506 - Validation.3; ConvF(4.90,4. 90,4.90); Crest factor: 1.0; 1800 MHz VALIDATION: σ = 1.37 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 : , , ()Z-Axis: Dx =…
