IHDT56DS1Portable Cellular/ PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DS1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola E365 wireless phone. Earpiece Internal Antenna Power Connector Insert charger. Right Soft Key Perform functions identified by right display prompt. Menu Key Open a menu when G displays. Power/End Key Press & hold to turn phone on & off. Press & release to end phone calls, exit menu system. Send/Answer Key Make and answer calls; press in idle to list recently dialed calls. Navigation Key S Scroll through lists, set volume. Left Soft Key Perform functions identified by left display prompt. Microphone Headset Connector Light Sensor Sets backlight for keypad. Lanyard Loop Camera Key Open camera and press to view or capture image. Accessory Connector Insert data cable. 2 Personal Communications Sector (852)2506-3888 (Hong Kong) www.motorola.com.hk (Hong Kong) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. TrueSync, Sidekick, Starfish and the Stylized Starfish Logo are registered trademarks of Starfish Software, Inc., a wholly owned independent subsidiary of Motorola, Inc. All other product or service names are the property of their respective owners. © Motorola, Inc. 2003 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: Cover number: 3 Menu Map Main Menu UMessages * •Create •Inbox • Templates • Outbox •Draft •Voicemail • Message Settings • Voicemail Number • Inbox Setup • Info Alert Setup • Cleanup Settings -Games • Magic II • Bowling King • Bubble Tea • Big 2 Garden • Pacific Storm • Sound Setting • Vibration Setting *Alarm oChat * • Start Chat •History • Clear History :Quick Access &Profile Setting •Normal •Meeting • Outdoor • Handset • Pager (Tools • Datebook • Calculator • Fixed Dial /Settings • (see next page) >More rPhone Book zRecent Calls • Received Calls • Dialed Calls • Missed Calls • NotePad • Call Times • Call Cost vMedia Center •New Picture • Photo Album •Picture • Animation • Melody • VoiceMemo • Download • View Free Space wRing Style )Camera èBrowser * 'Voice Memo êWeb Shortcut Note: Select More when it appears in the menu to see additional menu items. This is the standard phone menu layout. Menu organization and feature names may vary on your phone. Not all features may be available for all users. * optional network, SIM card, or subscription- dependent features 4 Settings Menu Personalize • Caller Groups • Banner • Wallpaper • Animation WAP Profile • Set Profile •Set GPRS Quick Access Setup Call Forward • Voice Calls • Fax Calls • Data Calls • Cancel All Phone Status • My Tel. Numbers • Credit Available • Active Line In Call Setup • In Call Timer • Call Cost Setup • My Caller ID • Call Waiting Security • Phone Lock • Lock Now • Auto Lock • Unlock Code • Lock Keypad • Auto Key Lock • Fixed Dial • Call Barring • Outgoing Calls • Incoming Calls • Cancel All • SIM PIN • Passwords • Unlock Code • Security Code • SIM PIN • SIM PIN2 • Bar Password Initial Setup • Time and Date • Power on/off • Manual Redial • Backlight • Language • Battery Save •Master Reset • Master Clear Network • Avail. Networks • Network Setup Shortcuts View idle menu: Press S in idle View dialed calls list: Press N in idle Open Voice Tag list Press and hold - in idle Lock keypad: Press M* Exit menu system: Press O in a menu * optional network, SIM card, or subscription-dependent features 5 Contents Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Safety and General Information. . . . . . . . . . . . . . . . . . . . . 9 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Changing Your SIM Card . . . . . . . . . . . . . . . . . . . . . . . . 16 Installing Your Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Charging Your Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 21 Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . . 24 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Using the 4-Way Navigation Keys . . . . . . . . . . . . . . . . . 27 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 36 Changing a Code or Password . . . .…

Text truncated - open the document above for the full version.

124 P R E L IMI N A R Y Specific Absorption Rate Data Specific Absorption Rate Data This model wireless phone meets the government’s requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/ kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 1.07 W/kg, and when worn on the body, as described in this user guide, is 0.33 W/kg (Body-worn measurements 125 P R E L IMI N A RY differ among phone models, depending upon available accessories and regulatory requirements). 2 While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site: http://phonefacts.net or the Canadian Wireless Telecommunications Association (CWTA) Web site: http://www.cwta.ca 1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product.

APPLICANT MOTOROLA INC FCC ID: IHDT56DS1 ATTESTATION STATEMENTS The transceiver of type has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, Illinois. I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct NAME: Tony Trandai TITLE: ODM Engineering Director PERSONAL COMMUNICATIONS SECTOR DATE: 9/9/03 The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56DS1) is in compliance with all applicable parts of the FCC Rules. NAME: Chris Wronski TITLE: Compliance Liaison DATE: 9/9/03 Exhibit 2

Date: October 8, 2003 Subject: Request for additional information (FCC ID: IHDT56DS1) Reference: Applicant Received: 9/22/2003 Correspondence Reference Number: 231008A.IHD Confirmation Number: TC3240 Date of Original Email: 10/08/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1. What instrument settings (i.e., RBW, VBW, detector function) were used to make both spurious radiated and conducted emission measurements? Response: Please refer to the revised replacement EMC test report (DS-EX06A) submitted on October 8, 2003. 2. The conducted output powers listed on p.7 of the EMC report are greater than the values listed on p.3 of the SAR report. FCC policy requires that the output power levels in the SAR report be equal to or greater than those in the EMC report. Please address. Response: Please refer to the revised replacement EMC test report (DS-EX06A) submitted on October 8, 2003. 3. The network analyzer on p.4 of the SAR report is listed as being past its cal due date. Please address. Response: Please refer to the supplemental SAR report submitted on October 8, 2003. 4. The cellular band SAR plots list Power Step 5. Please confirm that measurements were performed at the highest available power output. Response: Please refer to the supplemental SAR report submitted on October 8, 2003. 1 5. Please provide SAR data plots for: left head touch for both cellular and PCS; left head tilt for cellular; right head tilt for PCS. Response: Please refer to the supplemental SAR report submitted on October 8, 2003. 6. Please correct p.124 of the user's manual to show the correct maximum SAR level measured, and the proper U.S. limit of 1.6 W/kg. Response: Please refer to the supplemental User’s manual (DS-EX08A) submitted on October 8, 2003. 7. New FCC policy, as of 09/09/03, no longer requires demonstration of blockedge compliance at each frequency block, but only at the highest and lowest edges of the authorized frequency band (e.g., 824 MHz, 849 MHz, 1850 MHz, 1910 MHz). Please resubmit the test report without all of the additional blockedge plots. Response: Please refer to the revised replacement EMC test report (DS-EX06A) submitted on October 8, 2003. 2

APPLICANT: MOTOROLA FCC ID: IHDT56DS1 September 22, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56DS1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

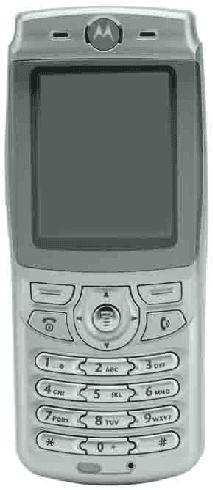

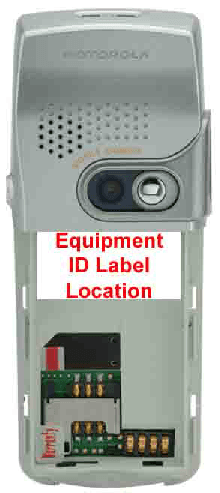

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DS1 EXHIBIT 3 Rear View with Battery Removed to Show Equipment ID Label Front View Rear View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DS1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56DS1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DS1 EXHIBIT 9 Rear View (Shields Removed) 1 of 2 Rear View APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DS1 EXHIBIT 9 Main Board Front View 2 of 2 Rear Housing Internal View

Applicant: Motorola, Inc. FCC ID: IHDT56DS1 Transceiver Adjustments/Tune-Up Procedure There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. Parts List Part lists information follows: Exhibit 10 Applicant: Motorola, Inc. FCC ID: IHDT56DS1 Exhibit 10 Applicant: Motorola, Inc. FCC ID: IHDT56DS1 Exhibit 10 Applicant: Motorola, Inc. FCC ID: IHDT56DS1 Exhibit 10 Applicant: Motorola, Inc. FCC ID: IHDT56DS1 Exhibit 10 Applicant: Motorola, Inc. FCC ID: IHDT56DS1 Exhibit 10 Applicant: Motorola, Inc. FCC ID: IHDT56DS1 Exhibit 10 Applicant: Motorola, Inc. FCC ID: IHDT56DS1 Exhibit 10

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DS1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56DS1 Date of test: Date of Report: 08/22/2003-08/27/2003 09/03/2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Firass Badaruzzaman Senior RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56DS1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DS1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 4 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 8 References: Appendix 1: SAR distribution comparison for the system accuracy verification 9 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 10 Appendix 3: SAR distribution plots for Body Worn Configuration 13 Appendix 4. Probe Calibration Certificate 15 Appendix 5. Dipole Characterization Certificate 16 Appendix 6: Measurement Uncertainty Budget 17 Appendix 7. Photographs of the device under test 20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DS1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56DS1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Internal Antenna Location Back of phone Length 30 mm Dimensions Width 25 mm Configuration Internal Patch Device description FCC ID Number IHDT56DS1 Serial number 35187500003373-8 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GSM GSM Maximum Output Power Setting 32.50 dBm 30.50 dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.20 - 848.80 MHz 1850.20 – 1909.80 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN1522 21-March-04 E-Field Probe ET3DV6 SN434 19-Feb-04 Dipole Validation Kit, D900V2 SN78 24-Jun-04 S.A.M. Phantom used for 800MHz TP-1106 Dipole Validation Kit, D1800V2 SN273tr 24-Jun-04 S.A.M. Phantom used for 1900MHz TP-1235 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DS1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04845 11/5/2004 Power Meter E4419B GB39511086 02/06/2004 Power Sensor #1 - 8481A US37296471 11/5/2003 Power Sensor #2 - 8481A US37296473 11/5/2003 Network Analyzer HP8753ES US39172529 6/18/2003 Dielectric Probe Kit HP85070B US33020235 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the HP85070 Dielectric Probe Kit These values, along with the temperature of the tissue simulate are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters …

Text truncated - open the document above for the full version.

October 8, 2003 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56DS1) Prepared by: Firass Badaruzzaman Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56DS1) . The requested information is addressed below in the same numbering sequence received. 3. The network analyzer on p.4 of the SAR report is listed as being past its cal due date. Please address. Response: Please look at the below updated table for test equipment: Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04845 11/5/2004 Power Meter E4419B GB39511086 02/06/2004 Power Sensor #1 - 8481A US37296471 11/5/2003 Power Sensor #2 - 8481A US37296473 11/5/2003 Network Analyzer HP8753ES US39172529 6/18/2004 Dielectric Probe Kit HP85070B US33020235 4. The cellular band SAR plots list Power Step 5. Please confirm that measurements were performed at the highest available power output. Response: All the tests in 850 MHz band were performed at the highest available power output at power step 5. 5. Please provide SAR data plots for: left head touch for both cellular and PCS; left head tilt for cellular; right head tilt for PCS. Response: Please refer to appendix 1 of the supplement. The channels that had the highest SAR values for the requested configurations have been attached in appendix 1. Appendix 1 (Requested SAR Plots) SN# 5187500003373-8Ch# 251 / Pwr Step: 5 (OTA) / Antenna Position: Internal / Batte ry Model #: SNN5679A / DEVICE POSITION (cheek or rotated): Ch eek R# 2 TP-1106 SUGAR SAM Expanded (Rev. 2)-9Jan03 Phantom; Left Hand Section; Position: ( 90°,180°); Frequency: 849 MHz Probe: ET3DV6 - SN1522 - IEEE Head; ConvF(4.70,4.70,4. 70); Crest factor: 8.0; 835 MHz Head & Body: σ = 0.92 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.05 mW/g, SAR (10g): 0.721 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0Penetration depth: 15.7 (15.2, 16.2) [mm]Powerdrift: -0.06 dB SAR Tot [mW/g] 5.23E-21.57E-12.62E-13.66E-14.71E-15.75E-16.80E-17.85E-18.89E-19.94E-1 08/22/03Motorola, Inc. SN# 35187500003373-8Ch# 190 / Pwr Step: 5 (OTA) / Antenna Position: Internal / Batte ry Model #: SNN5680A / DEVICE POSITION (cheek or rotated): Ti lted R# 2 TP-1106 SUGAR SAM Expanded (Rev. 2)-9Jan03 Phantom; Left Hand Section; Position: ( 90°,180°); Frequency: 837 MHz Probe: ET3DV6 - SN1522 - IEEE Head; ConvF(4.70,4.70,4. 70); Crest factor: 8.0; 835 MHz Head & Body: σ = 0.92 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.531 mW/g, SAR (10g): 0.368 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0Penetration depth: 15.4 (14.8, 16.1) [mm]Powerdrift: -0.05 dB SAR Tot [mW/g] 2.67E-28.00E-21.33E-11.87E-12.40E-12.93E-13.46E-14.00E-14.53E-15.06E-1 08/22/03Motorola, Inc. SN# 35187500003373-8Ch# 661 / Pwr Step: 0 / Antenna Position: Internal / Battery Model #: SNN5679A / DEVICE POSITION (cheek or rotated): Cheek R# 2 TP-1235 GLYCOL SAM Expanded (Rev. 2)-9Jan03 Phantom; Le ft Hand Section; Position: ( 90°,180°); Frequency: 1880 MHz Probe: ET3DV6 - SN1522 - IEEE Head; ConvF(3.40,3.40,3. 40); Crest factor: 8.0; 1880 MHz Head & Body: σ = 1.44 mho/m ε r = 38.2 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.574 mW/g, SAR (10g): 0.321 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0Penetration depth: 9.5 (9.2, 9.9) [mm]Powerdrift: 0.04 dB SAR Tot [mW/g] 2.54E-27.60E-21.27E-11.77E-12.28E-12.79E-13.30E-13.80E-14.31E-14.82E-1 08/25/03Motorola, Inc. SN# 35187500003373-8Ch# 661 / Pwr Step: 0 / Antenna Position: Internal / Battery Model #: SNN5679A / DE VICE POSITION (cheek or rotated): Rotated R# 2 TP-1235 GLYCOL SAM Expanded (Rev. 2)-9Jan03 Phantom; Ri ght Hand Section; Position: ( 90°,180°); Frequency: 1880 MHz Probe: ET3DV6 - SN1522 - IEEE Head; ConvF(3.40,3.40,3. 40); Crest factor: 8.0; 1880 MHz Head & Body: σ = 1.44 mho/m ε r = 38.6 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.586 mW/g, SAR (10g): 0.310 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0Penetration depth: 9.0 (8.5, 9.8) [mm]Powerdrift: 0.28 dB SAR Tot [mW/g] 2.55E-27.65E-21.28E-11.79E-12.29E-12.81E-13.32E-13.83E-14.34E-14.84E-1 08/26/03Motorola, Inc.

APPLICANT: MOTOROLA INC FCC ID: IHDT56DS1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 11761-1 Report Date – September 23, 2003 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : 2003-09-23____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56DS1 Table of Contents Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 9 GSM 850 Reference Plot 9 GSM 850 Occupied Bandwidth Plot 10 GSM 850 A*(Lower) Min. Block Edge 10 GSM 850 A*(Lower) Max Block Edge 11 GSM 850 A Min. Block Edge 11 GSM 850 A Max Block Edge 12 GSM 850 B Min. Block Edge 12 GSM 850 B Max Block Edge 13 GSM 850 A*(Upper) Min. Block Edge 13 GSM 850 A*(Upper) Max Block Edge 14 GSM 850 B* Min. Block Edge 14 GSM 850 B* Max Block Edge 15 GSM 1900 Occupied Band Plot 16 GSM 1900 Reference Plot 16 GSM 1900 A Min. Block Edge 17 GSM 1900 A Max Block Edge 17 GSM 1900 B Min. Block Edge 18 GSM 1900 B Max Block Edge 18 GSM 1900 C, C2, C3 Min. Block Edge 19 GSM 1900 C, C1 Max Block Edge 19 GSM 1900 C, C1 Min. Block Edge 20 GSM 1900 C, C3 Max Block Edge 20 GSM 1900 C, C4 Min. Block Edge 21 GSM 1900 C, C4 Max Block Edge 21 GSM 1900 C, C5 Max Block Edge 22 GSM 1900 D Min. Block Edge 22 GSM 1900 D Max Block Edge 23 GSM 1900 E Min. Block Edge 23 GSM 1900 E Max Block Edge 24 GSM 1900 F Min. Block Edge 24 Test Report Number: 11761-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56DS1 GSM 1900 F Max Block Edge 25 Spurious Emissions at Antenna Terminals 26 GSM 850 Tabular and Graphical Data 27 GSM 1900 Tabular and Graphical Data 28 Field Strength of Spurious Emissions 29 GSM 850 Tabular and Graphical Data 30 GSM 1900 Tabular and Graphical Data 31 Frequency Stability 32 GSM 850 Tabular and Graphical Data 33 GSM 1900 Tabular and Graphical Data 34 Field Strength of Spurious Emissions From Unintentional Radiators GSM 850 Tabular and Graphical Data 36 GSM 1900 Tabular and Graphical Data 37 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 38 Figure A.2 – Substitution Measurement 38 Test Report Number: 11761-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56DS1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900 Model Number: SUG3574AA Seri…
