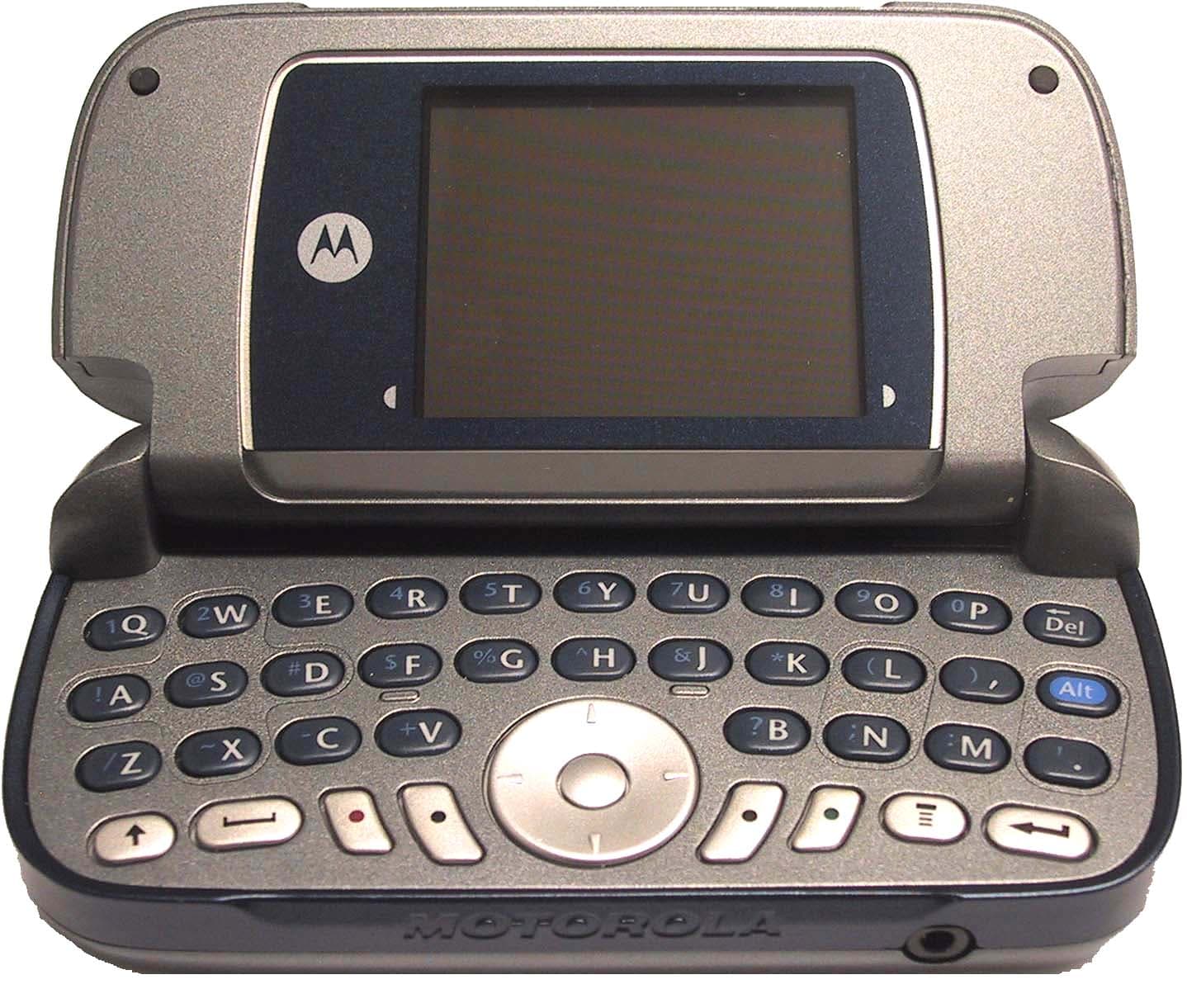

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DY1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola A630 GSM wireless phone. Power & End Key Turn phone on/off, end calls, exit menu system. Right Soft Key Perform functions identified by right display prompt. Menu Key Left Soft Key Perform functions identified by left display prompt. Send Key Make & answer calls, view recently dialed calls list. 5-Way Navigation Key Scroll through menus & lists, set feature values. Space Key Shift Key Enter Key Game Keys Game Keys 2 Check It Out! FeatureDescription Take Photo Press camera button to activate the camera, point lens at subject, press camera button again to take a photo. Camera Lens Take pictures to send to others & use on your phone. External Display View call & menu information. Camera Button Turns camera on and allows user to take pictures. Press and hold allows user to record voice memos. External Keys For lid closed operation. Handsfree Speaker (on back of phone) Volume Keys Adjust earpiece & ringer volume. Zoom in & out when taking a picture. Headset Jack Insert headset accessory for handsfree use. Ok and Send Key Move forward in menus, make & answer calls & view recent calls list. Back, End & Power Key Go back in menus, end calls & turn the phone On or Off. Menu & Up & Down Keys Access the menu and scroll up and down. Accessory Connector Port Insert charger & phone accessories. Antenna (on back of phone; internal antenna) 3 Send Photo Send the photo to a phone number or email address: Press X >Postcard or Email Set Photo as Picture Caller ID Assign a photo to a phonebook entry to enable picture caller ID: m >Multimedia >Pictures >photo m >Apply As >Phonebook Entry Send Multimedia Message Send a multimedia message with pictures, animations, sounds: m >Messages >Create Message > New Postcard Send LetterSend a multimedia letter: m >Messages >Create Message > New Letter Read Multimedia Message Read a new multimedia message or letter that you have received: Press Readr Play Video Clip Play a video clip: m >Multimedia >Videos >video clip Wireless Connection Setup a Bluetooth™ wireless connection to a headset accessory, car kit, or external device: m >Extras >Settings >Connection > Bluetooth Link >Handsfree >[Look For Devices] Play Games Play a game: m >Games & Apps >game FeatureDescription 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc. 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number:XXX... Cover number:YYY... 5 Contents Safety and General Information. . . . . . . . . . . . . . . . . . . . 8 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . 15 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 20 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Taking and Sending a Photo . . . . . . . . . . . . . . . . . . . . . 22 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . 25 Receiving a Multimedia Message . . . . . . . . . . . . . . . . . 27 Playing Video Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Using a Bluetooth Wireless Connection . . . . . . . . . . . . 29 Using an Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . 30 Playing Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 33 Using the External Keypad . . . . . . . . . . . . . . . . . . . . . . 33 Using the Internal Display . . . . . . . . . . . . . . . . . . . . . . . 38 Using the 5-Way Navigation Key . . . . . . . . . . . . . . . . . . 42 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Entering Text . . . . . . . . . .…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56DY1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type IHDT56DY1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 N. US Highway 45, Libertyville, Illinois. NAME: Jay Smith TITLE: Engineering Manager Personal Communications Sector Date: 3/25/04 Page 1 of 2 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56DY1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56DY1) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola PCS Date: 3/25/04 Page 2 of 2 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT56DY1 March 25, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56DY1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT: MOTOROLA FCC ID: IHDT56DY1 June 17, 2004 Amendment For FCC ID: IHDT56DY1 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification (Amendment to Pending Application) Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits items to amend the pending application for Certification of Cellular Transceiver, FCC ID: IHDT56DY1. Motorola is the manufacturer of this equipment. Description of Change: The main PCB is revised, and an addendum is submitted to update the SAR report. No EMC change is reported. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

APPLICANT: MOTOROLA, INC FCC ID: IHDT56DY1 Front view Rear view with battery removed to show equipment ID label Exhibit 3 1 APPLICANT: MOTOROLA, INC FCC ID: IHDT56DY1 Opened View Exhibit 3 2

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DY1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT56DY1

Applicant: Motorola, Inc. FCC ID: IHDT56DY1 Exhibit 9 1 of 2 Front view (shields removed) Rear view (shields removed) Applicant: Motorola, Inc. FCC ID: IHDT56DY1 Exhibit 9 2 of 2 Front cover from inside Battery cover from inside Qwerty keypad from inside

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DY1 E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report IHDT56DY1 Date of test: Date of Report: 11 – 12 March, 2004 15 March, 2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56DY1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION...................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................................... 3 2.1 Antenna description.................................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED........................................................................................................................ 3 3.1 Dosimetric System .................................................................................................................................................3 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID............................................. 4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................. 5 6. TEST RESULTS........................................................................................................................................ 5 6.1 Head Adjacent Test Results..................................................................................................................................6 6.2 Body Worn Test Results .......................................................................................................................................7 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION...... 9 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE....................... 10 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION........................... 13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE.......................................................................... 15 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................ 16 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET................................................................... 17 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ................................................................... 20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56DY1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type Internal Location Top on Backside of Phone Length 40 mm Dimensions Width 21 mm Configuration Internal Patch b. Device description FCC ID Number IHDT56DY1 Serial number 4400003830492 Mode(s) of Operation GSM 850 GSM 1800 GSM 1900 GPRS 850 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 33.50 dBm 30.00 dBm 30.00 dBm 33.50 dBm 30.00 dBm 30.00 dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 824.2- 848.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncon…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: Addendum SAR Test Report IHDT56DY1 Date of test: Date of Report: 20 – 21 May, 2004 03 June 2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests: Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56DY1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION..............................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST......................................................................................3 2.1 Antenna description................................................................................................................................................................. 3 2.2 Device description.....................................................................................................................................................................3 3. TEST EQUIPMENT USED...................................................................................................................3 3.1 Dosimetric System................................................................................................................................................................... 3 3.2 Additional Equipment...............................................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID......................................................4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................5 6. TEST RESULTS................................................................................................................................6 6.1 Head Adjacent Test Results....................................................................................................................................................6 6.2 Body Worn Test Results.........................................................................................................................................................8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.................10 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE.................................11 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...................................12 APPENDIX 4: PROBE CALIBRATION CERTIFICATE............................................................................14 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE.................................................................15 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET.......................................................................16 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST..................................................................19 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56DY1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type Internal Location Top on Backside of Phone Length 40 mm Dimensions Width 21 mm Configuration Internal Patch b. Device description FCC ID Number IHDT56DY1 Serial number 4400003820287 Mode(s) of Operation GSM 850 GSM 1800 GSM 1900 GPRS 850 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 33.00dBm 30.00dBm 30.00dBm 33.00dBm 30.00dBm 30.00dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 824.2-848.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz Productio…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56DY1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 12580-2 Report Date – March 11, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : 2004-03-11____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56DY1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 850 Reference Level Plot 9 GSM 850 Occupied Bandwidth Plot 9 GSM 850 Ch128 Lower Band Edge 10 GSM 850 Ch251 Upper Band Edge 10 GSM 1900 Occupied Band Plot 11 GSM 1900 Reference Plot 11 GSM 1900 Ch512 Lower Band Edge 12 GSM 1900 Ch810 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 850 Tabular and Graphical Data 14 GSM 1900 Tabular and Graphical Data 15 Field Strength of Spurious Emissions 16 GSM 850 Tabular and Graphical Data 17 GSM 1900 Tabular and Graphical Data 18 Frequency Stability 19 GSM 850 Tabular and Graphical Data 20 GSM 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions from Unintentional Radiators 22 GSM 850 Tabular and Graphical Data 23 GSM 1900 Tabular and Graphical Data 24 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 25 Figure A.2 – Substitution Measurement 25 Test Report Number: 12580-2 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56DY1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900, Bluetooth Model Number: A630 Version: SUG3725AA Serial Numbers: 004400-00-383352-0, 004400-00-380117-0 Testing Complete Date: March 11, 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 12580-2 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56DY1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 14.9 dB 6 Field Strength of Spurious Emissions 7.8dB 7 Frequency Stability 83.83 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 12580-2 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56DY1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ETSDRG Horn Antenna31156222 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712654/29/2004 ETSLog-Periodic Antenna314811894/29/2004 ETSBiconical Antenna3110B33694/29/2004 ETSBiconical Antenna3110B337011/14/2004 AttenuatorWeinschel AS-6667510/14/2004 AttenuatorWeinschel AS-6667711/4/2004 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett Packard Signal Generator 83623B 3844A01195 5/20/2004 ThermotronEnvironmental ChamberS-4315801/5/2005 Hewlett PackardPre-Amplifier8347A11/4/2004 Hewlett PackardPre-Amplifier8447F2805A034195/19/2004 AgilentPower MeterEE4418B12/5/2004 AgilentSensorE4412B11/23/2004 All equipment is on a one-year calibration cycle. Test Report Number: 12580-2 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56DY1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR Part …
