IHDT56EC1Licensed Portable with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: START HERE > D RA F T 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola wireless phone. Headset Jack Insert headset accessory for handsfree use. Volume Keys Adjust earpiece & ringer volume. Vo i c e Key Create voice records, phonebook & shortcut names. Accessory Connector Port Insert charger & phone accessories. Power & End Key Turn phone on/off, end calls, exit menu system. Right Soft Key Perform functions identified by right display prompt. Menu Key Left Soft Key Perform functions identified by left display prompt. Send Key Make & answer calls, view recently dialed calls list. 5-Way Navigation Key Scroll through menus & lists, set feature values. Smart Key Select menu items, make & end calls. D RA F T 2 Check It Out! FeatureDescription Take Photo Press CAMERA (+) to activate the camera, point lens at subject, press CAPTURE (+) to take a photo. Send Photo Send the photo to a phone number or email address: Press STORE (+) > Send In Message. Set Photo as Picture Caller ID Assign a photo to a phonebook entry to enable picture caller ID: M > Multimedia > Pictures > photo M > Apply As Phonebook Entry Mirror Aim camera lens for self portraits Camera Lens Take photos to send to others & use on your phone External Display View incoming call, SMS, datebook, & other status information Camera Key Press to snap photos. Integrated Short- Range Flash Projected from behind logo when taking flash photos. D RA F T 3 Send Multimedia Message Send a multimedia message with pictures, animations, sounds: M > Messages > Create Message > New Multimedia Msg Send Letter Send a multimedia letter: M > Messages > Create Message > New Letter Read Multimedia Message Read a new multimedia message or letter that you have received: Press READ (+). Play Video Clip Play a video clip: M > Multimedia > Videos > video clip Wireless Connection Set up a Bluetooth™ wireless connection to a headset accessory, car kit, or external device: M > Settings > Connection > Bluetooth Link > Handsfree > [Look For Devices] FeatureDescription D RA F T 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc. 2004 Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: Cover number:8988485L61-O D RA F T 5 Contents Safety and General Information. . . . . . . . . . . . . . . . . . . . 8 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Turning On Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . 18 Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Changing the Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . 21 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 21 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Taking and Sending a Photo . . . . . . . . . . . . . . . . . . . . . 22 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . 24 Receiving a Multimedia Message . . . . . . . . . . . . . . . . . 26 Playing Video Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Using a Bluetooth Wireless Connection . . . . . . . . . . . . 27 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 29 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Using the 5-Way Navigation Key . . . . . . . . . . . . . . . . . . 33 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Using the Status Light . . . . . . . . . . . . . . . . . . . . . . . . . . 46 U…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT56EC1) for tri-Mode mobile station cellular use is capable of compliance with the TIA/EIA-95-B Mobile Station-Base Station Compatibility Standards for Dual-Mode Spread Spectrum Systems, December 1998. Furthermore, we certify compliance to ANSI/TIA/EIA-553-A-1999, Mobile Station-Land Station Compatibility Specification. Glenn Schultz Engineering Manager Motorola PCS 600 N US Highway 45 Libertyville, IL 60048 Phone – 8475235867 Email – [email protected] Exhibit 2A APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. Glenn Schultz Engineering Manager Motorola PCS 600 N US Highway 45 Libertyville, IL 60048 Phone – 8475235867 Email – [email protected] Exhibit 2B APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. Exhibit 2C

Date: February 12, 2004 Subject: Request for additional information regarding FCC ID: IHDT56EC1 (Portable Cellular/PCS CDMA/AMPS transceiver with embedded Bluetooth) Reference: Application Received: 02/06/2004 Correspondence Reference Number: 240211A.IHD Confirmation Number: TC4031 Date of Original Email: 02/11/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: Regarding the 15.247 application: 1. Please address the various descriptive requirements for Frequency Hoppers listed in Section 15.247(a)(1): pseudorandom hopping sequence? equal channel use on average? RX has the capability to hop? RX input bandwidth matches the transmitted signal bandwidth? Response: Bluetooth is implemented with the Silicon Wave single-chip SiW1712 (TM) radio modem. This device is a standalone baseband processor with an integrated 2.4 GHz transceiver. It is completely compliant with the Bluetooth 1.1 specification and Part 15.247. The frequency hopping is pseudorandom and average channel usage is equal. The RX has the ability to hop in sync with the TX, and. the RX bandwidth is approximately equal to the TX Bandwidth. Additional details follow: a) Description of hopping sequence generation. The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB's of the 48-bit BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB's of the 48-bit BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronization with other units only offsets are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits) (Input 1) and the 27 MSB's of the clock (Input 2) 1 are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. b) Explanation of how each channel is used equally on average. In total, 5 types of hopping sequences are defined. These sequences are: * A page hopping sequence with 32 unique wake-up frequencies distributed equally over the 79 MHz band, with a period length of 32; * An inquiry sequence with 32 unique wake-up frequencies distributed equally over the 79 MHz band, with a period length of 32; * A channel hopping sequence which has a very long period length, which does not show repetitive patterns over a short time interval, but which distributes the hop frequencies equally over the 79 MHz during a long time interval; For the generation of the inquiry and page hop sequences the same procedures as described for the data mode are used, but this time with different input vectors: **For the inquiry hop sequence, a predefined fixed address is always used. This results in the same 32 frequencies used by all devices doing an inquiry but every time with a different start frequency and phase in this sequence. **For the page hop sequence, the device address of the paged unit is used as input vector. This results in the use of a subset of 32 frequencies which is specific for that initial state of the connection establishment between the two units. A page to different devices would result in a different subset of 32 frequencies. 2. Please address Sections 15.247(g) and (h). Response: Bluetooth is implemented with the Silicon Wave single-chip SiW1712 (TM) radio modem which is completely compliant with the Bluetooth 1.1 specification and Part 15.247. a) CFR47, 15.247(g): Description of compliance for a true frequency hopping system. Excerpted from the Bluetooth specification: "Bluetooth operates in the unlicensed ISM band at 2.4 GHz. A frequency hop transceiver is applied to combat interference and fading. A shaped, binary FM modulation is applied to minimize transceiver complexity. The symbol rate is 1 Ms/s. A slotted channel is applied with a nominal slot length of 625 μs. For full duplex transmission, a Time-Division Duplex (TDD) scheme is used. On the channel, information is exchanged through packets. Each packet is transmitted on a different hop frequency. A packet nominally covers a single slot, but can be extended to cover up to five slots." "The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1600 hops/s. All Bluetooth units participating in the piconet are time- and hop-synchronized to the channel." b) CFR47, 15.247(h): Description of compliance to ability to avoid simultaneous occupancy of individual hopping frequencies by multiple transmitters. 2 Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consists of a maximum of eight Bluetooth units. One unit is the master the other seven are the slaves. The master coordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from its BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. Since the Hop Sequences are determined within the piconet, independent of other piconet's behavior, they do…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA FCC ID: IHDT56EC1 February 4, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56EC1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular standard in the 800 MHz cellular band, and the Digital CDMA standard in both the 800 MHz and the 1900 MHz PCS bands. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

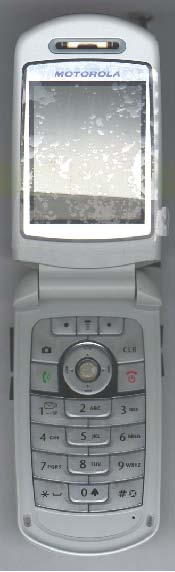

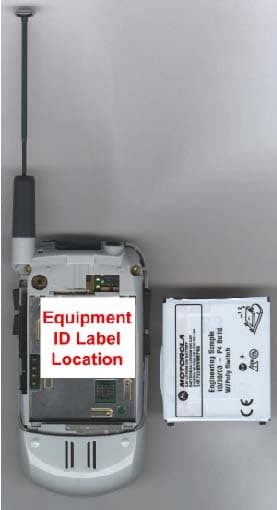

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened Front View APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 EXHIBIT 3B Rear View with Battery Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56EC1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56EC1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 EXHIBIT 9 Front View Rear View 1 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EA1 EXHIBIT 9 Main Board (keypad installed) Main Board (shields on) 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 EXHIBIT 9 Housing Inter nal Views 3 of 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56EC1 Date of test: Date of Report: 01/17/2004 – 01/28/2004 02/06/2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56EC1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION......................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST....................................................................................3 2.1 Antenna description................................................................................................................................................ 3 2.2 Device description ................................................................................................................................................. 3 3. TEST EQUIPMENT USED........................................................................................................................3 3.1 Dosimetric System................................................................................................................................................. 3 3.2 Additional Equipment .......................................................................................................................................... 4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID.............................................4 5. SYSTEM ACCURACY VERIFICATION..................................................................................................5 6. TEST RESULTS........................................................................................................................................6 6.1 Head Adjacent Test Results ................................................................................................................................. 6 6.2 Body Worn Test Results ....................................................................................................................................... 9 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION....11 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE........................12 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...........................17 APPENDIX 4: PROBE CALIBRATION CERTIFICATE...........................................................................21 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................22 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET...................................................................23 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ....................................................................26 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EC1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56CE1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type External Location Upper Right Length 114 mm Dimensions Width 8 mm Configuration Extendable Whip b. Device description FCC ID Number IHDT56CE1 Serial number 77047F51 Mode(s) of Operation 800 AMPS 800 CDMA 1900 CDMA Modulation Mode(s) AMPS CDMA CDMA Maximum Output Power Setting 27.80 dBm 25.00 dBm 25.00 dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824-849MHz 824-849MHz 1851-1909MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessmen…

Text truncated - open the document above for the full version.

February 12, 2004 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56EC1) Prepared by: Albert Patapack Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56EC1) . The requested information is addressed below in the same numbering sequence received. 6. The tissue parameters for PCS SAR head testing taken on 1/24/04 and listed in the Table on p.4 do not match those listed on the following SAR plots: PCS right touch antenna extended; PCS right touch antenna retracted; PCS right tilt antenna retracted. I note that the tissue parameters listed on the SAR plots of other PCS head tests performed on the same day do match the values listed in the Table. It appears as though another line entry of tissue parameters, for those tests listed above, must be added to the Table on p.4. Please address. Response:The dielectric parameters table on page 4 of the SAR test report was missing a set of head parameters for 01/24/2004. The corrected table is below: Table for Page 4 of SAR Report Dielectric Parameters f (MHz) Tissue type Limits / Measured ε r σ (S/m) Temp (°C) Measured, 01/17/2004 42.0 0.92 19.6 Measured, 01/18/2004 42.1 0.92 20.0 Measured, 01/19/2004 40.9 0.90 19.2 Head Recommended Limits 41.5 ±5% 0.90 ±5% 18-25 Measured, 01/19/2004 53.5 0.98 19.0 Measured, 01/20/2004 52.6 0.98 19.3 835 Body Recommended Limits 55.2 ±5% 0.97 ±5% 18-25 Measured, 01/24/2004 39.1 1.47 19.5 Measured, 01/24/2004 38.5 1.46 19.5 Measured, 01/27/2004 38.6 1.44 18.1 Head Recommended Limits 40.0 ±5% 1.40 ±5% 18-25 Measured, 01/25/2004 52.1 1.58 18.5 Measured, 01/28/2004 52.4 1.59 19.1 1880 Body Recommended Limits 53.3 ±5% 1.52 ±5% 18-25

1250 Peterson Dr., Wheeling, IL 60090 Page - 1 - Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 FCC Rules and Regulations / Intentional Radiators Operational in the 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz, Bands Part 15, Subpart C, Section 15.247 and Sections 15.31(m), 15.203, 15.204, 15.205, 15.207, & 15.209 USING FCC Public Notice DA 00-705 Filing and Measurement Guidelines for Frequency Hoping Spread Spectrum Systems THE FOLLOWING ''MEETS'' THE ABOVE TEST SPECIFICATION Formal Name: V710 Kind of Equipment: Mobile Phone Test Configuration: Connection Mode with other products - Conducted (via a RF cable) & Radiated (via Antenna) Model Number(s): SUG3171AA Model(s) Tested: SUG3171AA Serial Number(s): 77047CB2 & 77047CC2 Date of Tests: November 20, 21 & 26, 2003 Test Conducted For: Motorola Inc 600 N US Highway 45 Libertyville, Illinois 60048 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems. 1250 Peterson Dr., Wheeling, IL 60090 Page - 2 - Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company Official: Motorola Inc 1250 Peterson Dr., Wheeling, IL 6009 Page -3- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -4- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -5- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -6- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -7- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -8- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -9- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -10- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -11- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -12- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 1250 Peterson Dr., Wheeling, IL 6009 Page -13- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 TABLE OF CONTENTS i. Cover Page .......................................................................................................................................1 ii. Signature Page .................................................................................................................................2 iii. NVLAP Certificate of Accreditation ...............................................................................................3 iv. NVLAP Scope of Accreditation ......................................................................................................4 v. Table of Contents ...........................................................................................................................13 1.0 Summary of Test Report ................................................................................................................15 2.0 Introduction....................................................................................................................................15 3.0 Object .............................................................................................................................................15 4.0 Test Set-Up ....................................................................................................................................16 5.0 Test Equipment ..............................................................................................................................17 6.0 Ambient Measurements .................................................................................................................18 7.0 Description of Test Sample............................................................................................................19 8.0 Additional Description of Test Sample..........................................................................................22 9.0 Photo Information and Test Set-Up ...............................................................................................23 10.0 Radiated Photos Taken During Testing .........................................................................................24 11.0 Results of Tests ..............................................................................................................................27 12.0 Conclusion .....................................................................................................................................27 TABLE 1 – EQUIPMENT LIST ...............................................................................................................28 1250 Peterson Dr., Wheeling, IL 6009 Page -14- Company: Motorola Inc Model Tested: SUG3171AA Report Number: 10440 TABLE OF CONTENTS Appendix A – Electric Field Radiated Emissions Test..............................................................................30 1.0 Conducted Emission Measurements ..............................................................................................31 1.0 Conducted Data and Graph(s) taken during testing .......................................................................32 2.0 Spurious Emissions at the Antenna Terminals .....................................................…

Text truncated - open the document above for the full version.
